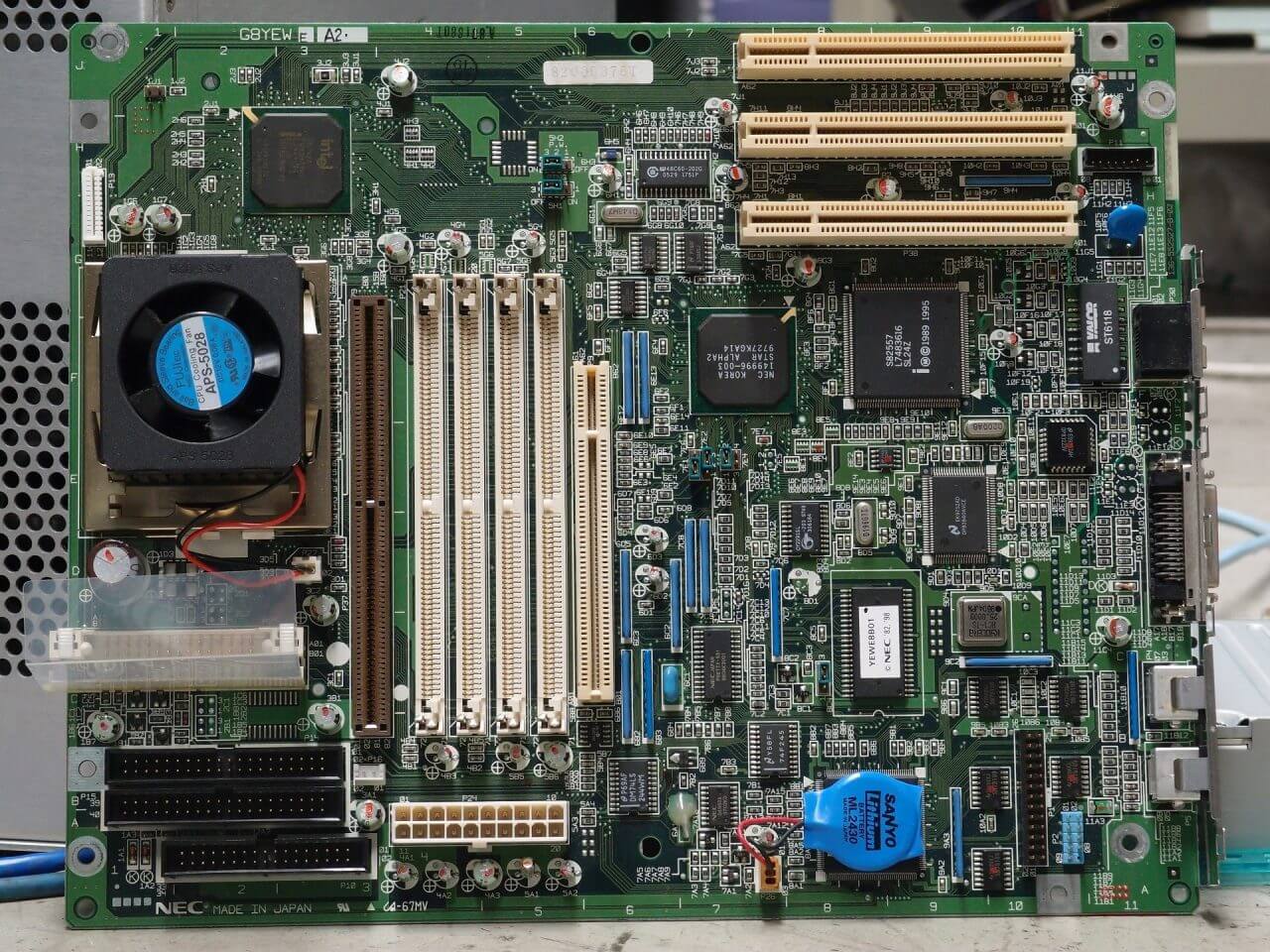

What Are Motherboards Made Of? 2026 Guide

Every desktop, laptop, and server inside a computer case starts with one shared foundation: a flat sheet of layered material covered in microscopic copper highways. When someone asks what are motherboards made of, the short answer is FR4 fiberglass-reinforced epoxy, copper traces, gold-plated contacts, lead-free solder, aluminum heatsinks, and silicon chips. Those six material groups work together to create the printed circuit board that every other component plugs into. In 2026, the manufacturing process has become far more precise than it was even a decade ago, with consumer boards routinely carrying six to ten internal copper layers and server boards pushing past twenty.

Understanding motherboard composition is not just trivia for enthusiasts. It helps builders know why a scratched back panel can expose live copper, why drilling a hole through a board will destroy internal traces, and why certain boards cost significantly more than others. The materials inside a motherboard also determine its fire resistance, thermal behavior, and electrical performance. This guide walks through each material, how the board is fabricated, and what modern factories do to guarantee quality before the unit ever reaches a retail box.

Before breaking down the raw materials, it is useful to understand exactly what a motherboard is and why it matters so much to the rest of the system. If you are new to PC hardware, you can read our companion piece on what a motherboard is and how it functions as the central nervous system of a computer.

What Is a Motherboard?

A motherboard is the main printed circuit board inside a computer. Its primary job is to provide physical slots and electrical pathways so that the processor, memory, storage, graphics card, and peripherals can communicate at high speed. Without it, every other part would be an isolated component with no way to share data or power.

Physically, a motherboard is a multilayer PCB. The abbreviation stands for Printed Circuit Board, and the “printed” part refers to the photolithographic process that etches copper traces onto the substrate. Those traces are the conductive highways that move electrons from the power supply to the CPU, from the CPU to RAM, and from the chipset to every USB port. Embedded into the board are also passive components such as resistors, capacitors, and inductors that filter voltage and maintain signal stability.

Modern motherboards come in standardized form factors such as ATX, Micro-ATX, and Mini-ITX. The form factor dictates the physical size, mounting hole positions, and expansion slot layout. Regardless of size, every consumer motherboard today is built on a fiberglass-reinforced epoxy substrate, which is why the board feels rigid and slightly rough when you tap an edge. That substrate is not plastic, even though it can look similar at a glance.

Main Motherboard Components — What Are Motherboards Made Of?

When engineers talk about motherboard composition, they usually break it into two categories: the base substrate and the functional materials that sit on top of it. The substrate is the physical skeleton, while the functional materials handle electricity, heat, and data.

The substrate is almost always FR4, a fire-resistant grade of fiberglass-reinforced epoxy laminate. FR4 gets its name from the NEMA classification: the “F” stands for flame retardant, and the “R” indicates reinforced. The material is a sandwich of woven glass cloth soaked in epoxy resin, then pressed and cured under heat until it becomes a solid, nonconductive sheet. FR4 is preferred because it resists ignition, maintains structural rigidity, and does not conduct electricity, which prevents traces from shorting against each other through the board itself.

On top of that substrate, manufacturers bond thin copper foil to create the conductive traces. Copper is chosen for its excellent electrical conductivity and relatively low cost. A typical consumer motherboard uses one-ounce copper per square foot, which is roughly 35 micrometers thick. High-end server or overclocking boards may use two-ounce copper to handle higher current loads. The copper is not simply glued on; it is chemically bonded through a heat and pressure lamination process that creates a permanent adhesive interface.

Where components plug into the board, you will often find gold or silver plating. The CPU socket pins, RAM slot contacts, and PCIe connector fingers are usually plated with a few microns of gold. Gold does not corrode or oxidize the way copper does, so it keeps electrical resistance low over years of thermal cycling and humidity. Some budget connectors use silver or nickel alloys instead, but gold remains the industry standard for high-reliability interfaces.

Solder is the glue that locks components to the copper traces. Since the European Union’s RoHS directive took full effect, nearly all consumer motherboards use lead-free solder, typically a tin-silver-copper alloy. Lead-free solder melts at a slightly higher temperature than older tin-lead formulations, so modern assembly lines use reflow ovens that peak around 245 to 260 degrees Celsius. After cooling, the solder forms both an electrical and mechanical bond between the component and the board.

Aluminum appears on motherboards in the form of heatsinks and thermal pads. The voltage regulator modules, chipset, and sometimes the M.2 slots are covered by aluminum blocks that absorb and dissipate heat into the surrounding air. Aluminum is lightweight, cheap, and conducts heat well enough for most onboard components. On premium boards, you may see copper heat pipes or nickel-plated bases, but aluminum remains the dominant material for motherboard-level cooling.

Finally, silicon is the semiconductor material inside every chip mounted on the board. The CPU, chipset, network controller, USB controller, and audio codec are all silicon dies packaged in plastic or ceramic housings. While silicon is not a structural part of the motherboard itself, it is impossible to separate the board from the silicon components that give it purpose. The motherboard exists to connect those silicon islands together.

Plastic and composite materials do appear on a motherboard, but they are used for connector housings, slot latches, and the outer packaging of integrated circuits. The actual substrate is not plastic; it is FR4 fiberglass. If you scratch the back of a board and see woven fibers beneath the copper, you are looking at the glass cloth inside the FR4 laminate. That is one reason why drilling or cutting a motherboard is so dangerous: the drill bit tears through the woven glass and severs copper traces that may be buried several layers deep.

Motherboard Materials at a Glance

The table below summarizes the primary materials found on a typical motherboard, where they are located, and why they are chosen.

Material	Location on Board	Primary Function
FR4 Fiberglass-Epoxy	Substrate (core of PCB)	Structural rigidity, electrical insulation, fire resistance
Copper	Traces, planes, pads	Electrical conductivity for power and signals
Gold	Socket contacts, edge fingers	Corrosion resistance, low-contact resistance
Lead-Free Solder	Component joints, vias	Mechanical and electrical bonding
Aluminum	Heatsinks, thermal covers	Thermal dissipation for VRMs and chipsets
Silicon	Inside chips (CPU, chipset, etc.)	Semiconductor processing and logic
Solder Mask	Top and bottom surfaces	Insulation, oxidation protection, color

Most users never see the layers beneath the green or black surface coating, but a typical desktop motherboard in 2026 contains four to six copper layers. Enthusiast and workstation boards may have eight to ten layers, while server motherboards can exceed sixteen layers to handle dense routing and memory channels. Each layer is a separate copper pattern laminated between sheets of FR4. The layers are connected vertically by small drilled holes called vias, which are plated with copper so signals can travel from the top of the board to the bottom.

Why Are Motherboards Green?

One of the most common questions about motherboard materials is why the boards are green. The color comes from the solder mask, a thin layer of polymer resin applied over the copper traces after the board is etched. Solder mask serves two engineering purposes: it prevents accidental solder bridges during assembly, and it protects the copper from oxidation and moisture. Without solder mask, the exposed copper would tarnish within weeks and eventually fail to conduct reliably.

The traditional green hue is a legacy choice from early PCB manufacturing. In the past, the pigment used in solder mask epoxy happened to produce a green color, and factory technicians found that green offered the best contrast against the white silkscreen labels and copper traces underneath. Over time, the color became an industry standard simply because it worked well for optical inspection and human readability.

In 2026, manufacturers offer solder masks in black, white, blue, red, and even grey. The color has no effect on performance. A black motherboard does not run hotter or colder than a green one. The pigment is purely cosmetic. Some builders prefer black because it blends better with dark tempered-glass cases, while others prefer white for clean aesthetic builds. For a deeper look at the history and engineering behind the color, read our full guide on why motherboards are green.

Motherboard Manufacturing Process

Turning a stack of FR4 sheets and copper foil into a working motherboard takes dozens of precise steps. The process can be grouped into four broad phases: substrate preparation, layer lamination and drilling, pattern etching, and component assembly. Modern factories run many of these steps under climate-controlled conditions because dust, humidity, or temperature swings can ruin a board that carries thousands of microscopic traces.

Substrate preparation begins with raw FR4 panels. The panels are cut to size, cleaned, and then coated with copper foil on both sides. For a simple two-layer board, this is the final substrate. For a multilayer motherboard, the factory creates multiple separate copper-clad sheets, each with its own partially etched pattern. Those inner layers are aligned with extreme precision, stacked with fresh FR4 prepreg between them, and then pressed together under heat and pressure in a hydraulic lamination press. The result is a solid block with copper sandwiches inside.

Once the laminate cools, a CNC drill machine bores thousands of holes through the board. Some holes are large enough for through-hole components, but most are tiny vias that connect one copper layer to another. After drilling, the board goes through an electroless copper plating bath that deposits a thin layer of copper onto the walls of every hole. This step is critical because it makes the vertical connections conductive. Without proper plating, the inner layers would be electrically isolated from each other.

Next comes the photolithography stage. The board is coated with a light-sensitive film called photoresist. A high-resolution printer projects the circuit pattern onto the photoresist, and UV light hardens the exposed areas. The unexposed resist is washed away, leaving a protective stencil over the copper traces that must remain. The board is then dipped in an etching solution, usually ferric chloride or ammonium persulfate, which dissolves the unprotected copper. What remains is the exact pattern of traces, pads, and planes that the engineers designed.

After etching, the solder mask is applied. A screen printer or curtain coater deposits the liquid solder mask across the surface, and the board is baked until the polymer cures. The mask is then exposed to UV light through a pattern that leaves openings for solder pads, connector fingers, and test points. Another wash removes the unexposed mask from those openings. Finally, a silkscreen printer adds white text labels, logos, and component outlines so technicians and builders can identify ports and slots.

Fabrication Stage: Mounting Components

With the bare PCB finished, the board moves to the assembly line where robotic machines install components at astonishing speed. The first step is solder paste printing. A stencil is placed over the board, and a squeegee forces solder paste through tiny apertures onto the pads where surface-mount components will sit. The paste is a mixture of microscopic solder balls and flux, and it is thick enough to hold parts in place before heating.

The board then enters a pick-and-place machine. This device uses vacuum nozzles to lift tiny resistors, capacitors, and integrated circuits from reels or trays, rotate them if needed, and place them onto the solder paste within fractions of a millimeter accuracy. A single motherboard can contain hundreds of surface-mount components, and modern pick-and-place machines can position tens of thousands of parts per hour. Larger components such as CPU sockets, RAM slots, PCIe connectors, and capacitors are often mounted in separate through-hole or selective-solder stations after the surface-mount pass.

Once all components are positioned, the board travels through a reflow oven. The oven heats the board in a carefully controlled temperature profile: a preheat zone warms the paste gently, a soak zone activates the flux, a peak zone melts the solder balls at around 245 to 260 degrees Celsius, and a cooling zone solidifies the joints. The result is a permanent bond between each component lead and its copper pad. Because the solder paste is lead-free, the peak temperature is higher than it was for older tin-lead processes, which requires precise thermal control to avoid damaging sensitive chips.

After reflow, the board undergoes automated optical inspection. A camera system scans every joint and compares it against a reference image. If a joint is too small, misaligned, or missing solder entirely, the machine flags it for rework. Some factories also use automated X-ray inspection for hidden solder joints beneath large chips like the chipset or VRM controllers, where optical cameras cannot see under the package.

Testing and Quality Control

A motherboard is not shipped after assembly until it passes a battery of electrical and functional tests. The first test is usually in-circuit testing, also called ICT. A bed-of-nails fixture presses hundreds of spring-loaded pins against test pads on the board, and a computer checks whether every resistor, capacitor, and diode is within its rated tolerance. ICT catches missing components, wrong values, and solder bridges before the board is ever powered on.

Next, the board receives a functional test. It is placed in a test fixture that simulates a real PC case: a power supply is connected, a test CPU and RAM are inserted, and the board is powered on. The test software checks every USB port, SATA connector, Ethernet jack, audio port, and PCIe slot by sending data through each interface and confirming it arrives correctly. If a port fails, the board is routed to a repair station where technicians diagnose the fault.

High-reliability boards, especially those intended for servers or workstations, often go through burn-in testing. The board is loaded with components and run at elevated temperatures for 24 to 72 hours under full computational load. This stress test accelerates early-life failures, sometimes called infant mortality, by pushing components through their initial thermal cycles. Boards that survive burn-in are far less likely to fail in the field during the first months of operation.

Additional quality checks include flying-probe testing for prototype boards, boundary-scan testing for complex chip-to-chip interconnects, and visual inspection by human operators who look for scratches, contamination, or lifted solder mask. The combination of automated and manual inspection is why modern motherboard failure rates are remarkably low despite the enormous complexity of the product.

Packaging and Shipping

Once a motherboard passes every test, it is cleaned to remove flux residue and dust, then wrapped in an antistatic bag. The bag is not just for dust protection; it prevents electrostatic discharge from damaging the sensitive components during transit. ESD can destroy a MOSFET or a memory controller with a static spark too small for a human to feel, so the pink or silver antistatic packaging is a critical final step.

The bagged board is then placed inside a cardboard box with foam or molded pulp inserts. The box usually includes a driver DVD or USB stick, a manual, SATA cables, an I/O shield, and sometimes Wi-Fi antennas or thermal probes. The sealed box is palletized and shipped to regional warehouses. From the raw FR4 panel to the sealed retail box, the entire process can take several days, depending on the factory’s capacity and the complexity of the board.

Modern Motherboard Technology and Evolution

Motherboard manufacturing has not stood still since the early days of hand-soldered boards. In 2026, several advanced technologies have become standard even on mid-range consumer models. High-Density Interconnect, or HDI, allows manufacturers to pack more traces into a smaller area by using laser-drilled microvias that are far smaller than mechanically drilled holes. Microvias enable thinner boards with better signal integrity, which is why compact Mini-ITX boards can now offer the same feature set as full ATX boards from a decade ago.

Another advancement is the shift to embedded passive components. Instead of mounting discrete resistors and capacitors on the surface, some high-end boards embed these parts inside the substrate layers themselves. This frees up surface area for larger components or additional cooling hardware. It also shortens the electrical path, which reduces noise and improves signal quality for high-speed DDR5 memory and PCIe 5.0 expansion slots.

Environmental regulations have also driven material changes. The RoHS directive restricts hazardous substances such as lead, mercury, and cadmium, so modern solder is tin-silver-copper instead of tin-lead. Some manufacturers are experimenting with biodegradable substrates or recycled copper sources to reduce e-waste. These changes do not affect performance, but they do change the supply chain and the recycling value of discarded boards.

On the design side, rigid-flex boards are becoming more common in laptops and small-form-factor devices. A rigid-flex board combines traditional FR4 sections with flexible polyimide connectors, allowing the motherboard to fold around batteries or cooling fans inside a thin chassis. Desktop motherboards remain rigid, but the technology shows how PCB material science continues to evolve beyond simple flat sheets.

Care, Handling, and Common Misconceptions

Because a motherboard is a multilayer sandwich of fiberglass, copper, and solder, it is more fragile than its rigid appearance suggests. The glass fibers inside FR4 give the board strength, but the copper traces can delaminate if the board is bent or dropped. A heavy CPU cooler or a roughly handled graphics card can crack the substrate, especially near the PCIe slot or the VRM area. Always support the board from underneath when installing components, and avoid applying downward pressure on open areas where there is no metal standoff beneath.

If you scratch the back of a motherboard and see shiny copper beneath the solder mask, the board is not automatically ruined. The solder mask is a protective coating, but a small scratch on the back side may only expose a ground plane. However, if the scratch cuts through a trace or creates a bridge between two adjacent traces, the board can short when powered on. Use a multimeter in continuity mode to check between nearby pads if you are unsure. For more details on what happens when foreign substances contact components, see our article on thermal paste on motherboard components.

Drilling holes into a motherboard is almost always a bad idea. A standard desktop board may have six to ten internal copper layers, and a drill bit will destroy vias and traces that are not visible from the surface. The woven glass inside FR4 also shreds when drilled, creating conductive dust that can bridge nearby pads. If you need to mount a custom bracket, use existing mounting holes or adhesive solutions designed for electronics. Do not modify the board mechanically unless you are prepared to destroy it.

Some builders worry that a motherboard is just a PCB with extra parts attached. In a strict engineering sense, that is true: a motherboard is a specialized PCB. However, the motherboard contains additional firmware, trace tuning, and power-delivery design that a generic PCB does not have. The BIOS or UEFI chip stores the firmware that initializes hardware, and the voltage regulator modules are carefully laid out to deliver clean power to the CPU. So while the physical base is indeed a PCB, the motherboard is a system-level product, not just a blank board.

Environmental Impact and Recycling

Old or broken motherboards are not ordinary trash. They contain valuable metals such as copper and gold, along with small amounts of silver, palladium, and tin. A recycling facility can shred the boards, separate the metals from the fiberglass dust, and recover those materials for reuse. The FR4 substrate itself is not biodegradable, but the glass fibers can be ground into filler for construction materials, and the epoxy resin can sometimes be burned for energy recovery in controlled industrial furnaces.

Because of the metal content, motherboards are classified as e-waste in most jurisdictions. Throwing them into household garbage is illegal in many regions and environmentally harmful because heavy metals can leach into soil if the board ends up in a landfill. Instead, take dead boards to certified electronics recyclers or to municipal e-waste collection events. Some manufacturers even offer mail-back programs that accept old boards when you buy a new one. The economic value of the metals inside means that recycling is profitable, so the infrastructure is more developed than it is for many other types of plastic waste.

The energy and material cost of manufacturing a motherboard also contributes to the final retail price. From mining copper ore to weaving glass cloth, laminating layers, and running automated assembly lines, each step adds cost. If you have ever wondered why computer parts are so expensive, the precision and material diversity of the motherboard is a significant part of the answer.

Frequently Asked Questions

Final Thoughts

A motherboard is a surprisingly complex stack of materials. At its core is FR4 fiberglass-reinforced epoxy, a fire-resistant substrate that insulates the copper traces carrying power and data across the system. Gold, silver, and solder join those traces to the CPU, memory, and peripherals, while aluminum heatsinks and silicon chips handle heat and computation. The green or black surface you see is only the solder mask, a thin polymer shell that protects everything underneath.

The manufacturing process behind these boards is equally intricate. From lamination and drilling to photolithography, pick-and-place assembly, reflow soldering, and automated optical inspection, each motherboard passes through dozens of controlled steps before it ever reaches a builder’s hands. Quality control measures such as in-circuit testing, functional testing, and burn-in screening ensure that the finished product can survive years of thermal cycles and power-on hours.

If you are building a PC in 2026, understanding what motherboards are made of can help you handle the board with more respect, avoid common mistakes like drilling or deep scratching, and appreciate why precision manufacturing commands the price it does. For more on the broader cost of building a system, see our article on why computer parts are so expensive. And if you want to explore the history and function of the board itself, our guide on what a motherboard is is a great next step.
