Motherboard Chipset: A Beginner’s Guide in 2026

Choosing parts for a new PC build in 2026 can feel overwhelming when every component has its own alphabet soup of model numbers. The motherboard chipset is one label that often confuses first-time builders, yet it quietly shapes almost every other hardware choice you make. A motherboard chipset acts as the traffic controller between your GPU, RAM, storage, and peripherals, deciding which features your system can actually use.

Unlike a graphics card or a CPU cooler, the chipset is not something you can upgrade later. It is soldered directly onto the motherboard, which means the chipset tier you pick today locks in your expansion options, overclocking potential, and port selection for the life of that board. That is why understanding the difference between a Z890 and a B860, or an X670 and a B650, saves both money and frustration down the road.

In this guide, we will explain exactly what a motherboard chipset does, how it differs from the CPU socket, and which Intel and AMD platforms are worth your attention in 2026. We will also walk you through the current chipset families, show you how to identify the chipset you already own, and answer the most common questions beginners ask.

Whether you are planning a budget gaming rig or a high-end workstation, the right chipset guarantees your CPU, GPU, and storage talk to each other without bottlenecks. Let us start with the basics.

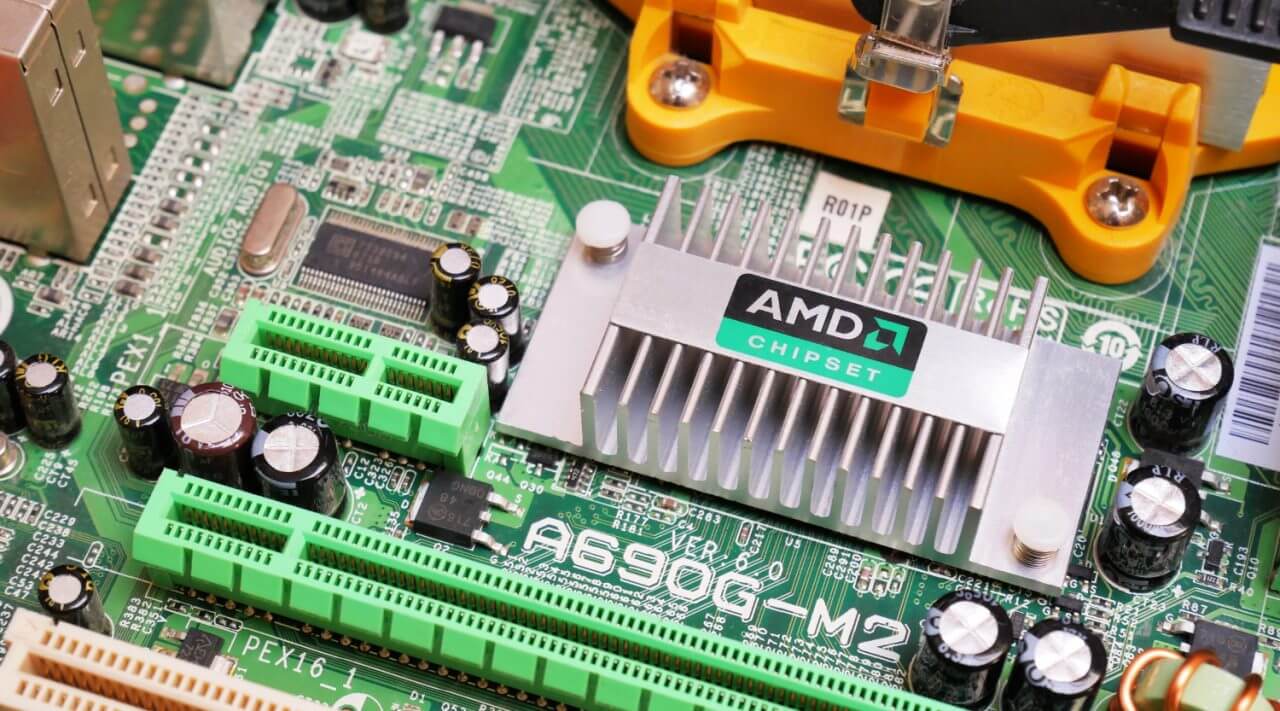

At its core, a motherboard chipset is a collection of integrated circuits—often called the Platform Controller Hub, or PCH—that manage how data flows across your system. Think of it as the air traffic control tower on the motherboard. It coordinates communication between the processor, RAM, graphics card, NVMe drives, SATA storage, and every USB device you plug in.

Modern chipsets have absorbed many jobs that older motherboards split between two chips. Years ago, the Northbridge handled high-speed traffic to the CPU and memory, while the Southbridge managed slower connections like SATA and USB. Today, most of the Northbridge duties live inside the CPU itself, and the chipset—really a modern PCH—handles the Southbridge tasks plus additional PCIe lanes and I/O controllers.

Because the chipset is fixed to the board, it determines the maximum number of USB ports, SATA connectors, M.2 slots, and expansion slots your build can support. It also dictates whether your motherboard can split PCIe lanes for multiple GPUs, run high-speed NVMe RAID arrays, or offer built-in Wi-Fi 7 and Thunderbolt. In short, the chipset is the motherboard’s personality.

Selecting the wrong chipset for your needs can leave you short on storage ports or missing the overclocking support you wanted. That is why matching your chipset to your actual workload matters more than chasing the highest letter in the alphabet.

One of the most common mistakes new builders make is mixing up the chipset with the CPU socket. They are related, but they are not the same thing. The socket is the physical slot on the motherboard where you drop the processor. It is defined by pin count and shape. The chipset is the logic chip that decides how the motherboard talks to that processor and everything else.

For example, AMD’s AM5 socket accepts every Ryzen 7000, 8000, and 9000 processor. However, an X670E motherboard will offer far more PCIe 5.0 lanes, USB4 ports, and overclocking headroom than an A620 board, even though both use the exact same socket. The socket guarantees physical fit. The chipset guarantees feature set.

Intel works the same way. LGA 1700 accepts 12th, 13th, and 14th Gen Core processors, but a Z790 board unlocks overclocking and extra PCIe lanes that a B760 or H710 board simply does not provide. You cannot install a Core Ultra 200S processor into an LGA 1700 socket, just as you cannot put a Ryzen 9000 chip into an older AM4 board. Both the socket and the chipset must align with your CPU choice.

If you are unsure about socket terminology, our guide to CPU socket types breaks down the physical differences between Intel and AMD sockets. Getting the socket right is step one. Choosing the correct chipset tier is step two.

Right now, the desktop market is split between two major platforms: Intel’s LGA 1700 and LGA 1851 sockets, and AMD’s AM5 socket. Intel’s LGA 1700 covers 12th through 14th Gen Core processors, while the newer LGA 1851 hosts the Core Ultra 200S series, also known as Arrow Lake. AMD’s AM5 platform, launched alongside Ryzen 7000, remains the home for Ryzen 8000 and the latest Ryzen 9000 processors in 2026.

Both Intel and AMD have moved decisively toward DDR5 memory and PCIe 5.0 support across their current lineups. The days when one platform held a clear memory or bandwidth advantage are over. In 2026, the real differences come down to lane allocation, USB port speeds, integrated wireless options, and overclocking policy rather than raw generational leaps.

Intel divides its chipsets into the 700 and 800 families. The 700 series serves LGA 1700, and the 800 series serves LGA 1851. AMD’s current chipsets fall into the 600 and 800 series, with the 600 series arriving first for AM5 and the 800 series adding newer features like enhanced USB4 support. Every chipset on both sides is tailored to a specific price band and user profile, from entry-level home PCs to enthusiast workstations.

That variety means you can find a compatible board for nearly any budget, but it also means you need to read the spec sheet carefully. A lower-tier chipset does not make a motherboard bad; it simply trims features that some users never need. The trick is knowing which features you actually care about.

Choosing between Intel and AMD in 2026 is less about raw performance dominance and more about matching the platform to your workflow. Both manufacturers offer excellent processors for gaming, streaming, and productivity. The chipset ecosystem around each CPU shapes your upgrade path, port selection, and tuning options.

Intel’s Z890 and Z790 remain the go-to choices for enthusiasts who want to overclock and push high-speed DDR5. The 800-series chipsets add Thunderbolt 4 and refined power management for Core Ultra processors. Intel’s B860 and B760 lines deliver solid mainstream performance without manual tuning, while the H810 and H710 families keep costs low for office builds and basic home computers.

AMD’s X870 and X670E chipsets offer strong PCIe 5.0 lane allocation and USB4 support, making them attractive for content creators who move large files between fast NVMe drives and external devices. The B850 and B650 tiers strike a practical balance for gamers, offering PCIe 5.0 for the graphics card and enough USB and M.2 connectivity for most builds. The A620 chipset keeps AM5 accessible to budget shoppers who still want a modern processor.

Overclocking works differently on each platform. Intel reserves full multiplier overclocking for K-series CPUs paired with Z790 or Z890 chipsets. AMD is more flexible, allowing overclocking on X670E, X670, B650E, B650, X870, and B850 boards with any unlocked Ryzen chip. If you want to push your processor beyond stock speeds, our guide on overclocking covers the basics safely.

For pure gaming, the chipset does not determine frame rates if the CPU is the same. The GPU and memory matter far more. Where the chipset matters is connectivity: how many fast SSDs you can install, how many high-speed USB devices you can run, and whether your board supports the latest wireless standards. Pricing swings with sales, but Intel H-series boards often undercut AMD at the entry level, while AMD B-series boards frequently include Wi-Fi and strong VRMs at the same price.

PCIe and Memory

Every current Intel and AMD chipset supports DDR5, but memory speeds vary by board quality and BIOS tuning. PCIe 5.0 is available on high-end chipsets from both brands for the primary GPU slot and at least one M.2 slot. If you run multiple NVMe drives or expansion cards, check the total lane count provided by the chipset PCH rather than assuming all slots run at full speed.

Platform Pricing

Entry-level Intel H810 boards can cost less than comparable AMD A620 options, but the gap narrows in the mid-range. AMD B650 boards often include built-in Wi-Fi and strong VRMs that Intel B760 boards reserve for premium models. Compare the exact motherboard model, not just the chipset label, when budgeting.

In 2026, Intel’s active desktop chipsets split into the 700 series for LGA 1700 and the 800 series for LGA 1851. The 700 series supports 12th, 13th, and 14th Gen Core processors, while the 800 series is designed for Core Ultra 200S, also known as Arrow Lake.

Z890 and Z790 sit at the top for enthusiasts who want every feature unlocked. Z890 adds Thunderbolt 4 and better power management for Arrow Lake, while Z790 remains the flagship for Raptor Lake and Raptor Lake Refresh. B860 and B760 serve mainstream builders with solid connectivity but no overclocking. H810 and H710 are the budget options, trimming extras to hit lower prices.

Intel Series	Chipset	Socket	Best For	Key Features
800 Series	Z890	LGA 1851	Enthusiast	Overclocking, PCIe 5.0, DDR5, Thunderbolt 4
800 Series	B860	LGA 1851	Mainstream	DDR5, PCIe 5.0 GPU, limited overclocking
800 Series	H810	LGA 1851	Budget	No overclocking, basic connectivity
700 Series	Z790	LGA 1700	Enthusiast	Overclocking, PCIe 5.0, DDR5
700 Series	B760	LGA 1700	Mainstream	DDR5 or DDR4, no overclocking
700 Series	H710	LGA 1700	Budget	No overclocking, basic features

Before buying, verify that your chosen CPU matches the socket and chipset generation. A 14th Gen Core i7 will not work in an LGA 1851 board, and a Core Ultra 9 will not fit into LGA 1700. The table above makes the split clear.

AMD’s AM5 platform in 2026 is served by the 600 and 800 series chipsets. The 600 series launched with Ryzen 7000 and continues to support Ryzen 8000 and 9000 processors. The 800 series, including X870 and B850, arrived later with incremental improvements like enhanced USB4 and better PCIe lane routing.

X670E and X870 are the enthusiast flagships, offering the most PCIe 5.0 lanes and overclocking freedom. X670 and B650E drop the E suffix but still provide PCIe 5.0 for the GPU and a primary M.2 slot. B650 is the sweet spot for gamers who want modern connectivity without paying for features they will not use. A620 strips away overclocking and PCIe 5.0 but keeps the AM5 socket alive for budget builds.

AMD Series	Chipset	Socket	Best For	Key Features
800 Series	X870	AM5	Enthusiast	Overclocking, PCIe 5.0, USB4
800 Series	B850	AM5	Mainstream	PCIe 5.0 GPU, DDR5
600 Series	X670E	AM5	Enthusiast	Overclocking, PCIe 5.0 everywhere, USB4
600 Series	X670	AM5	Enthusiast	Overclocking, PCIe 5.0 GPU, USB4
600 Series	B650E	AM5	Mainstream	PCIe 5.0 GPU and NVMe, DDR5
600 Series	B650	AM5	Mainstream	PCIe 5.0 GPU, DDR5
600 Series	A620	AM5	Budget	No overclocking, PCIe 4.0, basic features

One of AMD’s biggest selling points is socket longevity. AM5 is promised to last through at least 2026, which means a B650 board purchased today could accept a Ryzen 9000 upgrade down the road with nothing more than a BIOS update.

Modern chipsets do more than shuffle data between the CPU and RAM. They govern how many high-speed lanes are available for your graphics card, NVMe SSDs, capture cards, and USB devices. Understanding this split helps you avoid buying a board that looks great on paper but cannot actually run all your hardware at full speed.

The CPU itself provides a dedicated set of PCIe lanes directly to the primary GPU slot and usually one M.2 NVMe slot. The chipset PCH then supplies additional lanes for secondary M.2 drives, SATA SSDs, USB controllers, and extra expansion slots. On a high-end X670E or Z890 board, those PCH lanes may run at PCIe 5.0 or 4.0 speeds. On a budget H810 or A620 board, they often drop to PCIe 3.0 or 4.0, which is fine for most users but can bottleneck multiple high-speed devices.

USB support follows a similar pattern. Premium chipsets add more USB 3.2 Gen 2×2 and USB4 ports, while budget chipsets stick with USB 3.2 Gen 1 and fewer total ports. If you own fast external drives, VR headsets, or high-resolution webcams, the chipset’s USB controller matters. Storage is equally affected: the number of SATA ports and M.2 slots is hard-limited by the chipset, not just the motherboard’s physical size.

Intel’s Z890 and Z790 integrate Thunderbolt 4 on many premium boards, while AMD’s X670E and X870 lean on USB4 for similar bandwidth. Wi-Fi 6E and Wi-Fi 7 are also tied to chipset tier and board manufacturer choices. A lower-tier chipset does not always mean slower Wi-Fi, but the odds of finding built-in wireless drop as you move down the stack.

Getting the right CPU and chipset pairing is the most important compatibility check in any build. Using the wrong combination means the system will not boot, or worse, you will leave features on the table that you paid for. In 2026, the landscape is simpler than it looks because Intel and AMD have each consolidated around one primary socket per generation.

CPU Platform	Compatible Socket	Compatible Chipsets
Intel Core Ultra 200S (Arrow Lake)	LGA 1851	Z890, B860, H810
Intel 14th / 13th / 12th Gen	LGA 1700	Z790, B760, H710, Z690, B660, H610
AMD Ryzen 9000 / 8000 / 7000	AM5	X870, B850, X670E, X670, B650E, B650, A620

Intel splits its modern desktop lineup across two sockets. LGA 1851 is home to the Core Ultra 200S processors, and it requires an 800-series motherboard. LGA 1700 covers 12th through 14th Gen Core chips, and it pairs with 700-series or 600-series boards. AMD is even simpler: every Ryzen 7000, 8000, and 9000 processor drops into the AM5 socket, and any 600-series or 800-series chipset will work after a BIOS update.

If you are browsing motherboards and want to see how different chipsets look in real products, our picks for white motherboards showcase current Intel and AMD boards side by side. The visual layout and VRM quality often matter as much as the chipset label.

If you already own a PC and want to know which chipset it uses, Windows makes the process easy. Open Device Manager, expand the System devices category, and look for an entry that contains the chipset name. On Intel systems, you may see something like Intel Z790 or Intel B760. On AMD systems, you will see AMD X670 or AMD B650, depending on your board.

For a cleaner readout, download CPU-Z or HWiNFO. Both free tools display the motherboard manufacturer, model, and chipset under the Mainboard or Motherboard tab. HWiNFO goes deeper, showing the exact PCH revision and available PCIe lane layout.

You can also check the manufacturer’s product page or the box your motherboard came in. If the PC is pre-built, the retailer’s spec sheet usually lists the chipset. Knowing your chipset helps you decide whether a CPU upgrade is possible without replacing the entire motherboard.

Understanding your motherboard chipset is one of the best investments you can make before buying a new board or upgrading an existing PC. The chipset dictates which CPUs fit, how much you can expand, and whether premium features like overclocking or USB4 are available. In 2026, both Intel and AMD offer excellent platforms, and the gap between them has never been narrower.

Start by matching your CPU to the correct socket, then choose a chipset tier that fits your budget and feature needs. Remember that the chipset is only part of the story. The motherboard’s VRM quality, BIOS maturity, and physical layout also affect your experience. For more guidance on building and tuning your PC, explore the rest of our motherboard and component guides.
