Motherboard Memory Slots Explained (June 2026)

Computer memory is the silent backbone of every desktop build, yet the physical slots that hold your RAM sticks are often misunderstood. Whether you are assembling your first gaming PC or upgrading a workstation, knowing how motherboard memory slots work can save you from performance headaches down the line. In 2026, memory technology has settled into clear standards, and getting the slot configuration right is just as important as choosing the right capacity.

When you look at a motherboard, the row of plastic slots near the CPU is not just a random arrangement. Those slots follow a strict numbering scheme and channel pairing that dictates how fast your system can access data. Pick the wrong combination, and you might leave a surprising amount of performance on the table. Pick the right one, and your RAM runs at its full rated bandwidth with the stability you expect.

This guide explains everything from DIMM slot labels like A1 and B2 to the real-world difference between single-channel and dual-channel memory. We will also look at how form factor affects slot count, how modern storage connects to the board, and what the current standards mean for your next build. By the end, you will know exactly where to place your RAM modules and why it matters.

Modern builders face a landscape where DDR5 has become the default for new platforms, while DDR4 still powers millions of older systems. Understanding the physical layout of these slots helps you plan ahead, avoid compatibility mismatches, and get every bit of speed from your memory controller. Let us break down the composition, configuration, and connections that make motherboard memory work.

Motherboard Memory Slots Explained

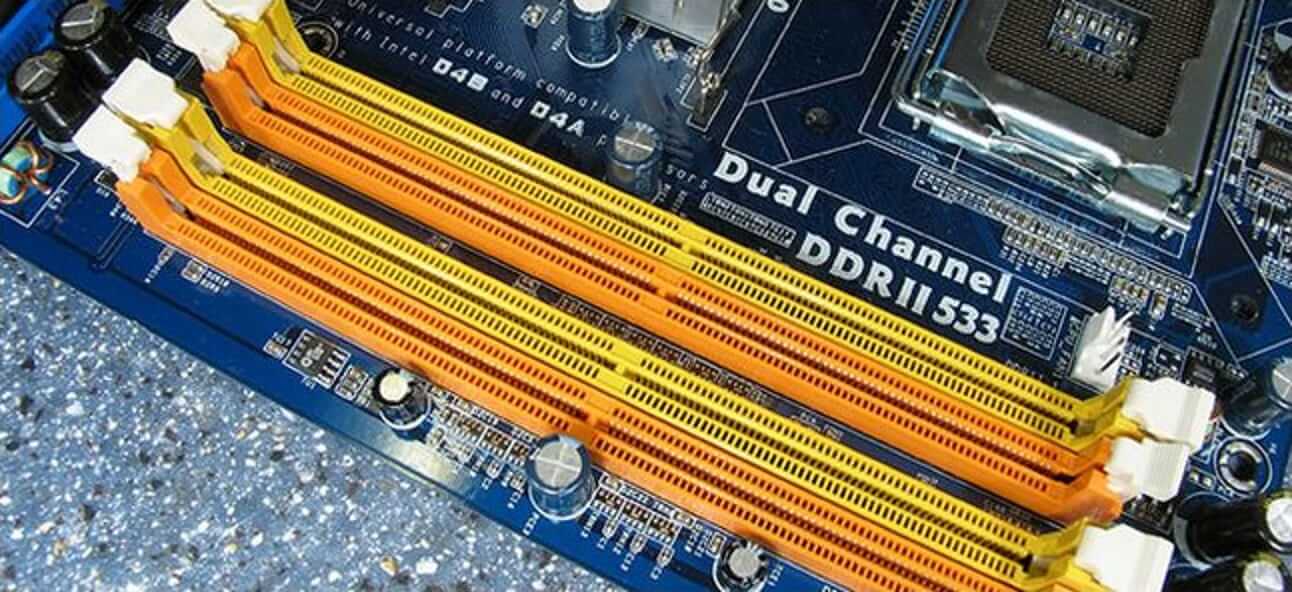

Motherboard memory slots are the physical connectors that accept your RAM modules. They are positioned close to the CPU socket because the memory controller lives inside the processor, and shorter trace lengths mean faster, more reliable communication. Every slot on a consumer desktop board is a DIMM slot, designed for the long rectangular sticks you see in standard builds. The exact number of slots, their labels, and their electrical layout vary by board model, but the underlying rules remain consistent across manufacturers.

In 2026, the typical desktop motherboard carries four DIMM slots, although compact boards may offer only two and high-end workstation platforms can ship with eight. The generation of RAM your board accepts is fixed by the memory controller and the slot notch position. DDR5 is the current standard for new Intel and AMD platforms, while DDR4 persists in budget and legacy systems. You cannot mix generations on the same board, and the notch prevents physical mismatches. Understanding these basics sets the stage for the deeper topics of slot numbering and channel pairing.

Motherboard Memory Composition

Every motherboard relies on two broad categories of memory: primary storage that holds active data while the PC runs, and secondary storage that keeps files safe when the power is off. Getting both right means understanding the slots and ports available on your specific board.

Primary storage is your RAM, and it lives in the DIMM slots you see just to the right of the CPU socket. A standard desktop DIMM is a long rectangular module with a notch in the middle that prevents you from inserting DDR4 into a DDR5 slot or vice versa. Most consumer boards in 2026 use DDR5 as the default standard for recent Intel and AMD platforms, while DDR4 remains common on budget builds and older generation hardware. Speeds have climbed dramatically: entry-level DDR5 starts around 4800MHz, and enthusiast kits regularly push past 7200MHz with the right XMP or EXPO profiles.

Each DIMM slot on a modern board can accept modules up to 64GB on consumer platforms, with high-end workstation boards supporting 128GB per slot or more. A typical ATX motherboard ships with four slots, giving you a practical ceiling of 256GB if you populate every position. Mini-ITX boards usually cut that to two slots, which is why many small-form-factor builders start with a single 32GB stick and leave room for a later match. For laptops and compact systems, manufacturers use SO-DIMM slots, which are shorter versions of the same technology but follow the same channel rules.

The number of slots matters beyond raw capacity. Populating slots in matched pairs unlocks dual-channel mode, which doubles the theoretical bandwidth between the RAM and the memory controller. This is not a minor tweak; in many games and productivity workloads, dual-channel operation can deliver a noticeable uplift compared to running a single stick alone. We will explore the exact placement for that in the next section.

RAM capacity planning has shifted over the years. Eight gigabytes was once the sweet spot for casual use, but modern browsers, background applications, and operating system overhead have pushed the baseline to 16GB for most users in 2026. Gamers and content creators often start at 32GB, while workstation builds handling video editing or 3D rendering may justify 64GB or more. The good news is that motherboards with four DIMM slots give you a clear upgrade path. You can start with two sticks today and add another matched pair later without throwing away your original purchase.

Secondary storage handles your operating system, applications, and personal files. HDDs still exist for bulk cold storage, but they have largely been pushed out of primary builds by SSDs. SATA III drives connect with familiar cables and deliver up to 6Gbps, which is enough for everyday tasks. For boot drives and heavy workloads, NVMe SSDs that slot directly into M.2 connectors have become the norm in 2026, leveraging PCIe lanes to deliver read and write speeds that leave SATA in the dust. If you want a deeper look at how these pieces fit together, our article on motherboard fundamentals breaks down the entire platform layout.

RAM Slot Configuration (A1/A2/B1/B2)

If you open your motherboard manual to the memory section, you will see a diagram labeling the slots as A1, A2, B1, and B2. These labels are not arbitrary. The letter indicates the memory channel, while the number indicates the slot position within that channel. Channel A and Channel B each have two slots, and the memory controller addresses them in pairs to manage bandwidth.

Slot numbering typically starts from the slot closest to the CPU socket. On many boards, that means A1 is nearest the processor, followed by A2, then B1, then B2. However, manufacturers do not always follow the same physical layout. Some brands place A2 and B2 closer to the CPU, while A1 and B1 sit farther away. Because of this variation, the physical slot colors or printed labels on the board itself are your most reliable guide. The motherboard manual exists for a reason, and it is the single most trusted source for the exact topology of your board.

When you install one stick of RAM, the general recommendation is to place it in the A2 slot. This position often gives the cleanest electrical path to the memory controller and leaves room for airflow around the CPU cooler. If you install two sticks, the best configuration is A2 and B2. This spreads the modules across both channels, enabling dual-channel mode, and places them in the second slot of each channel. Many builders wonder why slots 2 and 4 are preferred over 1 and 3. The answer lies in motherboard trace layout and signal integrity. Board designers often route the second slot in each channel with shorter, cleaner traces that reduce electrical noise at high DDR5 speeds. Additionally, placing RAM in the outer slots can improve airflow between the sticks and the CPU cooler.

Installing four sticks means filling A1, A2, B1, and B2. This enables dual-channel mode with two ranks per channel, which can help in certain memory-heavy workloads. That said, populating all four slots can sometimes limit the maximum stable speed of your RAM, especially on DDR5 platforms where the memory controller is already working hard. Many enthusiasts find that two high-capacity sticks in A2 and B2 overclock better than four lesser sticks filling every slot.

Form factor plays a direct role in how many slots you get. ATX and Micro-ATX boards almost always ship with four DIMM slots, giving you the flexibility to run dual-channel with room to spare. Mini-ITX boards, by contrast, are limited to two slots because of space constraints. That means every RAM decision on a Mini-ITX build is more consequential. You can read more about how form factor differences affect memory slot count in our detailed comparison. For servers and high-end workstations, you may encounter boards with eight DIMM slots arranged across four channels. These quad-channel configurations are outside the consumer space but follow the same logic: distribute modules evenly across channels for the widest possible memory bandwidth.

Dual-Channel Memory Setup

Dual-channel memory is the practice of pairing two physical sticks across two separate channels so the memory controller can read and write to both simultaneously. Instead of one 64-bit data path, you get two, effectively doubling the available bandwidth under ideal conditions. In real-world terms, this can mean smoother frame times in games, faster rendering previews, and less stuttering when you have dozens of browser tabs open.

To understand why this matters, think about how the CPU talks to RAM. The memory controller sits inside the processor and manages the flow of data. When you run single-channel mode, all requests funnel through one 64-bit highway. That highway has a fixed speed limit, and once traffic builds up, the CPU waits. Dual-channel opens a second parallel highway, so the controller can interleave requests and keep the pipeline full. The result is not twice the performance in every application, but memory-sensitive tasks often show gains between ten and twenty percent.

In 2026, both Intel and AMD consumer platforms default to dual-channel operation when you install two sticks in the correct slots. Most modern BIOS implementations will detect the configuration automatically and report it on the main status screen. You can verify your mode by checking the BIOS or using system information tools that report whether memory is running in single or dual-channel mode.

The enduring question from builders is whether slots 1 and 3 are just as good as 2 and 4. On many boards, the answer is technically yes for dual-channel, but no for peak stability. Slots A2 and B2 are usually wired with the best signal integrity, which becomes critical when you enable XMP or EXPO profiles that run the RAM well above its default JEDEC speed. At DDR5 speeds exceeding 6000MHz, even minor trace length differences can cause training errors or boot failures. That is why motherboard manuals and community guides consistently recommend the second and fourth slots.

Another reason the A2 and B2 recommendation holds strong is thermal spacing. CPUs with large air coolers or dense heatsinks benefit from having the RAM sticks slightly farther from the socket. This creates a small buffer zone that helps airflow move across the modules and the voltage regulators nearby. It is a subtle point, but over years of heavy use, cooler RAM tends to maintain tighter timings.

For users who only have one stick, single-channel operation is unavoidable. The best practice is to place that single module in A2 so that if you later add a second stick, you are already in the best slot. Running mismatched sticks across channels can also force single-channel mode or unpredictable behavior, so matching capacity, speed, and timings remains the safest path.

Motherboard Memory Connections

While RAM dominates the primary memory conversation, secondary storage still needs a reliable path to the motherboard. Over the past two decades, that path has evolved from slow parallel ribbons to tiny PCIe-linked chips that barely take up space.

ATA, or Advanced Technology Attachment, was the original standard for linking hard drives directly to the board. It used wide 40-pin or 80-pin ribbon cables and topped out at speeds that feel glacial by modern standards. ATA is now obsolete, and you will not find it on any consumer motherboard built in the last decade. It remains a historical reference that illustrates just how far storage connections have come.

SATA, or Serial Advanced Technology Attachment, replaced ATA and is still present on most boards in 2026. The current revision, SATA III, delivers up to 6Gbps and serves 2.5-inch SSDs and 3.5-inch hard drives alike. It is a mature, reliable connection, but it is no longer the choice for performance builds. Many builders use SATA ports for bulk storage drives while reserving faster interfaces for the operating system disk.

NVMe has become the standard for high-speed storage. Instead of routing through the SATA controller, NVMe drives communicate directly over PCIe lanes through the M.2 slot. This bypasses the SATA bottleneck entirely and yields sequential read and write speeds that can exceed seven thousand megabytes per second on Gen4 drives and climb even higher on Gen5. The physical M.2 slot is a small, horizontal connector usually located near the chipset or between the PCIe expansion slots. Because it sits directly on the board, it eliminates the need for power and data cables, which helps keep builds clean.

In practical terms, a modern build in 2026 will almost always use an NVMe M.2 drive as the primary boot device. SATA connections fill the role of secondary storage for large game libraries, media archives, or backup drives. Understanding this hierarchy helps you plan your motherboard port usage before you ever install a component. For a broader look at the motherboard ecosystem, check out our motherboard components and specs page.

How to Choose and Install RAM

Selecting RAM for your motherboard in 2026 starts with one simple rule: match the generation. DDR5 modules do not fit DDR4 slots, and the notch position makes it physically impossible to force them. Check your motherboard specifications for the supported memory type before you buy anything.

Capacity comes next. For general productivity and web browsing, 16GB is the practical minimum. Gaming builds should start at 32GB to avoid capacity bottlenecks in modern open-world titles. Content creators and engineers working with large datasets may want 64GB or more, but only if the workload genuinely uses it. Adding RAM you do not touch is wasted money that could go toward a faster GPU or larger SSD.

Speed and latency deserve attention, especially on DDR5 platforms where the baseline has risen. A DDR5-5600 kit offers a solid balance of price and performance for most users. Enthusiasts chasing every frame may look at DDR5-7200 or faster, but those speeds require a capable motherboard and a processor with a strong memory controller. Not every board can train stable at those frequencies, so consult the qualified vendor list published by the motherboard manufacturer.

XMP, or Extreme Memory Profile, is Intel’s standardized method for running RAM above JEDEC defaults. AMD’s equivalent is EXPO. When you enable the profile in BIOS, the motherboard applies pre-tested voltage and timing settings so the memory reaches its advertised speed. Without XMP or EXPO, your expensive DDR5 kit may run at a conservative 4800MHz, leaving performance on the table. Enabling the profile is usually a one-click toggle in the BIOS, but it is a step many first-time builders forget.

Physical installation is straightforward but requires care. Open the retention clips on the slots you plan to use, align the notch on the RAM stick with the notch in the slot, and press down firmly with even pressure on both ends until both clips click into place. If you are using A2 and B2, install the second stick after the first is seated. Do not rock the module back and forth; a straight, vertical press minimizes the risk of damaging the gold contacts or the slot tabs.

After installation, boot into the BIOS and confirm that the total capacity, speed, and channel mode all read correctly. If the board reports single-channel mode with two sticks installed, power down and reseat them according to the manual’s channel map. A few minutes of double-checking at the start can prevent hours of troubleshooting later.

Frequently Asked Questions

Conclusion

Motherboard memory slots are more than passive connectors. They define how much RAM you can carry, how fast it communicates with your processor, and how easily you can expand later. In 2026, DDR5 has cemented itself as the standard for new builds, and understanding slot configuration is a must for anyone who wants their system to perform as intended.

Choosing the right slots, enabling your memory profile, and matching your modules to your workload are the small details that separate a smooth build from a frustrating one. Whether you are working with two slots on a Mini-ITX board or eight on a workstation platform, the rules remain the same: respect the channel layout, follow the manual, and plan for the memory you will need tomorrow as well as today. For more hardware guides, visit our motherboard components and specs page.
