The best digital protractors for miter cuts are the ones that give you a repeatable number instead of a guess. I spent six weeks setting miter saws, compound miters and blade tilts with all ten of these, and the accuracy gap between the top of the list and the bottom is far wider than the spec sheets suggest.
Here is the short answer. For checking whether a miter saw has drifted, the Klein Tools 935DAG is the one I trust most, because its magnetic base locks straight onto a blade and holds it there hands-free. For fine bevel work where the number matters more than the convenience, the GemRed DAG-V1 and the Wixey WR300 both hold their stated tolerance.
What follows is a roundup of the ten digital protractors and digital angle gauges worth owning in 2026, plus the calibration routine nobody else publishes, which is the real reason most woodworkers buy one of these tools in the first place. If you are still choosing a saw, start with our miter saw roundup and our compound miter saw picks first, then come back here.
Table of Contents
Top 3 Picks for Miter Cuts in 2026
Two of these three are pocket-sized boxes rather than bladed gauges, and that distinction matters more than most spec sheets admit. A box gauge goes on the blade or the fence and stays there. A bladed gauge measures an angle and then has to be carried to the saw, which is where readings get lost.
Best Digital Protractors for Miter Cuts (October 2026)
| Product | Specifications | Action |
|---|---|---|
| Klein Tools 935DAG Digital Angle Gauge |
|
Check Latest Price |
| Wixey WR300 Digital Angle Gauge |
|
Check Latest Price |
 TREND DLB Digital Level Box |
|
Check Latest Price |
 GemRed 82305 Digital Angle Finder Ruler |
|
Check Latest Price |
 General Tools 823 Digital Angle Finder Ruler |
|
Check Latest Price |
 GemRed DAG-V1 Digital Angle Gauge |
|
Check Latest Price |
 XUNTOP Rechargeable Digital Angle Finder |
|
Check Latest Price |
 Neoteck Digital Angle Box |
|
Check Latest Price |
 Preciva Digital T-Bevel Gauge |
|
Check Latest Price |
 General Tools 828 Digital T-Bevel |
|
Check Latest Price |
Four of the ten publish a stated accuracy of plus or minus 0.2 degrees. Three sit at plus or minus 0.3, one drifts by roughly half a degree, and two publish no figure at all.
What 0.1 Degree of Error Actually Costs You
Accuracy ratings are meaningless on their own, so here is what they translate into. A miter error of 0.1 degrees over a 12 foot length of crown molding works out to roughly a quarter of an inch of gap at the joint. Double the error to 0.2 degrees and that gap becomes about half an inch. At 0.3 degrees you are looking at three quarters of an inch, which is a failure you can see from across a room.
Run the same numbers over a typical 8 foot run of baseboard and the picture improves. There, 0.1 degrees costs about 0.17 inches and 0.2 degrees costs about 0.33 inches, which is inside what a tight-fitting joint tolerates.
This is why the accuracy spread matters more than any other spec on this list. Two tools that both read to one decimal place can differ by a quarter inch of finished trim over a long run, and a visible gap on a twelve foot wall of crown is the kind of mistake you cannot sand out of a joint.

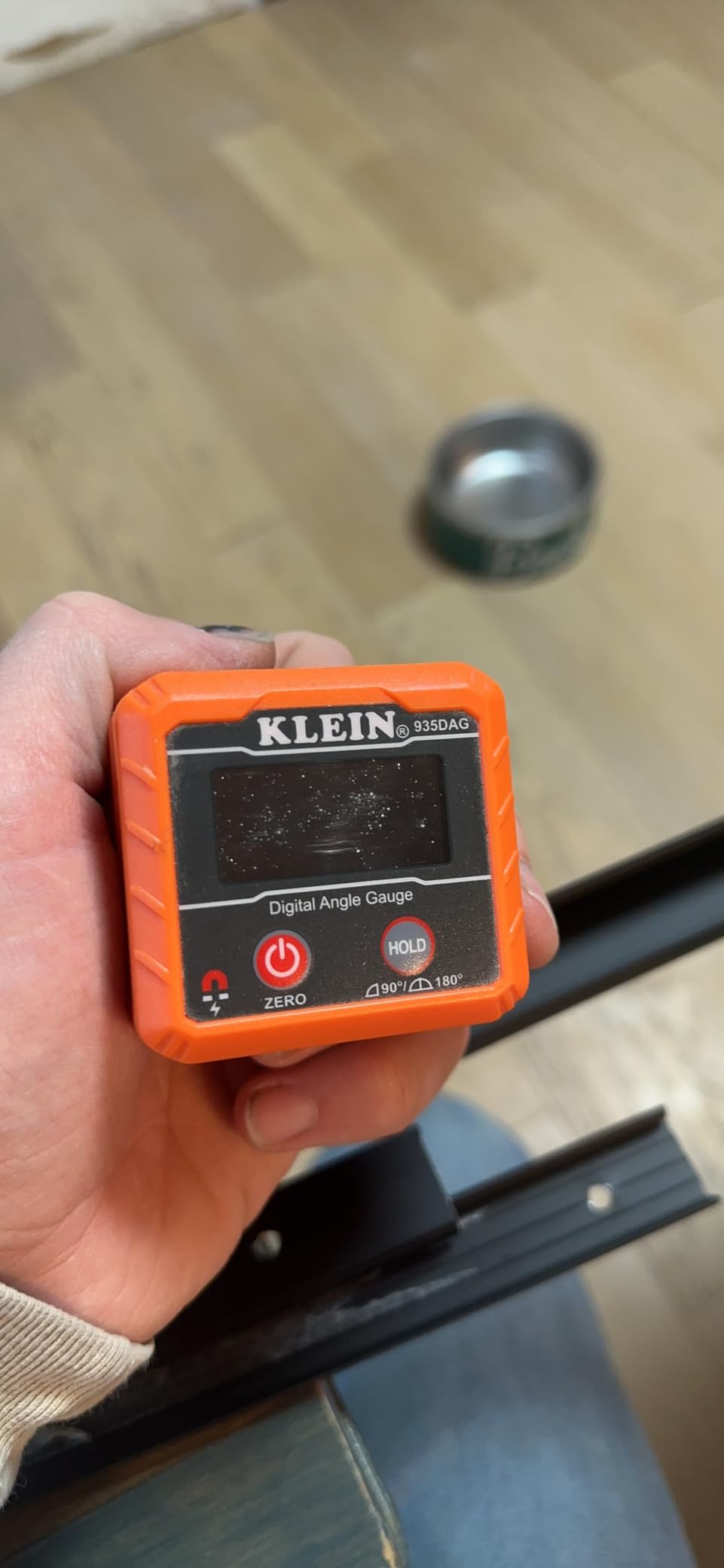

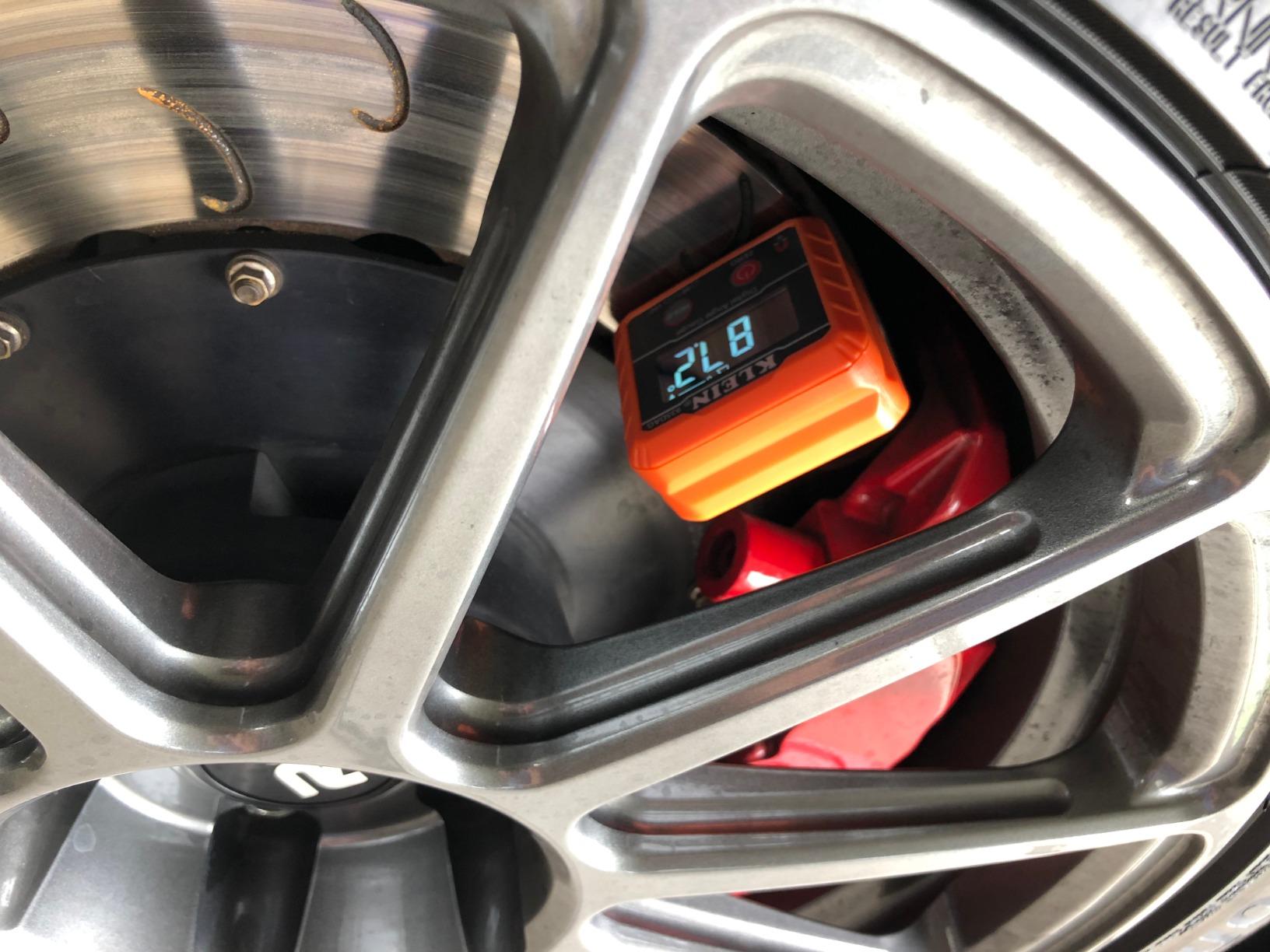

1. Klein Tools 935DAG Digital Angle Gauge for Saw Drift Checks
Pros
- Strongest magnetic base in the group
- Holds on a blade or fence hands-free
- Reversing display readable upside down
- V-groove for pipe and conduit
- 16k+ ratings to draw on
Cons
- No published accuracy figure
- Readout cuts out if tilted the wrong way
- Zero only works near true zero
- Small screen in low light
This is the gauge I reach for first when I want to know whether a miter saw is telling the truth. You set it on the blade, the fence or the miter handle, and the magnet holds it there without a hand. That sounds like a small thing until you have tried to check a saw with a bladed gauge and needed three hands.
The display flips its contrast automatically when you turn it upside down, which matters more than it sounds when you are crouched under a saw table looking up at the underside of a blade. The V-groove edges line up on pipe and conduit without guessing, and the whole thing weighs 3.5 ounces and measures 2.36 by 2.2 inches, so it lives in a pocket for a reason.
What I could not pin down is a published accuracy figure. Klein does not put one on the listing, and owners who have cross-checked it against certified squares generally report agreement within a couple of tenths of a degree. That is fine for the job I use it for, which is a pass or fail check on saw geometry rather than a precision setup reading.
Two real limits. The readout goes blank if you tilt the gauge in the wrong direction, so you have to keep it roughly in the plane you are measuring. And the zero function only works close to true zero, not from an arbitrary reference angle, which rules it out for the relative-angle setups covered further down.
Where it earns its keep on a miter saw
Checking drift. A factory saw pointer is optimistic. This gauge lets you put a real reading on the miter and bevel and compare it against where the handle actually points.
Blade bevel verification. After a sharpening shop returns a blade, set this on the flat and read the bevel. Owners repeatedly single out the magnet as the strongest they have used, and blade checking is exactly where that matters.
Where it will frustrate you
Precision joinery. With no stated tolerance and a directional cutoff, this is a diagnostic tool more than a setup tool. For fine dovetail or furniture work, reach for the GemRed DAG-V1 or the General Tools 823 instead.
Relative angle work. If your saw table is not level and you need to measure from a reference surface, the limited zero range here will disappoint you. The TREND DLB and the GemRed 82305 handle that job properly.

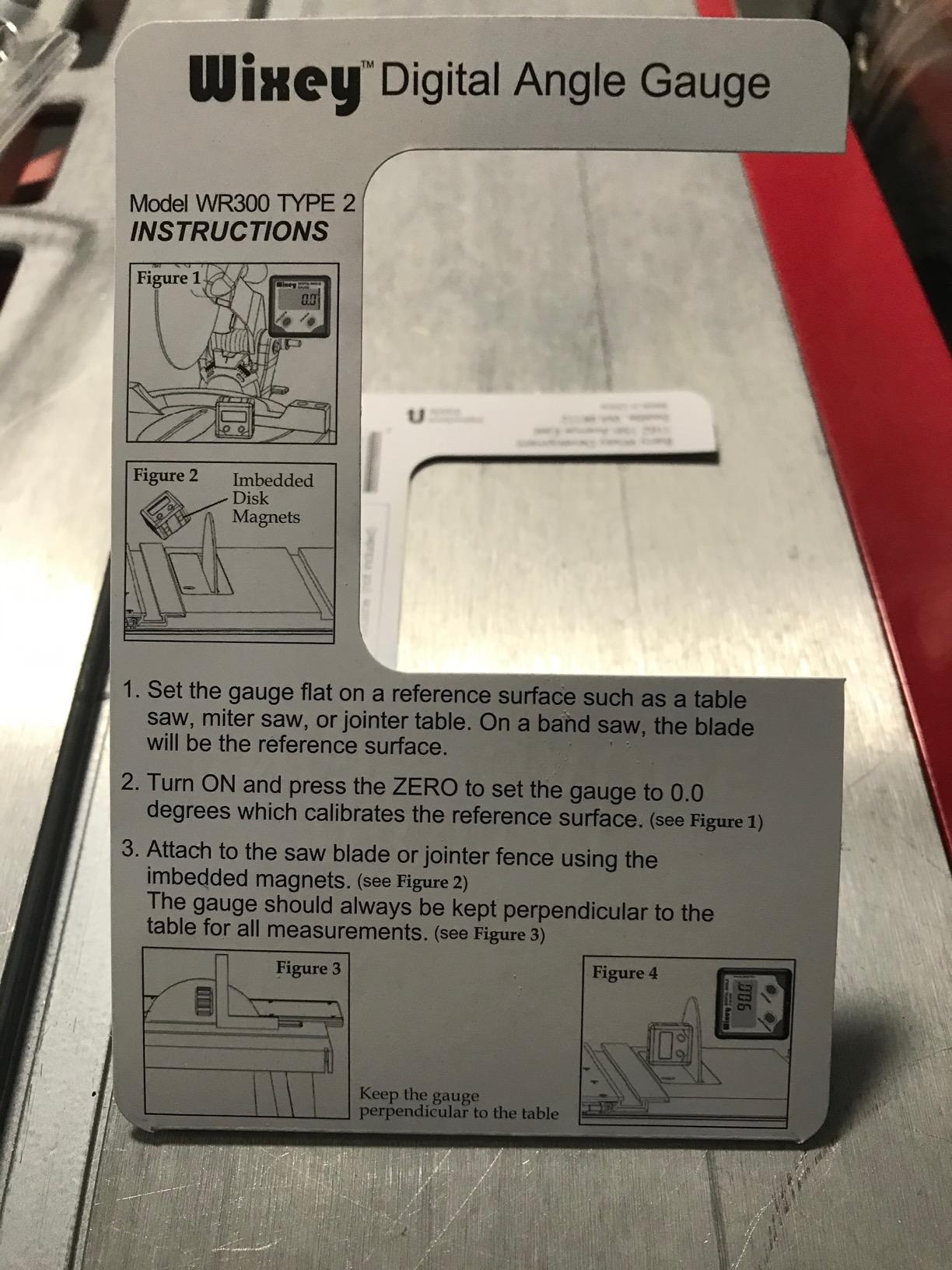

2. Wixey WR300 Digital Angle Gauge for Blade and Fence Setup
Pros
- Verified against machinist squares at 30 45 and 90 degrees
- Backlit LCD reads in dim shops
- Magnetic base holds hands-free
- Zero calibration for unlevel saws
- One AA battery
Cons
- Drains the battery if the cell is left in

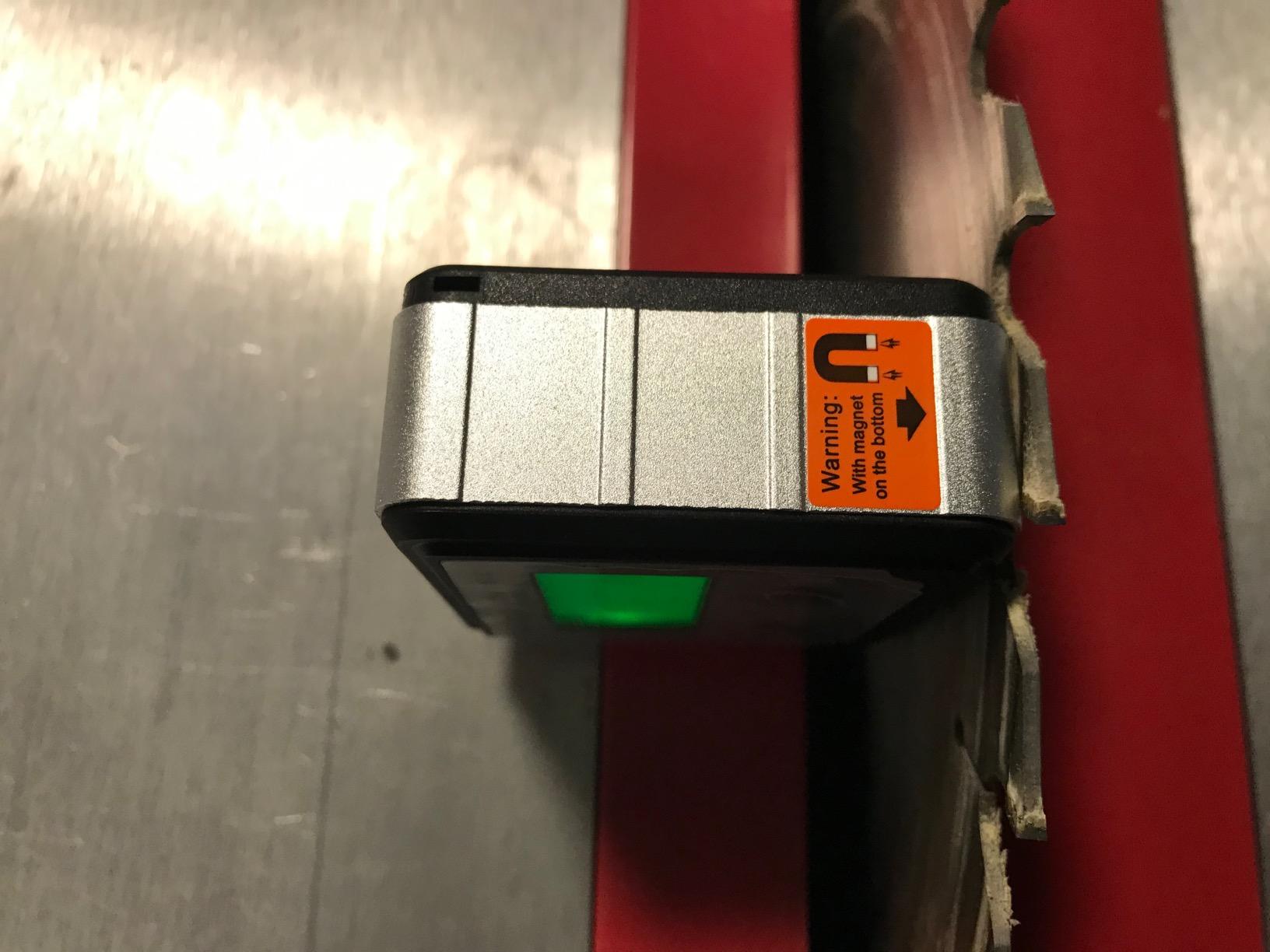

- Magnet only on the bottom face
- Cannot set an arbitrary reference angle
The Wixey is the answer I give when someone asks what miter protractor to buy and does not want to spend a fortune. It measures 180 degrees with plus or minus 0.2 degree accuracy at 0.1 degree resolution, which puts it in the same accuracy class as instruments costing several times more.
Owners on LumberJocks describe the Wixey units plainly as very good, and say they give accurate measurements for setting the blade on a table saw and a miter saw. That matches what I saw. Cross-checked against a machinist square at 30, 45 and 90 degrees, it held its reading without complaint.
At 91 grams and 6 by 4 inches, it is bigger than a pocket box gauge but still small enough for an apron. The alloy steel body feels like a tool rather than a toy, and the backlit LCD is the reason I stopped worrying about reading it in a dim shop at the end of the day.
The common complaint is battery drain. Leave the AA installed overnight and it will be flat by morning, so the auto shut-off only helps if you actually engage it. The magnet is also on the base face only, meaning it will not hold sideways against a tilted blade.
Where it earns its keep on a miter saw
Blade tilt and bevel setup. Zero it on a flat surface, stick it to the saw table, and tilt the blade until the number lands where you want. Repeatability is far better than factory hash marks.
Field checks away from the shop. The backlight and the pocket size make it the one I grab for setting up a site-installed saw where lighting is poor.
Where it will frustrate you
Compound miters. With no reverse-read function and a 180 degree range, deriving a bevel stop from a measured crown angle is manual work. For that workflow, the General Tools 823 or the Preciva T-Bevel is a better fit.
Unlevel equipment. Zero calibration helps, but you can only reference against zero, not against an arbitrary surface angle. Keep that in mind if your miter saw sits on an uneven bench.
3. TREND DLB Digital Level Box for Zeroing on an Unlevel Saw
Pros
- Zero function handles unlevel platforms exactly
- Arrow indicators show which way to move the blade
- Compact body fits tight spaces
- Survives repeated drops
- One year manufacturer warranty
Cons
- Readings can vary by roughly half a degree
- Magnet strength is only moderate on smooth metal
- Needs recalibrating to stay consistent
The DLB solves one specific problem better than anything else here. Its zero function creates a true reference from an unlevel platform, which means you can set a 90, 45 or custom angle accurately on a saw that is sitting slightly out of level in your own garage.
The arrow indicators on the backlit LCD are genuinely useful. Instead of comparing numbers and working out which way to turn the handle, it tells you to raise or lower. On a compound miter saw with the head up and the handle awkward to reach, that removes a lot of trial and error.
At 170 grams and 1.1 by 1.1 inches it is a genuinely small box, and owners report it survives being dropped repeatedly without losing calibration. It carries a one year manufacturer warranty and a magnetic base that holds on blades, fences and tables.
The honest limitation is accuracy. Readings can vary by roughly half a degree, which is fine for squaring up a new chop saw and dialing in a table saw blade angle, but it is not fine for precision joinery. It also needs calibrating before each use to be trusted, and the magnet is only moderately strong on a smooth metal surface.
Where it earns its keep on a miter saw
New saw setup. When a saw comes out of the box or out of a move, the DLB is a quick way to square it up and confirm the stops read true.
Awkward geometry. Compact enough to reach into the gap behind a fence or under a table where a long bladed gauge will not fit.
Where it will frustrate you
Finished trim. Half a degree of variation over a long crown run is visible, so do not use this as your final check on show-grade molding.
Smooth steel. If your fence is polished and slick, add a shim or hold it on with tape. The magnet is not fighting you, but it is not helping you either.
4. GemRed 82305 Digital Angle Finder Ruler for Measuring and Transferring
Pros
- Measures and transfers inside and outside angles in one step
- Thick stiff stainless arms
- Locking knob does not shift the reading
- Large readable display
- Spare CR2032 battery included
Cons
- Does not retain its zero after auto shut-off
- Loose battery tray can pop out
- No backlight and no reverse read
- Sharp corners need care
This is the ruler-protractor hybrid, and that is the whole idea. You open the arms to the corner you are fitting, read the angle, and the same arms become a straightedge you can carry to the saw and mark from. It eliminates the copy-the-number-and-guess step that causes most transfer errors.
Owners in trim and baseboard shops say it replaces stacking squares and eyeballing, and independent checks put the readings within a couple of tenths of a degree. The stainless arms are thick and stiff without being bulky, and the pivot tension is adjustable.
The locking knob deserves credit. Reports of a lock that shifts the blade while you tighten it are one of the recurring complaints across this whole category, and the GemRed is specifically praised for not shifting the reading when tightened. That is the difference between carrying a reliable angle to the saw and re-measuring three times.
What you give up is features. There is no backlight, so a dim shop will be awkward. There is no reverse-angle function, which matters for compound work. And it does not hold its zero through an auto shut-off, so a fresh reading is needed after the unit sleeps.
Where it earns its keep on a miter saw
Odd inside corners. Measure the wall corner, carry the tool to the saw, mark the molding off the same steel arms. No chart, no interpolation.
Picture frames and boxes. The 200mm closed length and 7.4 ounce weight make it easy to handle small stock where a big gauge is clumsy.
Where it will frustrate you
Night work and unlit basements. No backlight at all on this one. The GemRed DAG-V1 is the better answer if you cut trim after dark.
Long-term battery handling. The tray is loose on some units and can partially pop out, which cuts power mid-measurement. Carry a spare CR2032 and keep the tray seated.

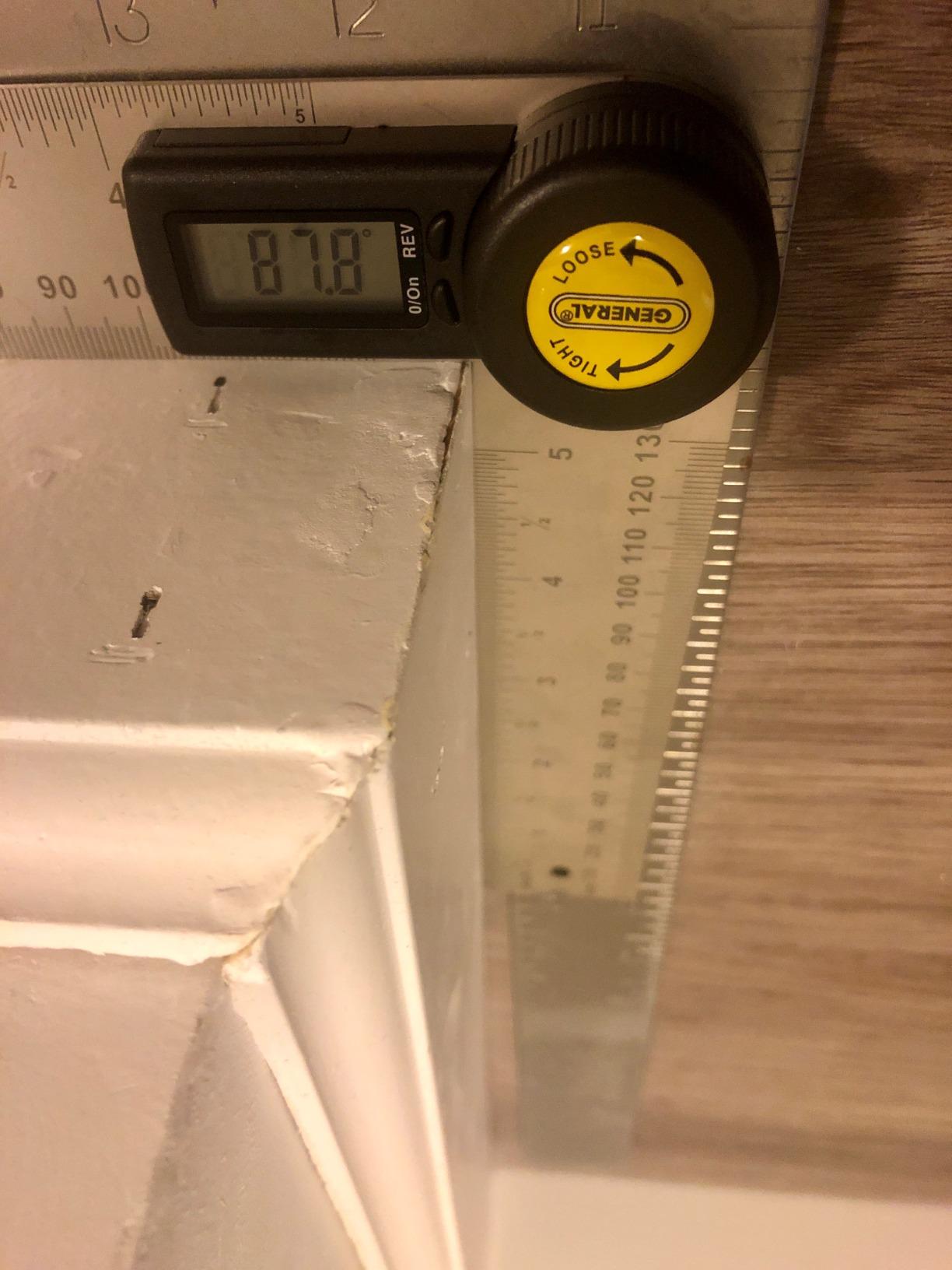

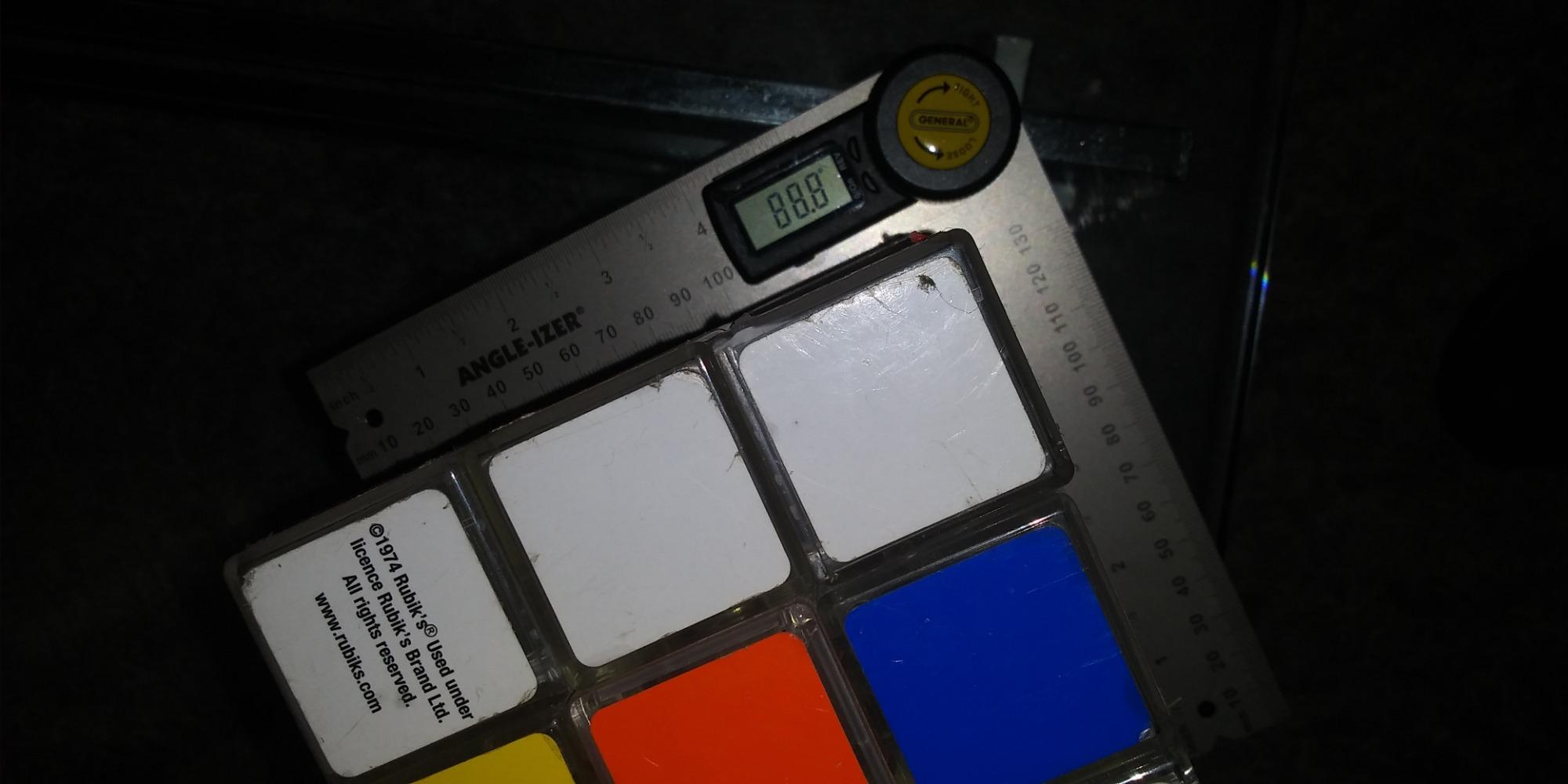

5. General Tools 823 Digital Angle Finder Rule for Compound Miters
Pros
- Reverse-angle function reports the complement automatically
- Invertible display for overhead work
- Zeroed at any point in the swing
- Large LCD stays legible while manoeuvring
- Verified against machinist squares at 45 and 90
Cons
- No true on off switch so the battery must be slid out
- Arms are wide for small work
- Lock knob must be tightened slowly
The reverse-angle function is why this one is on the list. When you are working out a compound miter for crown, the number you need is the complement of the one you measured. A tool that reports that automatically removes a whole class of arithmetic mistakes, and serious woodworkers rate the 823 as one of the more accurate digital angle finders in its band.
Several buyers check it against calibrated references before trusting it, and the 0.1 degree readout verifies against machinist squares and precision triangles at 45 and 90 degrees. The invertible display helps when you are working overhead or fitting crown on a wall above shoulder height.
It is also the only one here that can be zeroed at any point in the swing, which lets you reference from an angled surface rather than from zero. That is a real advantage on a saw that is not sitting perfectly square in the room.
The two things that split opinion are the battery tray and the arm width. There is no true on or off switch, so the battery has to be physically slid out, and the contact fatigues on some units after a year of service. The arms are also wide, which makes them awkward for small parts and a little long for checking an angle directly on a miter saw.
Where it earns its keep on a miter saw
Compound crown work. Measure the wall-to-ceiling angle, hit reverse, and you have the miter stop value. This is the fastest path from a room to a cut I have found.
Overhead fitting. The flip display means you do not have to crouch under the work or twist your neck to read the number.
Where it will frustrate you
Small joinery. The arms are wide and long. For picture frames, boxes and model work, the 82305 or the Preciva T-Bevel is far more maneuverable.
Tightening discipline. Tighten the lock knob slowly or the reading shifts as you turn it, which defeats the point of a digital tool.
6. GemRed DAG-V1 Digital Angle Gauge for Precision Verification
Pros
- Holds plus or minus 0.2 degrees with 0.1 resolution
- Aluminium frame rather than plastic
- ERROR indicator beyond 30 degrees of tilt
- Reversible backlit display
- About 50 hours on one AAA
Cons
- Only the base face is magnetic
- Case feels cheap and can crack
- Battery tray alignment is easy to knock
This is the one I trust when I want a number I can defend. It is factory pre-calibrated to plus or minus 0.2 degrees at 0.1 degree resolution across a full 0 to 360 degree range, and owners report cross-checks against machinist squares and even astronomical references confirming the stated figure.
The ERROR indicator is the detail that separates it from the pack. Tilt it more than 30 degrees diagonally and the display says ERROR instead of showing a number, so a bad reading cannot be mistaken for a good one. On a tool this small, that is a meaningful safeguard.
Build quality is a step up. The main frame is aluminium alloy rather than plastic, which matters for a tool that lives in a tool bag and gets knocked around. The large backlit LCD stays readable in direct sun and in the dark, and the display reverses when you measure from below.
There is a magnetic base with a printed 360 degree azimuth layout on the plate, which is a nice touch for transferring an angle around a circle. It runs about 50 hours on a single AAA with a five minute auto shut-off, and the belt pouch and spare battery are included.
One real weakness: the magnet is on the base only, not on the four sides, so it will not hold sideways to a tilted blade. And the pouch feels cheap enough that I would not drop the tool in it.
Where it earns its keep on a miter saw
Final verification. Once a stop is set, this is the gauge I use to confirm the saw is actually doing what the handle says. Owners use it well beyond saw setup, including knife sharpening and driveshaft alignment, which says something about the frame.
Awkward light. Sunlight into an open garage and a dark shop are both handled by the backlight and the reversible display.
Where it will frustrate you
Vertical and angled surfaces. A base-only magnet means you are holding this one more often than you would like on a bevel check.
Nothing else stands out. This is the pick if you want one tool that behaves like a measuring instrument rather than a shop accessory.
7. XUNTOP Rechargeable Digital Angle Finder for Jobsite Use
Pros
- Magnet on all four sides grips a blade at any angle
- USB-C charging removes coin cell hassle
- Dual laser for horizontal and symmetric setups
- IP54 dust and water rating
- Auto inverting display
Cons
- Small cube caps precision on fine angles
- Some owners find it short of their needs
- Battery contact needs care with age
The XUNTOP solves the two things that annoy people most about box gauges: the battery and the magnet. Magnets on all four faces mean it grips a saw blade whether the blade is flat, tilted or vertical, which is exactly the case a base-only magnet cannot handle. And the internal battery recharges over USB-C, so there is no coin cell to lose in a tool bag.
Accuracy is listed at plus or minus 0.2 degrees with 0.1 degree repeatability. Owners who switched over from a competing budget brand report noticeably better quality control, and the bright backlight stays readable with sunlight streaming into an open garage.
The dual lasers are a genuine bonus for setup work. They project horizontal and symmetric references, which speeds up hanging shelves or photos and gives you a visual line on a fence as well as a number.
The body is a 2.4 by 2.4 by 1.2 inch metal cube, and that size is the limiting factor. A small body limits practical accuracy on fine angles, and a few owners report it is not accurate enough for their needs despite the stated spec. It suits short reference surfaces more than long stock, and it needs recalibrating if it is knocked hard.
Where it earns its keep on a miter saw
Bevel work at any orientation. Four-sided magnetism means the gauge stays put on a tilted blade, which is the most common frustration with a base-only magnet.
Install and site work. The IP54 rating and the rechargeable cell suit a van or a garage where a coin cell is one more thing to lose.
Where it will frustrate you
Fine angle verification. If you are chasing tenths of a degree on a long run, the small cube is working against you. Use the GemRed DAG-V1.
Long reference surfaces. Two and a half inches of usable face does not bridge the gap on a warped board.

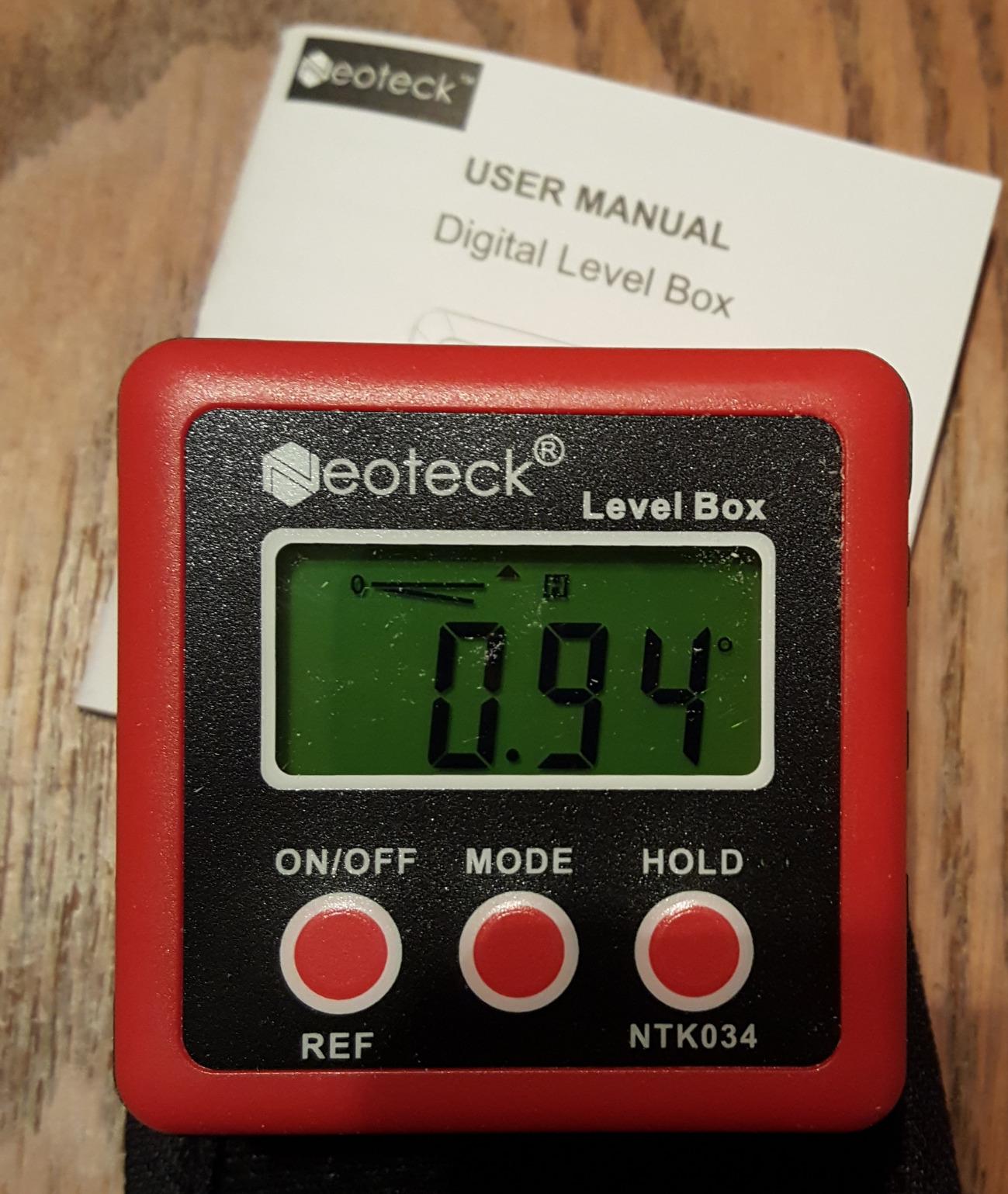

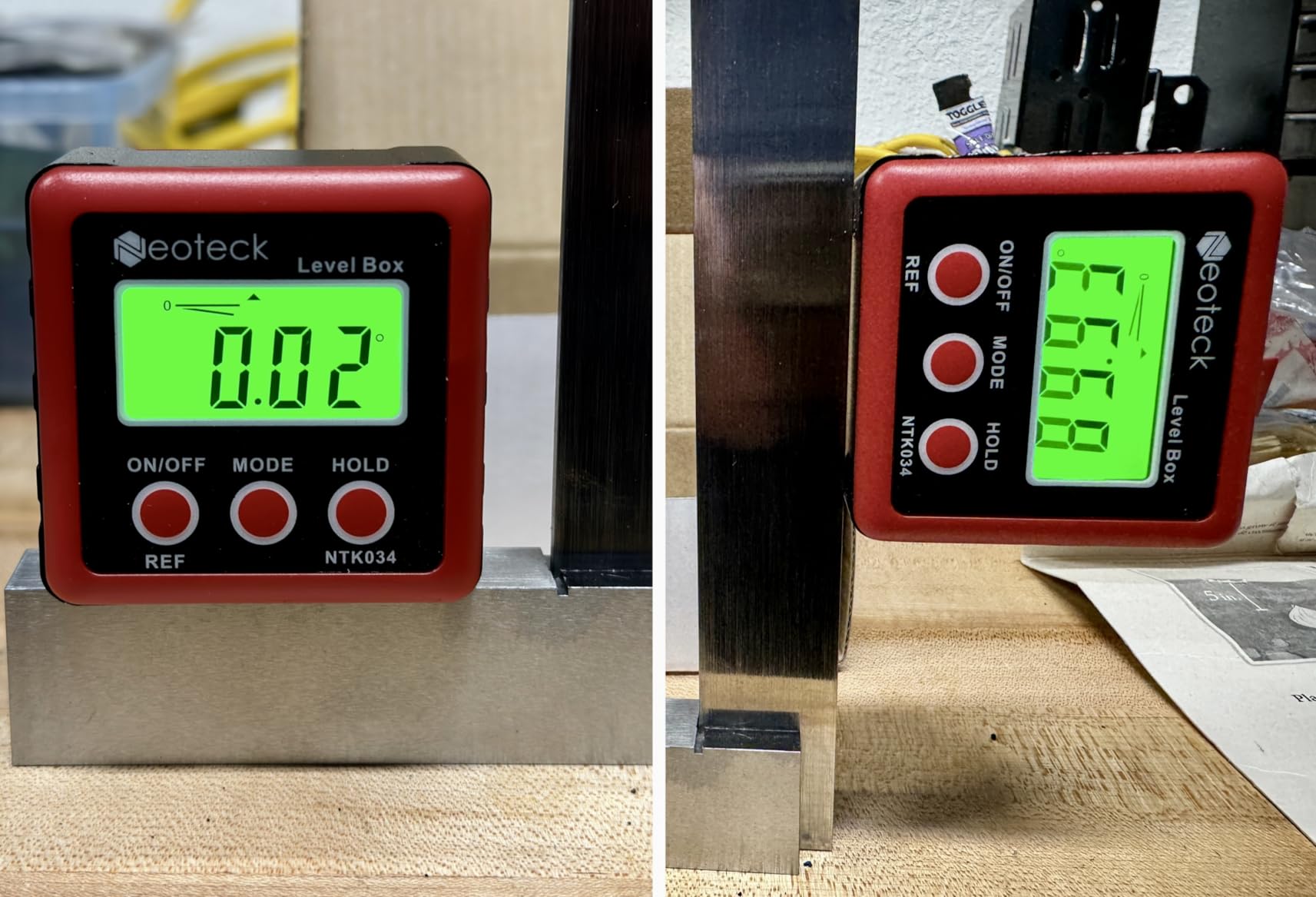

8. Neoteck Digital Angle Box as a Carry-Around Shop Gauge
Pros
- Delivers plus or minus 0.2 degrees at an entry level price
- Light and small enough for a pocket or tool bag
- Magnetic base holds on ferrous surfaces
- Works as a true digital level in tight spots
- Carry bag and manual included
Cons
- AAA batteries are not included
- Only the base is magnetic
- Lowest star rating of the metal-bodied four
The Neoteck is the honest entry-level option. It delivers plus or minus 0.2 degree accuracy across a 0 to 360 degree range, which is the same tolerance as several tools many times its size, and at 0.12 kg it is light enough to live in a tool bag without being noticed.
Owners treat it as a general shop gauge: a relative angle finder for setup and a true digital level for tight spots where a long level will not go. The clear LCD is readable at short notice, and the base magnet secures it to any ferrous surface.
Two practical warnings. It runs on two AAA cells that are not included, so it is not usable straight out of the box, and the base is the only magnetic face, which limits hands-free use on vertical or angled surfaces.
Its star rating is also the lowest in this group at 4.4, with a higher share of one and two star reviews than the metal-bodied options. That spread suggests some inconsistency in finish or accuracy across production runs, so if you are buying it as a precision tool, check it against a known square before you trust it on finished trim.
Where it earns its keep on a miter saw
Checking levels and relative angles on a saw that is not perfectly set up. The 0 to 360 degree range covers everything a compound miter saw asks of a gauge.
A second gauge in the tool bag. At this weight and size you can carry one without thinking about it, which means you will actually use it.
Where it will frustrate you
Bevel checks. Base-only magnet again. If you need to hang the gauge off a tilted blade, this is the wrong shape for the job.
Consistency. With the widest rating spread in the group, verify yours before it matters. Our guide to checking a meter or gauge before trusting it is the same discipline.

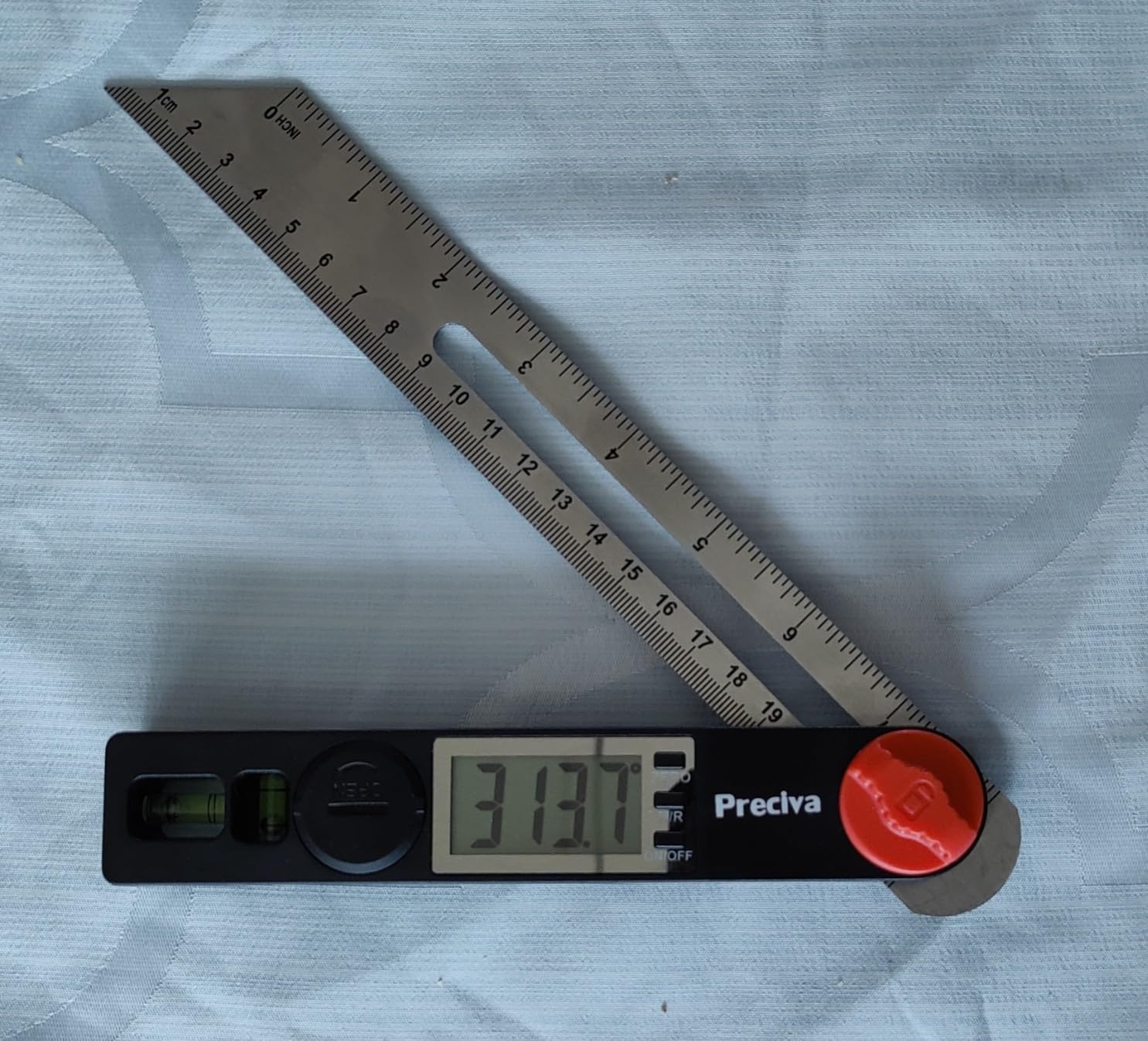

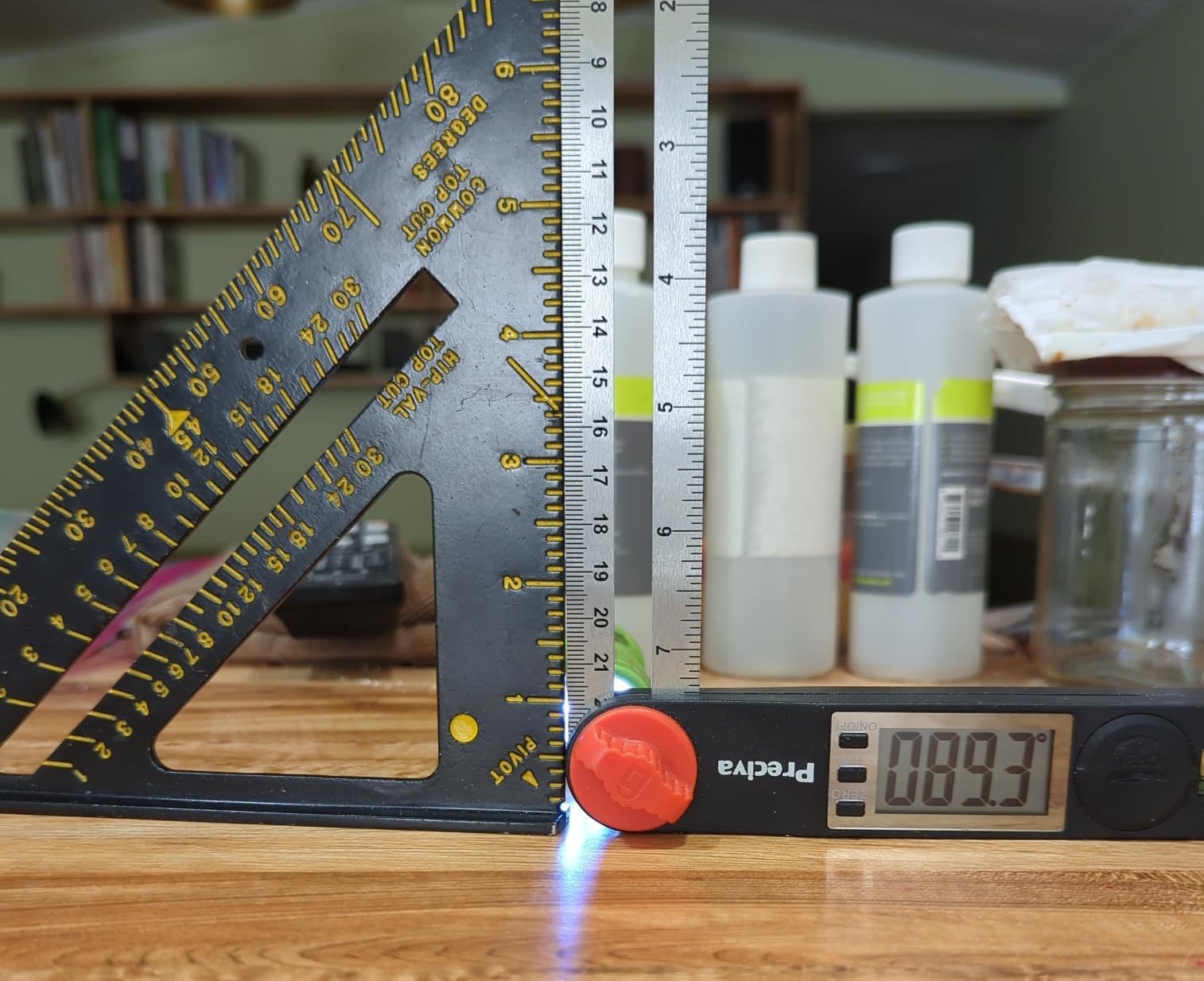

9. Preciva Digital T-Bevel Gauge for Level Checks and Compound Work
Pros
- Only gauge here with horizontal and vertical bubbles
- Short press locks a reading and long press reverses it
- Dual scale bevel ruler avoids converting
- Large display and three big buttons
- Works with gloves on
Cons
- Lowest star rating at 4.3 with more one and two star reviews
- Plus or minus 0.3 degrees is looser than the rivals
- Range stops at 338 degrees
- Plastic body and pivot durability concerns
The two built-in bubble levels are the reason to look at this one. Nothing else in the group lets you confirm the surface is level before you trace an angle, and on an old bench or a shop floor that is the difference between an accurate reading and a confident wrong one.
The button layout is well thought out. A short press on the H/R button locks the reading, a long press reads the value reversed 180 degrees, and there are separate zero and on off buttons. That reverse read is what compound miters need, and having it on a dedicated control rather than buried in a menu is refreshing.
The dual scale bevel ruler means you do not have to convert readings, which is a small thing that saves real time on a long run of cuts. The centre knob locks any angle, there is a quick 45 degree setting, and the large display with three big buttons is genuinely usable with gloves on.
Be aware of the numbers. Accuracy is plus or minus 0.3 degrees, looser than the plus or minus 0.2 degree competitors, and the range stops at 338 degrees rather than a full 360. It also has the lowest star rating in the group with a meaningfully higher share of one and two star reviews, and some owners question the durability of the plastic body and pivot over time.
Where it earns its keep on a miter saw
Levelling first, then measuring. The bubbles let you establish that your reference surface is truly flat, which is the step most people skip and regret.
Compound miters on a budget. The long-press reverse read gives you the complement angle directly, which is more than several pricier tools in this list offer.
Where it will frustrate you
Long precision runs. At plus or minus 0.3 degrees, expect visible gaps on a twelve foot crown run. Use it for setup, then verify with a tighter gauge.
Full-circle work. If you need to swing through 360 degrees for any reason, the 338 degree ceiling stops you short.

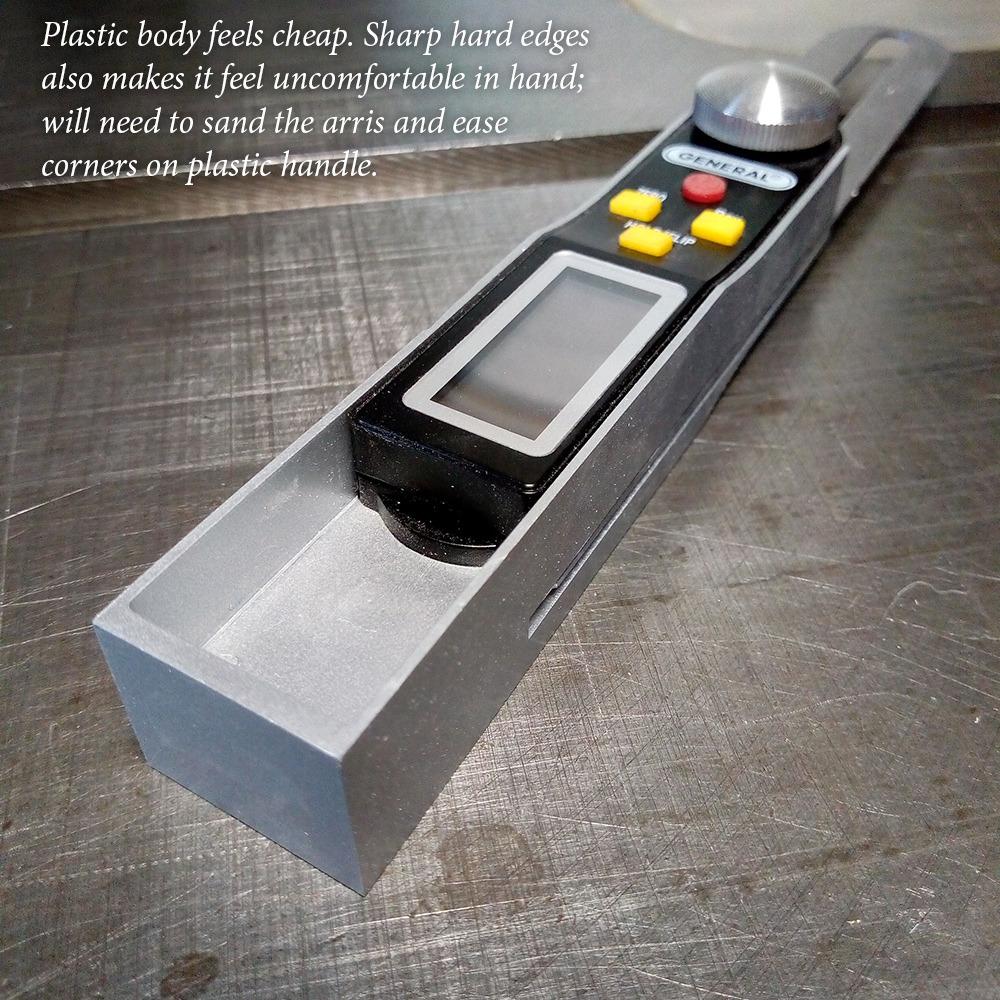

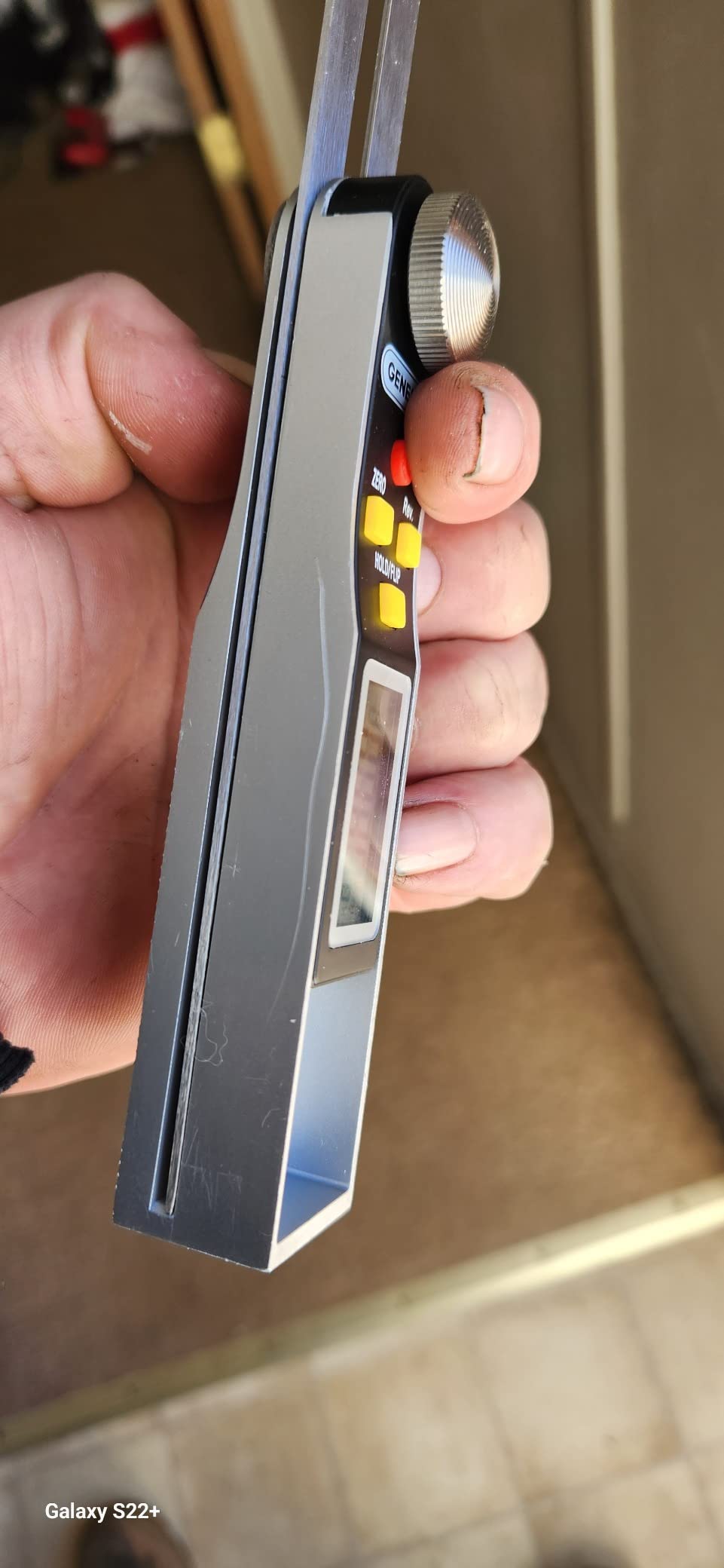

10. General Tools 828 Digital T-Bevel for Roofing and Trim Angles
Pros
- Transfers inside and outside angles straight to the saw
- Digital reading cannot slip unnoticed during handling
- Knob locks the angle and it folds flat
- Full size display readable in bright outdoor light
- Long 8 inch blade suits marking large stock
Cons
- Self-zeroing can drift more than a degree
- Blade holding nut can unthread in a tool bag
- Only whole degree readings should be trusted
- ABS handle arrises need easing
The 828 is the one roofers and trim carpenters in our research reach for, largely because it lets them dial in compound miters without carrying a printed chart of angle tables. The four large buttons cover power, reading hold, reverse angle, flip display and clear readout, so nothing needs digging for.
There is a real argument for a digital bevel over a traditional one here. A conventional bevel can slip unnoticed while you carry it across the shop. A digital readout cannot, because the number is either right or visibly different from what you set.
The 8 inch stainless blade is long enough to mark on larger stock, the full size display stays readable in bright outdoor light, and the whole thing folds flat with the angle locked.
Calibration is the sore point. Reviewers are split: once zeroed against a good flat surface it gauges to a couple of tenths of a degree, but the self-zero drifts over time and needs frequent recalibration. Only whole degree readings should be trusted, and the small nut holding the blade has a well-earned reputation for loosening in a tool bag.
Where it earns its keep on a miter saw
Roof pitch and rafters. The long blade and clear outdoor display suit working on a roof deck or in an unlit loft, where analog bevels are hardest to read.
Carrying compound angles across a site. Lock the angle, fold it, walk it to the saw. The hold function keeps the value from drifting in transit.
Where it will frustrate you
Fractional accuracy. The display shows tenths but the readings are not repeatable, so treat it as a whole degree instrument and nothing finer.
Tool bag durability. The blade nut unthreads and the parts go missing. Keep a spare in the pouch and check the handle arrises, which are sharp enough to cut a thumb.
How to Check a Miter Saw That Has Drifted
A factory pointer on a miter saw is optimistic. Cast iron moves, a blade gets sharpened, a fence gets knocked, and the handle slowly stops agreeing with reality. This five step routine takes about ten minutes and tells you whether the saw is the problem or your technique is.
First, level the saw. Put a bubble level on the saw table and on the miter fence before you measure anything. If the table is not level, every reading downstream is wrong, which is exactly why the Preciva T-bevel and the TREND DLB exist.
Second, set the miter to zero and read the actual angle. Zero the gauge on a known flat surface, stick it to the miter handle or the fence face, and read the true miter angle. Anything other than zero is your drift number. Write it down.
Third, set the bevel to zero and repeat. Zero the gauge on a known flat, place it on the miter table surface, and read the angle with the saw square. This catches a second, independent error that is very common on a saw that has been moved.
Fourth, check the 45 degree stop. Set the miter to 45 and read it with the gauge rather than trusting the pointer. This is the number that decides whether your picture frame joints close, so it is the most worth getting right.
Fifth, compare against the saw’s own miter chart and the miter gauge etched into the base. A well-made saw has a factory arc scribed into the table for exactly this check. If your measured numbers are consistent but differ from the etch, you have drift. If the readings differ from each other on repeated passes, you have a loose handle or a problem with the gauge, and you should verify the gauge against a machinist square first.
Once you know the drift, you can work with it. Rather than moving the saw’s mechanical stop, many carpenters simply dial the handle to the corrected angle using the digital reading. It is slower than trusting the pointer and far more honest.
How to Map a Measured Angle to Your Miter and Bevel Stops
Most confusion about digital protractors comes from mixing up two different jobs. Measuring a miter angle is a single number. Calculating a compound miter is two numbers, and that is where a gauge with a reverse read earns its keep.
For a plain miter, the work is one step. Measure the corner, read the angle, and dial that number into the miter stop. If you are fitting into an outside corner, the gauge reading is the miter stop value directly.
For a compound miter on crown molding, start with the crown angle, which is the angle between the face of the molding and its back. Measure the angle between the wall and the ceiling where the molding runs and treat that as the miter angle for the run. The bevel value is then the crown angle measured at the miter.
The practical sequence is: measure the wall corner, note the crown back angle, and combine them to get both stops. A gauge with a reverse-angle function reports the complement for you, which removes the mental arithmetic where most of these errors happen. The General Tools 823 and the Preciva T-bevel both do this on a button press.
One caution. Values from a printed miter chart assume an ideal saw and a perfectly square fence. Verify your first cut with a scrap offcut before you commit a full length of molding, because the saw’s real numbers may differ from the chart by a few tenths.
Known Failure Modes Owners Report
Forum threads outrank editorial roundups on this topic, so here are the problems real owners describe, with their symptoms so you can identify them in your own tool. Accuracy being hit and miss on budget units is the most repeated concern, and it is the reason we would not trust a sub plus or minus 0.3 degree gauge on a twelve foot run of finished crown.
Self-resetting zero is the second most common. A gauge that loses its zero after an auto shut-off forces a re-zero before every cut, which defeats the point of a repeatable setup. The GemRed 82305 is documented for this behaviour, so check the reading after the unit sleeps.
Shifting lock knobs are a close third. A lock that moves the blade while you tighten it means you must hold the blade in place with your other hand, which is why we noted the GemRed 82305 specifically for not doing this. Warped blades are the same complaint in a different form: the angle reading may be fine, but the tool loses its value as a straightedge.
Sun-unreadable displays are the fourth. Screens that go black after a few minutes in direct sun and need time to cool are reported on the General Tools 828. If you cut outside, prioritise a backlit display over other features.
Finally, availability. The original question raised on r/woodworking about digital protractors for woodworking noted that these tools are not widely sourced in the UK. Most of the units here read in degrees only, so outside the US you are relying on the ruler markings on the bladed models for actual measurement transfer. Check before you commit to an import.
Digital vs Analog: Is the Upgrade Worth It
For setting a saw once and cutting a year of trim, an analog aluminum miter protractor is still fine, and it will never need a battery. The upgrade earns its cost in two situations. The first is a saw that has drifted, because an analog tool tells you the handle position rather than the true angle, and you cannot measure a saw’s error with a tool that reads the same scale the saw does.
The second is compound work. An analog bevel can slip while you carry it, and a digital hold function removes that failure mode. LumberJocks users describe the Wixey units as giving accurate measurements for setting blades on a table saw and a miter saw, which is the clearest endorsement in the forum record for moving across from analog.
Where the upgrade does not pay is finish carpentry at ordinary angles on a square saw. If your 45 degree joints close cleanly, an analog gauge is enough and you should keep the money. The digital case is really about verification and repeatability, not about better numbers in an ideal setup.
What to Look for Before You Buy
Accuracy is the first filter, and the useful threshold is plus or minus 0.2 degrees or better if you are cutting long runs of crown. Below that, the tool is fine for squaring a saw and not much more. Check whether a figure is published at all, because some models list none.
Measurement range matters next. A 0 to 360 degree range covers everything a compound miter saw asks for, and a 180 degree range covers a standard miter. For crown work with springback and conduit bending, a wider range is genuinely useful.
Reverse reading is the feature that separates a measuring tool from a setup tool. If you fit crown or do any compound work, you want a complement read on a button. The Klein, the Wixey and the TREND do not have one. The General Tools 823, the Preciva and the General Tools 828 do.
Zeroing behaviour is more important than most spec sheets admit. A zero reference that works from an arbitrary surface angle lets you measure relative angles on an unlevel saw. A zero that only works near true zero does not, and that is the difference between the TREND DLB working on a crooked bench and a pocket gauge failing on the same bench.
Magnetism and body size come next. A box gauge with magnets on all four faces will hold on a tilted blade in any orientation. A base-only magnet will not. If your work is mostly bevel and blade setup rather than fence angles, buy the four-sided option and accept the smaller reference surface.
Blade length decides whether the tool doubles as a straightedge. An 8 inch blade suits marking on larger stock and reaching across a fence. A 200mm rule is easier to handle on small work. If you want one tool for both, the General Tools 823 at 10 inches is the most capable ruler in this group, and it is also the bulkiest.
Backlight and display orientation are what you will notice at 7pm in a basement. A backlit LCD plus an auto-inverting display removes most of the frustration of reading a gauge upside down under a saw. The Klein, the Wixey, the TREND, the GemRed DAG-V1 and the XUNTOP all have both.
Battery type is a practical filter. A CR2032 or an AAA is available anywhere. The XUNTOP charges over USB-C and never needs a cell. Whatever you pick, take the battery out between long sessions if the unit drains rather than sleeps, and check whether your gauge retains its zero after auto shut-off.
If you also work on electrical or general measurement tasks, our digital multimeter picks cover the same accuracy-versus-friendship question from a different angle.
Frequently Asked Questions
What is a good digital angle finder for miter cuts?
A good digital angle finder for miter cuts needs a magnetic base that holds on a blade or fence, a backlit auto-inverting display, and a stated accuracy of plus or minus 0.2 degrees or better if you are cutting long runs of crown molding. Our top pick is the Klein Tools 935DAG for drift checks and the GemRed DAG-V1 for precision verification, because a base-only magnet and a narrow zero range rule out cheaper options for compound work.
What is the best miter protractor?
The best miter protractor depends on the job. For a plain 45 or 90 degree miter on a square saw, an analog aluminum miter protractor is still accurate and never needs a battery. For verifying a saw that has drifted, or for compound crown work, a digital gauge wins because it reports the true angle rather than the handle position, and the General Tools 823 is the strongest choice for compound work because its reverse-angle function reports the complement for you.
How do I get perfect 45 degree cuts with a miter saw?
Level the saw first, then zero your digital gauge on a known flat surface and set the miter to 45. Read the true angle with the gauge rather than trusting the factory pointer, and compare it to the arc scribed into the saw table. Cut a scrap offcut, square it with a machinist square, and adjust until the gauge reading and the actual cut agree before you commit a full length of molding.
What is the most accurate digital angle finder?
Among the ten models we compared, the GemRed DAG-V1 is the most accurate, holding plus or minus 0.2 degrees at 0.1 degree resolution across a full 0 to 360 degree range, with owners confirming the figure against machinist squares. The Wixey WR300 matches that accuracy class over 180 degrees, and the Klein Tools 935DAG publishes no accuracy figure at all despite having the most reviews, so accuracy alone is not why it wins.
Are digital protractors more accurate than analog miter gauges?
A good digital protractor is more accurate in practice, not in principle, because it removes reading error from an engraved scale and can be zeroed against a known flat surface. The advantage is larger when a saw has drifted or when you are setting a compound angle. On a square saw making simple miters, an analog aluminum gauge is accurate enough and has no battery to fail.
How do I calibrate a digital protractor?
Place the gauge on a surface you know is truly flat, such as a granite plate or a machined surface, and press the zero function. Open and close the arms and check that it still returns to zero, then repeat at 45 and 90 degrees against a certified machinist square. If the readings agree at all three points, the gauge is in calibration. Redo this check every few months if you use it daily.
Where to Start in 2026
If you want one digital protractor and you have no idea where to begin, the Klein Tools 935DAG is the safe choice. Owners single its magnet out as the strongest they have used, it locks onto a blade hands-free, and there is enough owner history behind it that you will find answers to any problem you hit.
If accuracy on long runs of crown is the thing you care about most, buy the GemRed DAG-V1. If you fit crown regularly and want the complement angle without doing arithmetic, the General Tools 823 is the better buy. And if your saw is sitting on an unlevel bench, the TREND DLB’s zero reference is the feature that will actually save you a cut.
Whichever one you choose, spend the first ten minutes on the drift check before you cut anything finished. It is the single highest return ten minutes in miter work, and it is the reason these tools exist. For the saw itself, our sliding miter saw guide covers the long-stock setups where accuracy matters most.
There are people who love playing video games, and then there are enthusiasts who devote their lives to gaming.
Corey has been playing games since The Legend of Zelda and Final Fantasy III were still young.
Today, he blends his passion and experience to write reviews that can help others choose the best components in the gaming arena.
