Here is the short answer: the Lincoln Electric Viking 3350 is the best welding helmet for TIG welding we tested in 2026. Four arc sensors, a 12.5 square inch viewing area and 4C Lens Technology rated at 1/1/1/1 optical clarity make it the most reliable choice for the faint, easily blocked arc that TIG produces, and owners consistently report it working on low-amp TIG without an arc flash.
I have run TIG long enough to know that the helmet is not an accessory. A TIG arc at the torch tip is a narrow, low-energy column of light that a helmet built for MIG or stick can simply miss. When that happens the filter stays light, you are welding with bare eyes exposed to UV and IR, and the job grinds to a halt while you tap the side of the hood and wait for the electronics to catch up.
So this roundup ranks low-amp arc detection first and brand name last. I compared sensors, light-state and dark-state shade, optical clarity ratings, switching speed, viewing area, headgear and total weight across ten helmets, then read the owner feedback for the failure modes that only show up after a season of work. If you are still choosing a machine, our best TIG welders guide covers the power sources that pair with these hoods.
Everything below was checked and re-checked in October 2026. The picks span a wide range of use cases: a full-time fabricator running DC TIG at 30 to 50 amps with pulsing, a hobbyist welding 2 amp root passes on thin stainless, a shop that needs one hood for TIG, stick and grinding, and a fabricator working AC TIG on aluminum where the arc strobes twice per cycle.
Table of Contents
Top 3 Welding Helmets for TIG Welding (October 2026)
The three helmets below cover the range most TIG welders actually need: the best all-round performer, the highest-rated value pick, and the one with the biggest viewing window for a budget.
YESWELDER LYG-M800H
- 3.93 x 3.66 in view
- 4 arc sensors
- Shade 3/5-9 and 9-13
- Cheater lens ready
Best Welding Helmets for TIG Welding (October 2026)
| Product | Specifications | Action |
|---|---|---|
| Lincoln Electric Viking 3350 |
|
Check Latest Price |
 Hobart 770890 |
|
Check Latest Price |
| YESWELDER LYG-L600A |
|
Check Latest Price |
 ARCCAPTAIN HSH-S800 |
|
Check Latest Price |
 TOOLIOM E600A-A |
|
Check Latest Price |
 Antra AH7-220-0000 |
|
Check Latest Price |
 Jackson Safety Insight |
|
Check Latest Price |
 ESAB Savage A40 |
|
Check Latest Price |
| YESWELDER LYG-M800H |
|
Check Latest Price |
 YESWELDER LYG-Q800D |
|
Check Latest Price |
1. Lincoln Electric Viking 3350 – The Best Welding Helmet for TIG Overall
Pros
- Exceptional 1/1/1/1 optical clarity
- Extra large 12.5 sq inch viewing area
- Lightweight balanced X6 headgear
- Reliable on low amp TIG
- Non proprietary cover lenses
- 5 year manufacturer warranty
Cons
- Occasionally slow to react on arc strike even with sensitivity raised
- Fit is limited to hat sizes 6 1/2 to 8
- No per process memory modes

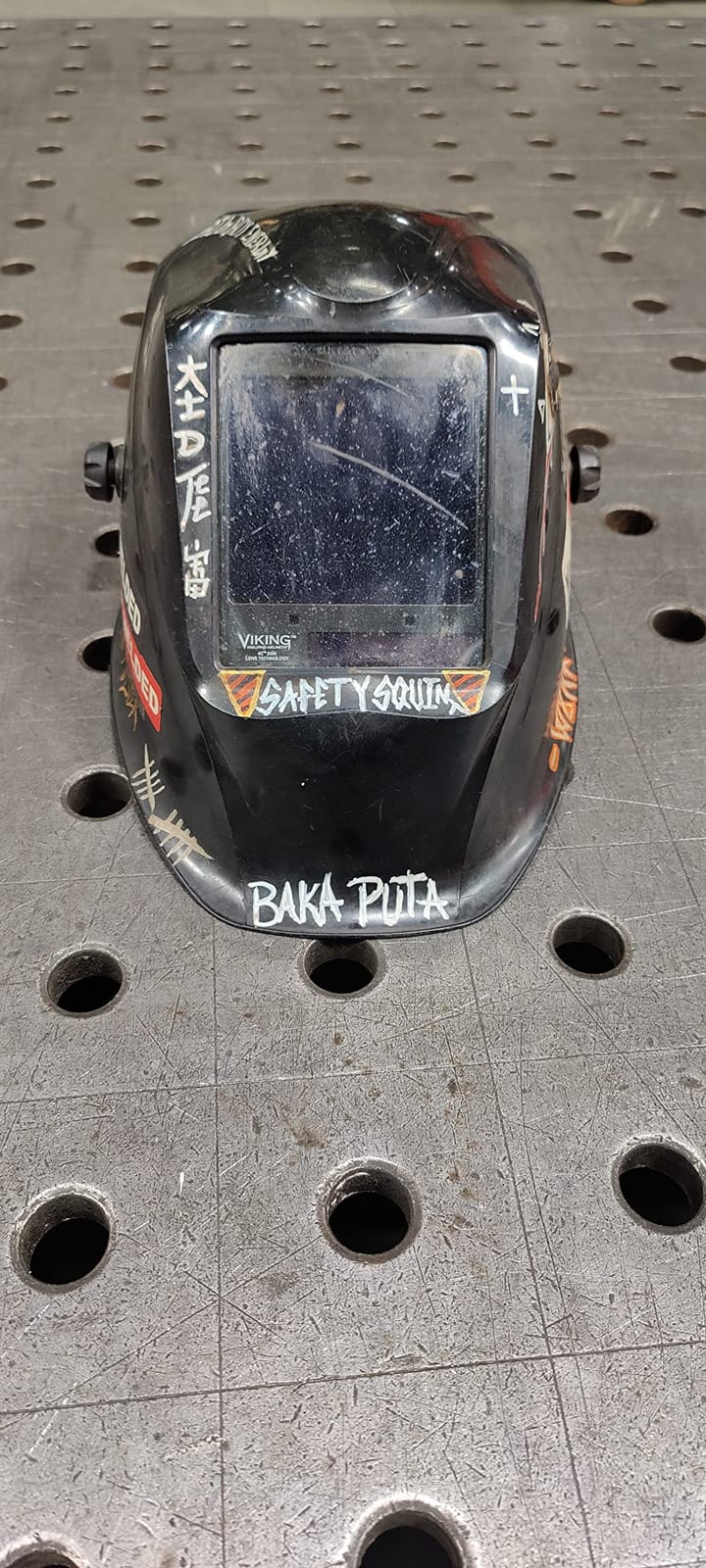

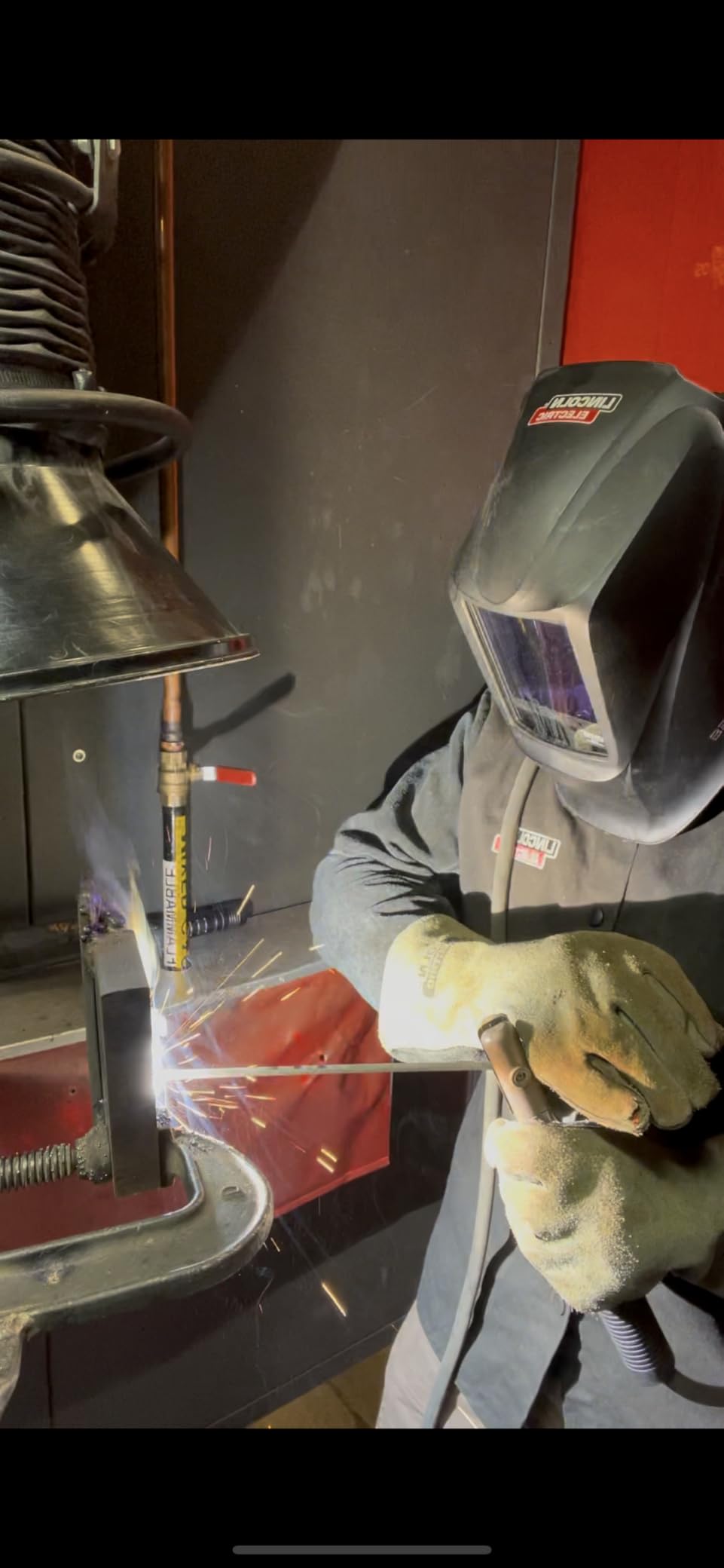

My default recommendation for anyone doing serious TIG is the Viking 3350, and after extended shop sessions the reason is the viewing area rather than the sensor count. Twelve and a half square inches is the largest filter in this group by a wide margin, and when you are running a root pass on 16 gauge stainless with a 3/32 inch tungsten, the extra field of view means you can see the edge of the joint, the filler rod tip and the puddle at the same time without moving your head.
The 4C Lens Technology is the other half of the argument. Lincoln rates it at 1/1/1/1 optical clarity, which is the top of the scale for optical class, light transmittance, chromaticity and resolution. In plain terms the base metal, the arc and the puddle all read with accurate color and no green cast, so a dirty tungsten, a wandering arc and a cold fusion all look the way they actually are. On a 4.8 rating across more than 3,000 owner reviews, that clarity is the most repeated theme in the feedback.
TIG behavior is where the four arc sensors earn their place. The sensors are spread wide enough across the shell that keeping your forearm across the front of the hood at a 17 degree torch angle does not knock all of them offline at once. Owners welding thin material at the low end report the lens darkening consistently without an arc flash, and a minority note a slower first response on arc strike even with sensitivity turned up.
At 1.4 pounds with the X6 headgear, this is a light helmet for a premium unit. The X6 spreads the load rather than hanging the shell from a single front band, which reduced the pressure point on my forehead compared with a ratcheting rear-knob design. The ratchet knob adjustment is easy to reach with a glove on and holds position well, and the included bandana helped keep sweat off the brow strap on long sessions.
Two practical notes. First, the fit is specified for hat sizes 6 1/2 to 8, so if you are outside that range the X6 may not sit correctly. Second, the cover lenses are non proprietary, which means replacement glass is straightforward to source and you are not tied to one supplier for spares. The five year manufacturer warranty is also the longest in this roundup.
What you give up for that larger filter
You give up the digital conveniences. The controls are conventional rather than menu driven, so there is no per-process memory for a dedicated TIG preset and no touchscreen to fiddle with in a respirator. If your work alternates constantly between four different setups, that is a small tax every time you change over.
You also give up a little pocket money, and the price band sits well above the mid-range options. For someone welding a handful of projects a year, that gap rarely pays for itself. For a fabricator putting in hours every week, the clarity and the field of view are the difference between fighting the puddle and controlling it.
Who should skip it
Skip it if your hat size falls outside 6 1/2 to 8, or if you weld thin material at 2 to 5 amps exclusively and need a filter with an unusually sensitive low end. Also skip it if you are buying a first helmet on a tight budget and expect to move to TIG later; the value picks below cover beginner TIG perfectly well and the money saved goes toward a better machine.
2. Hobart 770890 – Best for Welders Who Prefer Knobs to Menus
Pros
- PureColor lens gives an accurate colored view
- 9.3 inch widescreen viewing area
- 4 independent arc sensors
- Analog knobs work with gloves on
- Weld to grind mode switch
- Auto on off at arc strike
Cons
- Older analog control design lacks digital modes
- Single included CR2 lithium battery rather than a solar panel

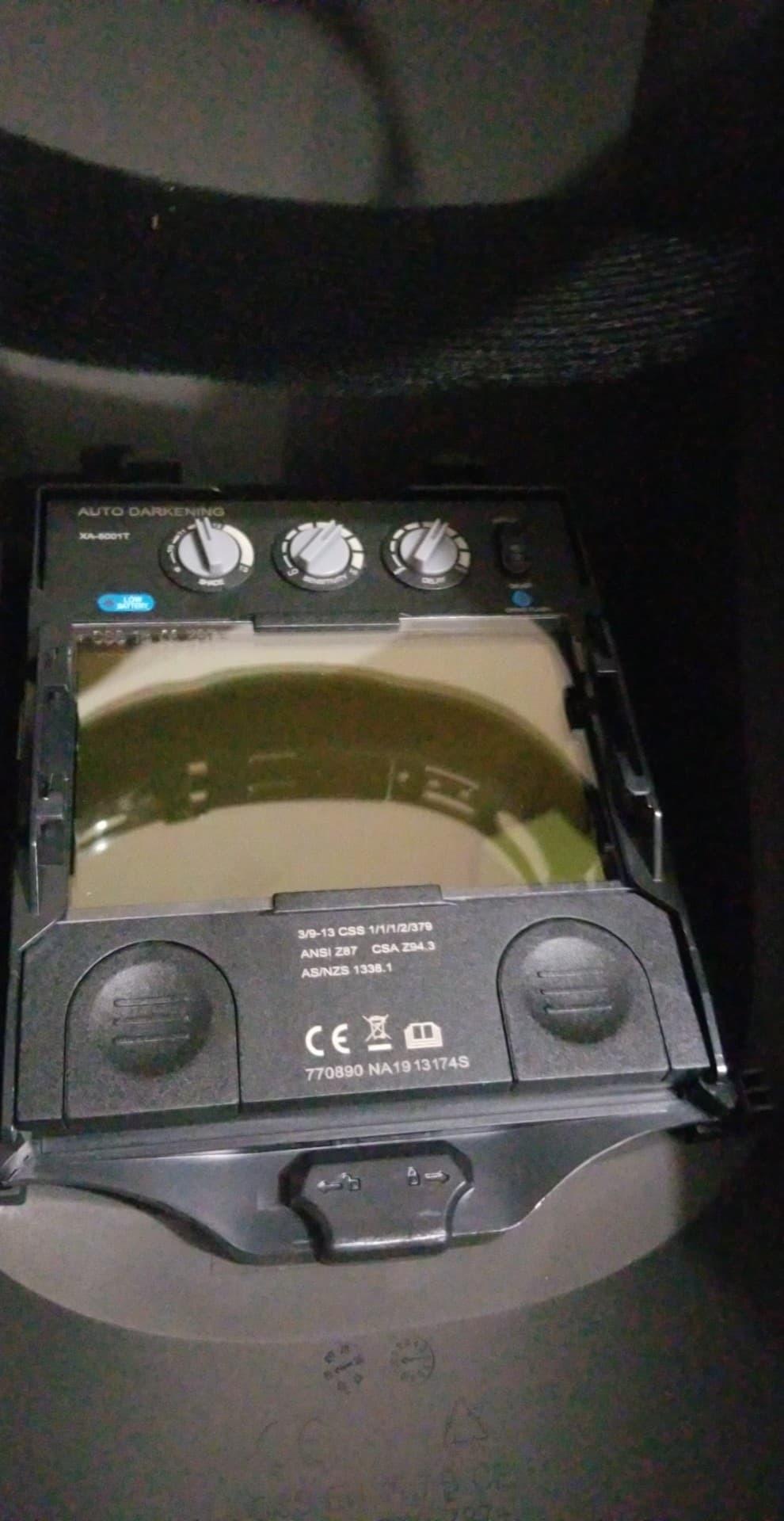

The Hobart 770890 is the helmet I recommend to people who have been let down by menu-driven auto-darkening helmets. Shade, sensitivity and delay are three analog knobs on the side of the shell. You can set them in the dark, with welding gloves on, by feel, in the time it takes to strike an arc. There is no boot sequence and no accidental button press from a torch neck or a leathern apron strap.
For TIG that simplicity matters more than it does for MIG. Low-amp TIG is a settings problem, and being able to nudge the sensitivity dial up one click and immediately re-test on a scrap coupon is a real workflow advantage. The 4 independent arc sensors give dependable detection, and the auto on-off control wakes the filter at the strike of an arc so you never have to remember to power it up between tacks.
The PureColor lens is the quiet strength here. Owners describe the view as accurate and noticeably clearer than a tinted budget filter, and the 9.3 inch widescreen viewing area is a genuine step up from the small rectangular windows on most entry-level hoods. At 4.7 from 880 reviews with 83 percent five star, the feedback is unusually consistent for a mid-range unit.
At 1.25 pounds it is one of the lighter shells here, and the polyamide nylon body keeps the total manageable. The weld-to-grind switch means the same hood handles cleanup work without a separate face shield, which is a real time saver at the end of a shift. Continuous UV and IR protection runs at all times, not just when the filter darkens.
How it behaves on low current TIG
With sensitivity turned up, the filter responds reliably to a faint arc, and the analog delay control lets you shorten it for tack welding and lengthen it for sustained passes. One owner of a hood in this class reports that a shorter delay is the fix for spotting after an air arc, and the Hobart gives you that adjustment as a physical knob rather than a buried menu item.
The one limitation is that four arc sensors cannot fully compensate for a genuinely faint arc on a very small machine, but at the amperages most TIG work sits at, 20 to 60 amps, you will not notice a difference against a premium unit.
Who should skip it
Skip it if you run AC TIG on aluminum regularly and want the very shortest transition times, or if you want preset memory for multiple processes. It also runs on a single included CR2 lithium battery rather than a rechargeable solar panel, so it is not the right choice for someone who welds in remote locations away from spare batteries.

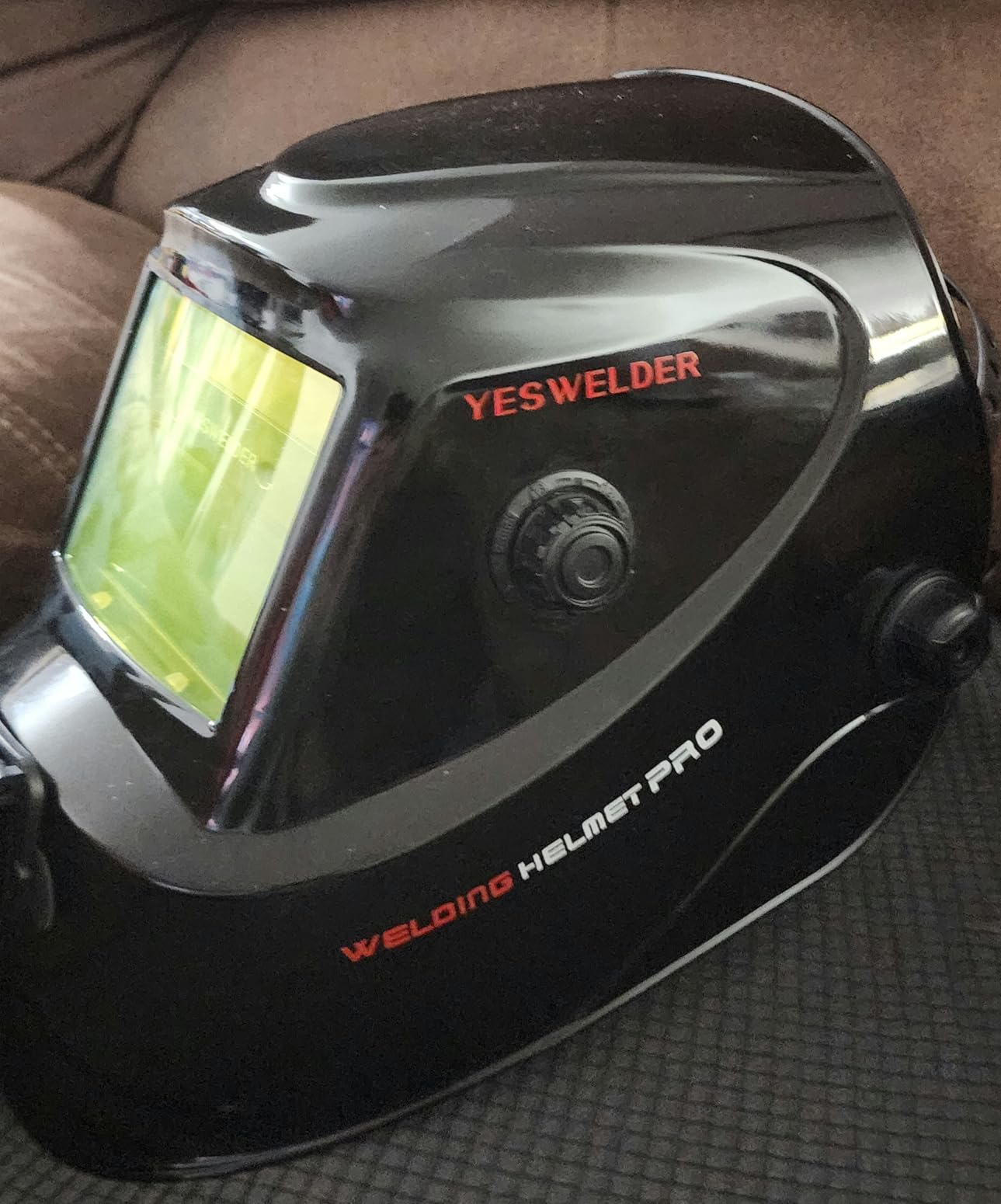

3. YESWELDER LYG-L600A – Best Rated Helmet for TIG on a Budget
Pros
- Highest rated and most reviewed helmet here
- 1/1/1/1 true color view with less eye strain
- 1/30000 second darkening with adjustable sensitivity and delay
- Shade 3/7-13 covers TIG MIG stick and grind
- Room for a respirator under the hood
- Blue light blocking outer lens
Cons
- Small viewing area compared with full face styles
- Headgear and shell feel light duty
- One report of a dead included button battery

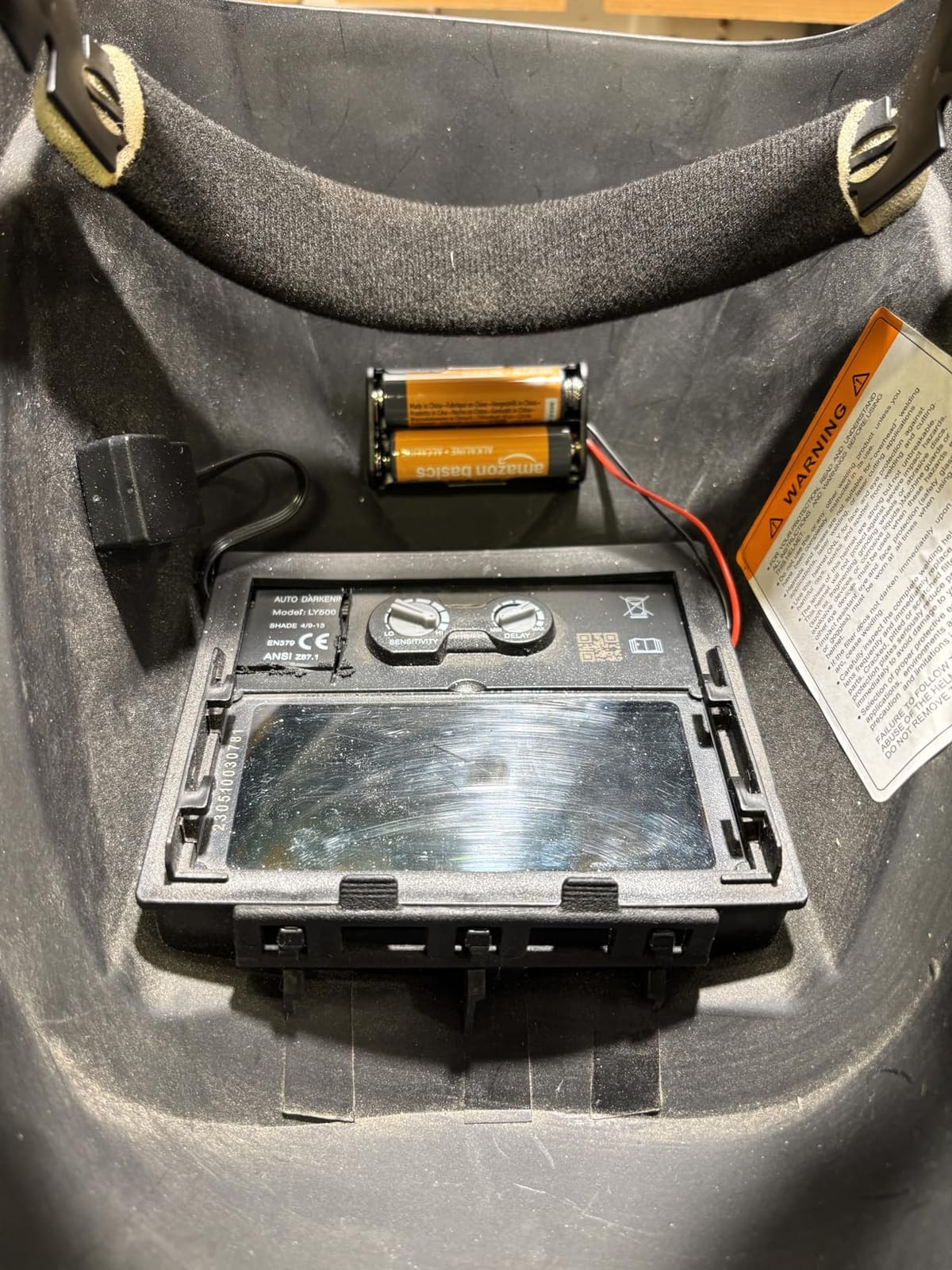

With more than 13,000 reviews and a 4.6 rating, the LYG-L600A has the largest owner base of anything in this roundup, and that matters for a TIG buyer because low-amp failure modes are rare enough that you need volume before you can trust a verdict. The pattern across reviews is consistent: fast darkening, a clear and naturally colored view, and a fit that stays comfortable for hours.
The technical case is 1/1/1/1 optical clarity with true color across a 3.64 by 1.67 inch window, a shade range of 3 and 7 to 13, and switching in 1/30000 second. The two arc sensors are the weak point in the specification, and any honest evaluation has to flag that. In practice owners welding stainless and mild steel at conventional TIG amperage report the filter responding without delay, because two well-placed sensors are enough when the arc is not being deliberately obstructed.
Adjustable sensitivity and delay are both present, which is the minimum viable setup for fine TIG work. The filter accommodates magnifying lenses for close root passes, and the blue light blocking outer lens cuts the high energy blue light that causes end-of-shift eye strain in people who spend a full day staring at a puddle.
At 16 ounces it is among the lightest here, and owners specifically call out the room inside the shell for wearing a respirator, which is increasingly common in regulated shops. Power comes from a solar panel plus a replaceable CR2450 button cell, so it keeps working when the arc is short and the arc strikes are infrequent. Certification is to ANSI Z87.1 and CSA Z94.3.
Where two sensors become a limitation
They become a limitation when the arc is faint and the geometry is bad at the same time. Deep under 5 amps on very thin material, with your forearm crossing the front of the hood and a large filler rod in the way, a four sensor array has a meaningful advantage. This is the exact scenario a full-time low current TIG fabricator will hit, and it is the one case where I would point you at a four sensor unit instead.
There is also a durability consideration. The ABS and PP shell and the pivot-style headgear feel light duty next to a premium hood, and that is where the money is saved. Treat the headgear tension as something to check every few weeks.
Who should skip it
Skip it if you work overhead or out of position all day and need a robust shell, or if your priority is seeing both sides of the joint at once and the small window feels cramped to you. Also skip it if you need certified performance for AC TIG on heavy aluminum and want the strongest possible transition times.

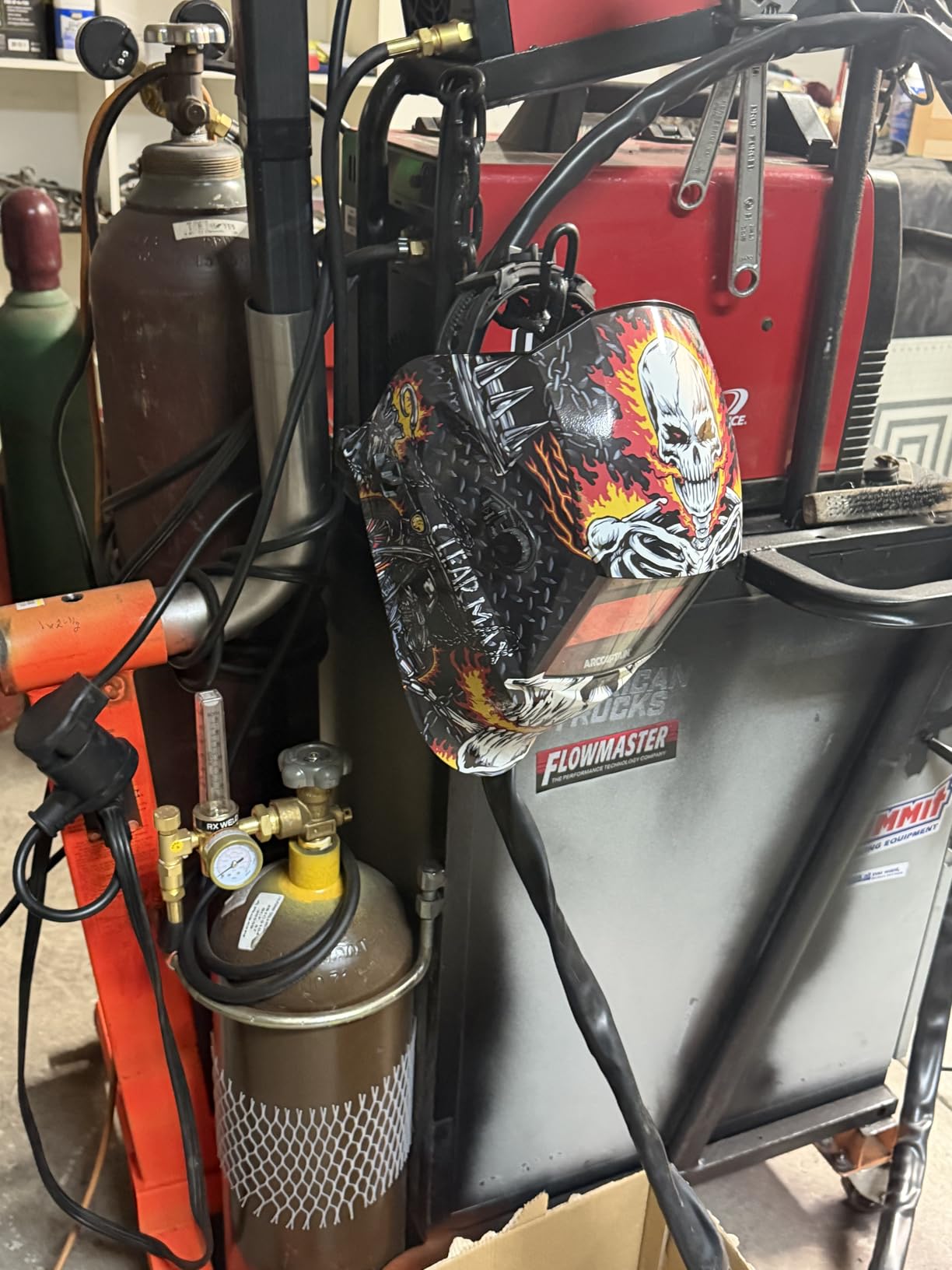

4. ARCCAPTAIN HSH-S800 – Best for Cheater Lens TIG Work
Pros
- 1/1/1/1 true color lens rivals far costlier units
- 1/25000 second response with 4 arc sensors
- About 1 lb with padded adjustable headband
- Grind mode switch works with gloves on
- Wide headband adjustability
Cons
- Shortest 180 day warranty in this group
- A small number of reports of slow first response
- One report of early electronics failure

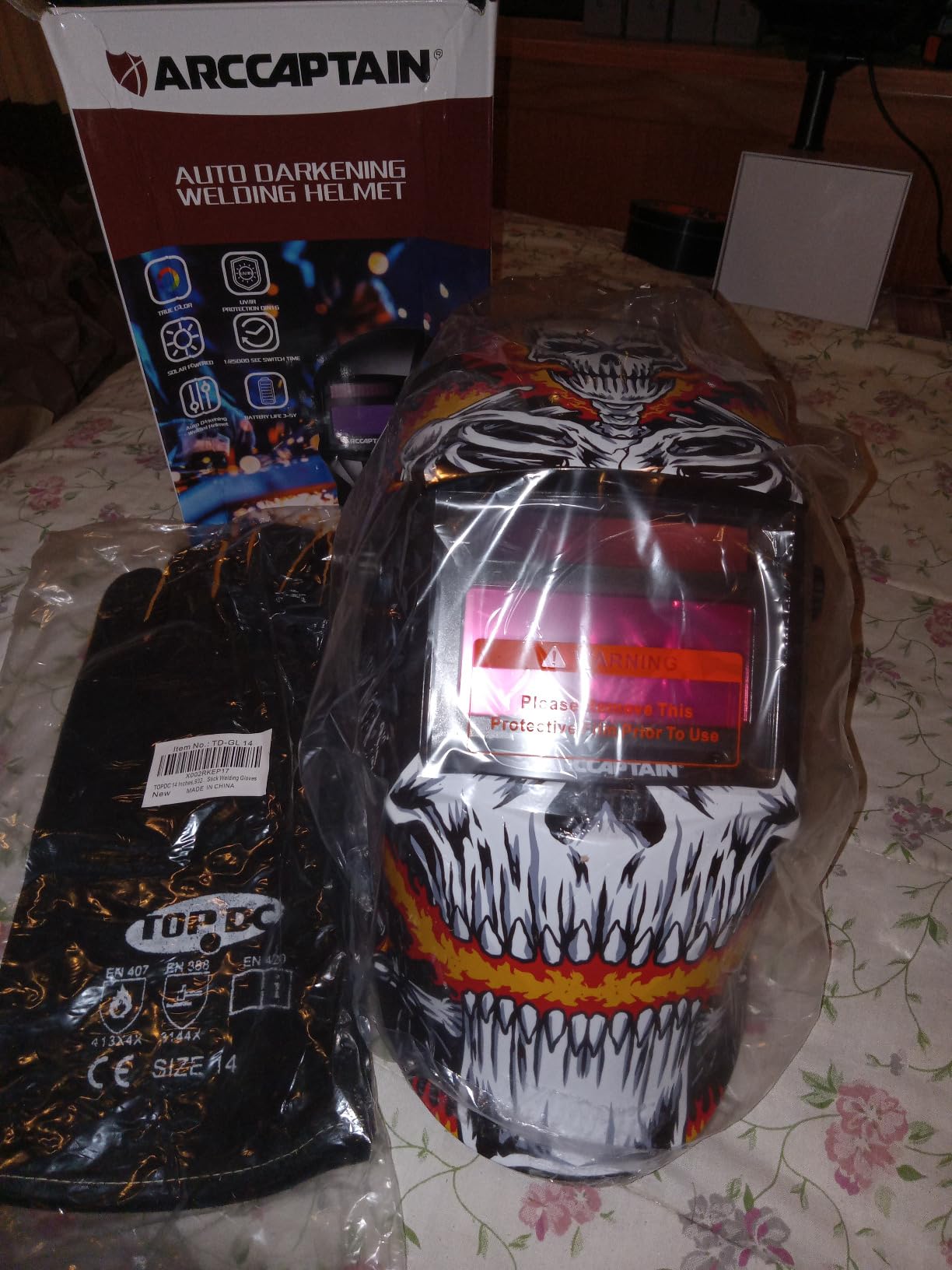

The ARCCAPTAIN HSH-S800 gets the most important number right for TIG at this level: four arc sensors switching in 1/25000 second. That is a two sensor upgrade over the cheapest viable option at no meaningful weight penalty, and it is why this is the pick I would hand someone doing 3 amp root passes on thin wall stainless.
The lens is 1/1/1/1 optical clarity with true color technology across a 3.86 by 1.69 inch viewing area, and owners repeatedly say the image rivals units costing several times as much. The shell is PA material rated at a tensile strength up to 120 MPa, with solar cells and a replaceable CR2450 lithium cell for a long service life and an automatic DIN 16 UV and IR protection filter.
It weighs about 1 pound with an adjustable padded headband and a breathable sweatband, and the wide adjustment range means it settles on a range of head shapes. The grind mode switch is reachable with welding gloves, which sounds trivial until you have tried flipping a hood up and down with a leather glove on.
The cheater lens compatibility is the detail that sets it apart for TIG. The frame accepts a magnifying insert, so you can drop a 2.0 or 2.5 lens for close root pass work without swapping helmets. Combined with 1/1/1/1 clarity, that is a genuinely useful combination for anyone doing TIG on thin tube or doing out-of-position plumbing work overhead.
The warranty is the weak point
The 180 day warranty is the shortest in this group, roughly a quarter of what Lincoln offers, and it is the single biggest reason I do not put this first. A small number of owners also report slow initial response on strike or electronics failure within days of purchase, which is a low but non-zero rate at this price level.
Certification is broader than most at this tier, covering ANSI/ISEA Z87.1-2010, CSA Z94.3, DIN EN 175 and DIN EN 379. If you work under a European or dual standard shop requirement, that is a real advantage over cheaper single-standard imports.
Who should skip it
Skip it if you are buying a helmet you expect to keep for a decade and long warranty coverage is part of that decision. It is also not the choice for someone who welds all day and needs a shell that survives being dropped, dragged across a bench and set down in grit. The certification list is the strongest argument for it, and for shops that work to EN 379 it is genuinely the pick here.

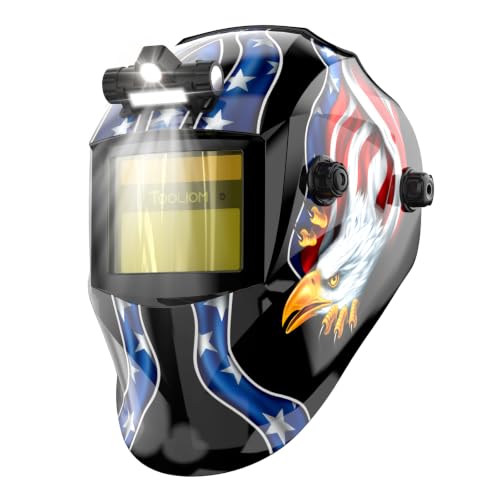

5. TOOLIOM E600A-A – Best Lightweight Helmet for Out of Position Work
Pros
- Very light at about 1.14 lb for long shifts
- Blue light blocking outer lens eases post shift eye strain
- 1/1/1/1 true color puddle view
- Adjustable headgear with breathable sweatband
- External grind switch and user serviceable battery
Cons
- Cheater lens holder is slightly small for a standard lens
- Rear plastic headband can press on the back of the head
- Manual does not explain the on off knob or its range

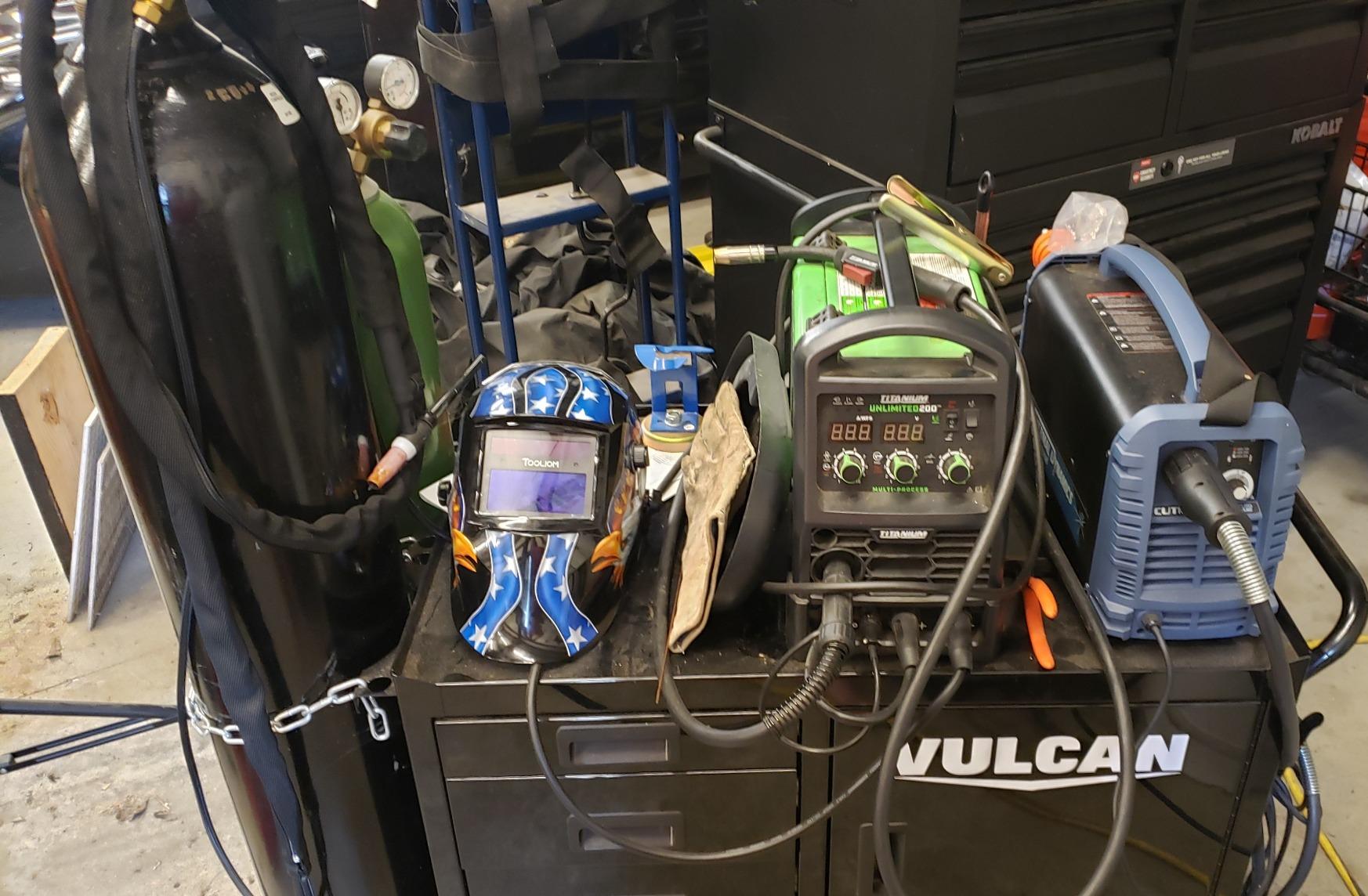

The TOOLIOM E600A-A is built around one number: 1.14 pounds. For overhead TIG on stainless pipe, or a full shift in a booth with a hard hat required underneath, the weight of a helmet is the first thing you feel and the last thing you think about. This is the lightest credible option in the roundup that still has adjustable internal sensitivity and delay controls and a true color 1/1/1/1 lens.
Arc detection runs at 1/25000 second with internal sensitivity and delay knobs, and the shade range of DIN 3.5 and 9 to 13 covers TIG, MIG, stick and plasma cutting in one unit. The external grind mode control is a genuine convenience when you are wearing gloves, and a low battery indicator tells you before the filter stops responding rather than at the worst moment.
Solar power with a replaceable battery means the filter wakes on its own after a break, and the self-servicing battery compartment means you are not mailing the helmet anywhere. The precision blue light blocking outer lens is aimed squarely at the end-of-shift eye fatigue that helmet owners complain about most, and reviewers consistently credit it.
At 4.6 across more than 1,200 reviews with 76 percent five star, the international feedback is warm, particularly on adjustability and the price-to-performance ratio. The adjustable PE headgear with a breathable sweatband is a detail most budget helmets omit and one that shows up in the comments as a positive.
What the light shell costs you
Lightweight usually means thinner material, and the feedback reflects it. The cheater lens holder is described as slightly too small for a standard insert, which matters if your close-up work is a regular part of the job. The rear plastic headband is unpadded and can press against the back of the head, and several owners say the comfort falls short for a full professional shift in a fixed position.
The manual is also incomplete on the side on-off knob and the range it controls. That is a five minute fix for anyone willing to test the settings on a scrap coupon, but it is friction you should expect to spend on day one.
Who should skip it
Skip it if you routinely use a magnifying insert, if you work in a fixed overhead position for eight hours where even a light helmet fatigues you, or if detailed documentation matters to you. For a welder who moves between jobs, does overhead work in short bursts, and wants a clear true color view without a heavy shell, it is a strong pick.

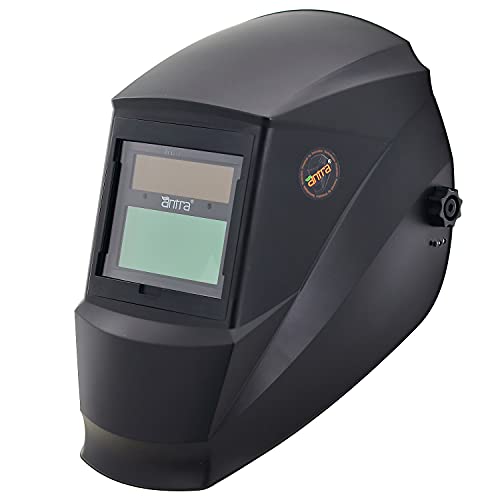

6. Antra AH7-220-0000 – Best Published Low Amp TIG Response
Pros
- Interference suppression ignores sunlight and shop lights
- Published DC TIG detection down to 5 amps
- Very light total weight
- Fully automatic lens with internal controls
- Handles DC and AC TIG plus MIG MMA cutting and grinding
Cons
- Only 2 arc sensors versus 4 on most modern helmets
- Shade range 4/7-13 skips some intermediate shades
The Antra AH7-220-0000 is the only helmet here that publishes a specific minimum TIG figure, detecting DC TIG down to 5 amps, and it pairs that with interference suppression described as reducing false triggering from sunlight and workshop lights. On a spec sheet those two lines together are exactly the combination a low current TIG welder should be looking for, and the owner feedback backs them up: people welding at low current report the lens staying clear under shop lights and still darkening when the arc strikes.
It also carries a permanent passive shade 13 UV and IR filter behind a double layered auto dimming LCD shutter, so protection does not depend on electronics at all when the arc is not present. That is a meaningful safety margin, and it meets ANSI Z87.1. The process coverage is broad: DC TIG, AC TIG, MIG and MAG, MMA and stick, plus abrasive wheel cutting and grinding.
The internal controls are a smart choice for TIG specifically. Mounted inside the shell, the shade, sensitivity and delay adjustments cannot be changed by brushing against a workbench, and they are reachable in a confined space where an external knob would be hard to see. The fully automatic lens means you never lift and lower the hood mid-task, which keeps the arc going and the workflow unbroken.
How the two sensors perform in practice
Two sensors are the compromise here, and it is a real one. When you are welding at the published 5 amp floor with a clear line of sight, the published response holds up. When you combine the faintest arc with the worst geometry, a four sensor array would be safer. Owners accept the trade because the interference suppression prevents the far more common annoyance of a lens that darkens when nothing is happening.
The shade range of 4 and 7 to 13 is the other limitation. Compared with a range that includes 5, 6 and the 3.5 steps found elsewhere, there are fewer intermediate settings for very thin material in a brightly lit shop, so you may end up choosing between a slightly light and a slightly dark filter more often than ideal.
Who should skip it
Skip it if you work outdoors in direct sun with no shade, and specifically if your welding happens in an environment where something could occlude the arc without anyone noticing, because a two sensor array has fewer fallbacks. Also skip it if you want the widest possible shade selection for work spanning 20 gauge to heavy plate. For indoor low current TIG in a fixed bay, it is a strong and well matched choice.
7. Jackson Safety Insight 46101 – Best Helmet for All Day Wear
Pros
- Ultra lightweight HLX shell at only 6 ounces
- 1/1/1/1 true color clarity reduces eye fatigue
- Digital controls with Weld Torch and Grind modes
- 4 arc sensors reduce blockage risk
- 370 Speed Dial headgear with Qwik-Fit rear swivel band
Cons
- Shade range starts at 9 with no lower setting
- Viewing area smaller than the large format models
Six ounces makes the Jackson Safety Insight the lightest helmet in this roundup, and that is not a gimmick. The HLX shell is thin and light in a way that changes how you feel at hour six, and for a fabricator doing long TIG sessions that difference is worth more than another half inch of viewing area.
Underneath the featherweight shell sit four arc sensors, which is the specification I look for in a TIG helmet, and digital controls with dedicated Weld, Torch and Grind modes. The Torch mode is worth explaining: it is a lower intermediate shade intended specifically for the moment after you strike an arc but before the puddle is fully established, which is exactly the phase that matters in TIG.
Optical clarity is 1/1/1/1 with True Color technology across variable shades 9 to 13, and owners credit that clarity with reduced eye strain and fatigue. The 370 Speed Dial ratcheting headgear with the Qwik-Fit rear swivel band is a genuinely well thought out system, letting you adjust the rear tension precisely while the front band stays put, and it fits a range of head shapes without the forward creep some pivot designs suffer from.
The shade range is the real limitation
The range starts at 9. That is fine for most MIG, stick and heavy TIG work, and it is a genuine problem for TIG on thin material, because there is no lower shade to dial back to when you are welding 24 gauge stainless in a brightly lit shop and the filter is too dark for comfortable puddle control. Helmet owners upgrading from a shade 4 model report this as the main adjustment period.
The 3.94 by 2.36 inch viewing area is also smaller than the large format models, though it is still a step up from the small rectangular windows on entry-level hoods. Certification is to both ANSI Z87.1 and CSA Z94.3.
Who should skip it
Skip it if your work is concentrated on thin sheet or thin wall tube, where you need shade 4 or 5 available. Skip it if you want the largest possible field of view for wide joint tracking. For a full-time welder doing a mix of processes who is fighting neck and forehead fatigue, this is the pick, and the four sensor count means you are not trading safety for the weight saving.
8. ESAB Savage A40 – Best Helmet for Long Term Ownership
Pros
- True color clarity described as HD like
- 4 arc sensors with low amp sensitivity control
- External grind button works with gloves
- Long term owners report four plus years with one battery change
- Premium optics at a mid range outlay
Cons
- Exterior shade knob can be bumped in tight spaces
- Viewing area smaller than the Viking 3350
- One owner reported double vision with a cheater lens
The Savage A40 is the pick for someone who wants premium optics without buying the most expensive helmet in the category, and the reason is unusually specific. ESAB describes the sensitivity control as useful when welding low amp TIG for a better reaction to fainter arc light, which is not marketing language copied from a MIG datasheet, and four arc sensors back it up.
The true color lens is the other selling point. Owners upgrading from cheap hoods credit it with visibly better bead control and faster skill development, which makes sense: if you can actually see the edges of the puddle you stop guessing at your filler rod placement. The delay control sets how long the filter stays dark after the arc stops, which is the setting that controls afterimage spotting on an air arc and on rapid short passes.
Long term ownership is where this helmet quietly wins. Owners report four-plus years of continuous use with a single battery change, and the machine runs on one included CR2 lithium ion cell. For someone who welds daily, the durability record matters more than any spec on the box, because a helmet that needs replacing every few years costs more over its life than a more expensive one that lasts.
Where the A40 falls short
The exterior shade knob sits on the upper left of the shell and can be knocked in a confined space, which is a real annoyance when you are welding inside a frame or a chase. That is a direct consequence of the light, minimal shell, so you are choosing between physical robustness and low weight.
The viewing area is smaller than the Viking 3350, and one owner reported double vision when using a cheater or magnifier lens. If your TIG work involves a lot of close root passes behind a magnifying insert, test that combination before committing. The listed weight of 2.2 pounds is the heaviest figure in the group, though many owners describe it as closer to a pound in practice.
Who should skip it
Skip it if you work in tight enclosed spaces where the exterior controls will get bumped, or if you need the widest field of view available. Also skip it if cheater lens work is a large part of your job and you cannot test it first. For a fabricator who upgrades once and keeps the same hood for a decade, it is the sensible buy.
9. YESWELDER LYG-M800H – Best Value Helmet With the Biggest Viewing Window
Pros
- Exceptionally large viewing area shows joint and puddle
- 1/1/1/1 true color praised as a step change
- 4 arc sensors with fast consistent detection
- Glove friendly external Weld Cut Grind controls
- Fits over prescription glasses
- Cheater lens compatible
Cons
- Thin plastic shell and headgear feel less robust
- Side tension knobs must be cranked very tight
- Inner lens and battery are hard to remove
The M800H solves the most common complaint about budget auto-darkening helmets, which is that you cannot see enough of the joint. A 3.93 by 3.66 inch window is more than twice the area of most entry-level filters, and combined with 1/1/1/1 true color clarity it is the configuration owners most often describe as a step change from a green tinted older hood.
It also has four arc sensors, which puts it ahead of the L600A on the specification I care most about for TIG, with switching in 1/30000 second. Shade settings cover DIN 3 and 5 to 9 plus 9 to 13, which spans TIG, MIG, stick, cutting and grinding, and the shade 3 light state is genuinely useful for setting up a joint in a dim shop before the arc strikes.
At approximately 1.32 pounds it is comfortable for all day wear, and owners note it fits over prescription glasses, which solves a problem that surprises a lot of people the first time they try to weld in their everyday eyewear. The cheater lens frame accepts a magnifier for close work, and the reinforced hinge and strengthened connection points are thoughtful touches in a shell at this level.
Where the build quality shows
The build quality is the trade. The thin plastic shell and the headgear feel less robust than a professional hood, and the side tension knobs have to be cranked very tight to hold the helmet in the up position, which is exactly the kind of adjustment that eventually strips. The inner lens is hard to grip and the battery is difficult to pop out, both minor but both recurring complaints.
Rating is 4.4 from more than 8,000 reviews with 71 percent five star, the lowest in this group, and the gap is accounted for almost entirely by build quality rather than optics. Owners repeatedly report measurable improvement in bead quality after moving to it from a darker hood, which is the outcome that matters for TIG.
Who should skip it
Skip it if you work in a fabrication shop where the helmet gets dropped, thrown in a truck bed or set down in grinding grit. It is not a good match for someone who welds in the rain or on a job site without a case. For a hobbyist, a weekend warrior, or a fabricator who treats their gear carefully and wants the biggest window available, it is hard to argue with.
10. YESWELDER LYG-Q800D – Best Helmet for Wide Side View TIG Work
Pros
- 180 degree coverage with a fixed DIN5 side window
- 1/1/1/1 true color gives a detailed puddle view
- 4 arc sensors reliable on low amp TIG
- Blue light blocking outer lens improves long session comfort
- Solar panel plus replaceable CR2450 battery
Cons
- Bulkier shell than the smaller L600A and M800H
- Fixed side view is passive DIN5 and does not auto darken
The Q800D is the pick when you need to see around the corner of the joint rather than straight through it. It combines a 3.94 by 3.23 inch auto-darkening main window with a fixed DIN5 side window for 180 degree coverage, which lets you follow the bead as you travel around a tube, a box corner or a lap joint without turning your head and losing the puddle.
The main filter carries 1/1/1/1 optical clarity with True Color technology, and four arc sensors switching in 1/30000 second, with owners reporting dependable low amp TIG detection. The shade range of 3, 5 to 9 and 9 to 13 covers TIG, MIG, stick, cutting and grinding in a single unit, and the blue light blocking outer lens is credited with better comfort over long sessions.
Power comes from a solar panel paired with a replaceable CR2450 lithium cell, and three replacement lenses are included, which is generous. The reinforced thicker PP shell construction is sturdier than the smaller models in the same range and the pivot style headgear holds position well. It is 2.2 pounds as listed, so this is one of the heavier options here.
What the side window does and does not do
The side window is a passive DIN5 filter, which means it gives you permanent side protection and a usable view of the workpiece, but it does not auto darken. Do not strike an arc and expect it to respond, and do not treat it as coverage for a full side-on welding position where the arc sits inside that window. For tube work where you are tracking the bead from the outside, it is exactly what you want.
The trade for that coverage is bulk. The shell is noticeably larger than the L600A and M800H, so it is more obtrusive when you are in a confined space or wearing it under a hard hat, and the extra mass adds up over a full shift.
Who should skip it
Skip it if you work in tight spaces, if you routinely weld with a hard hat over your hood, or if you need the side view to auto darken for side-on position work. It is also not the right call for a hobbyist welding a single project, where the extra size buys little. For anyone welding tube, box sections or anything where seeing around the joint is essential, the 180 degree coverage earns its place.
How to Set Your Welding Helmet for TIG (Shade, Sensitivity and Delay by Amperage)
Setting a welding helmet for TIG takes about five minutes and it is the difference between a smooth root pass and a frustrating one. Start at shade 9 to 10 for thin material under 20 amps, use shade 10 to 11 between 20 and 100 amps, and step up to shade 12 or 13 for 100 amps and above or thick plate. Set your light state to shade 3, turn sensitivity up toward maximum for anything under 15 amps, and start with a short delay before lengthening it for sustained passes.
Here is the full sequence, in the order that works. Before you start, make sure the coupons you are testing on are held firmly in place, and our welding clamp guide for frame work covers the fixtures that keep a test joint from moving while you dial the filter in.
Set the light state first. Shade 3 is the default for indoor shop work. Shade 4 suits a dim shop or early evening outside. A darker light state makes the setup work harder to see; a lighter one makes the arc transition less dramatic.
Set the welding shade by amperage. Below 20 amps, shade 9 to 10. Between 20 and 100 amps, shade 10 to 11. Above 100 amps or on thick plate, shade 12 to 13. You are looking for a filter dark enough to protect your eyes and light enough that you can still read the puddle edges and the filler rod tip.
Turn sensitivity to maximum for low current TIG. This is the setting that determines how faint an arc the sensors will react to. If you are under 15 amps, max sensitivity is the starting point, and you back it off from there only if the lens starts darkening without an arc.
Set delay short for tacks, long for continuous work. Delay controls how long the filter stays dark after the arc stops. A short delay stops afterimage spotting when you strike an air arc or make rapid short passes. A longer delay keeps the lens dark through the gap between passes, which prevents bright flash burns on your face at the end of a long run.
Use the sensor or mode settings deliberately. On helmets with a Torch mode, use it for the low current phase right after strike. On grind mode, remember that these are set much lighter for abrasive work and will look almost clear.
Hot tack on a scrap coupon before you start. Strike a 1 inch bead on the same thickness and in the same position as your real work. If the lens flickers, half darkens or does not trigger, adjust before you have filler in the puddle.
For pulsed TIG, set the delay to a low to middle setting. Pulsing cycles the arc off and on rapidly, and a long delay can leave the lens dark through the pulse gap, which is fine, but too short a delay lets the light state flicker back in between pulses and becomes distracting. Middle ground is the reliable setting.
For AC TIG on aluminum, do not chase the flicker by turning sensitivity down. If the lens strobes with the arc, the answer is a filter with faster dark-to-light transition times, not a settings change. Turning sensitivity down there makes the lens worse, because it also makes the arc harder to detect at strike.
What to Look for in a TIG Welding Helmet: 8 Specs That Matter
Low-amp response is the first spec to check and the only one that can make a job impossible rather than merely uncomfortable. After that, four sensors, optical clarity, switching speed, shade range, viewing area, weight and headgear, and lens replacement availability decide whether you will be happy with the helmet in year three.
Low-amp arc response. Look for four arc sensors, a sensitivity control, and interference suppression. Published minimum amperage is rare but genuinely useful when it is there.
Arc sensor count. Two sensors work at normal amperage. Four sensors matter when your head, forearm or filler rod blocks the array, which happens constantly in TIG at awkward torch angles.
Optical clarity. A 1/1/1/1 rating is the benchmark. The digits are optical class, light transmittance, chromaticity and resolution. 1/1/1/2 is fine for MIG and marginal for TIG, where you spend your time reading a small, low contrast puddle.
Switching speed. Anything at 1/25,000 second or faster is fast enough. This matters most for AC TIG on aluminum, where the arc re-ignifies constantly and a slow dark-to-light transition produces a visible strobe.
Shade range. You want a light state of shade 3 or 4, and a welding range that starts low enough for thin material. A 9 to 13 only range is a real constraint for TIG on sheet, and a range that skips intermediate shades means choosing between too light and too dark.
Viewing area. Anything at or above 10 square inches materially helps. Below about 6 square inches, tracking a joint and the filler rod tip at the same time becomes a head movement exercise.
Weight and headgear. Below one pound for overhead or all day work, with a headgear system that holds position without a pressure point. The 370 Speed Dial style ratchet and the balance-style systems like the Lincoln X6 are both good answers here.
Lens replacement and cost of ownership. Check whether the cover lenses are proprietary, how many are included, and how much a replacement set costs. A helmet with a non proprietary lens is far cheaper to keep running over five years, and most of these models ship with two to four spare covers.
Two more things that are not on any spec sheet but decide whether you keep using the helmet. The first is whether the controls are reachable and adjustable with welding gloves on. The second is whether the shell survives your actual work environment, which for a lot of people is a truck bed rather than a fabrication bay.
Safety Standards Explained: ANSI Z87.1, CSA Z94.3 and EN 379
ANSI Z87.1 is the United States eye and face protection standard, and the warning worth repeating is that generic “ANSI approved” language on a box does not mean the product is ANSI Z87.1 compliant. Z87.1 is a specific standard for occupational eye and face protection, marked with a Z87 logo, and it is the one your shop inspection will look for. EN 379 is the European standard for auto-darkening filters, EN 175 covers the welding helmet itself, and CSA Z94.3 is the Canadian equivalent for eye protection.
Look for the standard printed on the product, not inferred from a brand name. In this roundup the YESWELDER LYG-L600A is certified to ANSI Z87.1 and CSA Z94.3, the ARCCAPTAIN HSH-S800 carries ANSI/ISEA Z87.1-2010 plus CSA Z94.3 and DIN EN 175 and EN 379, the Jackson Safety Insight meets ANSI Z87.1 and CSA Z94.3, and the Antra AH7-220-0000 meets ANSI Z87.1 with a permanent passive shade 13 filter behind the auto dimming shutter.
That last detail deserves attention. A passive filter with a permanent shade 13 rating means the helmet still protects you when the electronics fail, the battery is dead or the sensor is blocked. Several models in this roundup use a permanent UV and IR blocking layer in addition to the auto-darkening shutter, and that redundancy is worth something in a process where you routinely work at the edge of the sensing range.
Always check the marking on the specific unit you receive rather than trusting a listing photo, and if your shop works to a European standard, confirm EN 379 specifically rather than assuming an ANSI marking covers it.
Budget vs Premium TIG Helmets: Where to Spend and Where to Save
Spend on sensors and optical clarity, and save on weight, styling and anything decorative. That single sentence decides most of the budget decisions in this category.
At the entry level, the YESWELDER LYG-L600A and the ARCCAPTAIN HSH-S800 cover the fundamentals. Both carry 1/1/1/1 clarity, both have adjustable sensitivity and delay, and the ARCCAPTAIN has four arc sensors where the YESWELDER has two. If your budget is fixed, the four sensor unit is the smarter buy for TIG specifically.
In the mid range, the Hobart 770890 and the ESAB Savage A40 buy you four arc sensors, larger viewing areas, longer service life and in the ESAB case a four year plus ownership record. The Jackson Safety Insight sits here too and takes the weight advantage to an extreme with a 6 ounce shell. This is the band most full-time welders should be shopping in.
At the premium end, the Lincoln Electric Viking 3350 is the reason this roundup has a clear first pick: 12.5 square inches of 1/1/1/1 4C filter, four sensors, non proprietary cover lenses and a five year warranty. You are paying for field of view and clarity that you feel on every weld, not for a feature you check once.
The classic mistake is paying extra for panoramic styling you do not need. A flip-front design or a wraparound shell is genuinely useful for grinding and for tube work, but if you weld TIG in a fixed position, that money buys more clarity and a bigger filter.
Troubleshooting: When Your Helmet Will Not Trigger at Low Amps
If your filter will not darken on a TIG arc, work through these in order before assuming the helmet is faulty. Most cases resolve at step two.
Turn sensitivity to maximum. This is the fix for the majority of low current TIG cases, because the default sensitivity is calibrated for MIG and stick arcs that are far brighter.
Check you are in weld mode, not torch or grind mode. Several helmets default to torch mode, which uses a lighter intermediate shade and a different trigger threshold. Cycle through the modes until the filter behaves like a welding filter.
Replace or charge the battery. A solar panel alone will not power a filter through short, infrequent strikes. A dead CR2450 or CR2 cell presents exactly as a non-responsive lens, and it is the most common cause of “my helmet does not work at low amps”.
Look for a blocked sensor. Move your head, reposition your forearm and check that the torch neck or your filler rod is not parked across the front of the shell. If it triggers when you move, it is geometry, not a fault.
Confirm your amperage is in range for the filter. Below about 5 amps on a DC TIG arc, some filters genuinely cannot respond no matter how the settings are configured. That is a specification limit, and the answer is a different helmet.
Watch for the half-dark failure and treat it as a fault. A filter that goes to a middling shade and stays there is not a setting problem. It is electronics that cannot reach full dark, and the fix is a replacement.
If the lens darkens constantly with no arc present, you are on the other side of the problem: sensitivity is too high, or a bright light source is triggering it. Turn sensitivity down one step at a time, and if it persists in direct sunlight, look for a filter with interference suppression.
Frequently Asked Questions
What is the best helmet for TIG welding?
The Lincoln Electric Viking 3350 is our best welding helmet for TIG welding in 2026. It pairs four arc sensors with a 12.5 square inch 4C Lens Technology filter rated at 1/1/1/1 optical clarity, and owners report it darkening reliably on low amp TIG without an arc flash. The YESWELDER LYG-L600A is the best rated option at a lower outlay, and the YESWELDER LYG-M800H gives you the largest viewing window.
What is the best helmet setting for TIG welding?
Start at shade 9 to 10 for thin material under 20 amps, shade 10 to 11 between 20 and 100 amps, and shade 12 or 13 above 100 amps or on thick plate. Set the light state to shade 3, turn sensitivity to maximum below 15 amps, and use a short delay for tacking and a longer delay for continuous passes. Hot tack on a scrap coupon before starting.
What is the best mask for TIG welding?
A mask and a hood are the same thing, and the requirements are identical. You need an auto-darkening filter with at least two arc sensors, a sensitivity control, shade 3 or 4 light state, and 1/1/1/1 optical clarity. Add a fourth sensor if you work at low amperage or weld at awkward angles where your arm blocks the front of the shell.
What is the best auto dark lens shade for TIG welding?
Shade 9 to 10 is right for TIG under 20 amps, which covers most thin stainless and aluminum work. Shade 10 to 11 suits the 20 to 100 amp range where most production TIG sits. Shade 12 to 13 is for 100 amps and above or heavy plate. If the puddle looks washed out you are a shade too light, and if you cannot see the edge of the puddle you are too dark.
How many arc sensors do I need for TIG welding?
Two sensors work at normal TIG amperage when the arc is clearly visible to them. Four sensors are the better choice for TIG because your head, forearm and filler rod sit directly in front of the array at typical torch angles, and extra sensors reduce the chance that all of them are blocked at once. Four is strongly recommended below 15 amps and for out of position work.
Why does my auto darkening welding helmet not work at low amps?
The most common cause is that sensitivity is still at its default, which is tuned for bright MIG and stick arcs. Also check that you are in weld mode rather than torch or grind mode, and that the battery is charged, because a solar panel alone will not power a filter through short strikes. If the lens only works when you move your head, your arm is blocking the sensors rather than the helmet being faulty.
Which welding helmet is better, Arccaptain or Yeswelder?
For TIG specifically, the ARCCAPTAIN HSH-S800 has the edge on arc detection with four sensors switching in 1/25000 second, plus the broadest certification list including DIN EN 175 and EN 379. The YESWELDER LYG-L600A is better supported with over 13,000 reviews and offers a shade 3 light state, while the YESWELDER LYG-M800H wins on viewing area with a 3.93 by 3.66 inch window and four sensors.
What is the rule of 33 in TIG welding?
The rule of 33 is a filler rod feeding guideline that keeps torch angle and filler position consistent. Hold the rod at roughly 33 degrees from the work surface and feed it into the leading third of the puddle at the point where the arc meets the base metal. Consistent angle and position is what lets you weld without repositioning the torch, which in turn means a steadier arc and a more consistent helmet response.
Final Verdict: Which TIG Welding Helmet Should You Buy?
The Lincoln Electric Viking 3350 is the best welding helmet for TIG welding in 2026 because the two things that make TIG hard, a faint arc and a narrow view, are the two things it solves best. Four arc sensors, a 12.5 square inch 1/1/1/1 4C filter and non proprietary cover lenses make it the pick for a fabricator welding in 2026 and beyond.
If your budget is tighter, the ARCCAPTAIN HSH-S800 is the one I would buy at the entry level for TIG, because four sensors at 1/25000 second is the specification that matters and it is usually only a small step up. The YESWELDER LYG-M800H wins on viewing area and the LYG-L600A wins on owner support. For a full-time welder running DC TIG at 30 to 50 amps with pulsing, any of those three is a safe choice, and the Lincoln is the one that will still feel sharp in a decade.
Wherever you land, set the helmet properly on a scrap coupon before the real job, and read our welding jacket guide to complete the protection kit for a full shift.
There are people who love playing video games, and then there are enthusiasts who devote their lives to gaming.
Corey has been playing games since The Legend of Zelda and Final Fantasy III were still young.
Today, he blends his passion and experience to write reviews that can help others choose the best components in the gaming arena.
