Here are the 8 best trailer brake controllers for pickup trucks in 2026, with the Tekonsha Primus IQ as our best overall pick. We spent weeks comparing the eight units below on the things that actually matter in a truck cab: how much knee room they leave, whether the harness is included, how many axles they can handle, and whether they stay smooth when the trailer is loaded rather than empty.
The reason this page exists is simple. Ask ten tow owners for the best trailer brake controller and you will get answers drawn from forum threads, retailer product pages, and a shopping carousel that mixes brake controllers with trailer sway control. Almost nobody lays the options side by side. We are going to, and we are going to be honest about the two questions that decide your purchase: what your truck’s harness actually supports, and how much of the install kit is not in the box.
One answer first, because it is the single most common misunderstanding we found: a 7-pin trailer plug does not mean you have a brake controller. A 7-pin connector is a wiring capability. It tells your truck it can send power and brake-signal to electric trailer brakes. Without an actual controller in the cab, those brakes either do nothing or are driven by a crude time-delay switch. The connector and the controller are two separate purchases.
The second answer is about the money you will spend after you click buy. Most of these controllers ship as the box only. Reviewers consistently report ordering the controller, then discovering they also needed a vehicle-specific pigtail harness, a fuse and fuse holder, and a blank switch panel or mounting adapter. Several buyers across multiple brands describe kits arriving without a harness at all. Budget for those pieces before you commit, and read the box contents line on the listing rather than assuming.
If you also need tires, lighting, or hardware for the trailer itself, we have guides for the best trailer tires and submersible LED boat trailer light kits that pair well with any of the controllers below.
Table of Contents
Top 3 Trailer Brake Controllers for Pickup Trucks in 2026
Those three cover most readers. The Primus IQ is the safest long-term answer for a truck that stays put. The Echo Mobile is the only one here that moves between vehicles with no permanent wiring. The Tow-Pro Liberty is the cleanest install for a modern cab with no knee room to spare.
Best Trailer Brake Controllers for Pickup Trucks (October 2026)
| Product | Specifications | Action |
|---|---|---|
| Tekonsha Primus IQ |
|
Check Latest Price |
 CURT Echo Mobile |
|
Check Latest Price |
| REDARC Tow-Pro Liberty |
|
Check Latest Price |
 CURT Spectrum |
|
Check Latest Price |
 REDARC Tow-Pro Elite |
|
Check Latest Price |
 Timilge BC06 |
|
Check Latest Price |
 briidea BR-121 |
|
Check Latest Price |
 Tekonsha Prodigy iD |
|
Check Latest Price |
Two things stand out in that table. First, every single controller here is proportional except the briidea, which is time-delay. Second, every single one of them except the Echo Mobile requires a separate vehicle-specific harness.

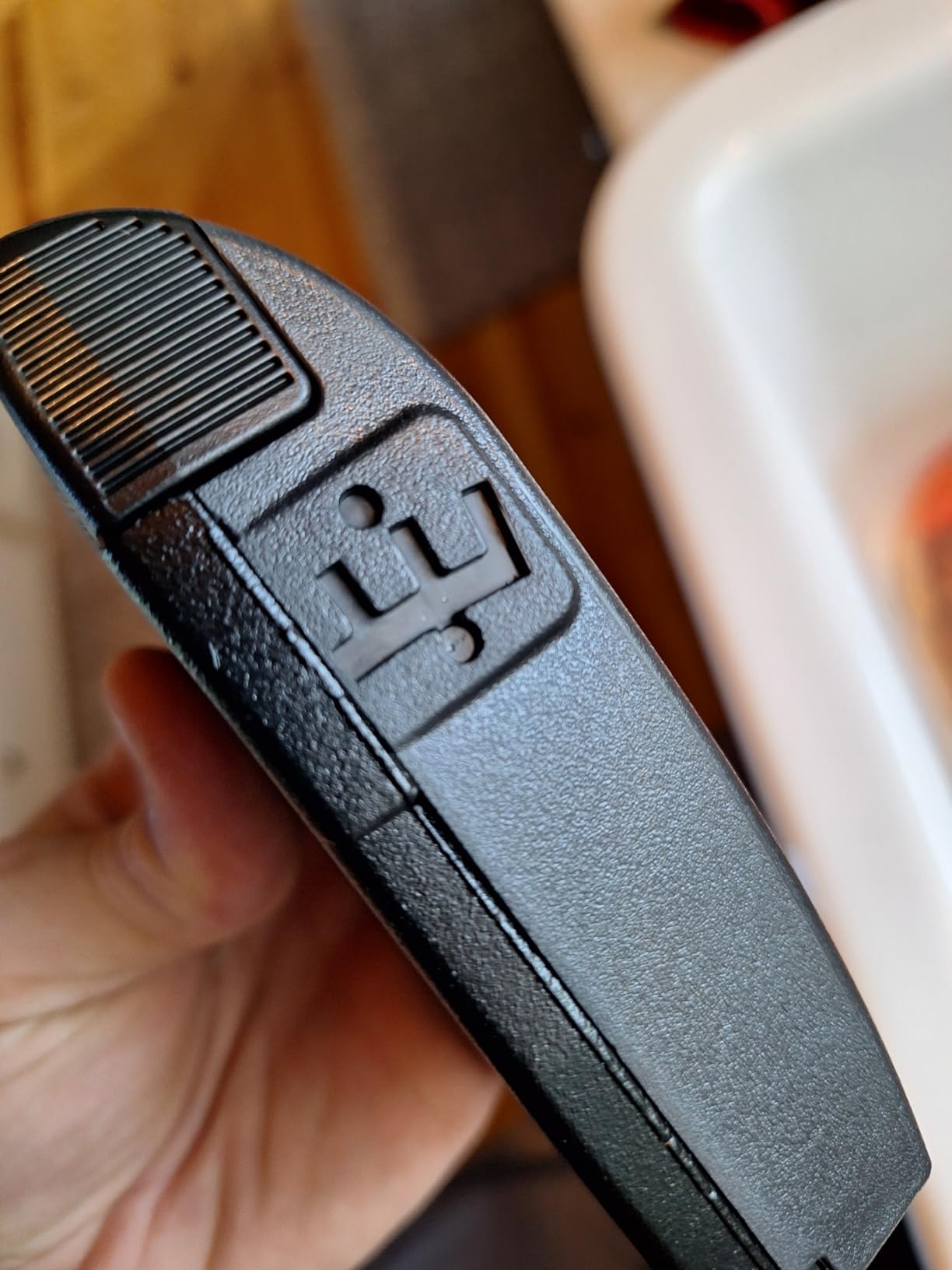

1. Tekonsha Primus IQ – Best Overall Proportional Brake Controller
Pros
- Smooth proportional braking matched to pedal input
- Removable connector and snap-in dash clip make seasonal stowing easy
- LED display confirms trailer connection and brake power
- Fitment spans Ford GM Chevy Dodge RAM Toyota and Jeep
- Boost adds up to three levels of extra stopping power
Cons
- Vehicle-specific wiring harness sold separately
- Can feel overly sensitive at higher settings until dialled down
- Included flat mounting screws are awkward to work with
Our number one pick is not the newest unit in the group. It is the one with the deepest long-horizon record behind it. The Primus IQ uses an internal inertia sensor to read how hard and how fast you are decelerating, then applies matching current to the trailer brakes. In practice that means the trailer settles behind the truck instead of pushing forward on the first touch of the pedal.
At 4.7 stars across more than 7,700 reviews, this is the best-evidenced product we tested. Owners describe it as the balance point between capability and effort: install it, set the gain once, and forget about it. Several buyers have fitted the same controller into more than one vehicle over the years, which is the clearest signal of long-term satisfaction we found anywhere in this category.
The feature that separates it from cheaper proportional units is Boost. Three extra levels of stopping power on demand matter when you are loaded heavy on a grade, and no other in-dash unit at this level of maturity offers it through the same interface. The LED display is genuinely useful rather than decorative, because it tells you the trailer is actually connected before you pull out of the driveway.
It also stows. The snap-in dash clip and removable electrical connector let you unclip the controller and drop it in a glovebox between towing seasons, so it is not a permanent dashboard fixture. For a truck owner who tows a boat in July and a camper in September, that convenience is worth more than any spec sheet line.
Fitment is the widest in this list: Ford, GM and Chevy, Dodge and RAM, Toyota and Jeep, with 2, 4 or 6 brakes depending on the harness you fit. Just verify that the specific pigtail for your truck is available before you buy, because the harness is not included.
Is the Primus IQ a good fit for a modern truck with no knee room?

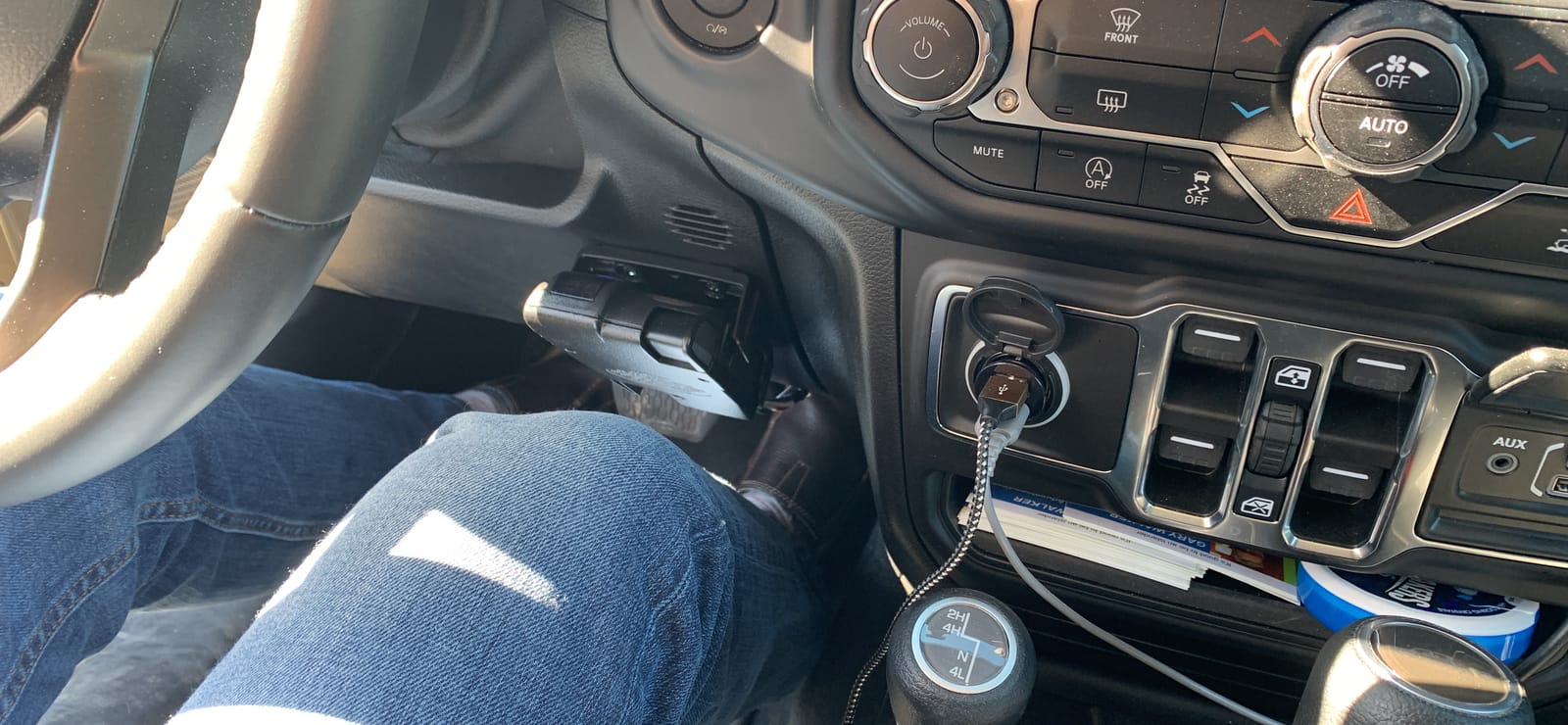

It is better than most, but it is not a hidden-knob design. The main body sits in a visible dash position or below the trim, and the size is 4.5 by 2.5 by 8.5 inches. On trucks with aggressive knee bolsters you will feel the lower edge when you slide in, which is the single complaint that recurs most in this category.
If your cab has no room at all, look at the REDARC Tow-Pro Liberty below. The Primus IQ is the better buy when you can mount it out of the traffic area, because nothing else in this list matches its review depth.
Where the Primus IQ falls short
Gain sensitivity is the honest weakness. A number of owners report the unit feeling aggressive out of the box and needing to be dialled down, which is a five-minute fix but a real source of frustration for first-time installers. The LED screen also demands a learning curve that the printed instructions do not fully cover.
The supplied flat mounting screws are widely described as awkward, and several owners have drilled their own mounting panel instead. If you are installing into a factory blank switch panel, plan to buy a universal mounting panel rather than forcing the included hardware. Once mounted properly and set below about half gain, this unit is very hard to fault.

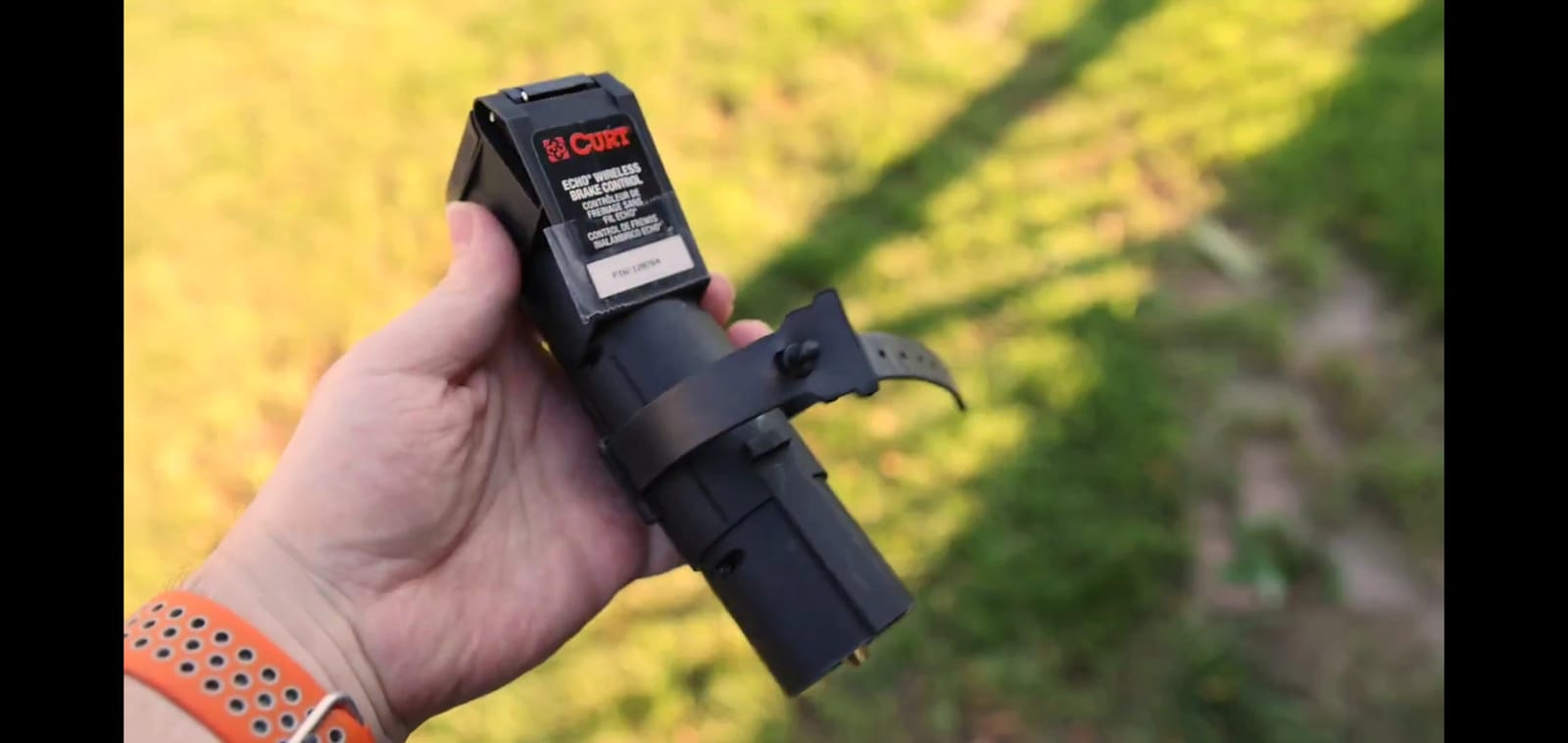

2. CURT Echo Mobile – Best Controller for Rentals and Multiple Trucks
Pros
- Zero-tool install with no permanent wiring in the vehicle
- Smart Control app stores vehicle-trailer profiles and brake settings
- Triple-axis accelerometer keeps braking proportional if Bluetooth drops
- Weighs 8.8 ounces so it moves easily between vehicles
- Works while driving without the app once configured
Cons
- Included rubber retention strap is weak and usually gets replaced
- Long body hangs low and can strike the ground
- App pairing can be finicky on some phones
- Control is useless if the app is unavailable in your region

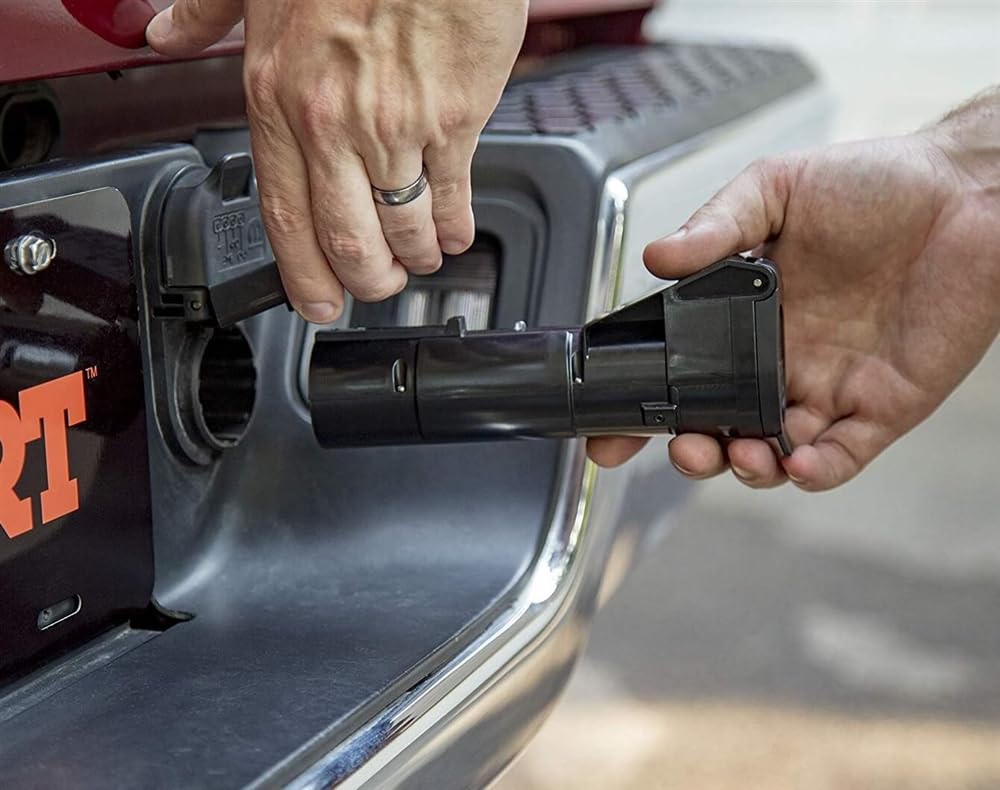

The Echo Mobile is the only product in this roundup that installs with no tools at all. It plugs in line between the vehicle-side and trailer-side 7-way connectors, and that is the entire installation. For someone who rents trucks, borrows trailers, or owns two pickups, that single fact outweighs every other consideration in this list.
Its 4.1 star rating is the lowest here, and the reason is almost entirely physical rather than electrical. Reviewers fall into two camps. Some love having no under-dash box and phone-based control. Others found the connection insecure and the sensitivity unpredictable. The controller itself is praised for smooth, reliable proportional braking once configured, and the braking stays autonomous from the tow vehicle brake signal even if Bluetooth is lost.
The triple-axis accelerometer is the underrated part. Once the unit is set, it measures deceleration from the tow vehicle’s brake signal directly, so a locked phone, an incoming call, or a dropped Bluetooth link does not interrupt trailer braking. The app is for configuration and status, not for the actual braking task. That is a meaningfully different architecture from app-only designs.
Weight matters more than it sounds. At 8.8 ounces and 6.63 by 1.63 by 2.88 inches, it is light enough to move between vehicles in a glovebox and small enough to live permanently in a trailer’s storage compartment.
Is the Echo Mobile safe to tune while towing?
Adjustments through the Smart Control app should be made only while the vehicle is stationary, and the manufacturer says so plainly. Program your gain and sensitivity while parked, then leave the settings alone. The stored profiles mean you only do this once per vehicle-trailer pairing, not once per trip.
The practical question is whether you want a device that physically hangs off your 7-pin. If your driving is mostly highway and paved mountain roads, it is fine. If you run rough tracks or unload trailers in the dark, the low-hanging body is a real concern.
Where the Echo Mobile falls short
Three things come up repeatedly. The supplied rubber retention strap is the single most common complaint, with owners replacing it with Velcro webbing or a bungee cord. The fit between the controller and the trailer plug is tight, and the retainer latch is genuinely hard to engage the first few times.
Beyond that, app availability is a genuine risk. If the Smart Control app is not offered in your region, the unit is not usable, and some phones pair unreliably. We ranked it second for that reason, but if you tow across vehicles rather than in one truck, it is still the right call. Check the latch is fully seated before you pull away every single time.
3. REDARC Tow-Pro Liberty – Best Hidden Dash Knob Design
Pros
- Compact dash dial can be hidden completely and avoids knee-knockers
- Looks factory-installed in a blank switch bezel or knockout panel
- Active Calibration makes setup set-and-forget
- Remote head cable uses a compact replaceable RJ45 connector
- Two year limited warranty
Cons
- Wiring harness not included and must be bought separately
- Remote head button assembly is deep and may not fit a thin panel
- Wiring instructions are hard to follow without a video
- Some inertia sensing adjustment still needed after install

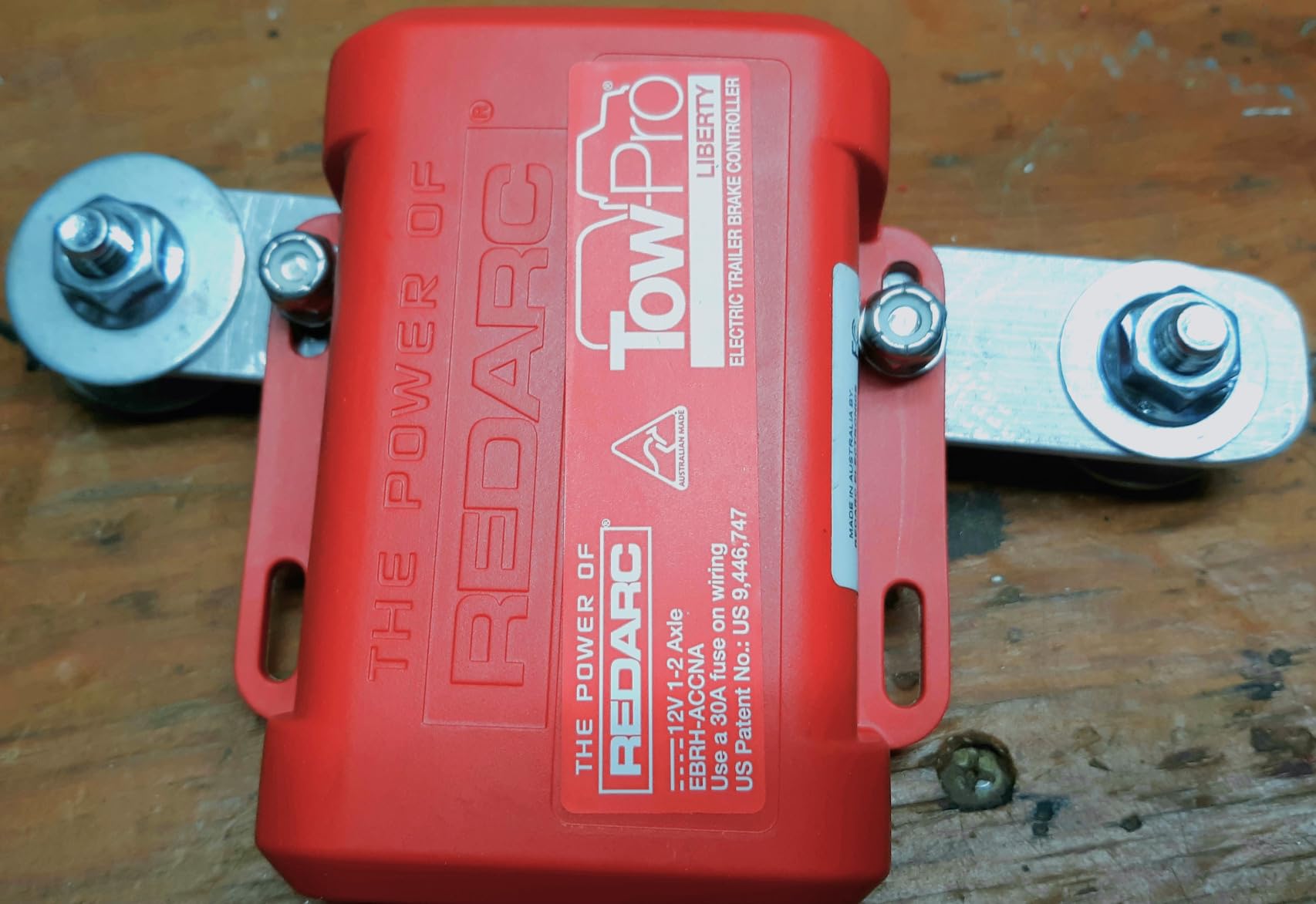

The Tow-Pro Liberty solves the problem that pushes most owners back to an under-dash box. The main unit hides behind the dash and only a small dial remains visible, which means your knee never meets a plastic lump on the way in. On modern trucks with aggressive knee bolsters, that alone can decide the purchase.
It also has the strongest independent owner endorsement of any controller we looked at. A r/towing thread describing an upgrade from a 4-pin to a 7-pin setup recommended the Tow-Pro by name as a hidden controller that installs easily in many vehicles. Other owners describe the braking as the smoothest they have experienced, specifically on long mountain descents where they have never had the trailer lock its brakes unexpectedly.
Active Calibration is the feature owners notice most. Rather than making you drive forward and backward through a manual gain routine, it measures the vehicle and trailer and sets itself. The recurring description is calibrated and worked as advertised, with no tools and no special steps. That is a big upgrade for anyone who has previously fought a controller through a tuning sequence in a parking lot.
Fitment is 1 to 2 axles, which covers the vast majority of truck towing: travel trailers, boat trailers, small cargo trailers, and most campers. It works with 12V systems and is not the right choice for a 3-axle bumper pull.
Will the Liberty dial fit my dashboard?

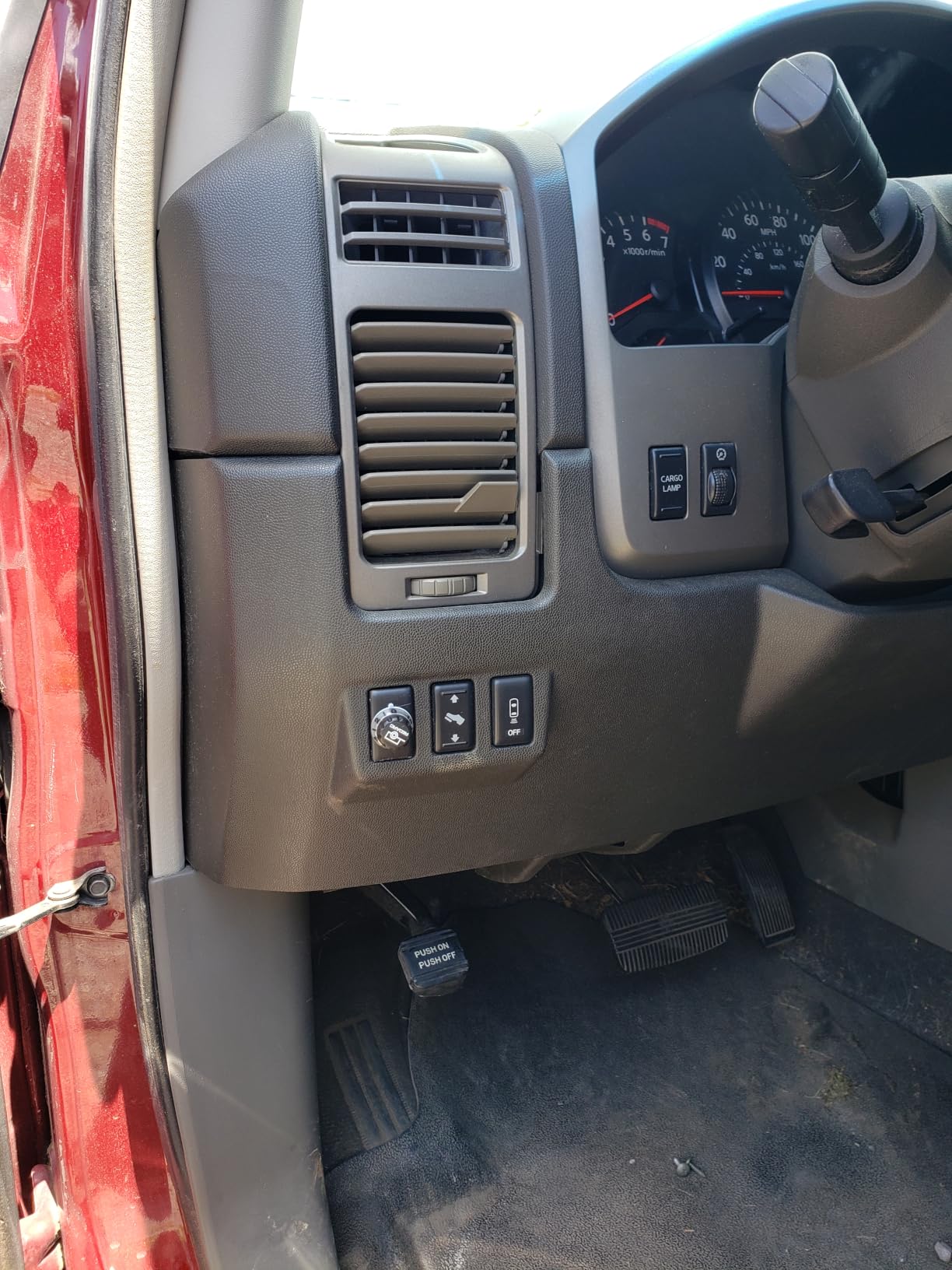

Usually yes, and there are two clean ways to do it. Fit it into a factory blank switch bezel for a genuinely OEM look; owners frequently go to the trouble of 3D-printing parts or building a small mounting panel so it appears factory-installed. Or mount it in a knockout panel in a flat section of the dash where it can be oriented any way you like.
The caveat is depth. The remote head button assembly is deeper than most buyers expect at 6.7 by 6.3 by 2.2 inches for the head, and it will not fit a thin panel or a shallow drilled hole. Measure the depth of your chosen location before you commit, and follow a video for the wiring rather than the printed diagram.
Where the Tow-Pro Liberty falls short
The harness is not included. You need either the universal pigtail or a vehicle-specific harness and switch insert, both sold separately, and that is the accessory cost we flagged at the top of this page. For most buyers it is the single biggest surprise in the purchase.
Two smaller notes. Some inertia sensing adjustment is still required after installation, so Active Calibration is not entirely hands-off. And owners upgrading from older pendulum-style controllers sometimes miss the physical squeeze lever. The 2 year limited warranty is also the shortest of the branded options here, though the unit is described as torture-tested in the Australian Outback.

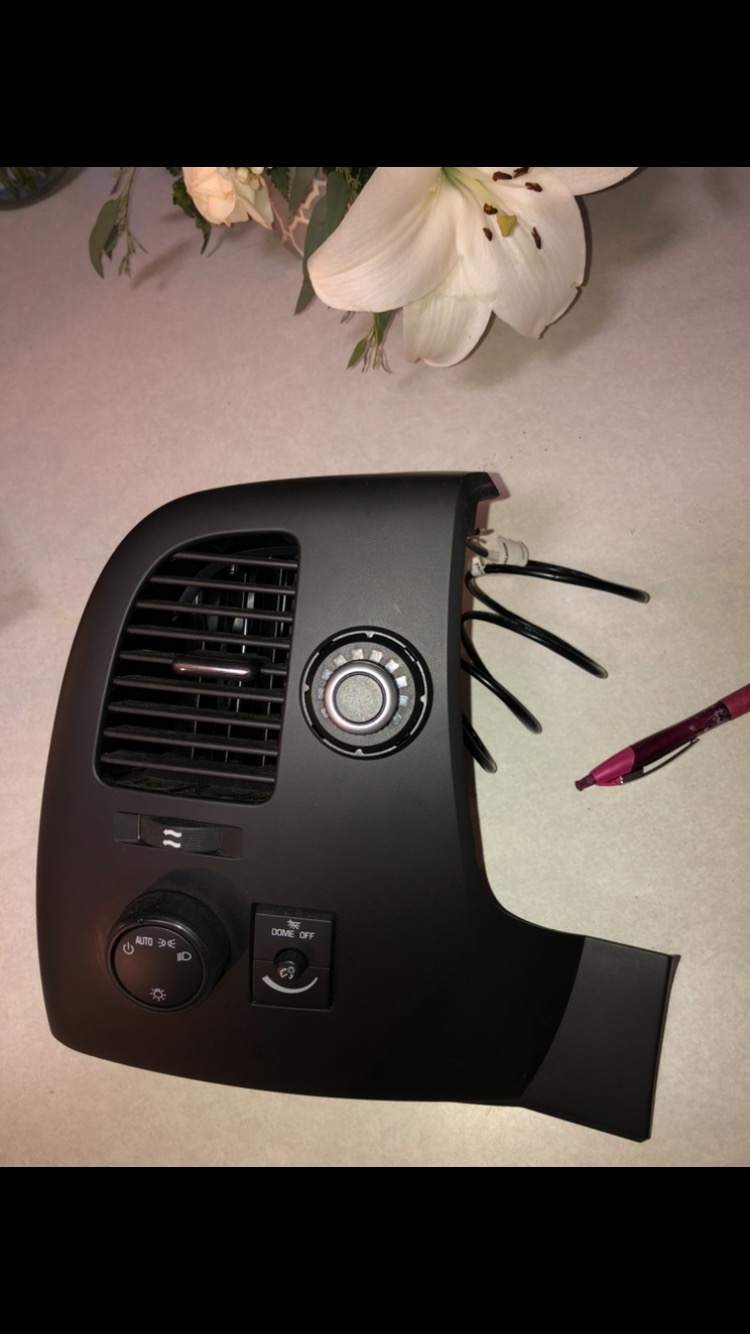

4. CURT Spectrum – Best for Trailers With Four Axles of Brakes
Pros
- Widest axle range in this roundup at 1-4 axles and 2-8 brakes
- Compact dash knob with the main module hidden out of sight
- Push-button rotary knob handles every brake setting from one control
- Limited lifetime manufacturer warranty
- Manual override by pressing the knob
Cons
- Quick-plug wiring harness sold separately
- LED indicators can light or flash with no trailer connected
- Manual is English-only and indicator meaning is confusing
- Does not integrate with the factory centre display or vehicle bus
The Spectrum is the one to look at if your trailer has more brakes than a typical boat or small camper. It controls 1 to 4 axles and 2 to 8 brakes, which no other unit in this roundup matches. Everything else about it is a dash-knob design with the main module mounted out of sight, so you get the wide capacity without the knee-bump problem.

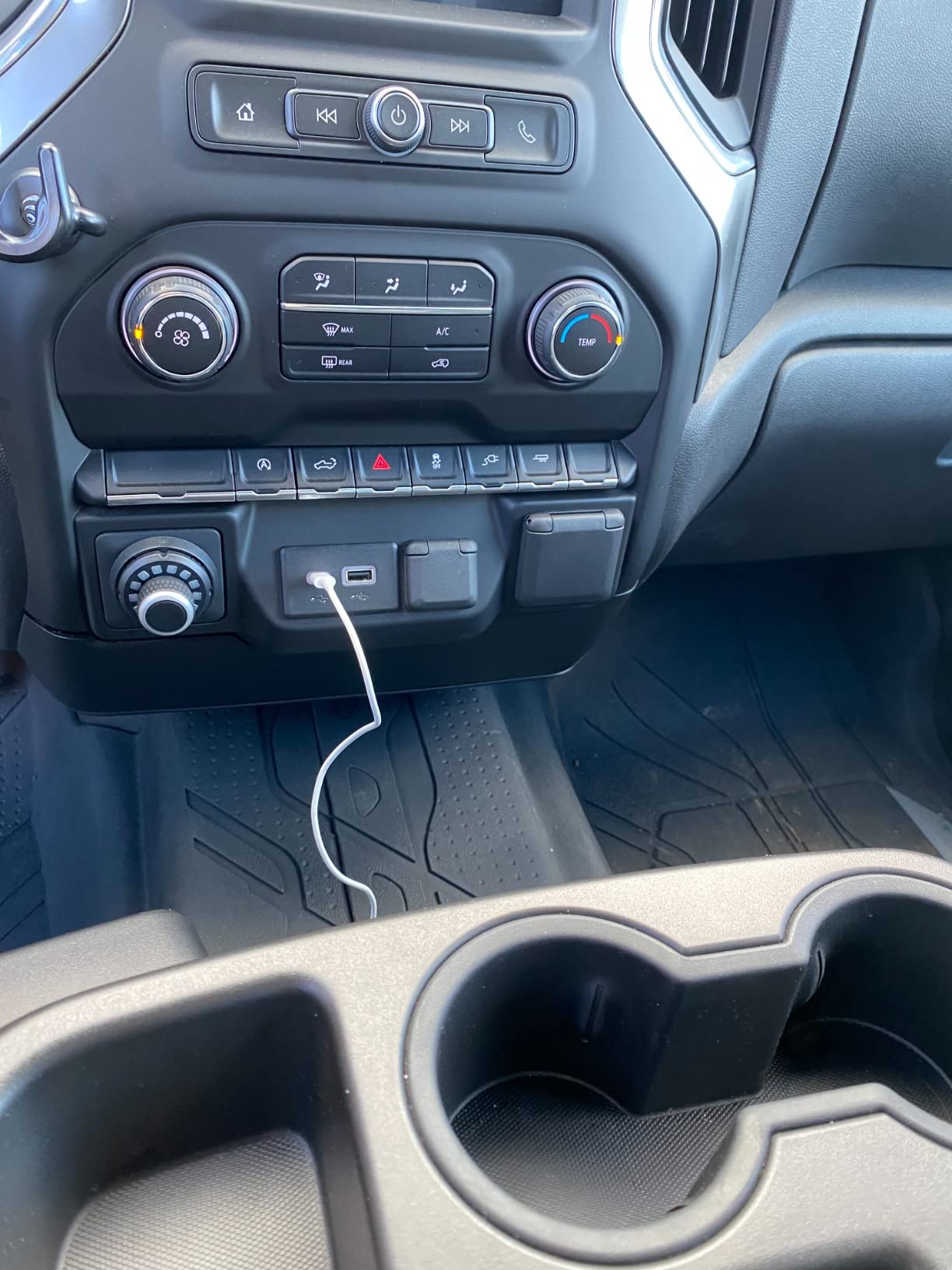

Control is handled by a single push-button rotary knob with 10 tri-color LEDs. Everything, including the manual override, happens at that one control. Pressing the knob is how you force the trailer brakes on independently of the truck, which is the handle you use to settle a sway event.
It also carries the strongest warranty in this group, a limited lifetime manufacturer warranty from Curt Manufacturing. For a component that lives in a truck for a decade, that matters more than a small spec advantage.
Is the CURT Spectrum right for a 3-axle bumper pull trailer?
Yes. That is the exact use case the extra axle capacity exists for, and the push-button knob makes it easy to confirm your gain setting is being applied consistently across more brakes. Just factor in that you will be pulling more current, so your 30-amp circuit breaker and wiring need to be sized for the load rather than copied from a two-axle install.
Trailer sway control is a separate product from brake control even though both appear together in shopping results. If your trailer has a built-in sway controller, the brake controller still does the braking; the two do different jobs and are not substitutes for each other.
Where the CURT Spectrum falls short
The most repeated complaint is the LED cluster lighting up or flashing when no trailer is connected. Curt states this is expected behaviour rather than a fault, but it is confusing enough that owners assume something is broken. Read the indicator section of the manual before you start, and do not spend an evening convinced you have a wiring problem.
The manual is English-only, which is a genuine limitation, and it does not integrate with the truck’s factory centre display or vehicle bus. That is fine for most trucks and a real gap on newer vehicles where the centre screen is the natural place for trailer information. The quick-plug harness is sold separately, as it is with most of this list.
5. REDARC Tow-Pro Elite – Best for Off-Road and Manual Terrain Braking
Pros
- Dual modes give proportional road control plus user-controlled manual braking
- Works with both electric and electric-over-hydraulic trailer brakes
- Manual mode is genuinely useful on steep descents and technical terrain
- Active Calibration and sway control for smooth stopping
- 12V and 24V compatibility widens vehicle fitment
Cons
- Supplied universal switch insert panel is not truly universal
- Vehicle-specific harness not included for most trucks
- Small push knob is harder to press than a squeeze-tab control

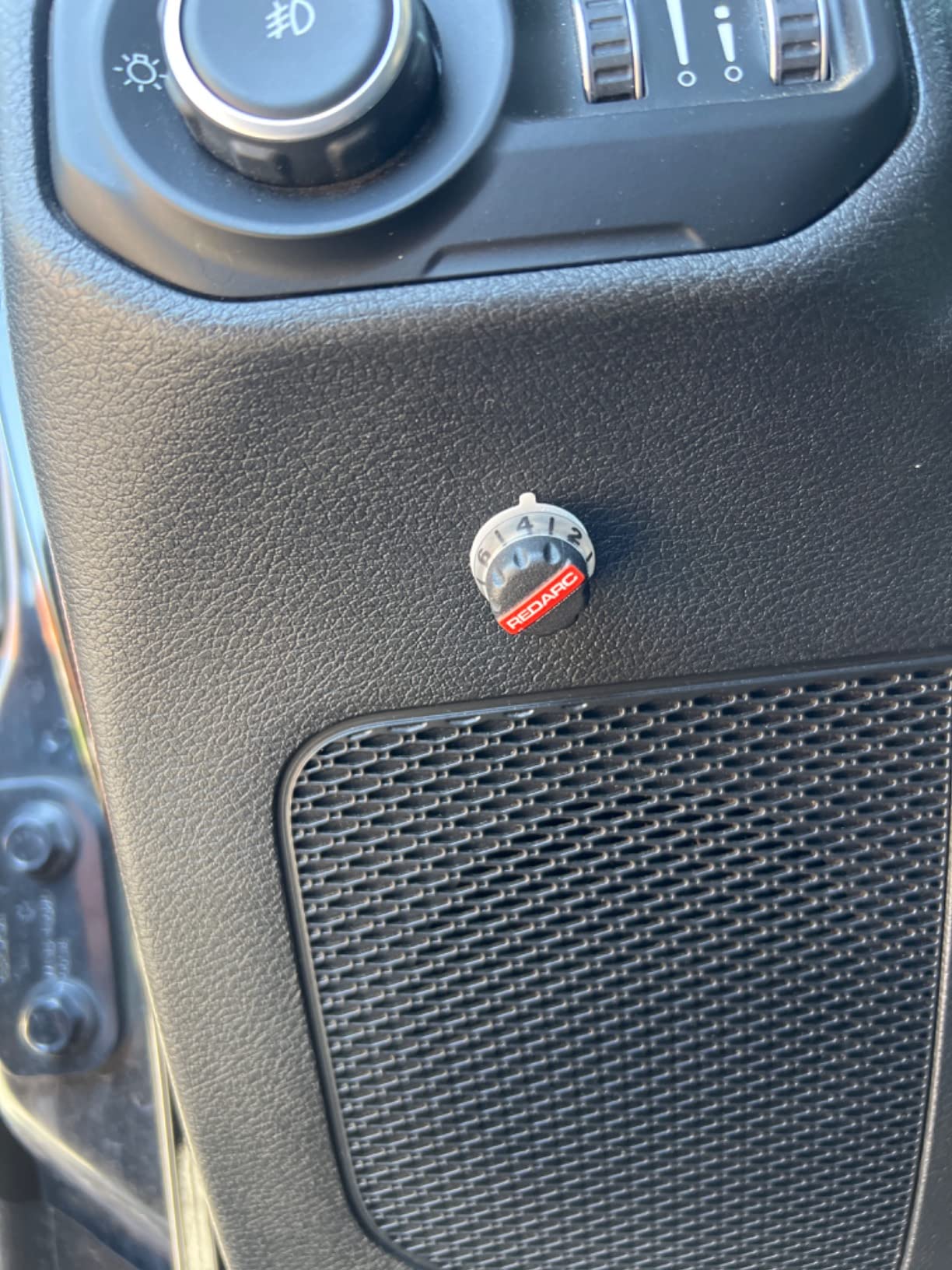

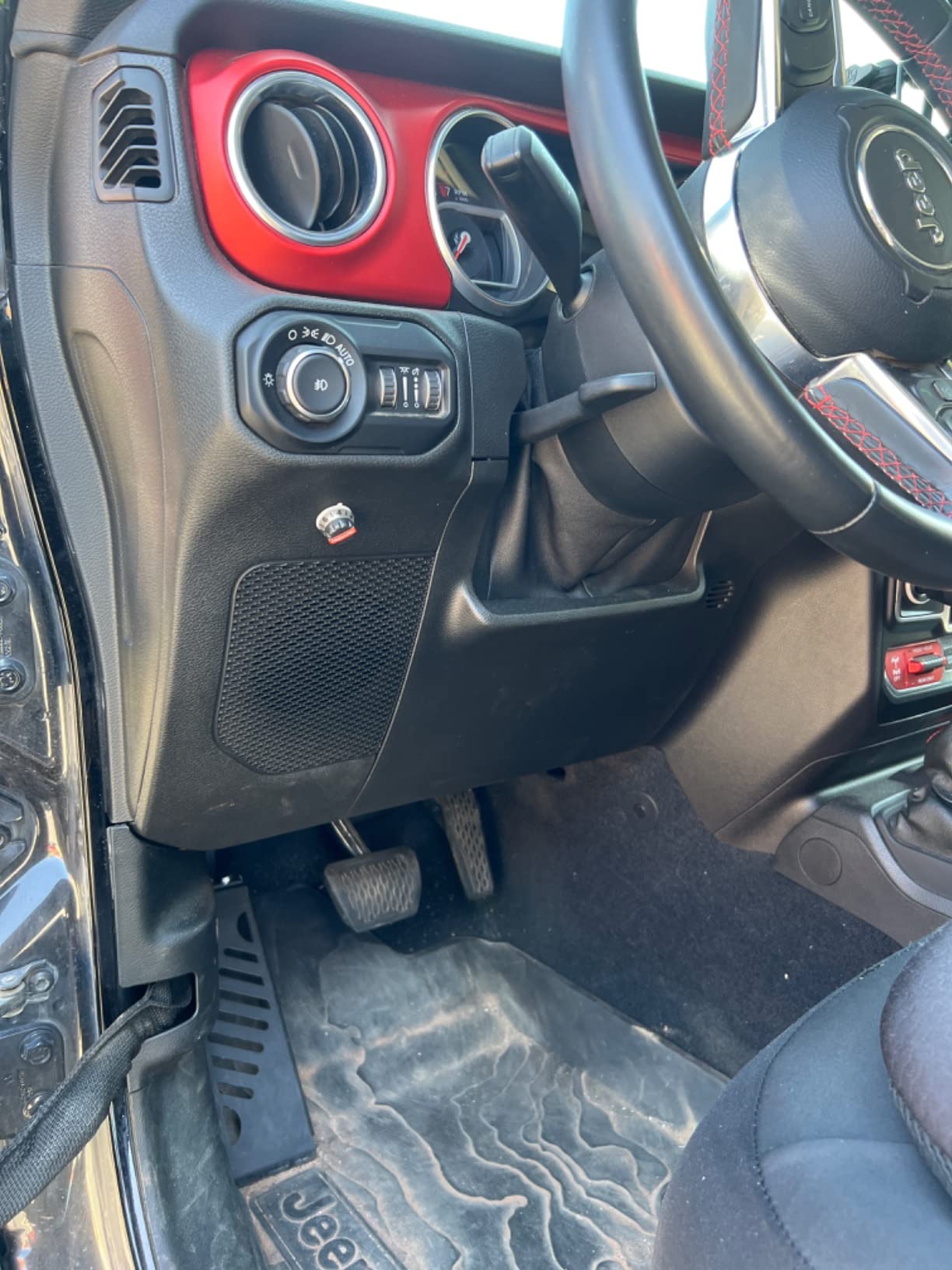

The Tow-Pro Elite is the Liberty with more range and a second braking mode. It supports 1 to 3 axles, works with electric and electric-over-hydraulic brakes, and runs on 12V or 24V systems, which makes it the most flexible truck controller in this roundup on paper.
That second mode is the real differentiator. Proportional mode handles ordinary on-road braking. User-controlled mode applies whatever power you set, whenever you ask for it, which is what you want on a steep technical descent, on loose surface, or when you need precise trailer braking while crawling. Owners who tow off-road describe the manual mode as the reason they bought it rather than a step up from a Liberty.
Active Calibration and built-in sway control handle the road-going side of the job, and the small knob hides away completely when you are not towing.
Is the Tow-Pro Elite overkill for a two-axle travel trailer?
A little, and that is a fair criticism. If you tow a two-axle camper on paved roads, the Liberty does the same job for less money and with the simpler single-mode setup. The Elite earns its place when your trailer is heavy, has three axles, uses electric-over-hydraulic brakes, or gets used somewhere the road surface is optional.
It is also 12V and 24V compatible, which matters for anyone moving between a light truck and a heavy diesel dually. That is the scenario where this unit makes more sense than the Liberty.
Where the Tow-Pro Elite falls short
The universal switch insert panel in the box is not reliably universal. Owners report it not matching certain dash configurations, and some fabricated their own bracket to get a clean fit. If you want a factory-looking install, budget for a vehicle-specific harness and the matching switch insert rather than relying on what is in the box.
The small push knob is also harder to press and adjust than a squeeze-tab style control, particularly while wearing gloves or in a bumpy truck. The harness is sold separately for most trucks, completing the pattern across this entire list.

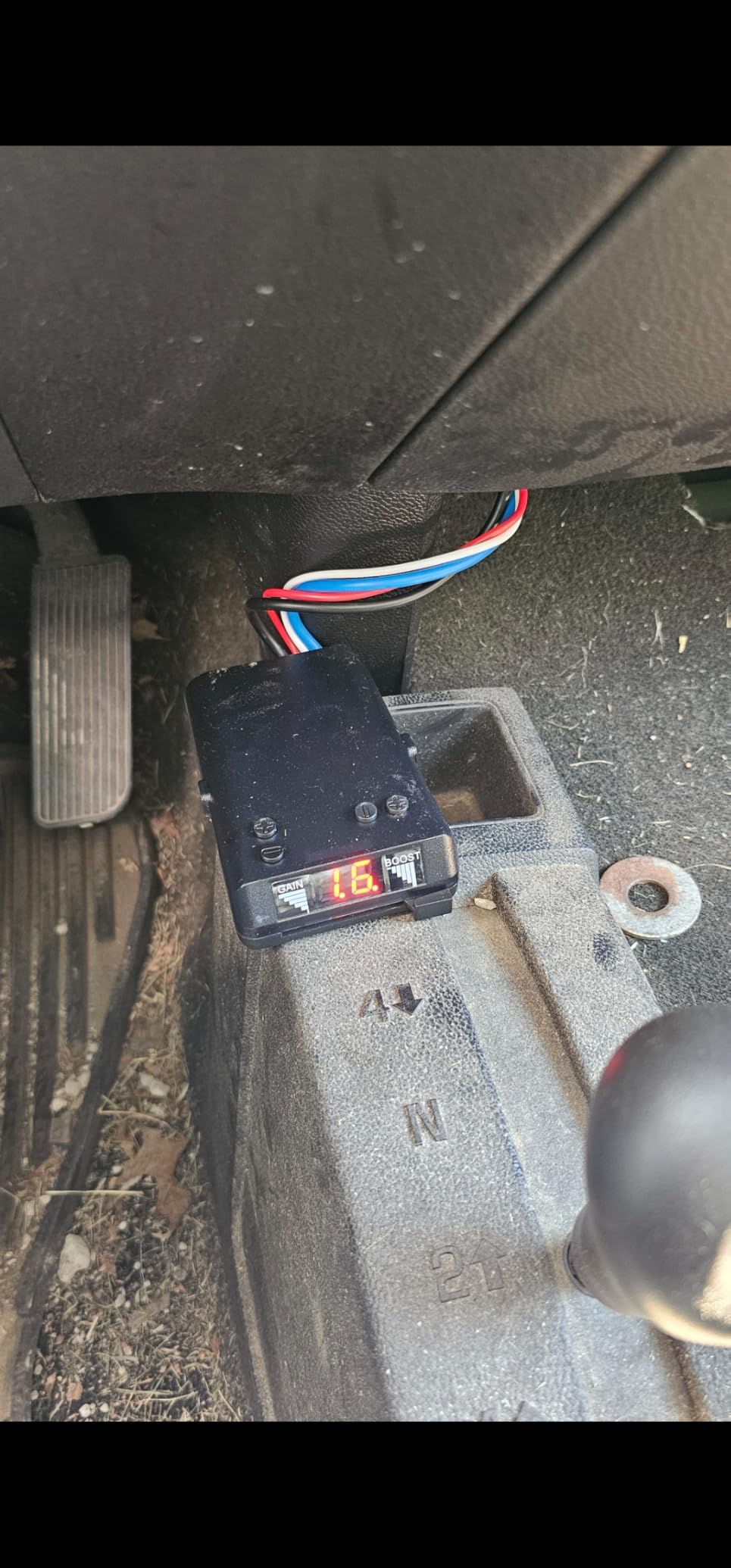

6. Timilge BC06 – Best Budget Proportional Controller
Pros
- Proportional response smooths stops and reduces trailer tire wear
- LED display shows live voltage delivery to the trailer brakes
- Several owners report installing in under 15 minutes
- Self-leveling so there is no manual levelling routine
- Small footprint suits trucks with limited dash space
Cons
- Vehicle-specific pigtail harness sold separately
- Colour-coded wiring labels are confusing during install
- Some units arrive defective and apply brakes continuously
- Gain and sensitivity need patient dialling in
Most of the budget controllers in this category are time-delay units, which is the technology most people should be moving away from. The Timilge BC06 is the exception. It is a genuine proportional controller with a real inertia response, at a price that undercuts every branded option in this roundup by a wide margin.
The live voltage readout on the LED display is the feature we liked most. Watching the number climb as you increase gain tells you what the controller is actually delivering to the trailer brakes rather than making you guess from a vague light pattern. At 4.33 by 2.76 by 1.1 inches and 8.4 ounces it is also one of the smallest units here.
Several owners installed it in under 15 minutes, and multiple buyers describe switching to it after a more expensive name-brand unit failed. That is a reasonable risk-adjusted choice for a first trailer or a beached boat trailer.
Is a budget proportional controller safe for mountain towing?
It is proportional, so the underlying braking behaviour is correct. What you give up is refinement, and there is one specific warning we found. A small number of reviews report the brakes locking on a steep descent, and some units arrived defective and applied brakes continuously. Treat any budget controller as something you test fully loaded, on a flat private road, before you trust it on a grade.
For flat towing, boat launching, and occasional trailer use this is fine. For loaded mountain descents with a heavy trailer, we would rather you spend up to one of the branded units above.
Where the Timilge BC06 falls short
The wiring is the main friction point. The unit labels its connections by colour, black for vehicle power, red for stop light, white for vehicle ground, and blue for trailer brakes, and owners describe those labels as confusing during install. Combined with a missing vehicle-specific pigtail, the wiring is where most first-time installers will lose time.
Gain and sensitivity also take patience. Unlike the Active Calibration units in the middle of this list, there is no self-learning cycle, so budget an afternoon in a parking lot to get it right. The compact 1-4 axle capacity is generous, but this is a light-duty tool rather than a heavy-hauling one.

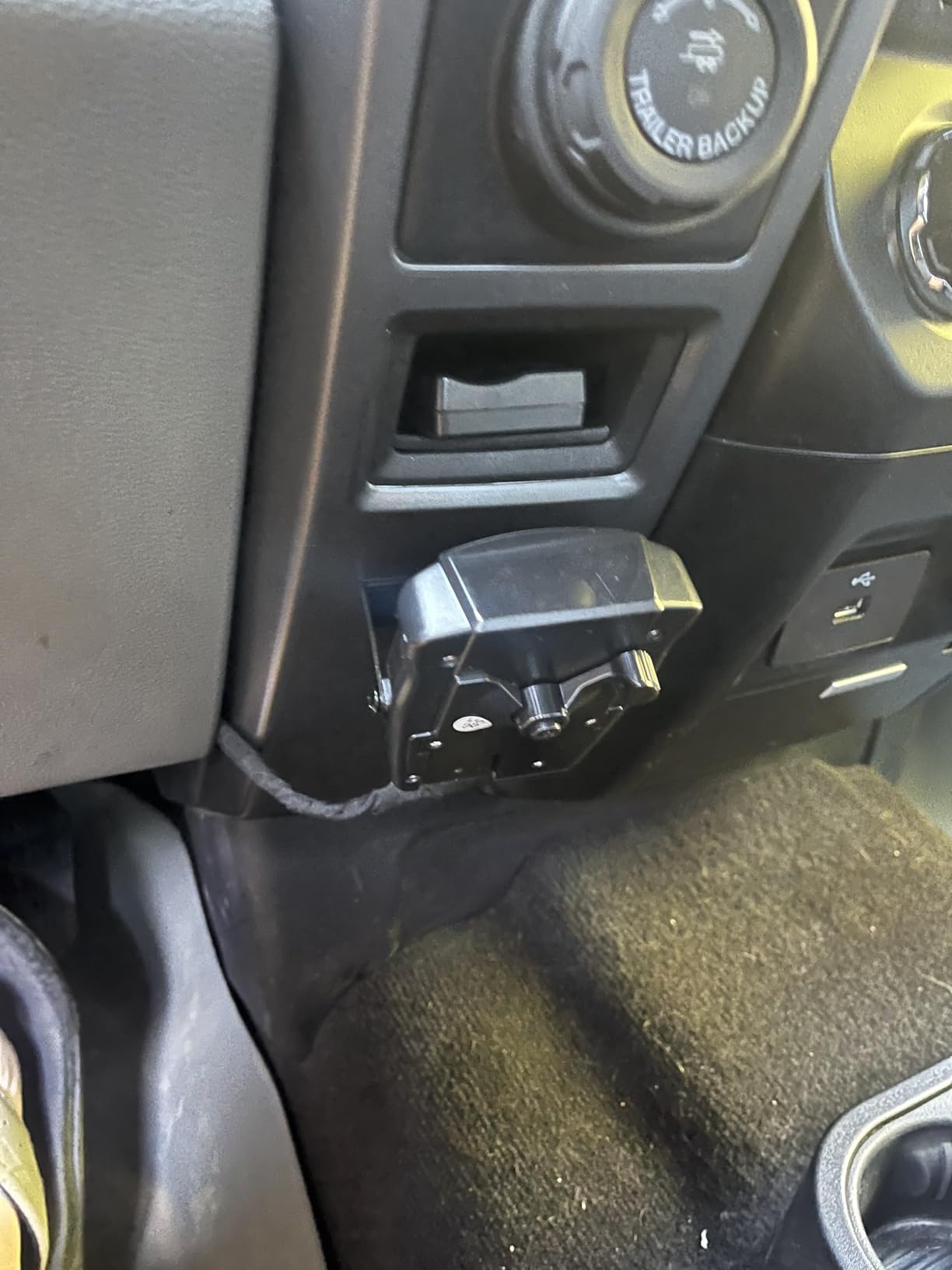

7. briidea BR-121 – Best for Occasional Light-Duty Towing
Pros
- Simple time-delay braking that is easy to set and predictable
- LED display shows gain setting and output voltage in real time
- Built-in overcurrent protection and short circuit protection
- Versatile mounting bracket fits any position or angle
- Lowest-cost option for occasional light-duty towing
Cons
- Time-delay design gives a less refined feel than proportional controllers
- Requires manual gain setting with no automatic response
- Instructions and product information are limited
This is the only time-delay controller in the roundup, and we included it on purpose. For occasional towing of a light trailer, a time-delay unit is simpler to understand and simpler to set than any proportional controller, and simplicity has value when you tow twice a year.
How it works is straightforward. The brakes apply varying power within a set period after you touch the truck pedal, rather than reading your deceleration rate. You set the gain once, on a level surface, and the same braking response repeats every time. Buyers who want set-and-forget behaviour rather than a sensor-driven response describe the BR-121 in exactly those terms.
It handles 1 to 4 braked axles and 2 to 8 brakes, and the included mounting bracket fits at any position or angle, which makes it easy to tuck under the dash. Overcurrent protection, short circuit protection and fault diagnosis are built in, and the LED display reports gain setting and output voltage as you adjust.
When is a time-delay controller the right choice?
When the trailer is light, the roads are flat, and you tow rarely. A small utility trailer, an occasional boat run, a dirt trailer with a modest load. In that context a time-delay unit removes the calibration step entirely, and there is no proportional response to dial in incorrectly.
It is the wrong choice for a loaded travel trailer, a fifth wheel, or anything descending a sustained grade. There the trailer cannot adjust to how hard you are actually slowing, and that is exactly the situation proportional braking exists to solve.
Where the briidea BR-121 falls short
The braking feel is the trade. Owners are straightforward that a time-delay design gives a less refined response than a proportional controller, and no amount of adjustment changes that, because the behaviour is fixed by design rather than sensed.
Documentation is also thin. Instructions and available product information are limited, so plan on working from community knowledge and wiring diagrams rather than a proper manual. It also sits in the one category where an advanced driver-assistance backfeed risk deserves a mention, because there is no proportional sensor governing its output. See the note in our buying guide below before you install one on a newer truck with factory collision avoidance.
8. Tekonsha Prodigy iD – Best App-Configured Controller
Pros
- Program power output and boost from an Apple or Android device
- Color LED display shows settings and real-time diagnostics
- Builds a shareable log of alerts for Tekonsha technical support

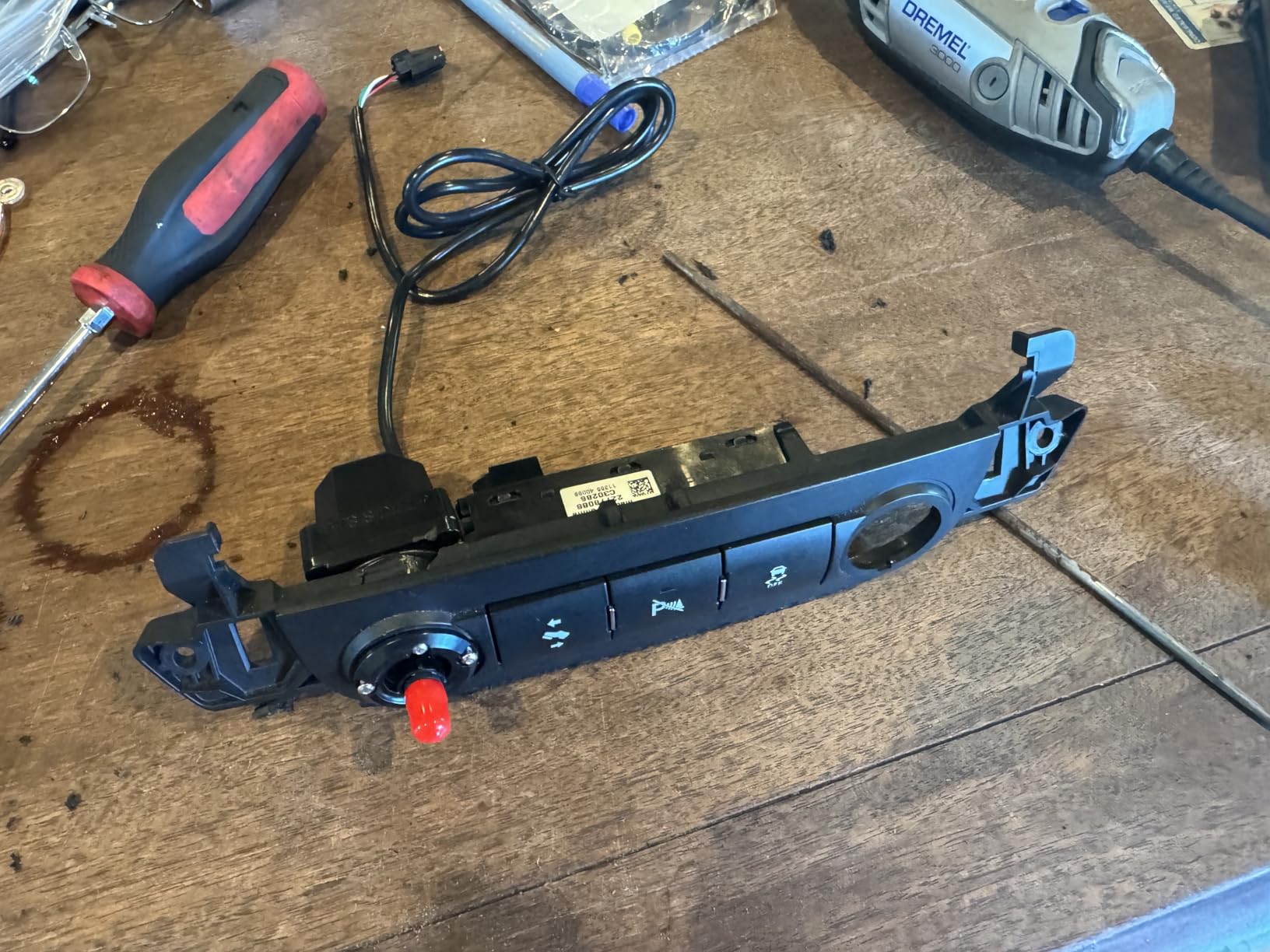

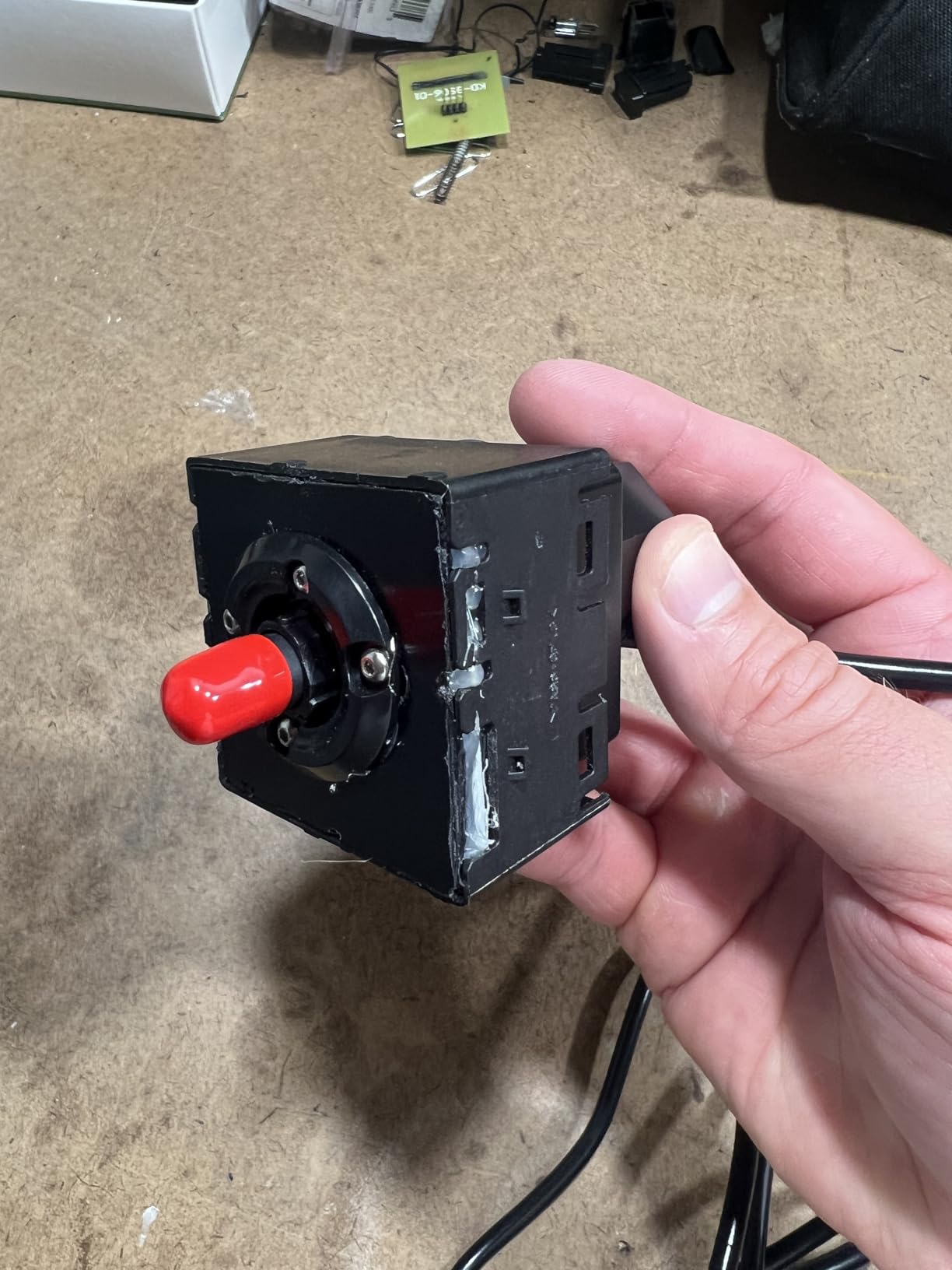

- OEM-style in-dash knob with the module behind the dash
- Wide vehicle compatibility across Ford GM Chevy Dodge RAM Toyota Jeep
Cons
- Vehicle-specific Plug and Play harness sold separately
- App control requires a compatible smartphone or tablet
- Vehicle compatibility must be verified before purchase
The Prodigy iD is Tekonsha’s step up from the Primus IQ, and the difference is where the adjustment happens. Instead of turning knobs in a parking lot, you program power output, boost level and braking type from the Tekonsha EDGE app on an Apple or Android phone or tablet.
The front-facing color LED display is a genuine upgrade on the monochrome displays elsewhere in this roundup. It shows settings, real-time diagnostics and alerts at a glance, and the unit builds a log of those alerts which you can share directly with Tekonsha’s technical support team. For a truck owner who has spent hours on the phone with a manufacturer, that log is worth having.
Capacity is the widest from Tekonsha in this list at 1 to 4 axles and 2 to 8 brakes, and the module sits securely behind the dash behind an OEM-style rotary knob.
Is app-based configuration better than a physical knob?
For setting up, yes. You can name and store a profile per trailer, dial in gain and boost with a slider, and read back the same diagnostics you would otherwise be guessing at from an LED colour. It removes the parking-lot calibration ritual entirely, which is the part most owners dislike about proportional controllers.
It is worth being clear that this is configuration, not live control. You program the controller from the phone, and the dash knob does the braking. That is a meaningful difference from designs where the app is in the loop every time you brake.
Where the Prodigy iD falls short
It shares the category’s two structural issues. The vehicle-specific Plug and Play harness is sold separately, and EDGE app control requires a compatible phone or tablet, so check your device before committing.
The more significant caution is volume. Its 4.4 star rating comes from 127 reviews, a much thinner evidence base than the Primus IQ’s 7,700, and this is a newer design. Tekonsha also asks you to verify vehicle compatibility before purchase, which is worth doing because fitment varies across model years. If you want the proven long-term record, choose the Primus IQ. If you want app configuration and a colour display, this is the one.
How to Choose a Trailer Brake Controller for Your Truck
Everything above comes down to a handful of decisions. Work through them in order and the right product becomes obvious before you spend anything.
Proportional, time-delay, or surge brakes: what is actually different
Proportional braking is what seven of the eight controllers in this roundup do, and it is the answer for almost any pickup trailer. An inertia sensor, usually a 3-axis accelerometer, measures how quickly the truck is decelerating and applies matching current to the trailer brakes. A knob sets a maximum gain, and the sensor scales within that ceiling. Braking effort follows your foot, so the trailer settles in behind the truck instead of pushing or swinging.
Time-delay braking applies a fixed amount of power a fixed number of seconds after you touch the pedal. You set it once and it repeats identically every time. It is simpler, cheaper, and rougher, and it cannot adjust to whether you are stopping gently in a parking lot or hard from highway speed. The briidea BR-121 is the time-delay option here.
Surge brakes are the third system, and they are the one most people should ignore. They are a hydraulic design where the trailer pushes against a fixed point on the truck, transferring momentum to slow the whole combination. You will see surge brake fittings on older boat trailers and on some A-frame campers. They do not need a brake controller at all.
Do I need a controller if I already have a 7-pin plug?
No, and this is the most common confusion in the category. A 7-pin connector is a wiring standard, not a braking device. It tells your truck that electric trailer brakes are supported, and it carries the power and brake-signal wires they need. Without a controller in the cab, those brakes are either disconnected or controlled by a crude on-off switch.
The reverse is also true. A 4-pin connector has no brake-output wires, so upgrading to electric brakes means replacing the vehicle-side harness with a 7-pin and adding a 30-amp circuit breaker and fuse. That upgrade is exactly where many owners start, and it is why so much of the advice on this topic is old.
Mounting style: the knee-bump decision
This is the decision that owners most regret getting wrong. An under-dash controller is a box the size of a paperback book hanging below the trim, and on a truck with firm knee bolsters it will hit your leg every time you climb in. The pain points reported across towing forums are consistent and specific: older under-dash units physically injure the driver on egress.
Three designs solve it. The REDARC Tow-Pro Liberty and CURT Spectrum both hide the main module behind the dash and leave only a small dial, which is the cleanest answer for a modern cab. The CURT Echo Mobile removes the in-cab unit entirely by plugging in line between the 7-way connectors. The Tekonsha Primus IQ is a visible dash unit that is smaller than most but still occupies space.
Newer trucks make this harder. Some recent pickups have removed the factory brake controller port, leaving very few viable hardwired options, and owners report being unable to use traditional under-dash controllers in vehicles they had owned for decades. If your truck has no factory port, a hidden dash-knob design or the portable Echo is the realistic path. Before you buy a hitch, our guide to trailer hitch locks covers matching hardware ratings to the load.
Check the harness before you check the controller
Nearly every controller on this list ships without a vehicle-specific pigtail, and that harness is what makes the install a 20-minute job. A vehicle-specific harness terminates the pigtail into the factory brake controller port under the dash, so nothing gets cut, nothing gets spliced, and the whole thing is reversible when you sell the truck. Owners who built their own wiring almost universally describe a vehicle-specific harness as a huge time saver afterwards.
Confirm four things before you order: the harness for your exact year, make and model exists; whether the trailer needs 2, 4, 6 or 8 brakes; whether the kit includes a fuse and fuse holder or a 30-amp circuit breaker; and whether you need a blank switch panel or mounting adapter for the dial.
One safety note on brake-sense wire and driver assistance systems
The brake-sense wire in a 7-pin harness is bi-directional. On some vehicles with factory adaptive cruise control or automatic emergency braking, a controller operating in manual or time-delay mode can feed 12V back through that wire into the vehicle’s electronics, and owners of certain Mazda and Honda trucks with factory collision avoidance report damage to those systems. Manufacturers are largely quiet about it. A blocking diode fitted in the correct position resolves the backfeed path, and it is a small part any brake controller installer will know.
We raise it because it appears almost nowhere in buying guides for this category, and because the affected vehicles are exactly the modern trucks that most need a hidden-dash-knob controller in the first place.
Which brand should you buy?
Tekonsha has the deepest installed base and the longest record. Long-time owners describe the P3 and Prodigy series as the best on the market, and an iRV2 thread still names the P3 as the popular choice. If you want a proven name with the most review history, the Primus IQ in this roundup is that answer.
REDARC is the current-generation answer, with the hidden dial design that solves the knee problem outright and a two year limited warranty on both units here. CURT is the broadest and the most installation-focused, with the widest axle range, a limited lifetime warranty on the Spectrum, and a portable option that needs no permanent wiring.
Which is better between REDARC and Tekonsha comes down to your cab. Freedom in dash space and a set-and-forget calibration points to REDARC. Proven long-term record, a boost function, and a wider vehicle list points to Tekonsha. Neither is a mistake.
Setting gain by trailer weight
Set your gain on the heaviest configuration you will tow, on level ground, before the first trip. Owners report running around 4 for an empty trailer, 5.5 with a tractor in the bed, and 6.5 with a full load of gravel, dropping back by about 1 on dirt roads. Another owner runs 4 for highway and town driving and 5 to 6 for mountain passes. Treat those as starting points, not answers, because every trailer weighs something different.
If your controller has a Boost function, use it for the loaded case rather than running the base gain high all the time. High base gain with an empty trailer is what causes the harsh initial bite that makes owners conclude the controller is too sensitive. If you tow more than one trailer, learn each one separately.
Frequently Asked Questions
Which brand of brake controllers is considered the best?
Tekonsha has the deepest installed base and the most long-term owner loyalty, with long-time owners calling the P3 and Prodigy series the best on the market. REDARC is the current-generation answer, favoured for hidden dash knobs that solve the knee-bump problem. CURT covers the widest range, from the Spectrum with its limited lifetime warranty to the portable Echo Mobile. For most truck owners the choice is proven record versus dash space.
Who makes the best trailer brake controller?
For this roundup, the Tekonsha Primus IQ is the best overall trailer brake controller for pickup trucks. It is proportional, handles 1 to 3 axles, adds a three-level boost function, and carries the largest review base of any unit we compared. If your cab has no knee room, the REDARC Tow-Pro Liberty is the pick, because its main unit hides behind the dash and only a small dial stays visible.
Which trailer brake controller is better, Redarc or Tekonsha?
Choose REDARC if dash space and set-and-forget calibration matter most. The Tow-Pro Liberty and Tow-Pro Elite hide the main unit behind the dash and use Active Calibration, so there is no manual gain routine. Choose Tekonsha if you want a proven long-term record, a boost function, and a broader vehicle list. The Primus IQ has far more reviews behind it, while the REDARC units are newer and better suited to modern cabs.
Can I add a trailer brake controller to my F-150?
Yes, on most F-150 generations, and the job is easier with a vehicle-specific plug-and-play harness. Fit the controller, connect the pigtail to the factory brake controller port under the dash, and add a 30-amp circuit breaker for the brake output. If your truck was built without a tow package, confirm the brake controller port exists before purchase, because some configurations omit it and require the harness to be run from the battery.
What are the best towing brakes for an F-150?
Match the controller to trailer weight rather than to the truck. A proportional controller is the right answer for anything above roughly 2,000 lbs, and for a heavy fifth wheel or 3-axle bumper pull you want 1 to 3 axles of capacity and a boost function. The REDARC Tow-Pro Elite and CURT Spectrum both reach 3 or 4 axles, while the Primus IQ covers 1 to 3 axles with the strongest long-term record.
Are Tekonsha brake controllers good?
Yes. Tekonsha is the most established name in this category, and the Primus IQ in this roundup is our best overall pick with a 4.7 star rating across more than 7,700 reviews. Owners describe it as the balance point between capability and effort, with smooth proportional braking, a boost function, and a connector that unplugs for seasonal stowing. The one thing to plan for is that the vehicle-specific harness is sold separately.
Are Curt brake controllers any good?
Yes, and Curt is the most installation-focused brand here. The Spectrum is the only unit in this roundup rated for 1 to 4 axles and 2 to 8 brakes, and it carries a limited lifetime manufacturer warranty. The Echo Mobile needs no permanent wiring at all because it plugs in line between the 7-way connectors. The recurring caveat across Curt reviews is the app, whose phone pairing can be finicky on some devices.
How do I choose a trailer brake controller?
Work through four things. First, pick proportional over time-delay unless you tow a light trailer very occasionally. Second, decide between a visible dash unit, a hidden main unit with a dial, and a fully portable in-line controller based on your knee room. Third, count the brakes on your trailer and choose a controller that covers them. Fourth, confirm a vehicle-specific harness exists for your exact year, make and model before you buy.
The Verdict for Pickup Truck Owners in 2026
The best trailer brake controllers for pickup trucks in 2026 come down to two questions. If your truck stays put and you want the deepest proven record with a useful boost function, the Tekonsha Primus IQ is the one to buy. If your cab has no knee room left, the REDARC Tow-Pro Liberty is where the category is heading, with its hidden main unit and self-calibrating setup.
Pick the CURT Echo Mobile if you move between vehicles, the CURT Spectrum if you need four axles of brakes, and the REDARC Tow-Pro Elite if you tow heavy off-road. Whatever you choose, confirm the vehicle-specific harness and the brake count before you order, and give the gain setting a proper test on level ground with your heaviest load.
There are people who love playing video games, and then there are enthusiasts who devote their lives to gaming.
Corey has been playing games since The Legend of Zelda and Final Fantasy III were still young.
Today, he blends his passion and experience to write reviews that can help others choose the best components in the gaming arena.
