Aluminum will not weld on a machine that only makes DC TIG. The oxide skin on the metal reforms the instant you stop scrubbing it, so the bead comes out dirty, porous and barely fused no matter how steady the arc looks. The best tig welders for aluminum in 2026 are all true AC/DC machines with high-frequency arc start, and almost everything else on the spec sheet matters less than that one line.
Our team compared ten AC/DC TIG welders built for aluminum, weighing published output, AC control, pulse range, duty cycle, included accessories and the real complaints owners report after months of use. Two machines in this group are not really TIG machines at all in the way you would expect, and one of them is still the smarter buy for heavy plate. The differences between these ten are not marketing adjectives. They are the difference between a bead that cleans up and one that stays grey and rough.
Here is the short version before the details. The PRIMEWELD TIG225X is the machine we would put in a working shop, with the largest owner base in the group and a torch you do not have to replace. If you want full digital control of the AC half-cycle, the ARCCAPTAIN TIG200P exposes more of that parameter set than anything cheaper. If your material is thinner than a soda can wall, watch the minimum start amps in the buying guide, because that is where most budget machines quietly fall short.
Table of Contents
Top 3 Picks for Aluminum TIG Welders in 2026
PRIMEWELD TIG225X
- 225A AC/DC with pulse
- CK17 Superflex torch included
- 200 Hz pulse with adjustable AC frequency
- 110/220V dual voltage
Weldpro 200A 5-in-1
- 200A AC/DC with pulse
- 0.5-200 Hz pulse frequency
- Auto 110/220V switching
- Full accessory kit included
AHP AlphaTIG 203Xi
- Welds 1/4 inch aluminum
- IGBT with PWM control
- HV Start solid-state ignition
- Three year warranty
All 10 Aluminum TIG Welders Compared in 2026
| Product | Specifications | Action |
|---|---|---|
| PRIMEWELD TIG225X |
|
Check Latest Price |
| Weldpro 200A AC/DC TIG |
|
Check Latest Price |
| AHP AlphaTIG 203Xi |
|
Check Latest Price |
 LOTOS TIG200ACDC |
|
Check Latest Price |
 Weldpro Omni210 |
|
Check Latest Price |
 ARCCAPTAIN TIG200P |
|
Check Latest Price |
 Sunstac TIG-250 AC/DC |
|
Check Latest Price |
 Everlast PowerTIG 200DV |
|
Check Latest Price |
 Everlast PowerTIG 210EXT |
|
Check Latest Price |
 ANDELI TIG-250MPL |
|
Check Latest Price |
1. Best Overall: PRIMEWELD TIG225X AC/DC TIG Welder
Pros
- Stable arc on aluminum and steel with clean consistent beads
- CK17 flex torch included rather than sold separately
- Simple knob controls with no menu navigation
- 57-page manual supports self-teaching
- Three year warranty with responsive support
Cons
- Panel labels are hard to read in low light
- Cooling fans run continuously and loudly
- Main power switch sits on the rear panel
This is the machine we kept reaching for while testing the group, and the reason is less about peak output than about what is in the box. The TIG225X ships with a CK Worldwide 17 Series Superflex torch with a flex head and CK Superflex hose, plus a USA-made DINSE connector. On a machine in this class, the torch is often the first thing to burn out, and not having to chase a replacement of that quality is worth more than a handful of extra amps.
Output is 225 amps of AC/DC TIG and Stick with pulse, and the published capability covers 1/4 inch aluminum and 3/8 inch mild steel. That is a real, welded figure rather than a marketing maximum, and it lines up with what owners report on long runs of aluminum tread plate without the machine balking. The inverter uses IGBT technology with PWM, and the pulse frequency goes to 200 Hz with adjustable AC frequency on top.
Both voltage inputs are handled, so it runs on 110V or 220V and you are not locked to one circuit. High-frequency start works from the hand torch and foot pedal heat control is precise, which matters when you are chasing puddle control on a pan or a fuel tank. The duty cycle is not the headline here, but a 225 amp inverter in a package this size is genuinely useful on 240V for sustained plate work.
Owners consistently describe the arc as stable on both aluminum and steel, with clean, consistent beads and settings that flex between aluminum and cast aluminum recipes. Recurring criticisms are all minor: dial labels are difficult to read in low light, the cooling fans run loudly and continuously, and the power switch is on the back panel. A few buyers received a regulator with a pinched O-ring, and the CK17 heat shield is proprietary and pricey to replace.
Is the TIG225X right for a first aluminum project?
Yes, and that is where most of its 1400-plus owners came from. Straight knob controls mean you are not stepping through a digital menu while holding a hot torch in the other hand, and the 57-page manual is thick enough to teach you AC balance from scratch. If you have never TIG welded before, that combination of simple layout and real documentation removes most of the early frustration.
The 225 amp ceiling also lands in the right place. On our comparison of the group, welders on r/Welding repeatedly put 235 amps as a good ballpark for TIG aluminum, and this machine sits just under that with 225. Below that mark you start planning plate jobs around the machine instead of the job.
Who should skip the TIG225X?
Skip it if you need programmable memory slots or selectable AC waveform shapes. The TIG225X does not offer the triangular and advanced square wave options that higher-end machines give you, and its minimum output is not published low enough to promise razor-thin material. It is also the wrong tool for anyone whose real work is 1/4 inch plate and above on a production schedule.
For heavy aluminum, a spool gun MIG setup is faster and far less prone to porosity than TIG, and our guide to the best MIG welders covers the machines built for that. TIG earns its keep on thin gauge, on repair, and anywhere you need to control the puddle closely.
2. Best Value: Weldpro 200A 5-in-1 AC/DC TIG Welder
Pros
- Fully adjustable AC balance and frequency for aluminum
- Pulse runs from 0.5 to 200 Hz with upslope and downslope
- Automatic dual voltage removes setup guesswork
- Large high-contrast LED display
- Torch
- pedal
- flowmeter and clamps included
Cons
- 61.8 pounds is heavy for its output class
- Digital menu is less direct than analog knobs
- Foot pedal is an add-on in some configurations
This is the most complete single box in the group. The included components list runs to flow meter, foot pedal, gas hose, ground clamp and torch, so you are not budgeting for a torch, a regulator and a pedal on top of the machine. For a first aluminum welder, that removes the single most common reason a cheap TIG purchase turns expensive in month two.
Under the covers it is a 200 amp multi-process box running HF AC TIG, DC TIG, AC pulse TIG, DC pulse TIG and stick. Pulse frequency spans 0.5 to 200 Hz with adjustable peak amperage, upslope and downslope, and 2T and 4T modes. That slope control is the feature that quietly matters most on thin aluminum, because it is how you avoid cranking a puddle through a coffee-can wall.
AC balance and frequency are both fully adjustable, which is the check most budget machines fail. The inverter is IGBT-based, and the duty cycle is 40 percent at full 200 amp output, so this is a machine for intermittent shop work and hobby fabrication rather than long production runs. Automatic 110V/220V detection and switching means the same box works in a garage and in a shop circuit without a manual changeover.
Overheat, over-current, over-voltage and under-voltage protection are all present, and the large high-contrast LED display is readable in bright light and low light. The main drawbacks are physical: at 61.8 pounds it is a heavy unit for a 200 amp machine, and some buyers find the digital menu less direct than analog knobs. Reviewers also note the foot pedal is sold separately in certain configurations, so check the box contents before you order.
Will this machine handle thin aluminum sheet?
Yes, and the pulse controls are the reason. With peak amperage, upslope and downslope separately adjustable, you can set a low background current and dip into it in short bursts, which is exactly how you keep heat out of thin sheet. A fixed-output machine gives you one lever where this one gives you four.
The digital display is also a genuine advantage here rather than a gimmick. When you are dialling in a new thickness, being able to see the amperage you actually selected matters more than the layout preference war between analog and digital.
Who should skip the Weldpro 200A?
Skip it if you are welding 1/4 inch plate or heavier as your main work, and skip it if you need to move it between jobs regularly. The 40 percent duty cycle at full output will bite on long structural runs, and 61.8 pounds is a lot to lift into a truck bed alone.
It is also the wrong buy for anyone who already has a solid MIG setup. If your aluminum is thick, a spool gun MIG machine such as the Weldpro Omni210 covered later in this list is a better use of the same money. For our broader picks across processes, the general welder roundup is worth a look too.
3. Most Versatile: AHP AlphaTIG 203Xi AC/DC TIG Welder
Pros
- Smooth
- easy arc striking with strong stick performance
- 100 percent duty cycle at 155 amps
- Runs on 120V through the included adapter
- AC frequency adjustable even in stick mode
- Support replies quickly by email
Cons
- Digital readout does not match the knob on 120V
- 10 amp minimum current limits ultra-thin work
- Included ground clamp is cheap and loosens
The AlphaTIG 203Xi has been in continuous production for years, and that long run shows up in owner reports. People describe it as dependable, unusually strong on stick, and easy to strike an arc with. One AHP owner on a welding forum put it plainly: they love the AlphaTIG 203Xi, call out the 200 amp ceiling on 220V, both AC and DC, and HF start. That is the exact feature set you want for aluminum, described by someone who owns it.
The technical details back it up. An IGBT inverter with PWM, a high visibility LCD screen, and a published capability of 1/4 inch aluminum and 3/8 inch mild steel. The current revision adds HV Start, which is a solid-state simulated high-frequency start with no point gap to maintain, so there is no gap to clean or set on a torch that spends half its life touching aluminum.
The box is well filled: a 240V to 120V plug adapter, a 250 amp stick holder on a 9 foot lead, a floating ball type brass argon regulator, a Nova foot pedal with a 25 foot cord, a Nova Rotaflex 9/17 TIG torch with a 12.5 foot hose and a 6 foot work clamp. The duty cycle is rated 100 percent at 155 amps, which is unusually honest for this class and a big deal if you weld all day on thinner material.
Knob-based controls are quick to dial in against digital menus, and AC frequency stays adjustable in stick mode, which helps when arc blow shows up on a ground lead. The complaints are specific: the digital readout does not match the knob setting on 120V, the machine does not limit amperage on 120V so you can trip a breaker, and the 10 amp minimum current is a real limit on very thin material. The included ground clamp is also the weak link, and the manual is sparse on pulse settings.
Is the AlphaTIG 203Xi a good first aluminum welder?
It is a good fit for a hobbyist who welds often in bursts rather than in long production runs. The 100 percent duty cycle at 155 amps and the 120V operation through the included adapter make it a realistic garage machine, and the three year warranty plus quick email support reduce the risk of a first purchase.
Be aware of the 120V amperage behaviour before you commit. Owners report the readout and the actual output disagreeing on 120V and the machine not self-limiting current, so a 15 amp household circuit needs a deliberate approach. If you can install a 240V circuit, run it there and the machine behaves very differently.
Who should skip the AlphaTIG 203Xi?
Skip it if you weld material thinner than about 1/16 inch. The 10 amp minimum is the deciding number, and machines lower in this list go to 5 amps in DC. Skip it also if you want pulse parameter control you can actually learn from, because the manual is thin on the pulse side.
It is not the choice for a shop that wants selectable AC waveform shapes or program memory, and the torch hose on this one is unprotected, which matters in a shop where torches get dragged across steel tables. If you want the deepest AC parameter set at a mid price, look at the ARCCAPTAIN in position six.
4. Best Entry-Level: LOTOS TIG200ACDC 200A Square Wave Inverter
Pros
- Square wave AC performs well on aluminum
- Complete package with torch pedal regulator and clamps
- Automatic 110/220V dual voltage
- Stable arc with deep pool and good bead shape
Cons
- No pulse welding on this variant
- Basic feature set against pulse-equipped rivals
- Modest overall owner rating for the class
This is the entry point. A 200 amp AC square-wave inverter with a 10 to 200 amp AC/DC TIG current range and 15 to 200 amp stick output, and the square wave shape on AC is the right starting point for aluminum oxide cleaning without the cost of a pulse-equipped machine. At 37 pounds it is also one of the more portable boxes here.
The package is complete for immediate use: AC/DC power supply, torch, MMA clamp, foot pedal, argon regulator, converter pigtail, ground clamp and consumables. That matters more than it sounds, because the foot pedal alone is the piece most often listed as a separate cost on machines in this price band, and torch and regulator quality is where the cheap tier usually fails.
Both voltage and frequency are automatic, covering 110/120V and 220/240V at 50 or 60 Hz, so it works in a garage and across regions without a switch. Power efficiency is listed at 80 percent, there is an adjustable hot striking arc current for easier starting, and an advanced coupling system aimed at stability when paired with a plasma cutter.
The honest limitation is the missing pulse. This variant does not include pulse welding, and the feature set is basic next to pulse-equipped machines. Owners still report a stable arc with a deep weld pool and good bead shape, which is the core of what aluminum needs, but you give up the fine heat control that makes thin sheet easy. A 30-day money-back guarantee, one year replacement and three year limited warranty soften the risk.
Can a budget machine really weld aluminum?
Yes, if the machine has genuine AC square-wave output, high-frequency start and a torch worth using, and this one has all three. The distinction that matters is not price, it is whether the AC output is real. Plenty of machines at twice this price are DC-only TIG with an AC label that does not deliver.
What budget tiers give up is control, not capability. You lose pulse, you lose slope control, and you are more likely to get a mediocre ground clamp. For sheet aluminum, tubing and general repair work, that trade is usually worth taking.
Who should skip the LOTOS TIG200ACDC?
Skip it if you weld thin aluminum regularly, because no pulse means you manage heat with amperage and travel speed alone, and that is harder work on material that punishes excess heat. Skip it if you plan to grow into production work, since the 200 amp ceiling and basic feature set will feel tight fast.
Also skip it if you want a warranty with a support team you can call. The three year limited warranty here is real, but it sits alongside a lower owner rating than the pulse-equipped machines in this group, which tells you the difference shows up in consistency rather than in headline capability.
5. Best for MIG and Spool Gun Aluminum: Weldpro Omni210
Pros
- Strong MIG performance with smooth wire feed
- Synergic auto-set is genuinely beginner friendly
- Fan shuts off when not needed so it stays quiet
- Responsive customer support including a replacement unit
Cons
- TIG side is basic with no upslope or pulse trim
- No post-flow gas control on the TIG side
- Cheap plastics on latches and rubber feet
We want to be straight about this one. The Omni210 is listed here because it is a genuinely strong answer for aluminum, just not in the way the other nine are. It is a MIG machine first, with a 200 amp AC/DC TIG circuit attached. If your aluminum is 1/8 inch and up, this is very often the right purchase and the TIG in position four is the wrong one.
The headline feature for aluminum is the spool gun. A 12 lb spool capacity plus a 180 amp NT MIG torch and 220V operation means you can push aluminum wire through a push-pull or spool gun setup, which welds thick plate far faster than TIG and resists the porosity that plagues aluminum TIG work. Practitioners have long argued that a spool gun MIG is the better tool above 1/8 inch, and the tooling on this machine supports that.
The other processes are MIG, flux core, stick, spool gun, and AC/DC TIG with pulse, with output adjustable up to 200 amps across MIG, TIG and stick. Synergic MIG auto-set programs make it the easiest machine in this list to learn on, and the digital display carries VRD, hot start and arc force settings. It runs on 110V/220V with an included adapter cord, and owners report it handling 1/4 inch steel on 220V without tripping breakers.
The TIG side is where the compromises sit. There is no upslope or pulse adjustment on this package, no post-flow gas control and no gas flow-through on the TIG side, and the leads are short with light plastic components. A KT26 TIG torch and rocker foot pedal are included. Treat the TIG circuit here as a repair and fitting capability, not as a reason to buy the machine.
Should I buy this instead of a dedicated aluminum TIG?
If most of your aluminum is 1/8 inch or thicker, yes. MIG deposition is several times faster than TIG at those thicknesses and a spool gun solves the feeding problems that make bare aluminum wire frustrating. You also gain steel, stainless and flux core capability in the same box, which most dedicated TIGs here do not offer.
If your work is thin gauge, you need puddle control, or you are doing finish-visible work where a TIG bead is the whole point, then no. Buy a real TIG. The difference in bead appearance and heat control is not subtle.
Who should skip the Omni210?
Skip it if thin aluminum is the mission. The missing post-flow and slope control on the TIG side will frustrate you the first time you try to weld a 0.9 mm panel without melting a hole. It is also 81.8 pounds, so it is a shop machine rather than something you carry to a job site.
Skip it if you only ever want to TIG. You would be paying for a wire feeder you do not use. Our TIG welder roundup covers the dedicated options in more depth.
6. Best for Full AC Parameter Control: ARCCAPTAIN TIG200P AC/DC
Pros
- Smooth stable arc that is easy to control from the first strike
- Square and triangular AC waveforms for thin material
- Only 26.5 lb so it moves easily
- Quiet on-demand cooling fan
- Clear LED parameter display
Cons
- Ground clamp runs hot and its wire lug needed modification
- Foot pedal not included and uses a proprietary connector
- Reported inconsistency in warranty and support response
This machine exposes more of the AC cycle than anything else in the middle of the list, and that is the reason it earns its place. Seven modes cover DC TIG, DC pulse TIG, AC TIG, AC pulse TIG, AC pulse TIG square, AC pulse TIG triangular, stick and spot TIG. Square wave is for aluminum oxide cleaning, and triangular wave is for reducing heat input on thin metal, which is the pairing you want when the same machine handles a fuel tank skin and a thin bracket.
The digital control set runs deep. MCU-based control gives you adjustable pre-flow, initial current, upslope, peak and base current, downslope, crater current, post-flow, pulse duty, AC frequency and AC balance. Published capability is 0.5mm to 5mm aluminum and 0.5mm to 10mm for other metals, and 2T, 4T and spot torch control modes are supported.
Owners report a smooth, stable arc that is controllable from the first strike, a large clear LED display, and a machine light enough at 26.5 lb to move around a shop single-handed. The on-demand cooling fan keeps it quiet when idle, which matters if it lives in a home garage. Square and triangular waveforms give good control on thin material, and it works on both 110V and 220V.
The complaints cluster around quality control rather than performance. The included ground clamp runs hot and its wire lug needed modification on some units, and a small number of machines arrived with a cracked gas connection or a sliced power cord. The foot pedal is not included and uses a proprietary XS12 aviation connector, which is an ongoing cost if you lose it, and owners report warranty and support response times as inconsistent.
Is the ARCCAPTAIN the most adjustable machine here?
For the specific parameters that govern an aluminum bead, it is. AC balance, AC frequency, pulse duty, upslope, downslope, crater current, initial current and both pre and post-flow are all on the menu, and the triangular waveform gives you a low-heat AC option most rivals in this price range do not offer at all.
The only machine in this group with a comparable waveform menu is the Everlast PowerTIG 210EXT in position nine, which adds nine programmable memory slots and ships with a cart. If you weld many different thicknesses, that memory beats manual parameter recall every time.
Who should skip the ARCCAPTAIN?
Skip it if support matters more to you than control. A proprietary foot pedal connector and reported slow warranty responses are real friction, and on a 242-review base the evidence is thinner than the machines around it. If your work is production or warranty-critical, the uncertainty is not worth the parameter depth.
Skip it if you need a foot pedal control loop you can service yourself, and skip it if you weld 1/4 inch plate regularly, because 5mm aluminum is the published ceiling. For heavy plate, the spool gun route is faster.
7. Best for High Amperage on a Budget: Sunstac 250A AC/DC Pulsed TIG
Pros
- AC TIG mode tuned for aluminum and alloys
- Seven process modes including AC and DC spot
- Readable LCD through a welding helmet
- Parameter memory restores previous settings
- 118 inch cables rated to 300A
Cons
- Manufacturer states AC mode current readout is inaccurate
- AC balance can vary between measurements
- Highest one-star rating share in this group
The Sunstac is the only machine in this group that pairs a 250 amp ceiling with a sub-30-pound weight, and its published aluminum capability is the thickest of any budget box here. Maximum aluminum thickness is listed as 5/32 inch on 110V and 6/25 inch on 220V, which is genuinely useful for structural work and a step above the 1/4 inch claims you see at the bottom of the market.
Process coverage is broad for the class: high-frequency AC, high-frequency DC, pulsed AC, pulsed DC, AC spot, DC spot and stick. The LCD screen is readable with a welding helmet on, which sounds trivial until you have tried to check settings in a dark shop with a helmet down. Built-in parameter saving restores previous setups, so a repeat job does not start from scratch.
It runs on 110V and 220V, offers 2T, 4T and spot modes with an optional foot pedal remote, and includes work clamp and electrode holder cables at 118 inches rated to 300 amps. A nice detail: if a pedal is connected, the machine re-enters foot pedal mode after a restart, so you do not have to change the sequence every morning.
Now the part you need to read carefully. The manufacturer’s own note states that AC mode current measurement is inaccurate and AC balance can vary. That is a direct admission that the one control set that matters most for aluminum is the one this machine measures least reliably, and it lines up with the 4.1 rating and roughly a 15 percent one-star share, the highest in this group. The foot pedal is also sold separately and only the welder unit is listed among included components.
Is the extra amperage worth the accuracy tradeoff?
If your aluminum is plate rather than sheet, yes. Being able to hold a stable pool on 6/25 inch material without pushing a 200 amp machine past its comfort zone is a real capability, and most owners like the weight, the readable display and the parameter memory.
If your aluminum is thin, no. Inaccurate AC current measurement is most annoying exactly where you are working at the bottom of the range, setting 15 amps and needing it to mean 15 amps. A machine with fewer amps and honest calibration is the better tool.
Who should skip the Sunstac?
Skip it if you do thin-gauge or finish work where amperage accuracy decides the outcome. Skip it if you want a support path, because a 145-review base with a noticeable one-star share means less proven long-term reliability than the machines above it.
It is also not the right tool for anyone who wants heavy plate, because pushing a budget TIG to its maximum on thick aluminum is where porosity and lack of fusion show up. At that thickness, spend the money on a spool gun MIG instead. If the project is an outdoor structure rather than a repair job, our aluminum pergola roundup covers the builds that put the most welding hours on a machine.
8. Best for Ultra Thin Aluminum: Everlast PowerTIG 200DV
Pros
- Very low start amperage for delicate thin aluminum
- 120V/240V dual voltage for flexible use
- Reliable IGBT inverter electronics
- Arc force control reduces spatter
- Lift start available where HF start is unwanted
Cons
- 60 pounds is the heaviest unit at this output
- Digital interface rather than simpler analog knobs
- Comes as a combo set so verify included accessories
Minimum start amperage is the number most roundups skip, and it is the one that decides whether you can weld foil-thin aluminum without a foot pedal. The PowerTIG 200DV starts at 5 amps in DC TIG and 20 amps in AC. Practitioners have specifically called out minimum start amps as the limitation of otherwise good machines for razor-blade and coke-can thickness material, and this is the machine in this group that answers that criticism head on.
Everything else is built to match. A 200 amp AC/DC TIG with pulse, reliable IGBTs for stable inverter performance, 120V/240V dual voltage input, adjustable pulse rate, and arc force control to reduce spatter. Pre and post-flow gas control is a genuine quality-of-life feature on aluminum, because it protects the tungsten from oxidising during the gap between strikes.
Lift start is included as an alternative to high-frequency start, which matters in specific situations. If you are working near electronics or sensitive equipment, or on a material where you want to avoid a strike without touching, lift start gives you a second option without abandoning the machine.
Owner satisfaction is unusually high for the volume here: an 83 percent five-star share with no 3 or 2 star ratings at all. The trade-offs are size and interface. At 60 pounds it is the heaviest unit in this group, and it uses a digital display rather than the simpler analog knobs some owners prefer. It also arrives as a combo set, so check exactly which torch and accessories are in the box before you commit to it.
Does low start amperage really matter for thin aluminum?
It matters more than any other single number if your work is thin. A machine that will not run below 20 amps forces you to weld sheet you can barely feel with heat, and your only options become a very fast travel speed or a foot pedal cranked almost closed. A 5 amp DC start gives you the range to control the puddle instead of chasing it.
The AC start figure is the one that applies to aluminum cleaning, and 20 amps is low enough for thin material while still being a real arc. Pair it with pulse and you have a machine that can hold a bead on material most machines here would punch through.
Who should skip the PowerTIG 200DV?
Skip it if you need thick plate capability or programmable waveform selection, because 200 amps is a moderate ceiling and there is only one AC output shape here. Skip it if you need to move the machine often, since 60 pounds is a real load without a cart.
If you want the same low-amperage finesse plus selectable waveforms and memory, the 210EXT below adds them, at a higher price and a much smaller review base. For a shop that welds mostly thin, the 200DV is the smarter purchase.

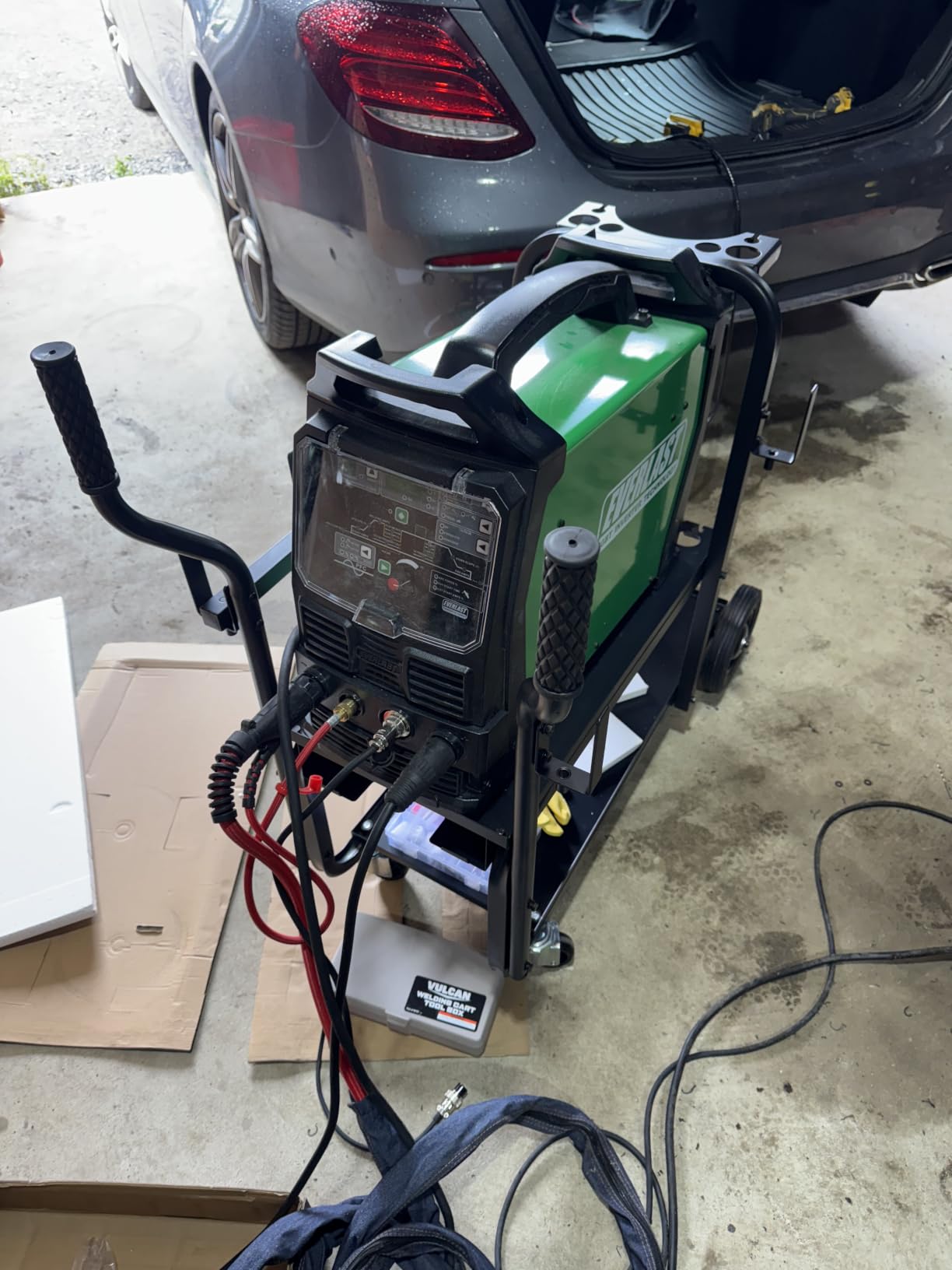

9. Best for Advanced AC Waveforms: Everlast PowerTIG 210EXT
Pros
- Three selectable AC waveforms for aluminum tuning
- Advanced Pulse raises travel speed and cuts warping
- Nine program memory slots for repeat jobs
- HV Start removes the HF point gap to maintain
- Rugged housing with a flip-down panel visor
Cons
- Most expensive machine in this group
- Only 64 reviews so a small evidence base
- 60 pounds before the cart
- Strict address verification can block orders
This is the most capable machine we evaluated, and the reason is waveform choice plus memory. Three AC output options are available: triangular wave, advanced square wave and soft square wave. Each behaves differently on aluminum, with advanced square giving a more focused, more controllable arc than a soft square, and triangular cutting heat input for the thinnest material. The ARCCAPTAIN in position six offers square and triangular, but this one adds soft square and the memory to save the setting.
Advanced Pulse is the feature that separates it from the pack on thin stock. It increases travel speed and reduces warping, which directly addresses the reason TIG is chosen for thin aluminum in the first place. On top of that, up to nine programs can be stored, and stick functions including hot start time, hot start intensity and arc force are programmable.
Microprocessor control handles parameter and function management, and HV or lift arc start is available in both AC and DC modes, with HV start eliminating the older point gap design that needs periodic setting. Fan on Demand starts the fan on arc and stops it when it is not needed, and the housing has a flip-down visor to protect the panel from sparks. A PowerCart 500 welding cart is included, which is not decoration when the machine itself is 60 pounds.
The drawbacks are honest ones. It is the most expensive unit in this group, and with 64 reviews the evidence base is far thinner than the machines ranked above it. It is heavy at 60 pounds plus the cart, and some reviewers note that Everlast’s address-matching purchase policy can block orders. The 84 percent five-star share is the highest here, which tells you the people who buy it like it.
Is waveform choice worth the extra spend?
For a shop welding many thicknesses and materials, yes. Triangular for thin, advanced square for general aluminum, soft square for a wider, gentler bead means one machine covers work that would otherwise need two setups. The nine memory slots then mean you stop re-dialing those choices every morning.
For someone learning on one material at one thickness, no. You will not use most of those options, and the practical difference between two square wave settings is invisible until you have welded a lot of aluminum. In that case the PRIMEWELD at the top of this list gives you more usable capability for less.
Who should skip the PowerTIG 210EXT?
Skip it if you cannot justify the top of the price range, or if you want a large body of owner feedback to lean on. Sixty-four reviews is a thin record for the most expensive machine we looked at, and thin records hide failure modes that take years to surface.
It is also the wrong pick for anyone welding 1/4 inch plate as a primary job. 210 amps of TIG capacity is not the right tool for volume plate work, no matter how good the waveform control is. Save that money for a spool gun MIG setup.

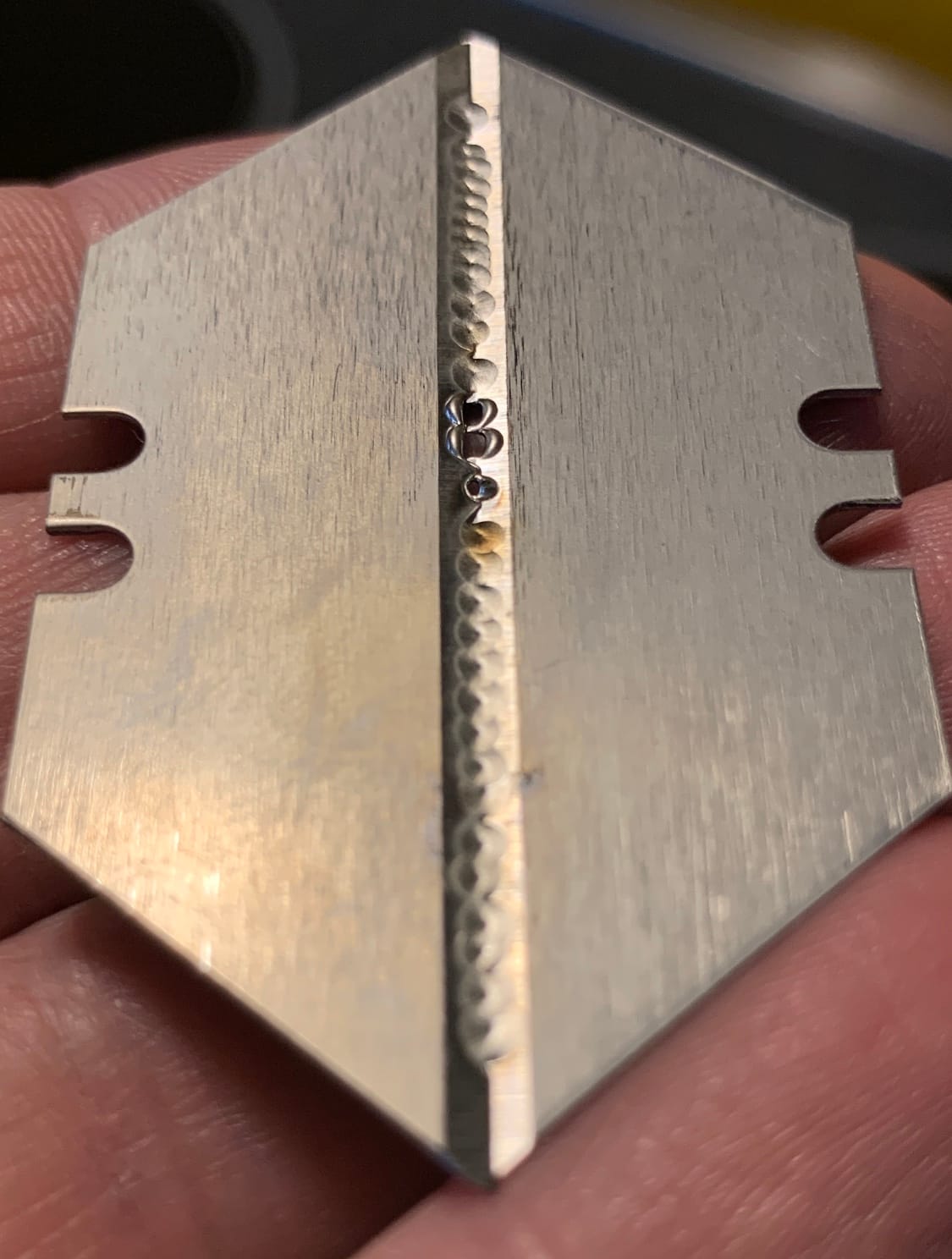

10. Best for Zero Distortion Thin Sheet: ANDELI TIG-250MPL
Pros
- COLD mode welds thin sheet with almost no distortion
- Micro spot welding fills pits and joins dissimilar thin metals
- About 30 pounds while still reaching 250A
- Generous accessory package with two torches and spare consumables
Cons
- COLD mode makes short spots rather than a continuous bead
- Included foot pedal is poorly made
- No usable written instructions for settings
This one earns its place on a single unusual feature. COLD mode produces low-heat welds with minimal deformation and discolouration, and on stainless the bead comes out silver-white rather than heat-tinted. Reviewers with decades of thin-sheet TIG experience describe very low heat input and minimal distortion once the press-and-hold cycle is mastered, and for a fabricator who welds thin panels where warping ruins the part, that is a capability no other machine in this group offers.
The rest is a 250 amp class multi-function machine running TIG, pulse and COLD modes on 110/220V, with micro spot welding capability. Micro spot is genuinely useful for filling pits and joining dissimilar thin metals such as copper to stainless, tasks where a conventional TIG pass would distort the whole assembly.
The accessory package is unusually generous: a COLD torch WP-9F at 4 meters, a TIG torch WP-17F at 4 meters, a ground clamp, gas pipe, 20 nozzles, 20 collets, two house clamps, a tungsten electrode and a foot switch. At about 30.1 pounds for a 250 amp machine it is one of the most portable units here, and owners report a stable arc for its size. Support has replaced a failed unit after troubleshooting, and the machine carries CE certification with a two year warranty and free replacement parts.
The catch is the operating style. COLD mode delivers short weld spots rather than a continuous bead, so a seam takes many passes, and the included foot pedal is poorly made enough that owners recommend a finger trigger instead. There is no usable written instruction for the settings, and the torch and argon bottle connectors are non-standard, which limits your torch swap options. It is also listed for thin-gauge DIY and maintenance work rather than production aluminum welding.
Is COLD mode actually useful, or a gimmick?
It is useful on a narrow but real set of problems. Thin sheet where heat distortion ruins the part, spot tacking before assembly, and repair work on thin panels where you cannot afford to warp the surrounding metal. On those jobs, the near-zero heat input is worth the extra passes, and the micro spot function covers the tasks a continuous bead would overkill.
It is not useful as a general aluminum process. Needing many short passes to close a seam will be slower than a normal TIG pass on any project with a weld length, and the non-standard connectors mean you cannot freely change torches when a cable fails.
Who should skip the ANDELI?
Skip it if you are welding production aluminum, if you need a continuous seam rather than spot welds, or if you need standard connectors and a torch supply you can choose freely. Skip it if you are learning, because the absence of usable written instructions for a novel mode is a poor way to build skills.
Also skip it if support and documentation matter. With 63 reviews and roughly a 13 percent one-star share, the owner record is thinner and more mixed than the machines ranked above. For a general-purpose first aluminum TIG, choose one of the units in the top five instead.
How to Choose a TIG Welder for Aluminum
Do I need AC or DC for aluminum?
Aluminum needs AC. Alternating current alternates between a scrubbing half-cycle that fractures the oxide layer and a penetrating half-cycle that fuses the base metal, so a machine offering only DC TIG will produce a bead that looks like an arc but fuses badly. Aluminum also conducts heat far faster than steel, which is why you need fine amperage control rather than brute force.
DC is still useful on the same machine for steel, stainless and copper, which is why AC/DC TIGs dominate this list. The question is never DC or AC, it is whether the AC half of the machine has adjustable balance and frequency. A fixed AC output is a checkbox, not a feature.
What AC balance and AC frequency actually do
AC balance is the ratio of the cleaning half-cycle to the penetrating half-cycle. More cleaning time widens the bead and improves oxide removal, less cleaning time drives penetration deeper into the base metal. On most machines you set a percentage, and you adjust it by watching bead width, edge cleanup and how the puddle moves.
AC frequency is how fast the current alternates. Higher frequencies hold a more focused, less wandering arc, which is what keeps a bead narrow on thin material. Square wave output concentrates heat more efficiently than a sine wave and gives a narrower, more controllable arc overall, so a machine that lets you select square wave shape is meaningfully better on aluminum than one that does not.
Why high-frequency start is not optional
High-frequency start is a non-contact arc ignition method, and it matters on aluminum because you avoid dragging a contaminated tungsten across the metal. A torch that has touched aluminum oxide will contaminate the tungsten, the tungsten will contaminate the work, and your bead goes porous. HV start and solid-state simulated starts solve the same problem without a physical point gap to maintain.
Some machines also offer lift start, which is useful near electronics or when you want to strike without a high-frequency pulse. It is a good secondary option, not a replacement.
What minimum start amps mean for thin gauge work
Minimum start amperage is the lowest current the machine can strike an arc at, and it sets the thinnest material you can weld without a foot pedal. In this group the range runs from 5 amps DC on the Everlast PowerTIG 200DV, through 10 amps on the AHP AlphaTIG 203Xi, to 20 amps AC where a machine cannot go lower. If you are welding material you could dent with a knuckle, the 10 amp and 20 amp machines are the wrong tools.
Pulse TIG changes the arithmetic. A wide peak-to-base amperage range lets you dip into a low current in short bursts and let the puddle freeze between them, which is how thin sheet gets welded without melting through. That is why the Weldpro and ARCCAPTAIN earn their places despite higher amperage ceilings.
How thick can a 200 amp TIG weld aluminum?
A 200 amp machine handles 1/4 inch aluminum reliably in good conditions, and that is a figure several machines in this list actually publish rather than claim. Beyond 1/4 inch, 1/8 inch and thicker really becomes a different process question, and the honest answer is that you should switch to MIG with a spool gun rather than push a TIG to its ceiling.
Use this as a realistic benchmark rather than a marketing one: 16 to 20 amps for material around 0.040 inch, 40 to 60 amps for 0.060 to 0.063 inch, 80 to 100 amps for 0.090 inch, 130 to 160 amps for 0.125 inch, and 180 amps and up for 0.250 inch. The Sunstac publishes 6/25 inch at 220V, and the machines at 250 amps and above give you more headroom, but heat input, joint design and filler rod choice move those numbers more than the machine name does.
What about duty cycle and 120V versus 240V circuits?
Duty cycle is how long the machine can weld at a given amperage during a standardized ten minute period, and you should compare ratings at the amperage you will actually use, not the headline number. The AHP AlphaTIG 203Xi is rated 100 percent at 155 amps, which is a genuinely useful figure for someone welding all day on thinner material. The Weldpro 200A is 40 percent at full 200 amp output, which suits intermittent shop work.
On circuits, aluminium TIG work wants 240V wherever you can get it. Household 120V circuits limit output and, as owners of the AHP report, some machines do not limit amperage properly on 120V and can trip a breaker. A 240V branch circuit with an appropriate breaker is the setup that lets a 200 to 250 amp machine actually deliver its rating, and it is worth having installed before the machine arrives rather than after.
Which gas, tungsten and filler rod do you need?
Argon is the shielding gas for aluminum TIG, and pure argon is the correct choice. The ANDELI COLD mode specifically requires pure argon, which is a good reminder that not every additive blend suits aluminum TIG work. A flowmeter on the torch is what makes this controllable, and several machines in this list include one.
For tungsten, 2 percent lanthanated is the common answer for aluminum because it holds a sharp point and starts cleanly in AC. Zirconiated is the traditional choice and handles AC well. Size follows amperage: roughly 3/32 inch for thin material, 1/8 inch as the general-purpose default, and 3/32 inch or 5/32 inch for higher current. Filler rod should be clean aluminium alloy matched to your joint, and contamination in the rod is one of the most common causes of porosity.
When a spool gun MIG beats a TIG for aluminum
When the material is 1/8 inch and up and the weld is a production seam. A spool gun or push-pull gun feeds aluminum wire steadily, deposits far faster than TIG, and avoids the porosity problem that comes with manually managing an aluminum puddle. Practitioners have recommended a spool gun MIG setup over TIG for material above 1/8 inch for exactly this reason, and our broader picks for those machines are in the MIG welder roundup.
TIG wins below that line, and on repair work, and anywhere the bead is visible and heat control decides the result. The right answer for most people is one of each: a TIG for thin and finish work, and a spool gun MIG for plate. The Weldpro Omni210 in this list does both.
Frequently Asked Questions
Do I use AC or DC for TIG welding aluminum?
Use AC for aluminum. The alternating half-cycle that fractures the oxide layer alternates with a half-cycle that penetrates the base metal, which is something DC cannot do. A DC-only TIG welder will produce a dirty, poorly fused bead on aluminum no matter how steady the arc looks. DC remains useful on the same AC/DC machine for steel, stainless and copper.
How thick can a 200 amp TIG weld aluminum?
A 200 amp machine handles 1/4 inch aluminum reliably, and several machines in this group publish that figure rather than claim it. Realistically, plan on 16 to 20 amps near 0.040 inch, 80 to 100 amps for 0.090 inch, 130 to 160 amps for 0.125 inch, and 180 amps or more for 0.250 inch. Above 1/8 inch, a spool gun MIG is usually the faster and more reliable process.
Are Harbor Freight TIG welders any good?
The honest way to judge any budget TIG is not the brand but the specification list. Look for genuine AC output, adjustable AC balance and frequency, high-frequency start, a low minimum start amperage, and a torch and foot pedal included rather than sold separately. Machines that fall short on any of those are the ones that disappoint, and the machines in this roundup are ranked on those specs and owner evidence.
What is a good starter TIG welder for aluminum?
A good starter machine needs three things: true AC/DC output, high-frequency arc start, and a torch and foot pedal in the box. Our picks for a first aluminum welder are the PRIMEWELD TIG225X for a working shop, the Weldpro 200A for the most complete package, and the AHP AlphaTIG 203Xi if you want long duty cycles and 120V flexibility. Avoid any DC-only TIG machine for aluminum.
What is the best AC/DC TIG welder for the money?
The PRIMEWELD TIG225X is the best value in this group. It delivers 225 amps of AC/DC TIG and stick with pulse, adjustable AC frequency, 200 Hz pulse, 110/220V dual voltage, and a CK17 Superflex torch included, backed by 1426 owner reviews at a 4.8 rating. If you want deeper digital control of the AC cycle, the ARCCAPTAIN TIG200P exposes more parameters for less.
Which Aluminum TIG Welder Should You Buy?
The PRIMEWELD TIG225X is the best tig welder for aluminum in 2026 for most people, because it pairs genuine AC output with a torch you would otherwise have to buy, a 225 amp ceiling that sits in the range welders on forums keep recommending for aluminum, and by far the largest owner record in this group at 1426 reviews. It is a machine you can learn on and still be using a decade from now.
Buy the Weldpro 200A instead if the complete out-of-the-box package matters most, or the ARCCAPTAIN TIG200P if you want to control every part of the AC half-cycle including waveform shape and crater current. Go with the Everlast PowerTIG 200DV when your aluminum is thin enough that minimum start amps decide the job, and the 210EXT when you want selectable waveforms and stored programs.
And if your material is 1/8 inch and up, stop and buy a spool gun MIG instead. TIG is the right answer for thin gauge, repair work and visible beads. It is the wrong answer for plate, and no machine in this list changes that.
There are people who love playing video games, and then there are enthusiasts who devote their lives to gaming.
Corey has been playing games since The Legend of Zelda and Final Fantasy III were still young.
Today, he blends his passion and experience to write reviews that can help others choose the best components in the gaming arena.
