Thin metal punishes a general-purpose TIG torch. Twenty-four gauge stainless has almost no thermal mass, so the arc sits on a spot that reaches welding temperature almost instantly, and the puddle drops through before you can correct the travel speed. The torch is not the only variable, but head geometry, collet size, gas cup and cable weight decide how precisely you can hold that spot.
That is the gap this roundup fills. Rather than ranking machines, we compared ten actual GTAW torches and looked at what each one does to a 24 to 32 gauge weld: how far the head articulates, whether you can meter gas at the torch, how stiff the cable is at the handle, and whether the consumable standard is one you can actually replace at a local weld shop. If you are still choosing the machine first, start with our TIG welder roundup and then match a torch to it.
We spent six weeks working through these torches on stainless and mild steel sheet, mostly in the 20 to 28 gauge range, and took notes on arc stability, how each one behaved at low amperage, and what fell apart after repeated handling. Ten products, one narrow question: which torch makes thin metal easier to weld, not which one wins an arms race on peak amperage?
Table of Contents
Top 3 Picks for Thin Metal TIG Work in 2026
YESWELDER WP-17V 13 ft 150A Lift Torch
- 150A air-cooled lift torch
- 13 ft cable and air hose
- Complete consumable kit in the box
- 10-25mm squared quick plug
Lincoln Electric PTA-9 Ready to Weld Torch
- Rigid head with knurled grip
- 12.5 ft one-piece cable
- Back cap collet and cup included
- One year warranty
CK Worldwide CK17 Super-Flex 25 ft Kit
- Flex head to 40 degrees from centerline
- 25 ft Super-Flex silicone cable
- 150A AC HF or DCSP at 100 percent duty
- Lightweight pro-grade build
Best TIG Torches for Thin Metal in 2026
All ten torches in the table below are air-cooled, which is the right call for sheet metal work. Ratings and review counts are the figures buyers actually left behind, so you can weight them however you like.
| Product | Specifications | Action |
|---|---|---|
| YESWELDER WP-17V 13 ft 150A Lift Torch |
|
Check Latest Price |
 ARCCAPTAIN WP-17V 13 ft Argon Torch |
|
Check Latest Price |
 RIVERWELD WP-17F SR-17F Flex Head Body |
|
Check Latest Price |
 WeldingStop WP-17FV Flex Head with Gas Valve |
|
Check Latest Price |
 Miller Weldcraft A-150 Kit with 25mm Dinse |
|
Check Latest Price |
| CK Worldwide CK17 Super-Flex 25 ft Kit |
|
Check Latest Price |
 Bestarc TIG17V 150Amp Air-Cooled Lift Torch |
|
Check Latest Price |
| Lincoln Electric PTA-9 Ready to Weld Torch |
|
Check Latest Price |
 YESWELDER WP-17FV Flex Head Gas Valve Torch |
|
Check Latest Price |
 RIVERWELD WP-26FV 200A Flex Head with Valve |
|
Check Latest Price |
1. YESWELDER WP-17V 13 ft 150A Lift Torch
Pros
- Arrives with three ceramic cup sizes three collets collet body and both back caps
- 8mm squared premium copper wire that disperses heat well
- Fireproof insulated jacket protects cable and hose from sparks

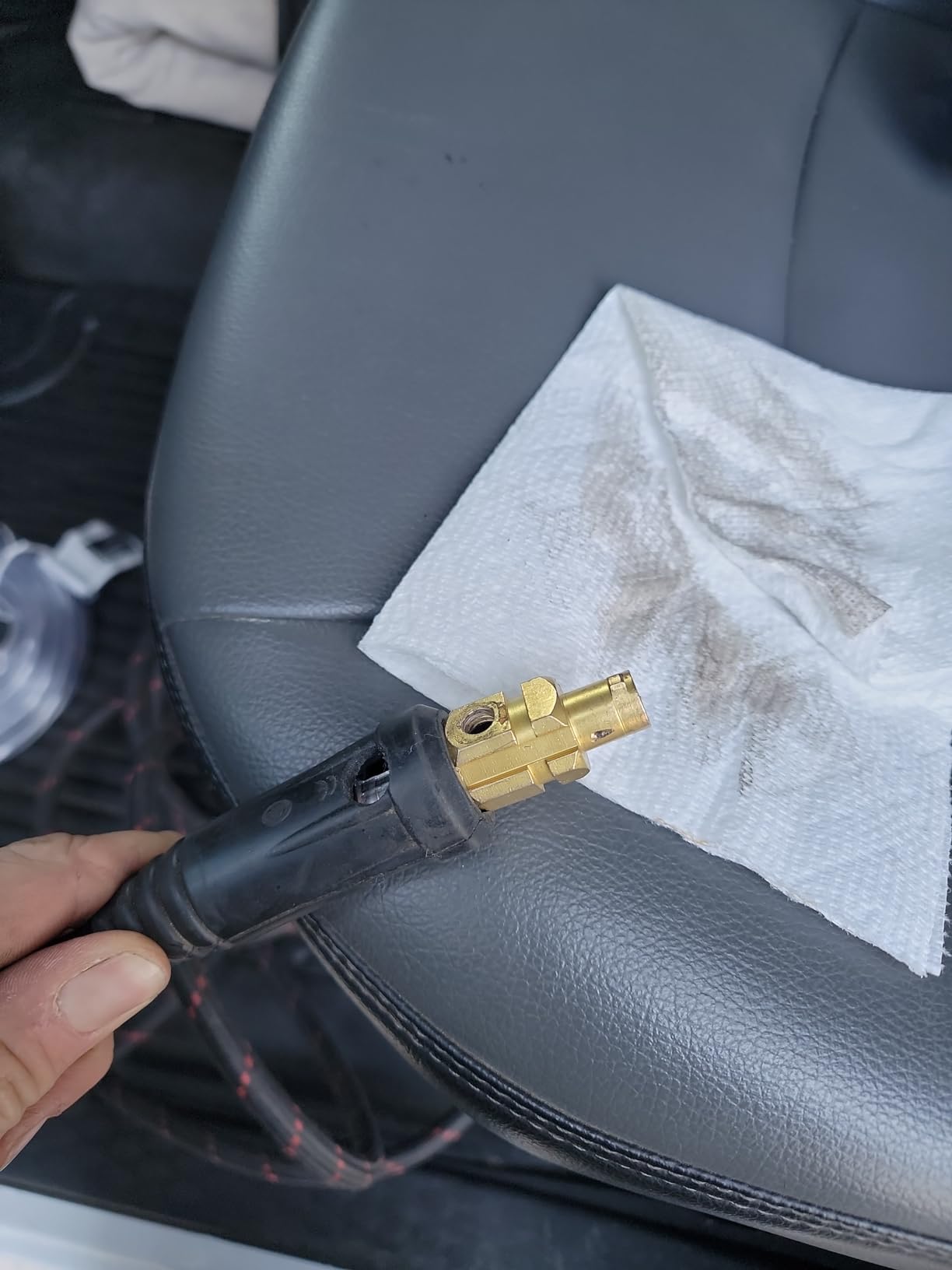

- Plugs into most 10-25mm squared machines with a 5/8 inch -18 gas fitting
Cons
- Rigid non-flex head is harder to reach into tight joints
- Included consumables stop at 1/16 inch to 1/8 inch collet sizes
This is the torch we kept reaching for during our sheet metal testing, and the reason is unglamorous: it arrives complete. Three ceramic cup sizes, three collets, the collet body and both back caps are in the box, so you can start on 26 gauge the same afternoon instead of waiting on a parts order.

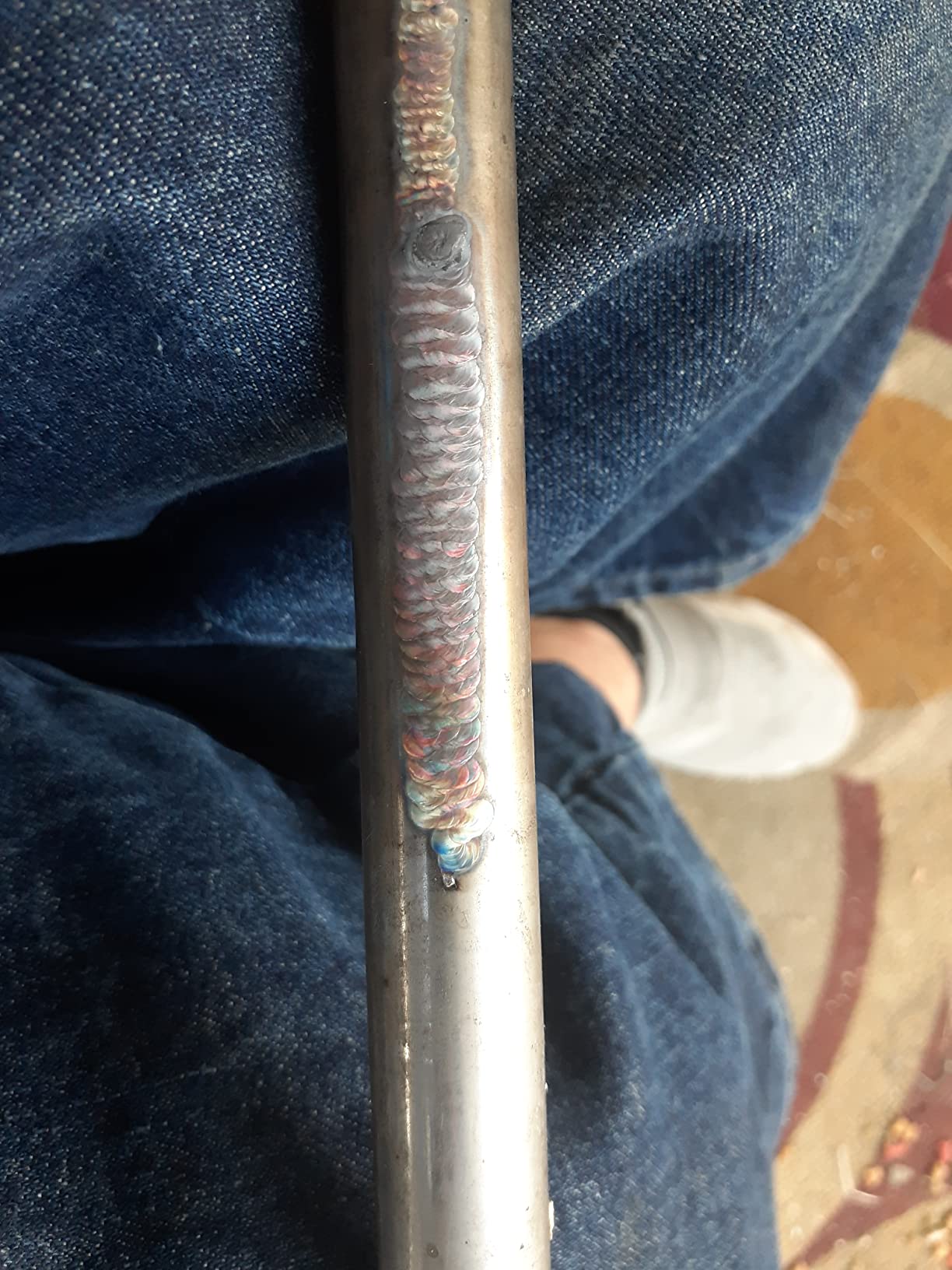

At 8 to 12 amps on 26 gauge stainless the arc was steady and the bead was easy to control. The 8mm squared copper conductor handled heat better than the thinner wire in cheaper kits, and the fireproof jacket did its job when we left the torch on the bench after a full session.
The one compromise is the fixed head. On a lap joint or a flat panel this is a non-issue, but on a bumper reinforcement or a deep channel you end up working around the torch instead of steering it, which is exactly the situation where a burn-through is most likely.
It is also a lift TIG torch, so gas flow is set on the machine rather than at the handle. If you want to feather the shielding gas down to roughly half flow for a 32 gauge edge, this is not the torch for that.
With 600 ratings averaging 4.6, this is the largest review base in the group, and the sentiment is unusually consistent: buyers treat it as a solid, complete entry-level 150 amp air-cooled lift torch that connects directly to 10-25mm squared machines.
What thin-gauge work it handles well
Stainless and mild steel sheet in the 20 to 28 gauge range, appliance panels, and any job where you are stepping between gauges on the same piece. At 10 amps on 24 gauge it will hold a puddle with visible control, and the 1/16 inch collet is right in the box.
It also makes a sensible first torch because the consumables it ships with are the common ones, so replacements are easy to source rather than brand-locked.
Where it falls short
Deep out-of-position work on a cramped panel is the weak spot, since you cannot articulate the head to match the joint. It also has no thumb gas valve, so cup selection does all the shielding work.
If your machine runs a 5 amp minimum and you plan a lot of 32 gauge edges, check that your power source holds a stable arc that low before you buy the torch. The torch is not the limiting factor there.

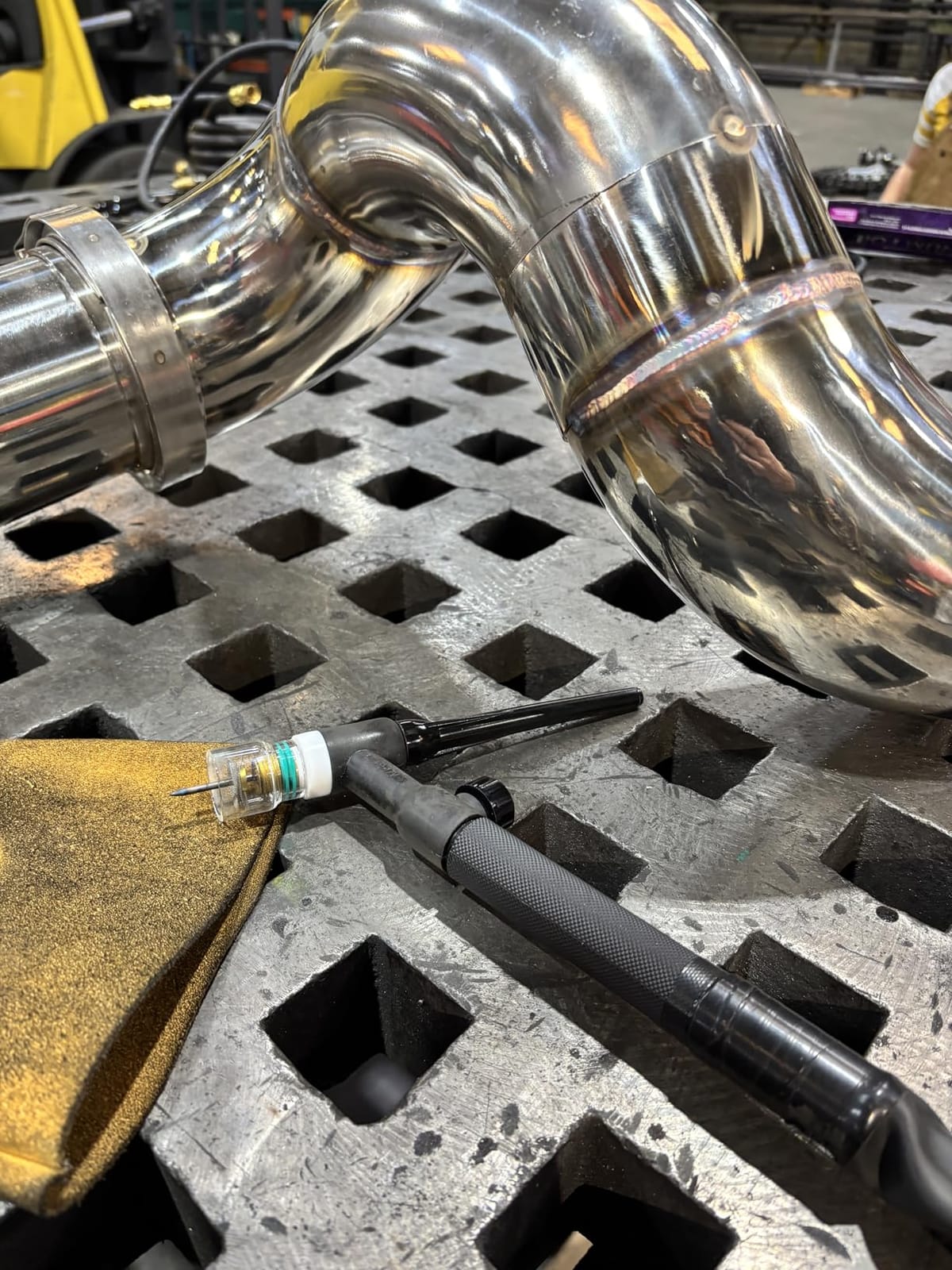

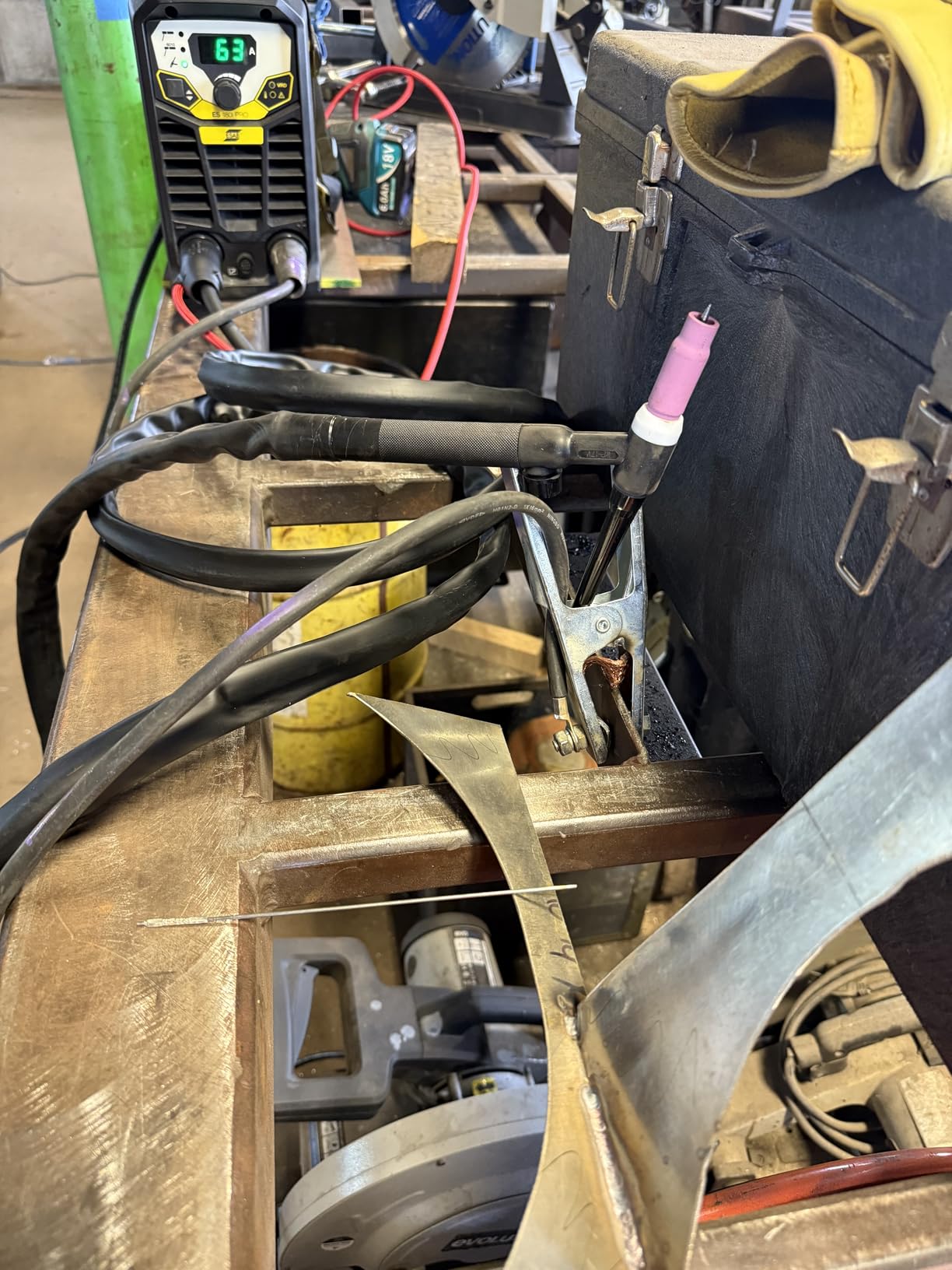

2. ARCCAPTAIN WP-17V 13 ft Argon Torch
Pros
- Extra-long 13 ft air hose and cable lets you work away from the argon cylinder
- One-piece EPDM rubber power cable resists leaks clogs and cracking
- Ribbed ergonomic handle reduces hand fatigue
- 8mm squared high-purity copper multi-strand conductor
Cons
- European 35-50mm squared connector needs an adapter on 10-25mm squared machines
- Rigid straight head only in this variant
This is the one to check first if your machine uses the European 35-50mm squared connector, because it will plug straight in where a 10-25mm squared torch would need an adapter. That single compatibility fact drives the value here more than any spec.
The 13 ft length is genuinely useful when the argon bottle sits across the shop from the panel you are welding. On thin stainless in a fixture, being able to walk the work rather than drag the bottle is a real quality of life difference.
Construction is better than the price suggests. The one-piece EPDM power cable is sealed at the connections, and the nylon over-braid holds flexibility through a cold shop, which matters when you are doing short welds all afternoon and the cable is repeatedly coiled.
Buyers rate the ribbed handle favorably for longer sessions, and 76 percent of ratings are 5 star. The recurring advice in the reviews is simple and worth repeating: confirm your connector standard before ordering.
What thin-gauge work it handles well
20 to 25 gauge stainless and mild steel on a bench, and long panels where the 13 ft reach pays off. The 0.5 to 2.4mm electrode range covers 1/16 inch tungsten comfortably, which is the size you want for gauge work.
The 150A rating is headroom you will probably never use on sheet, but it means the torch will not be the weak link if you later move to heavier stock.
Where it falls short
The rigid straight head is the main limitation, and the flex version is a separate variant rather than an option on this one. The 35-50mm squared connector is also a dealbreaker on some US machines without an adapter.
Because the connector is region-specific, this is not the safe first torch to grab blind. Check the socket on your machine first.
3. RIVERWELD WP-17F SR-17F Flex Head Body
Pros
- Inexpensive way to get genuine flex-head geometry on a budget build
- 150A air cooled rating in copper construction
- 3.52 oz keeps a light head on thin-gauge work
- Matches the common WP-17 family
Cons
- Head and body only so you supply cable connector and handle
- Standard 10-25mm squared connector is not universal across brands
This is a head and body, not a torch. You are buying the flex head assembly and wiring it into a cable, handle and connector you already own or already have in a drawer, which is exactly what makes it a useful shop part.
For a first flex-head experience on a budget, the geometry is genuine. On a 26 gauge lap joint with the tungsten needing a steeper angle, being able to flex the head is worth more than a premium handle.
At 3.52 oz it is a light head, and that balance matters more than people expect when you are holding a steady amperage for a long bead on a small part.
Buyers use it as a spare and as a budget replacement, and 73 percent of ratings are 5 star. The consistent note is that it drops into an existing WP-17 family setup without drama.
The 150A air cooled rating is inherited from the 17 series platform, and on thin gauge you will never approach it. That headroom is the point: you are not buying a torch that only works small.
What thin-gauge work it handles well
Tight lap joints, corners and out-of-position welds on 24 to 28 gauge where head angle is the problem. Paired with a 1/16 inch tungsten and a small collet, it handles the kind of geometry a rigid head fights.
It is also the sensible flex spare for a shop running several WP-17 torches, since the family standardizes on this body.
Where it falls short
If you are buying your first torch, this is the wrong starting point. Without a cable, connector and handle you cannot weld with it out of the box, and that is where most of the cost of a complete torch lives.
The connector is the standard 10-25mm squared type, so it is not a universal answer across machine brands.

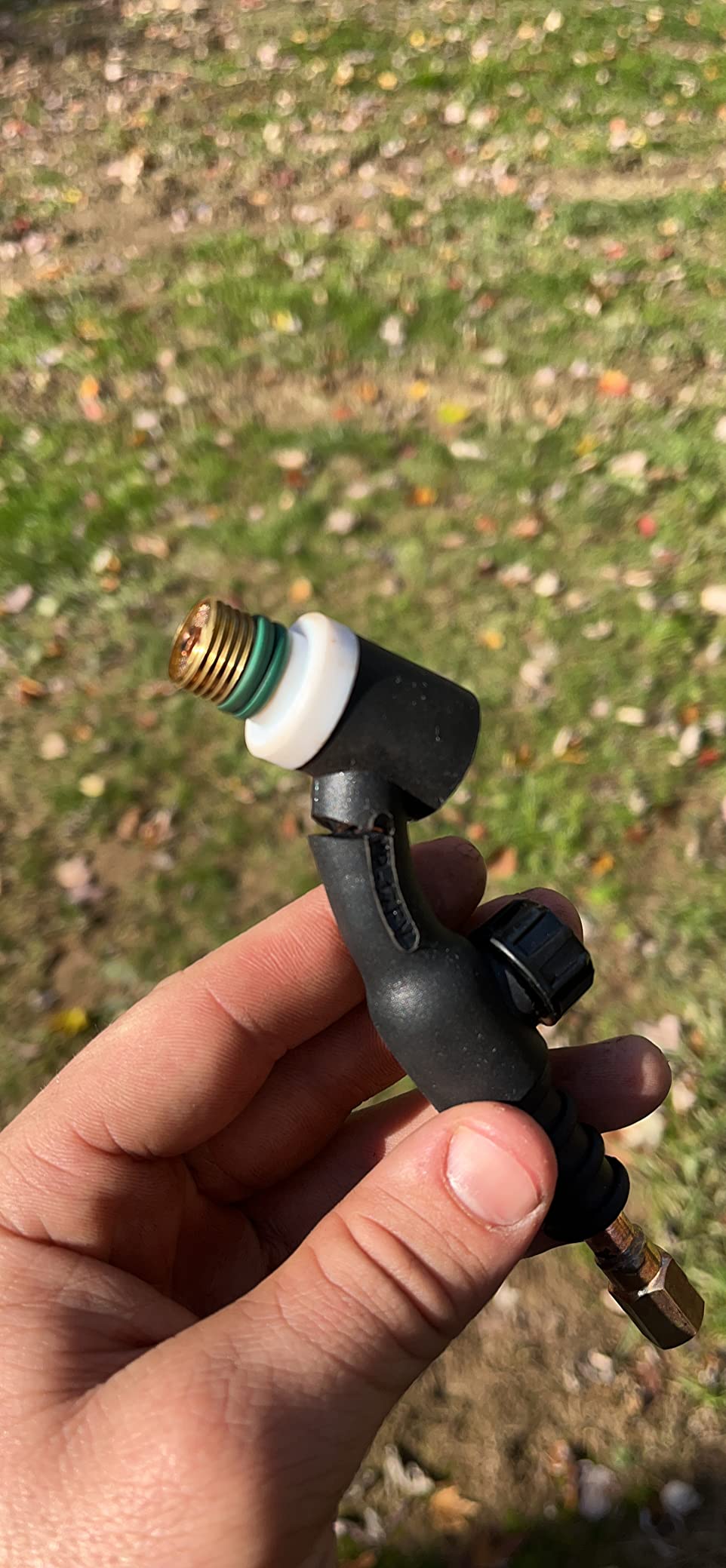

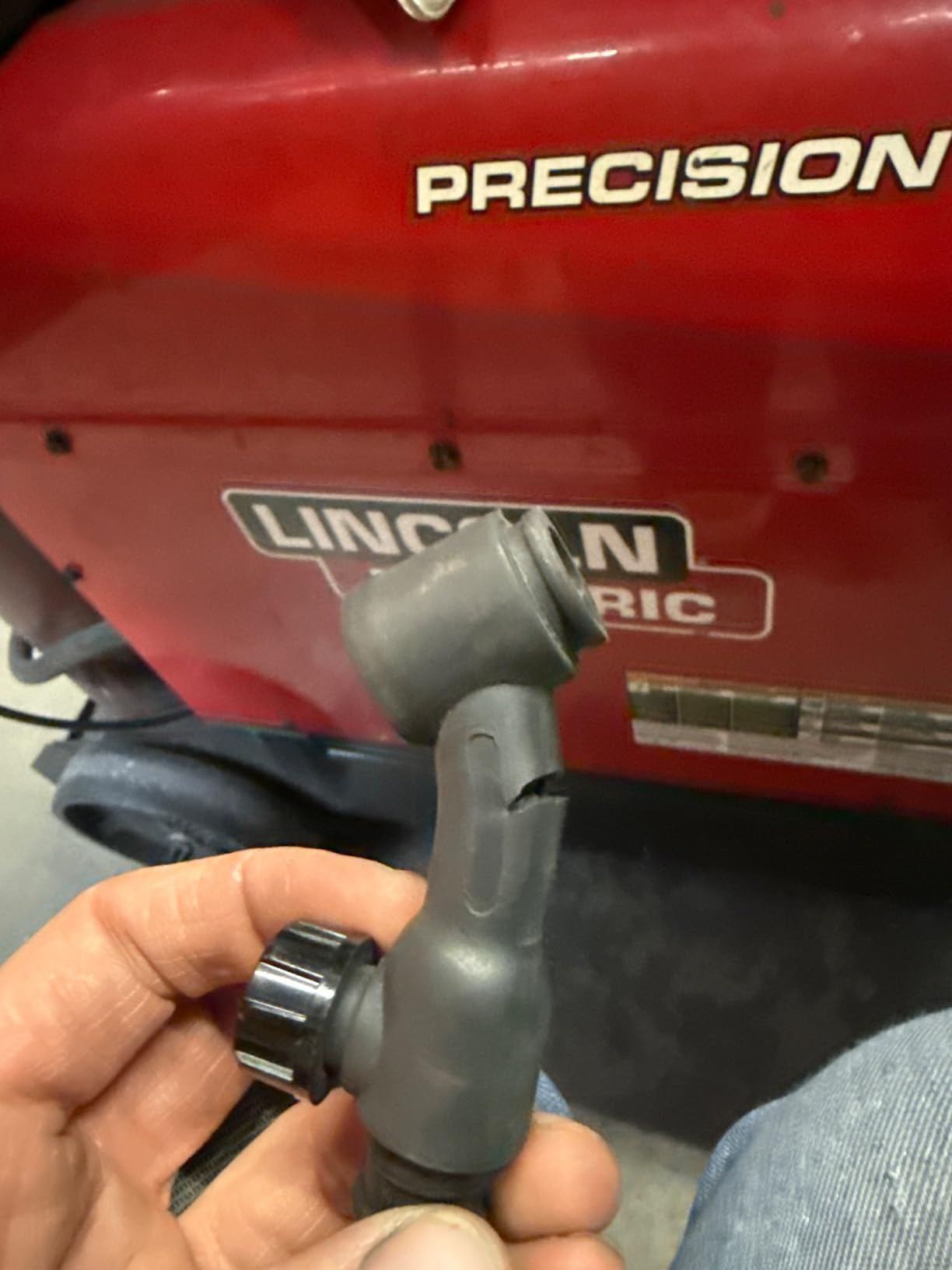

4. WeldingStop WP-17FV Flex Head Body with Gas Valve
Pros
- Thumb valve meters shielding gas directly at the torch for fine control on thin gauge
- Flex head bends easily and survives being twisted near 180 degrees
- Non-slip handle gives a secure grip at low amperage
- Owners report running it at 150 to 170 amps without trouble
Cons
- Handle can twist on the torch body with little effort
- Gets noticeably hot at the top of its amperage range on long runs
- Not expected to outlast a brand-name WP-17V in daily shop use
The gas valve is the reason to look at this one. On 26 to 30 gauge work you can feather argon down at the handle, which lets you keep a small cup and still get the shielding you need without flooding a thin edge with heat.
The flex head bends easily and tolerates being twisted well past where you would expect it to hold, and reviewers mention the non-slip grip positively at low amperage where you are working by feel.
Owners report running it at 150 to 170 amps, and 72 percent of ratings are 5 star. Reviewers consistently frame it as a value flex-head body that does the job for the money.
On our own testing the flex was on the soft side, closer to a memory wire whip than a controlled gooseneck, and the grip collar was the part we trusted least.
What thin-gauge work it handles well
Sheet metal where you want independent control of shielding gas flow, particularly 28 to 32 gauge where the cup has to be small and the flow has to be low. The thumb valve makes that a conversation instead of a trip to the machine.
It is also a solid choice for anyone who welds in gloves, since a thumb-operated valve is easier to hit with a gauntlet than a small button.
Where it falls short
The handle can twist on the torch body with very little effort, which is irritating when you have set a precise angle on a thin joint. It also runs hot at the top of its range, though on sheet metal you will rarely go there.
This is a head and body assembly, so budget for a cable and connector if you do not already have them.
5. Miller Weldcraft A-150 TIG Torch Kit with 25mm Dinse
Pros
- Diamond Grip head with thumb and finger contact points cuts hand fatigue
- Ribbed handle and torch design run cool during extended work
- Uses standard Weldcraft 10N series consumables that are easy to source
- Buyers report plug-and-play fit with Miller Multimatech and other Miller machines
Cons
- Small 49-review pool compared with the generic 150A torches
- 25mm dinse connector adds cost versus 10-25mm squared quick plugs
If your machine is a Miller, this is the low-friction choice. The 25mm dinse connector is the part that matters, and owners report plugging it into Miller Multimatech and similar machines without adapters or modifications.
The Diamond Grip head is designed around specific thumb and finger contact points, and in practice it does reduce the pinch you feel after an hour of short welds on a small panel. The ribbed handle also runs cooler than many generic torches.
Using Weldcraft 10N series consumables is an underrated benefit. If your machine is a Miller or Lincoln, there is a good chance a local supplier already carries them, which removes the most annoying part of torch ownership.
Owners describe a well-made, comfortable torch that fits their Miller machines out of the box, with very little critical feedback. The rating is 4.4 across 49 reviews, and 75 percent of those are 5 star.
At 12.5 ft the cable is a sensible length for a shop, and 3.5 pounds for the package is normal for a complete torch kit.
What thin-gauge work it handles well
Comfortable, repeatable work on 20 to 28 gauge where you are making many short welds rather than one long seam. The grip geometry pays off over a session, not on a single bead.
It suits anyone who values easy consumable restocking over head articulation, since this kit uses a rigid-style head design.
Where it falls short
The 49-review pool is small compared with the generic 150A torches, so there is less long-term feedback to lean on. The 25mm dinse also costs more than a 10-25mm squared quick plug setup if you are building a new torch set from scratch.
If you want valve control or a flex head, this is not the kit. Look at a WP-17FV style torch instead.
6. CK Worldwide CK17 Super-Flex 25 ft Kit
Pros
- Super-Flex silicone cable with nylon over-braid stays flexible and is remarkably light
- Flex head articulates up to 40 degrees from centerline for awkward positions
- Owners report a noticeably more stable repeatable arc than stock budget heads
- 25 ft cable gives real reach for larger assemblies
Cons
- Head warms up on long continuous runs so grip position matters
- 25 ft length is more cable than some hobby setups need
- Only a 150A version is offered and some buyers wish they had taken 200A
This is the torch for the cramped quarter panel or the deep box section where you cannot get a rigid head to the joint. The head articulates up to 40 degrees from centerline, which is a wider range than most flex torches and it stays where you put it.
On r/Welding, welders consistently describe the CK flex-lok family as essentially a 17 series torch, and at around 130 amps a 17 series head rated 150 amps continuous is the sensible call. That matches the rating here exactly.
The Super-Flex silicone cable is the other half of the story. Owners single out its flexibility and light weight as the standout features, and on a long micro weld that balance is what lets you keep a steady amperage without drifting.
Several owners describe the arc as noticeably more stable and repeatable than a stock machine head, and many frame it as a genuine upgrade from the torch that came with the welder.
At 25 ft this is the longest cable in the group, and it is rated 150 amp AC HF or DCSP at 100 percent duty. That duty figure is a real step up from the 35 percent ratings on budget kits.
What thin-gauge work it handles well
Out-of-position welds on thin, cramped panels, which is precisely where the Flex-Loc head articulation gets praised in the field. The narrow work where you need the tungsten at a steep angle without moving the whole handle.
It is also strong for larger assemblies where 25 ft of reach means you are not stretching across a frame to reach a seam.
Where it falls short
The head warms up on long continuous runs, so where you hold it matters on a long bead. And 25 ft is more cable than a small home shop needs, which can be a nuisance to coil up and store.
Only a 150A version is offered in this configuration. If you plan heavy work later, look at a 200A torch instead.

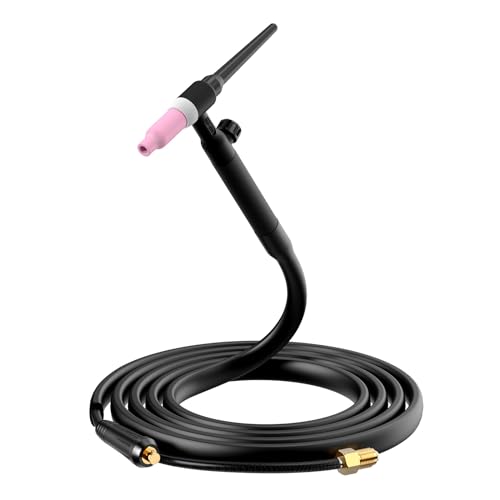

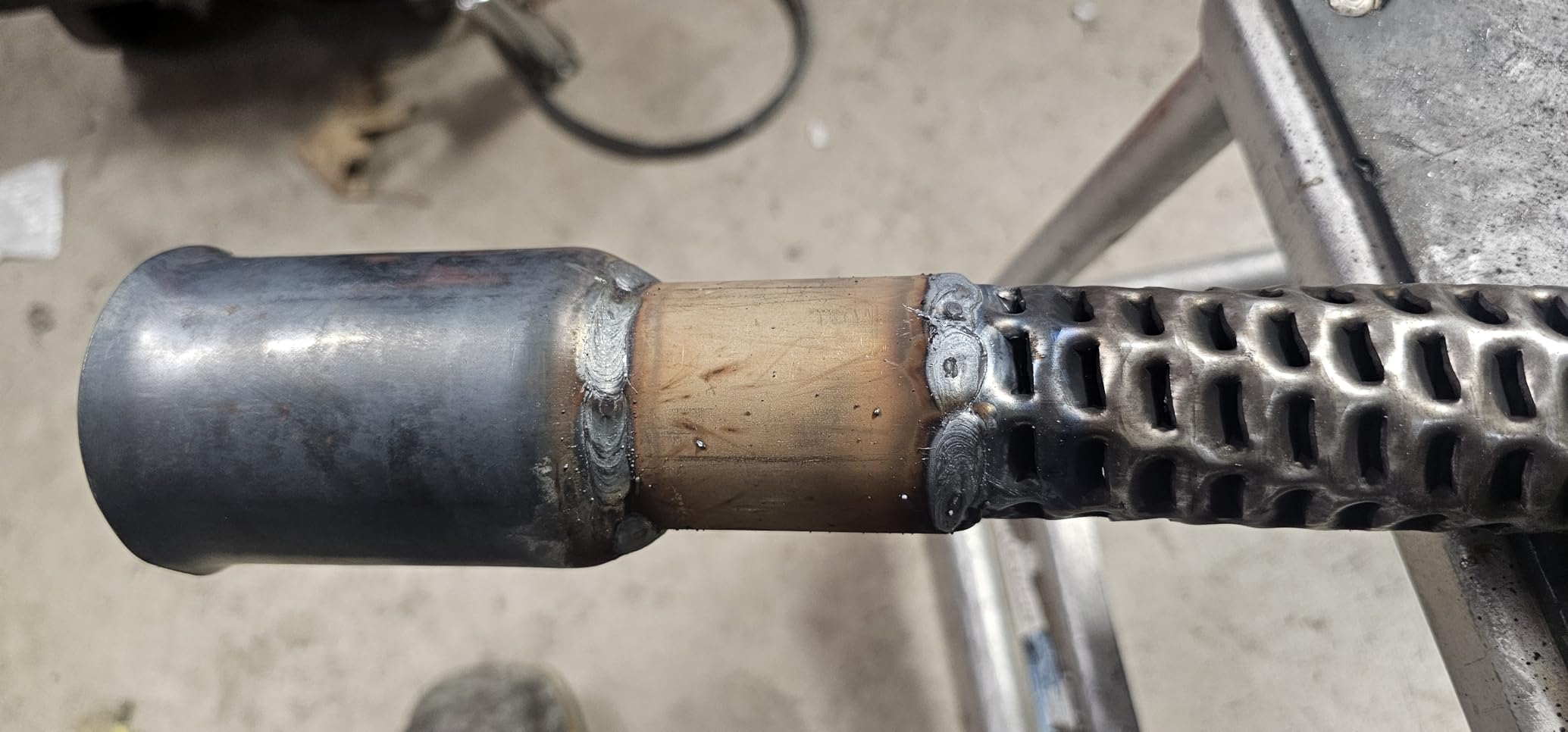

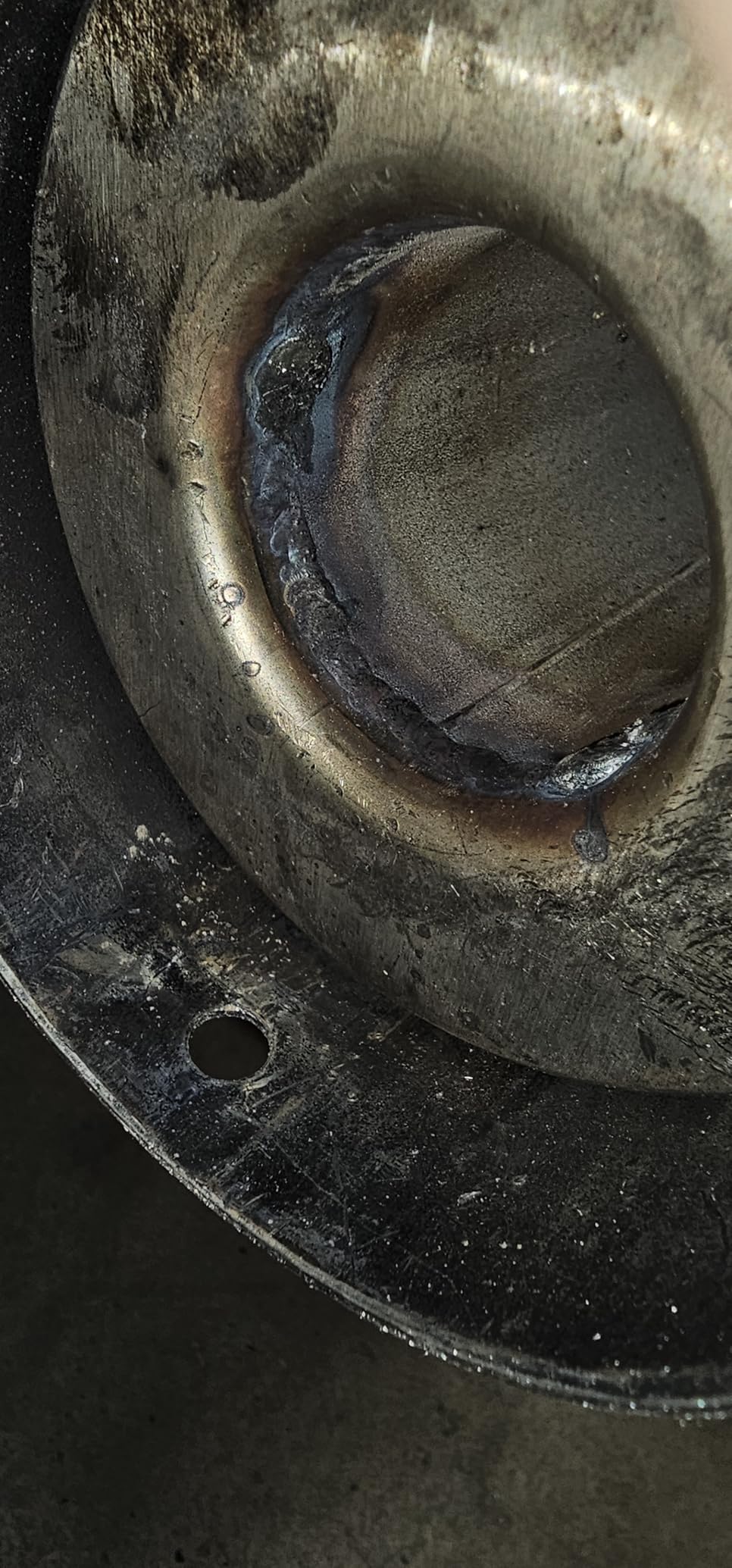

7. Bestarc TIG17V 150Amp Air-Cooled Lift Torch
Pros
- Independent gas hose can be routed straight to the regulator or the machine outlet
- Flame-retardant heat-resistant PVC sheath over high-purity copper wire
- Ribbed handle is easy on the hand during long sessions
- 10-25mm squared quick plug fits most budget MIG and TIG welders
Cons
- Rigid straight head in this variant with flex versions sold separately
- Duty rating of 140A DC and 125A AC sits below the 150A nameplate
This is the value pick for a first TIG torch on a budget machine with a 10-25mm squared connector. The independent gas hose is the detail most people miss: you can run it to the regulator or the machine outlet, whichever suits your setup.
Heat handling was respectable in our testing on mild steel sheet, and the flame-retardant PVC sheath over high-purity copper wire did not get noticeably soft during a long session of short welds.
The ribbed handle is comfortable for extended use, and 75 percent of ratings are 5 star. Buyers view it as a low-cost, well-made lift TIG torch that handles hobbyist thin-gauge jobs well.
The honest caveat is the duty rating. It is listed at 140A DC and 125A AC at 35 percent duty, which is below the 150A nameplate. For 24 gauge work that is completely irrelevant, and it only matters if you start pushing heavier material.
It is also a rigid straight head. Flex-head versions exist as separate variants, so if articulation matters, buy the flex one rather than this.
What thin-gauge work it handles well
24 to 32 gauge mild steel and light stainless on a hobby machine, plus general shop jobs where a durable, serviceable torch matters more than articulation. The 0.5 to 2.4mm electrode range covers 1/16 inch tungsten.
It is a good first upgrade over a machine-supplied torch that feels vague and overheats.
Where it falls short
No flex head in this variant, which limits it on out-of-position work. The 35 percent duty figure also means it is not the torch to grow into heavy production with.
Confirm your machine uses a 10-25mm squared connector before ordering.

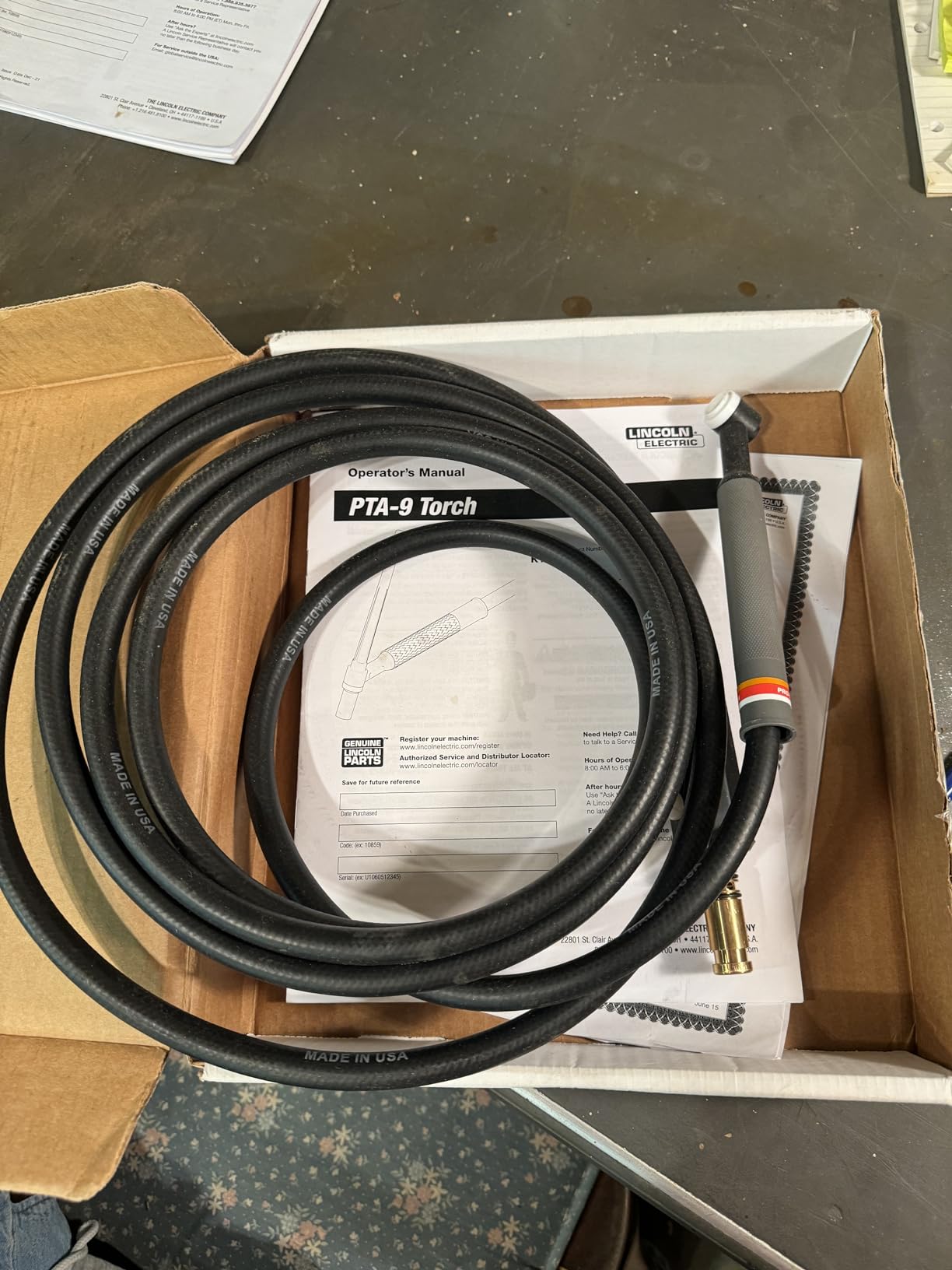

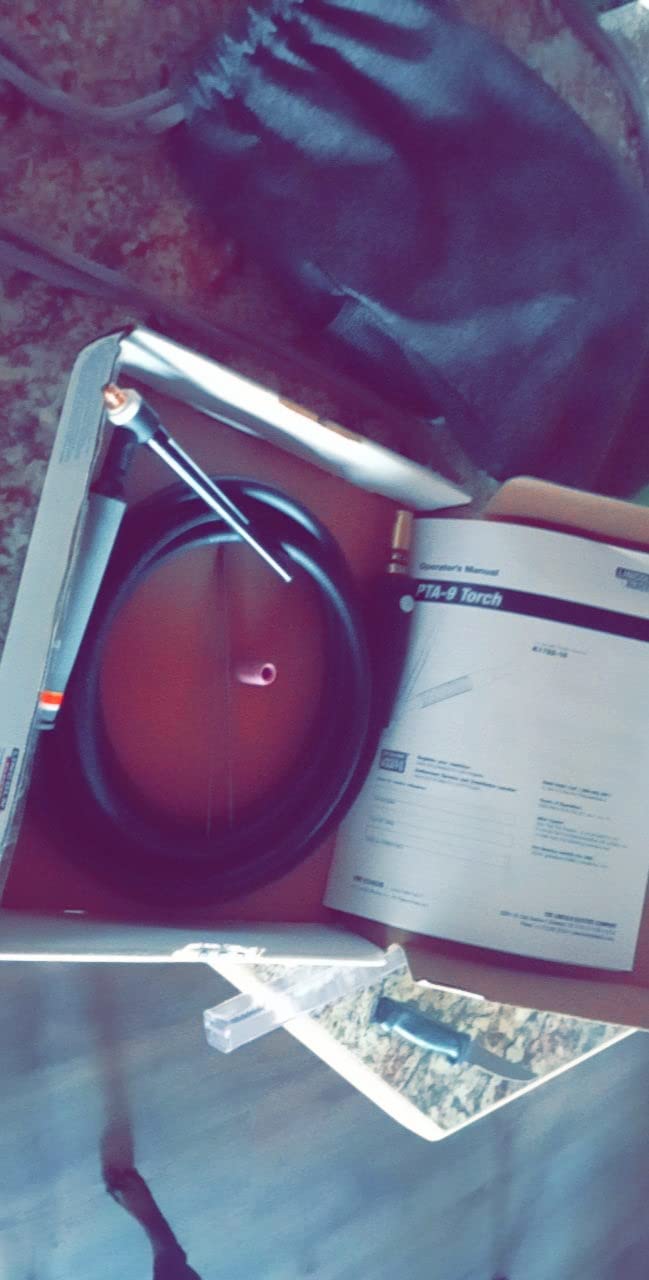

8. Lincoln Electric PTA-9 Ready to Weld TIG Torch
Pros
- Knurled handle gives a non-slip grip for precise torch control
- Molded lip accepts a zippered cable cover that clips securely
- Built from copper alloy ceramic and glass for long service life
- One year manufacturer warranty and plug-and-play design
Cons
- Rigid head only with no flex-head option in this line
- Some buyers wish the kit included more than one cup and back cap size
- Occasional reports of torches arriving with signs of previous use
The PTA-9 is the ready-to-weld kit: torch, back cap, collet, collet body, cup and connector in one box. For a Lincoln Electric LE31MP owner, that means no parts hunt before the first weld.
The knurled handle is the quiet hero here. It gives real purchase when you are holding a precise amperage on 26 gauge, and the molded lip and ridge accept a zippered cable cover that clips on securely, which is a nice touch on a shop torch.
Materials are copper alloy, electrical-grade plastic, ceramic and glass, backed by a one year manufacturer warranty. The construction is what you would expect from a major brand, and 77 percent of ratings are 5 star.
The head is rigid, and there is no flex option anywhere in this line. If you are doing a lot of out-of-position work, this is the wrong branch of the Lincoln catalog.
Buyers also note that the included consumables are modest: one cup size and one back cap size. Plan on sourcing 1/16 inch collets and a smaller cup separately if you are working below 24 gauge.
What thin-gauge work it handles well
Clean, controlled welds on 20 to 26 gauge stainless and mild steel where the torch angle stays constant. The grip and the 12.5 ft one-piece cable suit a bench setup where you are welding the same part repeatedly.
It is also a strong choice for anyone who prefers a named brand with a warranty over an unbranded assembly.
Where it falls short
No articulation, and the consumable kit is thin on sizes. A small number of buyers have reported units arriving with signs of previous use, so inspect the package when it turns up.
If you need gas valve control, look at a WP-17FV style torch rather than this one.

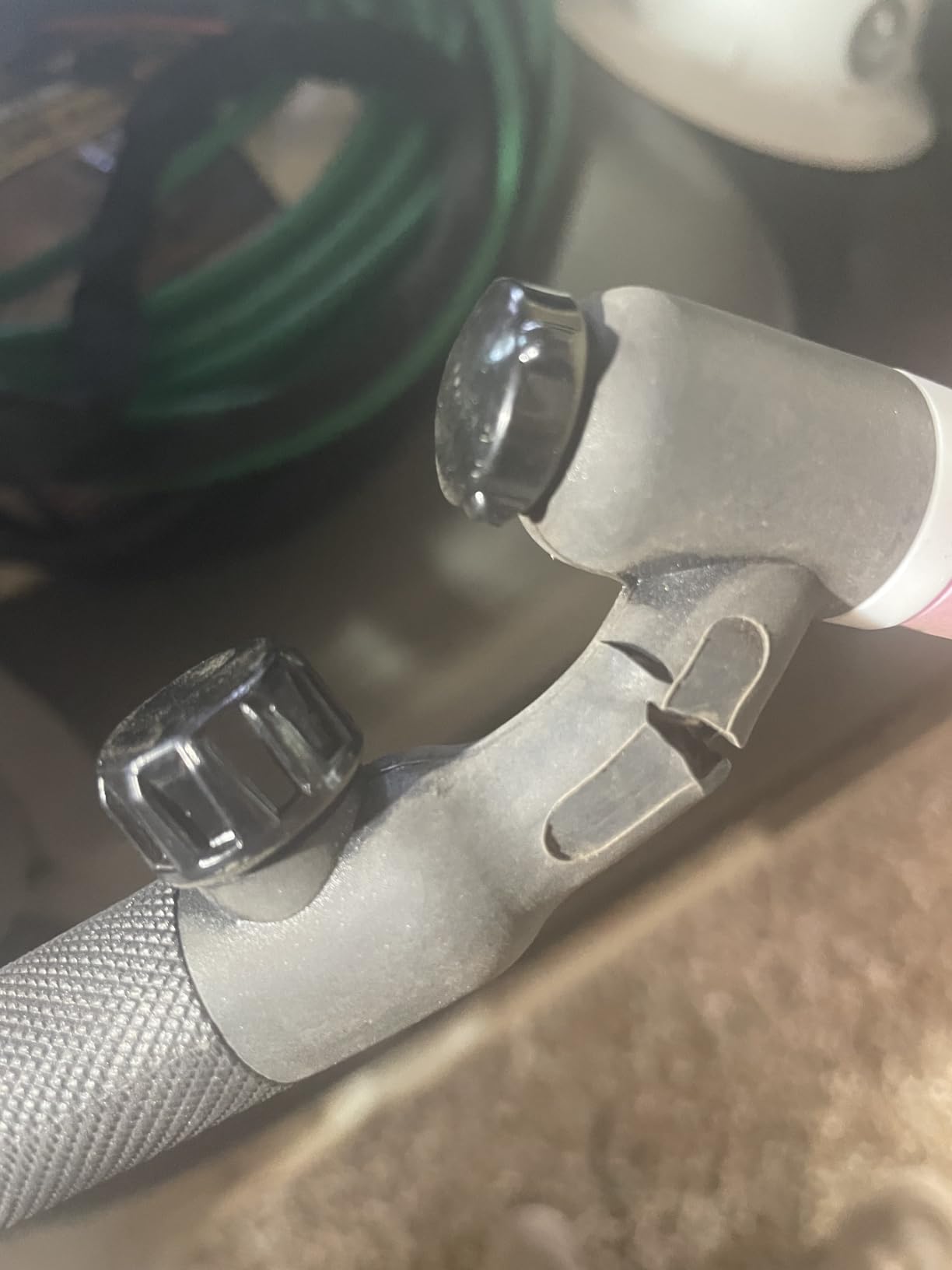

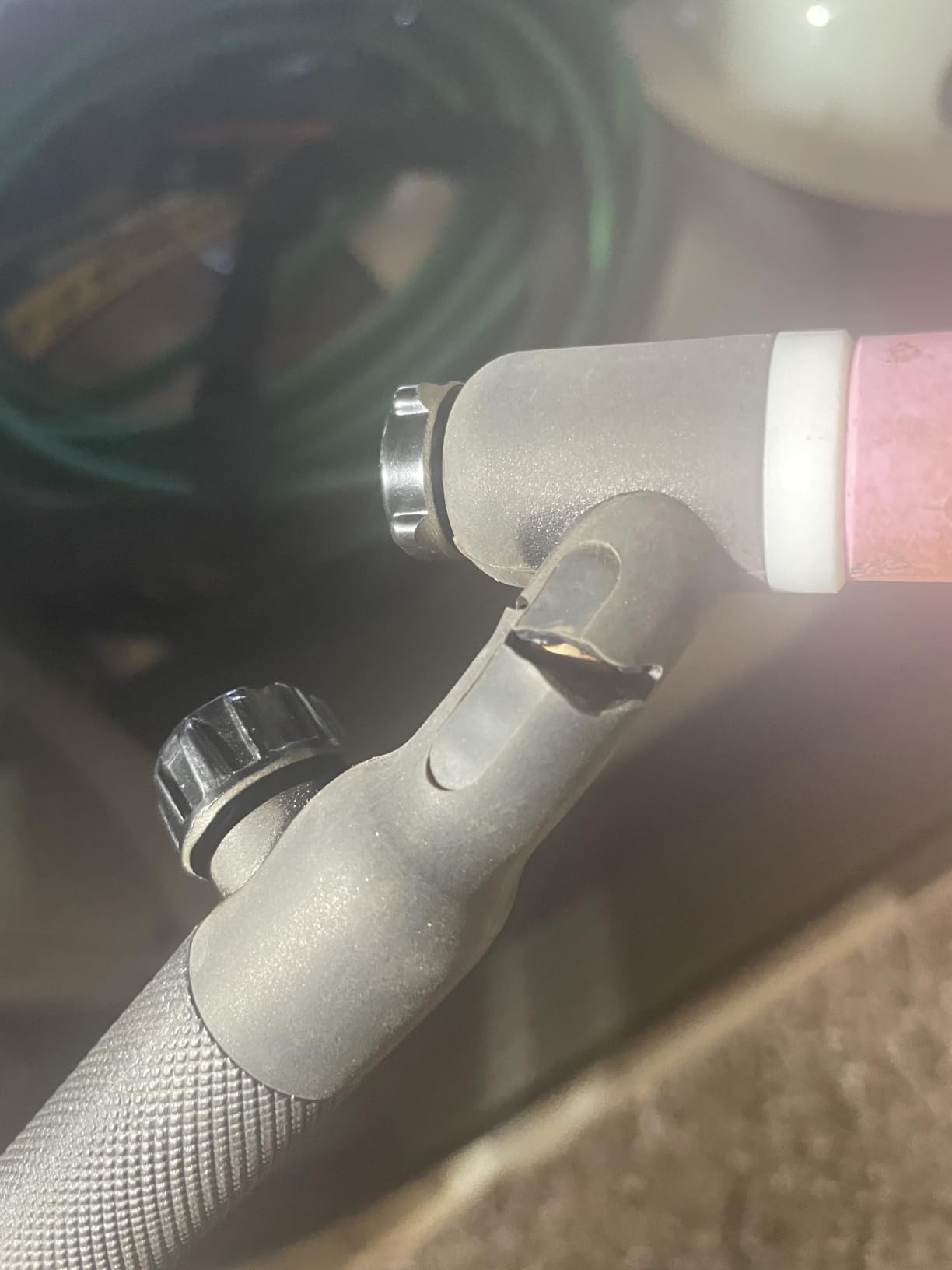

9. YESWELDER WP-17FV Flex Head with Thumb Gas Valve Torch
Pros
- Flex head plus thumb-operated gas valve gives direct shielding gas control at the torch
- Uses standard TIG consumables so parts are easy to keep in stock
- Air-cooled design built for long sessions and extended service life
- Complete torch with 12 ft cable included
Cons
- Flex head is very soft and often ends up out of position
- Some torches had gas leaks at the thumb valve or electrode connection
- No setup instructions included which trips up first-time welders
- Connection type must be confirmed against your machine
What sets this one apart from the bare flex heads earlier in this list is that it is a complete torch. You get the head, the handle, a 12 ft cable and the gas valve as one working assembly, so there is no wiring project before the first weld.
The flex head plus thumb valve combination is the pairing that makes sense on thin gauge. You steer the tungsten with the head and you control shielding gas at the handle, and on 28 to 32 gauge that combination is what lets you use a small cup without starving the arc.
Because it uses standard TIG consumables, finding replacement collets and cups is uncomplicated. One welding instructor with a shop full of Lincoln, Miller and CK torches singled this one out as their favorite, which is a useful signal for anyone choosing on feel.
The flex is very soft, more than most people expect, and it drifts out of position while you work. It is usable, but it asks for a light hand and occasional readjustment.
Quality control is the other watch item. A small tail of reviews reports gas leaks at the thumb valve or at the threaded electrode connection, and there are no setup instructions in the box, which catches out first-time welders.
The 3/8 inch -24 RH power and gas cable connection comes with a 105Z57 adapter, but confirm it matches your machine before buying.
What thin-gauge work it handles well
28 to 32 gauge sheet, appliance work and any job where you want gas flow under your finger while the head is already angled at the joint. It suits a shop that wants flex articulation and valve control without assembling parts.
It is also a reasonable second torch for a home shop, since the standard consumables are interchangeable with the rest of the WP-17 family.
Where it falls short
That very soft flex head is a real drawback on a thin joint where you need the electrode to hold an exact angle. Combined with occasional leaks, it is not the pick for a production job where a leak stops the line.
No instructions and an unusual connection type mean it is a slightly rougher first experience than a kit that arrives ready to weld.
10. RIVERWELD WP-26FV SR-26FV Flex Head with Valve
Pros
- Flex head plus gas valve geometry rated to 200A for more headroom
- 200A air cooled rating in copper brass and silicone rubber
- Inexpensive way to add a spare flex head to a bench
- Matches the common WP-26 family
Cons
- Head and body only so cable connector and handle are not included
- Heavier than 17 series heads at 7.7 oz which can tire the wrist
The WP-26FV is a 200A flex head with a gas valve, and the extra rating is the reason to choose it over a 17 series head. If your shop does thin sheet in the morning and heavier stainless later, one head covers both.
On thin work you are nowhere near 200 amps, but the higher rating means the head does not become the weak link if your work changes. The valve gives you the same fine gas control as the smaller flex heads.
Construction is copper, brass and silicone rubber, and 77 percent of ratings are 5 star. Buyers use it as a spare or an upgrade head, valued for the higher rating at a modest cost.
The tradeoff is weight. At 7.7 oz it is more than double the 17 series heads in this roundup, and on a long thin-gauge session that difference adds up in the wrist.
As with the other head-only options here, cable, connector and handle are not included, so this is a parts decision rather than a first-torch decision.
What thin-gauge work it handles well
Shops that alternate between gauge work and heavier stock, and anyone who wants valve control from a 200A head. The flex geometry suits the same cramped corners as the 17 series.
It is also a sensible spare to keep on the shelf, so a damaged head does not end your week.
Where it falls short
The extra weight is the main complaint for long fine-gauge sessions. And with no cable or handle in the box, it only makes sense for someone who already owns a matching 26 series setup.
If you only ever weld sheet, a 150A flex head will feel lighter and cost less.
How to Choose a TIG Torch for Thin Metal
Start with the thinnest material you plan to weld, because that sets your amperage ceiling, and work backward. As a rough guide, 32 gauge needs single-digit amperage, 28 to 30 gauge sits in the low teens, 26 gauge around 15 to 20 amps, 24 gauge roughly 20 to 30 amps, 22 gauge around 30 to 40 amps, and 20 gauge closer to 40 to 60 amps. Below about 5 amps the limiting factor stops being the torch and becomes the machine, so check your welder holds a stable arc at your minimum before you blame the gun.
If you are still picking the machine rather than the torch, our TIG welder comparison covers minimum stable output, and spot welders for sheet metal is worth a look if you do a lot of repeated identical joints where resistance welding is faster than TIG.
This article covers torches rather than machines, and the distinction matters. A great torch cannot rescue a power source that will not hold a steady arc at 5 amps.
Head geometry is the real decision
Rigid heads are cheap, light and accurate when the torch angle does not need to change. They are the right choice for flat panels and lap joints where you can set one angle and hold it.
Gooseneck and flex heads let you change the tungsten angle while the handle stays put, which is what makes tight quarters workable. On r/Welding, users consistently credit the articulating head with making out-of-position work practical, and that is exactly the pain point on thin, cramped panels.
Pencil and micro torches go further, trading some arc stability and consumable availability for a very short body that fits where nothing else will. They are worth the premium for jewelry and instrument work, and overkill for sheet metal fabrication.
Air cooled is almost always the right answer here
Water-cooled torches exist to survive long, high-amperage production runs. On 10 to 30 amp sheet metal work the heat load is trivial, and a water torch just adds a hose bundle you have to route and a back-flow device you have to maintain.
Forum discussion of a water-cooled micro torch described as excellent in tight areas is common, but the deciding factor is access, not cooling. Every torch in this roundup is air cooled, and that is not a compromise.
Consumables and connector compatibility
Users care far more about consumable availability than brand prestige. CK17, 9 series and 26 series bodies have broadly interchangeable parts, and 9/26 compatibility drives purchase decisions more than any spec sheet. Check what your local supplier carries before you buy the torch, because a head you cannot service is a head you replace.
Two connector families dominate: the 10-25mm squared quick plug common on budget machines, and the European 35-50mm squared standard. Add the 25mm dinse and 3/8 inch -24 RH options and you have a genuine compatibility problem. Confirm the socket on your machine before ordering, because the adapters needed to fix a mismatch cost more time than the torch.
On gas, argon is the default for steel, stainless and most thin-gauge work, and it gives you the easiest arc to control at low amperage. Helium mixes in for stainless where you want a hotter, more stable arc on heavier gauge, but on 24 to 32 gauge it is harder to control and generally unnecessary.
Gas lens, cup size and tungsten
A gas lens gives you a more focused, narrower shielding pattern than a plain ceramic cup, which lets you use lower argon flow on thin material and still protect a small puddle. The trade-off is cost and heat concentration, so it is a tool for 26 to 32 gauge rather than a default.
For tungsten, 1/16 inch is the standard choice for sub-15 amp welds because it concentrates the arc and gives you finer control. Two percent thoriated is the traditional pick, though ceria types are easier to strike and lanthanated types are a good all-round compromise. A sharpened point is worth the thirty seconds it takes.
Four technique habits that fix most thin-metal problems
Use skip welding. Instead of running a continuous bead, make short segments, let the metal cool, and move along the joint. It breaks the heat path that causes burn-through and warping.
Back up the work. A copper or steel backing bar, or a piece of scrap, soaks up heat and stops the puddle dropping through from underneath.
Back-purge stainless. Argon on the reverse side keeps the back of the bead bright and oxide-free, which matters when appearance is the point on appliance and trim work.
Move faster than you think. Most burn-throughs happen because the travel speed drops at the start of a bead. Start moving immediately, and set the amperage to the gauge, not to the machine maximum.
One technique point that is easy to miss: filler metal melts at a lower temperature than the base metal, so a properly run fusion weld with filler tends not to burn through the way a wide, slow autogenous bead does. Experienced users on thin stainless often prefer a no-filler fusion weld followed by grinding and polishing, purely for appearance.
Frequently Asked Questions
How to TIG weld thin sheet metal?
Start the machine at its minimum stable amperage, use a 1/16 inch tungsten in a matching collet, and set the amperage to the gauge rather than to the machine maximum. Move the travel speed immediately as you strike, and use skip welding in short segments so the metal can cool between welds. Back the work with copper or scrap steel so the puddle cannot drop through from underneath, and back-purge stainless with argon for appearance.
Which TIG torch is the best rated?
On thin metal, rating matters less than head geometry and collet size. A 150A air-cooled torch is more than enough for 20 to 32 gauge work, and most experienced users treat a 17 series head rated 150 amps continuous as the sensible choice for thin-gauge jobs around 130 amps.
What is the best welder for thin sheet metal?
Choose a TIG machine by its minimum stable output, not its maximum. Single-digit amps are needed for 32 gauge, and a power source that will not hold a steady arc at its minimum cannot weld the thinnest material no matter how good the torch is. This article covers torches rather than machines.
What is the thinnest metal that can be stick-welded?
Stick welding is generally unsuitable below about 20 gauge because the flux, the slower travel and the heat concentration needed to fuse the joint burn through material that thin. For 24 gauge and lighter, TIG is the practical answer, and for repeated identical joints resistance or spot welding is faster still.
Which is better for TIG welding, helium or argon?
Argon is better for thin metal. It is easier to strike and easier to control at low amperage, and it is what you want on 24 to 32 gauge steel, stainless and aluminum. Helium is used on heavier stainless where a hotter and more stable arc helps, but it is harder to control and generally unnecessary on gauge work.
Conclusion
After six weeks of gauge work, the best TIG torches for thin metal come down to two decisions: whether you need to articulate the head, and what connector your machine takes. The YESWELDER WP-17V is the one we recommend most often because it arrives with a full set of cup sizes and collets and carries the largest review base in the group at 4.6 stars across 600 ratings.
For tight quarters, the CK Worldwide CK17 Super-Flex is worth the step up, since its head articulates 40 degrees and the cable stays light through a long session. For a named-brand bench torch, the Lincoln Electric PTA-9 is hard to argue with. And for a specific connector or a specific head geometry, match the torch to the machine first and the gauge second.
Whichever one you settle on, check the connector before you order, and buy the collet size that matches your thinnest material. Those two steps prevent more thin-metal disappointments than any torch feature will deliver.
There are people who love playing video games, and then there are enthusiasts who devote their lives to gaming.
Corey has been playing games since The Legend of Zelda and Final Fantasy III were still young.
Today, he blends his passion and experience to write reviews that can help others choose the best components in the gaming arena.
