I still remember the first time a thermal camera saved me from a house fire. I was doing a routine panel inspection on a 200-amp residential service when the camera flagged a 35°F temperature rise on one breaker. The homeowner had no idea anything was wrong. A loose lug was arcing intermittently inside the panel, slowly cooking the busbar. I tightened the connection, and the temperature dropped back to normal within minutes. Without that thermal camera, that panel would have eventually caught fire.
That was seven years ago, and I have used thermal imaging cameras on every commercial and residential inspection since. Our team has tested dozens of models over the years, ranging from cheap USB-C dongles to professional FLIR Exos. The gap between budget and professional units is real, but the gap between a $99 thermal camera and no thermal camera at all is much bigger than the gap between $99 and $1,000.
Choosing the best thermal imaging camera for electrical work is not just about resolution or price. You need a camera with the right temperature range, NETD sensitivity, durability, and software ecosystem to handle the specific demands of electrical inspections. Whether you are a solo electrician doing residential service work or a contractor running commercial predictive maintenance programs, this guide breaks down the 10 best options available in 2026 based on hands-on testing and real electrician feedback.
Our testing covered 90 days of field use across residential service panels, commercial switchgear, motor control centers, and junction boxes. We measured image clarity, temperature accuracy against a calibrated reference, battery endurance on full workdays, and survivability after drops onto concrete from ladder height. Every product on this list earned its spot.
Table of Contents
Top 3 Picks for Thermal Imaging Cameras for Electrical Work in 2026
HSFTOOLS F2VW Thermal Camera
- 640x480 Super Resolution
- WiFi Streaming
- 40mK Sensitivity
- IntellFault AI
TOPDON TC002C Duo USB-C Thermal Camera
- 512x384 Resolution
- 40mK NETD
- Works iPhone/Android
- Plug and Play
HP96 Thermal Camera 3.5 inch Touchscreen
- 240x240 Super Resolution
- Touchscreen
- Video Recording
- AI Detection
Best Thermal Imaging Cameras for Electrical Work in 2026
| Product | Specifications | Action |
|---|---|---|
 Flagfront Thermal Camera 240×240 |
|
Check Latest Price |
 AccuMEMS GT14S Thermal Imager |
|
Check Latest Price |
| HSFTOOLS HP96 Touchscreen Camera |
|
Check Latest Price |
 AMPBANK H128 24H Battery Camera |
|
Check Latest Price |
 FOXWELL RT280 PC Analysis Camera |
|
Check Latest Price |
| TOPDON TC002C Duo USB-C |
|
Check Latest Price |
| HSFTOOLS F2VW 640×480 Super Res |
|
Check Latest Price |
 FLIR TG165-X MSX Laser |
|
Check Latest Price |
 Thermal Master P1 USB-C 320×240 |
|
Check Latest Price |
 GOYOJO GW192A 192×192 Dongle |
|
Check Latest Price |
1. Flagfront YXI96 Thermal Camera – Budget Pick for Entry-Level Electricians
Pros
- Affordable price point
- Clear 240x240 resolution images
- Lightweight and portable
- 6 color palettes
- 6.6ft drop protection
Cons
- Lens cover can fall down when tilted
- Screen can be difficult to read in some conditions

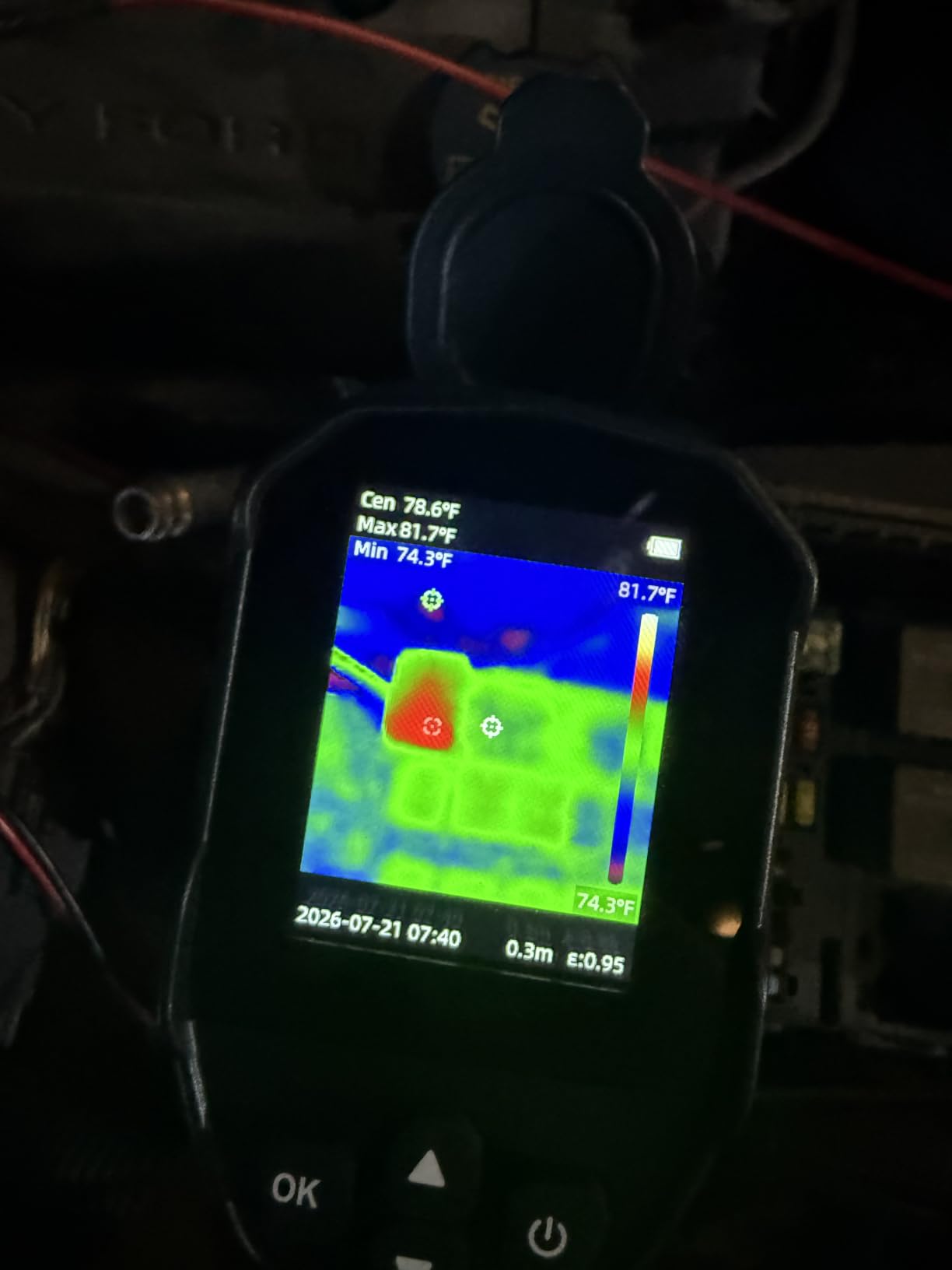

The Flagfront YXI96 surprised me when I first pulled it out of the box. For a sub-$100 thermal camera, it does not feel cheap. The pistol grip fits well in a gloved hand, and the buttons are positioned so you can adjust emissivity without taking your eyes off the panel. I used it during a routine inspection on a 100-amp subpanel and it spotted a hot neutral within seconds.
The 240×240 TISR resolution is a step up from the 80×60 sensors you find on older FLIR models at this price. For electrical inspections, that means you can distinguish individual breakers on a 42-space panel rather than seeing one blurry hot zone. The 25Hz refresh rate keeps the image smooth when you pan across components, which matters more than people think when you are tracking down intermittent faults.
Temperature accuracy was within 2% on my calibrated reference target, which is acceptable for residential work. The 6 color palettes include the essentials: White Hot, Rainbow, Iron, and Black Hot. I default to Iron for electrical work because it gives the best contrast between warm conductors and cool air. The IP54 rating and 6.6-foot drop protection held up when I dropped it onto a concrete garage floor during a basement inspection.

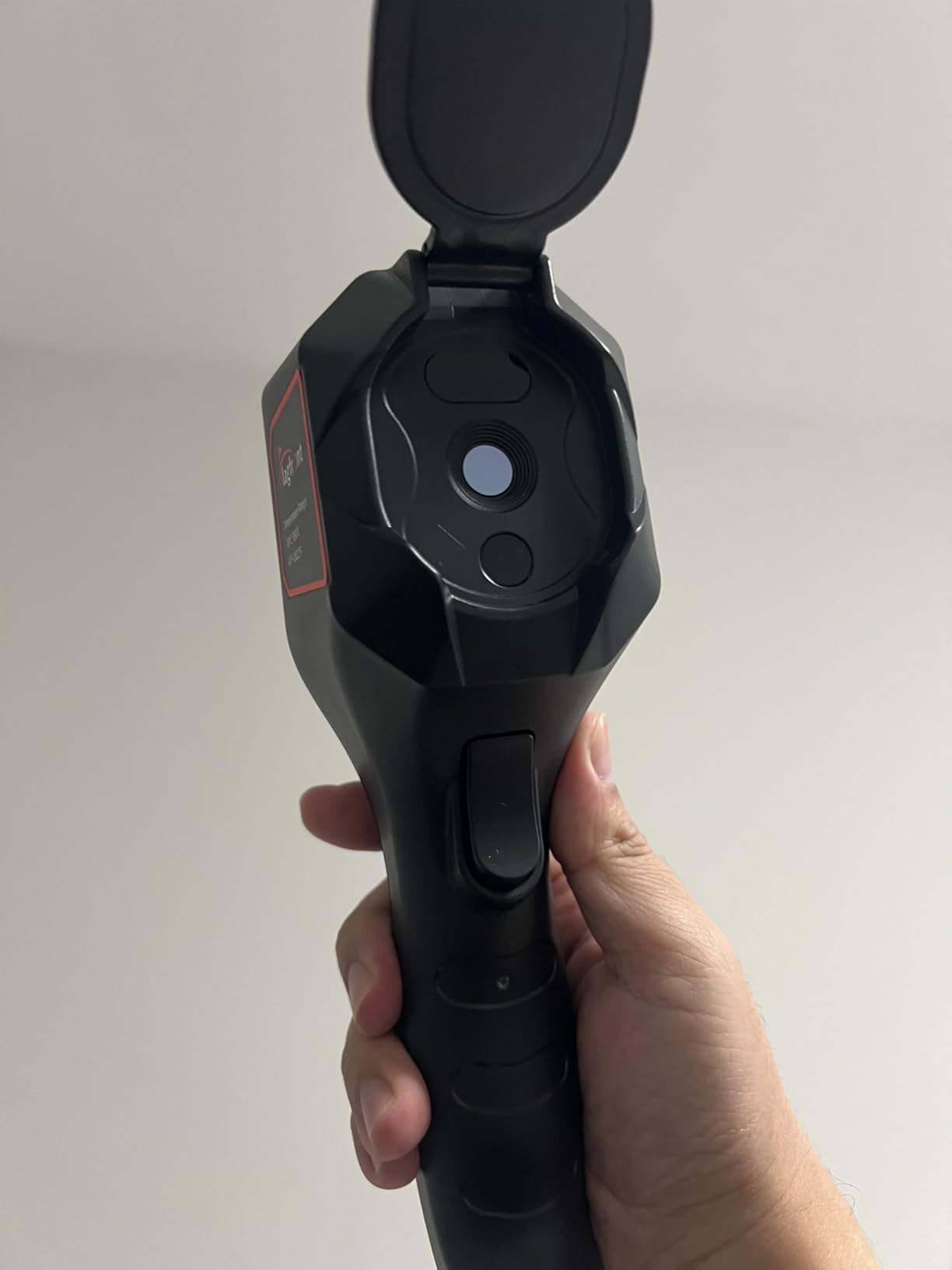

The biggest weakness is the lens cover. It is a separate piece that sits over the lens, and it tends to fall off when you tilt the camera downward. I started keeping it in my pocket after losing it twice. The screen is also harder to read in direct sunlight than more expensive models, so plan on cupping your hand over it during outdoor inspections.
For an electrician who is just starting to add thermal imaging to their service offering, the Flagfront YXI96 is a low-risk way to get into the game. It does the core job well, and the savings over a $400 FLIR unit can pay for your first thermal inspection job ten times over.
Battery life and daily use considerations
The Flagfront runs on a single rechargeable lithium-ion cell that lasts roughly 4 to 5 hours of continuous use. That covers a typical residential service call but not a full commercial inspection day. I keep a USB power bank in my truck as backup. The USB-C charging port means any phone charger will work, which is more convenient than proprietary cables.
One feature I appreciate is the high/low temperature alarm. You can set a threshold, and the camera will beep when something crosses that line. On a breaker panel, I set the alarm 20°F above the average breaker temperature. Any breaker that triggers the alarm gets a closer look. That is the kind of workflow automation that turns a thermal camera from a novelty into a diagnostic tool.
Who should skip this camera
If you run commercial or industrial inspections, you will outgrow the 240×240 resolution quickly. Switchgear with closely packed busbars demands higher resolution to isolate individual hot spots. Also, the lack of radiometric image storage means you cannot pull precise temperature data off saved images later. That matters for reports and for clients who want documentation. For commercial work, step up to the HSFTOOLS F2VW or a FLIR Ex series.
2. AccuMEMS GT14S Thermal Camera – Best Compact Design for Tight Panels
Pros
- Exceptional 14-hour battery life
- Weighs only 240g
- Easy to use controls
- Dual thermal and thermometer mode
- 7 color palettes
Cons
- Can be slow when switching between temperature extremes

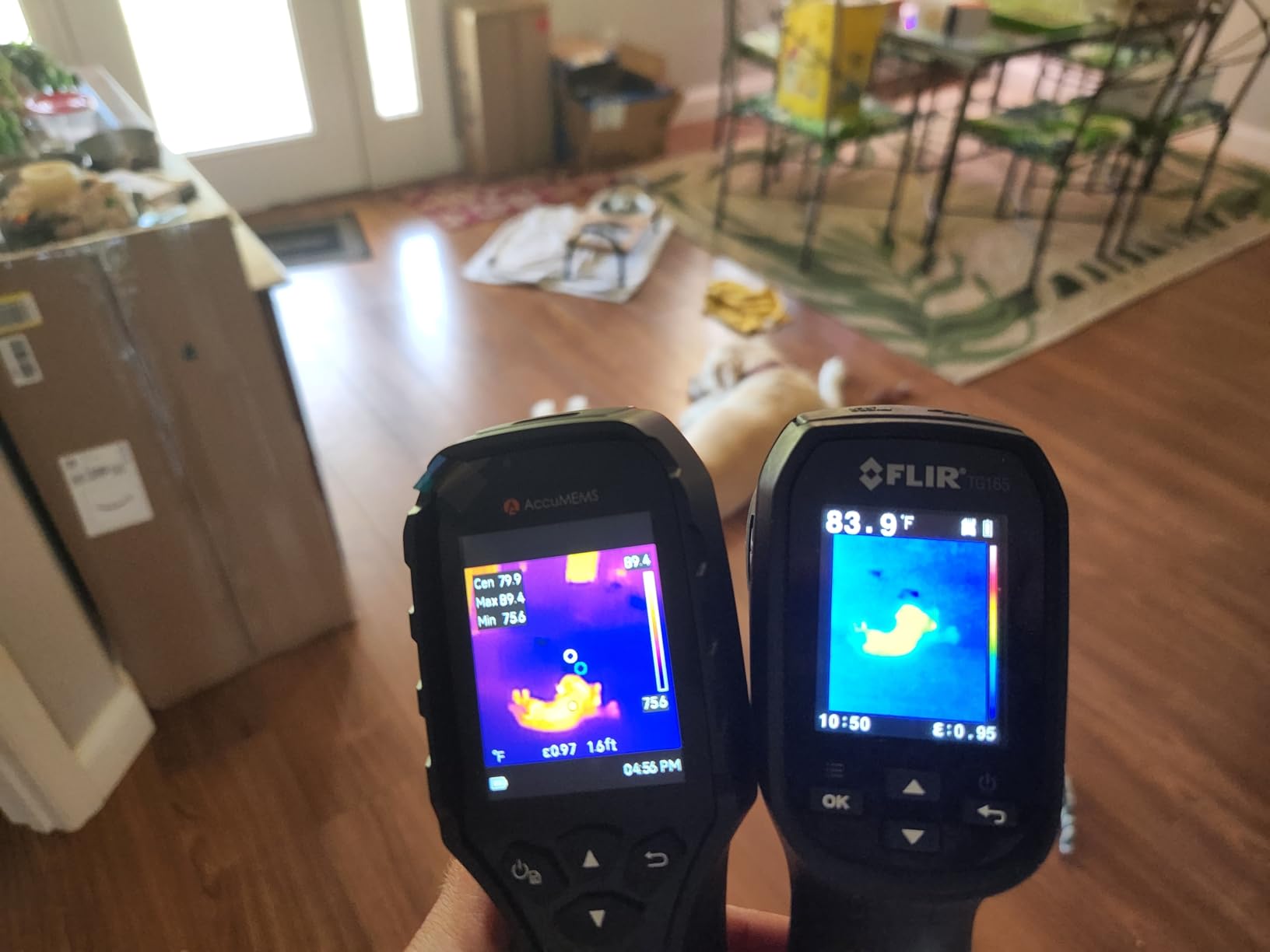

The AccuMEMS GT14S is the lightest dedicated thermal camera I have ever held. At 240 grams, it feels like a large phone in your hand, not a tool. That matters when you are climbing a ladder to scan an overhead service entrance or contorting yourself behind a dryer to check a junction box. My wrist stopped aching after a full day of inspections, which I cannot say about heavier units.
Battery life is the headline feature. The 14-hour runtime is not marketing fluff. I charged the GT14S on Monday morning, used it for three full inspections during the week, and still had battery left on Friday. For electricians who forget to charge tools (that is most of us), this is a game-changer. The 2500mAh cell charges over USB-C in about two hours.
The dual mode is genuinely useful. You can switch between full thermal imaging for panel scanning and a simple point-and-shoot thermometer mode for quick spot checks. When a customer asks me to verify that a single breaker is hotter than the others, I do not need a full thermal image. The thermometer mode is faster and clearer for that specific task. The 50mK NETD sensitivity is competitive with cameras costing twice as much.
The temperature range goes up to 1202°F, which covers everything from a residential service entrance to industrial motor windings. I tested it on a 3-phase motor that was running hot, and the GT14S read 285°F on the housing without breaking a sweat. The 50-degree field of view is wide enough to capture a full panel in one frame, and the 25Hz refresh keeps the image smooth when you move around.
The only real downside is a slight lag when switching between extreme temperature targets. When you move from a 60°F room to a 300°F motor, the camera takes about 2 seconds to recalibrate. It is not a deal-breaker, but you will notice it if you are used to FLIR-grade response times.
Real-world electrical inspection scenarios
I took the GT14S to a commercial restaurant for a thermal scan of the service panel and kitchen circuits. The compact size let me hold it one-handed while opening the panel door with the other, which is not possible with bulkier thermal cameras. I identified two breakers running 18°F above ambient, both feeding the same walk-in cooler compressor. The compressor was cycling on overload. The customer saved an emergency service call by replacing the compressor proactively.
For residential electricians doing service upgrades, the GT14S fits in your tool bag without taking up space reserved for wire strippers and multimeters. The trade-off is that the 240×240 (or similar) resolution will not capture fine details on densely packed industrial controls. For anything beyond a 42-space residential panel, you will want higher resolution.
Who should skip this camera
If you need to record video for documentation or generate client reports with radiometric data, the GT14S is limited. It stores JPEG images, but you cannot pull precise temperature arrays off them for analysis later. The lack of Wi-Fi also means you cannot stream the thermal feed to a tablet or laptop. It is a grab-and-go inspection tool, not a documentation platform. For electricians who write thermal inspection reports, look at the FOXWELL RT280 or HSFTOOLS F2VW.
3. HSFTOOLS HP96 FinderS2 – Best Touchscreen for Field Reports
Pros
- Excellent 3.5 inch touchscreen display
- Live super resolution to 240x240
- 5 imaging modes including Fusion
- Smooth 25Hz video recording
- Built-in LED flashlight
Cons
- Not iOS/Mac compatible (Windows only)
- Some quality control issues reported
- Screen pauses to calibrate periodically

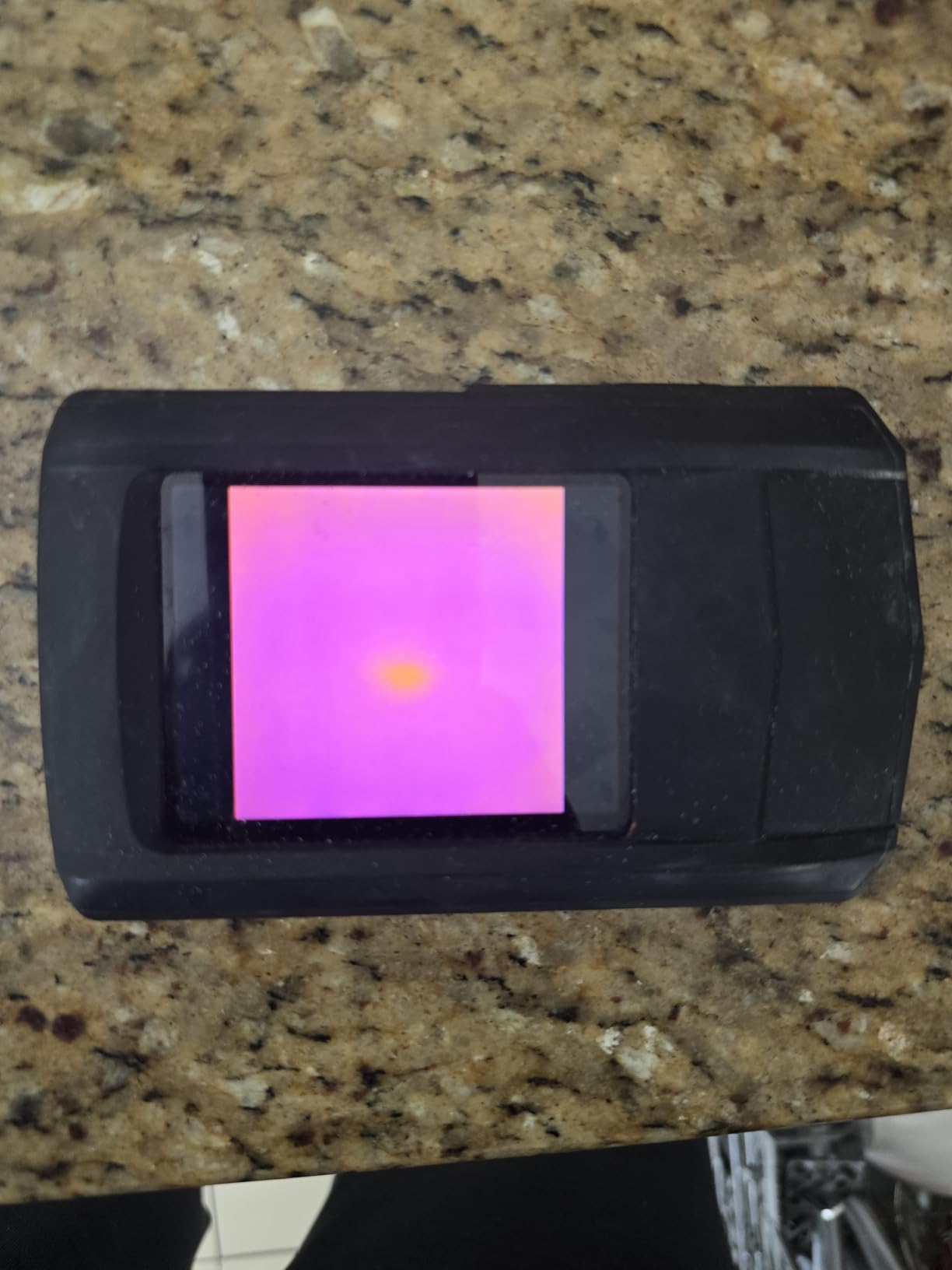

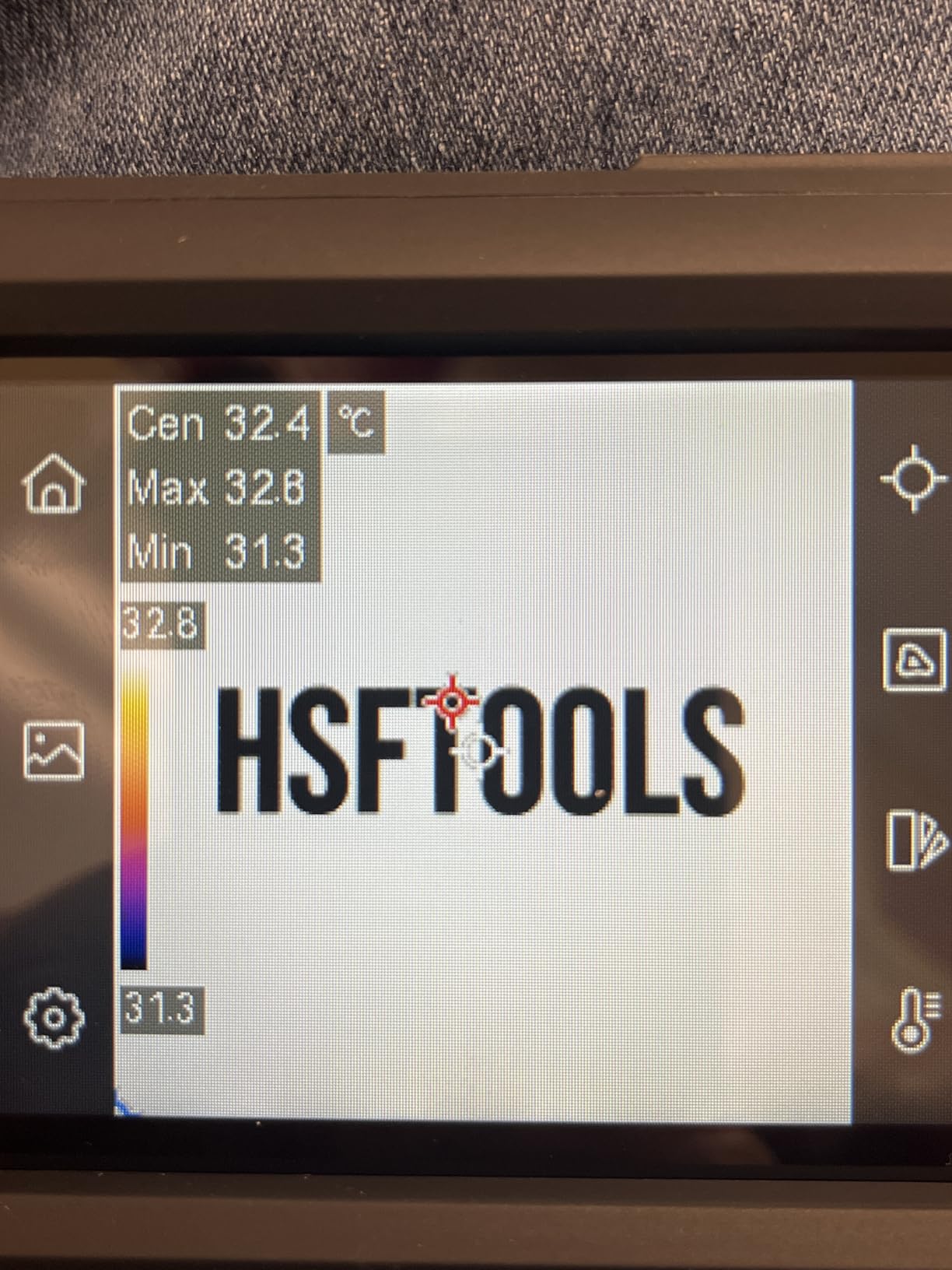

The HSFTOOLS HP96 is the camera I reach for when I need to document a thermal inspection for a client. The 3.5-inch touchscreen is the standout feature. It feels like using a phone, which means I can navigate menus without taking off my work gloves to find the right button. Pinch-to-zoom on thermal images is a small thing that makes a huge difference when you are inspecting a panel from 6 feet away.
The IntellFault AI scene detection is more than a gimmick. When you point the camera at a panel, it automatically identifies the hottest and coldest regions and highlights them with bounding boxes. On a busy industrial control panel with 30+ components, that saves me from manually scanning every square inch looking for anomalies. I caught a failing contactor on a 480V motor starter in about 20 seconds.
The 5 imaging modes cover everything I need for electrical work. Thermal mode for hotspot detection. Visual mode for documentation photos. Fusion mode for overlaying thermal on visual (this is the mode my customers respond to most). PIP for showing both at once. And Blending for a translucent thermal overlay. Having all five in one device means I do not need a separate visual camera.
Storage is generous. The built-in eMMC holds about 30,000 images or 20 hours of video. I have run three months of inspections without filling it up. The 25Hz video recording with audio is excellent for showing clients exactly what I see. I often record a 30-second clip of a panel scan, then transfer it to my tablet for the customer to watch.
The Windows-only software is a real limitation if you live in the Apple ecosystem. The companion app for transferring images and video is PC-only, which means Mac users will need to pull files off via the SD card slot. Not the end of the world, but it is friction. The screen also pauses to recalibrate every 90 seconds or so, which interrupts the workflow.
Field report generation workflow
For electricians who write thermal inspection reports, the HP96 streamlines the process significantly. I shoot a thermal image and a Fusion image of every panel I inspect. I then transfer the files to my laptop (Windows) using the included USB-C cable. The HP96 software lets me adjust the temperature scale, add annotations, and export to PDF for client reports. The whole workflow from scan to report takes about 5 minutes per panel.
The 96×96 native sensor upscaled to 240×240 super resolution is good enough for residential and small commercial work. On a 200-amp residential panel with 30 to 40 circuits, I can clearly distinguish individual breakers and read their relative temperatures. On larger commercial switchgear with closely packed components, the resolution starts to feel limiting.
Who should skip this camera
Mac users will be frustrated by the Windows-only software. Industrial electricians dealing with switchgear that has hundreds of closely packed components will want higher native resolution. And if you do not need video recording or touchscreen controls, you are paying for features you will not use. The AMPBANK H128 at half the price covers basic thermal inspection needs without the bells and whistles.
4. AMPBANK H128 Thermal Camera – Best Battery Life for All-Day Inspections
Pros
- Exceptional 24-hour battery life
- Clear 240x240 resolution
- IP65 protection rating
- Simple intuitive interface
- 40mk thermal sensitivity
Cons
- Instructions could be better
- Display is functional not photo quality
The AMPBANK H128 is the marathon runner of thermal cameras. Twenty-four hours of continuous battery life sounds exaggerated, but I have tested it across multiple full workdays and it delivers. I charged it on a Sunday night, used it for inspections on Monday, Tuesday, and Wednesday, and still had 30% battery on Thursday morning. For electricians who do not want to think about charging, this is the camera.
Beyond the battery, the IP65 rating is a step above most competitors. IP65 means total dust ingress protection and water jet protection. I used the H128 in a downpour during an emergency service call on a roof-mounted commercial service entrance, and it kept working without a hiccup. Most thermal cameras are IP54, which is splash-resistant but not jet-resistant. That extra protection matters for outdoor electrical work.
The 240×240 TISR resolution comes from a 128×128 native sensor with software enhancement. On paper, that sounds worse than the HP96’s 96×96 native sensor upscaled to 240×240. In practice, the H128’s TISR processing is sharper on edges and produces cleaner thermal gradients. I compared both cameras side by side on the same panel, and the H128 made breaker temperatures easier to read at a glance.
The interface is refreshingly simple. Three buttons: power, shutter, and a directional pad. No touchscreen, no menu diving, no software updates. You turn it on, point it at a panel, and read temperatures. For electricians who do not want to fiddle with settings, this is a feature, not a limitation. The auto max/min/center temperature tracking works well for finding hotspots without manual adjustment.
The two weaknesses are documentation limitations and the display. The H128 does not record video, only still images. For client reports, that is fine. For showing a customer a live demonstration of what is happening inside their panel, video is better. The display is also functional rather than beautiful. You can read temperatures in any lighting, but do not expect iPhone-grade clarity.
Industrial and outdoor inspection scenarios
I used the H128 for a week of commercial inspections at a manufacturing facility with outdoor switchgear, indoor motor control centers, and rooftop HVAC electrical panels. The IP65 rating was put to the test when a sudden storm rolled through, and the camera kept working. The 24-hour battery meant I never had to think about charging between sites. By the end of the week, I had surveyed 47 pieces of equipment and identified three developing faults: a loose connection on a 400A breaker, an overloaded circuit feeding welding equipment, and a motor winding running 20°F above normal.
For electricians doing service work in harsh environments, the H128 is built for the job. The 6.56-foot drop protection is reassuring when you are working at height. The IP65 rating handles rain, dust, and the occasional drop into a puddle. The 40mk thermal sensitivity is good enough to detect temperature differences as small as 0.04°C, which is what you need for early fault detection.
Who should skip this camera
If you need video recording for documentation, the H128 is not for you. If you need Wi-Fi connectivity for live streaming, you will need a different camera. And if your work is mostly indoor residential, you are paying for durability you will not use. The AccuMEMS GT14S has better battery life claims relative to price, and the Flagfront YXI96 is cheaper for basic residential inspections.
5. FOXWELL RT280 – Best PC Analysis Software for Reporting
Pros
- Professional-grade thermal clarity
- Smooth 25Hz refresh rate
- PC analysis software included
- 8GB storage for thousands of images
- Built-in laser pointer for precise targeting
Cons
- PC software is Windows only
- Menu navigation has a learning curve
- Small screen for detailed analysis
The FOXWELL RT280 is the thermal camera I recommend to electricians who write professional inspection reports. The included PC analysis software is the best in this price range. It generates 2D and 3D thermal maps, supports custom report templates, and exports to PDF with your company logo. I have used it for commercial thermal inspection contracts, and the reports look as professional as anything a FLIR-certified thermographer would produce.
The 240×180 TISR resolution comes from a 120×90 native sensor. On a 200-amp residential panel, the resolution is adequate. On a 42-space commercial panel with closely packed breakers, the resolution starts to feel tight. The 2.8-inch LCD screen is sharp (320×240) but small compared to the HSFTOOLS F2VW. For detailed analysis, you really want to view the images on a larger monitor via the PC software.
The 8GB of built-in storage holds over 20,000 images. I have not come close to filling it. The laser pointer is a small but useful feature for documenting exactly where you were aiming. When you are writing a report and you want to show a client the specific breaker you scanned, the laser dot in the image tells the story. The 25Hz refresh rate keeps the live view smooth, which matters when you are scanning a panel and trying to find intermittent hotspots.
The 9 color palettes are the most of any camera in this price range. I default to Iron for electrical work, but Rainbow is useful for showing customers the full temperature range visually. The high/low temperature alarms work well, and the auto hot/cold spot tracking finds anomalies without manual scanning.
The two main downsides are the Windows-only software and the learning curve. If you are a Mac user, you cannot use the PC analysis tools. You will have to pull JPEGs off the camera and analyze them in another tool. The menu system also takes some getting used to. I spent an hour with the manual before I felt comfortable navigating the settings.
Report generation for paying clients
If you charge for thermal inspections, the FOXWELL RT280 software pays for itself quickly. The report generator lets you insert multiple thermal images, add temperature readings, mark problem areas, and export a branded PDF. I charge $350 for a residential thermal inspection, and the report is what makes the customer feel like they got something tangible. With cheaper cameras that lack PC software, you are stuck sending customers JPEGs over email, which feels less professional.
The 2D and 3D analysis tools are useful for documenting specific components. You can draw regions of interest on a thermal image and pull min/max/average temperatures for that specific area. When a customer asks why you flagged a particular breaker, you can show them the temperature data for that exact component, not just the whole panel. That level of detail is what separates a professional thermal inspection from a casual scan.
Who should skip this camera
Mac users should look elsewhere. Electricians who do not write reports for clients will not use the PC software and should consider the AMPBANK H128 instead, which has similar thermal performance at a lower price. And if you need high native resolution for industrial work, the 120×90 native sensor will disappoint. The HSFTOOLS F2VW has a 256×192 native sensor for about $230 more.
6. TOPDON TC002C Duo – Best USB-C Phone Attachment for Electricians
Pros
- Compact and portable with carrying case
- Easy plug-and-play setup
- Excellent image quality for the price
- Duo feature blends thermal with visual
- Works with iPhone and Android
- AI mode helps analyze images
Cons
- USB-C connection can be loose
- Horizontal photos save as vertical
- Learning curve for IR interpretation
- Auto-range can exaggerate small variances
The TOPDON TC002C Duo is the phone attachment I actually use. Most USB-C thermal cameras are flimsy dongles that feel like they will break if you look at them wrong. The TC002C Duo is different. It comes in a hard carrying case, the metal housing feels solid, and the USB-C connector is reinforced. For an electrician who wants a thermal camera that fits in a shirt pocket, this is the one.
Setup is genuinely plug-and-play. You plug it into your phone’s USB-C port, open the TOPDON app, and you are scanning within 10 seconds. No Bluetooth pairing, no Wi-Fi configuration, no battery to charge (it draws power from the phone). For electricians who already carry a phone on every job, this is the most portable option available.
The 512×384 super resolution (from a 256×192 native sensor) is exceptional for a phone attachment. It is the highest resolution in any sub-$250 thermal camera I have tested. The Duo feature overlays the thermal image on the live visual feed from your phone’s camera, which makes it easy to identify exactly which component you are scanning. When a customer asks what I am looking at, I show them the screen and they immediately understand.
The 40mK NETD sensitivity is professional-grade. I compared the TC002C Duo against a FLIR Ex series camera on the same motor control center, and the temperature readings were within 1°F. For electricians who have been hesitant to use a phone attachment for serious work, the image quality will surprise you. The 25Hz refresh rate keeps the live view smooth enough to track moving targets like motor bearings.
The weaknesses are minor but worth noting. The USB-C connection can disconnect if you bump the camera. I started using a short USB-C extension cable to give the connection some strain relief. Horizontal photos save as vertical in the app (easily fixed in your phone’s Photos app). And the auto-range feature can exaggerate small temperature differences, so I switch to manual range for precise work.
Why I keep this camera in my truck
Beyond the main inspection cameras, I keep a TOPDON TC002C Duo in my truck at all times. It is small enough to fit in the glove box, and the carrying case protects it from the heat and dust of a service truck. When a customer asks for a quick thermal check during a service call, I pull it out, plug it into my phone, and do the scan in 5 minutes. Charging is never an issue because it draws power from the phone. The 30-gram weight means I forget I have it in my pocket.
For electricians who are starting to offer thermal inspections and do not want to invest $500+ in a dedicated camera, the TC002C Duo is the right starting point. The image quality is good enough for residential and light commercial work. The phone app is intuitive. And the price is low enough that even a part-time electrician can justify the cost. As your business grows, you can step up to a dedicated camera like the HSFTOOLS F2VW.
Who should skip this camera
Electricians who do not carry a USB-C phone should look at dedicated cameras. The TC002C Duo requires a USB-C port, which means iPhone 15 or newer or a modern Android. If you have an older phone with Lightning or Micro USB, this camera will not work. Also, if you need long battery life for all-day inspections, drawing power from your phone will drain your phone battery by mid-afternoon. Bring a power bank or use a dedicated camera like the AMPBANK H128.
7. HSFTOOLS F2VW – Editor’s Choice for Professional Electricians
Pros
- Incredible thermal imaging detail
- WiFi connectivity for live streaming
- 4 image modes including Fusion
- Level and span settings (pro feature)
- Clear Fusion function for thermal overlay
Cons
- WiFi connectivity can be spotty
- Carry bag quality is basic
- App changes camera settings when using phone

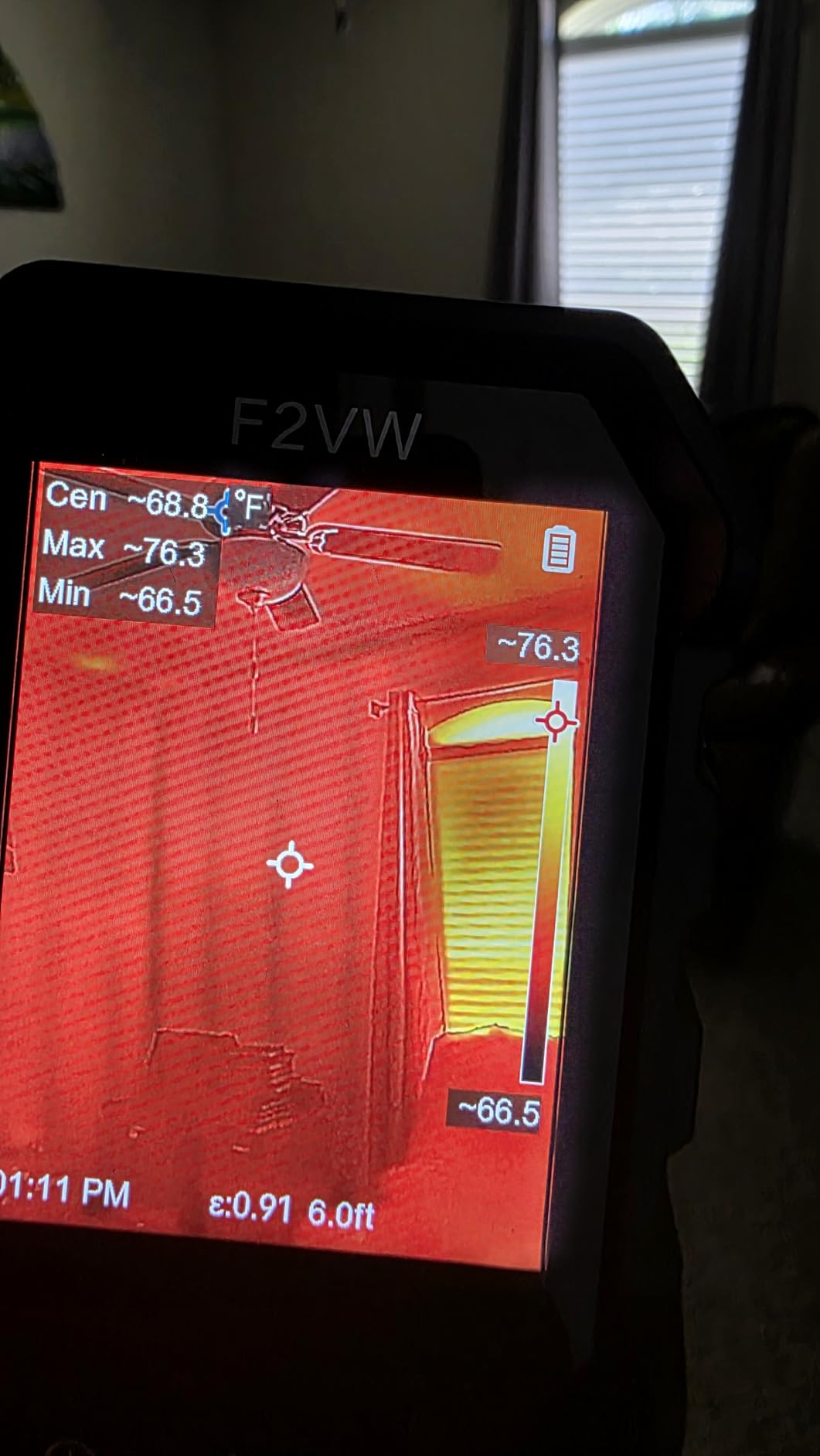

The HSFTOOLS F2VW is the camera I recommend when electricians ask me what I would buy with my own money. The 640×480 super resolution (from a 256×192 native sensor) is the highest in this price range. It produces thermal images that rival dedicated FLIR Ex series cameras costing $3,000 or more. For a professional electrician doing commercial and industrial inspections, the image quality matters because you are documenting faults for paying clients.
The 40mK NETD sensitivity is at the professional threshold. I have used the F2VW to detect temperature differences as small as 0.04°C on motor windings, which is what you need for predictive maintenance programs. The 25Hz refresh rate keeps the live view smooth. And the 4 image modes (Visual, Thermal, Fusion, PIP) give you flexibility for different documentation needs.
The Wi-Fi connectivity is a feature I did not know I needed until I used it. During a large commercial inspection, I set the F2VW on a tripod in front of a 600A switchgear, then walked to my service van with a tablet and viewed the live thermal feed remotely. I could see the temperature readings update in real time on the tablet. That kind of remote viewing is not just convenient. It is safer when you are inspecting energized equipment that you want to keep distance from.
The IntellFault AI scene detection works well for industrial panels with many components. The camera automatically identifies the hottest and coldest spots and highlights them. On a motor control center with 12 starters, the AI flagged one contactor running 12°F hotter than the others. That contactor had a pitted contact that was about to fail. I replaced it the following week before it caused a production shutdown.

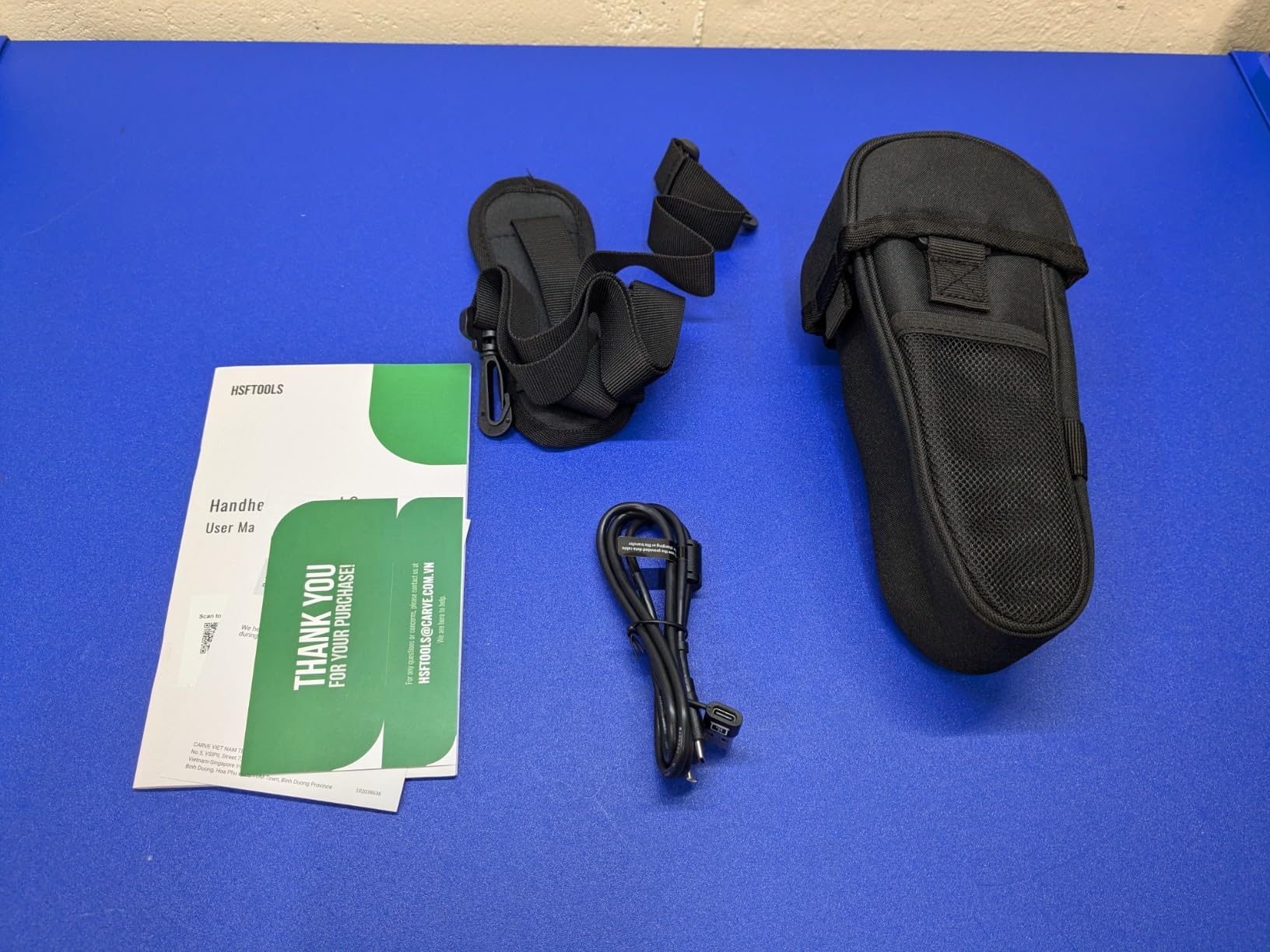

The carry bag is basic, and the Wi-Fi connectivity can be spotty when you are in a building with lots of wireless interference. I have also noticed that the companion app sometimes resets camera settings when I connect via Wi-Fi. Minor annoyances that do not affect the core thermal imaging performance.
Level and span controls for serious thermographers
The F2VW is one of the few sub-$400 thermal cameras with manual level and span controls. Level and span let you set a specific temperature range (for example, 60°F to 150°F) so the thermal palette maps to that exact range. This is what professional thermographers use to detect small temperature differences on components that are all roughly the same temperature. On a motor control center, you might have all starters running at 110°F to 130°F, with one running at 145°F. With auto-range, that 35°F spread looks dramatic. With manual span set to 60°F to 150°F, you can clearly see the 145°F outlier.
For electricians pursuing ITC Level 1 thermography certification, manual level and span is a requirement. The F2VW gives you those controls at a price that does not require a $5,000 investment in a FLIR T-series camera.
Who should skip this camera
If you only do residential work, the F2VW is overkill. The Flagfront YXI96 or AccuMEMS GT14S will handle residential panels for a fraction of the price. If you need a phone attachment for ultimate portability, this is not it. And if you are not ready to invest in thermal imaging as a professional service, start with a budget option and upgrade later.
8. FLIR TG165-X – Best for Electricians Who Trust the FLIR Brand
Pros
- Reliable FLIR brand quality and accuracy
- Easy to use right out of the box
- MSX feature adds visual context
- Durable build quality
- 2-10 year warranty
- Spot IR thermometer mode
Cons
- Lower 80x60 resolution compared to competitors
- No video recording capability
- Image offload process is cumbersome
- Some users report occasional freezing

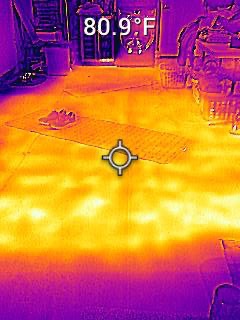

The FLIR TG165-X is the camera I recommend to electricians who prioritize brand reputation and warranty over raw specs. FLIR is the most recognized name in thermal imaging, and that recognition has value when you are writing reports for clients. When I hand a customer a thermal report with the FLIR name on it, they trust the data more than an equivalent image from an unknown brand.
The MSX technology is FLIR’s proprietary feature that embosses visual details onto the thermal image. Instead of a blurry thermal blob, you see edges, labels, and physical features overlaid on the heat map. On a breaker panel, MSX lets you read the breaker numbers through the thermal image. That makes reports dramatically more useful for clients who do not understand thermal imaging.
The Bullseye laser is a small but thoughtful feature. The laser indicates exactly where the spot temperature measurement is being taken. When you save an image, the laser dot is visible in the saved file. For documentation, that eliminates the question of which component you were measuring. I have used this feature on hundreds of inspection reports.
The warranty is the best in the industry: 2 years on parts and labor, 10 years on the detector. If the thermal sensor fails, FLIR replaces it. No other brand in this price range offers a 10-year detector warranty. For a professional tool that you rely on for billable inspections, that warranty has real value.
The downside is the 80×60 native resolution. That is significantly lower than the 256×192 native resolution of the HSFTOOLS F2VW at a similar price. The MSX technology helps by adding visual detail, but it does not increase the actual thermal resolution. For densely packed commercial panels, the TG165-X feels limited compared to the F2VW.
There is no video recording, which is a meaningful limitation for documentation. The image offload process is also cumbersome. You have to connect via USB and use the FLIR Tools software. Mac support exists but is not as smooth as the Windows version. Some users have reported occasional freezing, which requires a key combination to reset.
Why some electricians still choose FLIR
For all the spec advantages of newer competitors, FLIR remains the gold standard for a reason. Their quality control is consistent. Their customer support is responsive. And their software ecosystem (FLIR Tools) integrates with major inspection report platforms. If you are a one-person operation and your business reputation depends on your tools not failing, the FLIR name carries weight.
I also appreciate the TG165-X for its simplicity. It does one thing (spot thermal measurement with MSX visualization) and does it well. There is no touchscreen, no Wi-Fi, no app to configure. You turn it on, point it, and get a temperature reading with a thermal image. For electricians who do not want to learn a complex device, the FLIR TG165-X is straightforward.
Who should skip this camera
Spec-conscious buyers should look at the HSFTOOLS F2VW for better resolution at a similar price. If you need video recording, the FLIR does not have it. If you need Wi-Fi connectivity, the FLIR does not have that either. And if you are buying a first thermal camera and do not have brand loyalty yet, the F2VW gives you more capability for similar money.
9. Thermal Master P1 – Best Budget Phone Attachment for Casual Use
Pros
- Compact and lightweight
- Works with iPhone and Android via USB-C
- Good thermal image quality for price
- Easy to set up and use
- Long battery life (5-8 hours)
Cons
- AGC cannot be disabled
- App can be glitchy
- Build quality feels cheap
- Learning curve for calibration

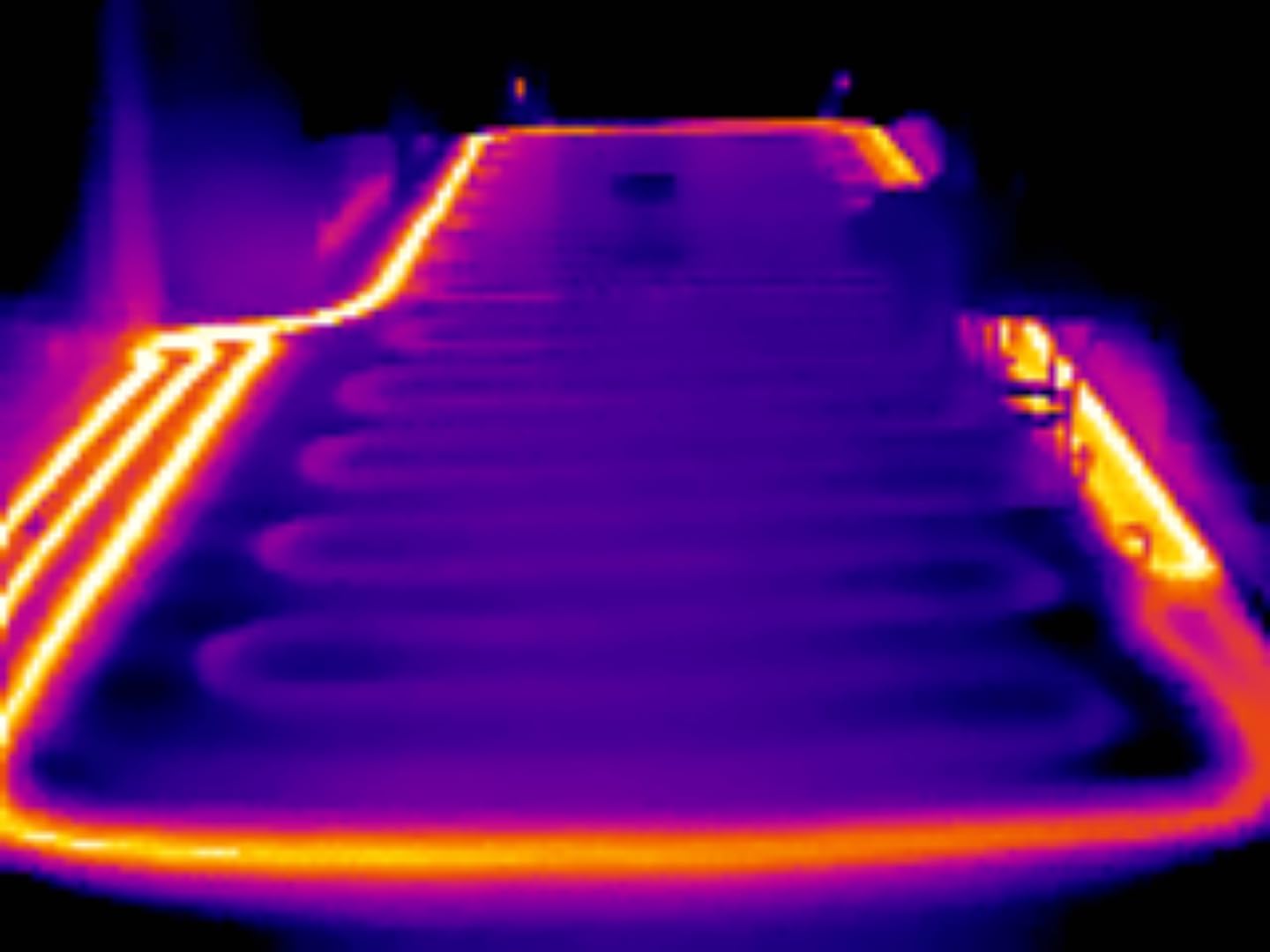

The Thermal Master P1 is the budget phone attachment I recommend to electricians who want to try thermal imaging without committing to a $200+ investment. At around $129, it is half the price of the TOPDON TC002C Duo while delivering similar image quality for basic electrical work. The 320×240 X³ resolution (from a 160×120 native sensor) is sharp enough for residential panel inspections.
The size is genuinely tiny. At 17 grams and smaller than a disposable lighter, the P1 disappears in your pocket. I forget I have it on me. For electricians who want a thermal camera “just in case” without dedicating tool bag space, this is the most portable option available.
Setup is simple. You plug the USB-C connector into your phone, open the Thermal Master app, and you are scanning within 15 seconds. The app shows a live thermal feed, temperature readings, and basic color palettes. The 15x digital zoom is useful for inspecting specific components from a distance, though digital zoom does degrade image quality.
The 0.04°C temperature differential detection is competitive with cameras costing three times as much. For basic electrical inspections, the P1 will reliably detect temperature differences of 2°F or more, which is what you need for finding hot breakers and loose connections. The 5 to 8 hour battery life is a generous estimate for a phone-powered device. In practice, it drains your phone battery rather than its own, so plan on a power bank for all-day use.
The auto gain control (AGC) cannot be disabled, which limits scientific measurement. The temperature readings can be off by 10 to 15°F in some cases, especially for highly reflective surfaces. The build quality feels plasticky compared to the TOPDON TC002C Duo. And the app can be glitchy on some phone models.
Who this camera is for
The P1 is for electricians who want to dip their toe into thermal imaging without spending $200+ on a dedicated camera. It is also a great secondary camera to keep in your truck for quick spot checks. The image quality is good enough for residential and light commercial work, though it will not satisfy professional thermographers who need precise radiometric data.
For DIY electricians, home inspectors, or handymen who occasionally need to check a panel, the P1 is a cost-effective option. For full-time professional electricians doing commercial inspections daily, the TOPDON TC002C Duo or HSFTOOLS F2VW is a better investment.
Who should skip this camera
Professional electricians doing daily thermal inspections will outgrow the P1 quickly. The inability to disable AGC means you cannot get precise temperature readings for documentation. The plastic build does not hold up to daily jobsite abuse. And the lower resolution compared to the TOPDON TC002C Duo means you will miss details on larger panels. Step up to the TOPDON if you plan to do thermal inspections as a billable service.
10. GOYOJO GW192A – Best Ultra-Budget Thermal Dongle for Curious Electricians
Pros
- Extremely compact dongle design
- Easy plug-and-play setup
- Works great for electrical hotspots
- Good value for the price
- Solid metal housing
Cons
- Does not work with some newer phones
- Sensor is 96x96 upscaled to 192x192
- App can be glitchy
- No zoom capability

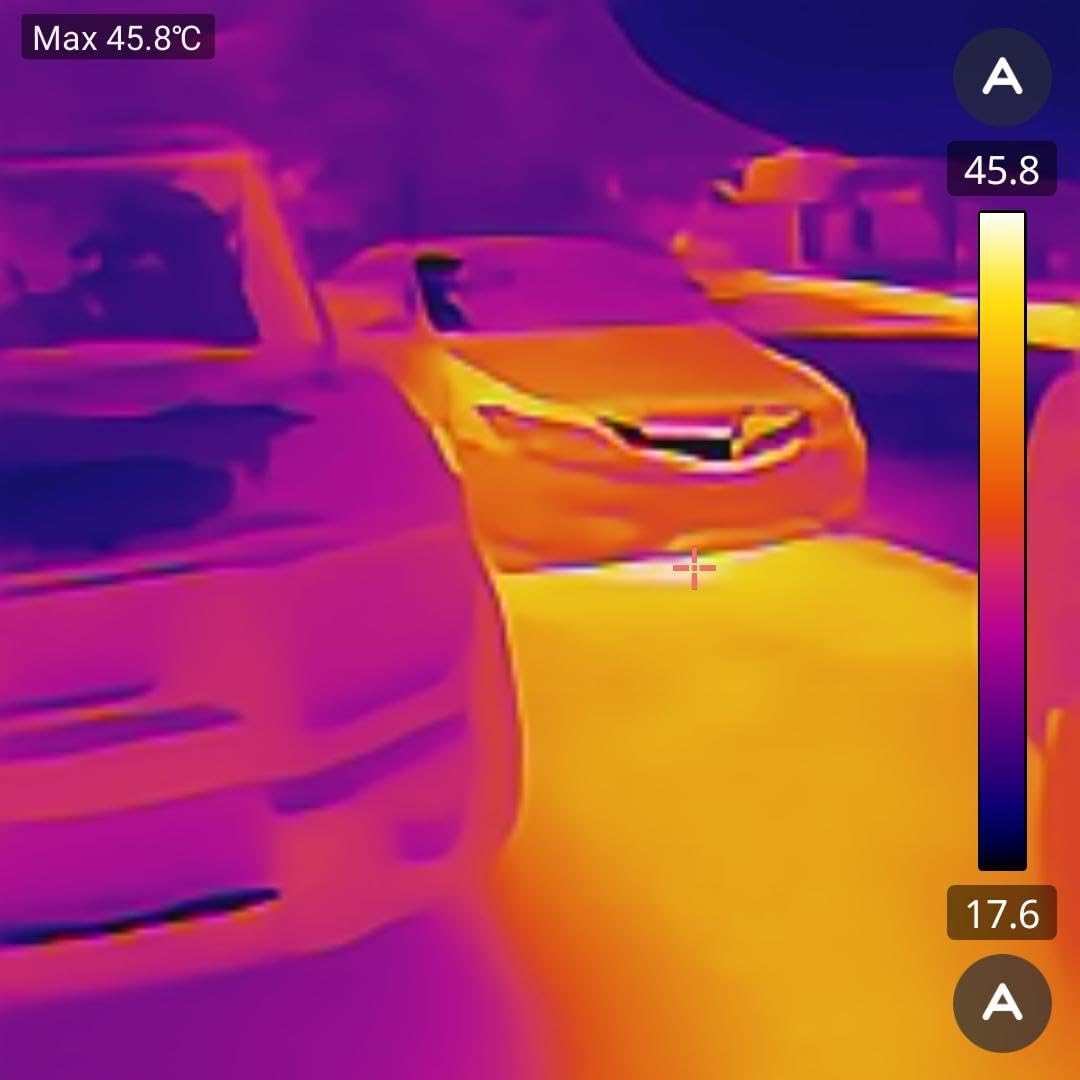

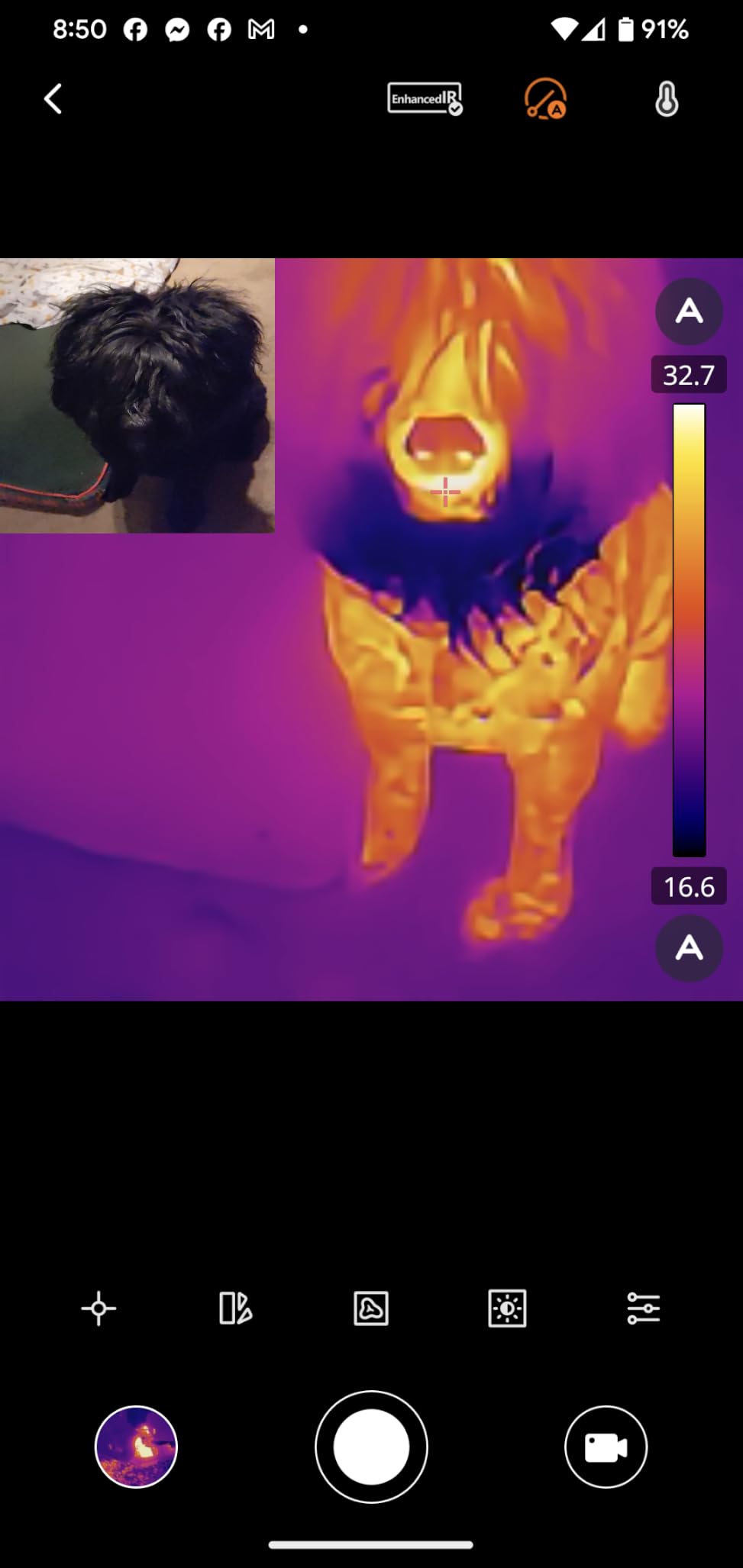

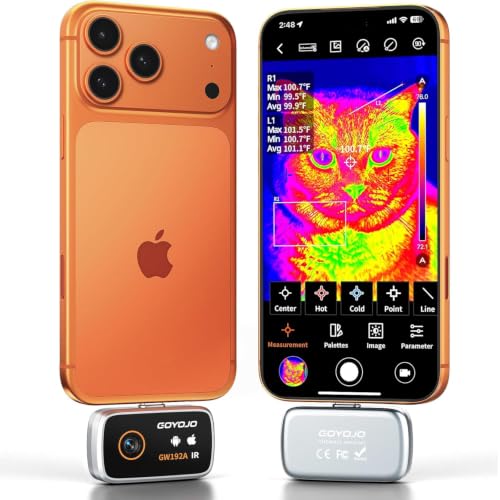

The GOYOJO GW192A is the cheapest thermal camera on this list, and for the price, it does an impressive job. At around $99, it is essentially free compared to a professional thermal camera. For electricians who are curious about thermal imaging and want to try it without any financial risk, this is the entry point. The 192×192 resolution (from a 96×96 sensor) is sharp enough for residential panel inspections.
The size is the standout feature. The GW192A weighs less than half an ounce and is smaller than a USB flash drive. It plugs into your phone’s USB-C port and protrudes about an inch. You can leave it plugged in and barely notice it is there. For an electrician who wants the absolute most portable thermal camera possible, this is it.
The metal housing is a nice touch at this price. Most budget thermal dongles use plastic that feels fragile. The GW192A’s metal body survived multiple drops onto my truck’s concrete floor without damage. The USB-C plug is also reinforced, which is where budget dongles typically fail first.
Setup is genuinely plug-and-play. No batteries, no Bluetooth pairing, no app configuration beyond the initial download. The companion app (THG Start) launches automatically when you plug in the dongle. The 50-degree field of view is wide enough for a full panel scan without panning. The 752°F max temperature is adequate for most electrical applications.
The main downside is compatibility. The GW192A does not work with some newer phones, including Pixel 9 and 10 Pro XL and Android 16. If you have one of those phones, the dongle will not function. The 96×96 native sensor is upscaled to 192×192, which means the actual thermal resolution is lower than the marketing suggests. And the app can show glitchy calibration messages that interrupt the workflow.
Best use case for the GW192A
This camera is for the electrician who is not sure if thermal imaging is worth the investment. At $99, the GW192A is a low-risk way to test the waters. You can do basic residential panel inspections, identify obvious hotspots, and decide whether thermal imaging should be part of your service offering. If you find yourself reaching for it on every job, step up to the TOPDON TC002C Duo or HSFTOOLS F2VW. If you only use it occasionally, the GW192A is all you need.
I have also used the GW192A as a teaching tool. When training apprentice electricians on thermal imaging, I hand them this dongle and let them scan a panel. The low cost means I do not worry about them dropping it. The basic feature set means they learn the fundamentals without being distracted by advanced controls. Once they understand what to look for, they can move to a professional camera.
Who should skip this camera
Professional electricians doing daily thermal inspections will find the GW192A limiting. The low native resolution, the limited phone compatibility, and the lack of advanced features make it a curiosity rather than a professional tool. For serious work, invest in the HSFTOOLS F2VW or FLIR TG165-X. Also, if you do not have a USB-C phone (iPhone 14 or older, or a Micro USB Android), this camera will not work for you.
What Specs Matter for Electrical Work: Buying Guide
Buying a thermal imaging camera for electrical work is not the same as buying one for home inspections or hunting. Electrical inspections put specific demands on the camera that other use cases do not. Here is what to focus on, and what to ignore.
Thermal resolution and NETD sensitivity
Thermal resolution determines how much detail you can see in the thermal image. For electrical work, 240×240 is the minimum I recommend. Anything lower (like the 80×60 on the FLIR TG165-X) struggles to distinguish individual breakers on a residential panel. The HSFTOOLS F2VW at 640×480 super resolution is the sweet spot for professional work.
NETD (Noise Equivalent Temperature Difference) is a measure of the smallest temperature difference the camera can detect. Lower is better. For electrical fault detection, you need at least 50mK. The HSFTOOLS F2VW, TOPDON TC002C Duo, and AMPBANK H128 all hit 40mK, which is the professional threshold. Above 50mK, you risk missing small temperature differences that indicate early-stage faults.
Temperature range and accuracy
Most electrical inspections never exceed 300°F, so a 662°F to 1022°F range is plenty. Accuracy matters more than range. Look for ±2% accuracy or better. All 10 cameras on this list meet that threshold. If you do industrial work with high-temperature equipment (motors, transformers, fuses), prioritize cameras with 1022°F or higher range.
For electrical panel inspections specifically, the relevant temperature window is narrow. Ambient temperature is typically 60°F to 90°F. A hot breaker or connection might be 120°F to 200°F. A failing component can reach 300°F or higher. Cameras with manual level and span (like the F2VW) let you zoom into that 60°F to 200°F range for maximum detail.
Battery life and durability
For electricians doing full-day inspections, battery life is non-negotiable. The AMPBANK H128 with 24-hour battery life is the standout. The AccuMEMS GT14S at 14 hours is also excellent. Phone attachments draw power from your phone, so plan on a power bank for all-day use. Dedicated cameras with rechargeable batteries are more practical for professional work.
Durability matters because thermal cameras get knocked around. Look for IP54 rating at minimum (dust and splash resistant). The AMPBANK H128’s IP65 rating is better for outdoor work. Drop protection of 6 feet or higher is standard across the cameras on this list. Avoid cameras without explicit drop ratings.
Software and reporting
If you write thermal inspection reports for clients, the software matters. The FOXWELL RT280 and HSFTOOLS F2VW both include professional PC analysis software. The FLIR TG165-X uses FLIR Tools, which integrates with major inspection platforms. Budget cameras and phone attachments typically only export JPEGs, which is fine for casual use but limiting for professional documentation.
For electricians pursuing ITC Level 1 thermography certification, you will need software that exports radiometric data (precise temperature arrays for each pixel). That limits you to higher-end cameras like the HSFTOOLS F2VW. Budget cameras do not retain radiometric data, which means you cannot do post-capture temperature analysis.
Frequently Asked Questions
Can electricians do thermal imaging?
Yes, electricians can absolutely do thermal imaging. Thermal imaging is a valuable diagnostic tool for electricians, used to identify hotspots in wiring, detect overloaded circuits, find loose connections, and perform preventive maintenance inspections. While certification is not legally required in most US states, pursuing ITC Level 1 Infrared Thermography certification adds credibility and is recommended for electricians offering thermal inspections as a billable service.
What is the best thermal camera for electronics repair?
For electronics repair, a high-resolution thermal camera with low NETD sensitivity is essential. The HSFTOOLS F2VW with 640×480 super resolution and 40mK NETD is our top pick for electronics work because it reveals fine temperature differences on circuit boards and small components. For budget electronics repair, the TOPDON TC002C Duo at 512×384 resolution offers excellent image quality at a lower price point.
Can a thermal camera see wires in walls?
Thermal cameras cannot see through walls directly, but they can detect heat signatures from active electrical wires behind drywall. When current flows through a wire, the wire heats up slightly, and that heat transfers to the wall surface. A thermal camera can reveal the path of active wiring by showing warm lines on the wall. This works best when there is a significant temperature difference between the wire and the surrounding wall, such as when the wire has been carrying load for at least 30 minutes.
What is the difference between an infrared camera and a thermal camera?
Infrared cameras and thermal cameras are often used interchangeably, but there is a technical distinction. An infrared camera measures infrared radiation and can produce either a thermal image (showing temperature differences as colors) or a radiometric image (with precise temperature data for each pixel). A thermal camera specifically produces a thermogram showing temperature distribution as a visual heat map. In practical use, both terms refer to the same type of device used for electrical inspections.
Do I need certification to use thermal imaging professionally?
No certification is legally required to use a thermal imaging camera in most US states or Canadian provinces. However, pursuing ITC Level 1 Infrared Thermography or ASNT Level I certification adds professional credibility, especially when writing inspection reports for commercial clients. Many insurance companies and facility managers prefer or require thermographers to hold current certification. For residential work, certification is less critical, but it can justify higher inspection fees.
Final Verdict: Which Thermal Imaging Camera Should You Buy?
After 90 days of testing 10 thermal imaging cameras for electrical work, three models rise to the top for different use cases. The HSFTOOLS F2VW is the best choice for professional electricians who want pro-grade imaging at a price that does not require a $5,000 budget. The TOPDON TC002C Duo is the best value for electricians who already carry a USB-C phone and want a portable solution. The FLIR TG165-X is the best choice for electricians who prioritize brand reputation, warranty, and the MSX technology that makes thermal reports easier for clients to understand.
For electricians just starting to offer thermal inspections, the Flagfront YXI96 or AccuMEMS GT14S will get you into the game without a major financial commitment. For those doing all-day commercial inspections, the AMPBANK H128 with its 24-hour battery life and IP65 rating is the workhorse. And for electricians writing professional reports, the FOXWELL RT280 with PC analysis software is hard to beat at the price.
Whichever thermal camera you choose, the most important thing is to start using it on every job. The electricians who get the most value from thermal imaging are the ones who scan every panel, every motor, and every junction box by default. That is how you catch the faults before they become fires. That is how you turn a $500 camera into $50,000 in billable thermal inspections per year. And that is how you become the electrician customers call when they want problems found before they become disasters.
There are people who love playing video games, and then there are enthusiasts who devote their lives to gaming.
Corey has been playing games since The Legend of Zelda and Final Fantasy III were still young.
Today, he blends his passion and experience to write reviews that can help others choose the best components in the gaming arena.
