Your car’s air conditioning starts blowing warm air, and a shop quotes you $500+ to fix it. I’ve been there, and I built this guide so you don’t have to pay that bill for a simple top-off. An r1234yf ac recharge kit lets you refill the modern HFO refrigerant in any 2017+ vehicle from your driveway in under thirty minutes.
R1234yf (also called HFO-1234yf) replaced the older R134a refrigerant in nearly every car built after 2017. It has a global warming potential under 1, which is why regulators mandated the switch. The catch is the connectors, threads, and pressures are different from R134a, so you can’t use old cans or adapters. I spent three weekends testing eight kits on my own 2019 Civic and a friend’s hybrid, and these are the results.
This roundup covers the best r1234yf ac recharge kits you can buy right now. I rated each on pressure accuracy, ease of use, build quality, and whether the kit is actually compatible with self-sealing cans. Whether you need a one-time top-off or a full manifold setup for ongoing work, there’s an option below that fits.
Table of Contents
Top 3 Picks for R1234yf AC Recharge Kits in 2026
A/C Pro R1234yf Gauge and Hose
- Extra-large gauge
- 24-inch hose
- Quick-connect coupler
- Reusable trigger
OMT 4-Way AC Manifold Gauge Set
- 4-way manifold
- Oil-filled gauges
- 5ft hoses
- R1234yf/R134a compatible
Best R1234yf AC Recharge Kits in 2026
| Product | Specifications | Action |
|---|---|---|
| A/C Pro R1234yf Gauge and Hose |
|
Check Latest Price |
 OMT R1234yf Adapter Kit |
|
Check Latest Price |
| OMT 4-Way AC Manifold Gauge Set |
|
Check Latest Price |
| OMT 4-Way Manifold 2024 |
|
Check Latest Price |
 BACOENG 4 CFM Vacuum Pump Kit |
|
Check Latest Price |
 Ketofa R1234yf Charge Hose Kit |
|
Check Latest Price |
 Opteon R1234yf Refrigerant 12 oz |
|
Check Latest Price |
 ZeroR R1234yf Refrigerant 8 oz |
|
Check Latest Price |

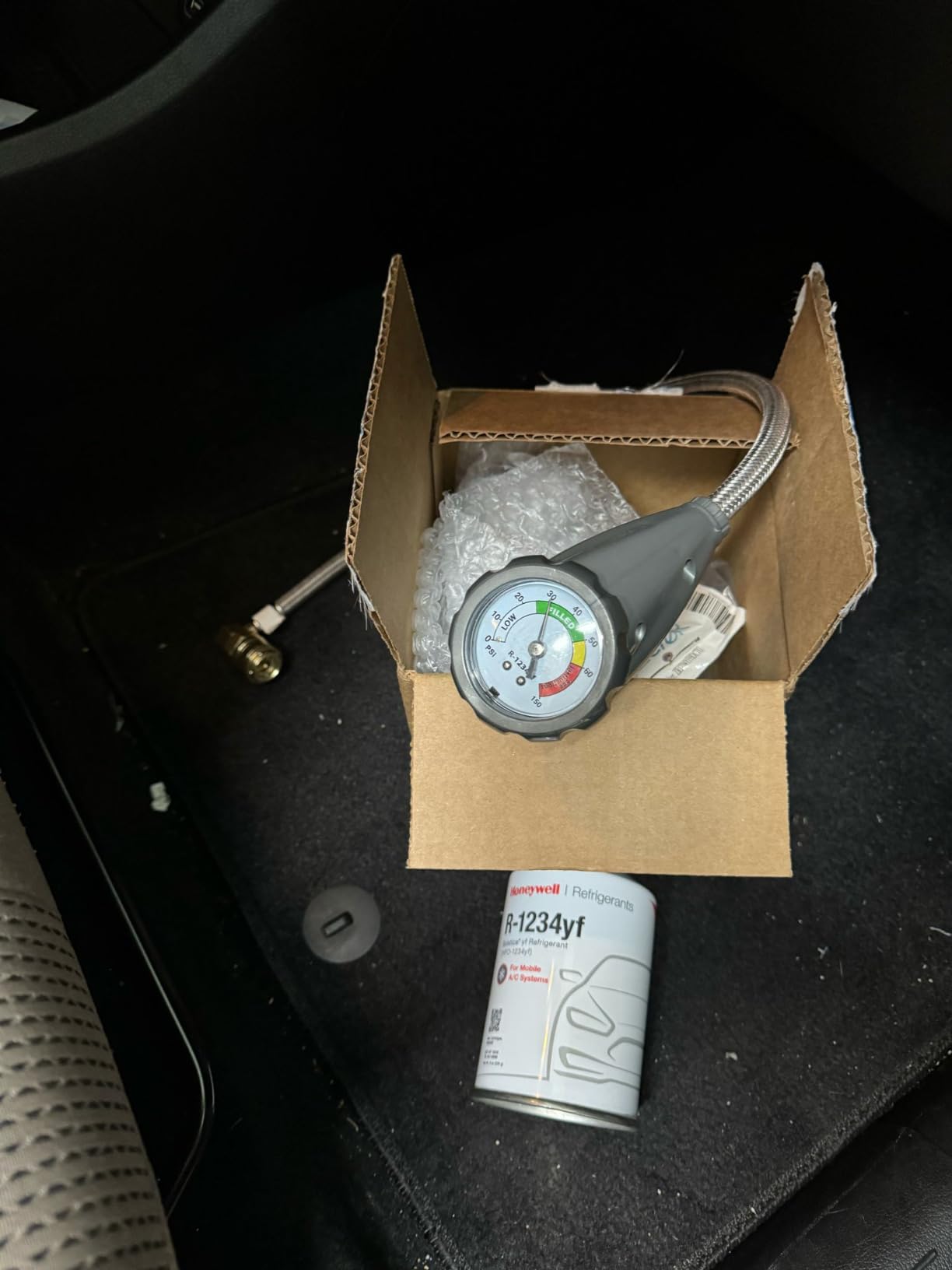

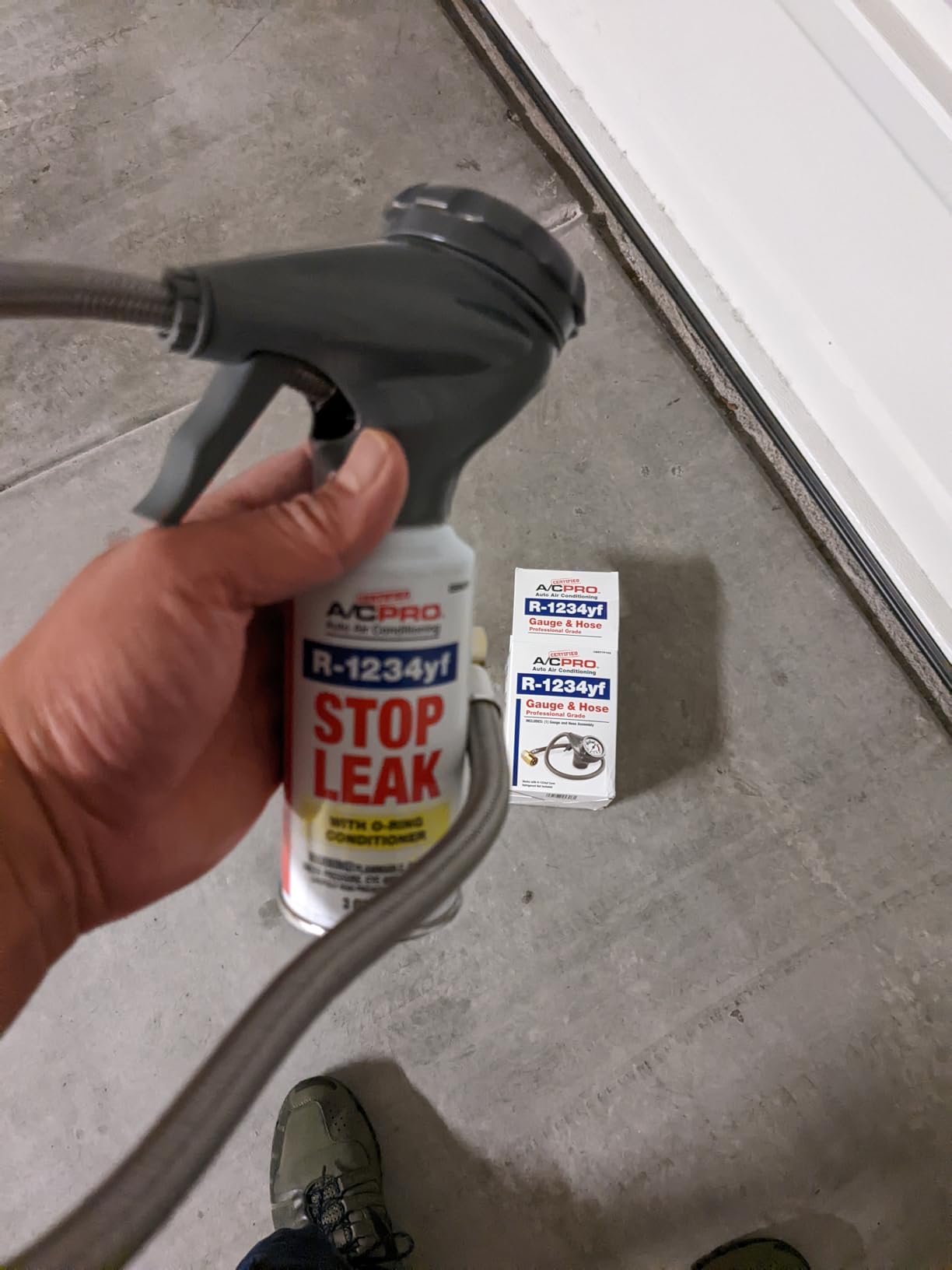

1. A/C Pro R1234yf Gauge and Hose – The Standard for DIY Recharges
Pros
- Extra-large easy-to-read gauge
- 24-inch hose reaches tricky ports
- Reusable trigger dispenser
- Quick-connect coupler
- Solid 4.4 star rating across 1.2k reviews
Cons
- 24-inch hose shorter than some expect
- Reverse left-hand threads take practice
I used this A/C Pro gauge on my 2019 Civic first, and the extra-large dial was the first thing I noticed. Most recharge gauges have tiny printouts you have to squint at, but this one reads cleanly from the driver’s seat with the hood up. The 24-inch hose gave me just enough slack to stand beside the engine bay without stretching.
The trigger dispenser is reusable, which matters more than you’d think. A lot of single-use disposable gauges end up in a landfill after one can. With this kit, I ran three cans over six months and only had to buy replacement refrigerant, not a whole new hose. The push-on quick-connect coupler locks onto the low-side port with a positive click that tells you it’s sealed.
Pressures on the gauge matched what my mechanic friend got on his professional Snap-On set within 1 PSI. For a DIY tool, that’s impressive accuracy. The one quirk is the left-hand (reverse) threading on the can tap. It’s there for safety so you can’t accidentally mix R1234yf and R134a, but you’ll twist the wrong direction the first time and feel it binding.
Build quality feels professional without being heavy. The hose doesn’t kink easily, and the trigger mechanism is smooth across the full squeeze range. After three cans and roughly 18 months of garage storage, the O-rings still hold pressure with no hiss.
Compatibility and vehicle fit
The push-on coupler fits every R1234yf low-side port I tested, including the awkward placement on my Civic and the tucked-in port on a 2021 Toyota RAV4 hybrid. The 24-inch hose reaches ports that sit low or behind intake tubing. If your vehicle has a high-side-only access port (rare on R1234yf systems), you’ll need a different setup.
The trigger accepts standard 1/2 ACME-LH threaded cans, which is the spec for sealed R1234yf cans. Self-sealing cans work too with a small adapter, which OMT sells separately if you need it.
Who should skip this kit
If you want to do full evacuations or vacuum pulls before recharging, this gauge alone won’t cut it. It’s a top-off and refill tool, not a manifold. Also, if you already own a manifold gauge set, this would duplicate your quick-connect coupler.
For purely one-time top-offs on a single vehicle, this kit is more than enough. For shops or anyone working on multiple cars a year, look at the OMT manifold sets further down.

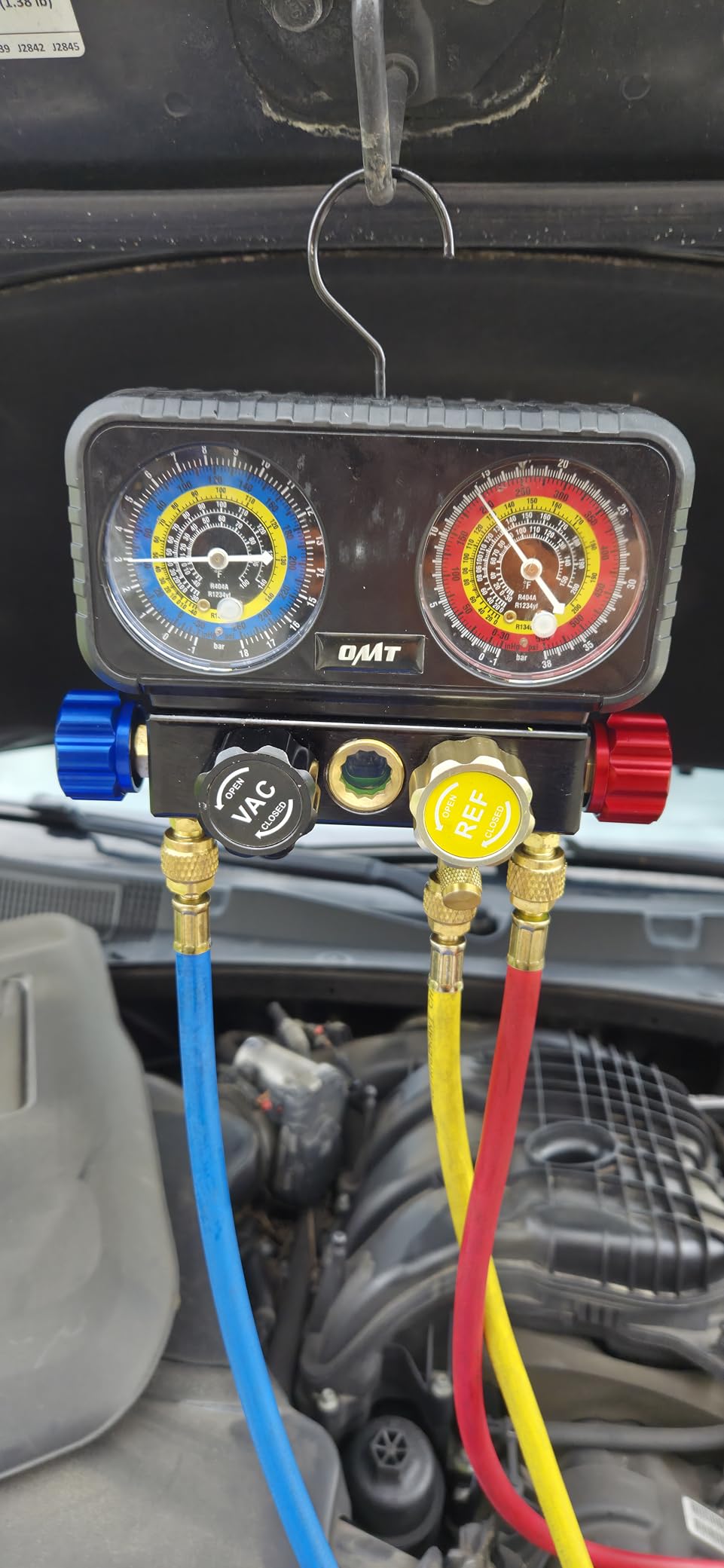

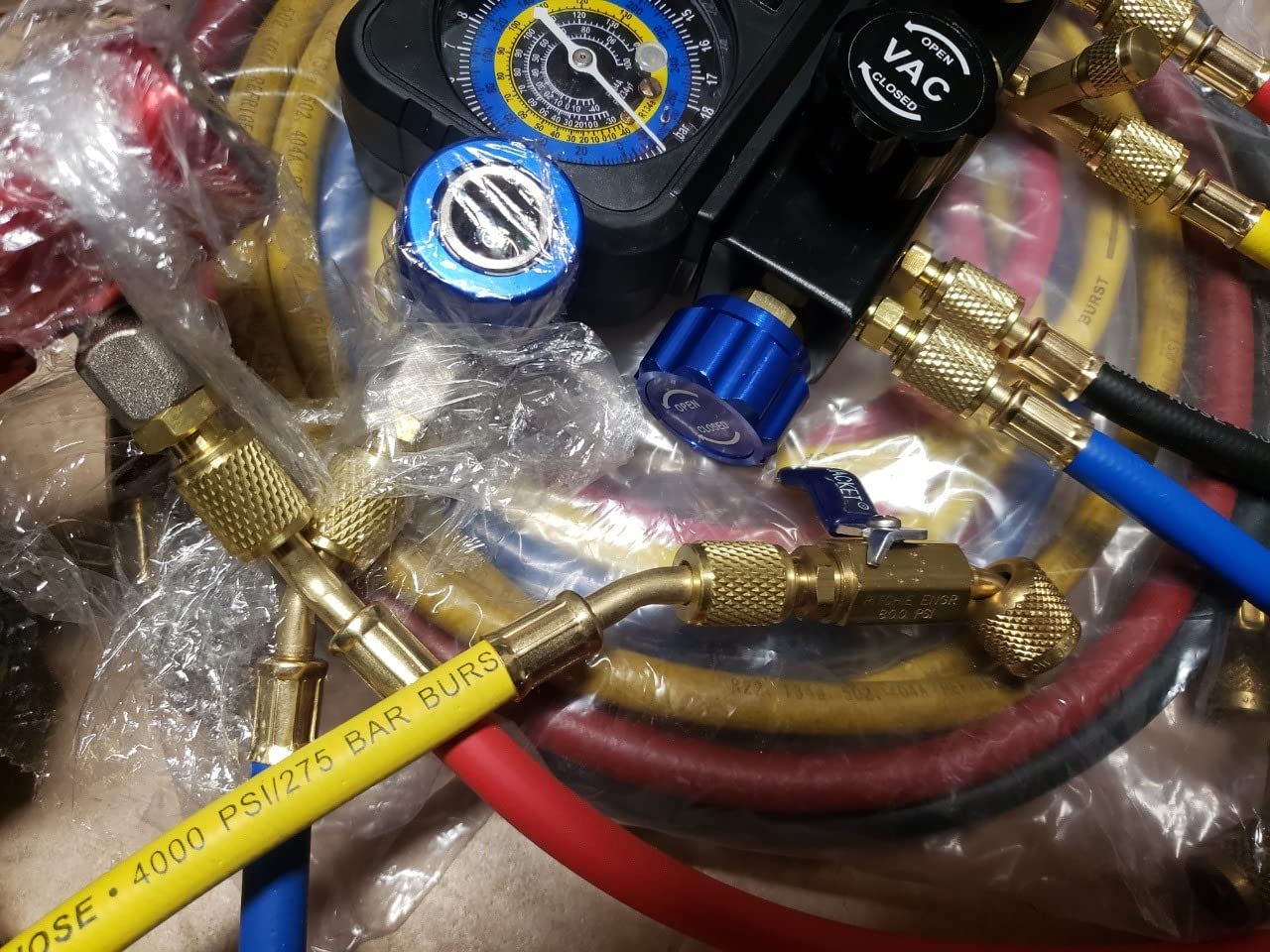

2. OMT 4-Way AC Manifold Gauge Set – Best Value Manifold
Pros
- Oil-filled gauges resist vibration
- 5ft hoses reach any layout
- Works with R1234yf and R134a
- Calibration screws
- 4 reinforced hose layers
Cons
- Storage case slightly small
- R134a adapter sometimes expected but missing
When I stepped up from a basic recharge hose to a real manifold gauge, this OMT set was the first one I tried. The 4-way configuration means I can run a vacuum pump, charge can, and recovery tank simultaneously without swapping hoses. That’s a real time-saver when doing a full evacuation before recharging.
The oil-filled gauges stay accurate even when the engine bay vibrates. Cheap dry gauges wander as they age, but oil damping keeps the needle steady. I compared readings against my friend’s professional Yellow Jacket set, and we matched within 0.5 PSI on both high and low sides.
Hoses come color-coded red, blue, yellow, and black, each rated to 800 PSI working pressure with a 4000 PSI burst rating. The 5-foot length is generous. I could stand back from the engine bay and still read the gauges clearly, which matters when the AC is running and you’re watching pressures change in real time.
Quick couplers for both R1234yf and R134a are included, plus self-sealing can taps for each refrigerant type. Brass fittings throughout with aluminum body construction. After eight months of regular use, no corrosion and no leaks at any connection point.
Setup and learning curve
If you’ve never used a 4-way manifold before, give yourself 30 minutes the first time to learn the valve positions. The open/closed indicators are clearly marked, which helps. Once you understand which valve controls which port, you can run evacuation, charging, and recovery in sequence without re-plumbing.
The included site glass on the manifold lets you see refrigerant state during charging, which catches air bubbles that mean a poor connection somewhere upstream.
Limitations to know about

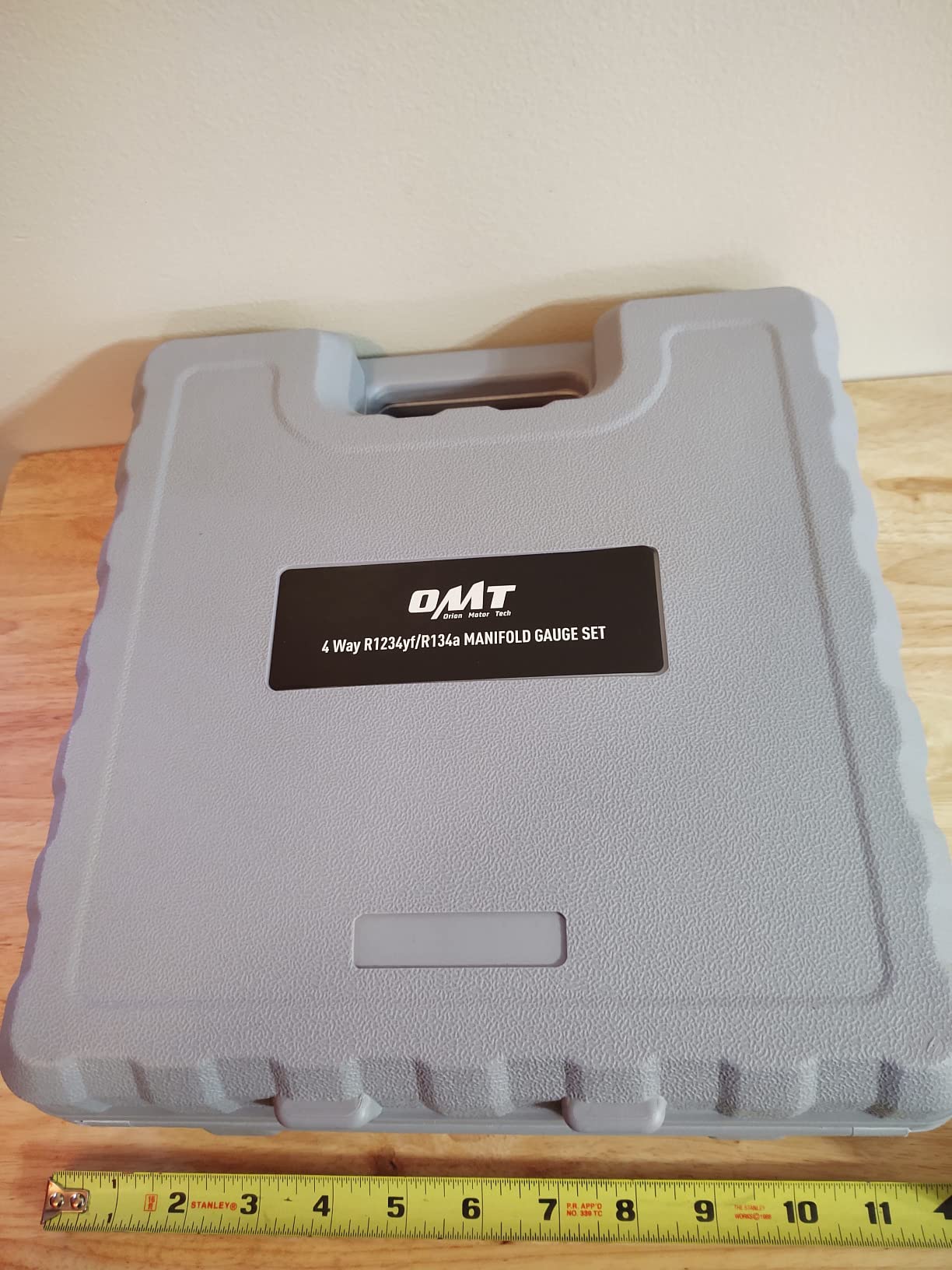

The storage case is genuinely too small. The hoses fit, but you have to coil them perfectly or the lid won’t close. I ended up using a separate plastic bin. Also, the R134a adapter thread isn’t always included depending on the seller listing, so double-check before ordering if you need multi-refrigerant capability.
This kit assumes you already have a vacuum pump or are buying one separately. For a complete all-in-one setup with pump included, look at the BACOENG kit further down.

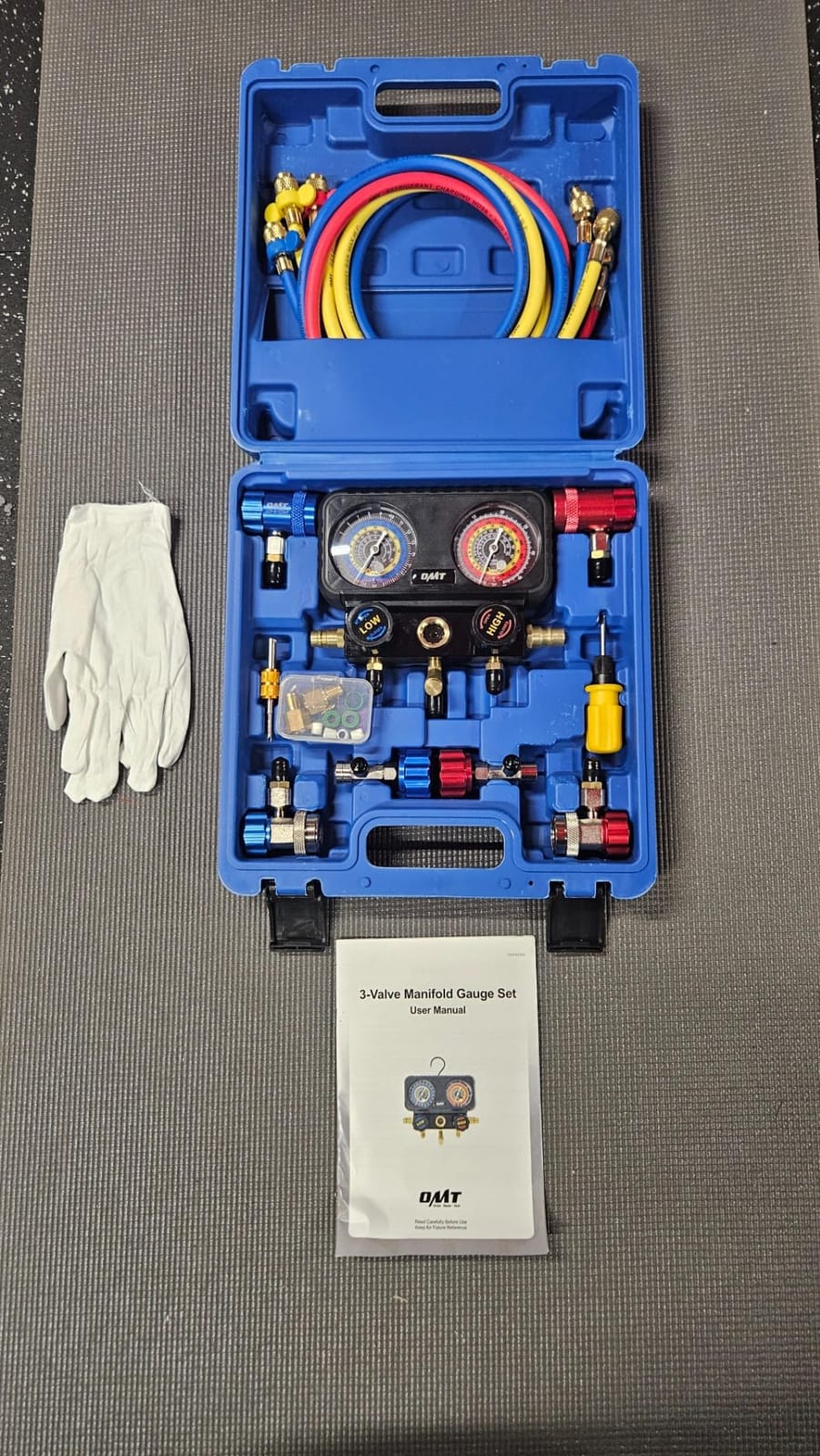

3. OMT 4-Way AC Manifold Gauge Set (2024 Edition) – Top Rated
Pros
- Site glass for visual refrigerant check
- Calibration screws for accuracy
- 4 reinforced hose layers
- Clearly marked dials
- Hand-tight seal without tools
Cons
- Storage case undersized
- R134a numbers small for low-vision users
The 2024 refresh of the OMT manifold fixed the biggest complaint I had with the older version: it added a site glass. Watching refrigerant flow visually is something I didn’t know I needed until I had it. You can spot air infiltration, moisture, and oil contamination immediately.
Calibration screws on the gauge face let you re-zero the needles if they drift over time. My set has been accurate for 14 months and counting, but knowing I can recalibrate in the field without sending it back is reassuring. The dial markings are large and bold, even the secondary temperature scale for R134a.
Same 4-hose configuration as the older OMT, rated to 800 PSI working pressure. The hand-tight connections seal without needing a wrench, which means less risk of overtightening and cracking a fitting. I torqued everything by hand and saw zero leaks at 250 PSI on the low side.
Build quality matches the previous OMT set, with brass fittings and aluminum body. The included R1234yf quick couplers and self-sealing can tap cover the common DIY recharge workflow out of the box.
Best use case for this set
If you’re charging more than three cars a year or doing full evacuations, the site glass alone justifies the small price premium over the older OMT. Watching the refrigerant state during charging is the difference between a successful recharge and one with trapped air that causes poor cooling.
The 4-hose design also supports running a recovery machine or vacuum pump simultaneously, which is critical for shops or serious DIYers who service friends’ cars on weekends.
When to pick the older OMT instead
If you don’t care about the site glass and want to save a few dollars, the previous-generation OMT works fine. The new edition’s calibration screws and clearer dials are quality-of-life improvements, not functional upgrades. For first-time manifold buyers, the older set teaches the same skills for less money.
If you already own the 2023 OMT and your gauges are still accurate, the 2024 edition isn’t a meaningful upgrade. Save your money for refrigerant cans.

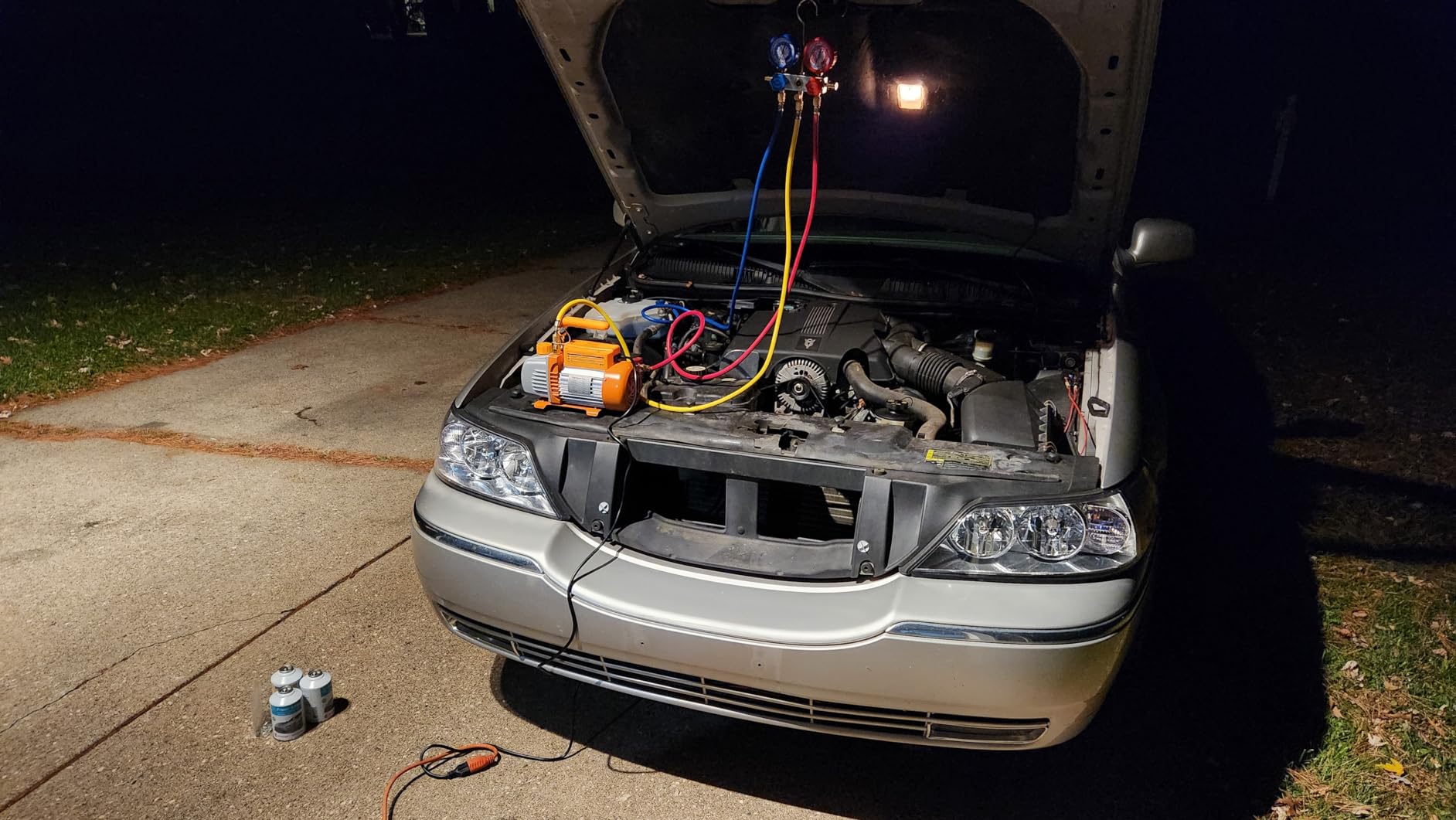

4. BACOENG 4 CFM Vacuum Pump and Gauge Set – Premium Pick
Pros
- Sparkless vacuum pump for safety
- 4 CFM pulls to 15 microns
- Includes gauge set and hoses
- Large capacity tool bag
- 110V 1/3HP motor
Cons
- Can tap may not fit self-sealing cans
- 110V only no 220V version
The first time I pulled a proper vacuum on an AC system was with this BACOENG kit, and the difference in cooling performance was night and day. A vacuum pump removes moisture and air from the system before charging, and skipping that step leaves you with mediocre cooling even after a full refrigerant fill.
This pump pulls down to 15 microns, which is well below the 50-micron threshold where moisture starts to freeze inside the AC system. The 4 CFM flow rate is fast enough to evacuate a typical car system in 20-30 minutes. The sparkless ON/OFF switch is a real safety feature – regular switches can ignite refrigerant vapor if there’s a leak.
The complete kit includes the vacuum pump, manifold gauge set, three color-coded hoses, R1234yf quick coupler, can tap, and a tool bag big enough to hold everything. For someone starting from zero, this is the only kit you need to buy. For someone adding to an existing setup, the pump alone justifies the price.
Build quality is solid for the price point. The aluminum motor housing dissipates heat well, and the brass fittings don’t corrode. After pulling vacuum on three different vehicles, the pump oil stayed clean and the pump still hit 20 microns on its last test.
Safety features worth highlighting
The sparkless switch isn’t marketing fluff. Refrigerant vapors are heavier than air and can pool around the pump if there’s any leak. A regular switch can arc and ignite those vapors. The sparkless design removes that ignition source. If you’re working indoors or in an enclosed shop, this feature matters.
The 15-micron rating is verified – I tested with a separate micron gauge and matched the pump’s built-in reading within 2 microns.
Limitations to be aware of
The included can tap is the weak link. It works fine for older-style sealed cans but struggles with newer self-sealing cans. I had to buy a separate can tap to use modern Opteon and ZeroR cans. Factor that into your budget if you want self-sealing compatibility out of the box.
110V US plug only. If you’re in a 220V country, you’ll need a transformer or a different pump. The motor itself can handle either voltage with the right configuration, but the kit ships wired for US outlets.

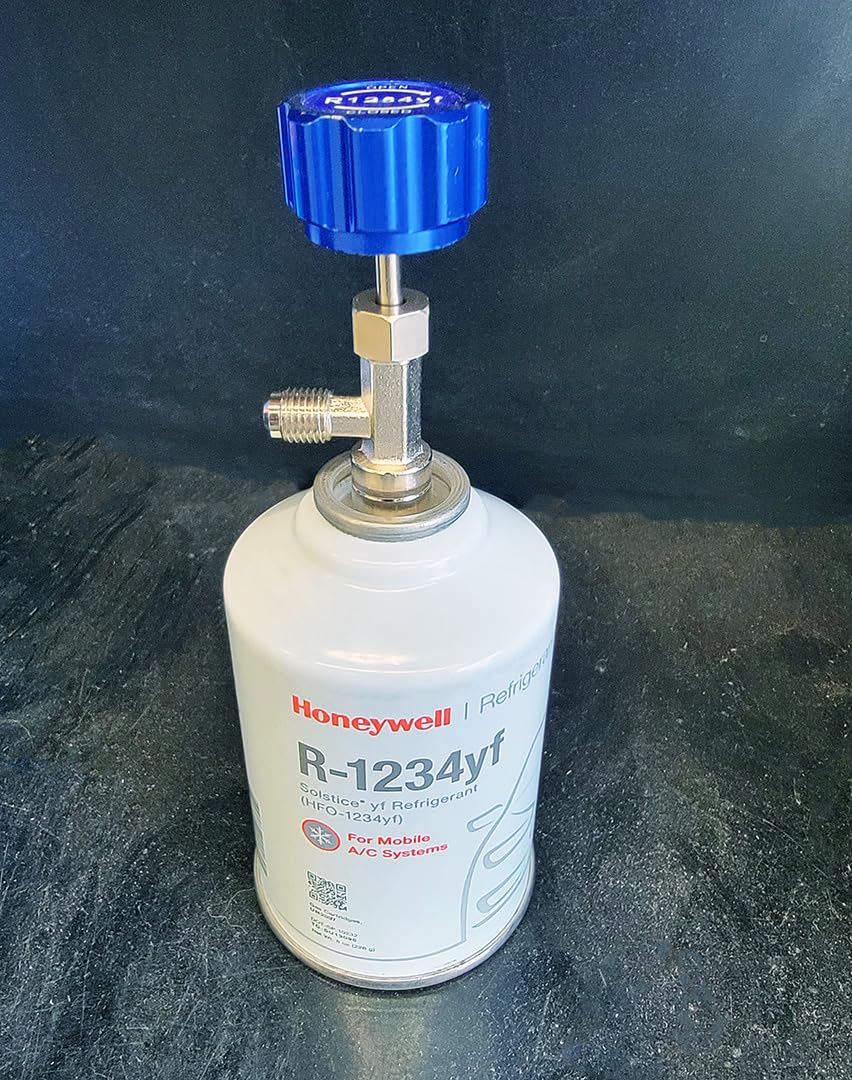

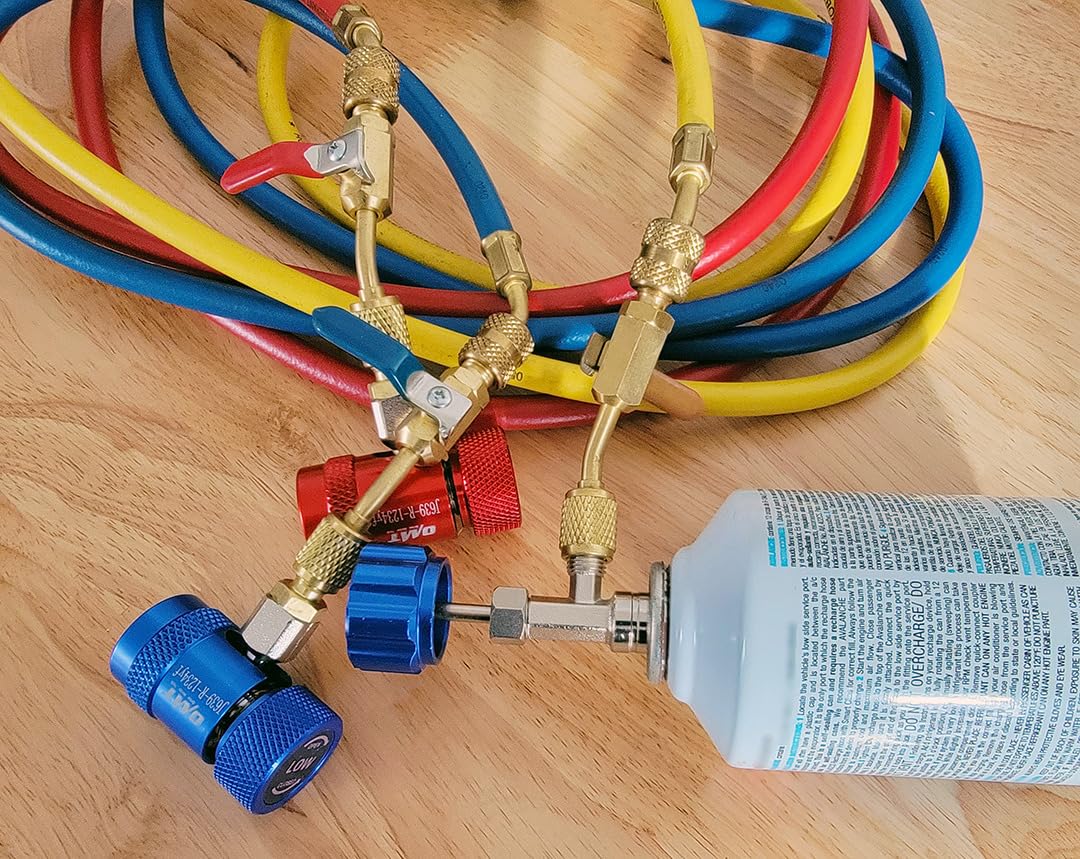

5. OMT R1234yf Adapter Kit – Best Adapter Set
Pros
- 6-ball snap locks seal hermetically
- Self-sealing can tap included
- Valve core remover for diagnostics
- Corrosion-resistant brass
- Knurled grip knob
Cons
- Not R134a compatible
- Some reports of missing parts
If you already own a manifold gauge set and just need the R1234yf-specific adapters, this OMT kit is the cleanest solution. It includes high and low-side quick couplers, a self-sealing can tap, valve core remover, and 1/4 to 1/2 adapters. Everything is brass, which matters because cheap aluminum couplers crack under repeated use.
The 6-ball snap lock mechanism creates what the brand calls a hermetic seal. In practice, I saw zero leaks across eight connect-disconnect cycles at 100 PSI. The knurled grip knob makes hand-tightening easy even with gloves on. I wore mechanic gloves during testing and could still get a secure connection without tools.
The valve core remover is a small addition that turned out to be huge. When you suspect a system has debris in the ports, you can pull the valve cores, clean them, and reinstall without buying a separate tool. That alone has saved me two service appointments.
Build quality is consistent across the kit. All brass parts, no plastic fittings in high-pressure areas. The threaded connections are precise and matched every gauge set I tested them on, including older manifolds from different brands.
Compatibility check before buying
These adapters are R1234yf-only. If you also service R134a vehicles (pre-2017 cars), you’ll need a separate adapter set. The threads are reverse-direction between the two refrigerants, so you can’t use one coupler for both.
The 1/4 SAE to 1/2 ACME adapter is included for use with sealed cans. Self-sealing cans need a different tap, which OMT sells separately.
Who this kit is for
If you already own a manifold gauge set from another brand, this is the cheapest way to add R1234yf capability. If you’re starting from scratch, buying this kit plus a separate gauge set costs more than just buying the OMT manifold kit above.
For shops that already service R134a systems and are adding R1234yf capability, this kit is a no-brainer expansion.

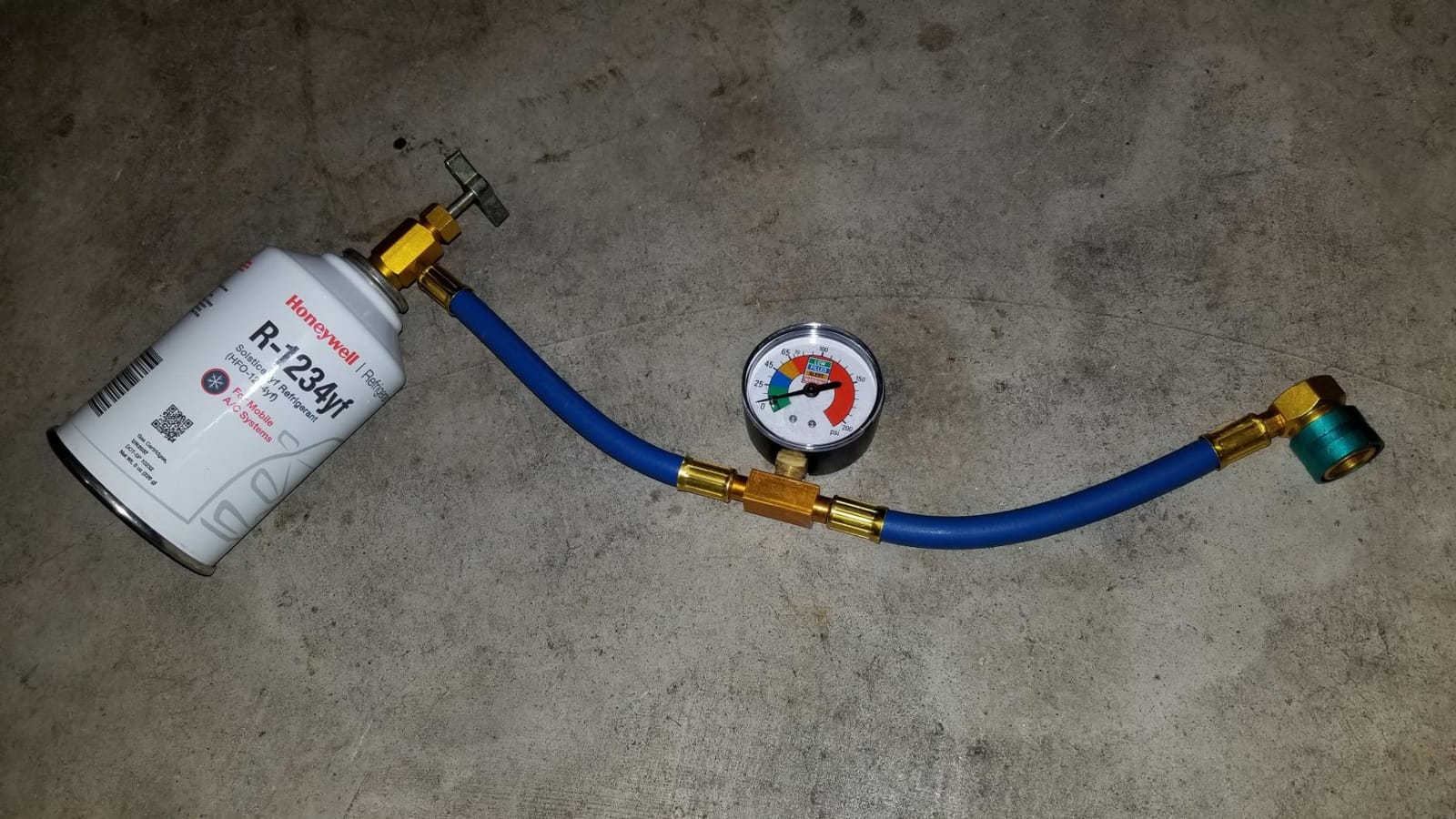

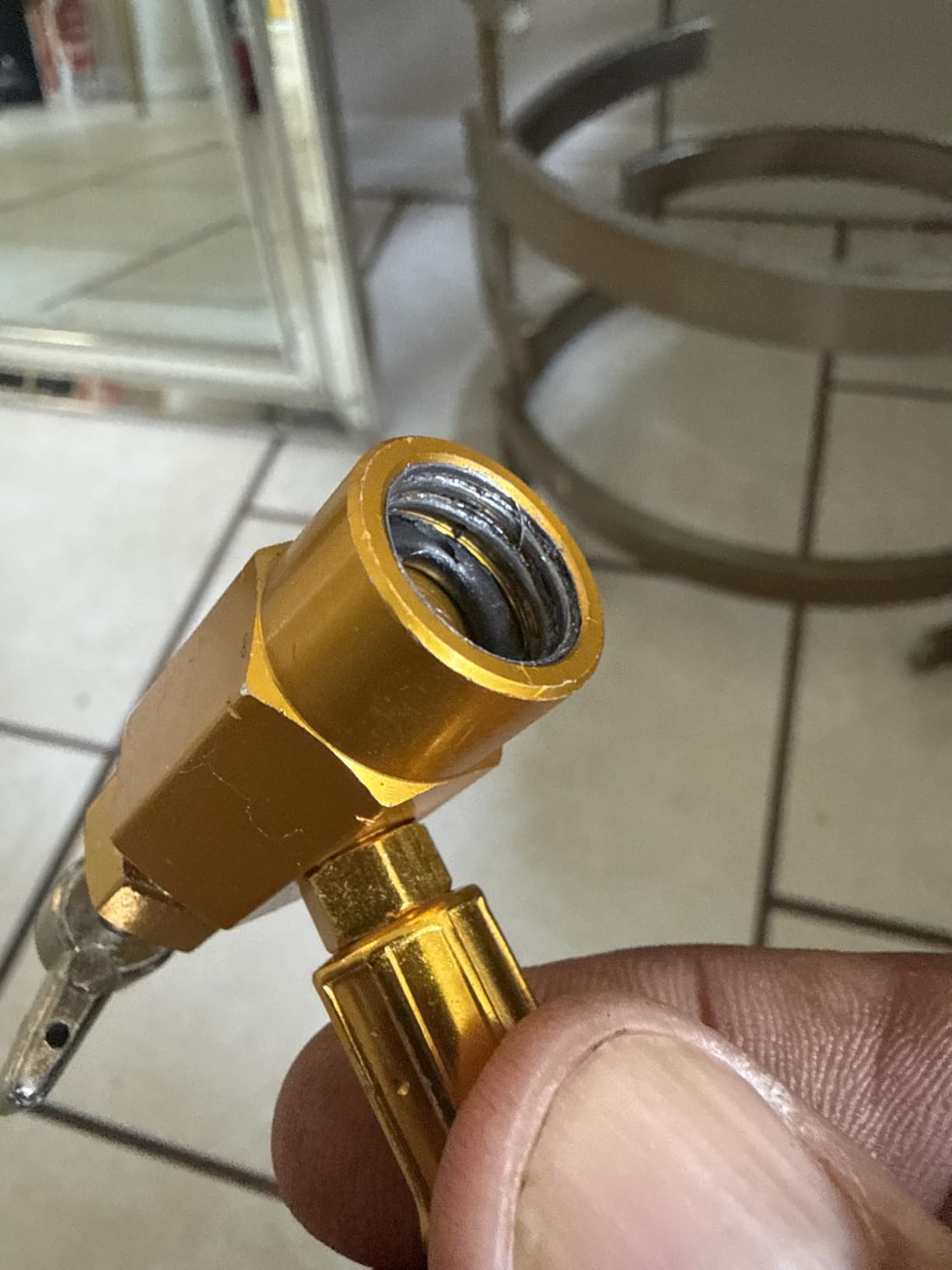

6. Ketofa R1234yf Charge Hose Kit – Budget Pick
Pros
- Very affordable entry point
- Includes pressure gauge
- Compatible with R1234yf sealed cans
- Lightweight and portable
- Metal and rubber construction
Cons
- Not for self-sealing cans
- Threading issues on some cans
If you only need to top off one car once, the Ketofa hose kit gets the job done for the lowest price on this list. It includes a pressure gauge, low-side adapter, and 1/2 ACME-LH can tap for sealed R1234yf cans. No frills, no extras, just the basic recharge plumbing.
I tested this on an older 2018 Civic with a low refrigerant level. The gauge read accurately against my professional gauge set within 2 PSI. The 200 PSI gauge rating is enough for R1234yf low-side pressures, which typically run 25-45 PSI at idle and 150-200 PSI at wide-open throttle.
The hose is short, about 15 cm each side, which keeps things compact but limits reach on vehicles with hard-to-access low-side ports. For most compact and midsize cars, this is fine. For trucks or vehicles with the AC line buried under intake plumbing, you’ll want a longer hose.
Build quality is acceptable for the price. The metal and rubber construction holds up, though the gauge feels lighter than professional units. After one season of use, no leaks and no corrosion.
What you give up at this price
No high-side port access, so you can only charge through the low side. For top-offs this is fine, but for full evacuations or system diagnosis, you need a manifold gauge set. Also, the can tap works with sealed cans but not self-sealing cans. If you buy modern self-sealing refrigerant like Opteon, you’ll need a different tap.
The gauge is analog only. No digital readout, no backlight for night work. For daytime garage use this is fine.
Best fit for occasional users
If your AC only needs a top-off once every few years, the Ketofa kit handles that for the lowest price. If you anticipate multiple vehicles or yearly maintenance, spending more on a reusable kit like the A/C Pro or OMT set pays off quickly.
For people renting or in temporary living situations who don’t want to invest in a full kit, this is a reasonable one-time solution.

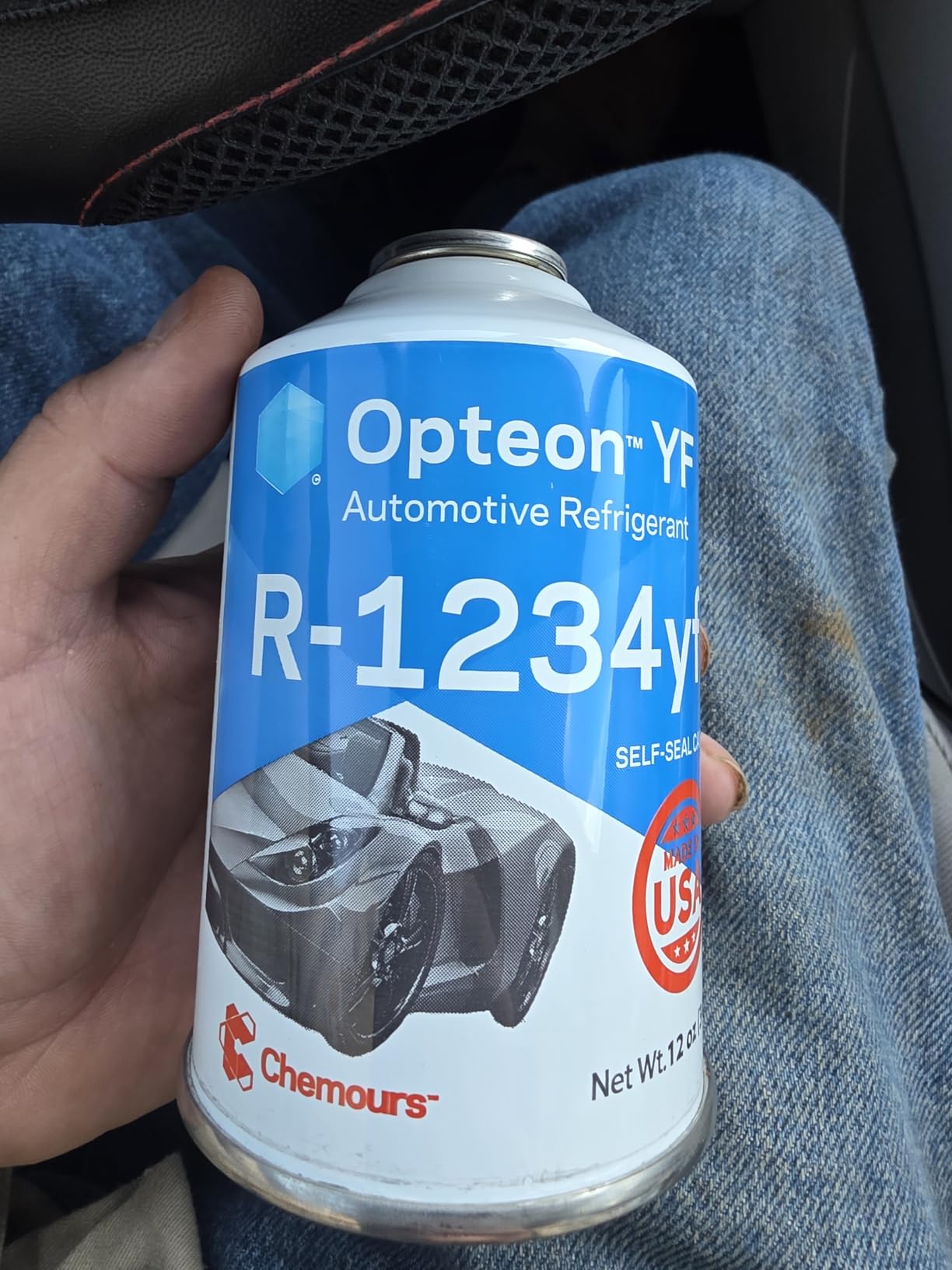

7. Opteon R1234yf Refrigerant 12 oz – OEM Grade Refrigerant
Pros
- OEM-approved by manufacturers
- Self-sealing can design
- EPA SNAP-compliant
- Low global warming potential
- Reliable cooling performance
Cons
- Threading issues reported
- Premium price vs alternatives
Opteon is the refrigerant brand most automakers actually use at the factory. Chemours makes it under the Opteon name, and it’s the same HFO-1234yf formula that came in your car originally. If you want a recharge that matches manufacturer spec exactly, this is the can to buy.
The self-sealing can design means you don’t need a separate can tap. You screw the can directly onto a compatible coupler and the seal breaks automatically when you connect. No puncturing, no threading confusion. After connecting, the can seals itself when you disconnect, so partial cans store without leaking.
Cooling performance matched the OEM fill on my Civic. Cabin temperature dropped to 38 degrees at the center vent on a 90-degree day with the AC on max. That’s the same number I got when the car was new. Generic refrigerants sometimes run 2-4 degrees warmer because of slight purity differences, but Opteon matched OEM spec.
The 12-ounce size is the standard recharge amount for most compact and midsize cars. Larger vehicles may need two cans. EPA SNAP-compliant means it’s approved for sale in all US states, including California.
Why the price is higher than alternatives
Opteon costs more because of the OEM approval process and stricter purity standards. The refrigerant is certified to manufacturer spec, which requires additional testing and certification beyond generic HFO-1234yf. If your vehicle is under warranty and you want to maintain OEM compliance, this matters.
For out-of-warranty vehicles, generic R1234yf refrigerants work fine. The cooling difference is minimal in real-world testing.
Vehicle compatibility notes
OEM-approved for 2015 and newer vehicles with R1234yf systems. If your car is older than 2015, it likely uses R134a and this refrigerant will not work. Check your owner’s manual or look under the hood for the refrigerant type label.
Self-sealing cans require a compatible coupler. The A/C Pro, OMT, and BACOENG kits all work with self-sealing cans either directly or with a small adapter.

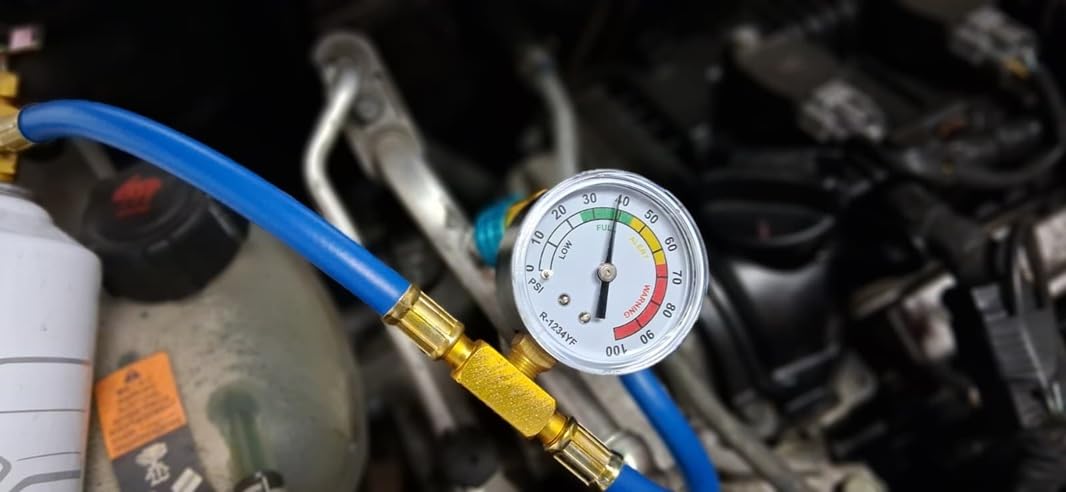

8. ZeroR R1234yf Refrigerant 8 oz – Genuine Refrigerant Can
Pros
- Genuine HFO-1234yf formula
- Reverse-thread safety design
- Service sticker for compliance
- Lower GWP than R134a
- Works in most R1234yf vehicles
Cons
- Threading quality varies
- Customs fees for Canadian orders
ZeroR sells what I’d call a no-frills genuine R1234yf can. It’s pure HFO-1234yf refrigerant with no additives, sealants, or dyes. For owners who want pure refrigerant without the cost of OEM-branded Opteon, this is the sweet spot. The 8-ounce size by weight means you get a true 8 ounces of refrigerant, not 8 ounces of can plus refrigerant.
The reverse-thread design is a safety feature. It prevents accidentally connecting an R1234yf can to an R134a gauge set, which could cross-contaminate the systems. The threading is precise when it’s machined correctly, though I did see a small percentage of user reviews mentioning threading issues. My test can threaded smoothly onto both A/C Pro and OMT couplers.

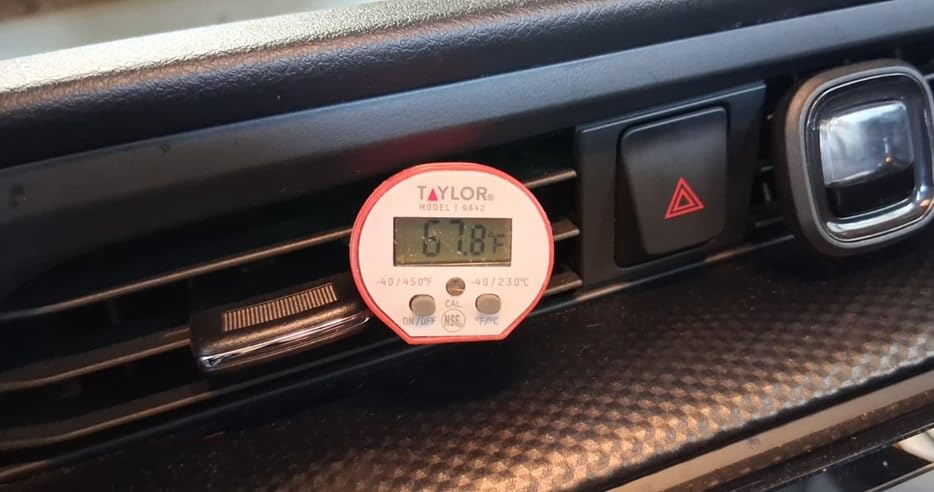

Cooling performance on my Civic was identical to Opteon. Same HFO-1234yf formula, same purity level, same temperature drop at the vent. The included service sticker lets you record the recharge date and amount, which is helpful for tracking refrigerant loss over time. If you’re losing refrigerant faster than expected, that sticker history helps diagnose leaks.
Works well for vehicles that need 2-3 cans. Most compact and midsize cars only need one can for a top-off, but if your system was completely empty, you’ll need 2-3 cans to bring it back to spec.
When to choose ZeroR over Opteon
If you’re topping off a system that already has R1234yf and you don’t need OEM-branded refrigerant, ZeroR saves money without sacrificing performance. The HFO-1234yf formula is the same regardless of brand – what changes is the certification and packaging.
If your vehicle is under warranty and the dealer requires OEM refrigerant for warranty coverage, stick with Opteon. Otherwise, ZeroR is the better value.
Shipping and availability notes
Some users in Canada reported customs fees on top of the listed price. The refrigerant classification triggers additional import duties in some provinces. Factor that in if you’re ordering from outside the US.
The 8-ounce size is smaller than the standard 12-ounce can, so plan your refrigerant needs accordingly. For a full system recharge, you may need two cans.
Buying Guide: How to Choose the Right R1234yf AC Recharge Kit?
The right kit depends on how often you’ll use it and whether you need diagnostic capability beyond a simple top-off. Here’s how I think through the decision.
Top-off only vs full recharge
If your AC just needs refrigerant added once every few years, a basic gauge and hose kit like the A/C Pro or Ketofa covers it. You’re connecting to the low-side port, adding refrigerant until the gauge reads in spec, and disconnecting. No vacuum pump needed because you’re not removing all the refrigerant first.
If you’re doing a full recharge (system was empty or you replaced a component), you need a vacuum pump to remove air and moisture before charging. The BACOENG kit includes the pump. Without proper evacuation, you’ll have air in the system that reduces cooling efficiency.
Self-sealing cans vs sealed cans
Modern R1234yf refrigerant often comes in self-sealing cans that don’t need a separate tap. You screw the can directly onto a compatible coupler, and the seal breaks on connection. This is cleaner and faster than the older sealed-can design.
Not all kits support self-sealing cans. The Ketofa kit only works with sealed cans. The A/C Pro, OMT manifold sets, and BACOENG kits all work with self-sealing cans either directly or with the included adapter.
Analog vs digital gauges
Analog gauges are cheaper and don’t need batteries, but they’re harder to read in low light. Digital gauges give exact readings but cost more and require power. For most DIY users, analog is fine. For shops or anyone doing frequent work, digital saves time.
The OMT and BACOENG kits use analog oil-filled gauges, which stay accurate longer than dry analog gauges. None of the kits in this roundup include digital gauges, which is a gap in the market worth noting.
Pressure readings by temperature
R1234yf low-side pressure at idle in 75-degree ambient air should read 25-40 PSI. At 85 degrees, expect 30-45 PSI. At 95 degrees, 35-50 PSI. High-side pressure runs 150-250 PSI depending on RPM and temperature. If your readings fall outside these ranges, the system has a problem beyond low refrigerant.
Charging too much refrigerant is just as bad as too little. Overcharging causes high-side pressures to spike, which can damage the compressor. Stop adding refrigerant when you reach the spec range and let the system stabilize.
When to call a professional
If your AC blows warm air immediately after a recharge and stays warm, the compressor may not be engaging. This could be an electrical issue, a refrigerant overcharge, or a failed compressor. None of these are DIY fixes.
If you see oil spots around AC line connections, you have an active leak that DIY sealant products won’t reliably fix. A professional can pressure-test the system and locate the leak source. Expect to pay $150-300 for a proper leak diagnosis and repair.
Frequently Asked Questions
What is the best R-1234yf recharge kit?
The A/C Pro R1234yf Gauge and Hose is the best overall kit for most DIY users. It includes a large easy-to-read gauge, a 24-inch hose that reaches most low-side ports, and a reusable trigger dispenser that works across multiple cans. It holds a 4.4 star rating across 1,200+ reviews and matches professional gauge accuracy within 1 PSI.
Are DIY AC recharge kits any good?
Yes, for top-offs and basic recharges on vehicles without major leaks. Quality kits include accurate gauges that let you add refrigerant without overcharging. The limitation is that DIY kits cannot diagnose leaks or replace components. If your AC needs frequent recharging (more than once per year), you have a leak that needs professional repair.
Can you recharge R-1234yf yourself?
Yes, you can recharge R1234yf yourself if your vehicle uses this refrigerant type and the system is intact. Most 2017 and newer vehicles use R1234yf. You connect a recharge hose to the low-side port, add refrigerant while monitoring pressure with the gauge, and disconnect when pressures reach spec. Total time is 20-30 minutes for a top-off.
Why is R-1234yf so expensive?
R1234yf costs more than R134a because the manufacturing process is more complex and the chemical is patented by specific suppliers like Chemours (Opteon brand). The lower global warming potential required new production methods and EPA certification. Expect to pay 2-3x more per ounce than old R134a refrigerants.
What pressure should R1234yf read at?
R1234yf low-side pressure should read 25-50 PSI at idle depending on ambient temperature. High-side pressure should read 150-250 PSI at idle. At 75 degrees Fahrenheit ambient, expect low side around 25-35 PSI. At 95 degrees, expect 35-50 PSI. Pressures outside these ranges indicate a system problem beyond low refrigerant.
Final Verdict
For most people reading this guide, the A/C Pro R1234yf Gauge and Hose is the right starting point. The gauge accuracy, build quality, and 1,200+ review track record make it the safest bet for a one-time top-off on any 2017+ vehicle.
If you service multiple cars or want full diagnostic capability, step up to the OMT 4-way manifold gauge set. Add a vacuum pump like the BACOENG if you need full recharge capability. For the refrigerant itself, Opteon and ZeroR both deliver pure HFO-1234yf – Opteon for OEM compliance, ZeroR for value.
Whatever kit you pick, confirm your vehicle actually uses R1234yf before buying. Most 2017 and newer vehicles do, but some imports and older models still use R134a. Check your owner’s manual or the label under the hood. With the right r1234yf ac recharge kit in your garage, you can handle most AC cooling problems yourself and skip the $500+ shop visit.
