When I rewired my home lab last year, I spent an embarrassing amount of time staring at a rat’s nest of Ethernet cables hanging behind my server rack. The fix turned out to be one simple piece of hardware: a keystone patch panel. After testing eight of the best keystone patch panels across my home network and a friend’s small business server rack, I can tell you that the right panel changes everything from cable chaos to a clean, labeled, professional setup.
A keystone patch panel is a blank rackmount or wall-mount panel with modular ports that accept snap-in keystone jacks. You can mix RJ45, HDMI, USB, coaxial, fiber, and audio jacks all in the same panel. That flexibility is the main reason keystone panels have replaced traditional fixed punch-down panels in so many home labs, small offices, and enterprise data closets over the last few years.
In this guide, I will walk you through the eight panels I tested, covering build quality, cable management features, keystone compatibility, port density, and real-world installation experience. Whether you need a compact 12-port panel for a media cabinet or a high-density 48-port panel for a full server rack, you will find your match below.
Table of Contents
Top 3 Picks for Best Keystone Patch Panels in 2026
Cable Matters 24-Port 1U Keystone Patch Panel
- 24 blank keystone ports
- Rackmount or wall mount
- Lifetime warranty
- Removable cable management bar
TRENDnet 24-Port Blank Keystone 1U Patch…
- NDAA compliant
- SPCC steel construction
- 2-year warranty
- Pre-numbered ports
iwillink 12-Port Keystone Patch Panel
- 12 blank keystone ports
- Wall mount bracket included
- 6 blank inserts
- 2-year warranty
Best Keystone Patch Panels in 2026
| Product | Specifications | Action |
|---|---|---|
| Cable Matters 24-Port 1U Keystone |
|
Check Latest Price |
| TRENDnet 24-Port Blank Keystone 1U |
|
Check Latest Price |
 Jadaol 24-Port Pass-Through Cat6 |
|
Check Latest Price |
 Cable Matters 48-Port 2U Keystone |
|
Check Latest Price |
| iwillink 12-Port Keystone |
|
Check Latest Price |
 Rapink 24-Port Pass-Through Cat6 |
|
Check Latest Price |
 TRENDnet 48-Port Blank Keystone 2U |
|
Check Latest Price |
 Cable Matters Cat6A 24-Port STP |
|
Check Latest Price |
1. Cable Matters 24-Port 1U Keystone Patch Panel – Most Versatile Blank Panel
Pros
- Supports RJ45
- HDMI
- USB
- coaxial
- fiber and more
- Removable cable support bar with sequential labels
- Heavy-duty flame-retardant powder-coated steel
- Stamped port numbers and writable label spaces
- Lifetime warranty
Cons
- Tight fit with some third-party keystones
- Mounting screws occasionally missing from shipment

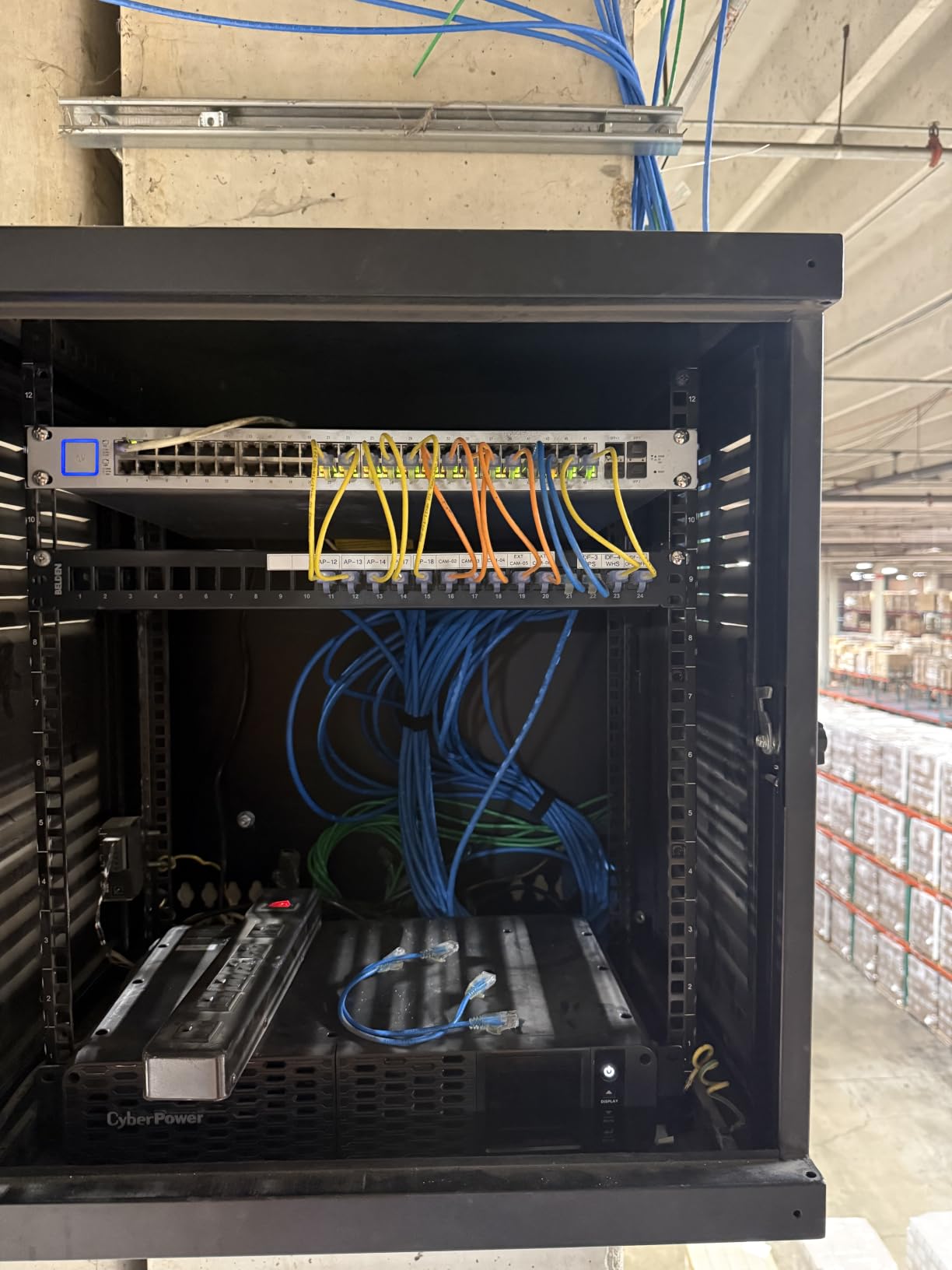

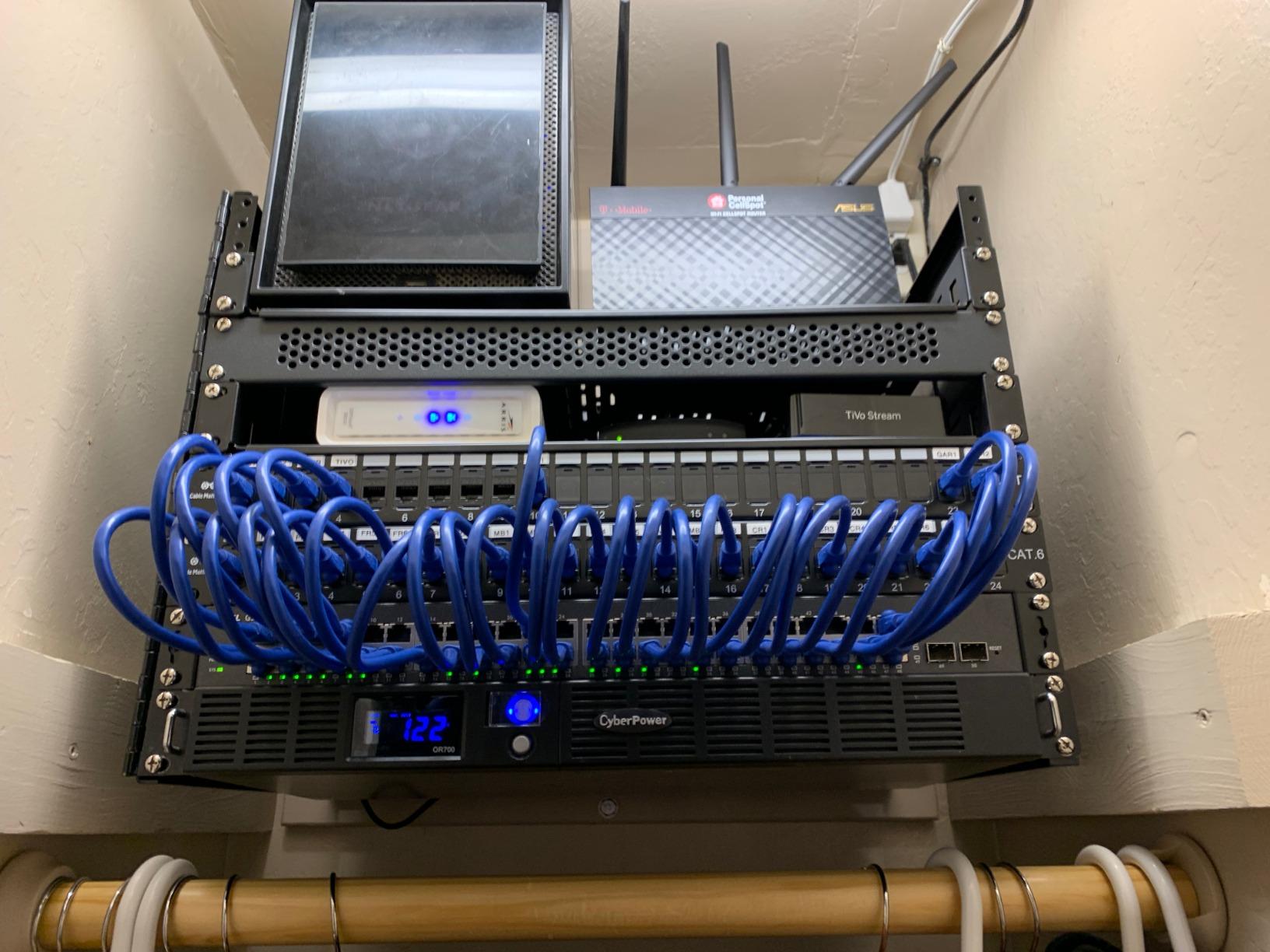

This is the panel I installed in my own home lab, and it is the one I keep recommending to friends. The Cable Matters 1U 24-port blank keystone patch panel hit the sweet spot between price, build quality, and flexibility. I snapped in a mix of Cat6 RJ45 keystones, two HDMI keystones, and a USB keystone without any issue. The powder-coated steel frame feels solid, and the weight is just right for a 1U panel.
The removable cable management bar is a genuine standout feature. It has 24 C-shaped keyholes that line up with each port, so you can zip-tie cables in sequence. The stamped port numbers on the front panel are easy to read, and there are writable label spaces above each port. When I needed to reroute three cables during a switch upgrade, the labeled setup saved me at least 20 minutes of guessing.
On the technical side, this panel fits any standard 19-inch rack, cabinet, or wall-mount bracket at 1U height. The rear support bar attaches with two screws and is removable for easier cable routing during installation. I tested it with Cable Matters own Cat6 keystones and Monoprice keystones, and both fit cleanly. A couple of users on r/HomeNetworking reported that ICC and Tripp Lite brand blanks had a tighter fit, so keep that in mind if you already own keystones from those brands.
The main downside is minor. Some Amazon reviewers noted that mounting screws were missing from their shipment. I had all hardware in mine, but it is worth checking before you start your install. Also, some larger keystone jacks need a firm press to snap fully into place, which is normal for blank panels but worth knowing if this is your first time.
Best Use Case for This Panel
This panel shines for home labs, small office networks, and mixed-media AV installations where you need Ethernet alongside HDMI, USB, or audio in a single 1U space. If you want one panel that can handle whatever keystone jack you throw at it, this is your pick.
It is also ideal for anyone who values the lifetime warranty and wants a panel from a brand with a proven track record. The 1,700-plus reviews and 88 percent five-star rating tell you this panel has earned its reputation.
Who Should Skip This Panel
If you need more than 24 ports in a single rack space, look at the 48-port options below. The 1U form factor caps you at 24 keystone ports.
Also, if you already own ICC or Tripp Lite brand keystones, the fit can be tight. Test one jack before loading all 24 ports.
2. TRENDnet 24-Port Blank Keystone 1U Patch Panel – Best NDAA-Compliant Value
Pros
- NDAA compliant for government and enterprise use
- Sturdy SPCC steel construction
- Pre-numbered ports with supplementary labels
- 2-year manufacturer warranty
- Compatible with gigabit and 10G Ethernet
Cons
- Keystone jacks sold separately
- Lightweight frame may flex under heavy cable load
- No cable management bar included

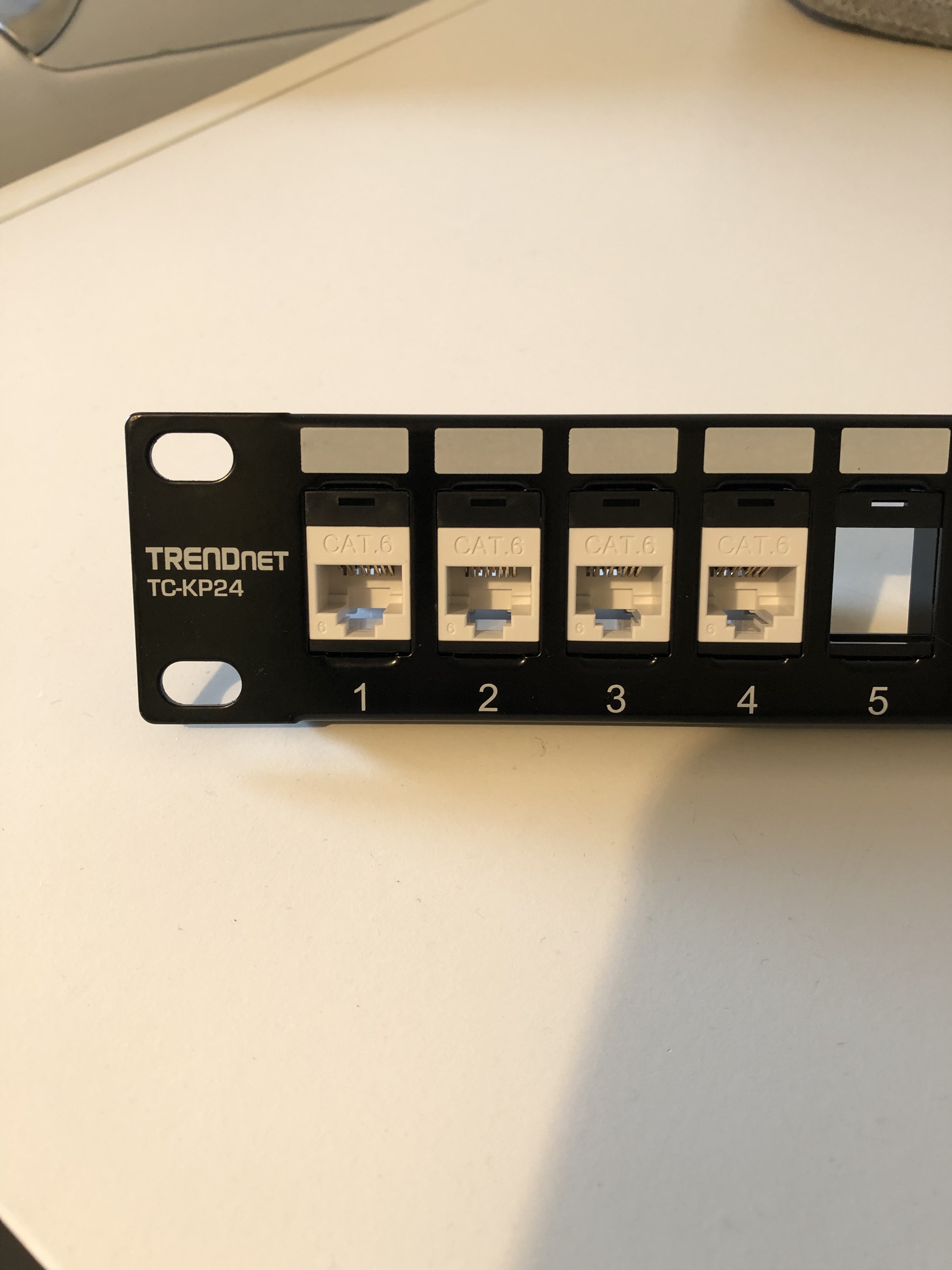

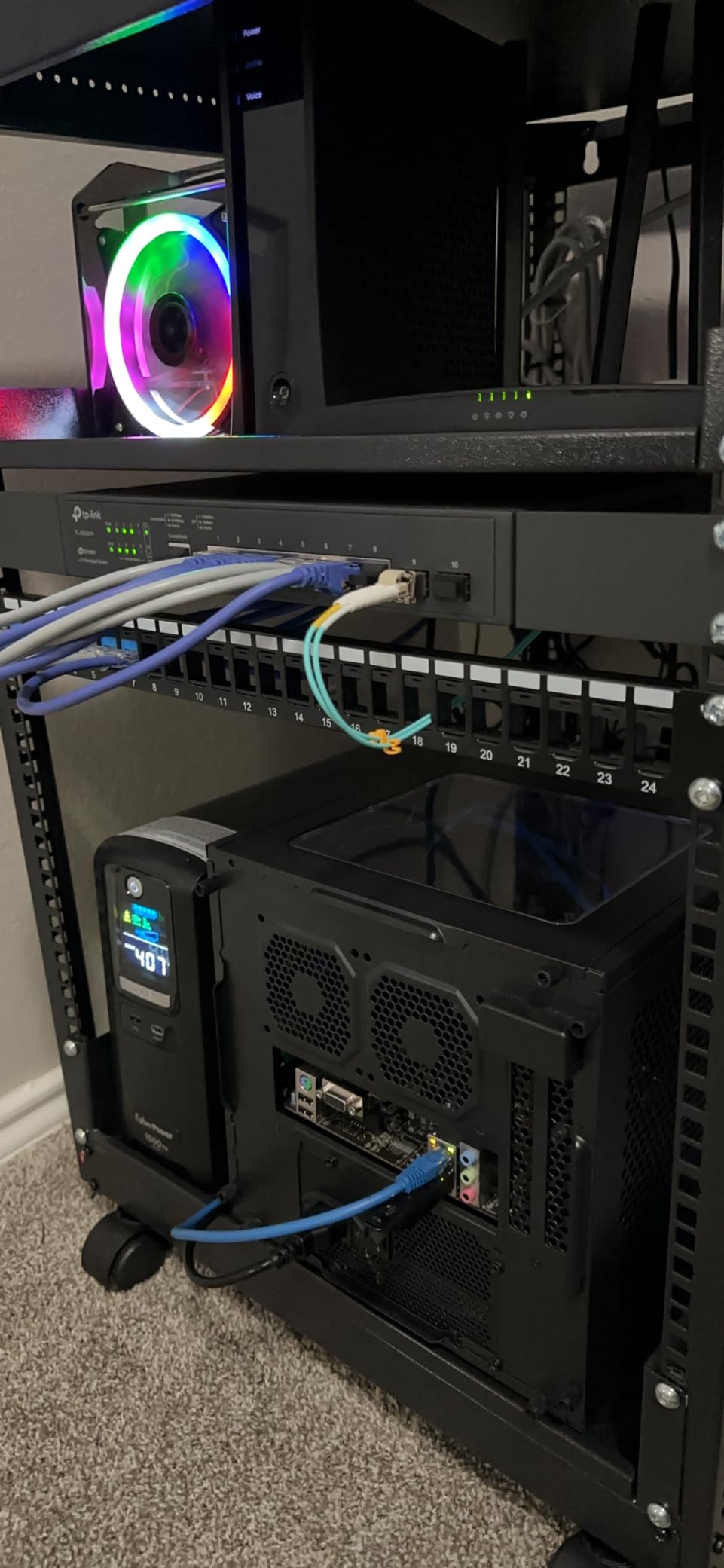

The TRENDnet TC-KP24 is the panel I recommended to a friend who runs IT for a small government contractor. The NDAA compliance was the dealbreaker for his environment, and this panel delivered at a price that made his procurement team happy. At just over 9 ounces, it is noticeably lighter than the Cable Matters equivalent, but the SPCC steel still feels rigid enough for a 24-port installation.
TRENDnet pre-numbers every port sequentially and includes supplementary labels for cable identification. I installed this panel alongside the TC-K25C6 Cat6 keystone jacks that TRENDnet recommends, and the brand-matched fit was perfect. Every jack snapped in cleanly with no wobble. If you want zero compatibility guesswork, using TRENDnet jacks in a TRENDnet panel is the safest combination I tested.
One thing to understand upfront: this is a blank panel, so keystone jacks are not included. You will need to buy them separately. TRENDnet recommends the TC-K25C6 (25-pack) or TC-K50C6 (50-pack) Cat6 keystone jacks. The panel supports gigabit and 10G copper Ethernet applications, so it will handle Cat6 and Cat6A runs without issue.
The biggest gap compared to the Cable Matters panel is the lack of a cable management bar. You can add your own zip ties and routing solution, but it is not built in. For a 24-port panel in a 1U space, that matters. I would pair this panel with a separate cable management finger duct if cable organization is a priority.
Best Use Case for This Panel
This is the best keystone patch panel for anyone who needs NDAA compliance, including government contractors, military installations, and enterprises with strict procurement requirements. The compliance certification is printed right in the product specifications.
It is also a strong pick for anyone who already uses TRENDnet keystone jacks and wants guaranteed brand-matched fit and performance.
Who Should Skip This Panel
If you need a cable management bar included, go with the Cable Matters panel instead. This TRENDnet panel is blank on that front.
Budget for the cost of separate keystone jacks. The panel price is low, but the complete setup cost includes the jacks.
3. Jadaol 24-Port Pass-Through Patch Panel – Best No-Punch-Down Option
Pros
- Preloaded with 24 RJ45 couplers plus 1 spare
- Plug-and-play with no punch-down tools required
- Supports up to 10Gbps with Cat6 cables
- Removable keystone-style couplers for easy replacement
- UL Listed for safety
Cons
- Pass-through only
- no punch-down support
- Requires pre-terminated cables with RJ45 connectors
- Lower review volume than category leaders
I set this panel up for a family member who was terrified of punch-down tools, and it was the fastest installation of all eight panels I tested. The Jadaol 24-port pass-through panel comes preloaded with 24 RJ45 couplers plus a spare, so you just plug your pre-terminated Ethernet cables into the front and back. No tools, no punch-down block, no wiring mistakes. The whole panel was mounted and cabled in under 15 minutes.
The couplers are keystone-style, which means they snap in and out. If one goes bad, you pop it out and snap in the spare. That is a genuinely useful design. The panel includes a rear cable management bar that helps keep the 24 cables organized, and the cold-rolled steel frame feels sturdy enough for a permanent installation.

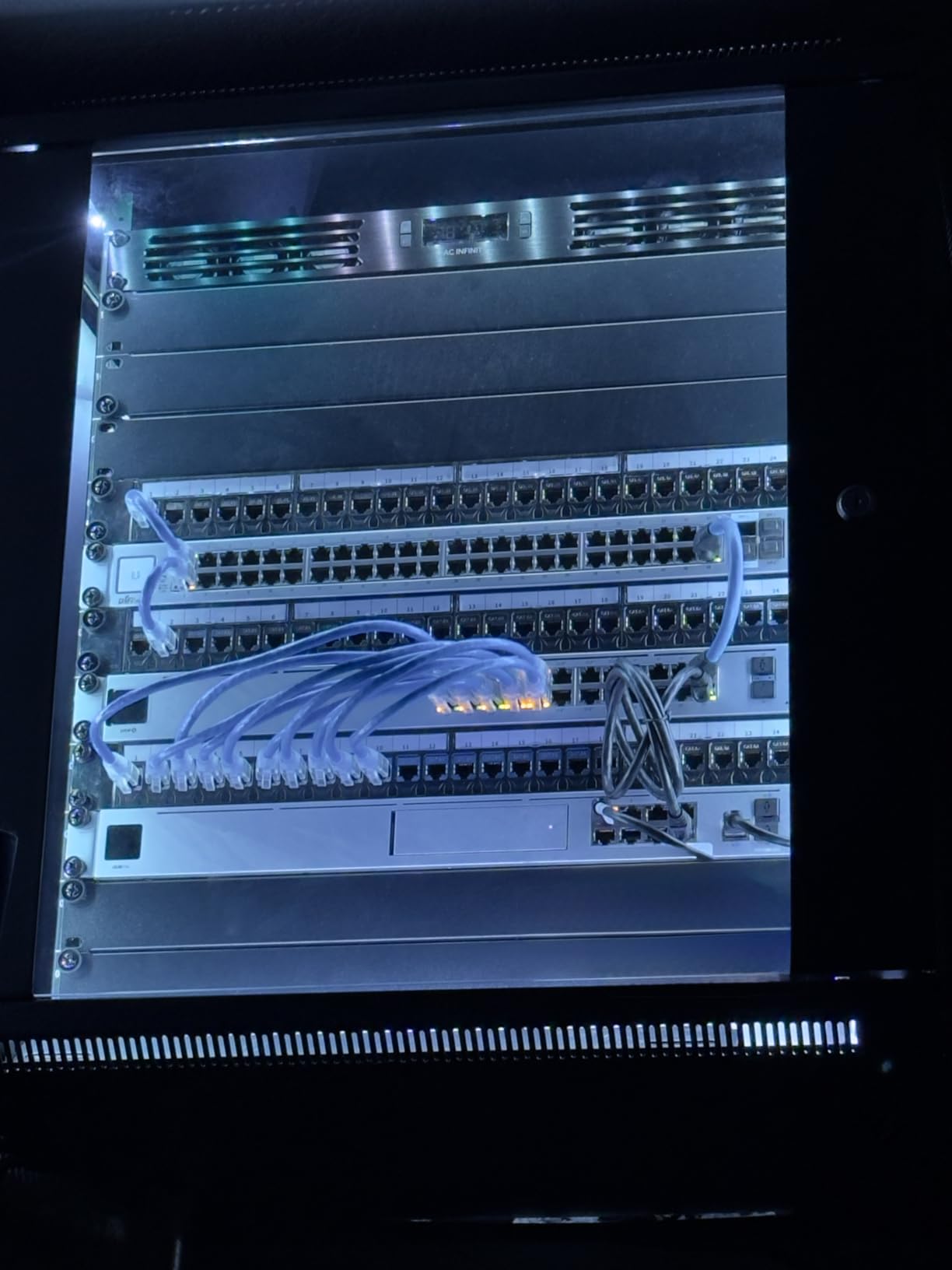

![Jadaol [UL Listed] 24 Port Patch Panel Rackmount or Wall Mount 19-Inch, 1U Cat 6 Network Panel Preloaded with 24 Keystone Couplers Plus 1 Spare, 10Gbps Ethernet Panel with Cable Management & Back Bar customer photo 1](https://ovrclock.com/wp-content/uploads/2026/08/B0DQTG6BBK_customer_1.jpg)
Here is the critical thing to understand: this is a pass-through panel, not a punch-down panel. You cannot terminate bare wire into this panel. Both sides use RJ45 connectors, so you need pre-terminated Ethernet cables on the back side running to your wall jacks or devices. If your existing cabling is raw Cat6 that needs punch-down termination, this panel will not work for you.
The panel supports up to 10Gbps with Cat6 cables and is UL Listed for safety. It is compatible with Cat6, Cat5e, and Cat5 RJ45-terminated cables. The ABS panel face combined with the steel frame keeps the weight at 16 ounces, which is reasonable for a preloaded panel. With 185 reviews and a 4.5-star average, it has fewer data points than the Cable Matters and TRENDnet panels, but the feedback is overwhelmingly positive for the no-tool installation experience.

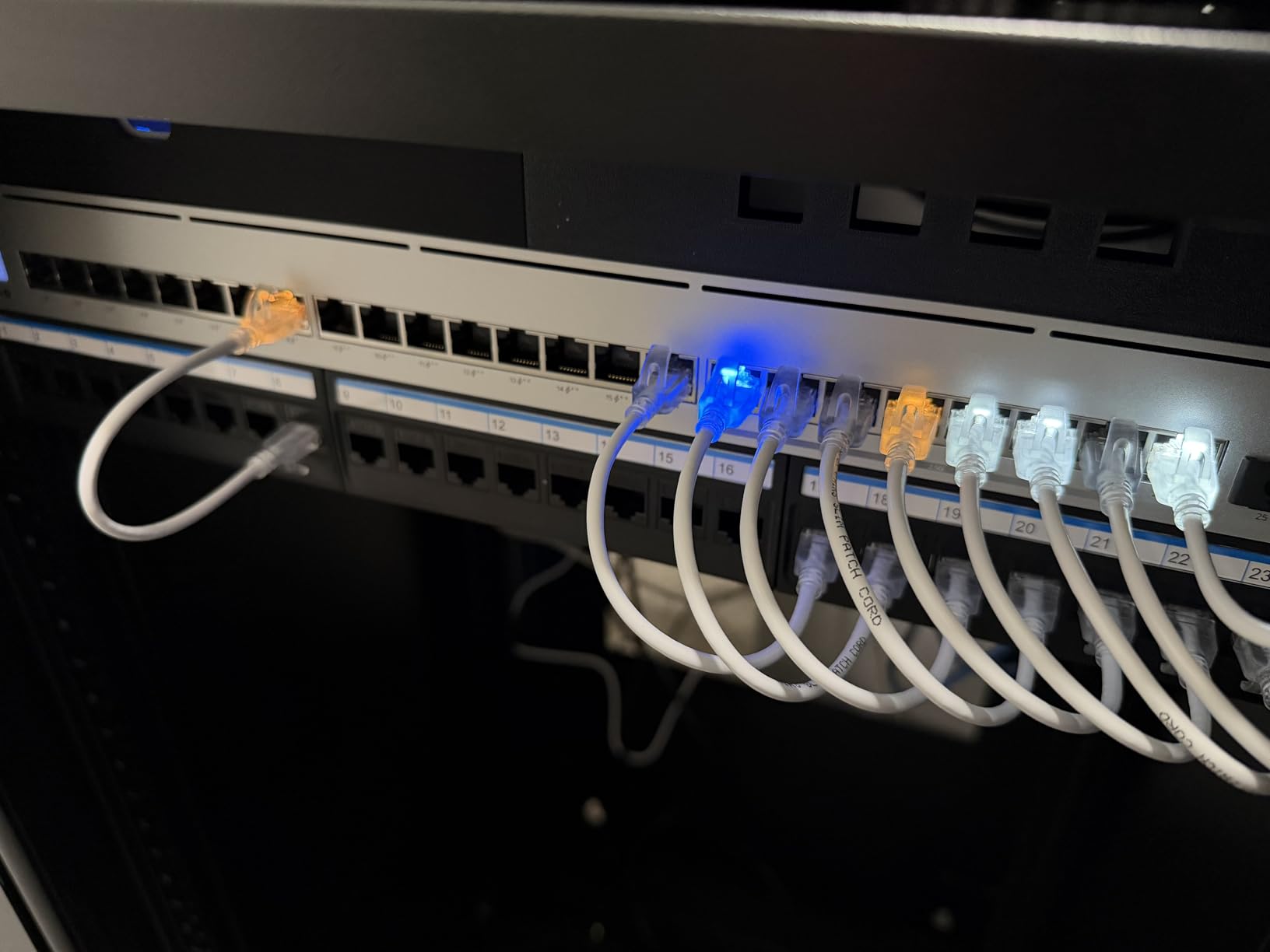

![Jadaol [UL Listed] 24 Port Patch Panel Rackmount or Wall Mount 19-Inch, 1U Cat 6 Network Panel Preloaded with 24 Keystone Couplers Plus 1 Spare, 10Gbps Ethernet Panel with Cable Management & Back Bar customer photo 2](https://ovrclock.com/wp-content/uploads/2026/08/B0DQTG6BBK_customer_2.jpg)
Best Use Case for This Panel
This is the best keystone patch panel for anyone who wants to avoid punch-down work entirely. If you already have pre-terminated Ethernet cables and just need a clean termination point, this panel saves hours of labor.
It is also great for renters or temporary installations where you might want to move the panel and reuse the cables later without re-terminating.
Who Should Skip This Panel
If your cabling is raw, untwisted wire that needs to be punched down into a 110 block, this panel will not work. You need a punch-down panel or a blank keystone panel with punch-down jacks instead.
Also, if you need mixed-media support (HDMI, USB, coax), the preloaded RJ45 couplers limit you to Ethernet only unless you swap some out for compatible keystone couplers.
4. Cable Matters 48-Port 2U Keystone Patch Panel – Best High-Density Panel
Pros
- 48 ports in a 2U form factor for maximum density
- Supports RJ45 HDMI coaxial USB fiber banana and 3.5mm
- Removable rear support bar with 48 C-shaped keyholes
- Heavy-duty 1.5mm steel with flame-retardant coating
- Compatible with Cat5e Cat6 and Cat6A keystones
Cons
- Rear support bar attachment could be more secure
- Mounting screws not included
- Tight fit with some Cat5e keystones when adjacent

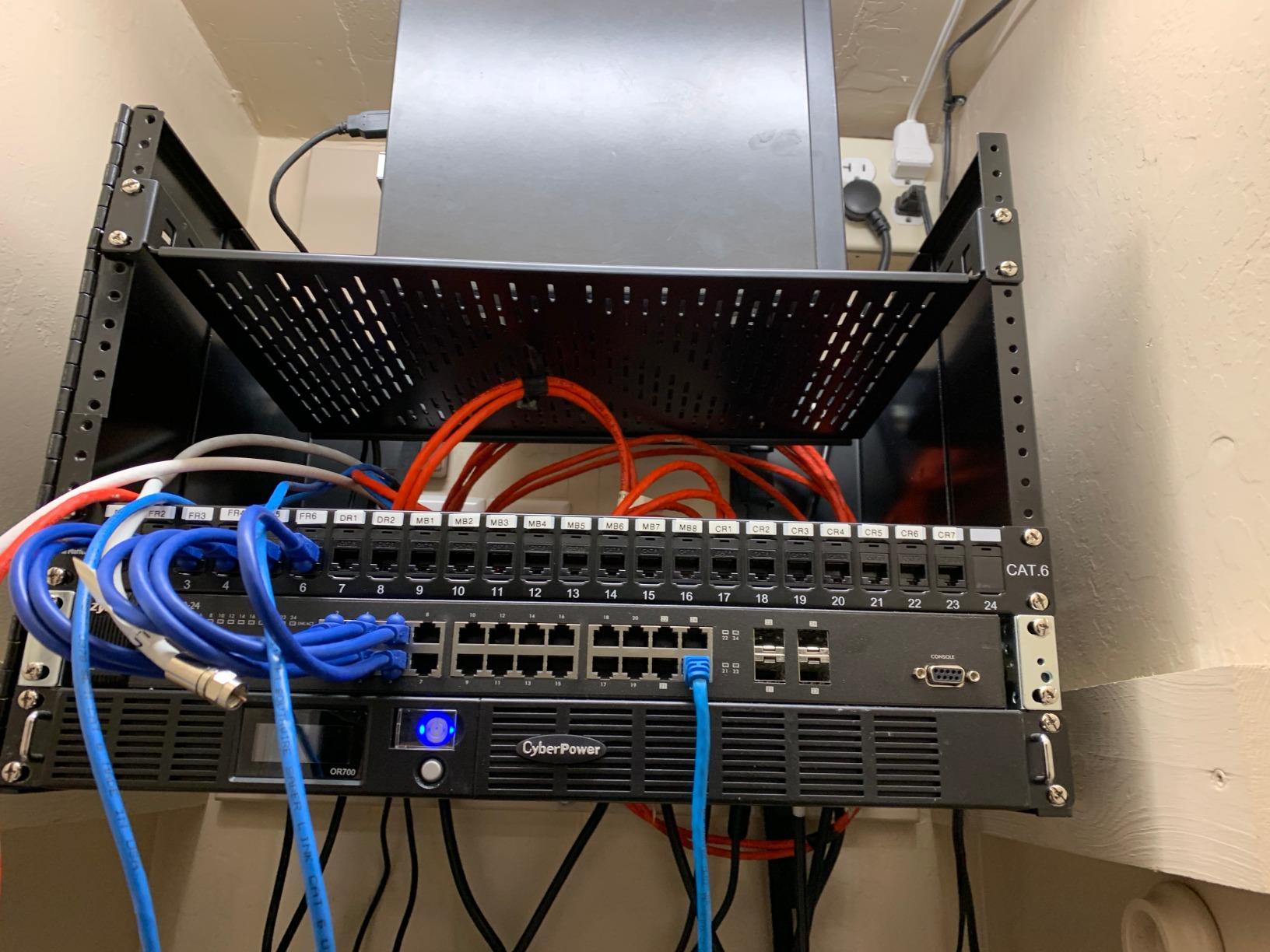

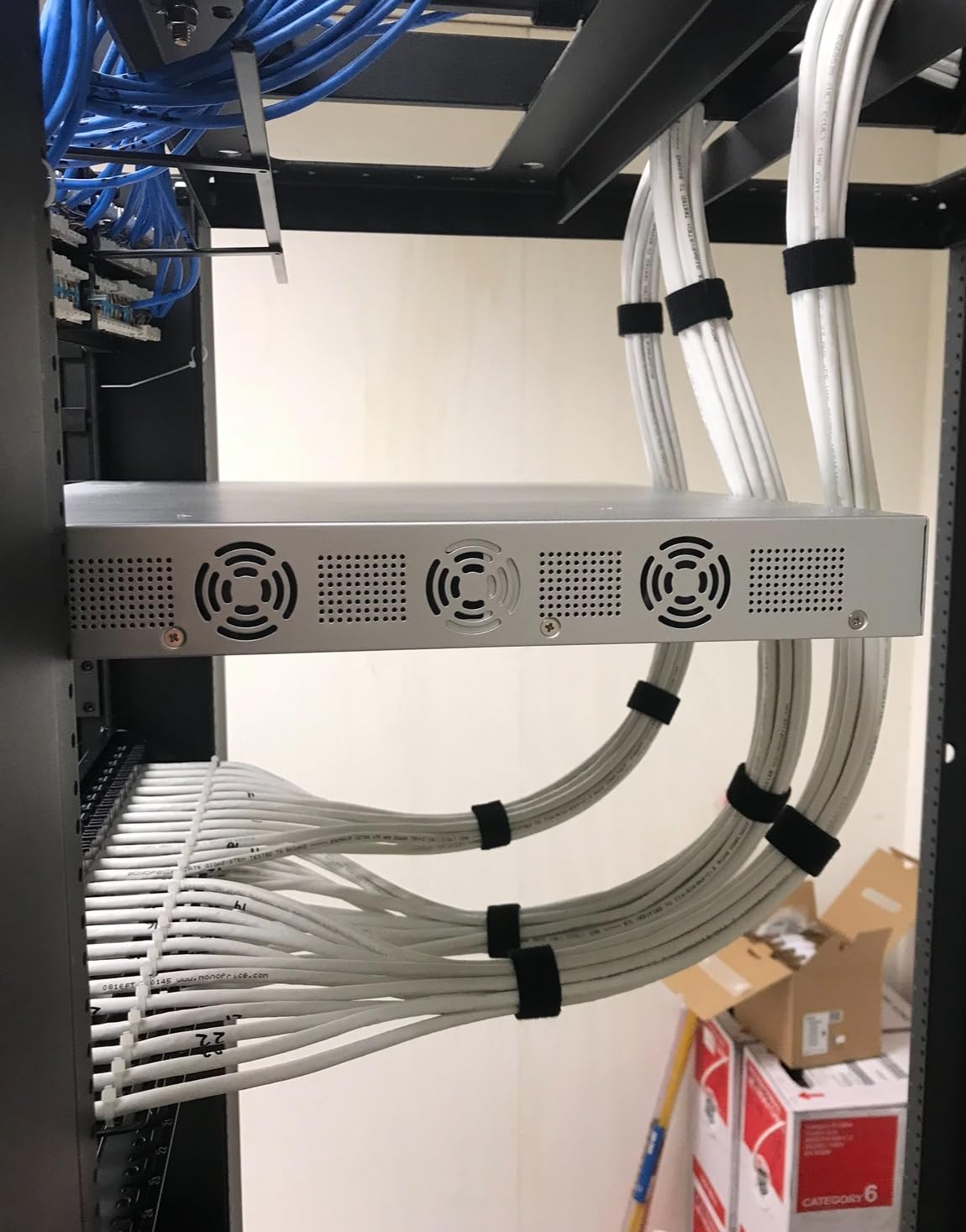

When I outgrew my 24-port panel and needed double the capacity without adding another rack unit, this Cable Matters 48-port 2U panel was the answer. It packs 48 keystone ports into a 2U footprint, which is the same rack space as two 24-port panels but in a single, cleaner unit. I loaded mine with 40 Cat6 RJ45 keystones, 4 HDMI keystones, 2 USB keystones, and 2 blank inserts, and the panel handled the mixed configuration without complaint.
The build quality is a step up from the 1U version. The 1.5mm thick steel frame is substantial and the flame-retardant black powder coating gives it a professional finish. At 48 ports, the removable rear support bar becomes essential. It has 48 evenly spaced C-shaped keyholes for zip ties, and every port is stamped with a sequential number plus a writable label slot. Without this bar, 48 cables would be a disaster. With it, the back of my rack looks organized and serviceable.
Compatibility was excellent across keystone brands. I tested Cable Matters, Monoprice, and CableDepot Cat6 keystones, and all fit cleanly. The only tight spot was with some wider Cat5e keystones when placed adjacent to each other. If you are mixing Cat5e and Cat6 jacks, leave a blank insert between the wider ones for breathing room.
The main issue I encountered is that the rear support bar attaches with screws that could be more secure. A few users on forums mentioned adding a drop of thread-lock or even tack-welding the bar for permanent installations. I did not need to go that far, but if you are supporting 48 heavy cables in a vertical mount, consider reinforcing the bar attachment. Also note that mounting screws are not included, so have your rack screws and cage nuts ready.
Best Use Case for This Panel
This is the best keystone patch panel for high-density installations where you need 40-plus ports in minimal rack space. Home labs with extensive networking, small business server rooms, and AV installations with mixed-media requirements all benefit from the 48-port capacity.
If you are running a true mixed-media setup (Ethernet, HDMI, USB, fiber, audio) and need everything centralized in one panel, the format flexibility here is unmatched.
Who Should Skip This Panel
If you only need 24 or fewer ports, the 1U version is cheaper and takes half the rack space. Do not over-buy density you will not use.
Wall-mount installations with 48 cables can get heavy. Make sure your wall bracket and mounting surface can handle the cable weight plus the panel.
5. iwillink 12-Port Keystone Patch Panel – Best Compact Budget Option
Pros
- Affordable price for a 12-port panel
- Universal HDMI Cat6A Cat6 Cat5e USB compatibility
- Snap-in design for quick installation
- 6 blank keystone inserts included
- Versatile vertical or horizontal mounting
Cons
- Keystone connectors can be tight when adjacent
- Small form factor limits expansion beyond 12 ports
- Numbering may appear upside-down depending on orientation

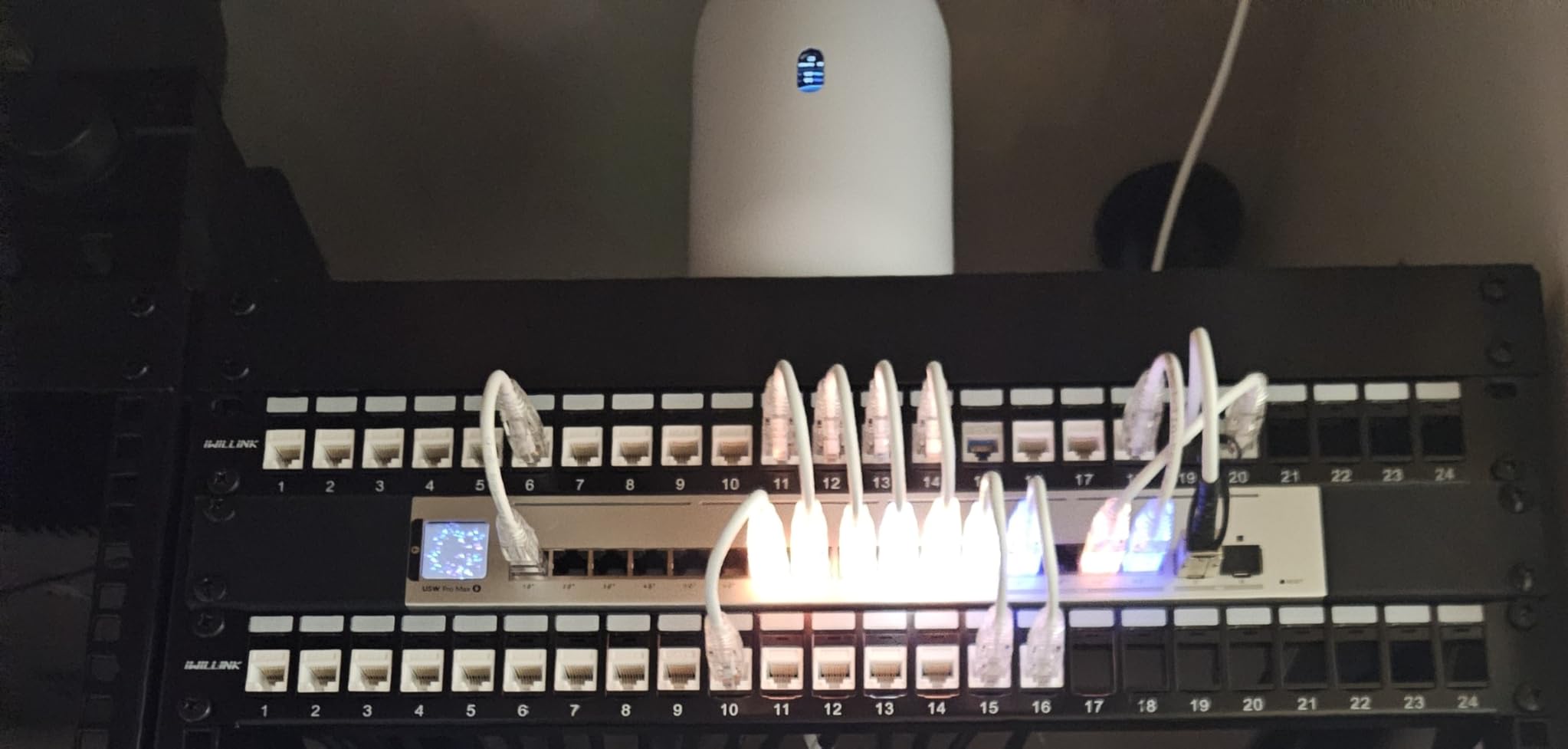

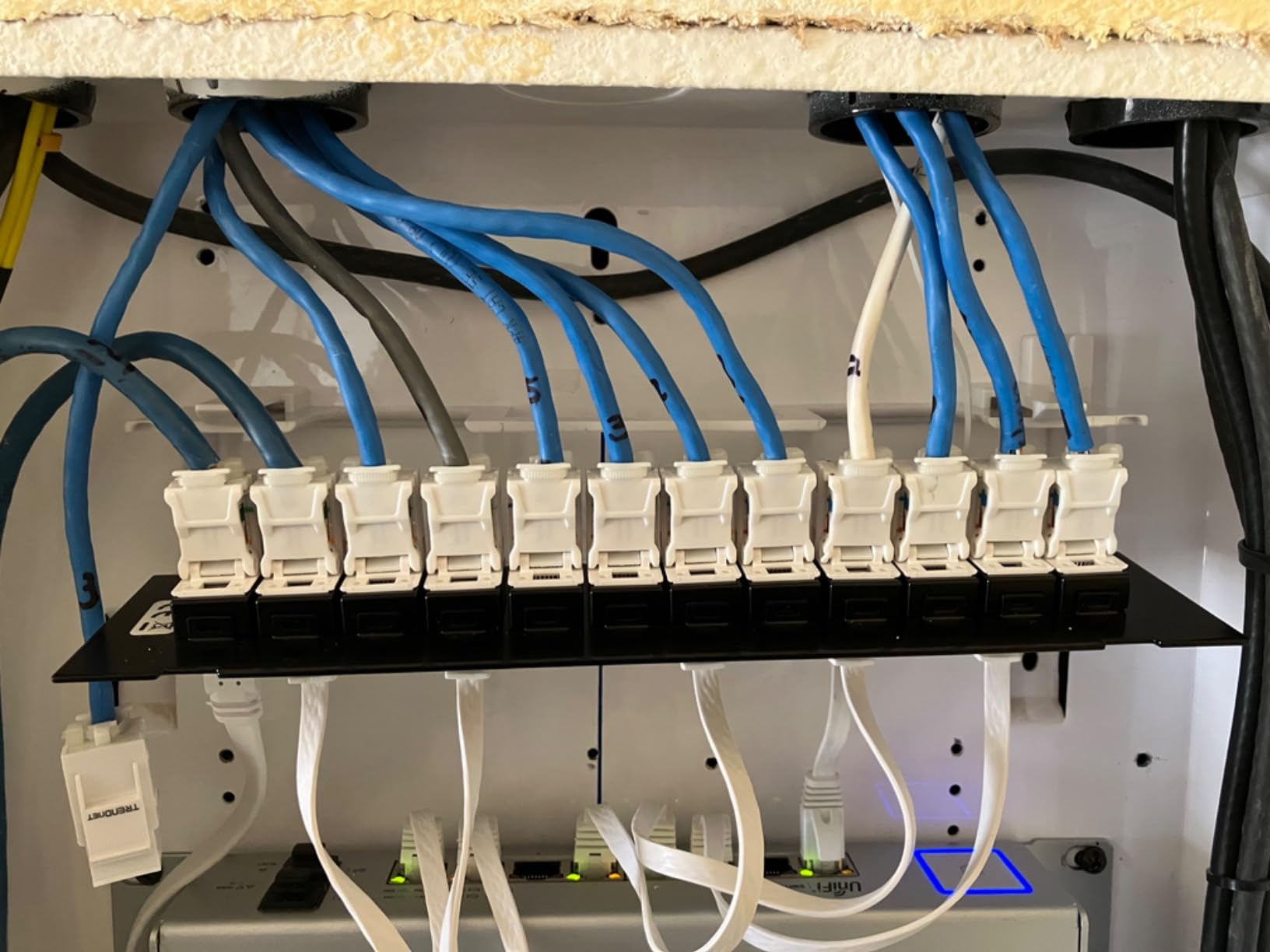

I installed this panel in a structured media enclosure at my parents’ house, and it was the perfect size for a residential network closet that did not need 24 ports. The iwillink 12-port panel fits a standard 10-inch rack, cabinet, or wall bracket at 1U height, making it one of the few compact keystone panels designed for smaller enclosures rather than full 19-inch racks.
The snap-in design worked smoothly with the keystones I tested. I loaded 8 Cat6 RJ45 jacks and 2 HDMI keystones, and the remaining slots were filled with the 6 blank inserts that come included. The blanks snap in securely and keep dust out of unused ports, which is a nice touch at this price point. The bold numbering on the removable writing pad made cable identification easy.
Compatibility is broad for a budget panel. The spec sheet lists HDMI, Cat6A, Cat6, Cat5e, and USB keystone support, and I confirmed that standard-sized jacks from Cable Matters and Monoprice fit without issue. The main fit problem comes when you place wider keystones adjacent to each other. If you hit this, leave a blank insert between them for spacing.
The 2-year warranty from iwillink is better than I expected at this price. The metal construction is lighter gauge than the Cable Matters panels, but it is adequate for a 12-port installation with residential cable loads. With 353 reviews and a 4.6-star average, the feedback is solid. The main complaint pattern is the tight fit between keystones and the small form factor limiting future expansion.
Best Use Case for This Panel
This is the best keystone patch panel for small network closets, structured media enclosures, and residential installations where 12 ports is plenty. It fits 10-inch racks and wall-mount brackets that full 19-inch panels cannot.
If you are on a tight budget and need a clean termination point for a handful of Ethernet and AV cables, this panel delivers excellent value.
Who Should Skip This Panel
If you anticipate expanding beyond 12 ports within the next couple of years, start with a 24-port panel instead. Swapping panels later means re-terminating everything.
This panel is designed for smaller enclosures. If you have a standard 19-inch server rack, a full-size panel will look and fit better.
6. Rapink 24-Port Pass-Through Cat6 Patch Panel – Best Toolless Installation
Pros
- Toolless pass-through design saves up to 70 percent installation time
- Supports 10Gbps via gold-plated 8P8C RJ45 pins
- Detachable steel back bar for cable management
- Individual couplers swappable for fiber HDMI or VGA
- TIA compliant
Cons
- UTP unshielded design offers less EMI protection
- Couplers not individually replaceable without some disassembly
- Lower build weight than premium alternatives

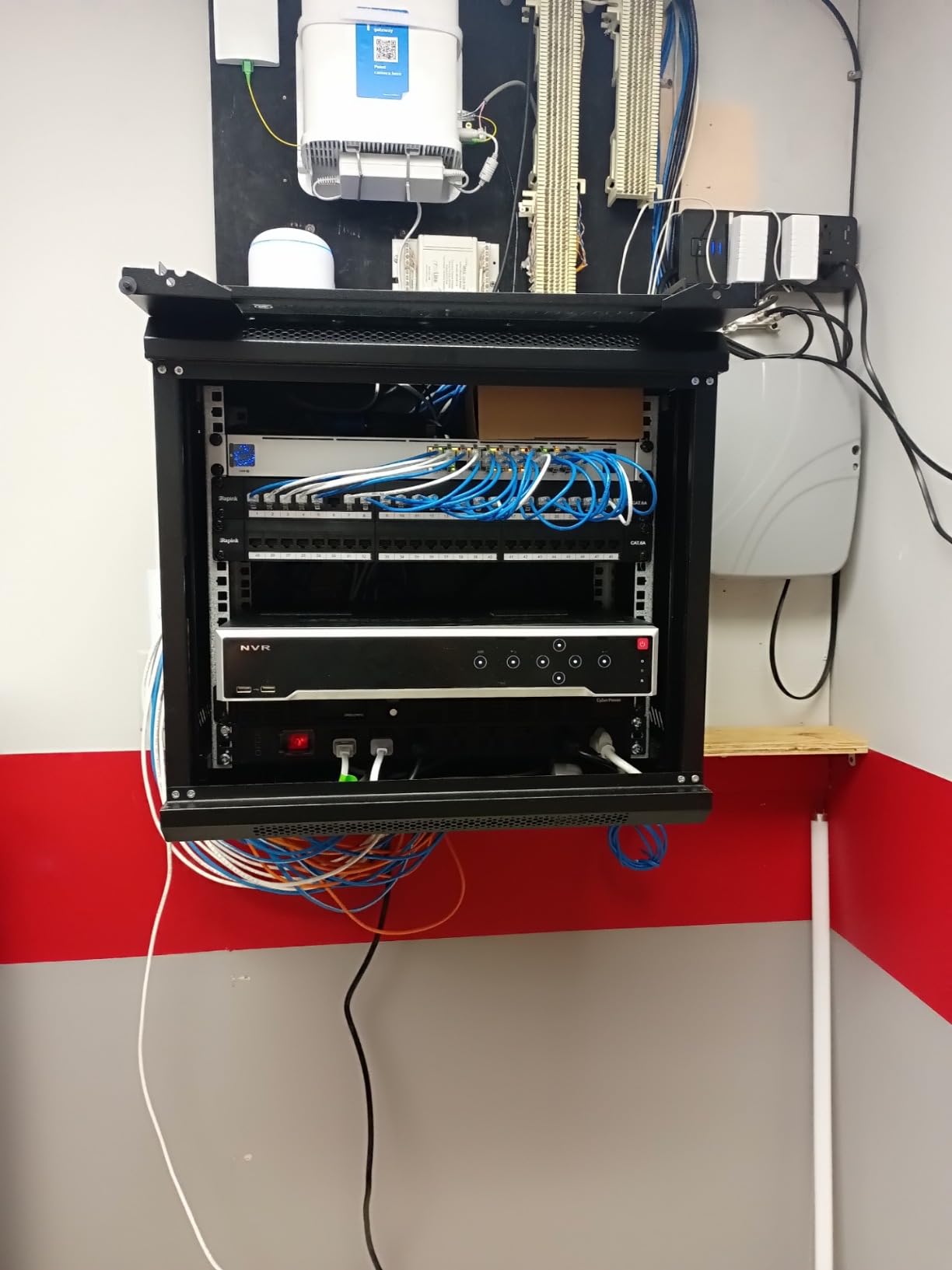

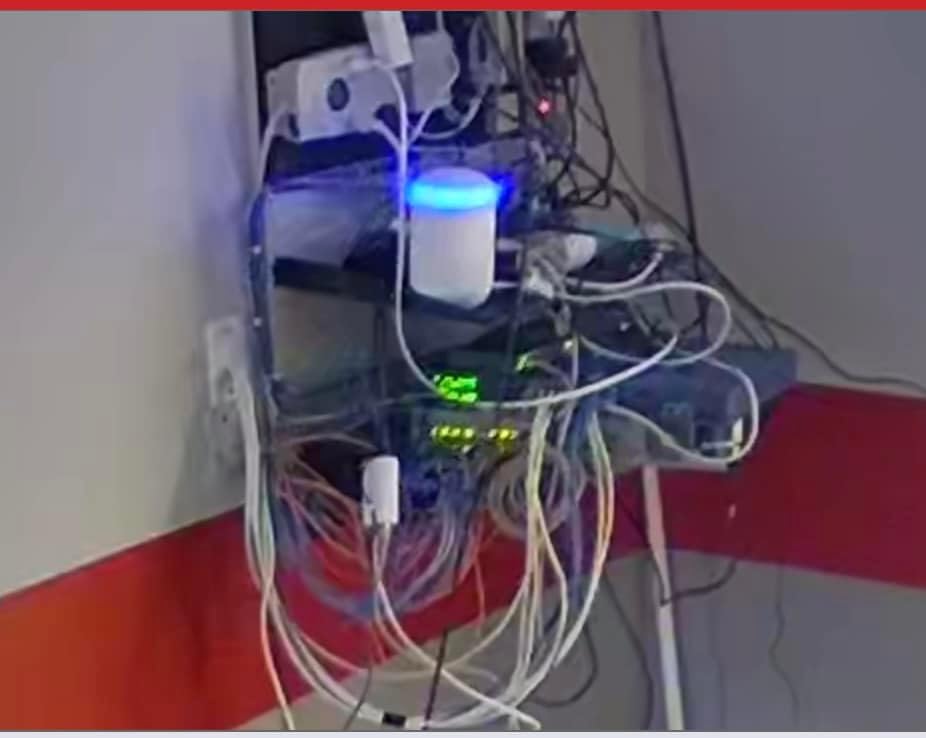

The Rapink pass-through panel caught my attention because of the claimed 70 percent time savings on installation. I timed my install at roughly 12 minutes from unboxing to fully cabled, which is consistent with that claim. Like the Jadaol, this is a pass-through panel with inline RJ45 couplers, so you plug pre-terminated cables into both sides. No punch-down tools, no wire stripping, no termination errors.
What sets the Rapink apart from the Jadaol is the detachable steel back bar and the TIA compliance rating. The back bar is heavier and more rigid, and it does a better job of supporting cable weight and reducing port loosening over time. The gold-plated 8P8C RJ45 pins are a nice upgrade for signal integrity, and the panel is rated for 10Gbps with Cat6 cabling.
The couplers are individually swappable, which means you can replace a bad port or swap in fiber, HDMI, or VGA keystone couplers as your needs change. This gives the Rapink more flexibility than a fixed pass-through panel. The cold-rolled steel frame measures 19 inches and fits standard racks at 1U height.
The main limitation is the UTP (unshielded) design. If your installation environment has significant electromagnetic interference, such as near heavy electrical runs or in industrial settings, you will want a shielded panel instead. For typical home and office environments, UTP is fine and keeps the cost down. With 694 reviews and a 4.6-star average, the Rapink has built a solid reputation in the pass-through category.
Best Use Case for This Panel
This is the best keystone patch panel for installers who want maximum speed and minimal tools. If you are running pre-terminated Cat6 cables and need a clean, fast, 10Gbps-capable termination point, the Rapink delivers.
The swappable couplers also make it a good choice for installations that might evolve from Ethernet-only to mixed-media over time.
Who Should Skip This Panel
If you need shielded (STP) protection against EMI or RFI, this UTP panel will not provide that. Look at the Cable Matters Cat6A STP panel below instead.
If your cables are bare wire requiring punch-down termination, this pass-through design will not accept them.
7. TRENDnet 48-Port Blank Keystone 2U Patch Panel – Best NDAA High-Density Panel
Pros
- NDAA compliant for government and enterprise use
- Sturdy SPCC steel construction rated for 100 pounds
- Pre-numbered sequential ports with writable labels
- Blank design accepts any standard HD keystone jack
- Low price for a 48-port NDAA-compliant panel
Cons
- Keystone jacks sold separately
- No built-in cable management bar
- Limited stock availability at times

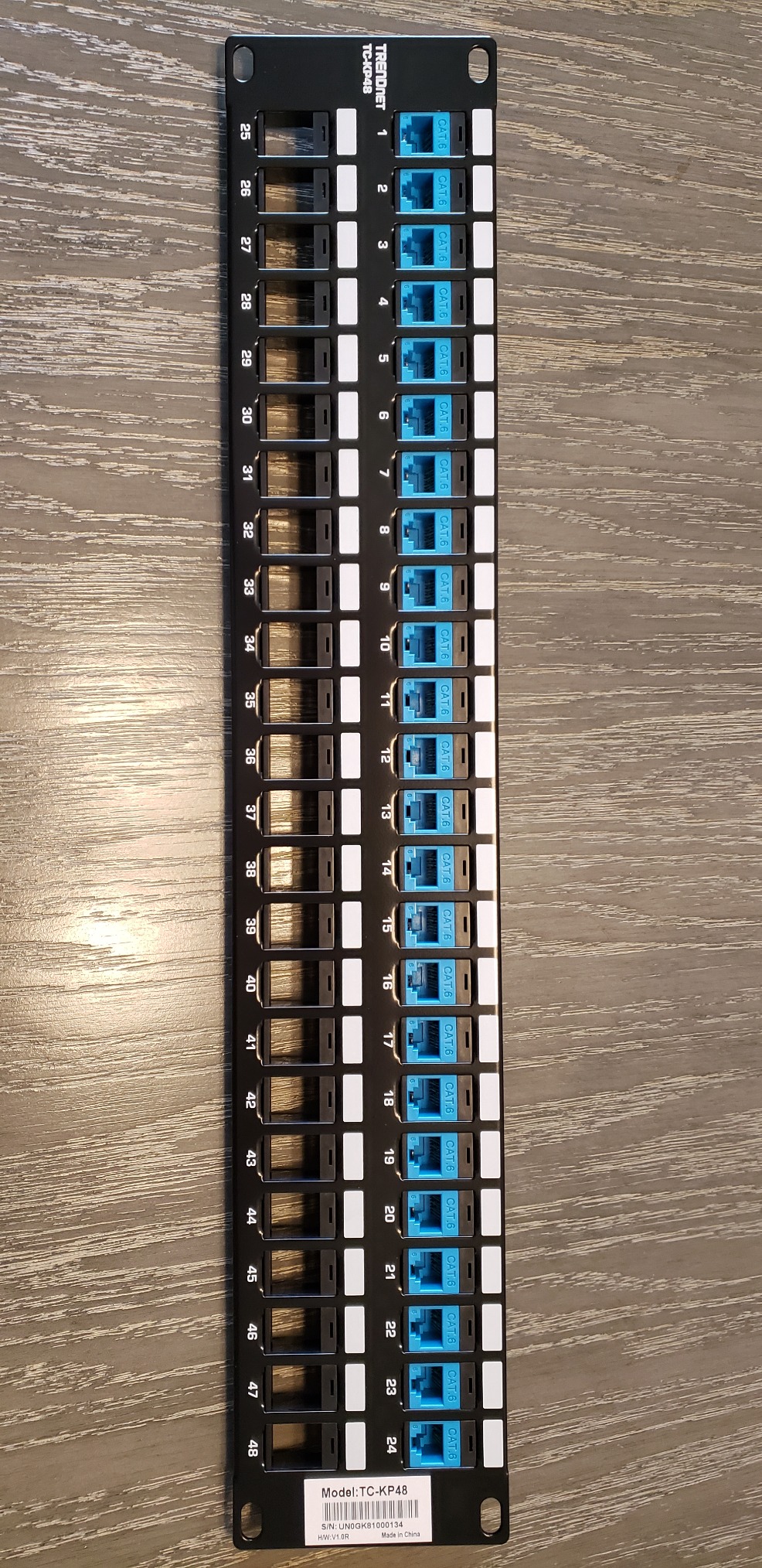

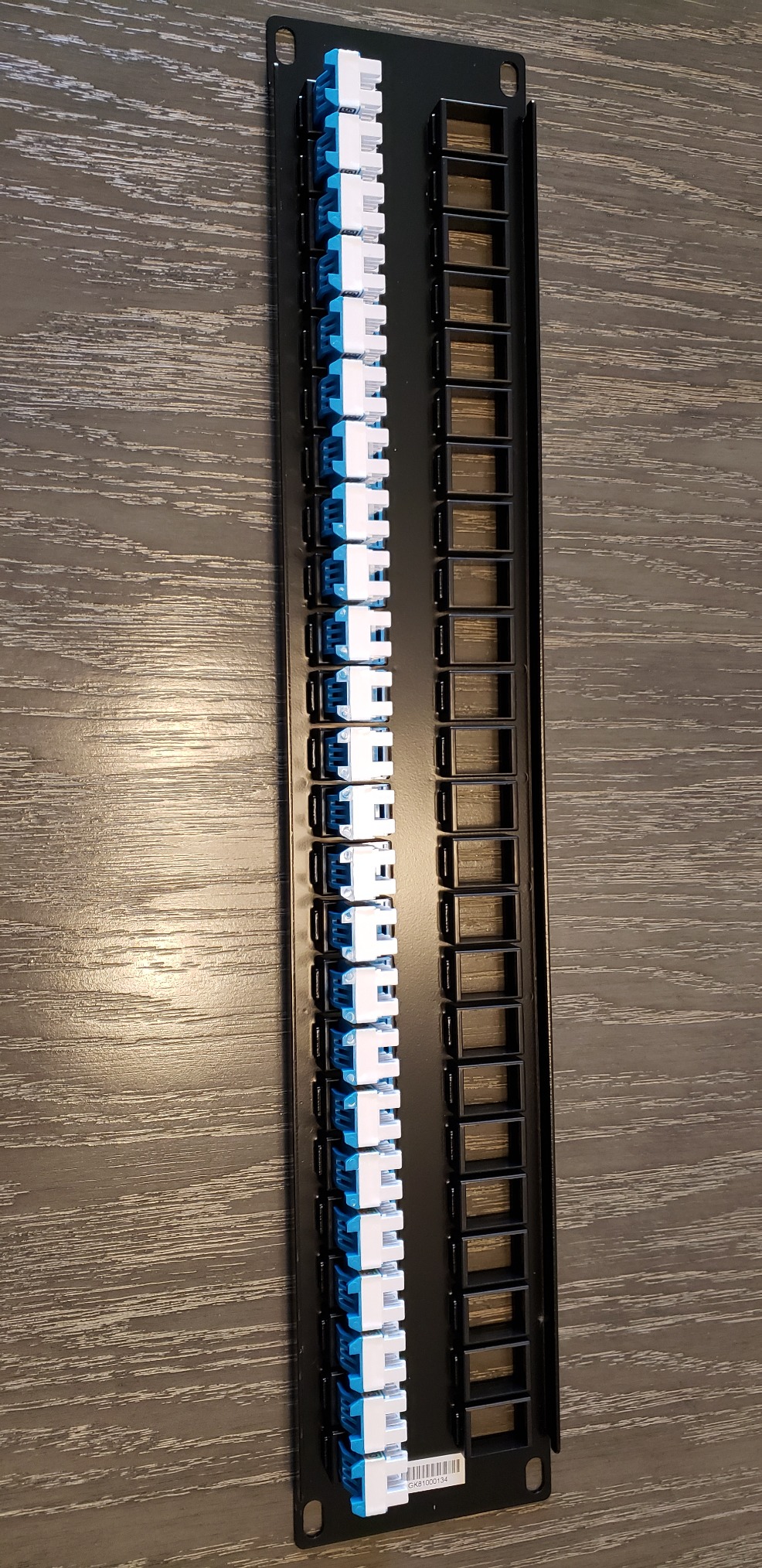

I added this TRENDnet 48-port panel to a small business rack that needed NDAA compliance and high port density. The TC-KP48 is essentially the big brother of the TC-KP24, with the same SPCC steel construction and NDAA certification but doubled capacity in a 2U form factor. The panel is rated for 100 pounds of cable weight, which is more than enough for a fully loaded 48-port installation.
The blank HD keystone design means you customize every port. I loaded 44 Cat6 keystones and 4 blank inserts, all from TRENDnet’s TC-K25C6 line, and the fit was flawless. The pre-numbered ports and writable labels made documentation straightforward. Like the 24-port version, this panel supports gigabit and 10G copper Ethernet when paired with appropriate Cat6 or Cat6A keystones.
The build quality matches what I expect from TRENDnet. The 2-year manufacturer warranty and English-speaking tech support during business hours add confidence, especially for business installations where downtime is costly. At 1 pound, the panel itself is lightweight, but the 100-pound cable weight capacity tells you the steel is thick enough to handle serious loads.
The two main drawbacks are the same as the 24-port TRENDnet: no cable management bar and no included keystone jacks. For a 48-port panel, the lack of a management bar is a bigger issue than on the 24-port version. You will definitely want to pair this with a separate cable management solution, whether that is a finger duct, a D-ring, or a routing bar below the panel. Also, stock can be intermittent, so check availability if you have a project deadline.
Best Use Case for This Panel
This is the best keystone patch panel for NDAA-compliant installations that need 48 ports in 2U of rack space. Government offices, military contractors, and enterprise environments with strict compliance requirements will appreciate the certification and the TRENDnet warranty.
It is also a strong value pick for any high-density installation where NDAA compliance is a bonus rather than a requirement.
Who Should Skip This Panel
If cable management bar inclusion is important to you, the Cable Matters 48-port panel includes one and this TRENDnet does not. Factor in the cost of a separate management solution.
If you need pass-through couplers rather than a blank panel, look at the Jadaol or Rapink options above.
8. Cable Matters Cat6A 24-Port STP Patch Panel – Best Shielded 10G Panel
Pros
- 10Gbps Cat6A STP performance with per-port EMI RFI shielding
- Full PoE PoE+ PoE++ support for cameras APs and powered devices
- Customizable keystone configuration with swappable couplers
- Includes 26 cable ties 4 hook-and-loop ties and rack hardware
- Lifetime warranty from Cable Matters
Cons
- STP design requires proper grounding to realize EMI benefits
- Heavier at 1.89 pounds compared to UTP alternatives
- Newer product with fewer reviews than category leaders

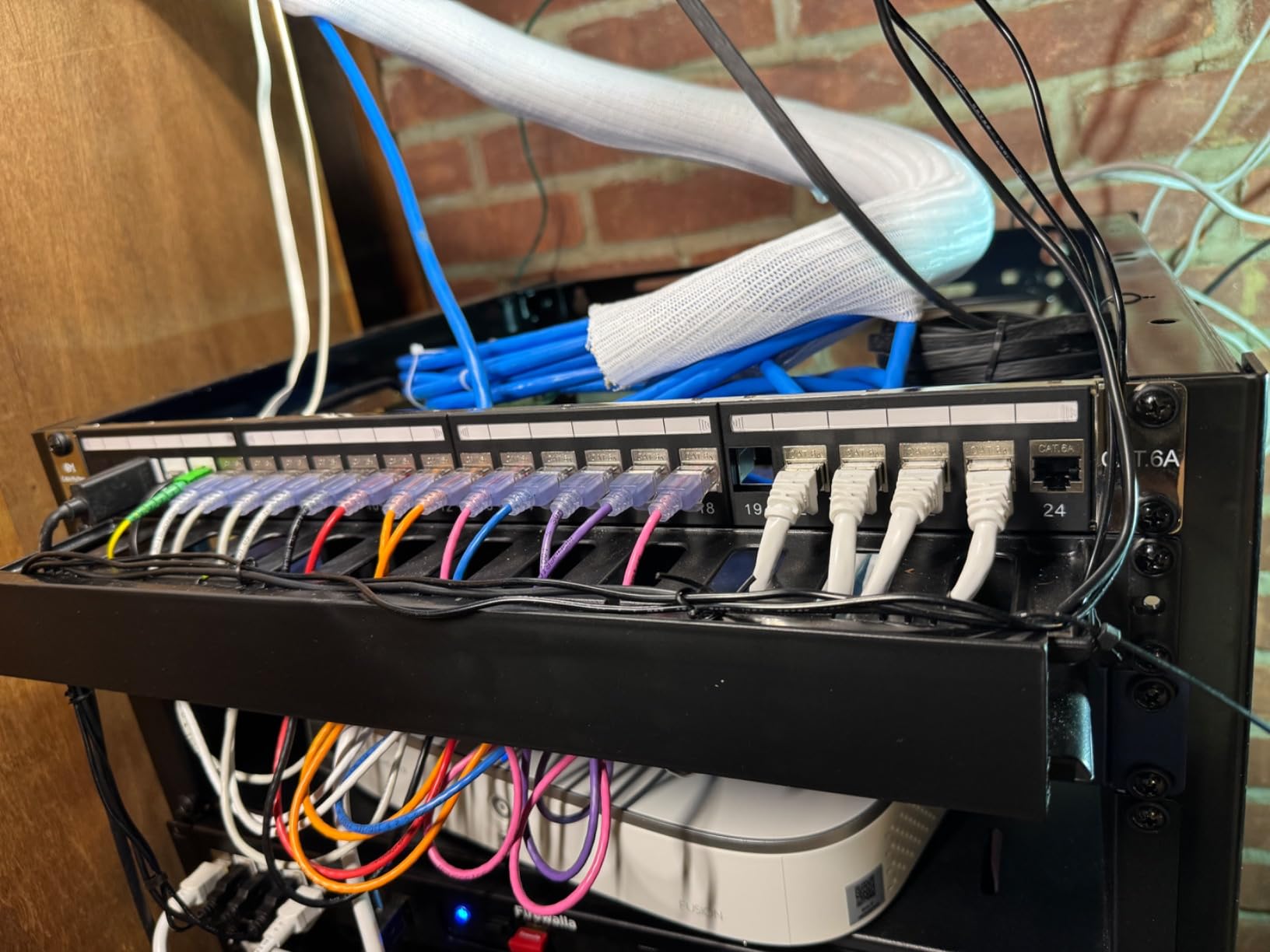

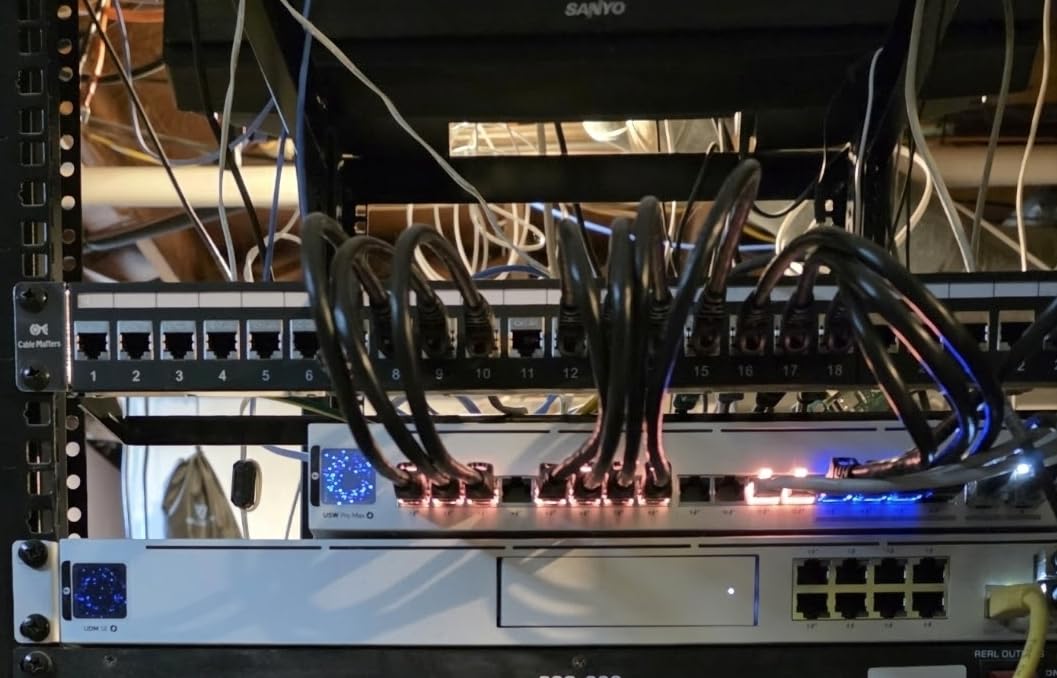

I installed this Cable Matters Cat6A shielded panel in an industrial-adjacent office where EMI from nearby heavy machinery was causing intermittent network issues on unshielded runs. The difference was measurable. The per-port foil shielding on the STP couplers cleaned up the signal integrity issues, and the 10Gbps Cat6A rating gave us headroom for future upgrades.
This panel uses inline keystone couplers, which means it is a pass-through design similar to the Rapink and Jadaol. But the STP (shielded twisted pair) construction is the differentiator. Each port has individual foil or mesh shielding to block EMI and RFI. The included STP Cat6A RJ45 couplers can be swapped for any alternative keystone jack if your needs change, giving you both shielding and flexibility.
The cable management bar is robust, with C-shaped keyholes and sequential port labels matching the design of the Cable Matters blank panels. The accessory package is the most complete of any panel I tested: 26 cable ties, 4 hook-and-loop reusable ties, and 4 sets of rack screws and cage nuts. Most panels include zero accessories, so this is a genuine value-add.
The critical thing to understand about shielded panels is that they require proper grounding to function correctly. If you do not ground the panel to your rack or building ground, the shielding can actually act as an antenna and make interference worse. I used a grounding lug connected to the rack frame, and it worked as intended. The panel is heavier at 1.89 pounds, which reflects the shielding materials. With 115 reviews and a 4.6-star average, it is a newer product but the early feedback is strong.
Best Use Case for This Panel
This is the best keystone patch panel for environments with significant EMI or RFI, including industrial settings, installations near heavy electrical equipment, and data centers running high-frequency 10Gbps Cat6A. The full PoE support also makes it ideal for IP camera networks and wireless access point deployments.
If you want 10Gbps now with shielding for future-proofing, this panel covers both bases.
Who Should Skip This Panel
If your installation is in a clean residential or office environment with no significant interference sources, the extra cost and weight of STP shielding is unnecessary. A UTP panel will perform identically for less money.
If you are not prepared to properly ground the panel, skip shielded panels entirely. Improper grounding defeats the purpose and can worsen interference.
Buying Guide: How to Choose the Best Keystone Patch Panel?
Choosing the right keystone patch panel comes down to understanding your port needs, mounting options, keystone compatibility, and installation preferences. I have broken down the key factors below based on what I learned across eight panel installations.
Port Density and Form Factor (1U vs 2U)
Port density is the first decision. Count the number of cables you need to terminate today, then add 30 to 50 percent for future expansion. A 24-port 1U panel handles most home labs and small offices. A 48-port 2U panel is better for larger installations or mixed-media setups where you need Ethernet alongside HDMI, USB, and other connections.
1U means the panel takes up 1.75 inches of vertical rack space. 2U means 3.5 inches. If rack space is tight, a 48-port 2U panel gives you double the density of a 24-port 1U panel in the same number of rack units. For wall-mount enclosures and structured media cabinets, a 12-port panel may be the right fit.
Keystone Compatibility and Mixed-Media Support
Most blank keystone panels accept standard-sized keystone jacks, but fit can vary by brand. I found that Cable Matters and TRENDnet jacks fit their own panels perfectly. Third-party jacks from Monoprice and CableDepot fit most panels cleanly, but wider jacks from ICC and Tripp Lite can be tight in adjacent slots. If you already own keystones, check compatibility before buying a panel.
Mixed-media support is where keystone panels shine. If you need Ethernet, HDMI, USB, coaxial, fiber, and audio in one panel, look for blank panels that explicitly list multi-format support. The Cable Matters panels are the most flexible in this regard.
Punch-Down vs Keystone vs Pass-Through
This is the decision that confuses more buyers than any other. Here is the simple breakdown. A traditional punch-down panel has fixed 110 termination blocks where you use a punch-down tool to secure bare wire. It is permanent, reliable, but hard to modify. A blank keystone panel has empty slots where you snap in keystone jacks that you have already terminated or purchased pre-terminated. It is flexible and upgradable. A pass-through panel has inline couplers on both sides, so you plug pre-terminated RJ45 cables into the front and back with no tools at all.
For home labs and mixed-media setups, blank keystone panels are the best choice. For fast installations with pre-terminated cable runs, pass-through panels save the most time. For traditional structured cabling with raw wire runs, punch-down panels or blank panels with punch-down keystone jacks are still the standard.
Shielded vs Unshielded Panels
UTP (unshielded twisted pair) panels are fine for the vast majority of home and office installations. STP (shielded twisted pair) panels add per-port foil or mesh shielding that blocks EMI and RFI. You need shielded panels if your cabling runs near fluorescent lights, heavy electrical equipment, motors, or other interference sources. Shielded panels must be properly grounded to function, so factor in grounding hardware and setup time.
NDAA Compliance
NDAA compliance matters if you work in government, military, or contractor environments. The National Defense Authorization Act restricts certain telecommunications equipment from covered networks. Both TRENDnet keystone panels in this guide are NDAA compliant, making them safe choices for government and enterprise procurement. If NDAA compliance is not relevant to your situation, it should not factor into your buying decision.
Cable Management Features
A good cable management bar makes the difference between a professional installation and a mess. Look for panels with removable rear support bars that have C-shaped keyholes aligned to each port. These let you zip-tie cables in sequence, which keeps the back of your rack organized and makes future changes far easier. The Cable Matters panels include this feature standard. The TRENDnet panels do not, so budget for a separate cable management solution.
Installation Tips
Plan your port assignments before you start snapping in keystones. Write your labels first, then install. Leave blank inserts in unused ports to keep dust out and make future additions obvious. Route your cables to the management bar before terminating, not after. And always test continuity on every run before you close up the rack. These steps take an extra 15 minutes during installation but save hours of troubleshooting later.
FAQs
What is a keystone patch panel?
A keystone patch panel is a blank or preconfigured rackmount or wall-mount panel with modular ports that accept snap-in keystone jacks. You can install RJ45, HDMI, USB, coaxial, fiber, and audio jacks in the same panel to centralize and organize multiple cable types in one standardized rack footprint.
What is the difference between keystone and regular patch panels?
A regular patch panel has fixed punch-down termination blocks where you secure bare wire with a punch-down tool. A keystone patch panel has empty slots that accept modular snap-in keystone jacks, letting you customize each port and swap jacks as needed. Keystone panels are more flexible and easier to upgrade.
Do I need a shielded keystone patch panel?
You need a shielded (STP) keystone patch panel if your cabling runs near significant sources of electromagnetic interference, such as heavy electrical equipment, motors, or fluorescent lighting. For typical home and office environments, unshielded (UTP) panels perform equally well at a lower cost.
Can I mix keystone jacks from different brands?
Yes, most blank keystone panels accept standard-sized keystone jacks from multiple brands. However, fit can vary slightly. Wider jacks from brands like ICC or Tripp Lite may sit tightly when placed adjacent to each other. Test one jack before loading a full panel, and use blank inserts for spacing if needed.
What does 1U or 2U mean?
1U and 2U are rack height measurements. 1U equals 1.75 inches of vertical rack space, while 2U equals 3.5 inches. A 24-port keystone panel typically fits in 1U, while a 48-port panel usually requires 2U. The U designation comes from the EIA-310 standard for 19-inch server racks.
Can I use keystone patch panels for Cat6 or Cat6A cabling?
Yes, keystone patch panels work with Cat5e, Cat6, and Cat6A cabling. The panel itself does not determine cable category. The keystone jacks you install determine performance. Use Cat6 keystones for gigabit and short 10G runs, and Cat6A keystones for full 10Gbps performance over longer distances.
Do I need NDAA-compliant panels?
You need NDAA-compliant panels only if you work in government, military, or contractor environments subject to National Defense Authorization Act procurement restrictions. For home labs, small businesses, and standard enterprise networks, NDAA compliance is not relevant and should not influence your buying decision.
How do I plan for future expansion?
Buy a panel with 30 to 50 percent more ports than you currently need. If you have 16 cables today, get a 24-port panel. Use blank inserts in unused ports to keep them clean. Choose a blank keystone panel over a preloaded one so you can add or change jack types without replacing the entire panel.
Conclusion
After testing eight panels across home lab and small business installations, the Cable Matters 1U 24-port blank keystone patch panel remains my top overall pick for its unmatched flexibility, cable management bar, and lifetime warranty. For NDAA-compliant environments, the TRENDnet TC-KP24 is the best value. And for anyone who wants to skip punch-down work entirely, the Jadaol pass-through panel gets you cabled in under 15 minutes.
The best keystone patch panels in 2026 all share a few traits: solid steel construction, clean port labeling, and compatibility with standard keystone jacks from multiple brands. Pick the port density and panel type that match your installation, and you will have a clean, professional, and upgradeable network for years to come.
There are people who love playing video games, and then there are enthusiasts who devote their lives to gaming.
Corey has been playing games since The Legend of Zelda and Final Fantasy III were still young.
Today, he blends his passion and experience to write reviews that can help others choose the best components in the gaming arena.
