Search for the best fuel injector cleaning kits for cars and you will land on three completely different product types wearing the same name. There are additive bottles you pour into the tank, small pulse testers that fire one injector at a time on the bench, and pressurized machines that flush the whole fuel rail with the engine still on the car. No editorial roundup ranks on page one for this query, so we built one and sorted all ten kits by what they actually do.
I have worked through this category end to end. The confusing part is not the buying, it is that a bottle of cleaner and a pressurized flush machine solve the same problem at very different levels of cost and effort, and most listings never tell you which one you are looking at. Ten products are covered below, from a two-adapter budget tester to a bench machine that ultrasonically cleans four injectors and measures them in the same cycle.
Two things come before the recommendations. First, whether injector cleaning is worth doing at all, because a vacuum leak or a tired oxygen sensor will produce identical symptoms. Second, the port injection versus direct injection question, since some of the machines in this list are useless on a modern GDI engine while others are built for exactly that hardware. If you would rather read about tool care in a different category, our gun cleaning kit roundup covers the same maintenance-first approach in a different room.
Table of Contents
Top 3 Picks for the Best Fuel Injector Cleaning Kits in 2026
allsun EM276SET Tester and Adapter Kit
- 8 pulse modes and 4 signal outputs
- Large LED mode display
- Works with any fuel pressure tester
- Powers from a 12V vehicle battery
THIKPO TK-F4 Universal Tester and Cleaner
- 8 pulse modes across 12V and 5V drive
- Dual channel tests two injectors at once
- 8 adapter sizes plus BMW N-series
- Dual output voltage and short circuit protection
AUTOOL C100 Non-Dismantle Flush Machine
- Non-dismantle cleaning to 150 PSI
- Stainless steel body with brass fittings
- 1000ml canister capacity
- Cleans throttle valve and intake
Those three cover very different jobs. The allsun EM276SET is the tester-and-adapter set most people should start with, the THIKPO TK-F4 adds the voltage options needed to free a genuinely seized injector, and the AUTOOL C100 is the machine that flushes a whole fuel system without pulling the intake manifold.
Best Fuel Injector Cleaning Kits (October 2026)
| Product | Specifications | Action |
|---|---|---|
| allsun EM276SET Fuel Injector Tester and Adapter Kit |
|
Check Latest Price |
| THIKPO Universal Fuel Injector Tester and Cleaner Kit |
|
Check Latest Price |
 KAISAL QC80 1000ML 150PSI Non-Dismantle Cleaner |
|
Check Latest Price |
| AUTOOL C100 Non-Dismantle 150PSI Cleaner |
|
Check Latest Price |
 JEUCLEL Upgraded Fuel Injector Tester and Cleaner Kit |
|
Check Latest Price |
 AUTOOL CT60 Tester and Cleaner with 70V Drive |
|
Check Latest Price |
 MR CARTOOL N02 5V/12V Tester and Cleaner |
|
Check Latest Price |
 X AUTOHAUX C80 600ML 140PSI Non-Dismantle Cleaner |
|
Check Latest Price |
 FOXWELL JT200 Fuel Injector Tester Cleaner |
|
Check Latest Price |
 MR CARTOOL V308 Ultrasonic Cleaner and Tester |
|
Check Latest Price |

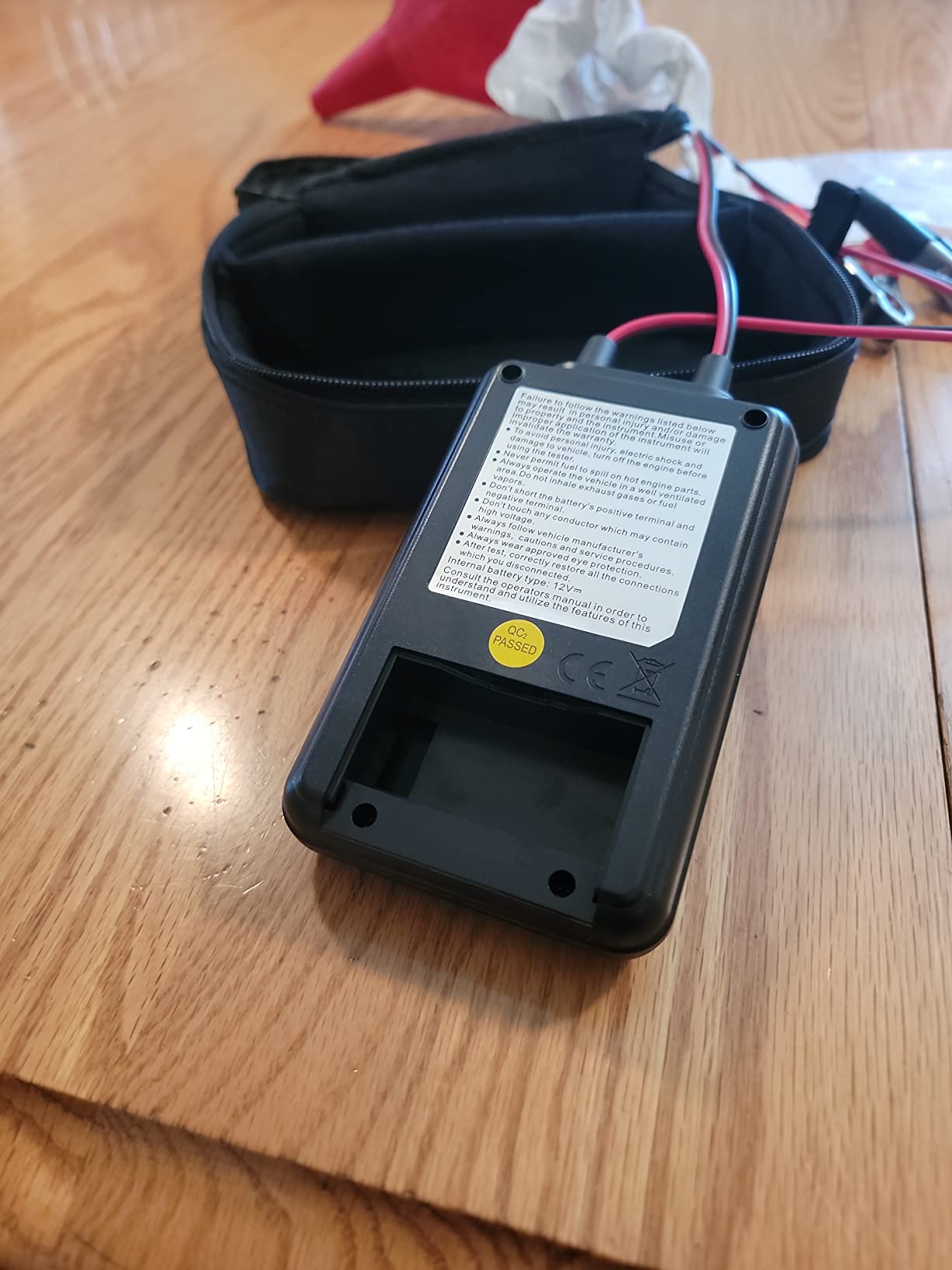

1. allsun EM276SET Tester and Adapter Kit – Best All-Round Tester and Adapter Kit
Pros
- Tests injectors individually to find stuck
- leaking or burnt-out units without removal
- Most reviewed tester in this group with 1871 ratings
- Comes with a tester adapter pair carrying bag and manual
- Silicone-jacketed cables tolerate temperature swings
Cons
- Supplied blade connectors are often too large for Bosch-style injector terminals
- Spray-can adapter opening may need modification to seal standard carb cleaner nozzles
- Effectively a two-person job while holding injector adapter and can

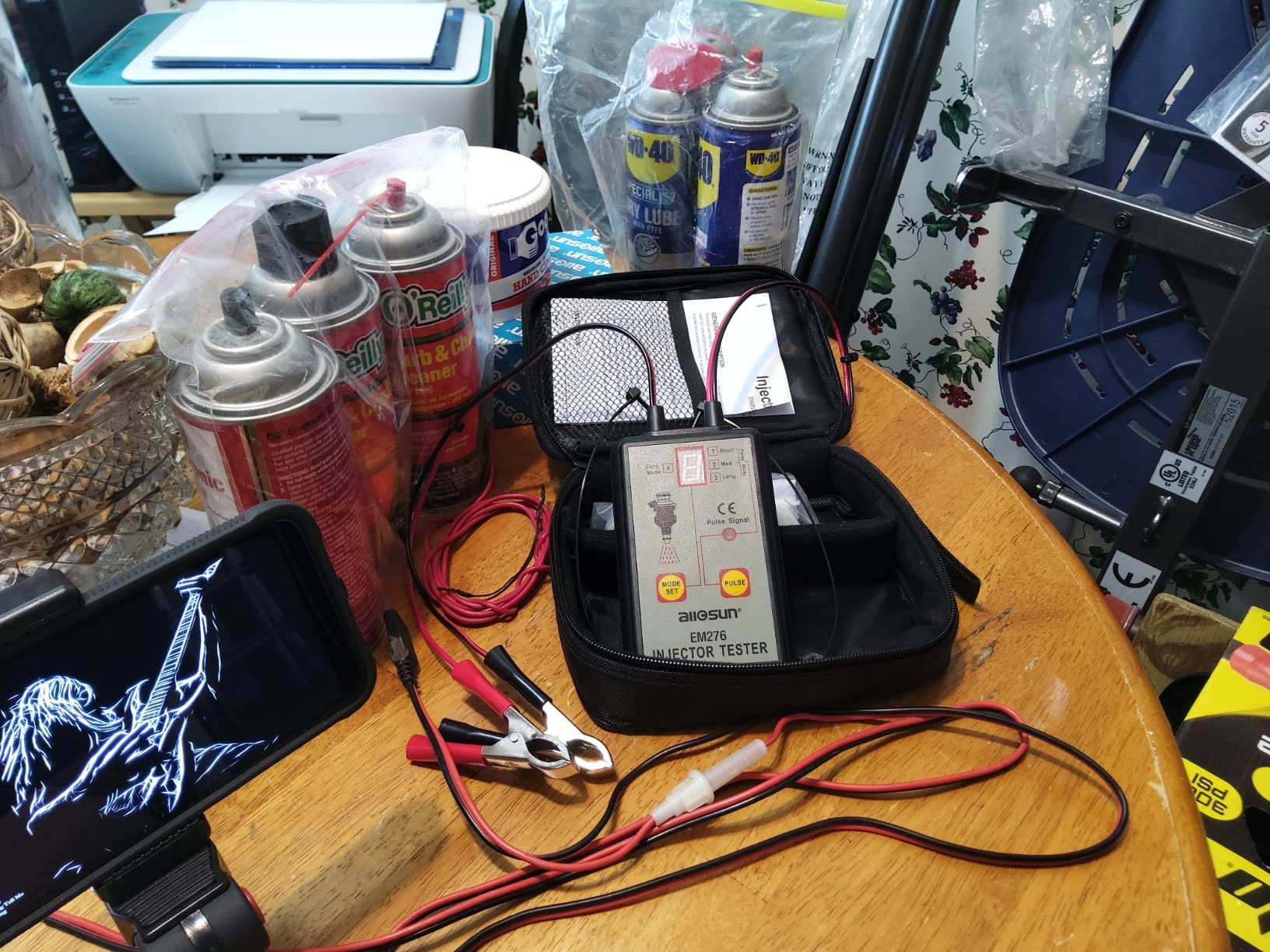

This is the kit I hand to a friend first. It arrives as a complete set rather than a bare tester, so you have the adapter pair and the bag to keep it in, and the whole thing weighs 165 g and measures 5.79 by 3.23 by 1.14 inches. That matters more than it sounds, because the reason injector testers end up in a drawer is that most of them are awkward to hold.
The EM276SET offers 8 pulse modes built from 4 signal output patterns, with a large LED display showing the active mode, and a test lead measuring 16.3 inches. The display is the part I would keep. On a bench with three similar-looking injectors, being able to confirm you selected continuous rather than short pulse removes a whole class of user error, and owners consistently report that the kit fires a gummed injector back to life rather than just confirming failure.
The honest weakness list is physical, not electrical. The blade connectors that ship with it are frequently too large for common Bosch-style injector terminals, and many owners swap in small alligator clips. The spray-can adapter opening can also need modification to seal against a standard carb cleaner nozzle, which is the same fitment problem that shows up on every aerosol-fed kit in this roundup.
It also wants two hands. One holds the injector in the adapter with the can underneath, the other presses the pulse button, and the plastic base can be damaged by carb cleaner overspray if it is not bagged. Instructions are regularly described as unclear enough that users go to video walkthroughs instead, which is a fair summary of the category as a whole.
When the EM276SET is the right buy
It suits anyone with a handful of injectors off the car and a 12V battery who wants to know which one is bad before spending money on a replacement. Testing each injector individually, then firing it again after a clean session, is the fastest path to certainty on a carb-era or early EFI motor, and this kit is the most reviewed tester in the group at 1871 ratings holding a 4.3 average.
Pair it with a fuel pressure gauge and it becomes a genuinely useful diagnostic tool rather than a novelty. That pairing is exactly how I use it: gauge attached, injector fired, and the pressure reading tells you whether the pintle is holding.
When to skip it
If your only goal is to flush a whole rail on the car, this is the wrong shape of tool entirely. It does not circulate solvent through the fuel rail, it does not touch the intake manifold or the catalytic converter, and it is gasoline engines only.
Skip it too if you will be working alone on a V8 with all eight injectors out. Two hands is the real constraint, and a continuous-mode machine like the KAISAL that circulates fluid through connected lines suits a solo weekend job better.

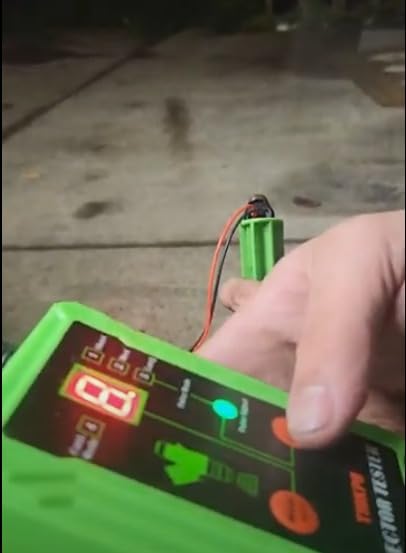

2. THIKPO Universal Tester and Cleaner TK-F4 – Best Value for Stuck Injectors
Pros
- Enough control to free badly stuck injectors
- Dual channels let you compare two injectors side by side
- Eight adapter sizes plus V.W. and BMW N-series fittings
- Reverse polarity and short circuit protection
- Category rank #1 in Fuel Injection Systems Cleaners
Cons
- Adapter opening seals only 4mm-stem aerosol cans
- Some adapter tubes ship not drilled fully through
- Plastic control box smears if carb cleaner reaches it
- Pulses the injector but does not evaluate it electronically
The TK-F4 is the same basic architecture as the EM276SET with two meaningful upgrades. It drives the injector at either 12V or 5V, and it has two output channels so you can fire two injectors at the same time and compare them directly. That second feature is the one I did not expect to care about and now rely on constantly, because a matched pair tells you instantly whether both are healthy or both are tired.
Owners report it freeing injectors that were seized after long storage in ethanol fuel, which is the 12V high-power mode doing the work. The adapter set is the other strength here, with eight sizes plus dedicated fittings for V.W. and Audi style bodies and threaded BMW N-series injectors, and that breadth is why it sits at the top of the category for 4.4 stars across 1031 ratings.

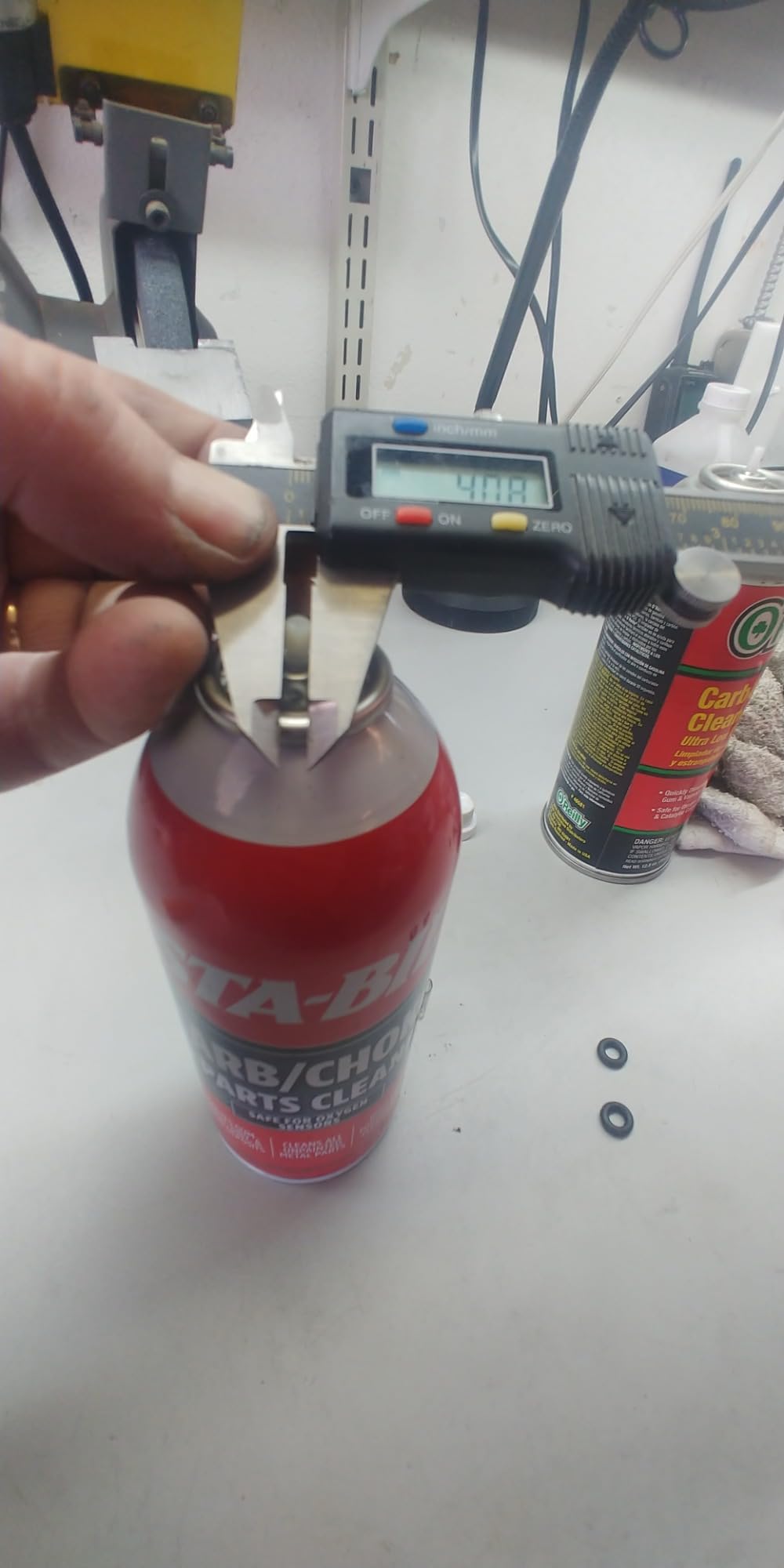

Two practical traps. The cleaning adapter opening fits only 4mm-stem aerosol cans, and the common 3.25mm standard stem will leak even with the supplied o-rings, so check your can before you plan an afternoon around it. Some adapter tubes also ship not drilled all the way through, which blocks cleaner flow until you clear it with a drill bit.
It is also a plastic control box, and carb cleaner will smear or melt it if you let overspray land on the casing. Bagging the unit is the common workaround among owners. The upside is that the electronics are protected against reverse polarity and short circuits, with a flashing indicator to tell you when something is wrong.
Why this is the top rated kit
The 4.4 average across 1031 ratings is the strongest combination of rating and review volume in the tester group, and the category rank reflects it. The voltage flexibility matters on modern engines where a 12V-only tester struggles to open a high-resistance solenoid quickly enough to unstick it.
For a leaner mechanic who works alone, the dual output means you can cycle two injectors at once in continuous mode, roughly halving bench time. The 40-inch power cord and 20-inch test lead give you the reach to work on a fuel rail that has not been removed from the engine.
Where it falls short
It pulses the injector but does not evaluate or diagnose it electronically. You will hear and see whether it flows, but you will not get a measured flow figure in millilitres, which is exactly what the FOXWELL JT200 later in this list is built to give you.
It also needs separate purchases to be a cleaning kit in practice. The cleaner aerosol and a 12V DC supply of at least 1.5A are not included, so budget for both before you start.

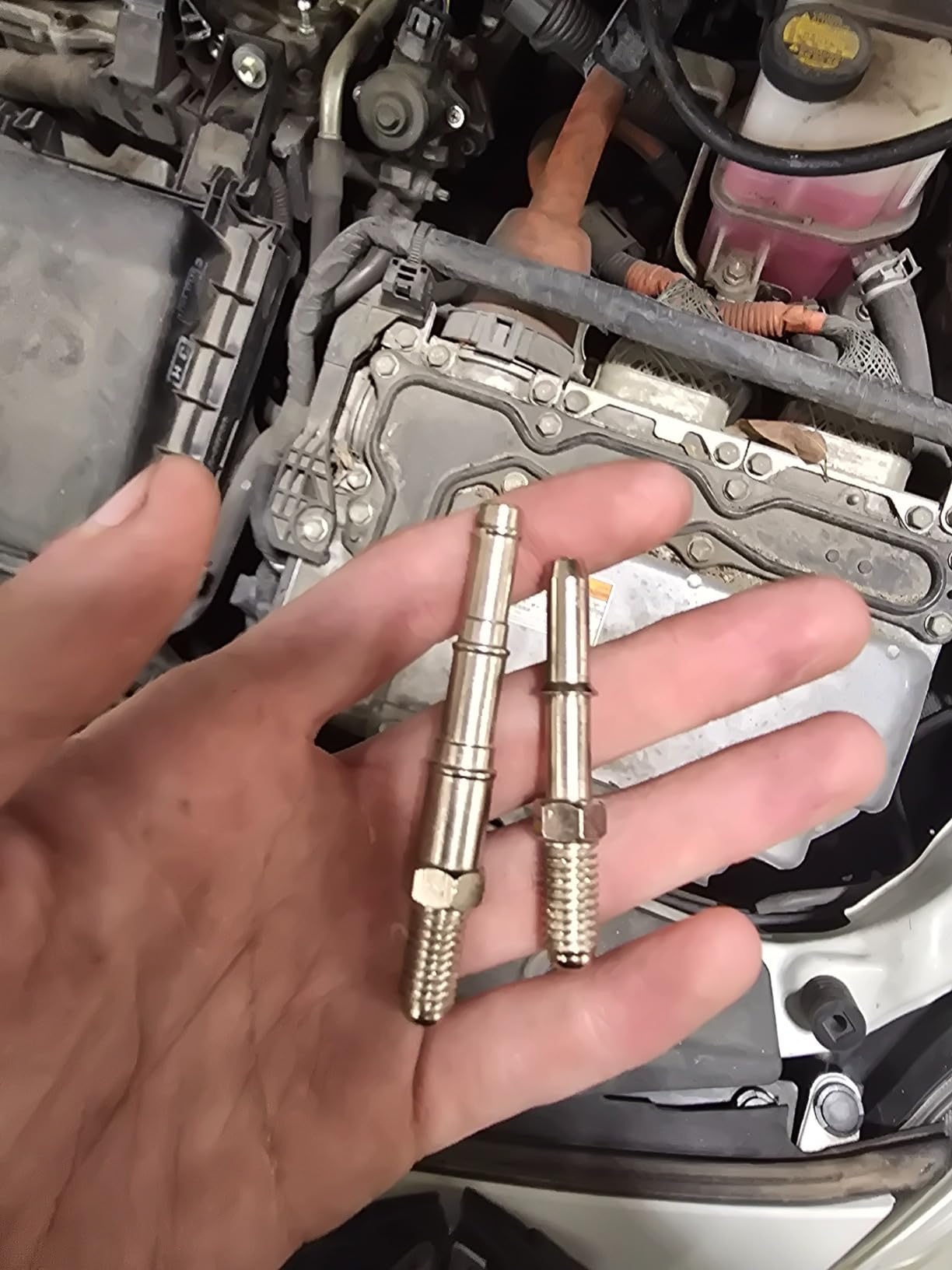

3. KAISAL QC80 – Best 20-Piece Adapter Coverage at 150 PSI
Pros
- Flushes fuel system
- intake and catalytic converter without disassembly in roughly 20 minutes
- Twenty adapters cover GM Ford VW BMW BYD Audi and Hyundai
- Adjustable pressure lets you match intensity to the system
- Large tank means fewer refills mid-flush
Cons
- Cleaning fluid is not included so running cost is higher than it looks
- Gasoline engines only and not for diesel injectors
- You must identify the inlet versus return hose or nothing circulates
This is the category of tool that actually earns the name non-dismantle cleaning kit. The QC80 connects to the fuel system of a running or primed engine and pushes solvent through the rail, the intake and the three-way catalytic converter, with no need to pull the intake manifold. Owners report the whole job takes about 20 minutes once you have found the connections.
The differentiator is adapter coverage. Twenty adapters and couplers is the widest single-machine bundle here, naming GM, Ford, Volkswagen, BMW, BYD, Audi, Hyundai and light trucks explicitly rather than promising universal fit. If you own an older import and a domestic V8, this is the kit most likely to have the right fitting in the box on day one.
The 1000ml tank with a dual-scale gauge reading 0 to 150 PSI and 0 to 10 kg/cm2, plus a rotary pressure regulator, is what makes it flexible. Low pressure for gentle throttle body and intake work, high pressure for a full rail flush, one machine and one fluid purchase for both jobs.
The mistake nearly everyone makes here is connecting the return line instead of the inlet, and then concluding the machine does not work. Reviewers flag it as the single biggest reason a first attempt fails, and the kit does include guidance on telling the two hoses apart, though you should expect to verify it against your own fuel routing.
Who this suits
It suits owners of a gasoline vehicle with a 100k-mile-plus odometer who want to clean the intake manifold and throttle body without a teardown, and it handles combustion chamber and catalytic converter cleaning as part of the same pass. Reviewers report visible improvement in idle smoothness and throttle response afterwards, and better air-fuel ratio readings.
Carbureted engines work too, but on a very low range. The manufacturer specifies 1 to 5 PSI, roughly 0.07 to 0.35 kgf/cm2, for a throttle-style setup, and overshooting that range on a carb engine is how you create a new problem.
Where it falls short
No cleaning fluid ships with the machine, so the real ongoing cost is the solvent rather than the kit. A 1000ml tank consumes it in a single thorough job, which is fine for a once-a-year treatment and less attractive for a shop doing several vehicles a day.
It is gasoline engines only. Anyone running diesel needs a different approach entirely, and the 150 PSI ceiling is a constraint on high-pressure direct injection hardware.

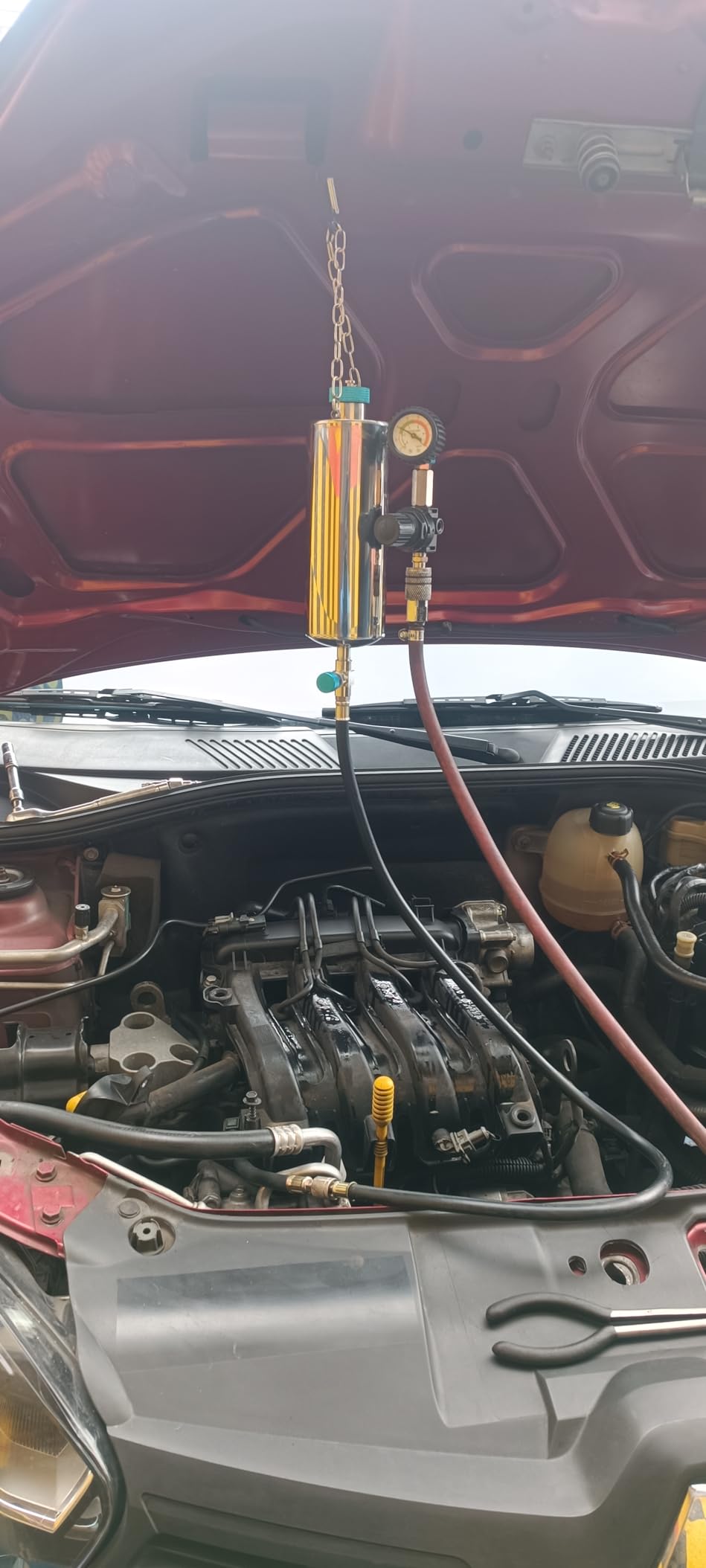

4. AUTOOL C100 – Top Rated Stainless Steel Flush Machine
Pros
- Airtight connections reported leak-free across repeated services
- Stainless steel and brass build that suits daily shop use
- Removes carbon in about 20 minutes with visible drivability gains
- Adapters cover most European
- Asian and American cars and light trucks
- Includes a protective blow-molded storage case
Cons
- No direct GM fuel rail connection so a hose-clamp workaround is needed
- Instructions are thin
- Reservoir hanger is flimsy
- Cleaning fluid is not included and adds real running cost

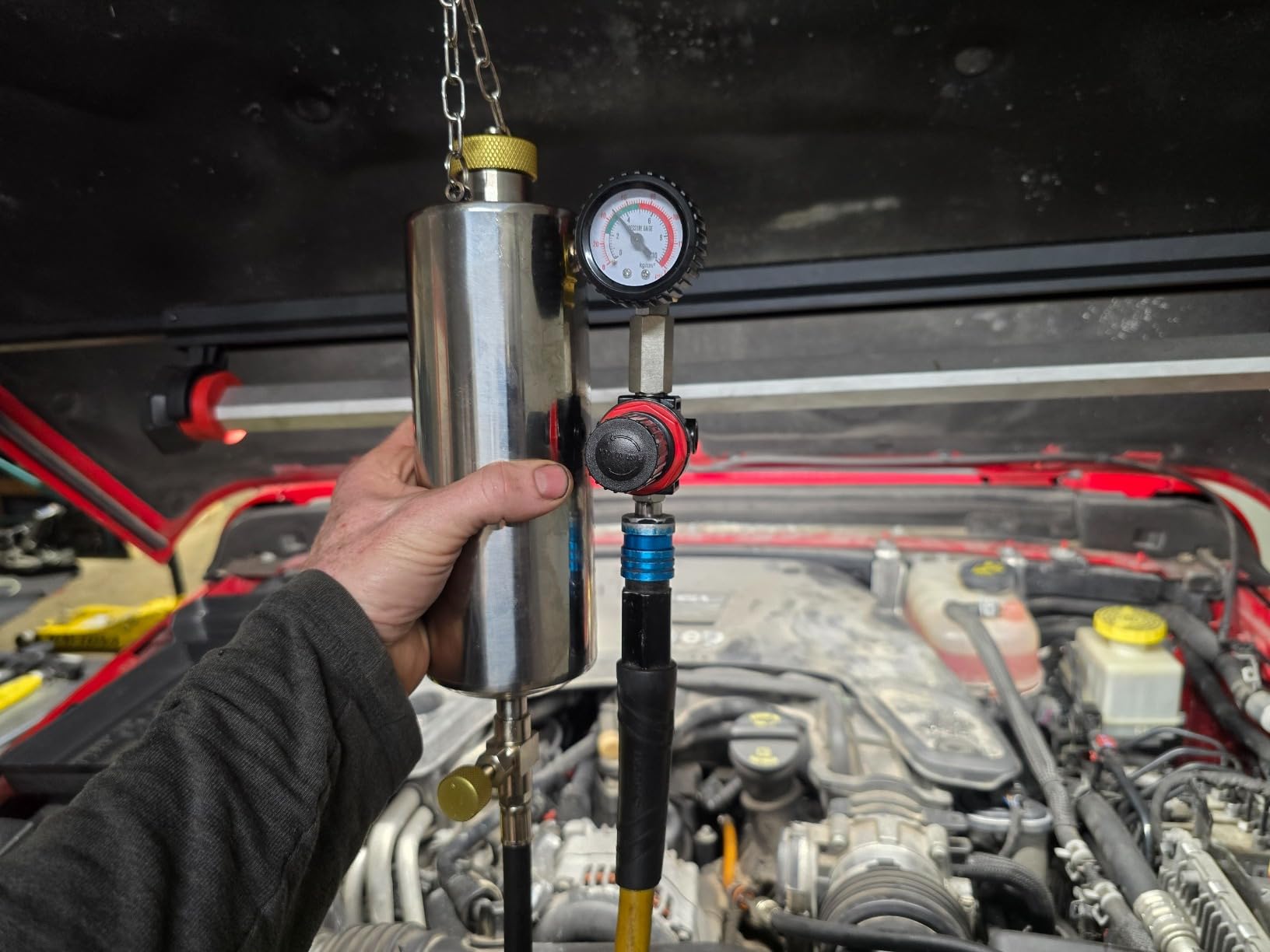

The C100 is the one professional technicians in the reviews actually describe as a permanent toolbox fixture. ASE-certified and former Toyota master techs are the voice behind the praise, and what they emphasise is not features but the absence of problems: airtight connections that do not leak across repeated services, and fittings that survive being used daily.
Build quality is the story. The body is stainless steel, described as scratch and corrosion resistant, with brass main components and rubber connecting tubes rated against oil and corrosion. It is 8.56 pounds, which is heavier than the budget machines at 3.83 pounds, and it arrives in a blow-molded plastic case with foam protection. That case is what separates it here, since it is the only flush machine in this roundup that ships with the tank, gauge and fittings protected for storage. Its adapter set covers nearly all European, Asian and American cars plus light trucks, and the 4.5 average it holds is the joint highest of the ten products we reviewed.
It covers the same working range as the KAISAL, cleaning the throttle valve, fuel nozzle, three-way catalytic converter, intake manifold and exhaust pipe, with a check valve for venting gas and adding fluid. Owners report carbon coming out in about 20 minutes with a visible improvement in idle smoothness and drivability, and a 74 percent five-star share across the reviews points the same way.
Compared with paying a shop for the same service, the case for owning one is straightforward. The reviews make exactly that argument, describing results that save injectors customers would otherwise pay to replace.
Why it is our best value pick
It is the point where the price step up from a generic machine buys something real. The generic kits share the same core design, but stainless steel and brass versus plastic and rubber is the difference between a tool in a cupboard and a tool that gets used for a decade of weekend services.
For a small shop or a serious weekend mechanic running flushes regularly, that build difference matters more than the specifications do. Three-year warranty and lifetime technical support back it up.
Where it falls short
The one real gap is GM. There is no direct connection for a GM fuel rail pressure port, and while an inline fuel line connector is included, owners report needing a hose-clamp workaround to make it clean. If you own a GM V8, verify that connection before you start a job.
Documentation is thin, so expect to learn the setup from a video, and the reservoir hanger that lets you suspend the canister is flimsy and not really usable. The single one-star review in the set cites a failing pressure adjuster, which is worth knowing about even against an otherwise consistent durability record.

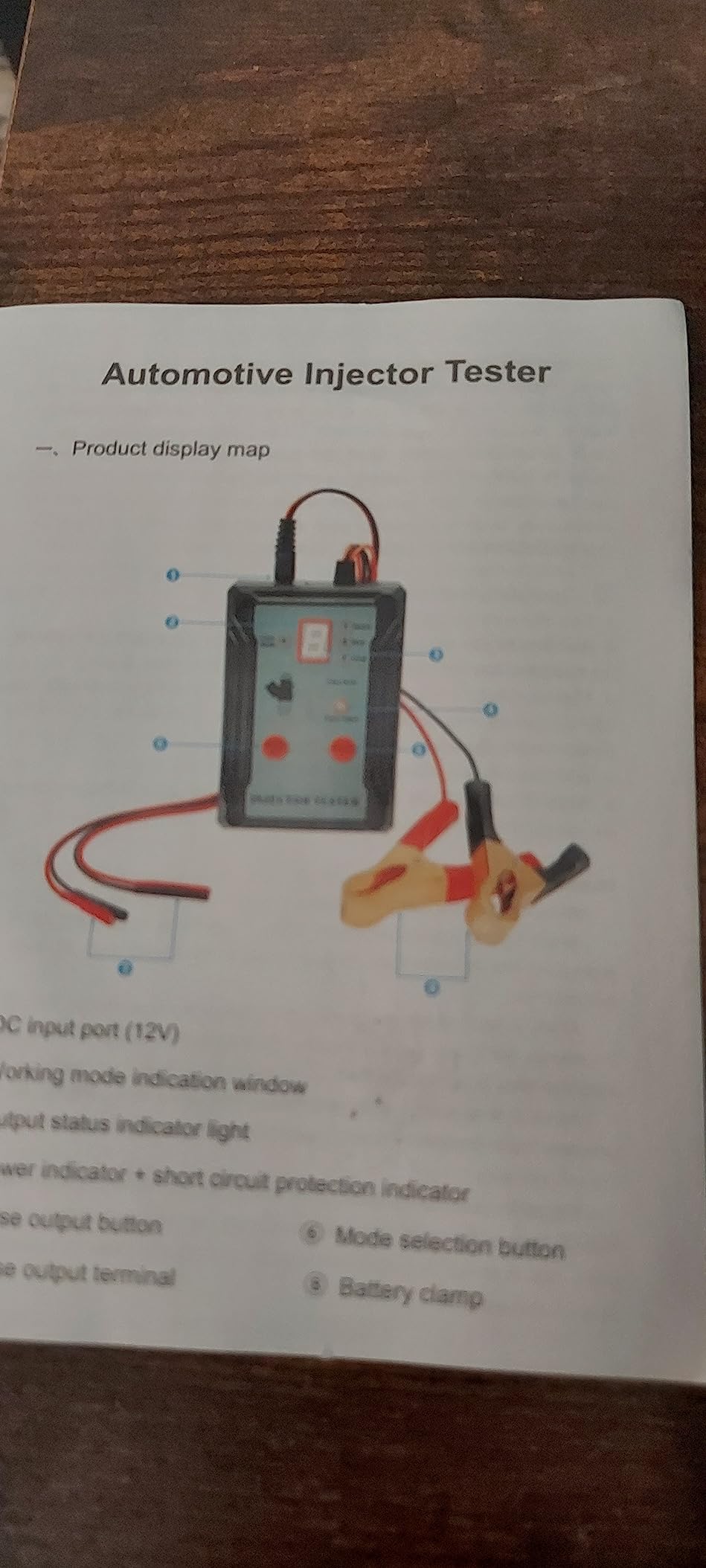

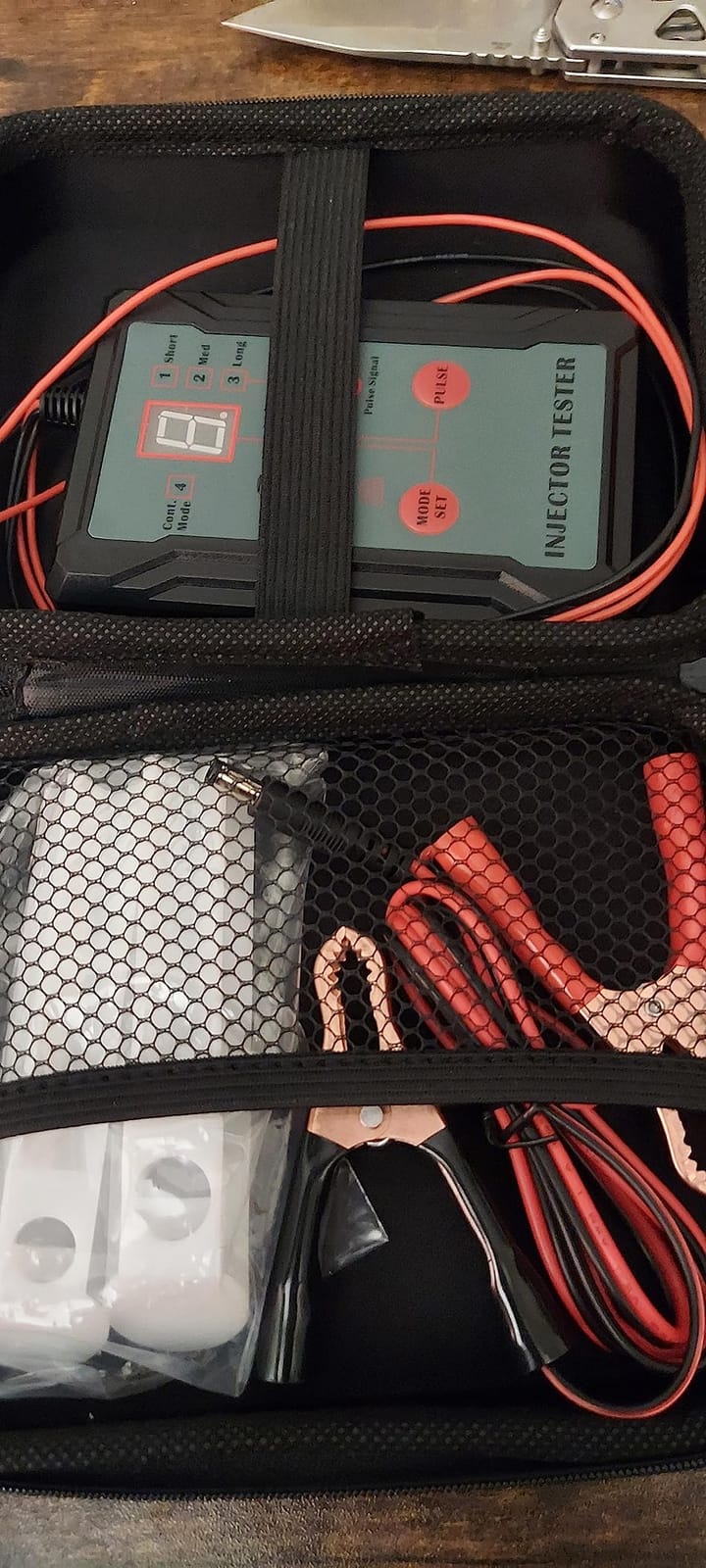

5. JEUCLEL Upgraded Tester and Cleaner Kit – Best Budget Entry Point
Pros
- Lowest cost route into injector testing
- Identified a bad injector among a set on a 1985 Mustang SVO
- Handles motorcycle injectors as well as car injectors
- Feature set matches kits costing several times more
- Reverse polarity and short circuit protection
Cons
- Messy to use as injector and adapter do not stay put
- 3D-printed plastic attachment is the weak point
- Standard version ships only two adapters
- Minimal instructions
The JEUCLEL kit exists because the feature list matters more than the finish. You get 8 pulse modes from 4 signal outputs times 12V or 5V selection, two pairs of output terminals for testing two injectors at once, a 40-inch power cable, a 20-inch pulse output cable in silicone, and reverse polarity plus short circuit protection with an LED alarm. That is the same core specification as the tester near the top of this list.
Where it differs is the adapter count. The standard version includes two adapters and there is a four-adapter upgraded version, so if your engine uses an unusual injector body you may need the other one. Owners report it working on motorcycles as well as cars, and one review describes it finding a failed injector among a set on a 1985 Mustang SVO, which is exactly the kind of job a budget tester earns its place on.
The handling is the compromise. Injectors and adapters do not stay put, cleaner leaks from the joint, and the 3D-printed plastic attachment is the component reviewers question most, with some examples failing to hold the injector securely. A small number of boxes simply did not work correctly out of the box, and the instructions are minimal.
Sentiment is positive but noticeably less confident than the AUTOOL C100, with a 4.3 average across 151 ratings and a 66 percent five-star share. That gap is the honest measure of what you trade away for the lower entry cost.
Who should buy this one
It suits a first-time owner who wants to know whether injector testing is even a problem worth solving, and it suits anyone with one or two suspect injectors rather than a full set. If the answer comes back healthy, you have spent very little to rule out a whole category of fault.
It is also a sensible bench companion to a machine, since you can use it to confirm a single injector before committing it to a rail flush.
When to spend more instead
If you plan to work through a full set of eight injectors, the awkward grip and the two-adapter limit will slow you down more than the saving helps. The 3D-printed attachment is the part most likely to disappoint, and replacing it is not straightforward.
It is also worth being realistic about a unit that arrived non-functional. Buying a tool with a single purpose and no spares is a risk the higher-rated kits reduce.
6. AUTOOL CT60 – Best for 70V and High-Pressure Injectors
Pros
- Only unit here with a 70V drive option
- Opening the door to high-pressure and diesel injectors
- Pulse width
- RPM and run time are all adjustable
- Dual connection allows side-by-side spray angle comparison
- GDI drive module doubles as an upgrade for older AUTOOL equipment
Cons
- Lowest average rating in the group at 4.1 with a 12 percent one-star share
- Smaller review pool means long-term reliability data is thin
- Costs more than generic testers while still lacking cleaning adapters
The CT60 is the technical buy. Everything else in the budget tester group fires injectors at 12V or 5V, which covers the overwhelming majority of port and direct injection gasoline hardware, but this one also offers a 70V drive mode for the high-resistance solenoids found on modern direct injection and certain diesel applications. Nothing else in this roundup covers that range.
The other advantage is control. Operating frequency runs from 600 to 4000 RPM and working time from 0 to 99 minutes, both shown on an LCD, so you can replicate a real engine condition rather than simply firing an injector until something happens. Two injectors connect at once for direct spray angle and sprayability comparison.
There is a second use that catches people out. The GDI drive module also functions as an upgrade kit for older AUTOOL machines, ultrasonic cleaners and legacy testers, so if you already own one of those, this is a way to extend it rather than replace it.
When this is the right tool
It suits a serious DIYer or a shop that has already exhausted what a 12V tester will tell them, and it is the only unit here that opens up 70V and 120V injector hardware. If you work on modern GDI engines regularly, that capability alone justifies the step up.
For anyone verifying flow at a known engine speed, the RPM simulation is closer to a real test than a fixed pulse pattern from a cheaper box.
What to know before buying
Its 4.1 rating is the lowest average in this roundup, with a 12 percent one-star share, and the 129-review pool is thin enough that long-term durability conclusions are provisional. Treat the feature set as the reason to buy and the rating history as a caution.
It is also a tester rather than a cleaner. No cleaning adapters are included, so you still need a separate aerosol setup or a machine to flush with, which is the main reason it ranks where it does rather than higher.

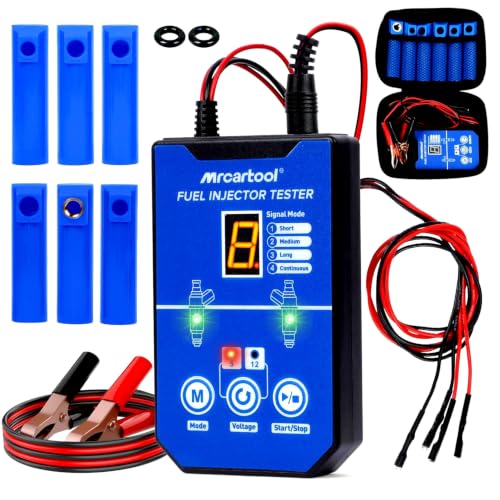

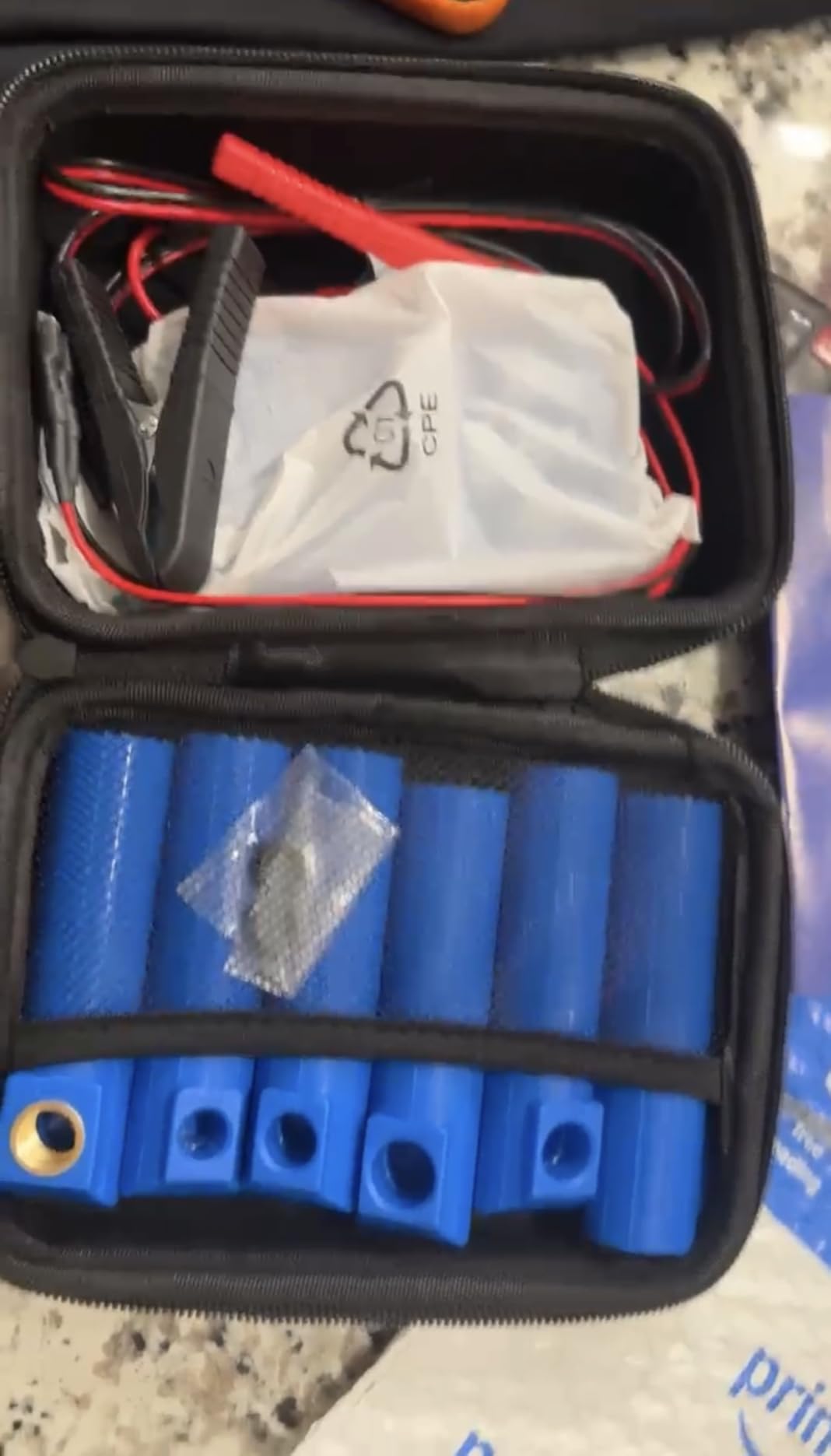

7. MR CARTOOL N02 – Best for Motorcycles and Broad GDI Coverage
Pros
- Compatibility claims cover GDI
- FSI
- SPFI
- TBI
- EFI
- CFI
- L-JET
- MPFI and LPG
- Owners freed direct-port injectors on a GM 8.2L big block
- Six adapters give better fitment than two-adapter budget kits
- Continuous pulse mode pairs well with an ultrasonic bath
- Strong value in the budget tier
Cons
- Adapter does not fit most modern spray cans
- Poor can sealing causes heavy overspray
- Injectors can pop out of the adapter if not held firmly
- English-only instructions
The N02 is the kit in this group with the widest stated engine coverage, naming GDI, FSI, SPFI, TBI, EFI, CFI, L-JET, MPFI and LPG across cars and motorcycles. That breadth is not marketing filler. Reviews describe it freeing up direct-port injectors on a GM 8.2L big block and fixing a set of injectors on a Lexus RX 330, which is an unusually wide spread of real hardware for a compact tester.
Six nozzle adapters is more coverage than the two-adapter budget kits here, and the 40-inch cord with two pairs of pulse output terminals gives you room to work with the rail still in place. Short circuit protection and an LCD showing the current mode round out a sensible package.
The standout feature is continuous pulse mode, and the reason owners single it out is that it can feed an ultrasonic cleaning machine. If you own or are considering a bench ultrasonic unit, this is a natural companion that keeps injectors cycling while they sit in the bath, which is a different cleaning dynamic from simply soaking them.
The two recurring hands-on complaints are identical across the aerosol-fed kits in this list. The adapter does not fit most modern spray cans, and users improvise with a small washer to actuate the button. Poor sealing around the can then produces heavy overspray, and injectors can pop out of the adapter if you do not hold them firmly.
Best fit for bikes and odd engines
Motorcycle owners are the clearest case. If your bike uses EFI rather than carburetors, this tester covers it with a 4.4 rating and a 73 percent five-star share, which places it at the top of the budget tier rather than in the middle of it.
It also suits anyone who genuinely does not know what fuel system their car uses, because the compatibility list covers nearly every electronic injection layout on the market.
Before you commit

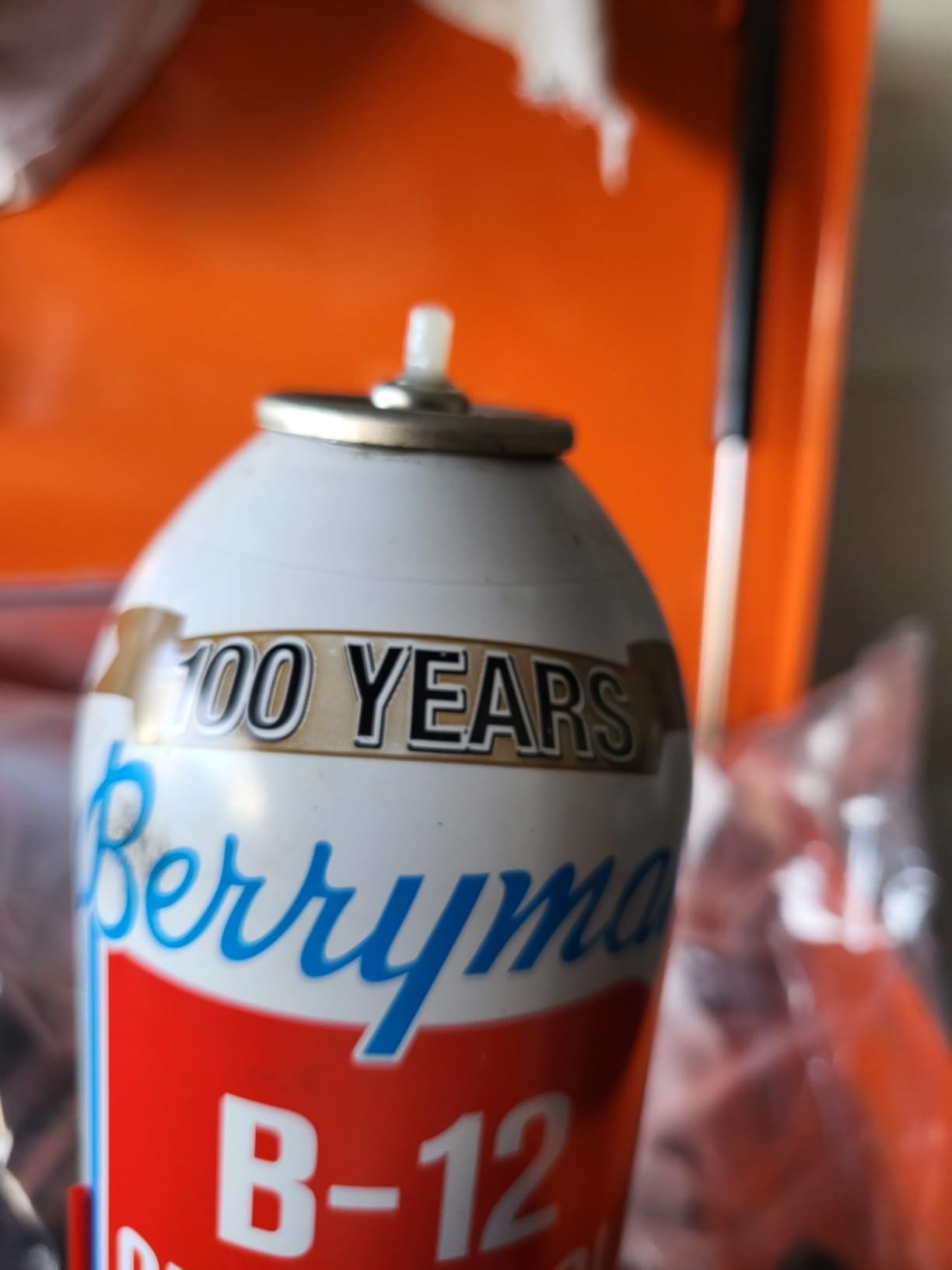

Check the adapter against your actual carb cleaner can on arrival. The washer workaround is common enough that owners expect to do it, but it is still an afternoon of trial and error rather than a clean first attempt.
One unit arrived defective and shorted out with no signal reaching the injector, and the warranty is 90 days, which is the shortest in this roundup. That is a real consideration if you are buying to do an eight-injector job rather than a quick check.

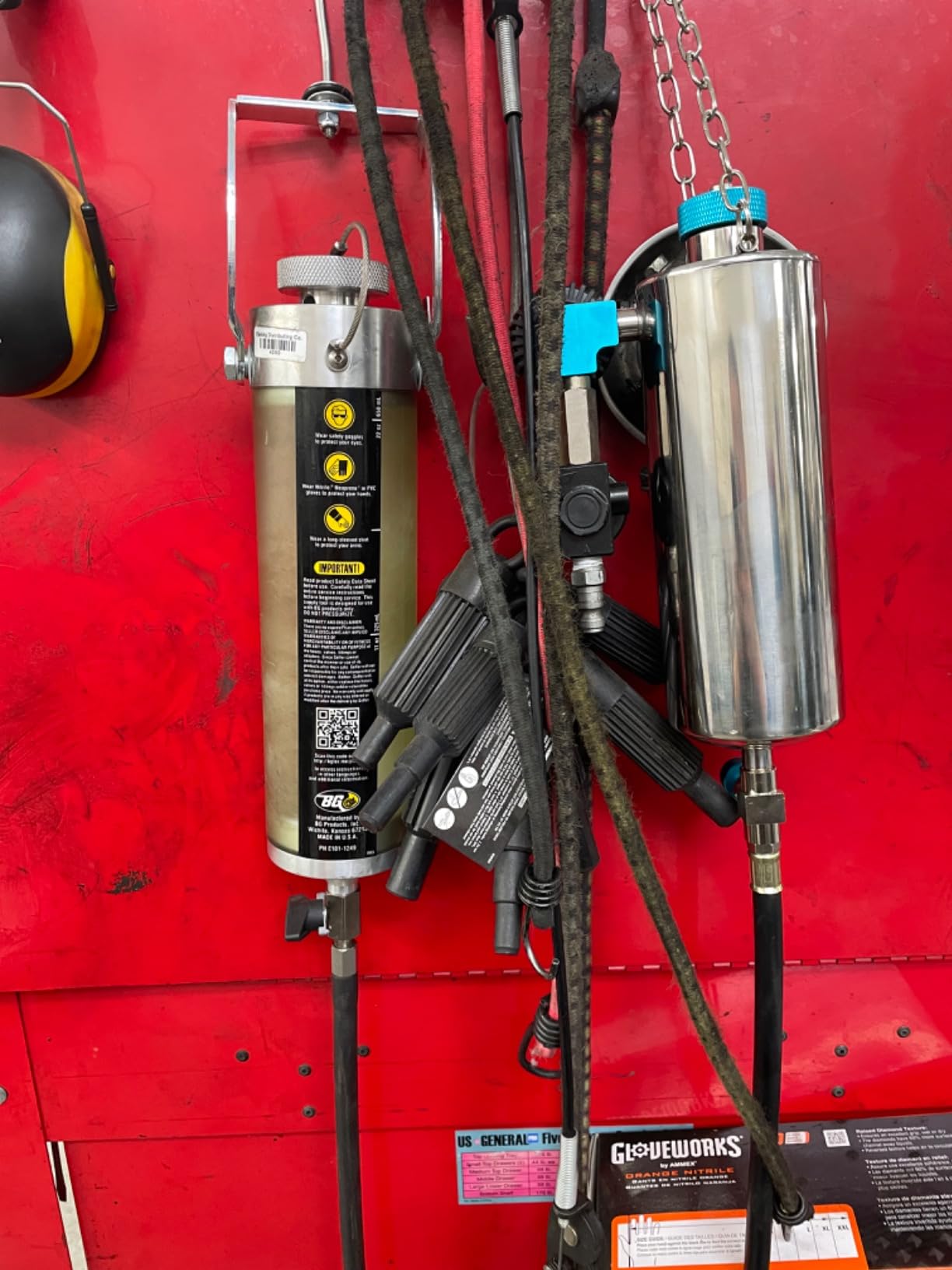

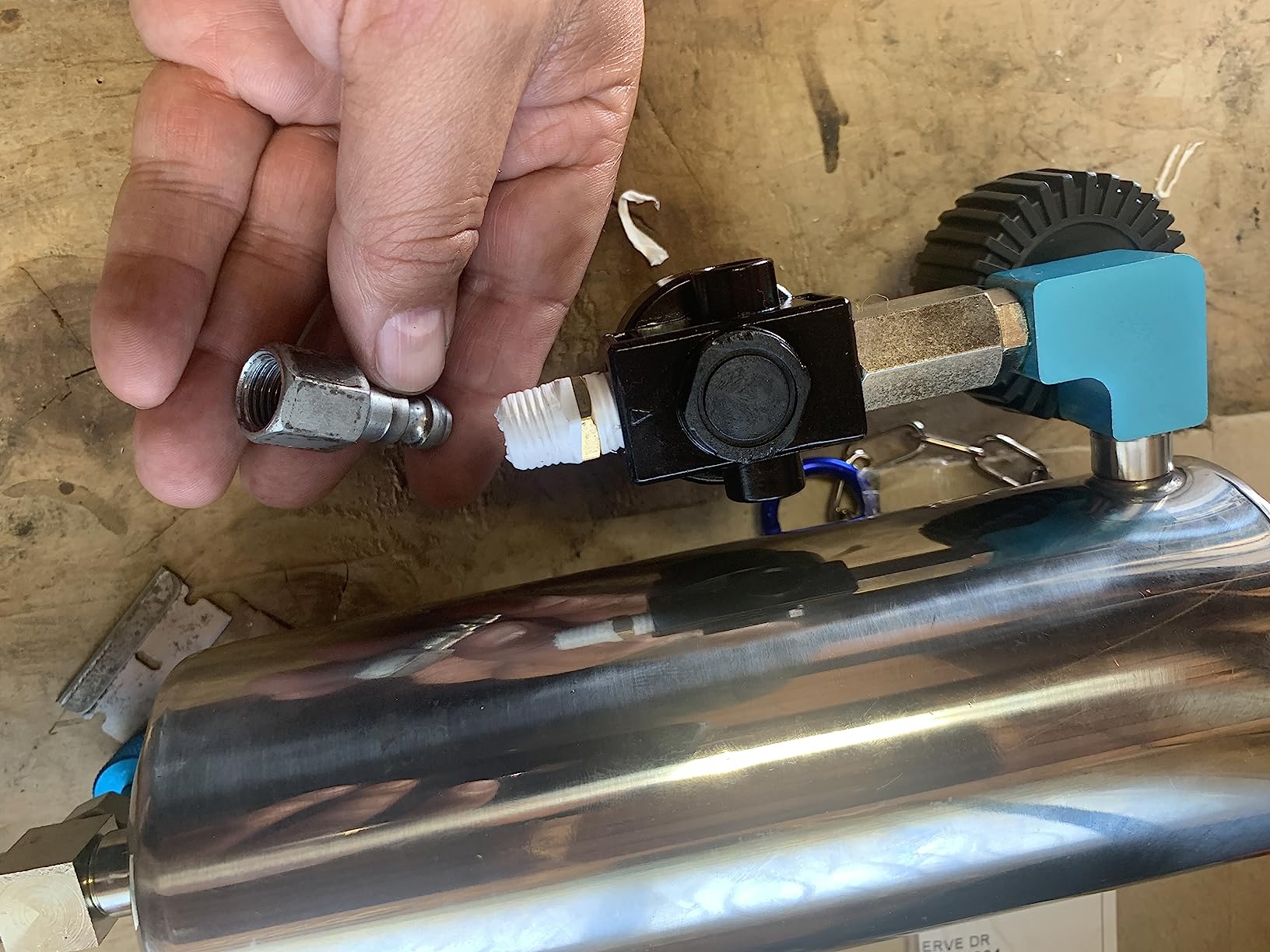

8. X AUTOHAUX C80 – Best Lightweight Flush Machine
Pros
- Non-dismantle cleaning covers injectors and intake in one pass
- High and low pressure functions for gentle and aggressive work
- Published thread sizes let you check fitment before ordering
- Adapter kit covers most European
- Asian and US cars and light trucks
Cons
- Smallest tank in the group at 600ml means more refills
- No cleaning fluid included
- Gasoline injectors only
- 140 PSI ceiling is below the 150 PSI offered by the KAISAL and AUTOOL
The C80 is a smaller, simpler sibling of the two bigger flush machines. It shares the same non-dismantle architecture, connecting to the fuel system and running high or low pressure cleaning through the injectors and intake system, but it is 3.83 pounds with a 600ml tank and a 0 to 140 PSI range. That makes it the machine to choose if storage space is the constraint.
What I genuinely like about it is that the specifications are published clearly. Three thread sizes, M8x1.25, M15x1.5 and M14x1.5, are stated outright, and the fuel system can be disconnected from the cleaning circuit when you are finished. That is a small thing, but being able to confirm fitment before ordering saves the disappointment that a vague universal-fit claim would cause.
The 4.2 average across 114 ratings with a 10 percent one-star share reads as adequate rather than impressive, and that matches the spec sheet honestly. It is not a machine that will surprise you, which for a maintenance tool is a reasonable outcome.
Owners respond to clearly stated numbers, and the trade-offs for the lower weight are visible: a 600ml tank is the smallest here, so a full flush takes more refills, and the 140 PSI ceiling sits below the 150 PSI that the KAISAL and AUTOOL machines reach.
Where it makes sense
It suits a home garage where a 16-pound bench machine is unwelcome, and someone doing occasional maintenance flushes on an EFI petrol system rather than repeated shop work. The fuel system disconnect feature also makes it easier to reuse on a second vehicle.
Published thread sizes mean it is the lowest-risk of the budget machines to buy blind, which matters if you are ordering without the engine in front of you.
Where it runs out
The 600ml reservoir is the practical limit. A thorough flush of a V8 rail and intake uses a meaningful volume, and you will be stopping to refill more than once, which erodes some of the time saving that got you into the machine in the first place.
It is gasoline injectors only and not for diesel, and the missing cleaning fluid applies here as it does to the other pressure machines in this roundup. With a 4.2 average, expect adequate rather than impressive execution.

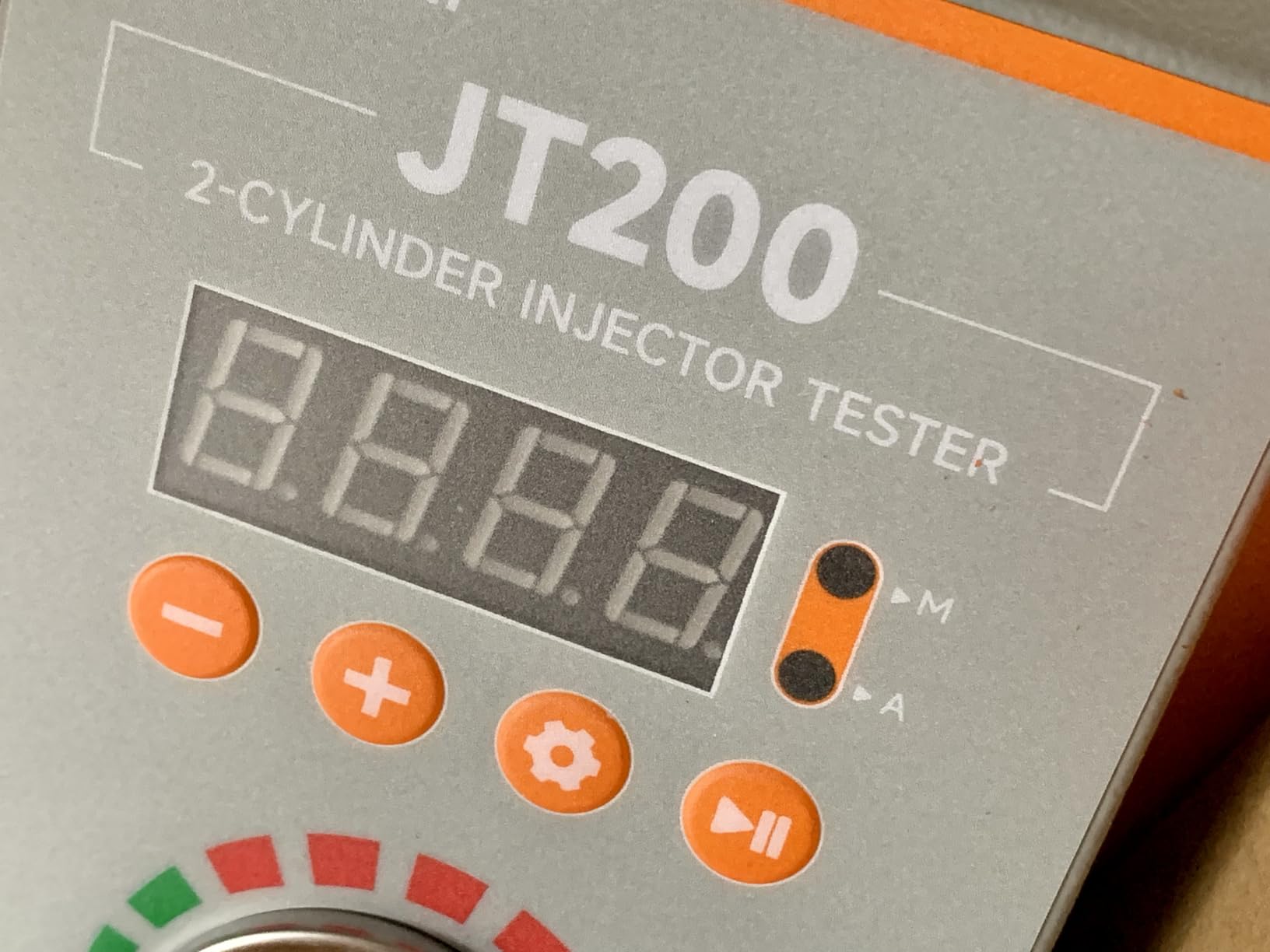

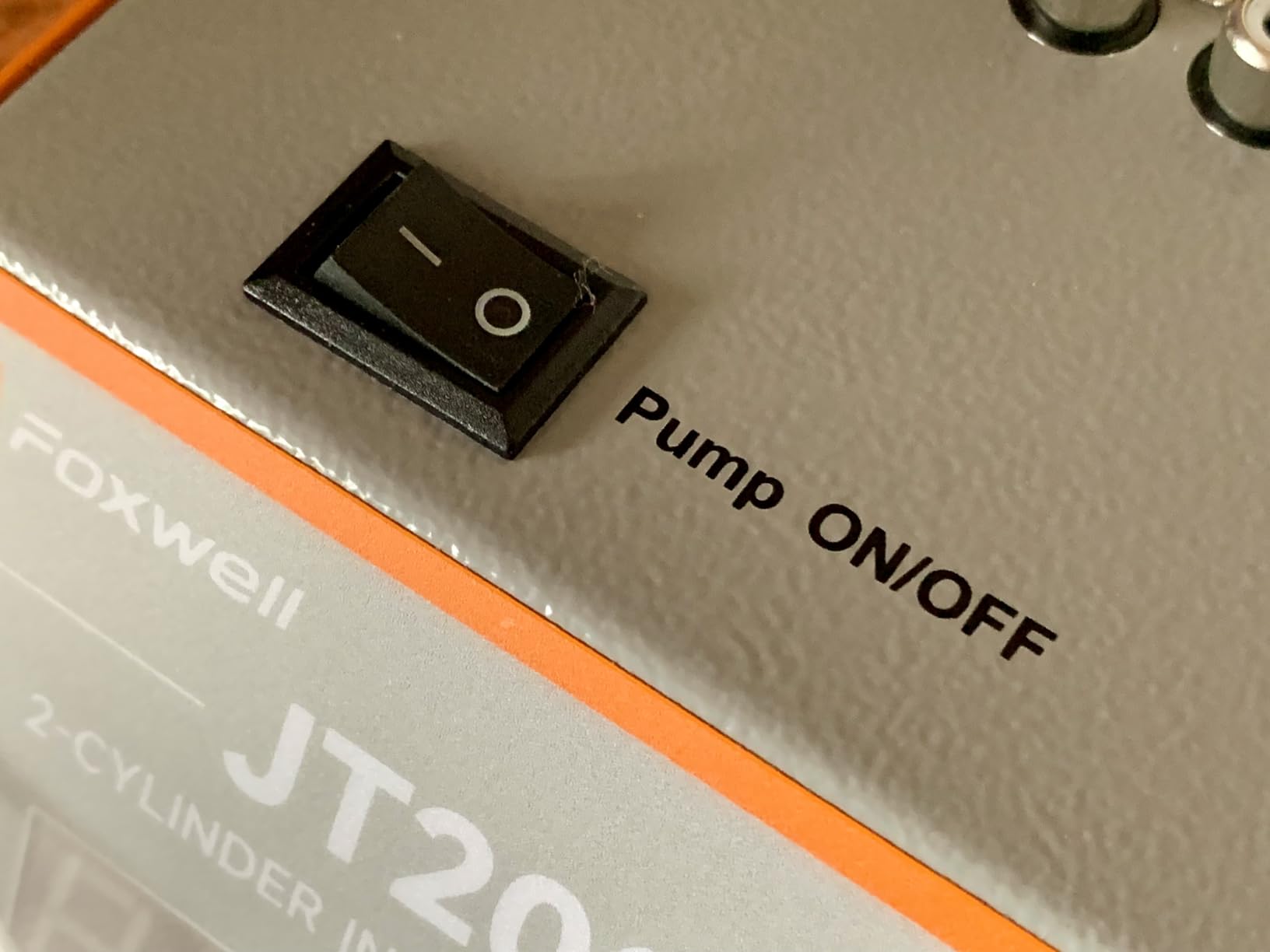

9. FOXWELL JT200 – Best for Measuring Real Injector Flow
Pros
- Graduated cylinders give measured flow and visible spray pattern
- Automatic RPM simulation produces repeatable lab-like data
- Metal cabinetry feels far more durable than plastic testers
- Preferred by mechanics and marine techs for finding weak injectors
- 0 percent one-star share across 90 ratings
Cons
- Instructions are thin so setup takes self-teaching
- Cylinder markings are orange on an orange case and hard to read
- Small reservoir with a tiny fill hole and funnel
- Not compatible with GDI or diesel injectors
This is the only true measuring instrument in the roundup, and that distinction matters more than its feature count suggests. Instead of pulsing an injector and listening, the JT200 fires it into transparent graduated cylinders so you read actual delivery volume in millilitres and compare it against spec or against the other injector on the bench. Professionals describe it as replacing guesswork and unnecessary injector replacement with hard numbers.
The repeatability is what reviewers keep coming back to. Automatic RPM simulation from 500 to 6000 RPM in 100 RPM steps, plus a manual range from 100 to 9900, gives repeatable results without repeatedly starting an engine. One tester reversed the injector and electrical order and still produced consistent results, another found the bad injector out of eight on the first pass.
Build is a step up from the plastic pulse testers. The cabinet is metal, each injector tip is lit by an LED, and the cylinders are sealed against spills. It is 7.87 pounds and compact enough for a small shop or a home bench, and the adapter set covers 9 to 14.5mm traditional EFI and MPI top-feed injectors, working with 6V motorcycles and 12V cars and pickups.
It carries a 4.5 rating, the joint highest in this roundup, with a 0 percent one-star share across 90 reviews, which is the cleanest rating profile of the ten.
Why professionals choose it
Marine and automotive technicians use it to find weak or leaking injectors quickly, because a measured flow figure removes the guesswork from a decision that otherwise costs real money. If you maintain several vehicles, having numbers you can compare across sessions is worth more than a cheap pulse box.
It is also the only kit here that shows spray pattern visually, which is how you catch a stretched or damaged pintle that still flows volume but sprays wrong.
Important limitations
Two constraints matter before you buy. It is not compatible with GDI or diesel injectors, and the instructions warn against using gasoline as the test fluid, so you need a proper bottled test fluid which is not included.
Operating pressure runs at roughly 25 PSI, well below the 45 to 60 PSI typical of a running gasoline engine, so light leaks may not show up. The markings being orange on an orange case is a genuine readability problem, the reservoir is small with a tiny funnel, and one owner reported O-rings swelling in cleaner and no longer fitting the rail. Test fluid compatibility is worth checking with the manufacturer before a long soak.
10. MR CARTOOL V308 – Best Bench Ultrasonic Clean and Test Machine
Pros
- The only unit combining true ultrasonic cleaning with electrical testing
- Cleans and tests four injectors simultaneously for the highest throughput here
- Heated tank loosens carbon effectively and speeds the cycle
- Eleven test functions cover idle
- mid
- high
- accelerating
- variable speed and leakage
- 78 percent five-star share with no three-star reviews
Cons
- Heaviest and most expensive option here at 16.54 pounds
- Test fluid is not included and a 2000ml tank consumes it quickly
- Only two injectors test at a time despite cleaning four
- GDI work needs a different model variant
The V308 is the only genuine all-in-one bench machine in this roundup, and that is exactly why it is here. Ultrasonic cleaning with heat and eleven measured test functions in one metal-enclosure unit. Buyers who want a cleaner and a tester in a single box find nothing else here that does both, which is the entire argument for it.
The ultrasonic side is a 2000ml tank with heating up to 45 degrees Celsius, and the heat is the point. Carbon loosens faster in a warm bath, and vibration from the ultrasonic action works the solvent into the passages where a spray can never reach. Adapters cover 9.8mm, 10.5 to 13.5mm, 10.6mm, 11mm and 12.5 to 14.5mm bodies across car, motorcycle and marine applications.

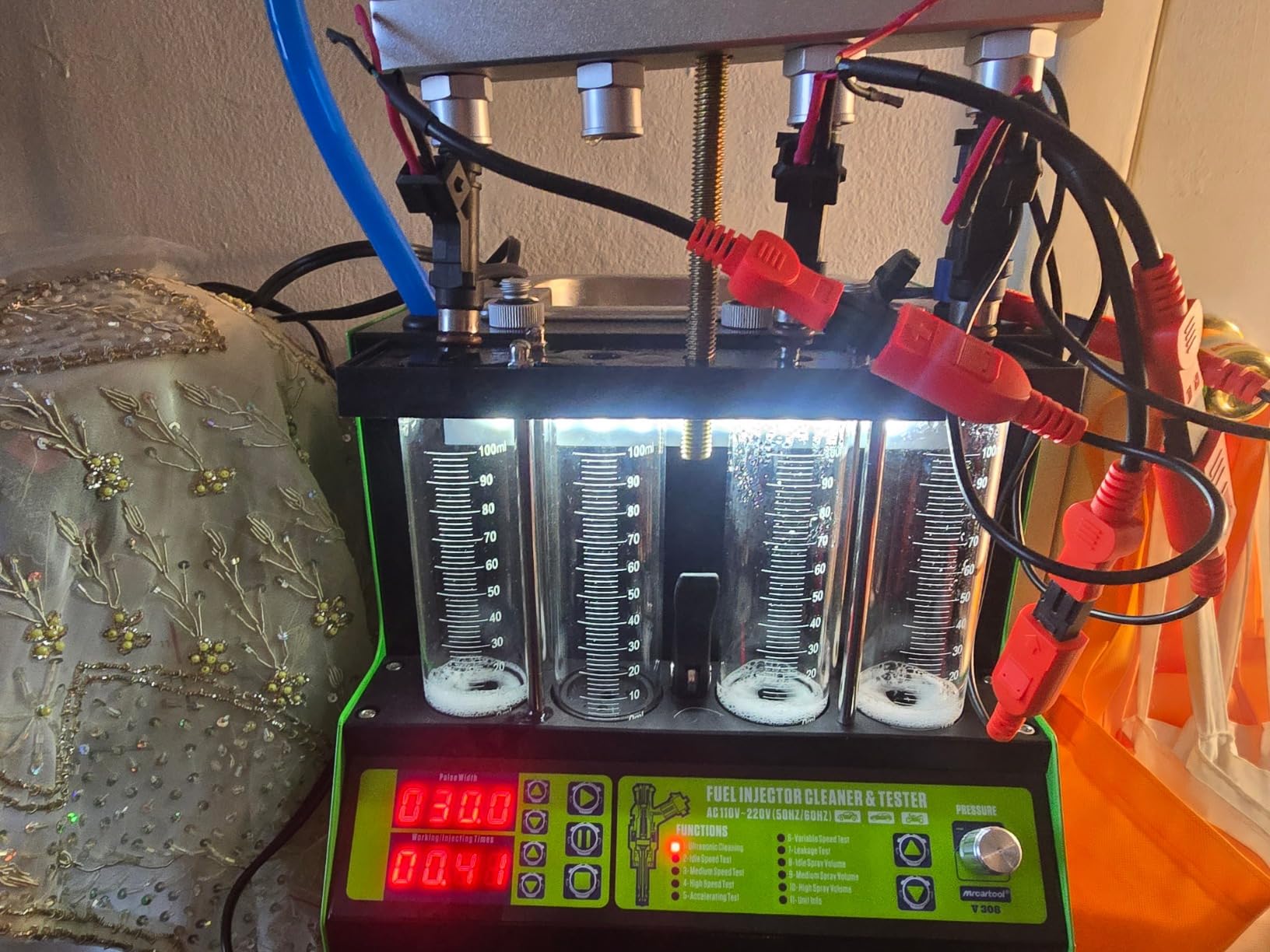

The measuring side is a control panel with an LED display, pressure gauge, glass tubes and a test fluid level gauge, driving eleven main functions: ultrasonic cleaning, idle, medium and high speed tests, accelerating, variable speed, leakage, spray volume at three RPM ranges and unit information. It cleans four injectors at once, the highest throughput of any kit here.
The rating profile is unusually favourable, a 4.4 average with 78 percent five stars and no three-star reviews at all, which tells you the product does what it says for a fairly consistent set of buyers.
Who the bench machine is for

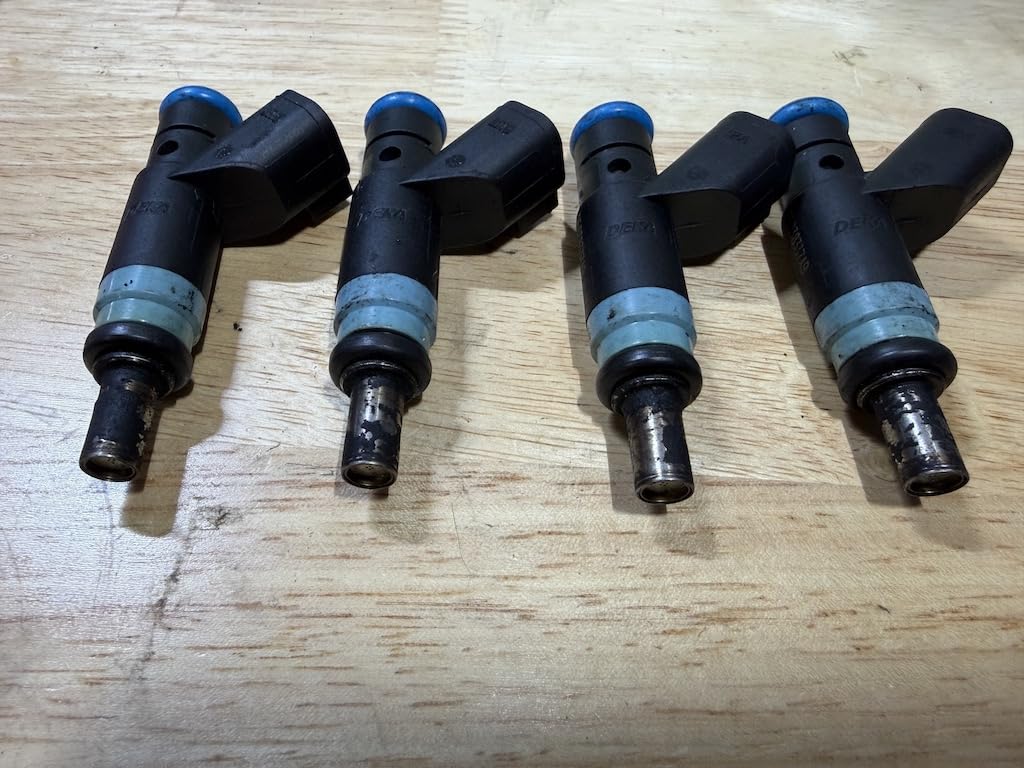

It suits a shop or a serious hobbyist cleaning injectors removed from the car, where pulling the rail and soaking bodies in a heated bath produces results no on-car machine can match. The ultrasonic function supports most gasoline and diesel injectors, which broadens it beyond the gasoline-only tools elsewhere in this list.
Cleaning four at a time matters if you are working through a full set of eight on a V8, because throughput is what turns a bench machine from a curiosity into a tool that pays for itself.
What it will not do
The testing half only handles low-pressure gasoline port injectors, and it tests two at a time for flow comparison even though it cleans four, which is a slightly odd asymmetry. GDI capability needs a different model, the V309, V310, V311 or V209 variants, so confirm your engine type before ordering.
At 16.54 pounds it is the heaviest item here and needs a real bench, and test fluid is not included while a 2000ml heated tank consumes it quickly. Budget for solvent before you plan a session.
How to Use a Non-Dismantle Fuel Injector Cleaning Kit
Yes, you can clean injectors without taking them out. Every machine in this roundup described as non-dismantle does exactly that, connecting to the fuel system of a car that stays assembled. The sequence is similar across all of them and takes roughly 20 minutes on a cold engine.
Confirm the engine is gasoline and port or low-pressure direct injection. Check whether the intake manifold carries the injectors, which almost always means port injection.
Relieve fuel system pressure. Locate the fuel pump relay or inertia switch and follow your service manual procedure before opening any line.
Identify the feed and return hoses at the tank or rail. Getting this backwards is the single most common reason a first attempt does nothing.
Fill the canister with cleaner. Use a dedicated fuel system cleaner, not water, and do not top the machine up while it is pressurised.
Connect the correct adapter to the fuel rail pressure port. Check the thread size against your engine, and hose-clamp any connection that is not a positive fit.
Connect the 12V power supply to the vehicle battery. A maintained battery or a proper supply avoids voltage drop that stalls the pump mid-flush.
Set low pressure first. Start gentle to prove the fluid is circulating before increasing pressure.
Increase pressure in stages. Use around 100 to 150 PSI for a port injection rail, and only 1 to 5 PSI for a carbureted throttle-style system.
Run the engine or cycle the pump through a full cycle. Stop if the pressure gauge drops to zero, which means the fluid is not circulating.
Stop the engine, release pressure, disconnect, and clear the throttle body. Run the machine back through the intake to flush loosened carbon out of the throttle plate.
Two safety points. Never run solvent through an engine with a plastic intake manifold unless the manufacturer confirms compatibility, and never exceed the pressure rating of the weakest component in the circuit, which on most cars is the fuel rail or a soft line rather than the machine itself. Work outdoors with ventilation, and disconnect the battery before any work on wiring.
How to Choose a Fuel Injector Cleaning Kit
Start by deciding which of the three categories you actually need, because that single decision removes most of the confusion in this category. A bottle of PEA-based additive goes in the tank. A pulse tester fires individual injectors on the bench so you can prove which one is bad.
A pressurized machine flushes the entire fuel system, intake and catalytic converter without disassembly, and ultrasonic bench units go further still, cleaning and then measuring injectors that have been removed.
Check whether your engine is port injection or direct injection. Look at the intake manifold. If the injectors sit underneath it and the fuel rail runs along the top, that is port injection and every kit in this roundup applies. If the injectors sit inside the combustion chamber with fuel lines running down to them, that is GDI, and the options narrow sharply. The FOXWELL JT200 explicitly does not support GDI, and the MR CARTOOL V308 needs a different model variant, while the 70V AUTOOL CT60 is the one tester here that opens up that hardware.
Match pressure to the job. Around 100 to 150 PSI suits a port injection rail, which is why the KAISAL QC80 and AUTOOL C100 both top out at 150 PSI and the X AUTOHAUX C80 stops at 140. Carbureted throttle-style systems need only 1 to 5 PSI, and overshooting that range on a carb engine causes running problems rather than cleaning them.
Count your adapters before you buy. The twenty-piece set on the KAISAL QC80 names GM, Ford, Volkswagen, BMW, BYD, Audi and Hyundai explicitly, which makes it the least gamble on fitment. Two-adapter kits are fine if you know your injector bodies, and six adapters on the MR CARTOOL N02 is a sensible middle ground. For a bench unit, the MR CARTOOL V308 covers five diameter ranges from 9.8mm to 14.5mm, and the FOXWELL JT200 covers 9 to 14.5mm for traditional top-feed units.
Check whether you need measurements or just a clean. This is the question most buyers skip. If you want to know an injector flows within spec, you need a tester with graduated cylinders like the FOXWELL JT200. If you only want to free a stuck injector, an eight-mode pulse tester such as the THIKPO TK-F4 is enough and far less money. If you want to clean and then verify, the MR CARTOOL V308 does both in one cycle.
Budget for consumables honestly. None of the machines in this roundup ship with cleaning fluid or test fluid, and solvent is the recurring cost that determines whether a kit is practical for you. A 1000ml machine consumes a full tank of fluid in one thorough job, and the 2000ml ultrasonic tank consumes it faster. Add bottles of cleaner to your cost before comparing machines, and remember that solvent is also a safety consideration you should store properly.
Weigh DIY against a shop visit. A shop flush bills labour rates by the hour, so the machines earn their place back fastest for anyone doing this regularly or owning several vehicles. A single treatment on one modern GDI car is harder to justify with a machine, because GDI hardware cannot be ultrasonically cleaned like port injection units. For a one-off, an add-to-tank PEA treatment is a reasonable first step and a machine is a second step.
Look for documentation, honestly. Thin instructions are the most common complaint in this category, appearing on the AUTOOL C100, the allsun EM276SET, the JEUCLEL and the FOXWELL JT200 alike. It costs nothing to check whether a walkthrough video exists for the model before you buy, because the setup is usually the hard part rather than the operation.
Finally, treat the ratings honestly. Most of these products have thin review counts, and a handful of units in this roundup carry fewer than 130 ratings, which means durability conclusions are provisional. We use the rating alongside the review volume rather than on its own, and we would rather tell you that a budget kit is a calculated risk than present it as a safe recommendation.
Frequently Asked Questions
Do fuel injector cleaners actually work?
Yes, when the problem is carbon. PEA, the phenylethyl alcohol used in most injector cleaners, dissolves carbon deposits and suspends them so they leave through the exhaust. It will not fix an electrical fault, a worn pintle seat or a failing coil, which is why a tester that confirms flow before and after cleaning is worth pairing with any cleaner.
Can you clean fuel injectors without taking them out?
Yes, that is what a non-dismantle machine does. It connects to the fuel rail and circulates solvent through the injectors, intake and catalytic converter while the engine stays assembled, taking roughly 20 minutes. Only the pulse testers and ultrasonic bench units in this roundup require the injectors to be removed.
Is a fuel injector cleaning kit worth it?
It is worth it when carbon is confirmed. Run the symptom checklist first, because a vacuum leak, dirty mass airflow sensor or aging oxygen sensor produces the same rough idle and hesitation. On port injection engines with 100k miles or more, owners consistently report measurable improvement in idle and throttle response. On modern GDI engines the case is weaker.
What PSI does a fuel injector cleaner need?
Around 100 to 150 PSI for a port injection fuel rail, which is why the KAISAL QC80 and AUTOOL C100 both reach 150 PSI. Carbureted throttle-style systems need only 1 to 5 PSI, and pushing more on a carb engine causes running problems. Never exceed the pressure rating of the weakest component in the fuel circuit.
How often should I clean my fuel injectors?
For a healthy gasoline engine that runs top-tier fuel, an occasional PEA additive treatment in the fuel tank is the low-effort preventive habit most owners report using. A full flush machine session is more of a symptom-driven or mileage-driven job, common around 100k miles. If you drive short trips, tow, or store an EFI vehicle for months, carbon builds faster.
Which is better, Sea Foam or Lucas?
Both are add-to-tank PEA treatments rather than machines, so the deciding factor is PEA concentration rather than brand. Neither is sold with a measured flow figure, and neither can confirm an injector is clean the way a graduated cylinder tester can. If the question is which one to pour in, read the concentration on the label and choose the higher one, and pair it with a tester for verification.
Final Verdict on the Best Fuel Injector Cleaning Kits in 2026
Start with the allsun EM276SET if you want to test injectors. It is the most reviewed tool in this roundup at 1871 ratings, it arrives as a complete set, and it will tell you within minutes whether an injector is stuck, leaking or healthy.
Move up to the THIKPO TK-F4 when you need the voltage flexibility and dual channels to free a genuinely seized injector, and to the AUTOOL C100 when you want to flush an entire fuel system, intake and catalytic converter without pulling the manifold. If you work on high-pressure hardware, the AUTOOL CT60 is the one tester here that reaches it, and if you want real measured flow numbers, the FOXWELL JT200 is the only instrument in the list that produces them.
Whatever you choose, verify the fix rather than assuming it. Run the checklist before you buy, and check the result after. The same bench-versus-machine logic we apply to specialist equipment like a tri-fuel generator holds here: the right tool is the one you will actually use twice.
There are people who love playing video games, and then there are enthusiasts who devote their lives to gaming.
Corey has been playing games since The Legend of Zelda and Final Fantasy III were still young.
Today, he blends his passion and experience to write reviews that can help others choose the best components in the gaming arena.
