A dial indicator is the cheapest insurance in a machine shop, and on a lathe it does more work than any other hand tool you can put on the carriage. It tells you whether the spindle nose is true, whether a four-jaw chuck is holding the bar dead center, whether the tailstock points straight down the bore you just turned, and whether that parting tool is sitting at the centerline. Every one of those checks takes minutes with an indicator and a very long time to recover from without one, because taper, runout and chatter all trace back to a setup you eyeballed.

That is the problem this guide solves. The best dial indicators for lathe setup are not all the same tool, and the difference matters more than most buyers expect. A 0.001 inch analog indicator in a friction-fit holder is a completely different instrument from a lever-type dial test indicator with a dovetail swivel stem, and a metric-only 0.01 mm head will fight you on an inch shop even if the mechanics are identical. You also have to buy a holder separately, and a cheap base can drift under the arm load and quietly ruin every reading you take with it.

Over the past few months we have been putting these gauges through the jobs a lathe actually asks for: centering bar stock in a four-jaw, dialing the tailstock against a ground bar, sweeping a workpiece for total indicated runout, and squaring a parting tool. What follows is a lathe-specific roundup of ten indicators and base sets, plus the setup technique that competitors bury. No woodworking gauges, no CNC tool presetters, just the instruments that earn their keep on a metal lathe.

If your machine is set up at a bench rather than a dedicated machine tool, a decent screen setup for reference drawings and inspection paperwork makes the setup paperwork half as painful. We covered monitors for a dual setup if you want that side sorted first, and our monitor arm roundup covers the cheaper way to reclaim desk space when one panel is enough.

Top 3 Picks for Lathe Setup in 2026

If you want the short version: the Qnkaa kit is the one we would hand to a first-time lathe owner, the Neoteck digital set is the one we keep on the tailstock shelf, and the Clockwise Tools kit is the one that arrives with a certificate in the box. Details for all three sit further down.

Best Dial Indicators for Lathe Setup in 2026

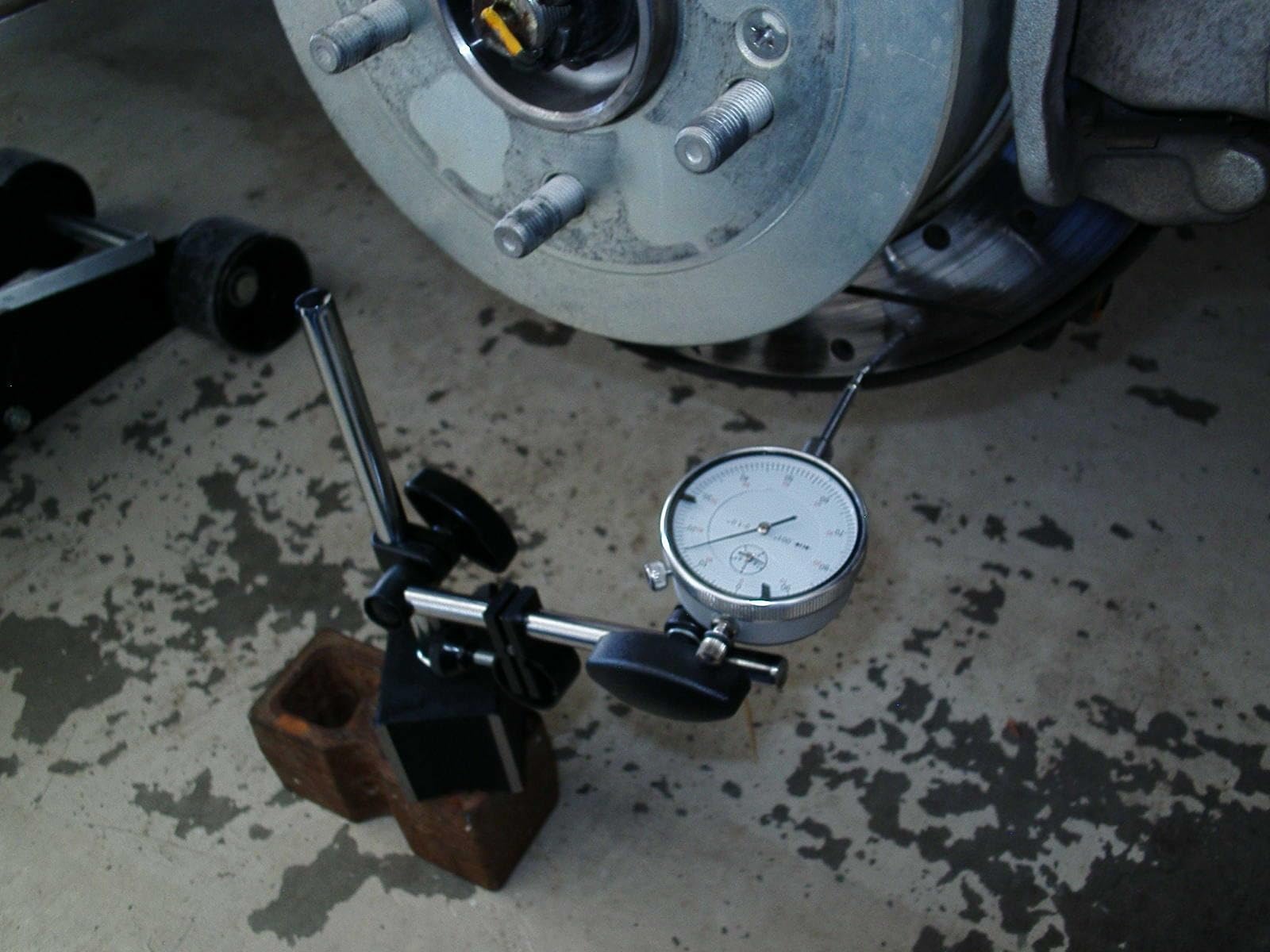

1. Qnkaa Dial Indicator with Magnetic Base – Best Overall Starter Kit

This is the kit we recommend to anyone setting up a lathe for the first time, and it earned that spot after the largest sample of owner feedback of anything here. The head is a conventional rack-and-pinion plunger indicator with 0-1 inch of travel at 0.001 inch graduation, which is the standard geometry for centering work in a four-jaw chuck. The plunger is a 3/8 inch stem style with a ball contact point, so it drops into almost any indicator holder on the market.

What sells it is the base. It is a fixed-column stand with two magnet faces and an on/off switch, and at 9 inches overall it puts the dial at a comfortable reading height when the magnet is on a chuck body or the back of the carriage. For tailstock alignment and spindle runout checks we still prefer an articulated arm, but for dialing a stationary part in a soft jaw, a rigid column is faster and does not drift.

The 22 included test tips are more useful than they look. On a lathe you will swap between the standard ball point, a flat contact for measuring across a flat, and larger radius points for checking a turned surface without cutting into it. Having them in a case with the indicator means they are not lost in a drawer, which is the usual fate of loose tips.

Feedback on this kit is heavily positive on the magnet strength and the accessory count, and a recurring theme is that buyers expected more from a set at this level and got it. The complaint that comes up most is the mechanical feel of the movement. Some owners describe the sweep as slightly rough or gritty compared with a Mitutoyo head, and a few mention that getting the needle exactly onto zero with the bezel takes a couple of attempts on a new unit.

What it is good for

Centering bar stock and round stock in a four-jaw chuck is the job this kit was clearly designed around, and it handles it well. A 0-1 inch range covers the sort of half-inch swings you get when a jaw is a few thousandths out, and the fine adjustment knob on the stand lets you creep the contact point onto the surface without disturbing the setting.

It is also a good first purchase for checking spindle nose runout while the machine is stopped, dialing the tailstock quill against a ground bar, and squaring a parting tool to center. If you only ever buy one indicator, this is the one that covers the most ground without a second purchase.

Where it falls short

If you are cutting to tight tolerances on bearing fits or thin-wall parts, the rough movement feel is a fair reason to step up a grade. It is not a precision instrument and it does not pretend to be one. The rigid column also limits you: you cannot easily reach under a part or into a recessed bore the way an articulated arm with a dovetail stem can.

The 1/4 inch back hole means it needs an adapter for holders built to the AGD Group II pattern, and the fixed column has no height adjustment for dialing at different radii on a taper. Both are cheap to solve, but you should know they exist on day one.

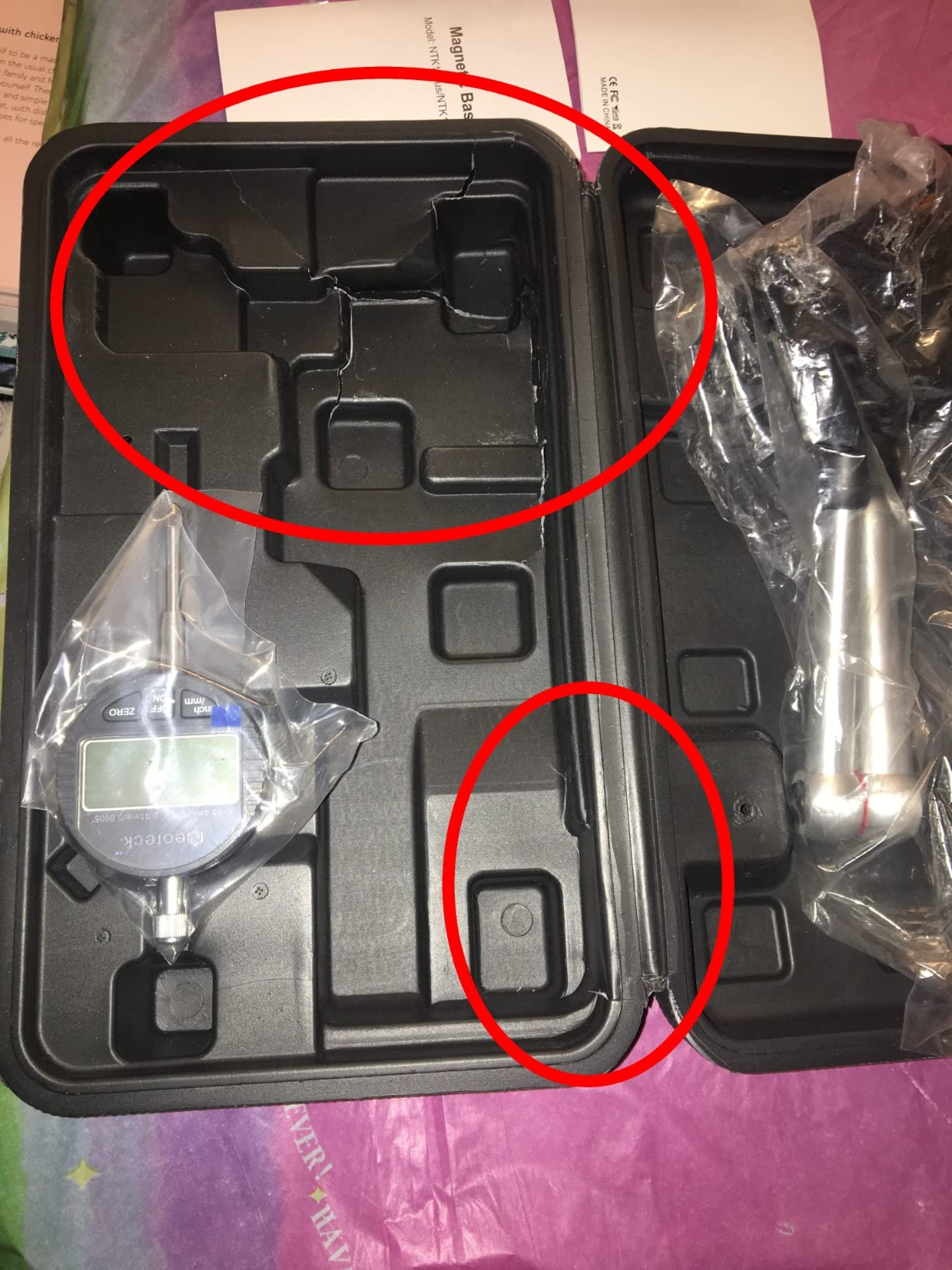

2. Neoteck Digital Dial Indicator and Magnetic Base Set – Best Value

The argument for a digital head on a lathe is simple. When you are sweeping a workpiece for runout with the spindle turning, the needle is a blur and the numbers flicker. With a digital readout you get a number you can read, and with 0.0005 inch resolution and 0-1 inch of travel you can put a chuck, a tool post or a workpiece on a flat surface, spin it, and watch the value climb.

It also solves the metric problem in a way an analog head cannot. The set switches between inch and metric, so an inch shop can read thousandths without a conversion table and a metric shop can read hundredths of a millimeter. That single feature makes this the most flexible instrument here if your work crosses both worlds.

The base is the same 176 lb articulated design found on several kits in this list: a 5 inch lower arm, a 4.5 inch upper arm, 14.1 inches total height and a 5/16 inch clamping hole that suits an 8 mm stem. Two magnet faces with an on/off switch give a strong hold, and the arm locks in whatever position you set it. In the box you get the indicator, the base, a rear cover, a spare 1.5V battery, a manual and a storage case.

Owners consistently rate the display readability as the standout feature, particularly for anyone whose eyes are not what they were twenty years ago. Good repeatability against known references is also reported often, and the 18 month warranty is longer than most of the budget kits offer.

What it is good for

It shines on jobs where you rotate the part by hand and read a number: checking the true position of a spindle nose, verifying that a tailstock quill is square to the ways, and squaring soft jaws by reading the dial at four points. It is also the easiest of the ten to use in poor light or at an awkward angle, because there is no needle to align with a mark.

Set the switch to metric and the same head handles a shop working in millimeters, which is where the traditional analog budget indicator forces you into conversion arithmetic. For a small lathe doing mixed work, that alone justifies the purchase.

Where it falls short

The most reported weakness is the zero button. It is sensitive, and a heavy thumb press when you zero on one point will throw the reading off when you move to the next. Take the habit of zeroing with a light touch, and get into the habit of re-zeroing every time you lift the tip. Some users also report a short delay before the display settles after zeroing, which matters if you are sweeping fast.

The probe tip thread is not a standard 4-40 pattern, so replacement tips are not as easy to source. A digital head also gives you a live number, not a trace, which means you cannot see how the error is distributed around a rotation the way a needle sweep shows. For pure centering, the analog sweep is still easier to read.

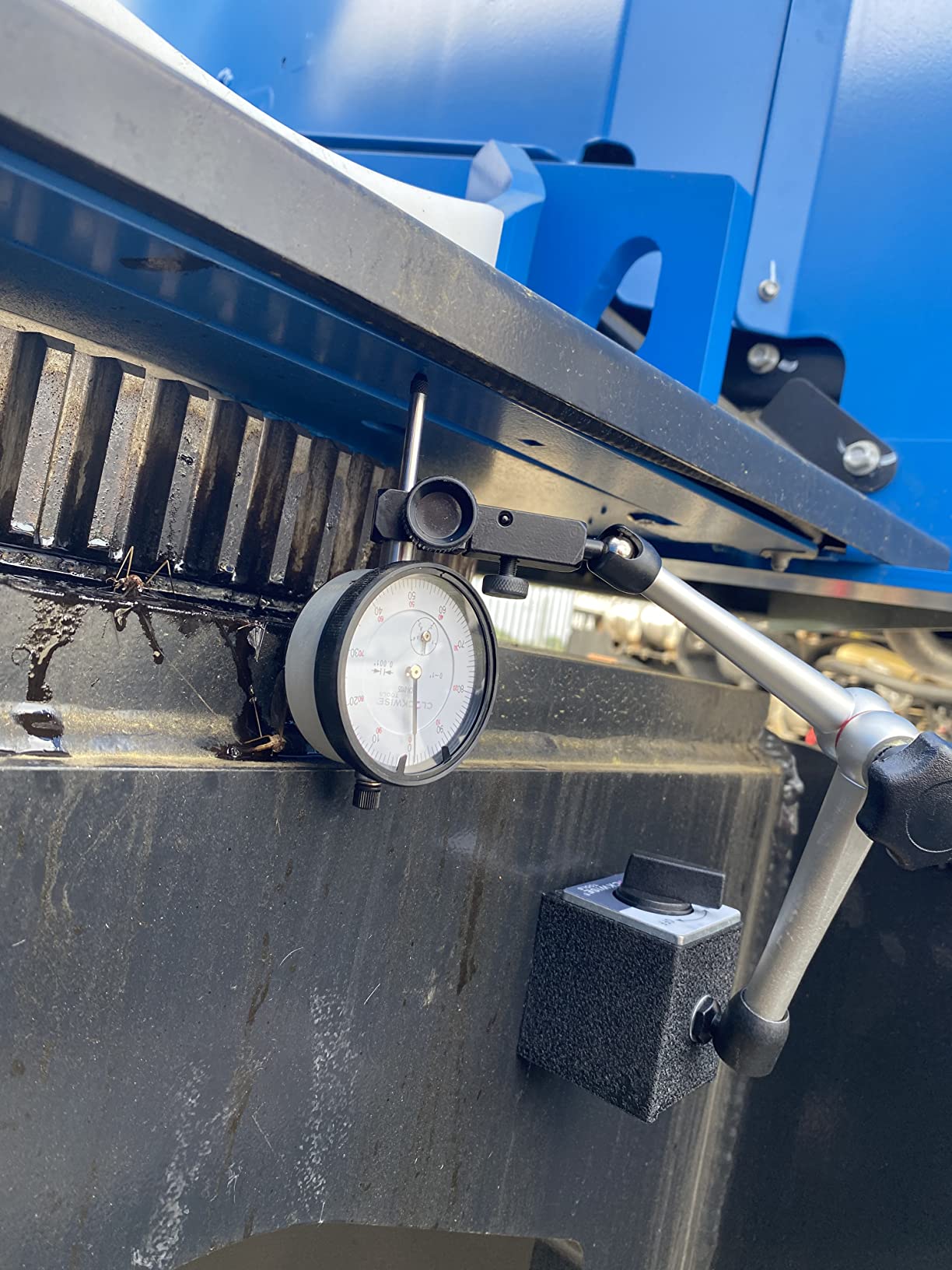

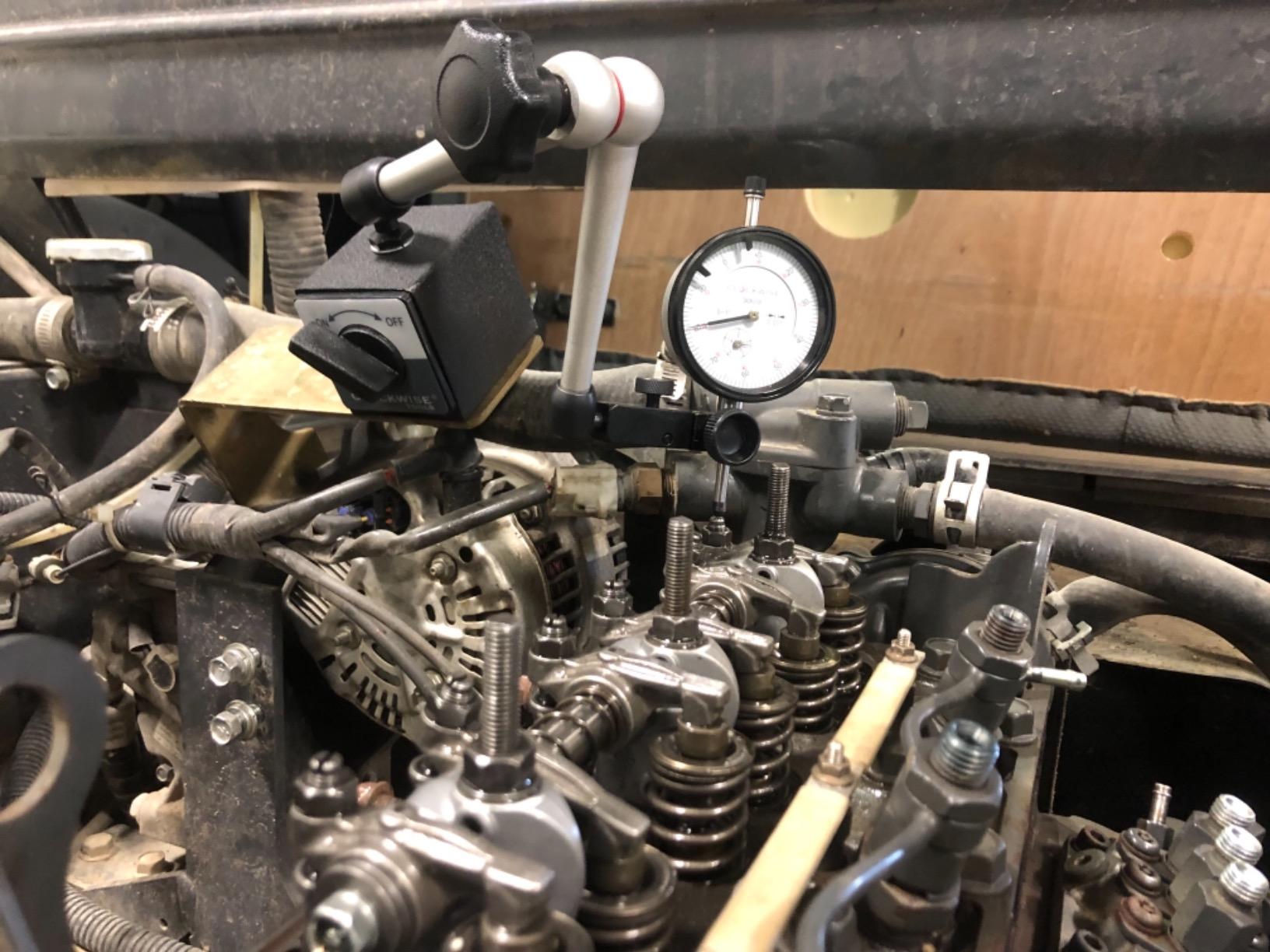

3. Clockwise Tools DIMR-0105 – Best Analog Kit With a Certificate

This is the analog kit we would put on a shop floor where the indicator gets grabbed by four different people. It is a 0-1 inch, 0.001 inch plunger indicator with a 2 inch dial and a 3/8 inch stem, and it is the geometry almost every holder in the world accepts. Flat back and lug back mounting are both supported, with a 6.5 mm hole, and a twist-and-lock bezel with an anti-dust cap handles zeroing.

Two details separate it from the bargain kits. The contact is a carbide anvil ball rather than a hardened steel point, which matters on a lathe because your stylus touches rotated metal every single time you check runout. And the box contains a manufacturer accuracy certificate, so you know the indicator you received was checked before dispatch.

The base is a 176 lb two-face magnet with on/off control and a single-knob arm lock, which is one of the fastest setups of any articulated base in this roundup. One knob to tighten, one knob to position, and the arm stays where you put it. Feedback mentions the magnet strength and the arm locking as the two things owners notice first, along with frequent praise for customer support that answers quickly.

Repeatability is reported as good, and at 0.001 inch graduation this is accurate enough for centering, tailstock alignment, tool height setting and general runout work. It is not a metrology head, and nobody claims it is.

What it is good for

This is a straightforward daily driver for a working lathe operator. The 0-1 inch range and 0.001 inch graduation are the right pairing for centering work, and the carbide contact point survives the contact with rough turned surfaces that would wear a plain steel point flat in a year.

The certificate matters more than most buyers realise. If you are setting up a lathe for production work and want a documented baseline for your indicators, having a certificate in the file means you know when the instrument was last verified and can schedule the next check against gage blocks.

Where it falls short

The most common complaint is about the fine adjustment knob. It sits on the end of the arm, and turning it tends to push the arm away from the surface rather than sliding the contact point across it, which makes fine positioning slower than it should be. There is no separate fine adjustment at the base to compensate.

Arm articulation is smooth but not as refined as the best-known indicator bases, and at 4 pounds the package is heavier than some competitors because of the hard case. If your work lives in very tight spaces, the overall size of an articulated base is worth thinking about before you buy.

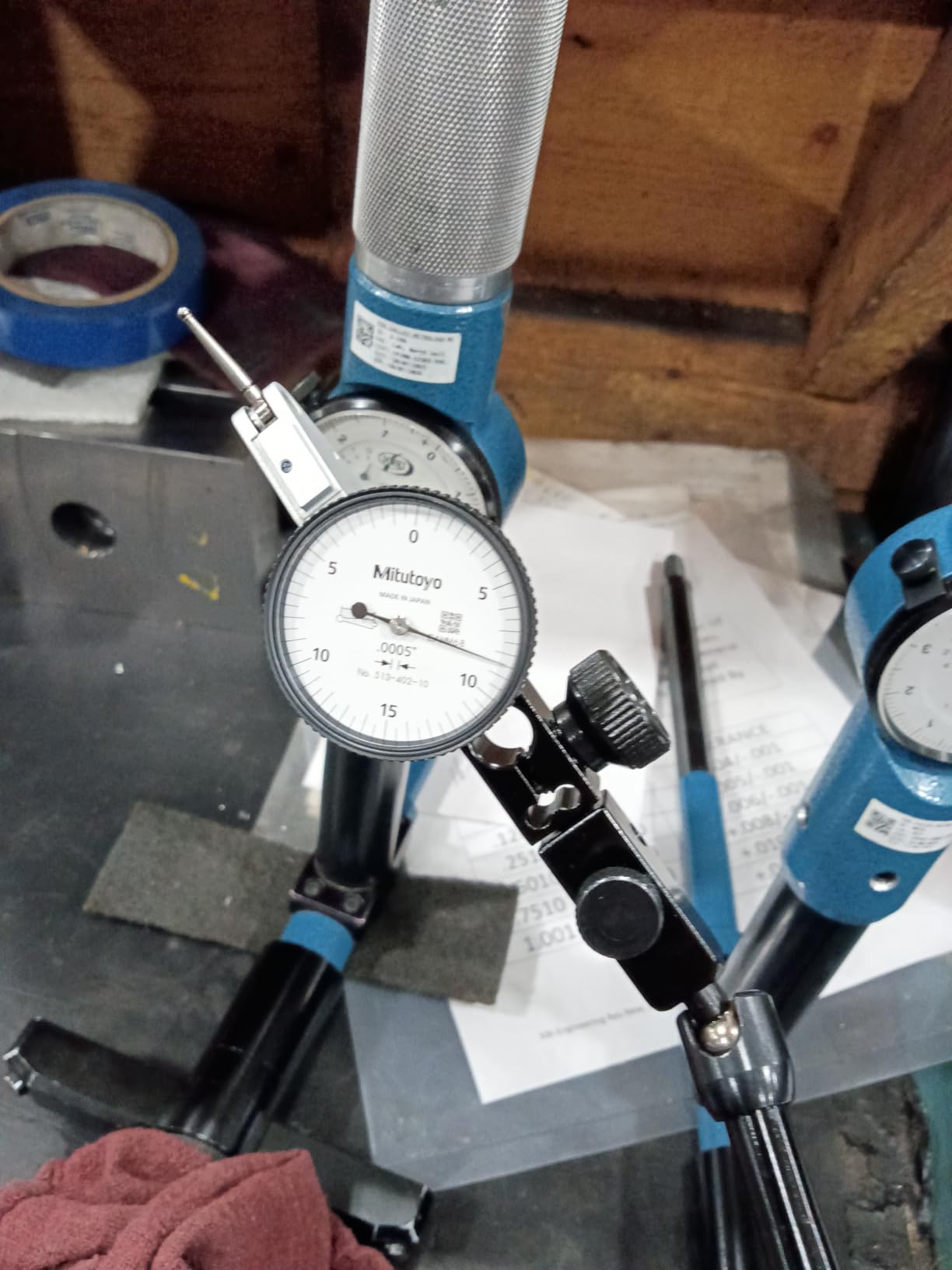

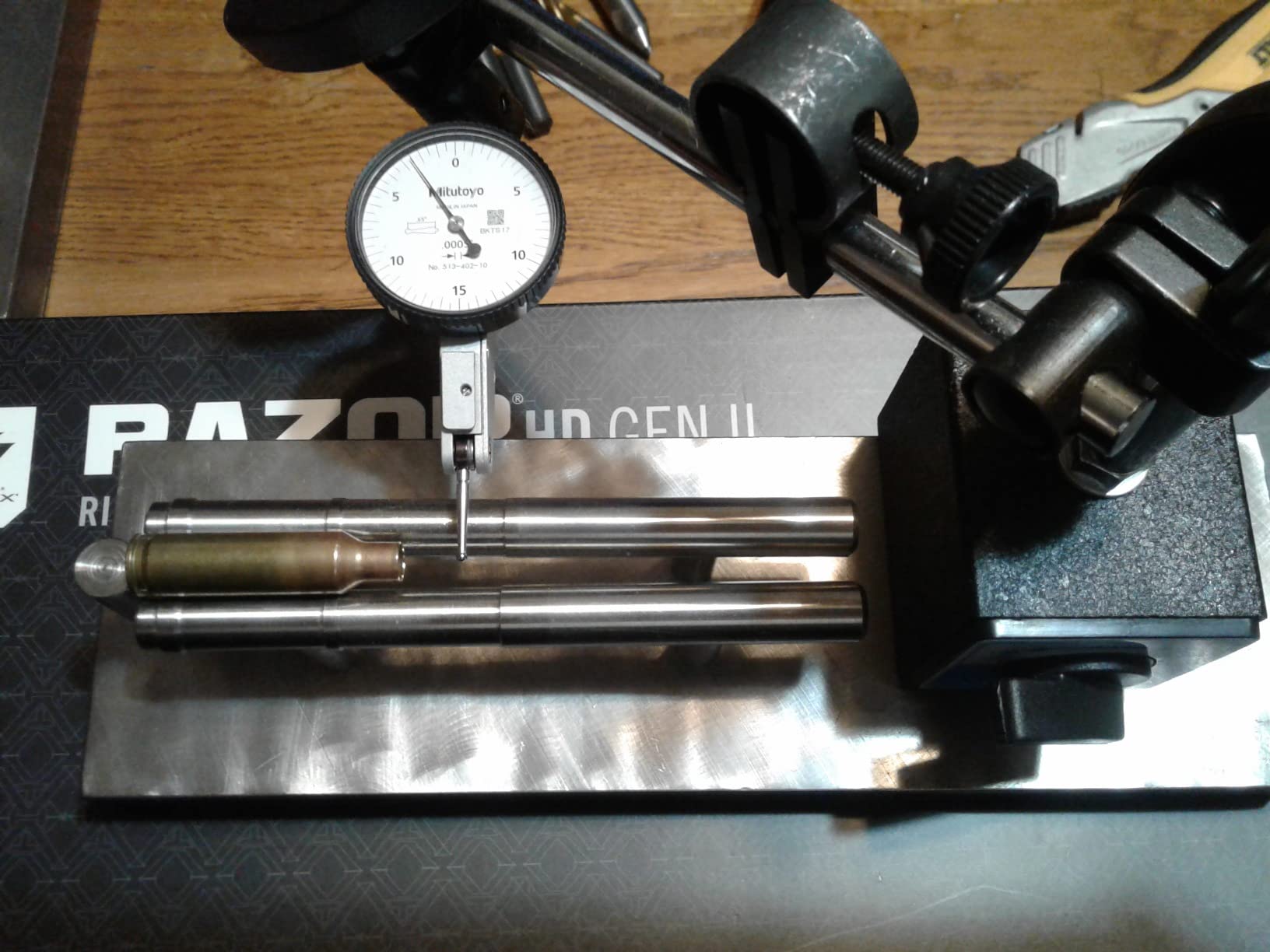

4. Mitutoyo 513-402-10E Dial Test Indicator – Top Rated for Chuck Centering

The Mitutoyo 513-402-10E is a dial test indicator, not a plunger indicator, and that single fact changes how you use it. Instead of pushing straight down on a stem, you swing a short lever. The stylus rides against the surface and the needle responds almost instantly, which makes centering a chuck or a workpiece dramatically faster because you do not have to keep the stem square to the work.

The numbers here are at the top of the class. Travel is 0.03 inch, graduation is 0.0005 inch, and the stated accuracy is 0.0002 inch. That is a finer figure than graduation, and it means the instrument is rated well inside its own resolution. The set comes with the indicator, a stem, a nut, styli and a case, and the construction is stainless steel.

There is an inspection certificate in the box, and that certificate is a bidirectional accuracy evaluation traceable to a standard. For a shop that measures anything to a drawing, having a traceable record for the instrument that sets your cutting position is a real advantage over a no-name head.

Buyer feedback leans hard on brand trust and build consistency. The Japan manufacture reputation and the impact resistant design are both cited repeatedly, and the common thread across reviews is that people buy this brand once and stop shopping. On Practical Machinist, machinists discussing test indicators repeatedly pair a Mitutoyo DTI with a dovetail swivel stem, because the swivel gives the stylus enough freedom to sit correctly on a curved or angled surface.

What it is good for

Centering in a four-jaw chuck is the standout application. You put the bar in the jaws, swing the lever onto the bar, and move one jaw at a time while watching the needle. Because the lever action is so fast, a full centering sweep takes seconds rather than the careful stem-plunger approach a plunger indicator demands.

It is equally good for comparative measurements. Put the lever tip on a known good surface, zero, then move to the part. That makes it ideal for checking whether a tool post index is repeatable, whether a collet is centred, or whether a tailstock centre is true.

Where it falls short

Travel of 0.03 inch is the limitation to understand before you buy. It is plenty for centering and comparative work, and completely inadequate for indicating a tailstock over a long travel or checking bed way straightness over a foot of length. If your setup work includes large movements, you need a plunger indicator as well.

Technique is the other issue. A DTI rewards a light, rolling touch, and operators coming from a plunger indicator often press too hard and produce a reading that drifts as they lean on it. Budget for a week of practice. The cost of the instrument also puts it out of reach for a first-time buyer who only needs to center a few parts.

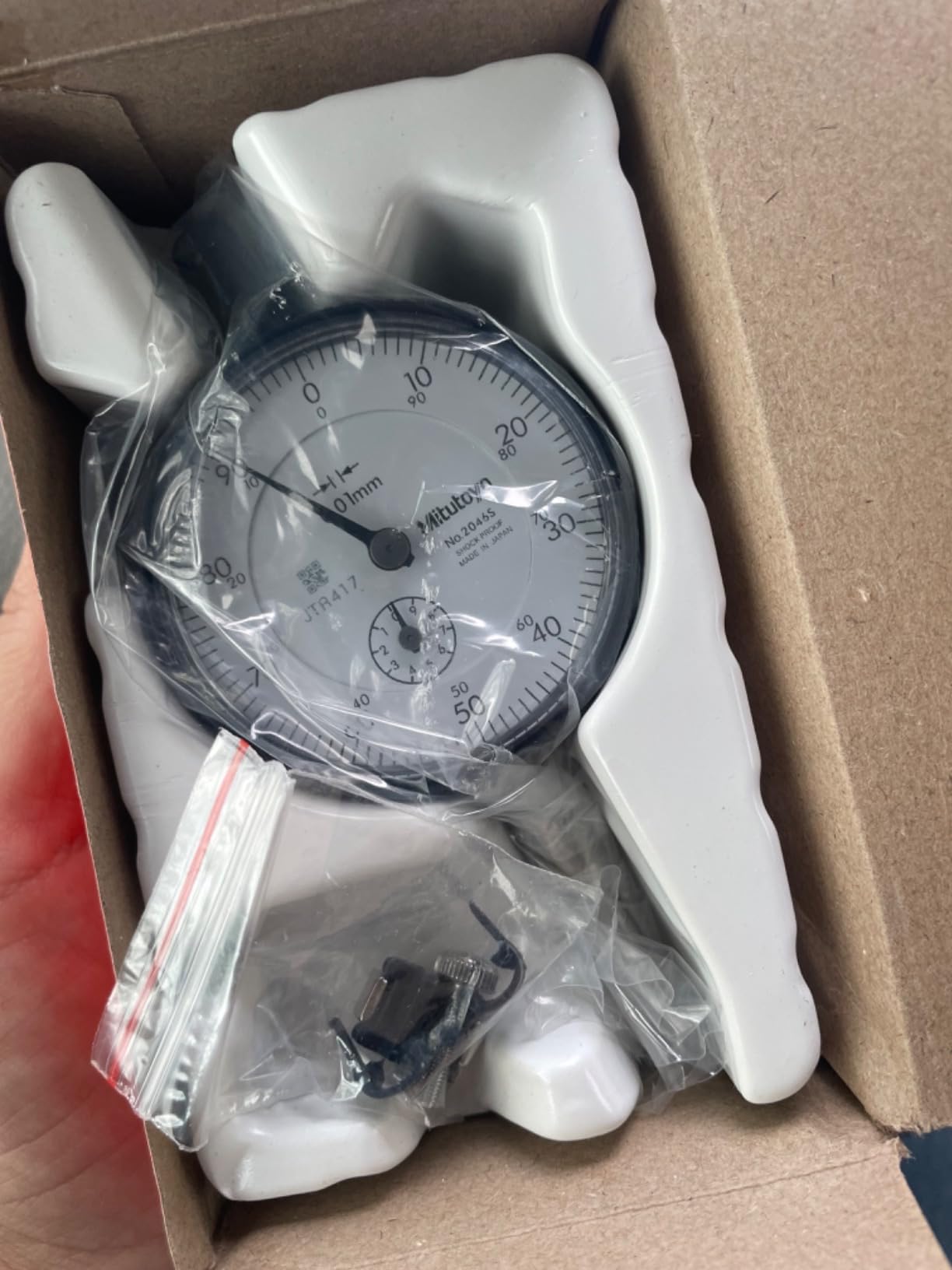

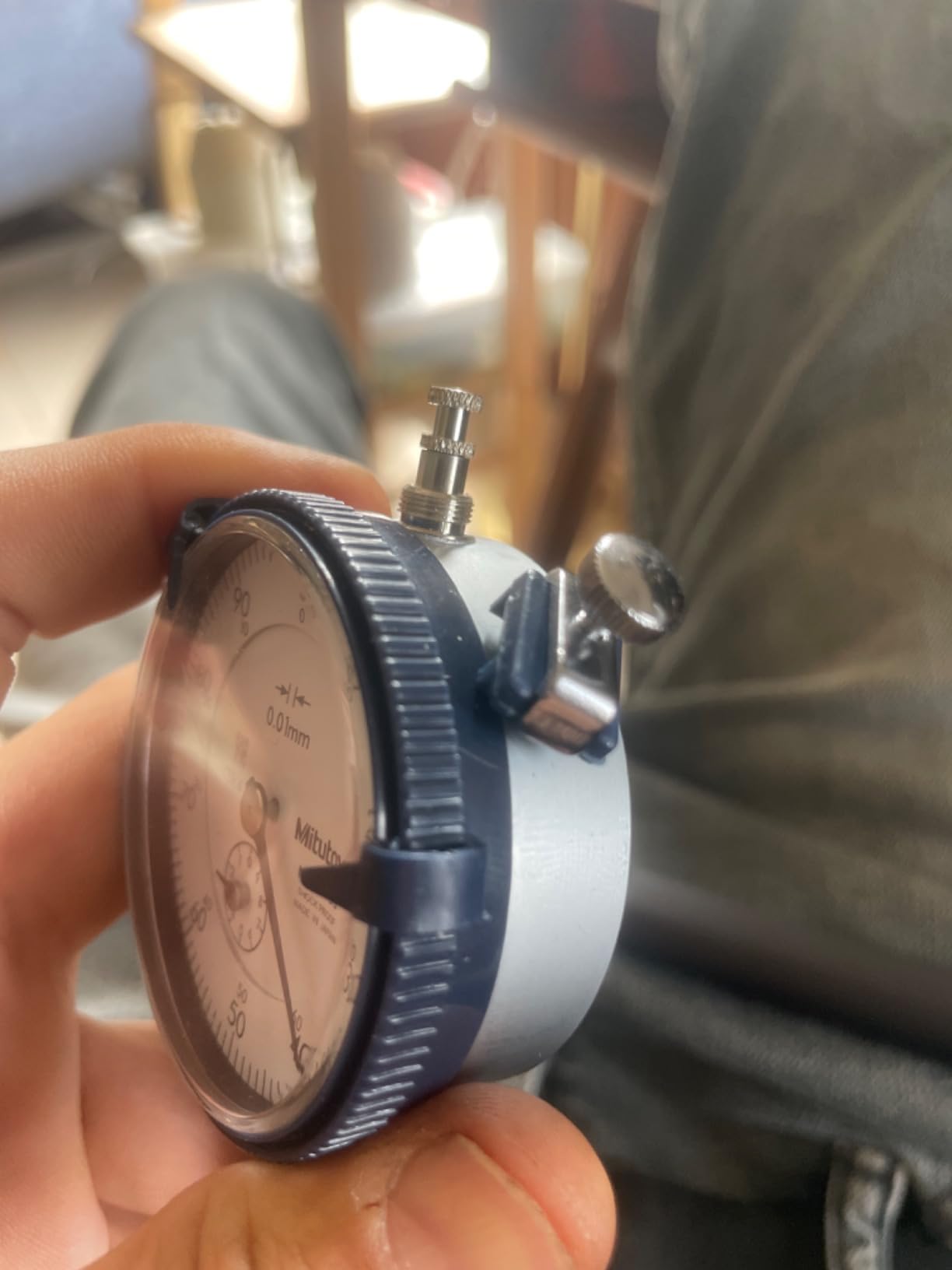

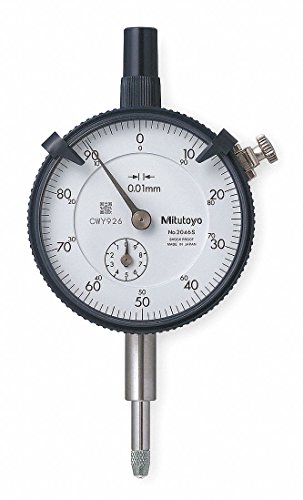

5. Mitutoyo 2046S – Best for Metric Shops

The 2046S is the pick for anyone whose drawings, tooling and habits are metric. It reads 0-100 on the dial with 10mm of travel at 0.01mm graduation, which is the metric equivalent of the 0-1 inch, 0.001 inch configuration that dominates inch shops. The stem is 8mm and the back is a lug back, so it drops into the same holders as a lot of European and Asian equipment.

Build details matter on a lathe. The spindle is hardened steel, the crystal is hard coated for scratch resistance, and the movement has improved resistance to dust and water. A lathe is a wet, chip-filled environment, and a face crystal that fogs or scratches turns a good indicator into a guessing game.

Owner feedback is consistently strong on accuracy for the tier, and the brand name carries a lot of weight in shops that have to justify a purchase to someone. The movement is described as smooth, and the hard coated crystal earns specific mention from people who work around abrasive swarf.

One recurring buying note is worth passing along. Some listings show the S model with a bezel clamp and tolerance markers while the item received is the A model without them. If the bezel clamp matters to your zeroing habit, check the supplied model on arrival and confirm it matches what you ordered.

What it is good for

Metric machines of any size, where a 0.01mm readout is what the tooling and the workpieces are actually specified in. On a lathe running metric thread tooling, reading in tenths of a millimeter keeps you from converting every number in your head while a part is half finished.

It is also a strong choice as a second indicator, kept on its own holder for centering and tramming, so you never have to unbolt a fine one from a magnetic base. At 4.6 ounces the body is light and easy to handle in a dovetail holder.

Where it falls short

It is a bare indicator. No holder, no base, no case beyond the standard packaging, which means a complete setup costs more than the headline figure suggests. If you have nothing else in the shop, budget for a lug back holder and something to hold it.

The 0.01mm graduation is the other constraint. It is not an instrument for the last few thousandths on a bearing fit, and on an inch shop the dial face simply does not speak your language. Nothing is wrong with it, but you have to buy the right one for the job you are doing.

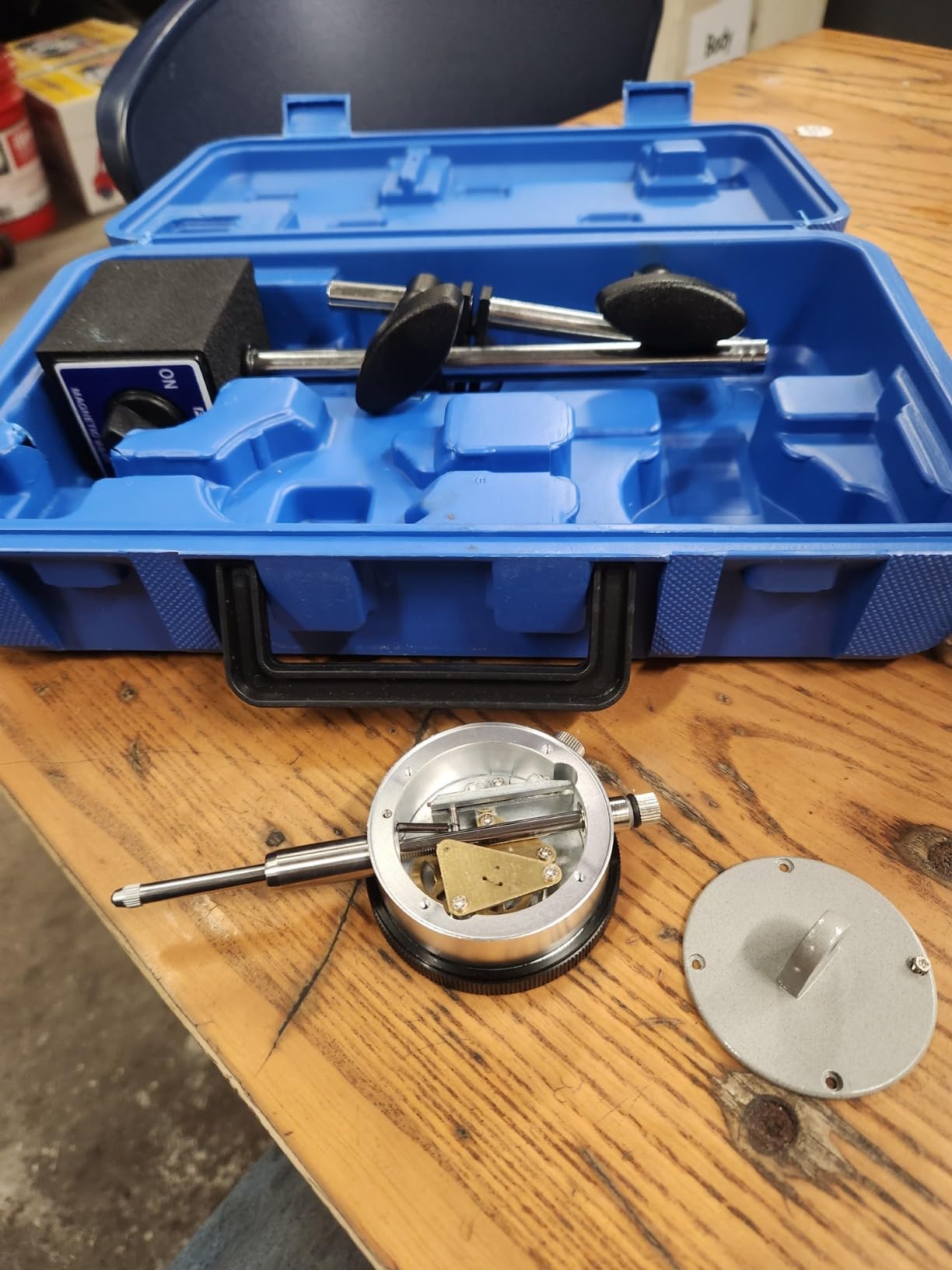

6. Fowler 52-520-199-0 – Best for Large Dial Readability

The Fowler 52-520-199-0 solves a problem that gets more annoying as you get older: reading a needle. The dial is 2.25 inches across, larger than anything else in this roundup, with 0.001 inch graduations, a revolution counter marked at 0.1 inch per turn, and tolerance markers so you can judge whether a variation is inside your limit without doing arithmetic mid-sweep.

Those two dial features are genuinely useful on a lathe. The revolution counter means you can tell a 0.02 inch variation around a spindle nose at a glance, and the tolerance markers let you set a limit band and watch the needle stay inside it while the spindle turns. That is exactly how you check runout without stopping the machine.

The base is the weak point. It offers 85 lb of pull rather than the 176 lb found on several competitors, which is plenty for a steady indicating job but can drift during heavier work or on thinner ferrous surfaces. The saving grace is the V feature cut into the base, which lets it sit on a cylindrical surface such as a chuck body or a shaft, and the fine adjustment assembly allows micro-fine positioning and zeroing right at the base.

Owners rate the value for a Fowler-branded set positively and like the fitted storage case. A recurring note is that the back cover screws can loosen with use, and owners recommend locking them with blue threadlocker. Some examples have shown loose internal screws that affect function, so check the movement feels smooth when it arrives.

What it is good for

Anyone who squints at a dial. The 2.25 inch face with a revolution counter is the strongest combination here for checking spindle nose and chuck runout, because you can read a number off the counter without stopping the spindle to note where the needle landed.

The V groove base also makes it a good choice when your ferrous surfaces are curved rather than flat, which is common on smaller lathes where the only big clean metal surface is the chuck body. Fine adjustment at the base makes zeroing a cross-check quick.

Where it falls short

The magnet is the reason this is not higher on the list. At 85 lb it is roughly half the pull of the 176 lb bases here, and a number of owners report it not holding firmly on some surfaces or shifting during a cut. If you plan to leave an indicator mounted while the lathe runs, budget for a stronger base.

Arm adjustments are also described as bulky, and the movement is reported as less consistent than the Japanese-built indicators in this group. For a hard-working production lathe where the indicator stays on a machine all day, a stronger base is money well spent.

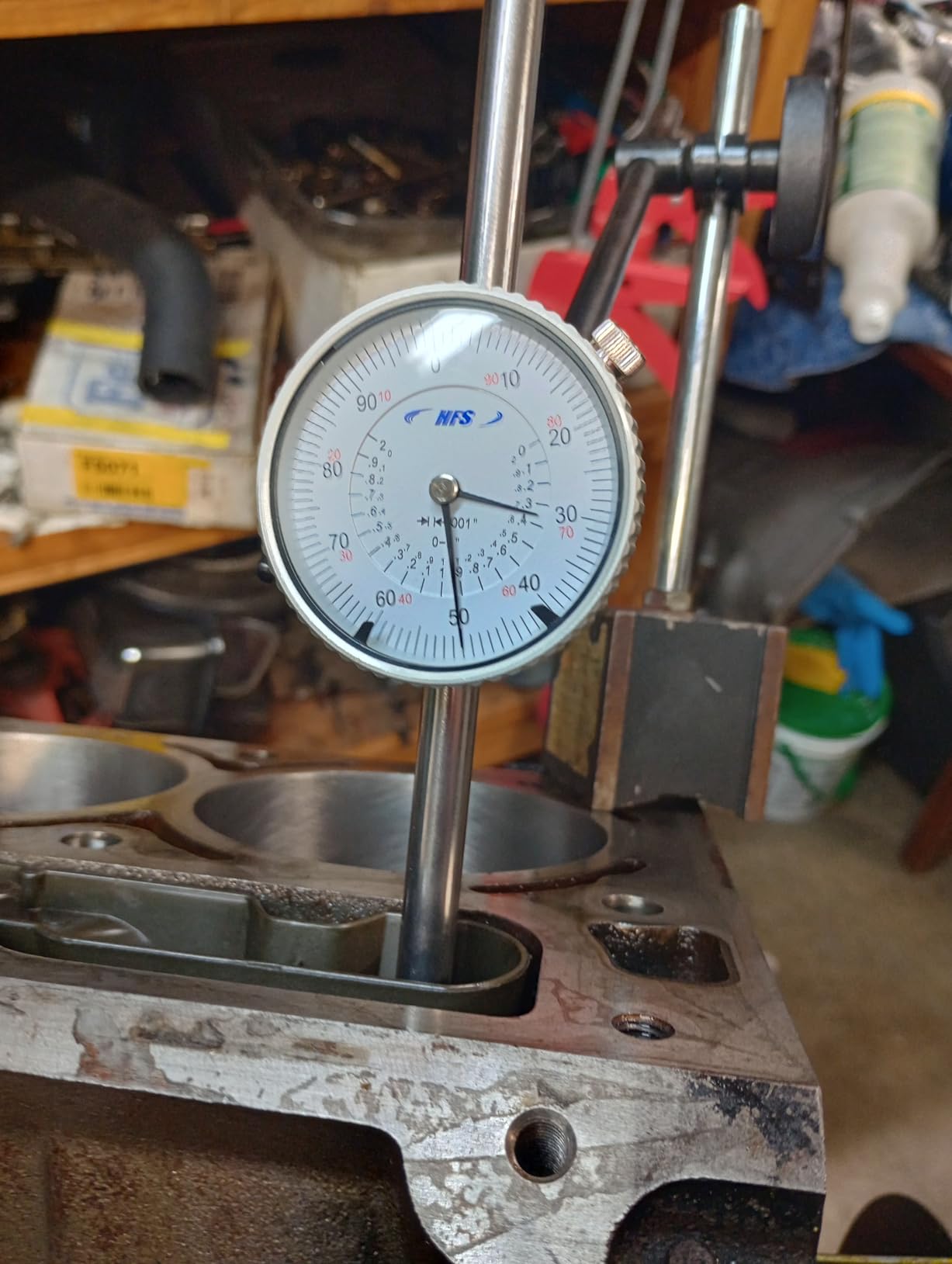

7. HFS 0-2 Inch Dial Indicator – Best for Long-Range Sweeps

Most dial indicators cover 0-1 inch, and most lathe setup errors are smaller than that. The HFS 0-2 inch model covers twice the ground, which means you can take a reading without stopping to re-zero every time the part swings past a 0.9 inch peak. For a first-time setup on a machine that has never been trammed, that extra range is the difference between a smooth sweep and a stop-start one.

Graduation is 0.001 inch across 0-2 inch of travel, with a 3/8 inch stem and a 1/4 inch lug back hole. The bezel rotates and locks, so zeroing is a twist rather than a fight with a screw. The contact point is interchangeable and hardened, and the same product family is offered in other range and graduation combinations if you decide you need a finer scale later.

Feedback describes smooth, repeatable action and an easy-to-read face, and owners repeatedly express that the quality surprised them for the money. The 2 inch range is specifically called out as versatile, which matches our experience of it on tailstock and spindle nose checks where travel is larger than on a centering job.

There are honest quality control notes. Some examples arrive with a different configuration than the listing photograph shows, including a smaller sweep hand than expected, and cracked lenses are reported on occasional deliveries. Screws supplied for the alternate back piece are occasionally too short. None of this is a dealbreaker, but check the unit on arrival rather than at the first job.

What it is good for

Coarse alignment. Tailstock squareness across a long bore, spindle nose condition on an older machine, and general setup on a lathe that has been moved or re-leveled all produce readings beyond 0-1 inch. This indicator holds the reading through those swings so you can see the full error rather than the first half.

It is also a sensible general-purpose indicator to own alongside a finer one, because an indicator with 2 inches of travel is far less likely to be damaged by a careless plunge than a 0.03 inch test indicator.

Where it falls short

Resolution is not the strength. At 0.001 inch you are reading to a thousandth, which is right for centering and general alignment but will not resolve the last few thousandths of a tailstock or a tool post setting. If your tolerances are tighter than that, this is the wrong instrument and no amount of range compensates.

It also arrives as an indicator only. No holder, no base, and a spare part problem if you need an alternate back piece and the screws were short. Again, the fix is cheap, but plan for it.

8. Neoteck 0-1 Inch Analog Set with 176 lb Base – Best Magnetic Base

Buy this set for the base, not the indicator. The 176 lb two-face magnet with on/off control is the holding power we want on a working lathe, and the arm is a 5 inch lower section into a 4.5 inch upper section for 14.1 inches of total height, with a fine-tuning knob on a universal rotating shaft and a 3/8 inch clamping hole.

The indicator itself is a 0-1 inch, 0.001 inch analog head with a hardened stainless steel rack and contact point, manufactured to ASME and ANSI standards. That is a reasonable working head for centering, runout checks and differential measurements. It is not a head you would use to set a bearing fit.

What makes the base valuable is that it holds. Owners report the arm staying put once locked, which is the exact failure mode that ruins a setup reading on a weaker base: you tighten up, walk away, come back, and the reading has moved a few thousandths because the arm crept. The same family is offered in three base strengths, so you can match the magnet to the thickness of your workpieces.

Feedback on the head is more mixed. The dial is described as mechanically rough with a cheap appearance, and zeroing on the bezel takes effort. Reviewers generally frame it fairly: the base is excellent, the indicator is adequate for general and hobby work.

What it is good for

Any job where the indicator stays mounted while the machine runs, or where a weak magnet would creep. That covers checking a workpiece for runout with the spindle turning, holding a dial on a chuck body for repeated centering checks, and leaving a dial on a tailstock quill overnight while a job runs.

It is also the set to pick if you already own a better indicator. The base is compatible with most standard indicators, so pairing it with a finer head from elsewhere is a realistic and cost-effective upgrade path.

Where it falls short

The indicator is the weak half of the package. Mechanically rough movement and a difficult bezel zero are the two complaints that appear most often, and reviewers are explicit that it is not suited to high precision machining. If precision is the point, buy the base with a better head.

Quality control also appears in feedback, with short screws for the alternate back piece and occasional cracked lenses reported. As always, check the arrival against the listing before you set up with it.

9. Starrett 657AA Magnetic Base Holder – Best for Tight Spaces

This entry is a base, not an indicator, and that makes it the odd one out in this roundup. The Starrett 657AA is a compact steel magnetic base holder built for confined spaces, and it is the piece most people reach for when a full-height articulated base simply will not fit around the part they need to measure.

It accepts all Starrett test, back-plunger, AGD, dial and miniature-dial indicators, and it also takes similar indicators from other makers, so you are not locked into one brand. The construction is durable steel, and it is made in the USA. Owners describe the magnetic hold as very strong relative to the size, and the compact footprint as the reason they keep it on the machine.

Buyer sentiment is strongly positive on build quality and longevity, with the common view that it is a tool you buy once. The compact size is described as an advantage in tight housings rather than a limitation, which is the opposite of how a small base is usually treated on a general-purpose machine.

What it is good for

Differential work on a lathe, where the backlash in a gearbox or a tailstock quill needs measuring and there is no room for a tall articulated arm. Compact holders are also the standard way to indicate a collet, a chuck jaw or a workpiece held in a vise, because you can place them close to the work.

It is a strong second base as well. Pair it with a dial test indicator for chuck centering and keep a full-height base for tailstock alignment, and you cover both extremes of the job range with instruments that were designed for them.

Where it falls short

It is a base only, so on its own it does not get you a working indicator set. You need a separate head, and the total cost of the pair is well above any of the bundled kits on this list.

The dovetail thumb screw is a known annoyance. Owners report it can tighten down so far that removing the indicator becomes a two-handed job, and the advice is to snug it rather than crank it. The small magnet also has less surface area than a full-size base, which is fine for indicating and wrong for a heavy setup job.

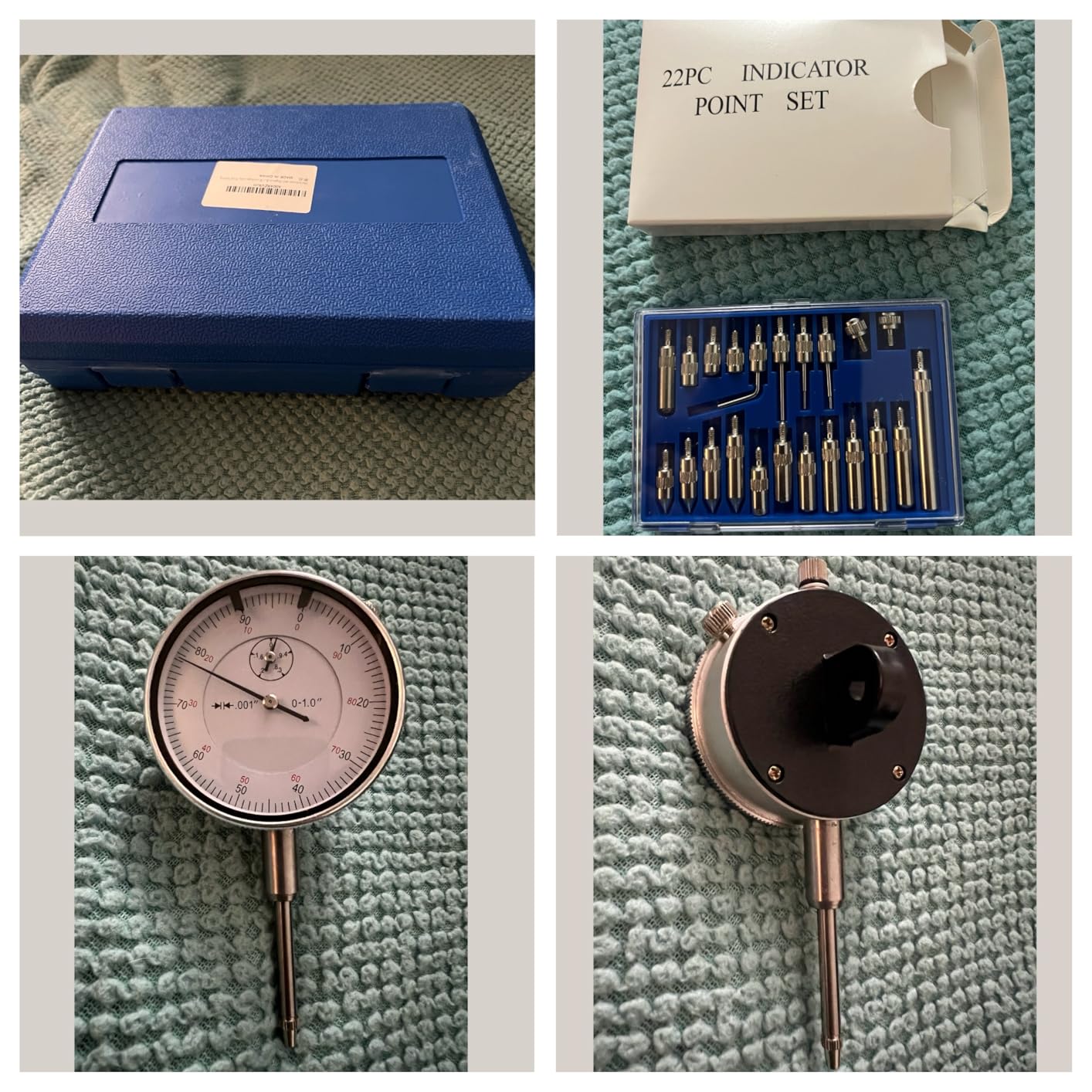

10. Rpeconu Dial Indicator and Magnetic Base Set – Budget Pick

The Rpeconu set is the cheapest complete indicator and base combination in this roundup, and for a first lathe or a student workshop it covers everything you need to do real setup work. The head is 0-1 inch at 0.001 inch precision, the base is hardened steel with a 140 to 160 lb magnetic force, and the arm rotates a full 360 degrees.

The V groove in the base is a genuinely useful touch at this level, because it lets the base sit on a round surface instead of requiring a flat one. On a smaller lathe that is often the difference between being able to mount the indicator and not. There is a fine adjustment knob, chrome-plated surfaces, and a portable case.

The accessory count stands out. Twenty-two AGD 4-48 thread indicator points come in the case, which is the same thread standard used on the mainstream American indicator range, so they fit the holders you will actually mount. Buyers consistently single out the accessories and the case as the reason the set feels more complete than its cost suggests.

The honest caveat is the brand. Rpeconu is a newer name, and the review history is shorter than any other set in this roundup, which means less long-term data about how the movement holds up. A higher proportion of the ratings sit at the lower end than for the established brands, and that is a signal worth taking seriously before you depend on it for production work.

What it is good for

Learning a lathe. Centering bar stock in a four-jaw, checking a tailstock quill, and squaring a parting tool all work perfectly well with this set, and a student who damages the tip on a first job is not going to be upset about the replacement cost.

It is also a good second set for a shop where indicators get left on machines. The V groove base and the 22 points make it useful for odd shapes and awkward workpieces where a different tip is needed every time.

Where it falls short

Long-term confidence is the real limit. With the smallest review base here, you have less evidence about repeatability drift after a year of service, and a rough movement or a cracked crystal is more likely to be a surprise. Buy it for learning and general work, and move up if you start cutting to tolerances.

The base pull is 140 to 160 lb, below the 176 lb kits, so it is a reasonable but not outstanding hold. And with 22 points of the same thread standard as mainstream indicators, you have not really gained access to specialty tips, only to more of what you already had.

How to Use a Dial Indicator for Lathe Setup

This is the section that matters most, because a mediocre indicator used correctly beats a perfect one used badly. Four setup jobs cover almost everything on a lathe: centering work in the chuck, tailstock alignment, spindle nose runout, and tool height setting. Each one takes the same five steps, and the difference between a good reading and a meaningless one comes down to how you mount and preload the instrument.

The four basic rules for using a dial indicator

1. Keep the plunger perpendicular to the surface. A plunger indicator reads correctly only when the stem pushes straight along its own axis. Tilt it and you add cosine error, and on a 0.001 inch scale the reading is wrong before you even touch the work. Move the base until the stem looks square to the surface before you read anything.

2. Use no more than ten percent of the travel. Every indicator is most accurate near the middle of its range. Restrict your readings to the central ten percent of the dial and you stay in the zone where the mechanism is most repeatable, which on a 0-1 inch head means working between roughly 0.45 and 0.55.

3. Approach the work the same way every time. Slide the contact point onto the surface along the same path, at the same angle, at roughly the same speed. Inconsistent approach direction is the single most common reason two readings of the same feature do not match.

4. Check that the needle returns to zero. Lift the plunger with the lifting lever or a gentle twist, let it fall, and confirm it comes back to where it started. If it does not, something is binding, dirty or bent, and every reading you take is suspect until you fix it.

How much preload does a dial indicator need?

Preload is the downward force you put on the plunger before you take a reading, and on a lathe you want just enough to keep the tip seated and nothing more. A light touch that keeps the contact point firmly on the metal is the target. Press hard enough that the needle visibly lags when you lift off, and you are overloading the spindle, which introduces hysteresis: the reading depends on how hard you push, so two operators get two different answers on the same part.

If your indicator has a lifting lever, use it every time. Push the lever to lift the stem clear, then release so the tip returns under its own weight, and the approach is identical on every pass. A blunt tip on a dirty surface needs a moment longer to seat than a polished one on clean steel, so give it a fraction of a second before you read.

Step one: mount the indicator so it cannot move

For work on the chuck, a workpiece, or any stationary part, a rigid column stand is faster and steadier than an articulated arm. Bolt or clamp the base to a clean, flat ferrous surface, switch the magnet on, and confirm the whole assembly is tight before you touch the dial. For work over a rotating spindle or where you need to reach in at an angle, an articulated base is the right choice, and you lock every joint before you take a reading rather than after.

On a lathe with painted or cast iron surfaces, check that the magnet is sitting on bare metal. A magnet on paint will hold badly and drift during the first sweep, which reads as an error in the part rather than an error in the mount.

Step two: preload and zero

Slide the contact point onto the surface, then back it off slightly and re-approach it with a light touch. Once the tip is seated, zero the dial. For a plunger indicator with a bezel clamp, rotate the bezel until zero lines up with the index mark and tighten the clamp. For a lever indicator, use the zeroing ring or fine adjustment on the lever hub. For a digital head, press the zero button with a light tap, not a press, and wait for the display to settle before you continue.

Zeroing is where most beginners lose accuracy. If you zero by pushing the plunger down against a stop, the needle ends up wherever you left it, not at zero. Zero against the actual surface you are measuring.

Step three: sweep, do not jab

For centering, work in a predictable order. Take a reading at the front of the part, then at 90 degrees, then 180, then 270, and repeat the cycle. Keep the contact point on the same radius and the same axial position every time, and only correct the worst reading before starting the cycle again.

For runout, mark the part so you know where the high spot is, turn the spindle by hand, and watch where the needle peaks. Total indicated runout is the highest reading minus the lowest, and it is the number that decides whether the part is acceptable. For a dial test indicator, sweep the lever smoothly around the work and read the swing on the needle.

Step four: correct, then re-verify

Make one small correction, release the load, and go back to the same measurement rather than adjusting two things at once. If you move a chuck jaw and the reading changes by more than a few thousandths in an unexpected direction, the part moved and you need to re-zero before continuing. The most common cause of a failed centering job is adjusting from a stale zero.

How to verify a new or used indicator with gage blocks

Before you trust any indicator, especially a used one, check it against a known reference. Put a gage block or a stack of blocks on a surface plate, zero the indicator on the stack, and step up and down through the stack, checking that the reading tracks the known thickness at each step. A gauge that repeats to within a division or two is good for general shop work. A gauge that wanders by more than a few divisions, or that does not return to zero when you lift it, is telling you to look for another one.

This check takes ten minutes and it is the difference between buying a tool and buying a gamble. Forum consensus in the machining communities is heavily weighted toward buying a good used indicator from a known brand, but only because experienced buyers verify before they rely on it.

Dial Test Indicator vs Plunger Indicator for Lathe Work

The two most common types of dial indicator are the plunger indicator and the lever-type dial test indicator, and they behave very differently in your hands even though both use a rack and pinion to turn linear motion into a needle reading.

A plunger indicator has a straight stem that pushes down into the body. It gives you long travel, usually 0-1 inch or 0-2 inch, and the reading is only correct when the stem is perpendicular to the surface. You feel the stem move through your fingers, which gives useful feedback, but you must keep it square. It is the general purpose choice for tailstock alignment, tool height setting, runout sweeps and anything involving a large movement.

A dial test indicator, or DTI, has a short lever that pivots near the case. The stylus on the end of the lever touches the work, and the needle moves almost instantly as you swing the lever across the surface. Because there is no stem to keep square, it is far more forgiving and far faster for centering. Its travel is small, typically 0.03 inch, so it is a comparative and centering tool rather than a travel tool.

For a lathe specifically, the DTI wins one job outright: centering in a four-jaw chuck. The plunger wins everything involving travel. Many experienced machinists own both, and the DTI is the one that stays permanently mounted in the chuck jaws for checking centering before every cut, while the plunger travels around the machine with a magnetic base.

One practical note on adapters. DTIs are usually supplied with a dovetail or a stem and nut, and the dovetail is what lets you angle the stylus to sit square on a curved or angled surface. A plunger indicator needs a holder with a stem clamp sized to your stem diameter, most often 3/8 inch for inch equipment and 8mm for metric. Buying the indicator without the matching holder is the most common early mistake, and adapters for one are sold separately from the indicator itself.

Buying Guide: Range, Graduation, Back Type and Bases

Most buyers overspend on the indicator and underspend on the holder, then wonder why the reading drifts. Work through these decisions in order, and you will end up with a setup that is repeatable.

How much range do you need?

Range is the total travel of the plunger, and it is the most commonly over-purchased spec. A 0-1 inch head handles the vast majority of lathe work, because centering errors, tool height errors and normal runout are all measured in thousandths, not inches. Only buy 0-2 inch or more if your machine has been re-leveled, moved, or has a tailstock quill that has dropped more than half an inch. Extra travel is not extra accuracy, it is just more room to lose it.

0.001 inch or 0.0005 inch graduation?

Graduation is the smallest division on the dial, and it is not the same as accuracy. Many buyers assume a finer graduation means a more accurate instrument, and that is wrong. A head with 0.0005 inch graduation can be no more accurate than one at 0.001 inch if its stated accuracy figure is looser. Check the accuracy spec separately.

For lathe setup, 0.001 inch is the working standard. It is fine enough to center a chuck to within a few thousandths and coarse enough that you can actually read the needle in a chip-covered shop. Step up to 0.0005 inch when you are setting a tailstock to run under a boring bar or working to tolerances tighter than a thousandth. Buy the 0.0001 inch class only for inspection work, where the extra sensitivity makes the instrument harder rather than easier to use.

Flat back or lug back, and what AGD groups mean

The back of the indicator determines which holders it fits. A lug back has a raised ear with a hole through it, and a flat back has a hole drilled into a flat face. They are not interchangeable, and buying the wrong one is the reason a new indicator will not go into a holder you already own.

AGD, the American Gage Design standard, exists because the industry needed the same holder to accept any maker’s indicator. A Group I indicator uses a 3/8 inch stem with a 0.110 inch back hole, a Group II uses a 3/8 inch stem with a 0.250 inch lug hole, and a Group III uses a 0.375 inch stem with a 0.250 inch back hole. The practical upshot: most modern indicators are Group II, most US-made holders accept Group II, and a few specialty indicators and older European equipment use the other two. Check the stem diameter and the back hole before you buy, not after.

How to choose a magnetic base

The base holds the indicator still, and a base that moves produces a reading that looks like a part error. The two main types are an articulated arm and a rigid column. An articulated arm gives you reach and angle adjustment, which you need for tailstock work and anything over a rotating spindle. A rigid column is quicker, shorter and cheaper, and it is the better choice for indicating on a stationary chuck or workpiece.

On pull force, the difference is not academic. Bases in this roundup run from 85 lb up to 176 lb of tensile pull. Anything at the lower end is fine for a quick indicating job but can creep during a heavy cut, and a creep is indistinguishable from a real error. If your indicator is going to stay mounted while the lathe runs, buy the stronger base.

Two features are worth paying for if you can. A fine adjustment knob at the base, which lets you slide the contact point across a surface without disturbing the setting, saves real time. A V groove cut into the magnet, which lets the base sit on a cylindrical surface, is the difference between being able and not being able to mount on a smaller lathe. Remember that the magnet needs solid metal under it, and a thin casting will not hold what a thick machined surface holds.

Should you buy a kit or an indicator plus a holder?

A kit is the efficient path for a first indicator, because the base and the tips come in the box and the price of the set is usually below the two pieces bought separately. A separate buy is the right path if you already have a base, or if you want a specific head such as a Mitutoyo 2046S or a dial test indicator and would rather pair it with a better holder.

If you already own a magnetic base, check its clamping hole before buying a head. Bases here accept 5/16 inch, 3/8 inch or a specific stem size, and a 3/8 inch plug reducer will solve most mismatches cheaply.

New or used?

Buying a used indicator from a known brand is the most common advice in the machining forums, and it is sound advice for a simple reason. A used indicator that works is verifiable, while a new budget indicator of unknown quality is not. The rule is that you must verify, using gage blocks, before you rely on either.

Watch for a needle that does not return to zero, a stem that binds partway through travel, and a bezel that slips. A case, a certificate and the original packaging are all good signs of careful ownership. Cleaning oil out of the movement and a fresh set of styli are cheap repairs, but a bent spindle is not.

Metric or inch shop?

If your machines, tooling and workpieces are metric, a 0.01mm head is the correct choice and there is no advantage to the inch scale. The reverse is also true, with one exception: a digital head that switches between inch and metric covers both, and is worth considering if your work genuinely crosses the divide or if you read faster from a number than a needle.

Do buy the stem that matches your holders. Metric equipment generally uses 8mm stems, and inch equipment generally uses 3/8 inch stems, which are close in diameter but not identical.

What you do not need is the accessory bundle. A dial indicator is a small, simple mechanism, and a kit with 22 tips, a case and a spare battery is nice, but none of that changes the reading. Spend the difference on a better base or a better head, and buy the extra tips the day you need a flat contact instead of on the day you place the order.

Frequently Asked Questions

Final Verdict: Best Dial Indicators for Lathe Setup in 2026

After working through all ten, the Qnkaa 0-1 inch kit is the best dial indicator for lathe setup for most people, because it arrives with a base, 22 tips and a case and covers every core job from chuck centering to spindle runout. If you read numbers faster than needles, the Neoteck digital set gives you 0.0005 inch resolution, an inch and metric switch and a 176 lb base in one box. For chuck centering specifically, the Mitutoyo 513-402-10E dial test indicator is faster than anything else here, and the 2046S is the right answer for a metric shop.

Our one piece of advice is to stop thinking about the indicator as the purchase. The indicator is the cheap part, the holder is what determines whether the reading is repeatable, and a verified instrument beats an expensive one every time. Check it against gage blocks, follow the four basic rules, and it will pay for itself in the first part you do not scrap.

Whichever you pick, mount it once, learn the sweep, and stop eyeballing your setup. That single habit is worth more than any instrument on this list.
