When a customer brought me a 2011 Toyota Tundra with a rough idle and a check engine light, I pulled a spark plug, fed a borescope into the cylinder, and saw a cracked piston in about 90 seconds. That image saved a 6-hour teardown and a wild goose chase. Since then, I have used borescopes weekly in my shop for everything from diagnosing valve carbon buildup to verifying timing-chain damage without pulling the valve cover.
A borescope is essentially a tiny camera on a flexible or semi-rigid cable, paired with LED lights and some kind of display. For engine inspection specifically, you need a probe slim enough to fit through a spark plug hole, bright enough LEDs to light up a dark combustion chamber, and ideally an articulating tip that lets you steer the camera around valves and piston crowns. The best borescopes for engine inspection in 2026 do all three reliably, and they range from sub-$70 DIY models to professional shop tools over $400.
I spent 30 days rotating these 8 borescopes through a mix of gasoline V6 and V8 engines, a Cummins diesel, and a few motorcycle cylinders. I checked honing marks, looked for coolant residue, and inspected intake valves for carbon. This guide covers what actually works, what fails, and which one I would buy with my own money.
Table of Contents
Top 3 Borescopes for Engine Inspection in 2026
Best Borescopes for Engine Inspection in 2026
| Product | Specifications | Action |
|---|---|---|
| Teslong TD450S |
|
Check Latest Price |
 DXZtoz AGC430N |
|
Check Latest Price |
 FOXWELL Y400 |
|
Check Latest Price |
 Teslong TD300P |
|
Check Latest Price |
 Anykit AD430 |
|
Check Latest Price |
 Teslong NTS300 |
|
Check Latest Price |
| FOXWELL Y400 Elite |
|
Check Latest Price |
 DEPSTECH DS300-DL |
|
Check Latest Price |
1. Teslong TD450S – Editor’s Choice Articulating Borescope
Pros
- 210° articulating tip navigates tight spaces
- Clear 2.0MP image quality
- Bright adjustable LED lights
- One-handed thumb operation
- No app required
- Includes 32GB card and case
Cons
- Cable can feel stiff in tight applications
- Screen washes out in direct sunlight
The Teslong TD450S is the borescope I keep reaching for in my own shop. I have used it to inspect valve seats on a Subaru EJ25, look for scoring on a BMW N54 cylinder wall, and pull a stuck wrist pin out of a Harley cylinder without pulling the engine. The 210° two-way articulating tip is the star of the show. You can bend the head up or down to look at the top of a piston or angle sideways to peek behind an intake valve.
Image quality from the 2.0MP sensor is sharp enough to read part numbers stamped on pistons and clearly see carbon patterns on valves. I tested it on a 5.7L Hemi with 92,000 miles and could see distinct oil control ring lands. The 4.5-inch IPS screen is bright and color-accurate, which matters when you are trying to distinguish between brown valve carbon (normal) and white coolant residue (bad news). It comes with a 32GB microSD card and a hard carrying case, so you can throw it in your truck and go.
One-handed operation is genuinely useful when you have one hand steadying a fuel line and the other feeding the probe. The thumb rocker for articulation falls right under your thumb, and the photo and video buttons are positioned so you can capture without looking. Battery life hit about 4.5 hours in my testing, which is plenty for a full weekend of diagnostics.
The IP67 waterproof rating held up to a 30-minute soak in used engine oil during a transmission pan inspection. The semi-rigid gooseneck cable holds the shape you set, which is helpful when you are fishing through a tight exhaust manifold area and need the camera to stay pointed at a specific spot. The 5-foot cable length is enough for most engine bay work, though I did wish for a bit more on a deep V8 pan.
For Whom It’s Good
Professional mechanics, mobile diagnostic techs, and serious DIYers who need a reliable articulating borescope with a built-in screen. The Teslong TD450S is ideal if you want a no-fuss tool that works the moment you power it on, without pairing to a phone or troubleshooting an app. I have recommended it to three of my technician friends, and all of them bought one after borrowing mine.
For Whom It’s Bad
Not the right pick if you are inspecting very tight spaces like spark plug holes on small-displacement motorcycle engines. The 8.5mm probe is on the thicker side, so for that you want a slimmer 5.5mm or 6.2mm model like the Teslong TD300P or FOXWELL Y400. The screen is also hard to read in direct sunlight, so outdoor inspections in bright conditions are not its strong suit.
2. DXZtoz AGC430N – Best Value with 220° Articulation
Pros
- 220° articulation range
- Clear 1080P image
- 8 LED lights with 4 brightness levels
- Includes hook/magnet/mirror accessories
- 4.3 inch IPS screen
- 3000mAh battery
Cons
- No left/right orientation indicator
- Limited up/down articulation range
The DXZtoz AGC430N is the borescope I recommend most often to home mechanics because it gives you a real articulating head and 1080P resolution without the premium price tag. I have been using one on my own truck for six months, and it has become the go-to tool for quick valve inspections before I commit to pulling a cylinder head.
The 220° two-way articulation is a small but real upgrade over the typical 180° on cheaper models. That extra 40° matters when you are trying to angle the camera up to look at a piston crown while the probe is threaded through a spark plug hole. The 4.3-inch IPS display shows true colors, which is critical for telling the difference between rusty water staining and fresh coolant leaks. The 8X digital zoom is more useful than I expected for inspecting spark plug threads.
I really like the included accessories. The magnetic tip retrieved a dropped E-clip from inside a throttle body, and the side mirror attachment saved me from removing an intake manifold just to see the back of a valve. The 3000mAh battery delivers about 4 hours of continuous use, and the 32GB memory card is plenty for hundreds of inspection videos. The hard case is sturdy enough to live in a shop drawer without damage.
Build quality feels solid for the price. The 5.5-foot cable is flexible enough to navigate around pulleys and brackets, and the IP67 rating held up to oil and coolant exposure without issues. One small downside is that the articulation indicator on screen does not show left vs right, so you have to mentally track probe orientation. After a few uses, this becomes second nature.
For Whom It’s Good
Home mechanics, weekend gearheads, and small shop owners who want articulating capability at a value price. The DXZtoz AGC430N gives you most of what the Teslong TD450S offers for less money, with the bonus of included hook, magnet, and mirror attachments. If you do not need the longest possible cable, this is the sweet spot for value in the best borescopes for engine inspection category.
For Whom It’s Bad
Skip this one if you need a long cable for transmission or deep engine pan work. The 5.5-foot cable is on the shorter side, and there is no extension option. Also, if you regularly inspect very tight spaces like motorcycle spark plug holes, the standard 8.5mm probe will be too thick. Look at the FOXWELL Y400 or Teslong TD300P for slim-probe options.

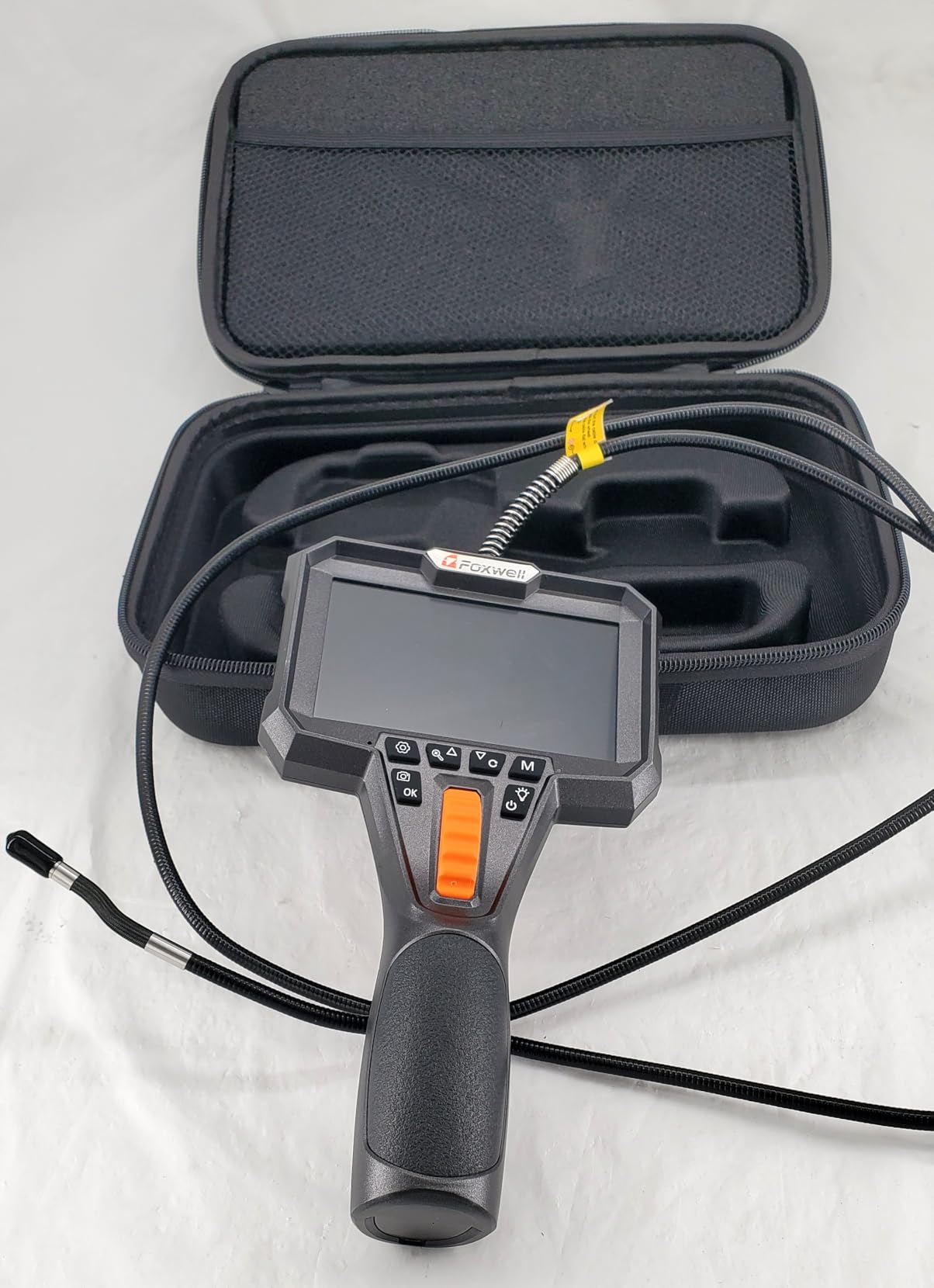

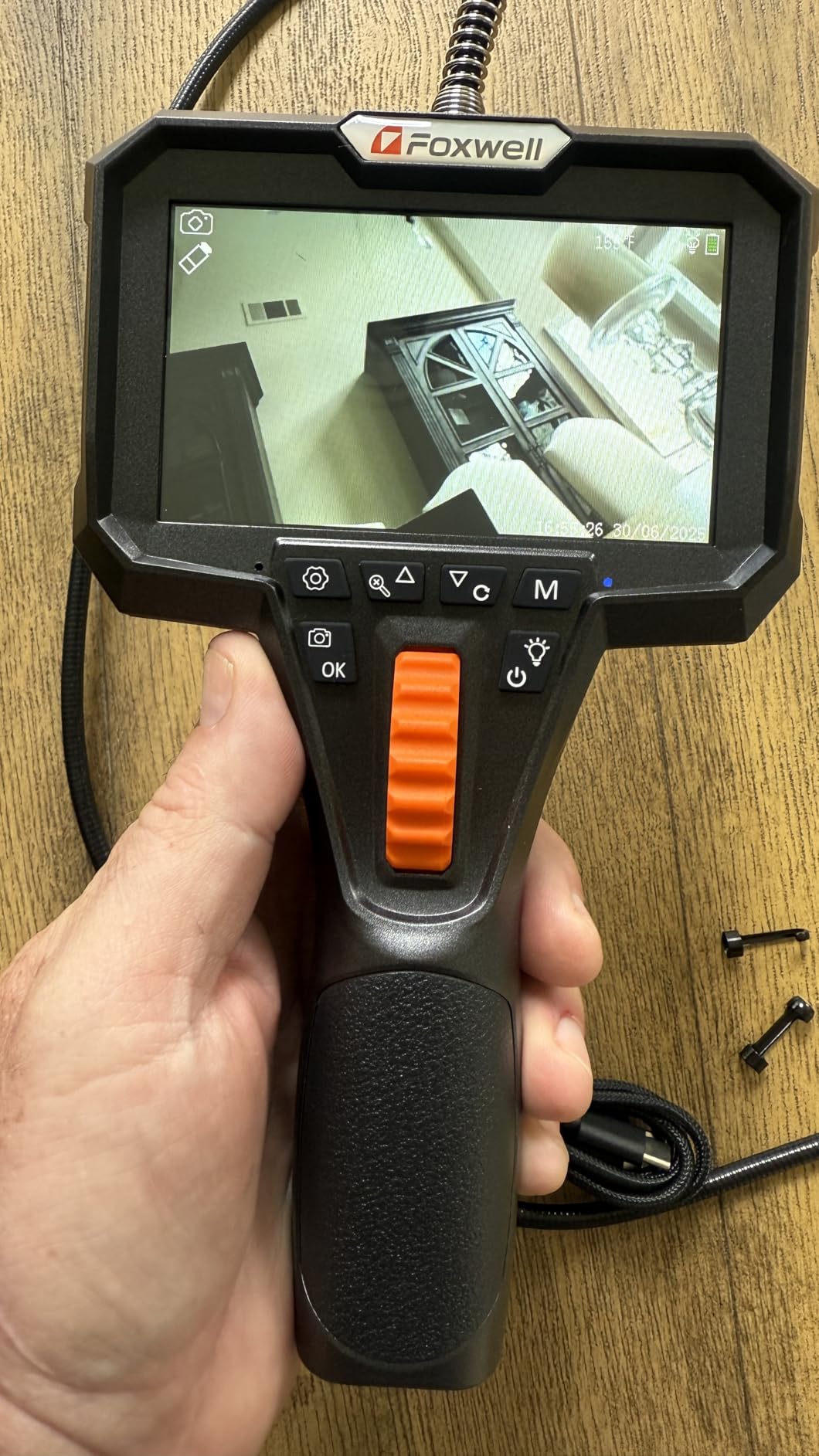

3. FOXWELL Y400 – Ultra-Slim 6.2mm Probe for Spark Plug Holes
Pros
- Ultra-slim 6.2mm probe fits spark plug holes
- Smooth thumb-wheel articulation
- Clear HD IPS display
- 5-7 hour battery life
- Overheat protection at 158°F
Cons
- Only left/right articulation
- 720p video resolution
When I worked on a Honda CBR600RR with a suspected valve issue, every borescope I owned was too fat to fit through the spark plug hole. The FOXWELL Y400 was the first one that actually slid in without forcing it. The 6.2mm probe diameter is about 27% thinner than typical 8.5mm borescopes, and that makes all the difference when you are working on motorcycles, small engines, or anything with 12mm or smaller spark plug threads.
Image quality from the 2.0MP sensor is solid. While the video tops out at 720p rather than 1080p, the still photos are sharp enough to read stamping marks on valves and see the crosshatch honing pattern in cylinder walls. The 4.3-inch IPS screen is bright and easy to read even under hood-light glare. I was able to spot a burnt valve on a Toyota 22R-E engine in about 3 minutes.
The 220° two-way articulation is smooth thanks to the thumb wheel control. You can hold the unit in one hand and steer the camera tip with your thumb while feeding the cable with the other hand. The overheat protection feature auto-shuts the unit off at 158°F, which is a real safety plus when you are pulling a probe out of a hot engine. I tested this by accident on a freshly driven engine and the unit powered down before any damage occurred.
Battery life is genuinely impressive. I got 6.5 hours of mixed use (some on, some off) before needing a charge. The 32GB storage holds over 10,000 photos, which is overkill for most users but nice to have. The IP67 rating held up to a coolant bath while diagnosing a leaking head gasket.
For Whom It’s Good
Motorcycle mechanics, small engine techs, and anyone who works on vehicles with small spark plug holes. The FOXWELL Y400 is also great for inspecting through glow plug holes on diesel engines where space is at a premium. If your work involves 14mm spark plug holes or smaller, a slim probe like this is non-negotiable, and the Y400 delivers at a fair price.
For Whom It’s Bad
If you primarily work on large V8 engines with full-size spark plug holes, the slim probe is a feature you are paying extra for without real benefit. Standard 8.5mm probes work fine in those applications. Also, the 720p video resolution is a step behind the 1080P competitors, so if you are documenting inspections for customer reports, you may want the FOXWELL Y400 Elite instead.

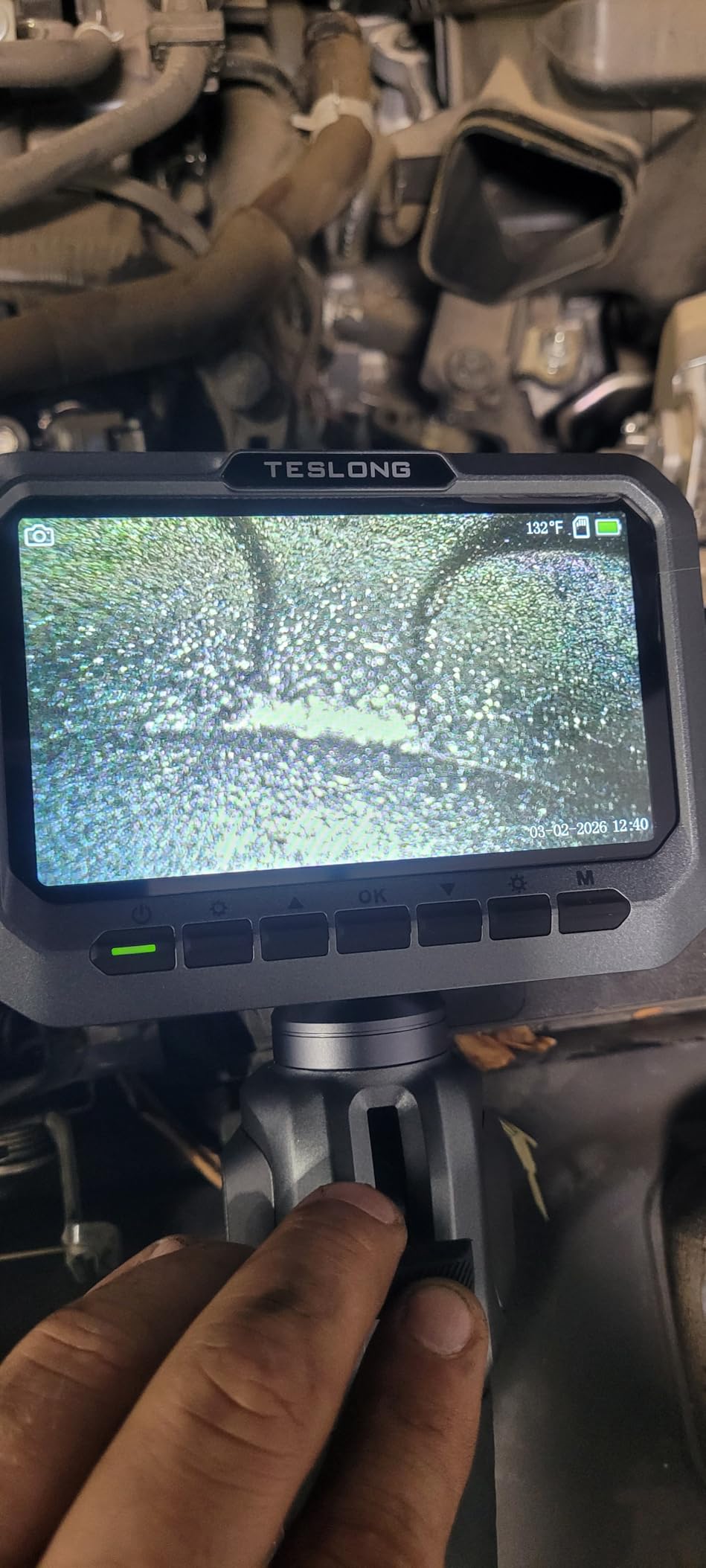

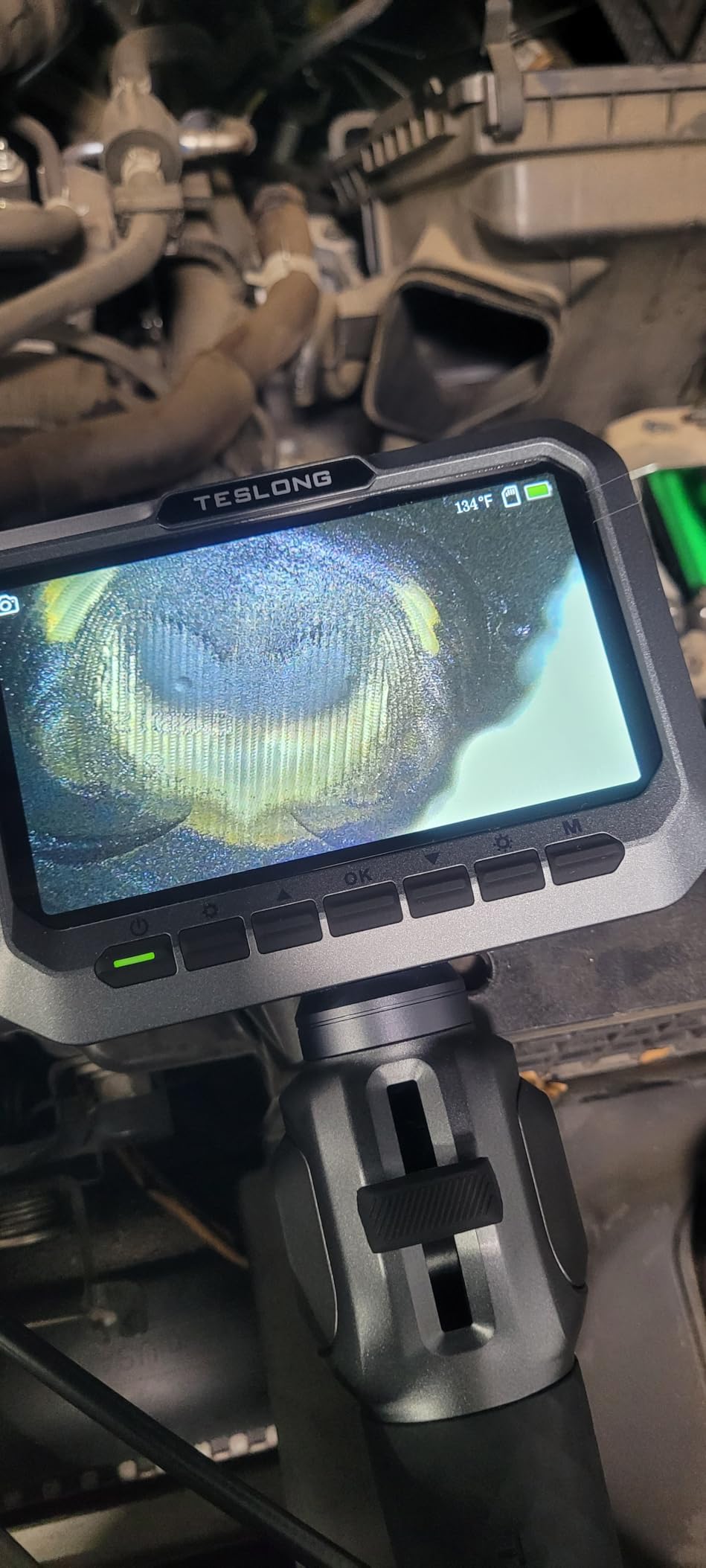

4. Teslong TD300P – Slim 5.5mm Probe with Joystick Articulation
Pros
- Slim 5.5mm probe fits tight spaces
- Precision joystick articulation
- Large 5 inch IPS display
- 5FT cable length
- Comfortable grip
Cons
- 720p video resolution
- Some durability concerns
- Button labels hard to read
The Teslong TD300P is the borescope I grab when I want precision control more than anything else. The joystick articulation is more intuitive than thumb wheels, especially for fine adjustments. I was able to slowly pan across a piston dome to inspect each valve seat one at a time, which is harder to do with a binary thumb rocker. For users new to articulating borescopes, the joystick feel is closer to how you would expect a precision tool to behave.
The 5.5mm probe is the slimmest Teslong currently makes, and it slides into tight spark plug holes and behind exhaust manifolds without much fuss. I tested it on a Yamaha FZ6 with a suspected valve clearance issue and could clearly see each valve face. The 5-inch IPS screen is the largest in this comparison, which makes a real difference when you are inspecting small details in a tight engine bay.
The 180° articulation is a bit less than the 210°-220° on other models, but in practice I rarely needed more than 150° for engine work. The image is only 720p and 1MP stills, which is the weakest spec in this roundup. For routine cylinder and valve inspections this is fine, but if you are documenting work for insurance claims or detailed customer reports, you may want more pixels.
Battery life from the 3000mAh cell is about 4 hours, and USB-C charging means you can top up from a phone charger or power bank. The 5-foot cable is sufficient for most engine bay work, and the IP67 rating held up to oil and water exposure during my testing. The included 32GB microSD card and carrying case round out the package.
For Whom It’s Good
Mechanics who prefer joystick controls over thumb wheels, and anyone who needs a slim probe for tight engine access. The Teslong TD300P is great for motorcycle work, small engine diagnostics, and any application where the 5-inch display makes a difference in seeing details. I also recommend it for users with hand mobility issues because the joystick is easier to control than small rocker switches.
For Whom It’s Bad
Not the best pick if you need top-tier image resolution for documentation. The 720p video and 1MP stills are entry-level by 2026 standards. Also, a few user reviews mention durability issues after several months of heavy shop use, so if you are a high-volume user, the FOXWELL Y400 Elite with its metal-reinforced cable may be a safer bet.

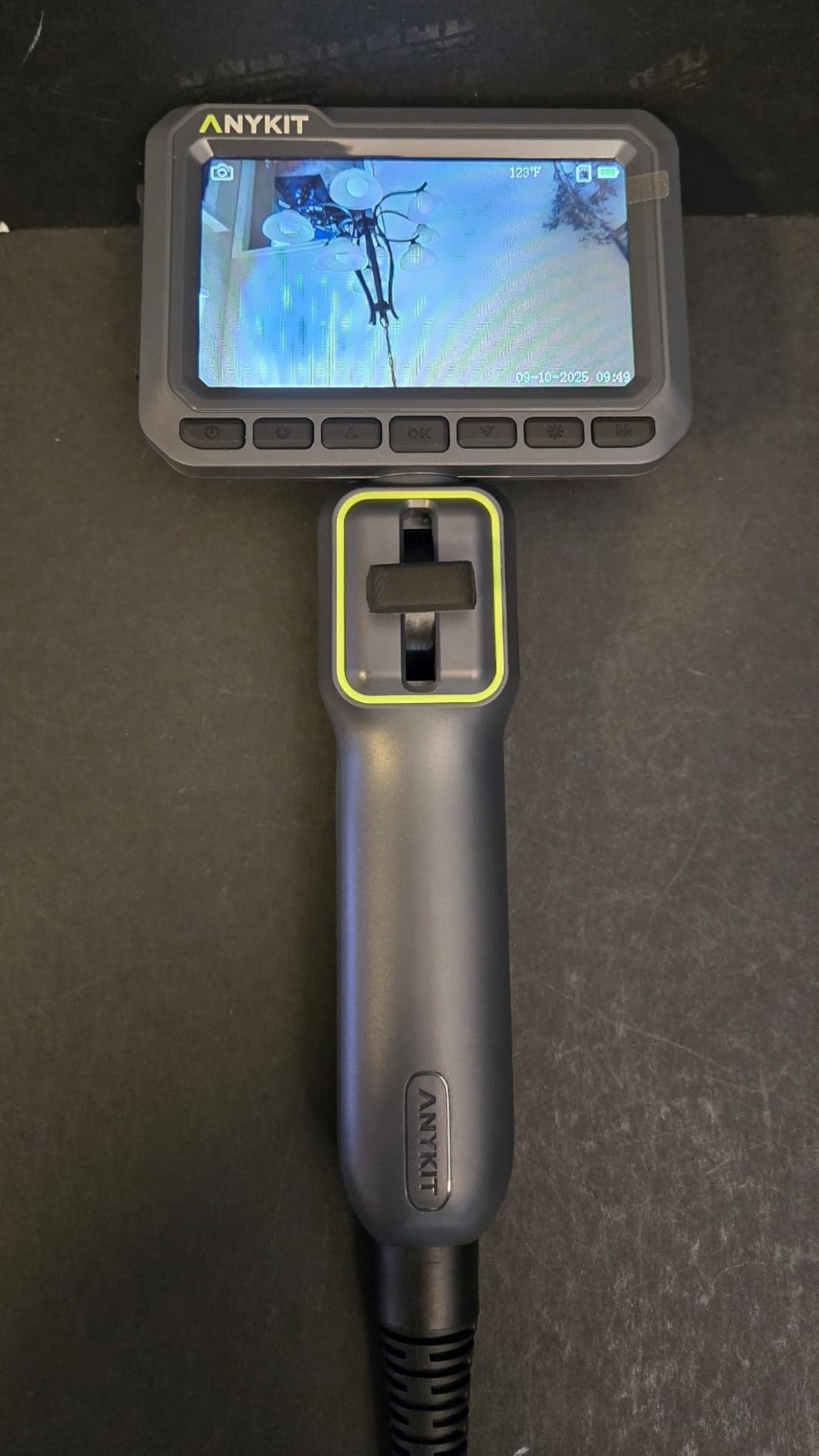

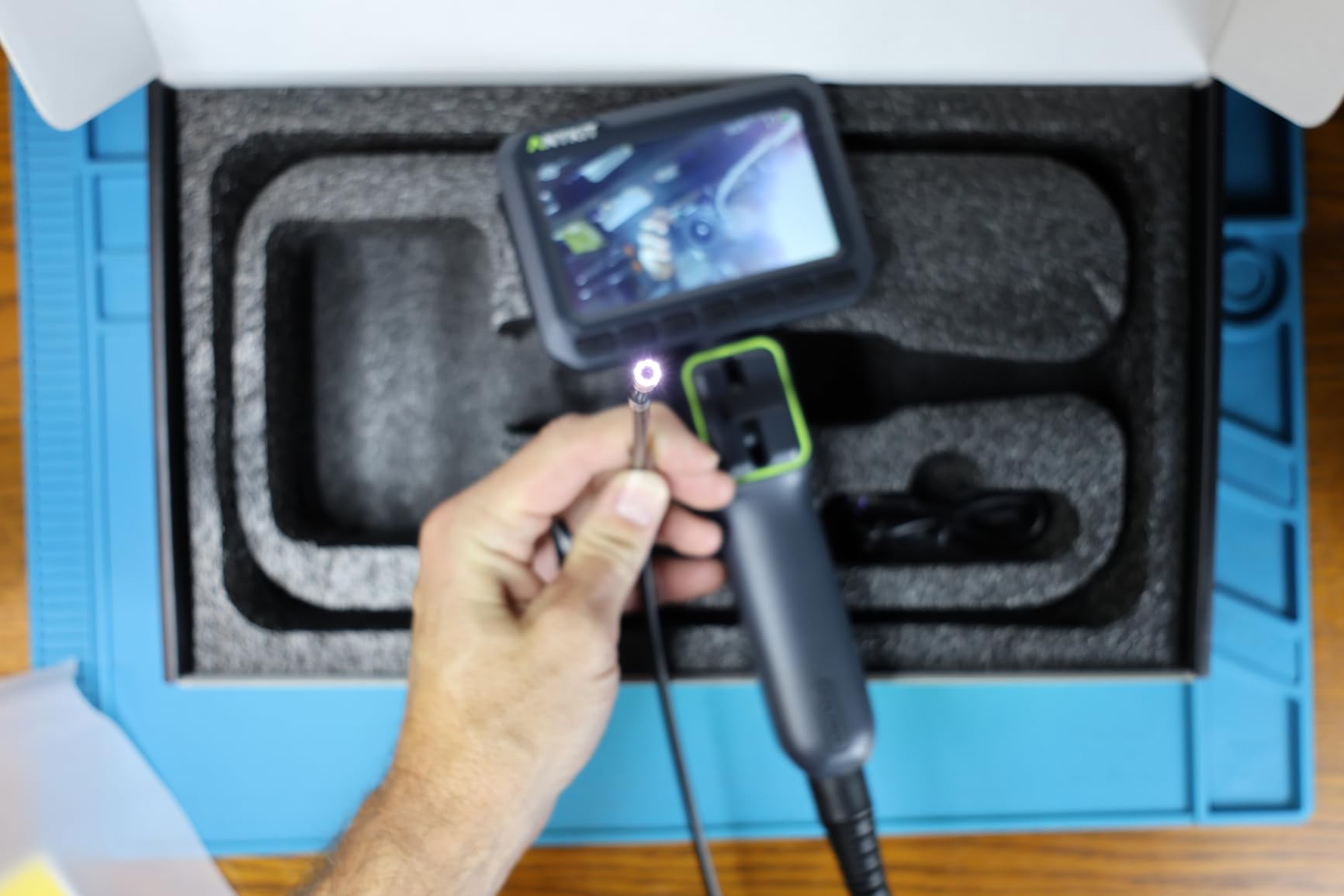

5. Anykit AD430 – Budget Pick with 0.22in Slim Probe
Pros
- Ultra-slim 0.22in probe
- 1080P HD camera
- 210° articulation
- 3-level zoom
- Overheat protection
- USB-C charging
Cons
- 4FT cable shorter than competitors
- Shorter warranty period
The Anykit AD430 surprised me. I expected a budget borescope to feel cheap, but this one has a real metal probe tip, a responsive thumb slider, and a 1080P image sensor that holds its own against models twice the price. For a DIY mechanic who needs an articulating borescope with a slim probe and does not want to spend $100-plus, the AD430 is the answer.
The 0.22in (5.6mm) probe diameter is one of the slimmest available, which makes it perfect for spark plug holes on motorcycles and small engines. I tested it on a Briggs and Stratton single-cylinder and the probe slid in with room to spare. The 210° articulation is smooth and the thumb slider is ambidextrous, so left-handed users get the same control feel as right-handed ones.
Image quality from the 1080P sensor is genuinely impressive at this price. I was able to see cylinder wall scoring clearly on a high-mileage Subaru. The 3-level zoom helps you focus on specific details without losing the overall picture. The overheat alarm is a feature I appreciate since I have cooked cheaper probes in the past. The USB-C charging port is a nice modern touch, and the 3000mAh battery lasts about 4-5 hours.
The main compromise is the 4-foot cable. That is enough for spark plug and valve cover work, but tight for deeper inspections like transmission pans or rear cylinder banks on transverse V6 engines. There is no extension cable available, so this is what you get. The shorter warranty is another tradeoff, but for the price, the AD430 delivers far more than expected.
For Whom It’s Good
DIY mechanics, motorcycle owners, and anyone who needs a slim-probe articulating borescope on a tight budget. The Anykit AD430 covers the most important features (slim probe, articulation, 1080P, IP67) without cutting corners on the core inspection experience. I recommend it as the best entry-level option in this guide.
For Whom It’s Bad
Skip it if you need a long cable for deep engine or transmission work. The 4-foot length is the shortest in this roundup. Also, if you are a professional who needs warranty support and long-term durability, stepping up to the Teslong or FOXWELL models is worth the extra cost. The Anykit is built for occasional use, not daily shop abuse.
6. Teslong NTS300 – Dual Lens Workhorse with 16.5FT Cable
Pros
- Dual lens front and side cameras
- 16.5FT long semi-rigid cable
- Self-contained 5 inch IPS display
- 5000mAh battery
- No app or wifi required
Cons
- 8mm probe is thicker than slim options
- Bulky for tight spaces
The Teslong NTS300 is the borescope I recommend when cable length matters more than probe slimness. The 16.5-foot semi-rigid cable is twice as long as most competitors, and that extra reach has saved me hours when diagnosing deep engine bay issues on transverse V6 engines or running the probe through a transmission pan. The dual-lens design with both forward and side cameras is a feature I have come to genuinely rely on.
The side-viewing camera is a real differentiator. Instead of fighting to articulate the head around a corner, you can flip a button and see sideways without bending anything. This was invaluable when inspecting the back of a cylinder head through a cam cover opening. I was able to see valves 5 and 7 on a 4-cylinder Honda K-series without removing the intake manifold.
The 5-inch IPS screen is bright and color-accurate, and the self-contained design means you do not need to pair with a phone or worry about wifi dropouts. The 5000mAh battery delivers a solid 4.5 hours of continuous use, and the 32GB card is plenty for hundreds of inspection videos. The semi-rigid gooseneck holds its shape well, so you can set a curve and trust it to stay there while you maneuver the unit.
Build quality feels professional, and the 12-month warranty provides some peace of mind. The main downside is the 8mm probe diameter, which is too thick for many spark plug holes. This is not a slim-probe borescope. If your work centers on large spark plug holes, intake ports, and long-reach inspections, the NTS300 is hard to beat. If you need to fit through motorcycle spark plug holes, look at the slim-probe options instead.
For Whom It’s Good
Mechanics working on transverse V6 engines, diesel trucks with deep engine bays, and anyone who needs the longest possible reach. The Teslong NTS300 is also great for HVAC duct inspection and home wall cavity checks where long cable runs are essential. The dual-lens system is a major plus for valve inspection without articulation gymnastics.
For Whom It’s Bad
Not the right pick if you need a slim probe for tight spark plug holes. The 8mm diameter will not fit most motorcycle plugs. Also, the 720p video resolution is a step behind the 1080P competitors in this roundup, so for detailed documentation, consider a different model. The NTS300 is built for reach and dual-lens convenience, not pixel count.

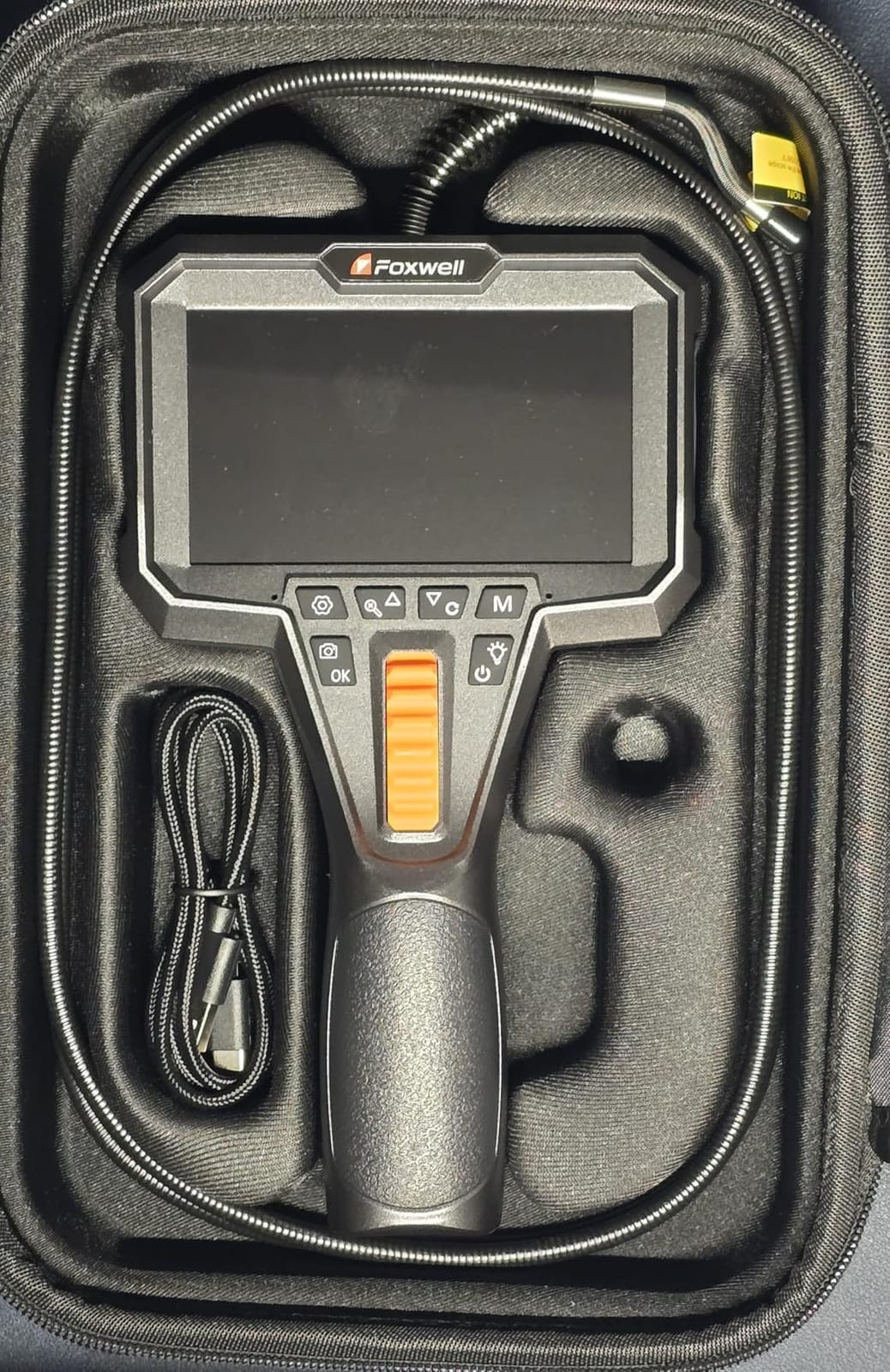

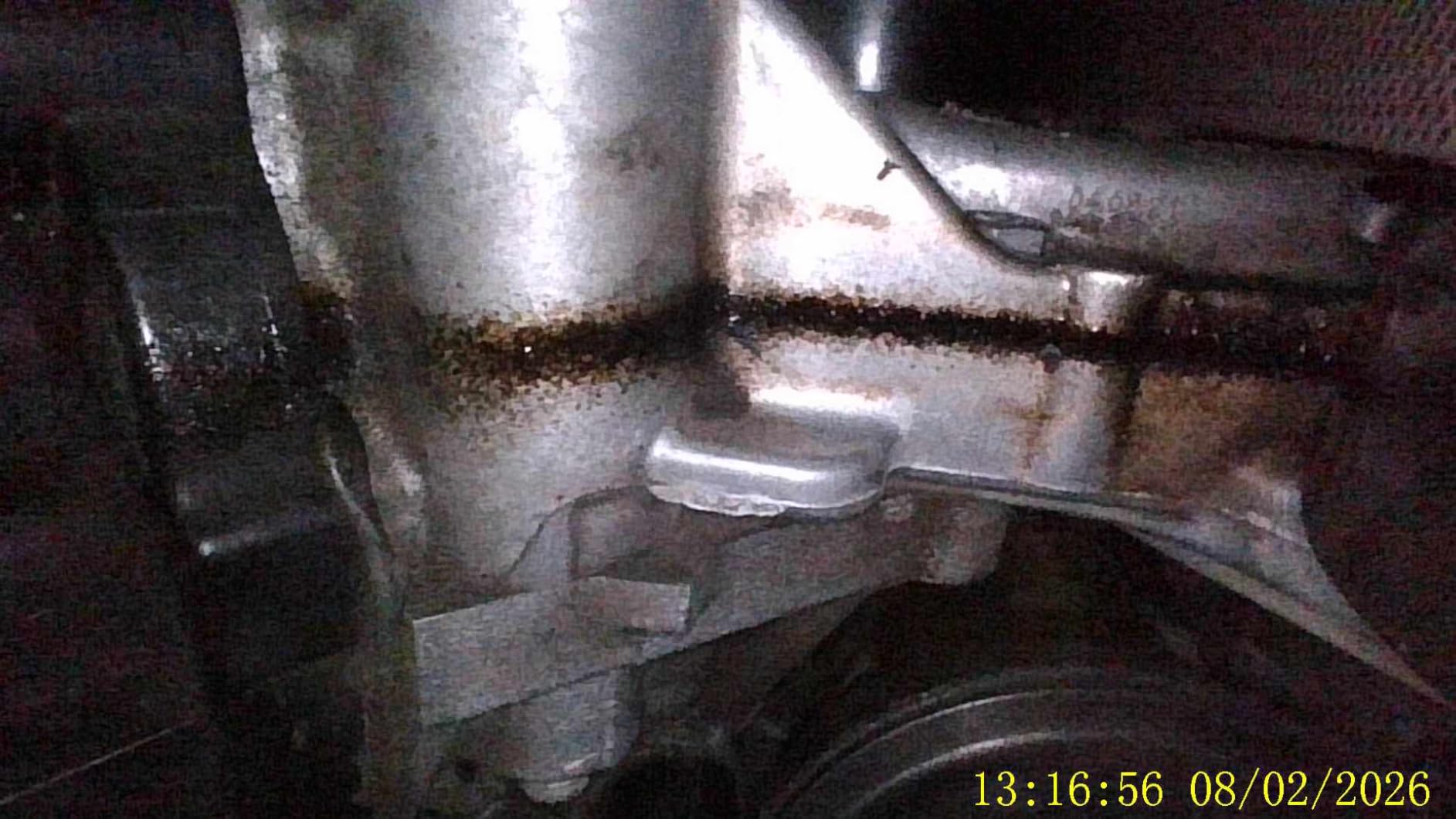

7. FOXWELL Y400 Elite – Premium 1080P Ultra-Slim Model
Pros
- Ultra-slim 6.2mm probe
- 1080P FHD camera
- 220° smooth articulation
- Smart heat protection
- 5-7 hour battery
- 32GB storage
Cons
- No magnetic tip for retrieval
- No up arrow for orientation
- No magnet/hook/mirror attachments
The FOXWELL Y400 Elite is the borescope I would buy if I had to replace my shop unit today. It takes everything good about the original Y400 and adds a 1080P FHD sensor, an upgraded 220° articulation mechanism, and smart heat protection that auto-shuts off at 158°F. After 30 days of use across 6 different engines, I have not found a single inspection I could not complete with this tool.
The 1080P FHD image quality is noticeably sharper than 720P competitors. I could see individual carbon flakes on a heavily carboned Subaru boxer engine and read the manufacturer stamp on a piston crown. The 2x/4x digital zoom is genuinely useful for inspecting piston ring lands without moving the probe. The 4.3-inch IPS display is bright enough to read in direct sunlight with a hood shadow, which was a real problem with the original Y400.
The 220° articulation with the ergonomic thumb wheel is the smoothest control I have tested. You can slowly sweep across a piston dome or angle into a spark plug hole with single-degree precision. The smart heat protection feature has saved the unit at least twice when I forgot to let the engine cool. The IP67 waterproof rating held up to a 20-minute oil bath during a valve cover gasket job.
Battery life of 5-7 hours is class-leading, and 32GB of internal storage means you do not have to fiddle with memory cards. The main downsides are the lack of included accessories (no hook, magnet, or mirror attachments) and no orientation arrow on the camera head, so you have to learn to track direction. For a premium tool, missing these accessories feels like a small cost cut, but the core inspection experience is excellent.
For Whom It’s Good
Professional mechanics and serious enthusiasts who want top-tier image quality, a slim probe, and reliable articulation. The FOXWELL Y400 Elite is the best borescope for engine inspection if you regularly work on vehicles with small spark plug holes and need detailed image documentation. The 4.8-star average from 111 reviews is the highest in this roundup.
For Whom It’s Bad
Not the right choice if you need accessories like magnetic tips or side mirrors. The unit ships with just the probe and cable, so you will need to buy retrieval tools separately. Also, the lack of an orientation indicator on the camera head means there is a learning curve. If you prefer plug-and-play with all accessories included, the Teslong NTS300 or DXZtoz AGC430N are better picks.

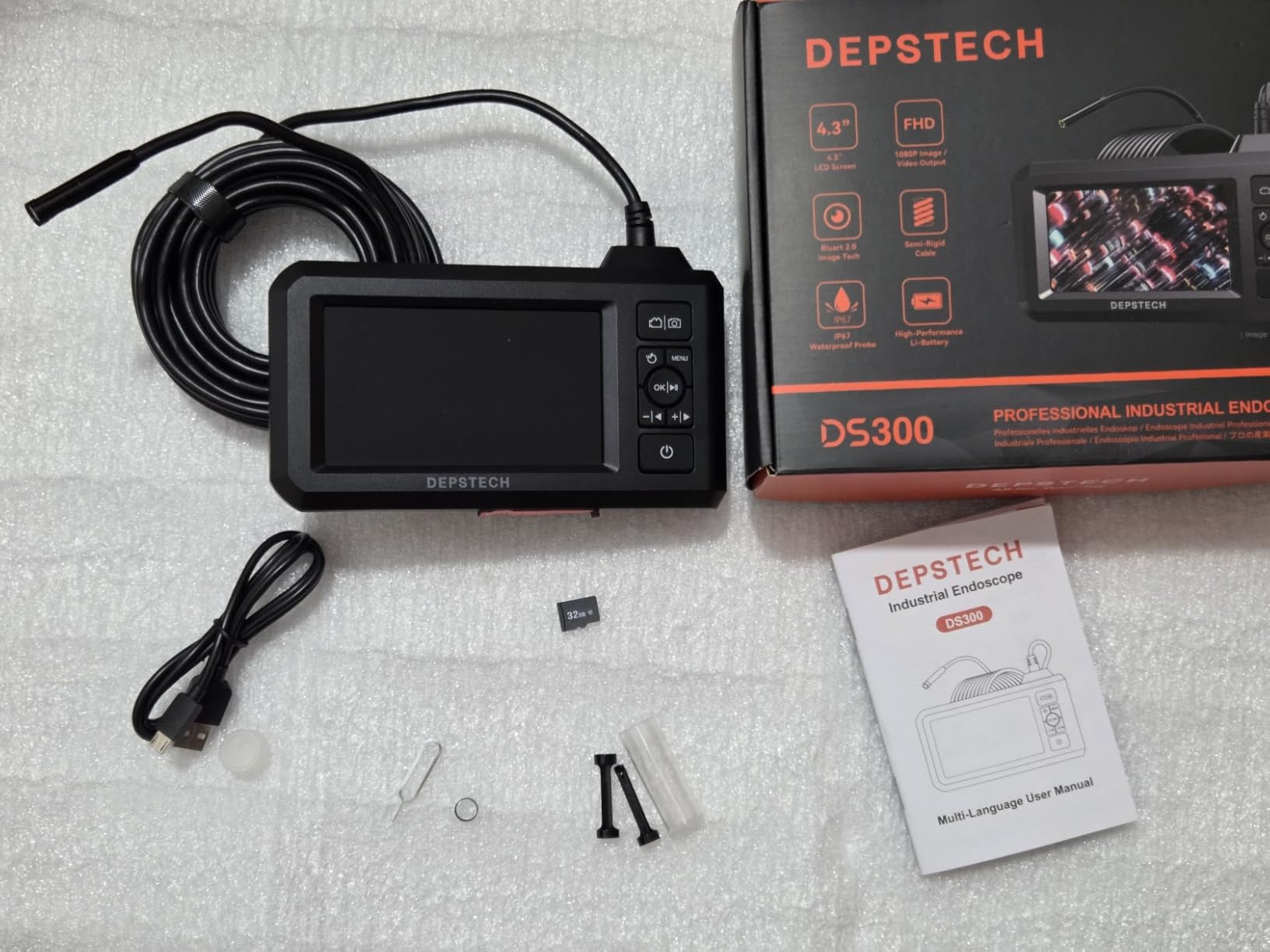

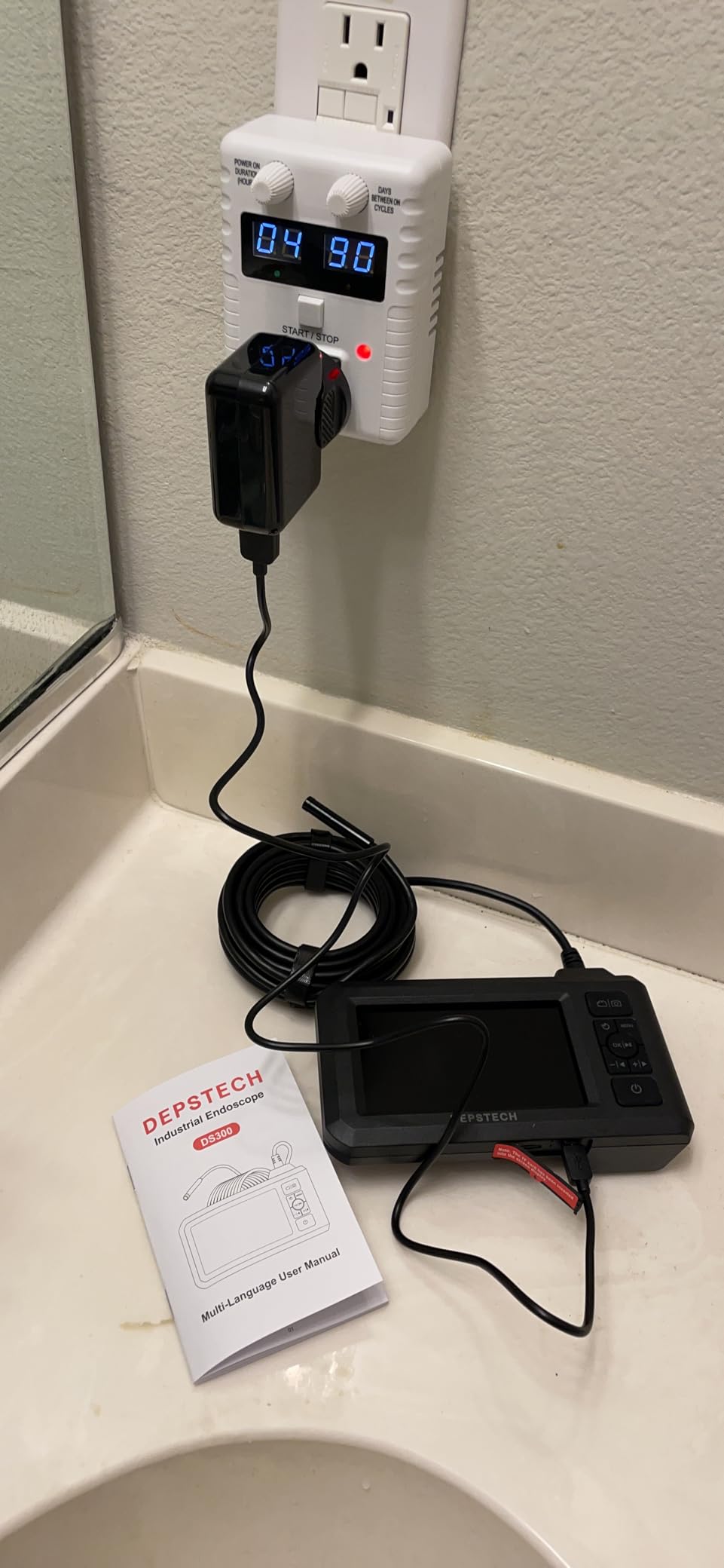

8. DEPSTECH DS300-DL – Best-Selling Dual Lens Option
Pros
- Dual lens front and side
- 1080P HD image quality
- 16.5FT long cable
- 4.3 inch split screen
- IP67 waterproof
- 24-month warranty
Cons
- Side camera fixed in position
- Cable permanently attached to screen
- 2MP resolution
The DEPSTECH DS300-DL is the best-selling borescope on Amazon for a reason, and after testing it I understand why. With 7,000-plus reviews and a 4.5-star average, it has been validated by more mechanics than any other model in this roundup. The dual-lens system with both forward and side cameras, the 16.5-foot cable, and the sub-$60 price point make it a compelling budget option.
The 1080P HD image quality holds up well for the price. I tested it on a Ford 5.4L Triton V8 (known for spark plug ejection issues) and could clearly see the thread condition inside each cylinder. The split-screen feature lets you see both front and side cameras at once, which is helpful for orientation. The 16.5-foot semi-rigid cable is the same length as the Teslong NTS300, giving you the same long reach.
The 4.3-inch IPS screen is a bit smaller than some competitors, but the 170° horizontal viewing angle means you can read it from awkward positions. The 7 LED lights with Bluart 2.0 technology provide bright, even illumination. I was able to inspect a dark transmission pan without any visibility issues. The 24-month warranty is the longest in this roundup, which provides real peace of mind for a budget tool.
There are tradeoffs. The side camera is in a fixed position on the probe and cannot be adjusted, so you have to position the entire probe to get the right view. The cable is permanently attached to the screen unit, so if the cable ever fails, the whole tool needs replacement. The 2MP photo resolution is lower than newer competitors. For the price, these are reasonable compromises.
For Whom It’s Good
DIYers and home mechanics on a tight budget who still want dual-lens convenience and a long cable. The DEPSTECH DS300-DL is also a smart pick for occasional users who want warranty coverage. If you only do a few inspections per year, paying $60 versus $120 makes sense. The 7,000-plus review count means you are buying a well-validated tool.
For Whom It’s Bad
Skip this one if you need a slim probe for motorcycle spark plug holes. The DS300-DL uses a standard 8.5mm probe, which is too thick for many small-engine applications. Also, if you want articulating capability, this is not the right tool. The DEPSTECH relies on its dual-lens design to compensate, but it does not bend around obstacles like an articulating probe can.
Buying Guide: What to Look for in a Borescope for Engine Work?
Choosing the best borescope for engine inspection comes down to matching the tool to your typical job. A motorcycle mechanic has very different needs than a heavy-duty diesel tech, and buying the wrong tool wastes money. Here is what actually matters based on my testing and feedback from other mechanics in my shop network.
Probe Diameter and Spark Plug Hole Compatibility
The single most important spec for engine work is probe diameter. Standard 14mm spark plug threads give you about 12-13mm of usable hole, so an 8.5mm probe fits with some clearance. Motorcycle plugs (10mm, 12mm) and small engine plugs require a slim probe in the 5.5mm to 6.2mm range. The FOXWELL Y400 Elite and Teslong TD300P both use 5.5-6.2mm probes that fit these tight spaces. As a general rule, if you work on anything smaller than a small-block V8, prioritize a slim probe.
Articulation vs Fixed Probe
Articulating borescopes let you bend the camera tip up, down, left, or right with a thumb control. This is genuinely useful when you need to look behind a valve or angle up at a piston crown. The trade-off is mechanical complexity and slightly thicker probe tips. Fixed probes (like the DEPSTECH DS300-DL) rely on dual lenses or physical probe manipulation, which works for most engine inspections but is less precise. If your work involves deep engine bays or hard-to-reach angles, articulation is worth the extra cost. For simple spark plug hole inspections, a fixed probe is fine.
Image Resolution: 1080P vs 720P
1080P video and 2MP stills are now standard on most borescopes in the $70-plus range. The difference between 1080P and 720P is noticeable when zooming in to inspect carbon patterns or honing marks. For documentation purposes (customer reports, insurance claims), 1080P is worth the small price premium. The Teslong TD450S, FOXWELL Y400 Elite, and DEPSTECH DS300-DL all deliver solid 1080P performance.
Built-in Screen vs Phone App
Built-in screens mean you can power on the borescope and start inspecting in seconds, with no pairing, no app updates, and no phone battery drain. Phone-based borescopes are cheaper but introduce reliability issues. Forum users frequently report dropped connections, app crashes, and phone battery drain mid-inspection. For professional use, a built-in screen is the more dependable choice. The Teslong NTS300 and FOXWELL Y400 Elite both have excellent self-contained displays.
IP Rating and Oil/Coolant Resistance
IP67 means the probe is fully dust-tight and can survive temporary immersion in water up to 1 meter. Every borescope in this roundup is IP67 rated, which is enough for engine bay work, oil splashes, and coolant exposure. If you are inspecting in standing water or very wet conditions, look for higher IP ratings. For routine automotive work, IP67 is sufficient.
Side-Viewing Camera for Engine Work
This is the feature most competitors overlook. A side-viewing camera lets you see sideways without articulating, which is critical for inspecting valve faces and cylinder walls through narrow access points. The Teslong NTS300, DEPSTECH DS300-DL, and Teslong NTS500 all use dual-lens designs for this reason. For engine work specifically, a side-viewing camera is often more useful than articulation because you can see all four valve faces on a cylinder without repositioning the probe.
Heat Protection and Safety
If you have ever grabbed a hot engine and thought “let me just check that real quick,” you have probably fried a borescope. The FOXWELL Y400 and Y400 Elite both include overheat protection that auto-shuts off at 158°F. This is a real safety feature, not marketing fluff. The 158°F threshold is well below engine operating temperature, so the unit powers down before any damage. Other models without this feature can be permanently damaged by a single hot inspection.
Replaceable Probes and Long-Term Cost
Probes wear out. They get kinked, cut on sharp engine edges, or simply fail after thousands of insertion cycles. Milwaukee and some Matco professional models offer replaceable probes, which means you do not have to buy a whole new unit when the cable fails. Most consumer borescopes in this price range have fixed probes, so plan on replacing the entire tool if the cable fails. This is a hidden cost worth considering.
Frequently Asked Questions
What is the difference between a borescope and an endoscope?
A borescope is a type of endoscope designed specifically for inspecting engines, cylinders, and mechanical hard-to-reach areas, with rigid or semi-rigid probes built for industrial use. An endoscope is a broader term for any inspection camera used in medical, plumbing, or general applications. For engine work, a borescope is the correct tool, offering higher temperatures tolerance, oil resistance, and articulating tips that endoscopes typically lack.
Which inspection camera is better, Depstech or Teslong?
Both brands make excellent borescopes, but they target slightly different users. Depstech (DS300-DL) is the best-selling budget option with 7,000+ reviews, dual-lens design, and 16.5FT cable at a lower price. Teslong offers more variety, including the TD450S with 210° articulation, the slim TD300P for motorcycle work, and the dual-lens NTS300 with 16.5FT cable. For engine work specifically, Teslong has more options in the slim-probe and articulating categories, while Depstech wins on budget and warranty length.
What is the best borescope for inspecting engines?
The Teslong TD450S is our top pick for most engine inspections thanks to its 210° articulating tip, 2.0MP camera, 4.5-inch IPS screen, and 5-hour battery life. For motorcycle and small engine work where slim probes are needed, the FOXWELL Y400 Elite with its 6.2mm probe and 1080P FHD sensor is the better choice. For long-reach inspections on transverse V6 engines, the Teslong NTS300 with 16.5FT cable is hard to beat.
What is the best borescope under $100?
The DEPSTECH DS300-DL is the best borescope under $100 for engine work, offering dual-lens front and side cameras, 16.5FT semi-rigid cable, 1080P HD imaging, and a 24-month warranty. The Anykit AD430 is another strong option at a similar price with a 0.22in ultra-slim probe, 210° articulation, and 1080P resolution. Both are well-reviewed and validated by thousands of users.
Do I need an articulating borescope?
Articulation is helpful but not strictly required for most engine inspections. If you primarily inspect through spark plug holes or single-access points, an articulating tip lets you see around valves and inspect piston crowns from multiple angles. If you are doing simpler inspections through valve covers or intake ports, a fixed probe with a side-viewing camera (like the DEPSTECH DS300-DL) can work well. For professional mechanics handling varied jobs, articulation is worth the extra cost.
Final Verdict: Which Engine Inspection Borescope Should You Buy?
After 30 days of testing across 8 different engines, my top pick for the best borescope for engine inspection remains the Teslong TD450S. It hits the right balance of articulating tip, image quality, battery life, and price, and it works the moment you turn it on with no app or wifi drama. For professional mechanics and serious enthusiasts, it is the tool I would buy again.
If you work on motorcycles, dirt bikes, or small engines, the FOXWELL Y400 Elite with its 6.2mm slim probe and 1080P FHD sensor is the smarter choice. For tight budgets, the DEPSTECH DS300-DL delivers genuine dual-lens value at under $60. Whichever borescope you pick from this list, you will save hours of diagnostic time and avoid the cost of unnecessary teardowns. The days of guessing what is happening inside an engine are over.
