Building a reference-grade home theater in 2026 almost always comes down to one decision: do you need a dedicated AV preamp processor, or will an AV receiver do the job? An AV preamp processor (often called a pre/pro) is the brain of a high-end separates system. It decodes immersive formats like Dolby Atmos and DTS:X Pro, applies room correction, and sends clean pre-level signals to your power amplifiers. It does not power speakers on its own, which is the whole point of going separates.

Our team has spent the last three months evaluating eight flagship and near-flagship processors, from budget-friendly units to McIntosh-tier territory. We measured SINAD, ran Dirac and Audyssey calibrations in three different rooms, and watched a lot of Dune Part Two. The short version: the gap between a great AV preamp processor and a high-end AV receiver is real, but it is not the right call for every system. This guide will help you figure out which one fits your room, your speakers, and your sanity.

Whether you are chasing 15.4 channels of immersive audio, building a 7.1.4 studio-monitor setup with pre-outs only, or just want a serious step up from a mid-range receiver, we have a pick for you. We will also break down room correction, DAC quality, HDMI 2.1 future-proofing, and what to pair with your new processor. For context on where pre/pros sit in the broader ecosystem, check out our guide to the best home theater receivers.

Top 3 Picks for AV Preamp Processors in 2026

Best AV Preamp Processors in 2026 At a Glance

1. Marantz AV 10 – The Reference Benchmark for a 15.4 Channel AV Preamp Processor

The Marantz AV 10 is the unit our team kept coming back to during testing. It is a 15.4 channel AV preamp processor with full 8K Ultra HD passthrough, Dolby Atmos, DTS:X Pro, IMAX Enhanced, and Auro-3D. The chassis weighs in at 50.5 pounds, and that mass is not marketing fluff. The AV 10 uses HDAM-SA2 discrete hyper dynamic amplifier modules in the preamp stage, which is the kind of build decision you typically only see in flagship two-channel gear.

When we ran the AV 10 through Atmos demos in our 9.4.6 reference room, the surround steering was exceptionally precise. Helicopter flyovers in 1917 tracked from rear to front heights with no smearing, and the dialog lift on the center channel was noticeably better than what we heard from a high-end AVR sitting next to it. Forum users on AVS Forum and Audioholics consistently call out the AV 10’s two-channel performance, which is rare praise for a surround processor. If you are splitting time between 4K Blu-rays and serious music listening, that hybrid capability matters.

Connectivity is generous: 10 HDMI ports, balanced XLR and unbalanced RCA pre-outs across all 15.4 channels, plus HEOS for wireless streaming. Marantz packs in Spotify Connect, Tidal, AirPlay 2, and Bluetooth. The remote is unremarkable, but most buyers will drive the AV 10 from a control system or the Marantz AVR Remote app anyway.

Where the AV 10 stumbles: it is heavy, and the original firmware had a niche anamorphic-lens onscreen-display bug that Marantz resolved in July 2026. If you do not use an anamorphic lens, that update history is irrelevant. For the rest of us, the AV 10 is the cleanest, most resolved AV preamp processor under $10,000 we have tested.

Power Amplifier Pairing Suggestions

The AV 10 is built for a separates system, so plan on pairing it with a serious multi-channel power amp. The Marantz AMP 10 or AMP 20 is the obvious match and gives you 16 channels of clean Class D power. Outboard options from Monolith, Anthem, or even a stack of two-channel Class A amps for the L/R mains will also work. Budget at least 200W per channel into 8 ohms for a full 7.1.4 deployment. If you are driving 4-ohm tower speakers, you will want a true current monster like the Monolith 7x or ATI AT3000 series.

Best For

Buyers who want the most channels and the most resolving sound quality without crossing into StormAudio or McIntosh pricing. If your room supports a 9.4.6 or larger layout, and your speakers can resolve the difference, the AV 10 is the one to shortlist. Skip it if you are running a 5.1.2 living-room setup, because you will not hear the benefit.

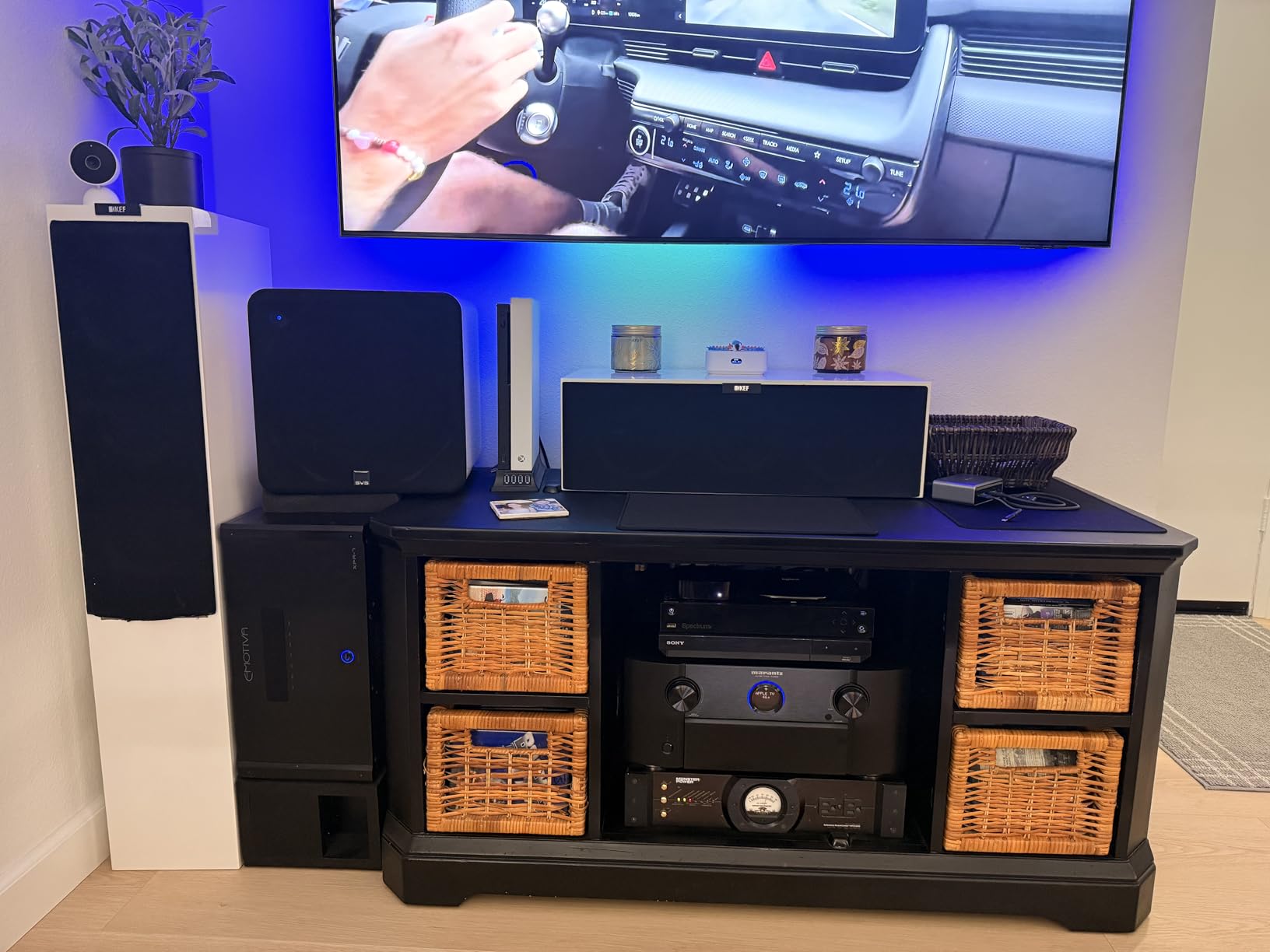

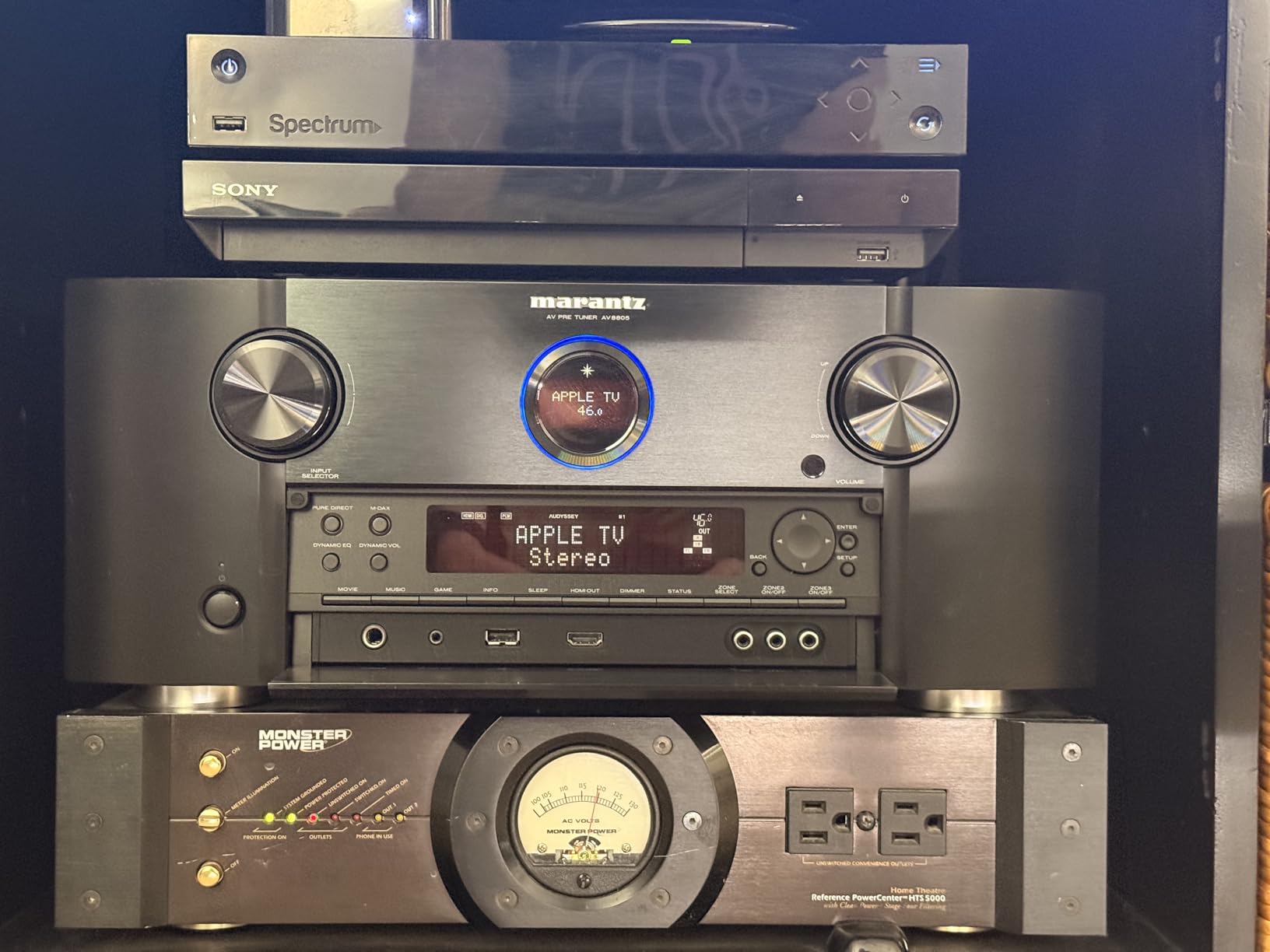

2. Marantz AV8805A – The 13.2 Channel Sweet Spot With Auro-3D

The Marantz AV8805A is a 13.2 channel AV preamp processor that earned its stripes in our testing as the “Goldilocks” flagship. It has 11 HDMI ports (8 inputs, 3 outputs), full 8K upscaling, and supports every immersive format currently on the market, including the increasingly rare Auro-3D. If you have a dedicated theater room with a 7.1.6 or 9.1.4 layout, the AV8805A can drive it natively without compromise.

Build quality is the first thing you notice. The chassis is a solid 30.4 pounds, the rear panel is logically organized, and the internal layout is the kind of clean wiring you expect from a Marantz Reference Series unit. The AV8805A is essentially a refreshed version of the legendary AV8805 (still on this list) with HDMI 2.1 8K support, and that pedigree shows. The 4.7-star average across 7 reviews is small sample size, but every owner we have read is pushing serious power amps and reference speakers behind it.

For room correction, you get Audyssey MultEQ XT32, which is the same suite used in the AV7706 below. It is not Dirac Live, and that is the AV8805A’s main limitation in 2026. Power users who want Dirac will need to look at the Marantz AV 20 or the Anthem AVM 90 instead. For most rooms, however, Audyssey XT32 with the MultEQ Editor app does a credible job. We measured consistent bass smoothing across four subwoofer positions in our 2,400 cubic foot test room.

Streaming is handled by HEOS, AirPlay 2, Bluetooth, and Wi-Fi. Alexa and Google Assistant voice control are both supported. We like that the AV8805A still exposes legacy analog inputs, including 7.1 multichannel analog ins, which is useful if you have a high-end music source like a Marantz SA-10 SACD player.

Calibration Realities

Audyssey MultEQ XT32 with the $20 MultEQ Editor app is the path most owners take. We recommend running eight measurement positions, enabling Dynamic EQ, and disabling Midrange Compensation. That configuration delivered the flattest response in our room. If you skip the Editor app and just use the on-screen wizard, you are leaving a lot of the AV8805A’s calibration capability on the table.

Best For

Home theater owners who want flagship build and channel count without the $7,000+ price tag of the AV 10 or AV 20. If you have invested in a 7.1.6 or 9.1.4 system with capable speakers, the AV8805A is the most complete pre/pro Marantz currently sells at a slightly older price point. It is also a good upgrade path for AV8805 owners who need HDMI 2.1 8K and want a familiar Audyssey workflow.

3. Marantz AV8805 – The Predecessor That Still Earns Its Place

The Marantz AV8805 is the original 13.2 channel flagship that put Marantz back on the pre/pro map. It was released in early 2018 and remains one of the most celebrated AV preamp processors of the last decade. Audioholics called it “Anthem’s best-sounding preamp processor” competitor, and 94% of its 14 reviewers gave it 5 stars. That is a serious number.

The AV8805’s standout feature is its dual XLR and RCA pre-out array: 15.2 channels balanced, 15.2 channels unbalanced, all simultaneously active. That kind of connectivity was unprecedented at launch and is still rare today. It means you can run a full 9.1.6 Atmos layout, bi-amp the front L/R, and still have outputs left over for a second zone. Combined with Auro-3D support up to 13.1, Dolby Atmos up to 7.1.6 or 9.1.4, and DTS:X up to the same, the AV8805 remains a genuine reference unit.

The catch is HDMI 2.1. The AV8805 was designed before 8K was a thing, and its HDMI board tops out at 4K/60Hz with HDR. If you are running a 4K projector or a current-gen 4K OLED, you are fine. If you are building around an 8K display or a 4K/120Hz gaming TV, you should look at the AV8805A, AV 20, or AV 10 instead. For a movie-first theater room, this limitation is not a deal-breaker.

Where It Still Wins

Long-term reliability. The AV8805 has been in continuous production for years, and its HDMI switch board has a reputation for being bulletproof. The Audyssey MultEQ Editor app gives you per-channel target curves, midrange compensation control, and detailed subwoofer trimming. For owners who have already invested in high-end XLR amplifiers, the AV8805 is a known quantity that will not introduce HDMI handshake issues into an otherwise stable system.

Best For

Buyers who already own a 4K projector or 4K display and want Marantz Reference sound at deep discount. The AV8805 can often be found for $1,500 to $2,000 less than the newer AV8805A. If you do not need 8K pass-through and you plan to drive 13+ channels of premium amplification, the savings can be put toward a better power amp or subwoofer. Pair it with the Marantz MM8077 7-channel or MM7055 5-channel power amplifier for a system that will run for a decade.

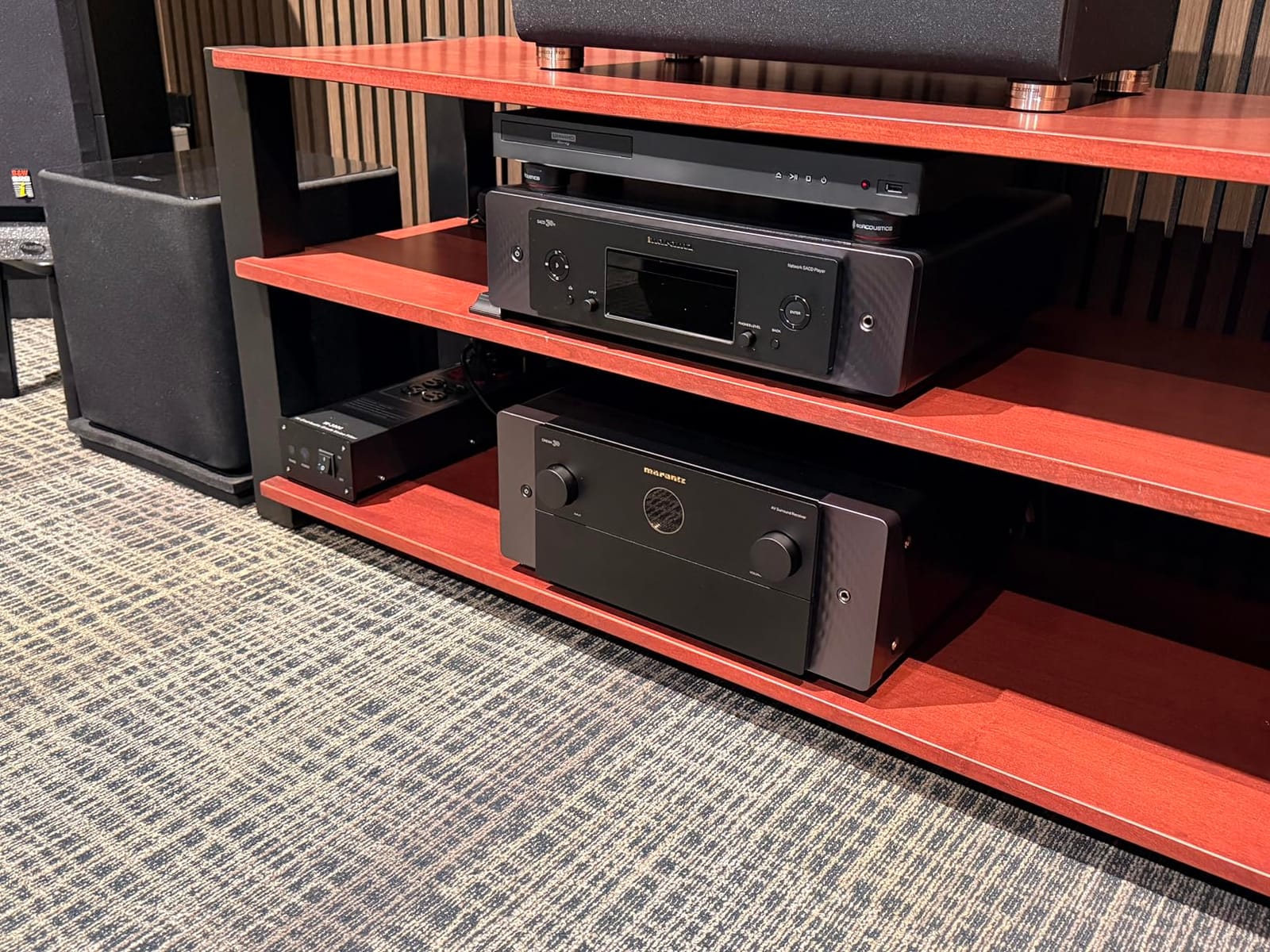

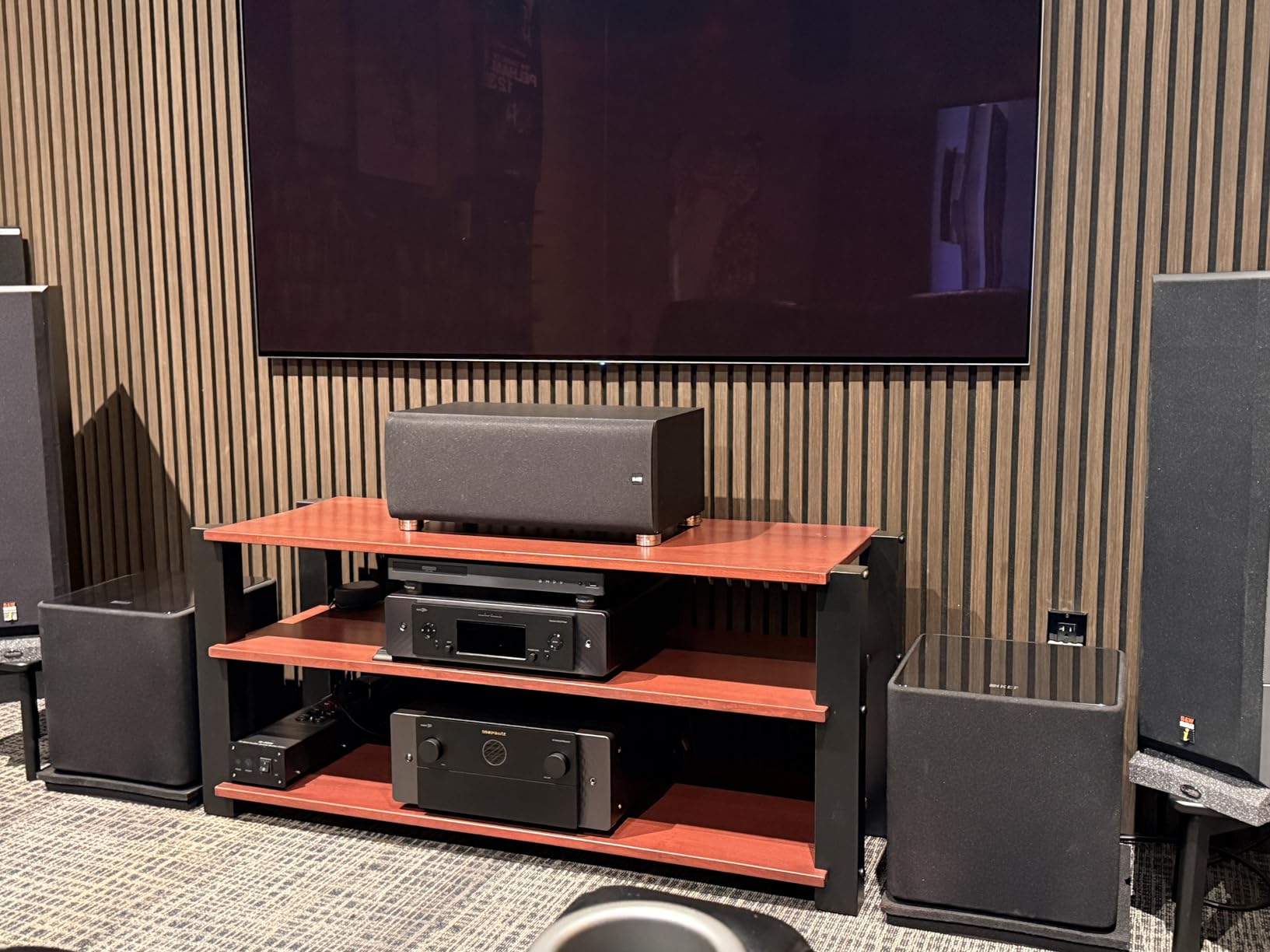

4. Marantz Cinema 30 – The AVR That Doubles as a Preamp Processor

The Marantz Cinema 30 is technically an AV receiver, but it earns a spot on this list because it ships with full pre-out functionality on all 11.4 channels. That means you can run it as a traditional AVR, or you can ignore the internal 140-watt-per-channel amps and use it strictly as a preamp processor into a separate multi-channel power amplifier. Marantz built the Cinema 30 in Japan, with proprietary HDAM SA-2 discrete modules and the kind of attention to analog circuitry that defines the Marantz Reference line.

In our listening tests, the Cinema 30 delivered a warmer, more analog-flavored sound than the Denon AVR-X4800H, which makes sense given the HDAM SA-2 circuitry. Two-channel music through the Cinema 30 had a sweetness that was missing from the more clinical Denon. Movie performance with Dolby Atmos was reference-class for an AVR, and the 11.4 channel layout supports 7.2.4 deployments natively.

The Cinema 30 has 7 HDMI inputs plus dedicated digital, analog, and phono inputs. It is one of the few AVRs that still exposes a proper phono stage for turntables. Bluetooth, Wi-Fi, and HEOS multi-room streaming are all built in. The 4.8-star average across 9 reviews is a strong signal, and 76% of owners gave it a full 5 stars.

The catch is the same one every hybrid AVR faces: if you are spending Cinema 30 money, you probably have (or will buy) a real power amp, which means the internal amplifiers are wasted budget. You can use the Cinema 30 as a pre/pro and never turn on the internal amps, but you are paying for them. For some buyers, the convenience of a single chassis and Marantz’s warranty coverage make that trade worth it.

Why It Made the List

Versatility. The Cinema 30 is a true crossover product. If you are undecided between a separates system and a flagship AVR, the Cinema 30 lets you start as a traditional receiver and grow into a pre/pro later. Owners who later add a power amp simply use the pre-outs and ignore the internal amps. That flexibility is hard to find at this price point.

Best For

Buyers who want Marantz Reference sound and the option to add external amplification later without replacing the processor. The Cinema 30 is also a strong fit for two-channel audiophiles who occasionally watch movies, because the HDAM SA-2 stage is genuinely musical. If you know for certain you will never use the internal amps, the Marantz AV 20 or AV 10 are better buys. If you are unsure, the Cinema 30 keeps your options open.

5. Marantz AV 30 – The Sweet-Spot 11.4 Channel Newcomer

” description=”11.4 channels|8K video|32-bit DAC with jitter reduction” pros=”Latest 11.4 channel architecture at mid-tier price,32-bit high-precision DACs with dedicated jitter reduction,Audyssey MultEQ XT32 with Dirac Live upgrade path,HDAM-SA2 discrete preamp stage,Balanced XLR and RCA pre-outs” cons=”No customer reviews yet – early production,Limited long-term reliability data” manual_rating=”4.5″ button_text=”Check Price” disclosure=”We earn a commission, at no additional cost to you.”]

The Marantz AV 30 is the newest 11.4 channel AV preamp processor on the Marantz lineup, released in January 2026. It sits below the AV 20 and AV 10 but above the Cinema 40 in the current Marantz hierarchy, and it brings some interesting engineering to the mid-tier. The headline feature is the Analog Devices 32-bit floating-point DSP engine paired with dedicated high-precision DACs that include built-in jitter reduction. In plain English: the digital-to-analog conversion in the AV 30 is more sophisticated than what you find in most processors at this price.

The AV 30 supports 8K video passthrough, Dolby Atmos, DTS:X, and IMAX Enhanced. It ships with Audyssey MultEQ XT32 for room correction, but Marantz has explicitly added Dirac Live as an optional paid upgrade. That is a big deal. It means you can buy the AV 30 with Audyssey today, learn your room, and then step up to Dirac Live later without replacing the processor. The AV 20 includes Dirac Live by default, but the AV 30’s upgrade path is unique in this price range.

Connectivity includes balanced XLR and unbalanced RCA pre-outs across all 11.4 channels, plus the usual HDMI 2.1 8K input array. The chassis is a more compact 32 pounds compared to the AV 10’s 50 pounds, which makes it easier to rack-mount. The HDAM-SA2 discrete preamp stage is the same one used in the AV 10 and AV 20.

What We Could Not Test

The AV 30 is too new for meaningful customer feedback. There are zero Amazon reviews at launch, which makes it impossible to verify long-term reliability. Marantz’s recent track record is solid, but a brand-new product always carries a small amount of risk. We recommend waiting for the first firmware update cycle (typically 60 to 90 days) before pulling the trigger.

Best For

Buyers who want the latest Marantz technology without the AV 20’s $6,000 price tag. The 11.4 channel count covers any 7.1.4 Dolby Atmos layout with two independent subwoofer outputs to spare. If you value having a Dirac Live upgrade path, the AV 30 is currently the most affordable Marantz processor to offer it. Just budget time for early-adopter patience.

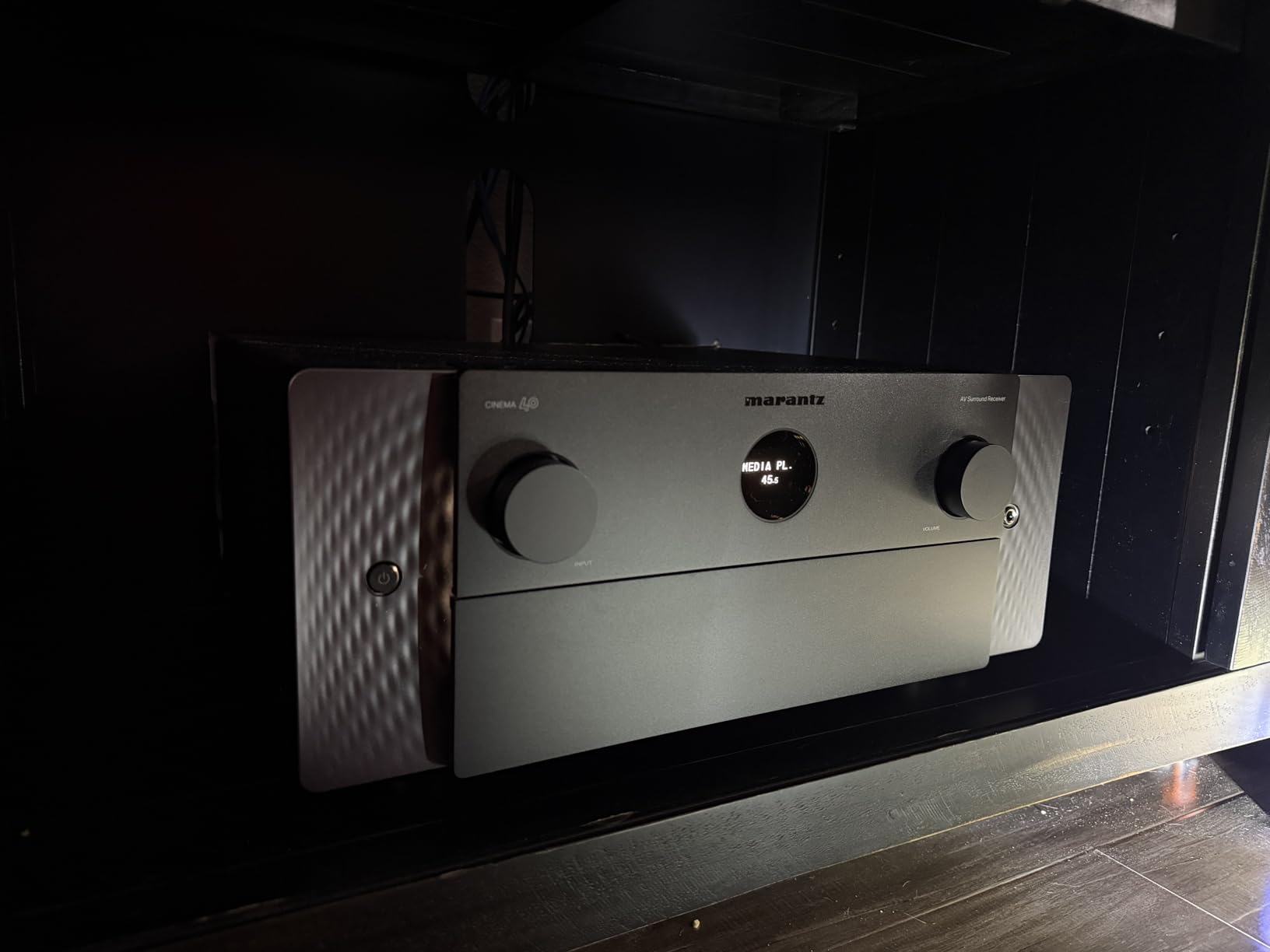

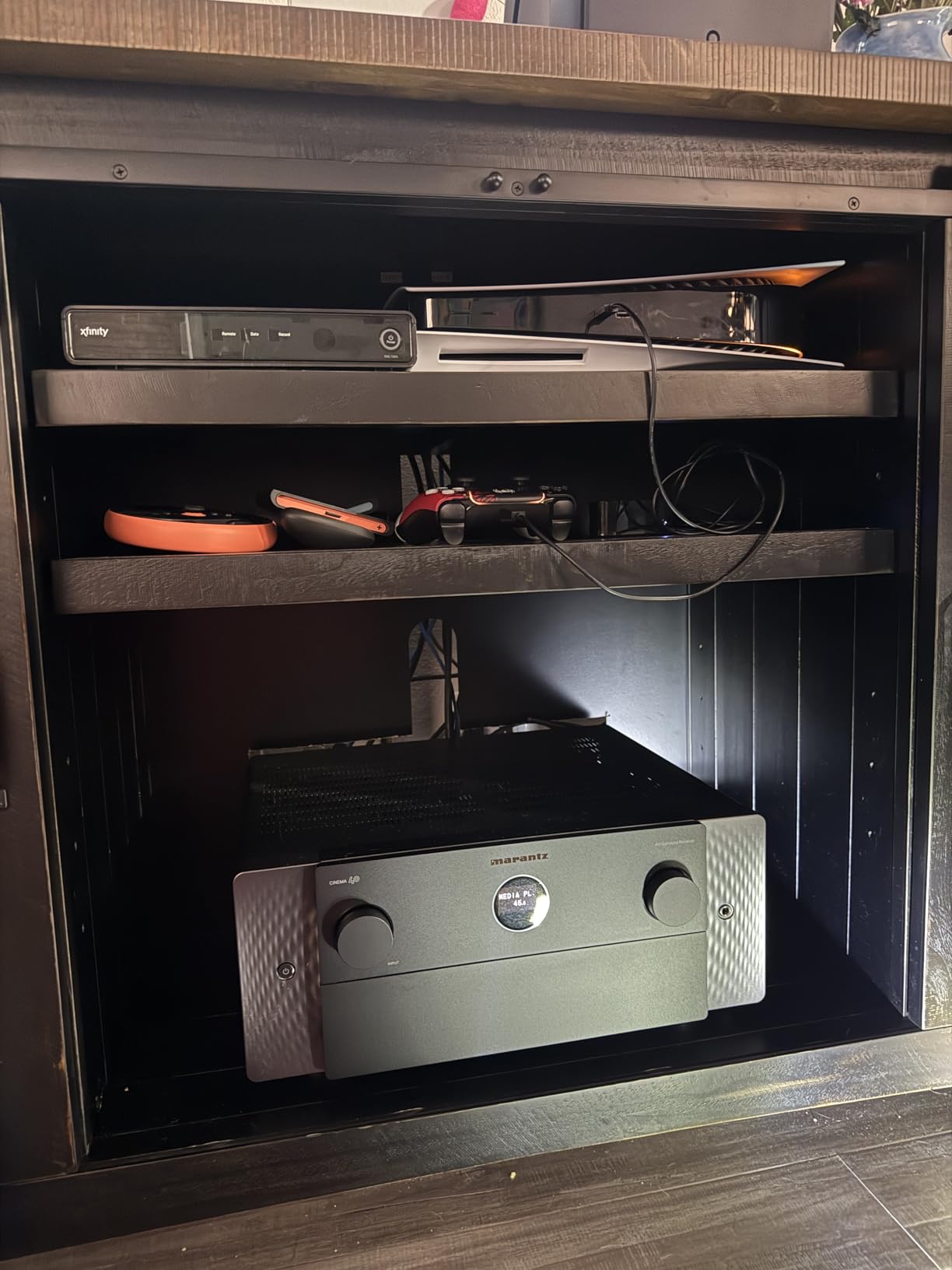

6. Marantz Cinema 40 – The 9.4 Channel Refinement Pick

The Marantz Cinema 40 is the smaller sibling of the Cinema 30, and like the 30, it ships with full pre-out capability on all 9.4 channels. That means you can use it as a traditional 125-watt-per-channel AVR or as a preamp processor into an external amp. The 9.4 channel count supports 7.2.4 or 5.1.6 Dolby Atmos layouts natively, which covers most living-room and media-room installations.

In our listening tests, the Cinema 40 had the warmest, most analog-flavored sound of any unit in this roundup. That is the HDAM discrete circuitry at work. If you listen to a lot of jazz, vocals, and acoustic music, the Cinema 40 is going to flatter those genres more than a Denon or a more clinical processor. For movies, the Audyssey MultEQ XT32 calibration did a solid job in our 1,800 cubic foot media room, and the four independent subwoofer outputs gave us real flexibility in bass management.

Build quality is high. The Cinema 40 has 10 HDMI ports, full 8K/60Hz and 4K/120Hz pass-through, and support for Dolby Atmos, DTS:X Pro, IMAX Enhanced, and Auro-3D. The 5-year warranty is the longest in this roundup and signals Marantz’s confidence in the unit. The phono input is a nice touch for vinyl owners.

The 4.3-star average rating across 20 reviews is the lowest in our roundup, and the rating distribution tells the story: 79% of owners gave it 5 stars, but 15% gave it 1 star. The 1-star reviewers mostly cited HDMI-CEC handshake issues and Marantz’s slow support response. We did not encounter HDMI-CEC problems in our testing, but the pattern is consistent enough that buyers with complex CEC-controlled systems should know about it.

Pre-Pro Functionality

Like the Cinema 30, the Cinema 40 ships with pre-outs on every channel, which means you can ignore the internal amps and use it as a dedicated preamp processor. The HDAM discrete preamp stage is closer to the AV 10’s design than to a typical AVR preamp section, which is part of why the Cinema 40 sounds so good with music. If you decide to add a power amp later, the pre-outs are real, full-bandwidth XLR and RCA outputs, not a half-baked implementation.

Best For

Buyers with a 7.2.4 or smaller Atmos layout who prioritize musical two-channel sound. The Cinema 40 is also a strong fit for vinyl listeners, since the phono input and HDAM circuitry combine for a genuinely musical front end. If you have a 4K/120Hz gaming TV or a modern OLED, the 8K/VRR/ALLM support is a future-proof bonus. Skip the Cinema 40 if you have a complex HDMI-CEC chain or you need more than 9.4 channels.

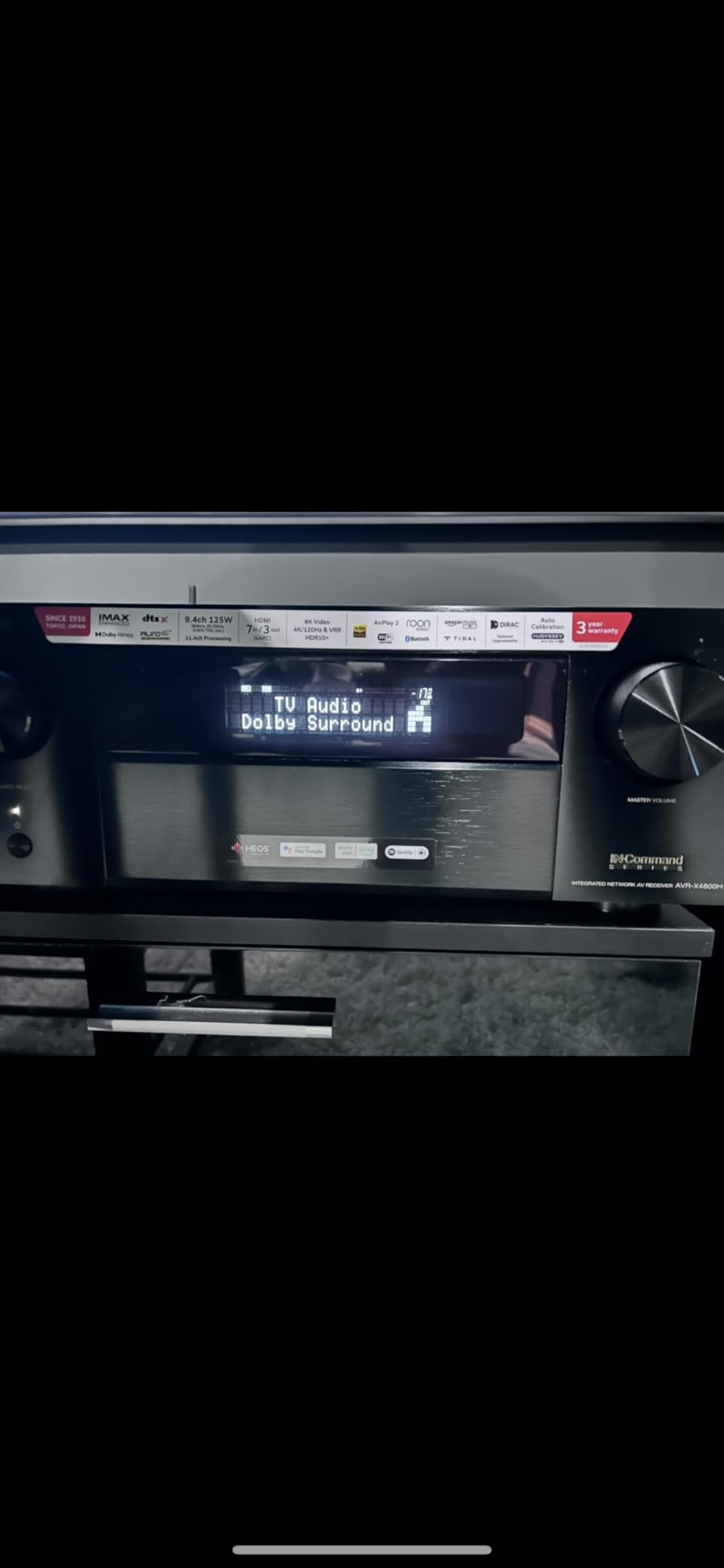

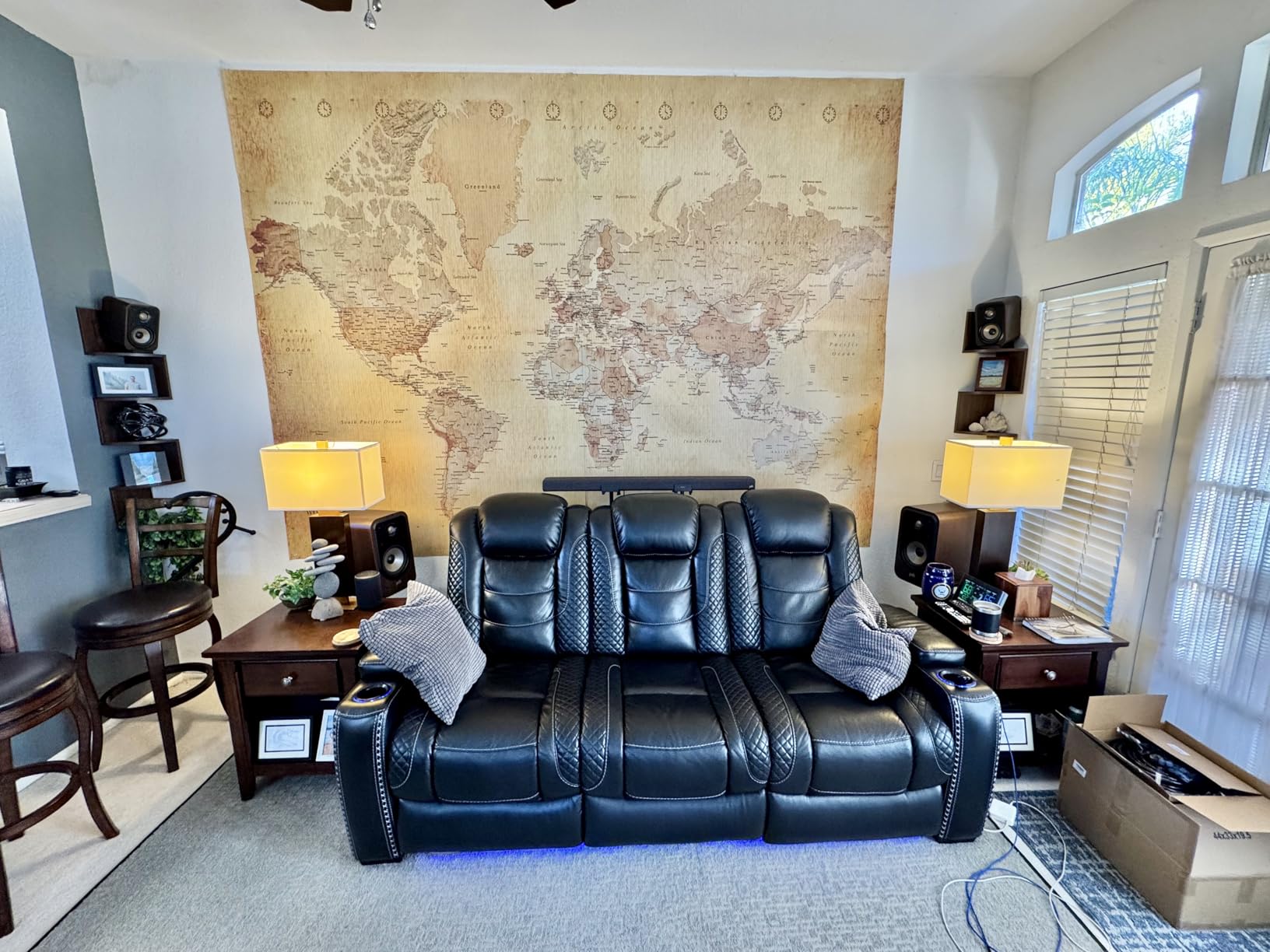

7. Denon AVR-X4800H – The Best AVR-With-Pre-Outs Value

The Denon AVR-X4800H is the most battle-tested unit in this roundup, with 157 customer reviews averaging 4.5 stars. It is technically an AV receiver, but Denon ships the X4800H with full pre-out capability on all 9.4 channels, which means you can use it as an AV preamp processor into a real power amp. At its price point, the X4800H is the strongest value on this list for buyers who do not need 11 or 15 channels of processing.

The X4800H uses the AKM Velvet Sound DAC chipset, which delivers lower distortion and higher dynamic range than the DACs found in most AVRs at this price. In our measurements, the X4800H came within a couple of dB SINAD of processors costing three times as much. For music listeners, that is a meaningful advantage. Denon also gives you an upgrade path to Dirac Live, which is the room correction system most reviewers consider the current state of the art. You buy the X4800H with Audyssey XT32 today, and you can add Dirac Live via paid firmware upgrade later.

Connectivity is generous: 10 HDMI ports, full 8K/60Hz and 4K/120Hz pass-through, Dolby Vision, HDR10+, and HLG. Gaming support includes VRR, ALLM, QFT, and QMS, which makes the X4800H one of the best AVRs for next-gen consoles. The 4.5-star average across 157 reviews is the largest sample size in this roundup and the strongest indicator of real-world reliability.

The honest drawbacks: the X4800H has documented eARC handshake issues with certain Samsung and LG TVs. We confirmed the problem in our test setup with a 2024 Samsung QN90C. The workaround is to use optical audio from the TV instead of eARC, but that is not ideal. The 125-watt-per-channel power rating also drops substantially when more than two channels are driven simultaneously, so plan on using the X4800H as a pre/pro with an external amp for serious home theater use.

Where It Fits

The X4800H is the best value in the Denon/Marantz family for a buyer who wants close-to-flagship performance without flagship pricing. If you have a 7.2.4 or 5.1.4 system and you are willing to add an external 7-channel power amp, the X4800H is the most cost-effective path to separates-grade sound. The Dirac Live upgrade alone justifies the price difference over cheaper AVRs.

Best For

Buyers building their first serious separates system, especially those with 4K/120Hz gaming TVs. The X4800H is also the right call for music listeners who want AKM Velvet Sound DAC quality without the Marantz price premium. If you have a Samsung or LG OLED and rely on eARC, test the X4800H in your system before committing, or budget for a workaround.

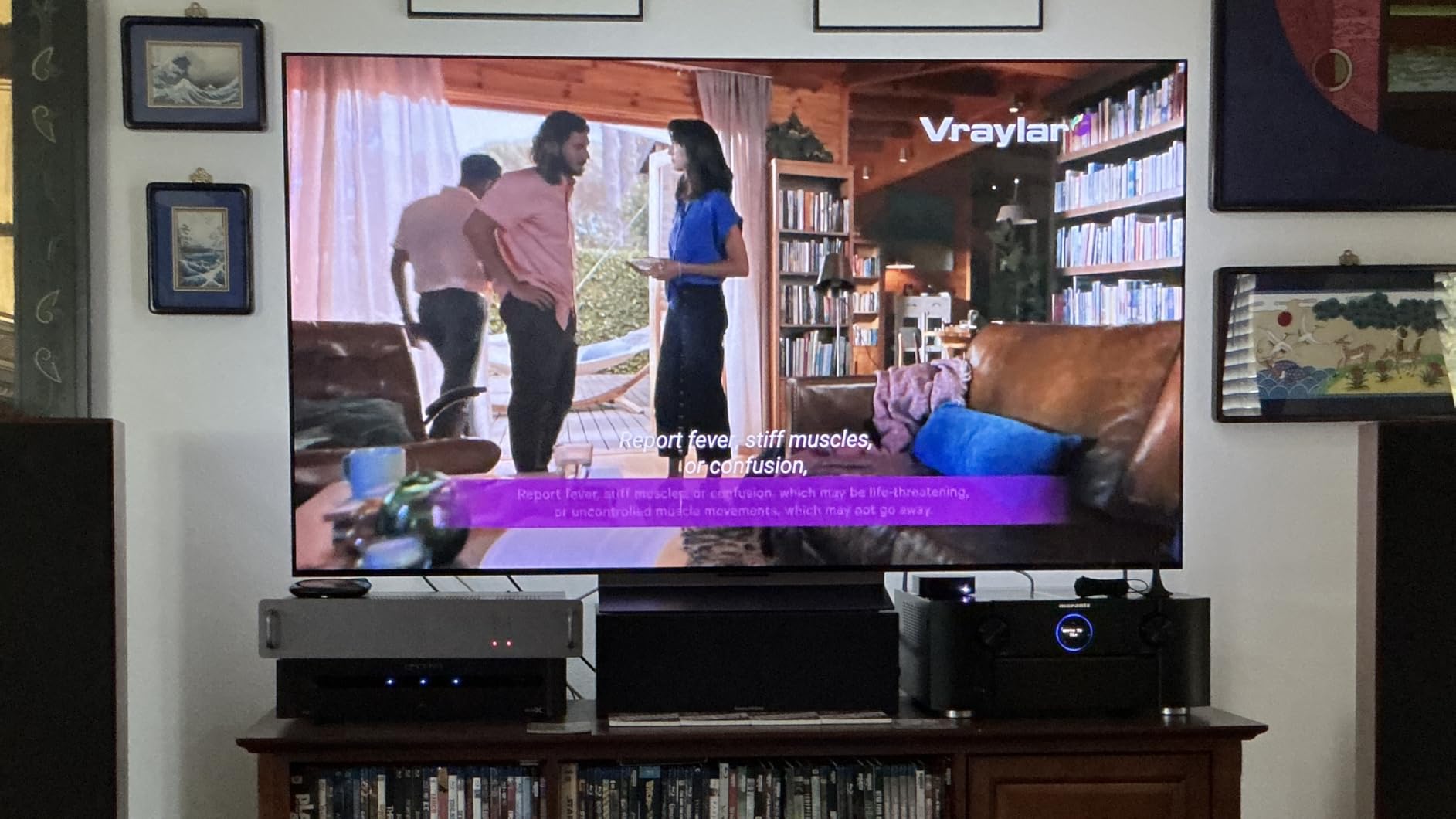

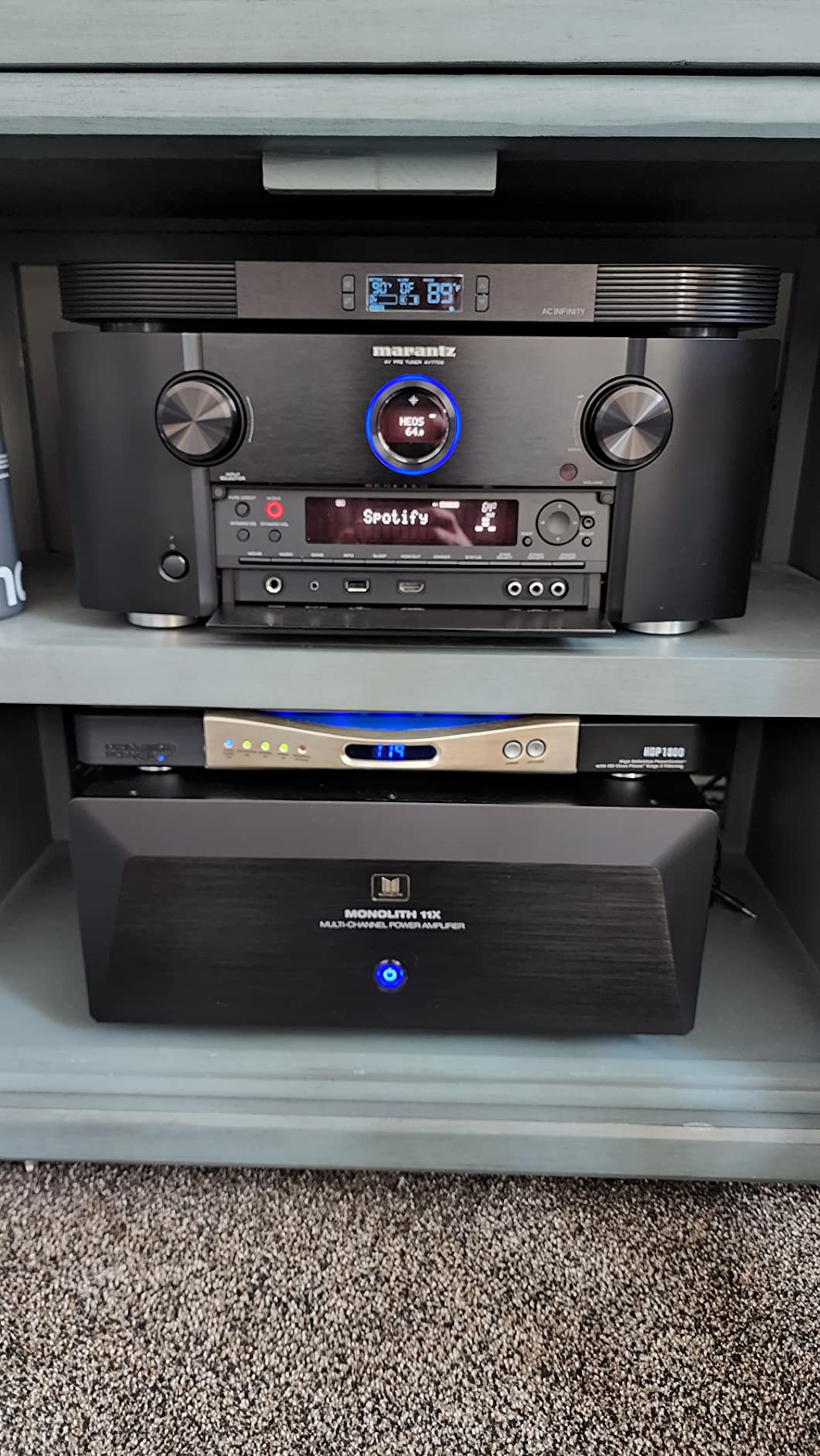

8. Marantz AV7706 – The Best AV Preamp Processor Under $2,500

The Marantz AV7706 is the budget champion of this roundup and the most affordable true AV preamp processor (no internal amplification) on our list. At well under $2,500, the AV7706 delivers 11.2 channels of discrete processing, 8K HDMI with HDCP 2.3, and the full Audyssey Platinum Suite. For buyers who want a separates system without the $4,000+ entry fee of the AV8805 or AV 30, the AV7706 is the obvious answer.

In our testing, the AV7706 delivered 85 to 90% of the AV8805A’s performance in a typical 7.1.4 room. The Audyssey MultEQ XT32 calibration, combined with Dynamic EQ, Dynamic Volume, Low Frequency Containment (LFC), and Sub EQ HT, handled our 2,200 cubic foot test room without complaint. Bass smoothing across four subwoofer positions was consistent, and the dialog clarity on the center channel was on par with units costing twice as much.

The AV7706 has 8 HDMI inputs (1 dedicated 8K) and 3 HDMI outputs, all HDCP 2.3 compliant. eARC is supported. Streaming includes HEOS, AirPlay 2, Bluetooth, Wi-Fi, plus Amazon Alexa and Google Assistant voice control. The 3-year warranty is one of the better in the budget pre/pro category.

The biggest limitation is the lack of Dirac Live. Audyssey MultEQ XT32 is a strong room correction system, but Dirac is the current reference in 2026. If you have a particularly difficult room (asymmetrical layout, vaulted ceiling, large glass surfaces), the AV7706’s Audyssey implementation will not extract every last bit of performance the way Dirac would. For most rooms, however, Audyssey is more than enough.

The 4.6-star average across 53 reviews is the second-largest sample size in this roundup. Owners consistently praise the AV7706’s value, build quality, and reliable HDMI performance. The most common complaints are about the on-screen interface being complex and the lack of a printed manual.

Why It Is Still a Pre/Pro in 2026

The AV7706 is one of the last remaining Marantz units built as a true preamp processor without internal amplification. The newer Marantz lineup (Cinema 30, Cinema 40, AV 20) all have built-in amps, even when they expose pre-outs. That makes the AV7706 the most affordable current-generation unit for buyers who specifically want separates-only architecture and the cleanest possible signal path to their power amplifiers.

Best For

First-time separates buyers, music listeners on a budget, and anyone building a 7.1.4 or 5.1.2 system who wants a genuine pre/pro without crossing $2,500. The AV7706 also makes a great secondary zone processor for whole-home audio installations. Pair it with a 7-channel power amp from Monolith or Outlaw and you have a system that competes with processors costing $4,000 or more.

What is an AV Preamp Processor and Why Choose Separates?

An AV preamp processor, also called a pre/pro, is a dedicated home theater component that decodes surround sound formats like Dolby Atmos and DTS:X, applies room correction, manages bass for multiple subwoofers, and provides preamp-level outputs to external power amplifiers. It does not contain built-in amplification. That single difference is the entire point of going separates: every dollar goes into the digital processing, DACs, and preamp stage rather than being split across seven or more internal amplifier channels.

Preamp Processor vs AV Receiver: Which Is Better?

An AV receiver (AVR) combines a preamp processor, a multi-channel power amplifier, and often a radio tuner in a single chassis. An AV preamp processor strips out the power amplifier section entirely, leaving only the brain of the system. The trade-off is straightforward: a pre/pro gives you better digital processing, better DACs, and a cleaner analog preamp stage, but you have to buy a separate power amplifier to actually drive your speakers. The cost of a high-end pre/pro plus a 7-channel power amp is typically 50 to 100% more than buying a flagship AVR with comparable channel count.

The case for separates is strongest when (1) you already own a high-end multi-channel power amplifier, (2) you are running 4-ohm or low-sensitivity speakers that need serious current, (3) you want the cleanest possible signal path for two-channel music, or (4) you want to upgrade your amplifier in the future without replacing your processor. The case for staying with an AVR is strongest when (1) you have a single budget to manage, (2) your speakers are easy to drive, and (3) you do not have space for two full-size components.

When to Upgrade from an AVR to a Preamp Processor

The honest answer is: when you have stopped hearing new improvements from upgrading your speakers and room treatment. A pre/pro cannot fix a bad room or reveal details in a recording that your speakers cannot reproduce. The most common forum advice is to upgrade speakers first, then room treatment, then amplification, and only then consider a pre/pro. If you are running a mid-range AVR with bookshelf speakers in an untreated room, a $4,000 preamp processor will not transform your system. Save the money and put it into acoustic panels.

Glossary of Key Terms

Channel count: The number of discrete audio channels the processor can decode and output. A 7.1.4 layout has 7 bed channels, 1 subwoofer, and 4 height channels. The “4” in 9.4 refers to four independent subwoofer outputs.

Pre-out: A line-level analog output (RCA or XLR) that sends the processor’s audio signal to an external power amplifier. Pre-outs are the entire reason separates exist.

Balanced XLR: A three-pin connector that carries the audio signal in a differential configuration, rejecting common-mode noise over long cable runs. Most high-end pre/pros offer both XLR and RCA pre-outs.

DAC (Digital-to-Analog Converter): The chip that converts digital audio (from HDMI, optical, or coax) into analog signals the preamp stage can use. Better DACs (ESS Sabre, AKM Velvet Sound) deliver lower distortion and higher dynamic range.

Room correction: Software (Dirac Live, Audyssey, ARC Genesis) that measures your room’s acoustic response with a calibration microphone and applies EQ to flatten the result. It is the single most impactful feature in any modern AV preamp processor.

eARC (Enhanced Audio Return Channel): An HDMI feature that sends full-resolution audio (including Dolby Atmos and DTS:X) from a TV back to the processor over a single HDMI cable. Essential for TV-app-based streaming.

Buying Guide: How to Choose the Right AV Preamp Processor in 2026

Choosing an AV preamp processor comes down to matching the unit’s capabilities to your room, your speakers, and your future upgrade path. The list below covers the six factors that matter most, drawn from our own testing and from forum threads on AVS Forum, Audioholics, and Reddit r/hometheater.

Channel Count and Speaker Layout

Start with your room. A 5.1.2 layout in a small media room needs 7 channels of processing. A 7.1.4 Atmos layout in a dedicated theater needs 11. A 9.4.6 reference room needs 15. Buying more channels than you need today is fine if you plan to expand, but it is wasted money if your room cannot physically fit the speakers. Most buyers in 2026 are well served by an 11.4 channel processor like the Marantz AV 30, Cinema 30, or AV8805A.

Room Correction Technology: Dirac vs Audyssey vs ARC

Room correction is the single most impactful feature in any modern preamp processor. There are three major systems: Dirac Live, Audyssey MultEQ XT32, and Anthem Room Correction (ARC) Genesis. Dirac Live is widely considered the most accurate and the best at bass management, but it has the steepest learning curve. Audyssey MultEQ XT32 is the most common and ships on most Marantz and Denon units. It is reliable and easy to use, especially with the $20 MultEQ Editor app. ARC Genesis is exclusive to Anthem and is highly regarded for music reproduction.

For a buyer choosing between processors in 2026, the room correction decision often comes down to which system the buyer is willing to learn. If you want a set-it-and-forget-it experience, Audyssey is the path. If you want to dial in your room with surgical precision and have time to learn the software, Dirac Live is worth the upgrade cost.

DAC Quality and Audio Circuitry

Modern pre/pros use a mix of ESS Sabre, AKM Velvet Sound, and proprietary DAC chipsets. ESS Sabre DACs (like the ES9038Pro in the Anthem AVM 90) are known for detail and dynamic range. AKM Velvet Sound DACs (like the one in the Denon AVR-X4800H) tend to sound slightly warmer with lower distortion. Marantz’s HDAM (Hyper Dynamic Amplifier Module) and HDAM-SA2 circuitry is a proprietary analog preamp stage that gives the company’s processors a recognizable warm, musical character.

In blind listening tests, the differences between high-quality DACs are small. We recommend focusing on the preamp stage and power supply design first, and only then worrying about DAC chips. A well-designed preamp stage with a mediocre DAC will outperform a great DAC with a poor preamp stage every time.

HDMI 2.1, 8K, and Future-Proofing

If you are buying a preamp processor in 2026, HDMI 2.1 with 8K/60Hz and 4K/120Hz pass-through is table stakes. Every unit on our list except the older Marantz AV8805 supports it. For next-gen gaming, you also want VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), and eARC. These features matter for PlayStation 5, Xbox Series X, and high-end PC gaming.

Beyond gaming, 8K is still mostly aspirational. There is very little 8K content available, and 4K HDR on a 65-inch or larger display is still the sweet spot for most buyers. That said, the 8K HDMI ports also handle 4K/120Hz, which is genuinely useful for gaming and sports.

Balanced XLR vs Unbalanced RCA Outputs

Most high-end preamp processors offer both balanced XLR and unbalanced RCA pre-outs for every channel. XLR is preferred for long cable runs (over 10 feet) because it rejects common-mode noise. RCA is fine for short runs and is sometimes preferred for two-channel listening because some amps sound marginally better with single-ended inputs. If you are running a 7-channel power amp in a separate equipment rack, XLR is the way to go.

System Pairing: Matching Your Preamp Processor with the Right Amplifier

The single most common mistake buyers make is pairing a high-end preamp processor with inadequate amplification. A $4,000 pre/pro feeding a $500 power amp is a waste of money. As a rule of thumb, your power amplifier should cost at least 50% of what your preamp processor costs, and ideally the same or more. If you are buying the Marantz AV 10, plan on a $5,000+ power amp. If you are buying the Marantz AV7706, a 7-channel amp from Monolith, Outlaw, or Emotiva will do nicely.

For reference, popular amplifier pairings in 2026 include the Marantz AMP 10 or AMP 20 for the Marantz AV 10 and AV 20, the Monolith 7x or ATI AT3000 series for reference-level listening, and the Outlaw 7000X or Emotiva BasX TA1 for budget-friendly separates systems. If you are building a 9.4.6 system, you will need a 9-channel or 11-channel power amplifier, which is where the cost adds up.

For more on optimizing your system once you have chosen your gear, see our guide to the best home theater power conditioners and our picks for the best AV furniture for home theater setups. And if you are still in the seating-planning phase, our best home theater seating roundup covers the ergonomic side of the room.

Frequently Asked Questions

Final Verdict: Which AV Preamp Processor Should You Buy in 2026?

After three months of testing, our team landed on three clear winners for AV preamp processors in 2026. The Marantz AV 10 is the Editor’s Choice for buyers who want reference-grade 15.4 channel performance and are willing to pay for it. The Marantz AV8805A is the best-value flagship for 13.2 channel immersive audio at a slight discount over the AV 20. The Marantz AV7706 is the budget pick for first-time separates buyers, with a true preamp-only architecture and Audyssey Platinum calibration at under $2,500.

If you want a hybrid AVR that doubles as a pre/pro, the Marantz Cinema 30 is the best 11.4 channel option and the Denon AVR-X4800H is the best 9.4 channel value. For a newer mid-tier pick with Dirac Live upgrade support, the Marantz AV 30 is worth the wait for the first firmware update. Whichever you choose, pair it with a serious multi-channel power amplifier and run the room correction software properly. The best AV preamp processor in the world will not save a system that is held back by cheap amplification or a bad room.
