Motherboard Power Phases Explained: VRM Guide 2026

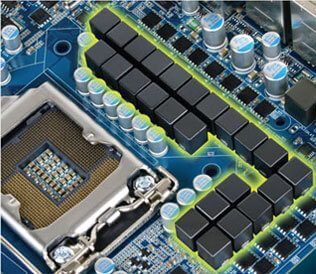

When builders talk about picking a motherboard, they often obsess over RAM slots, PCIe lanes, and RGB lighting. The one component that quietly determines whether your CPU lives or dies is the VRM, and the motherboard power phases that make it up. These tiny circuits sit just outside the CPU socket, handling the stressful job of turning raw 12V power from your PSU into the delicate ~1.2V that modern processors demand.

A weak power delivery design can wreck an otherwise perfect build. You might see random crashes, performance drops under sustained loads, or even permanent CPU damage if the voltage spikes or droops at the wrong moment. In 2026, with CPUs like the Ryzen 9 9950X and Intel Core Ultra 9 pushing past 250W under full load, the quality of your motherboard’s VRM has never been more important. Builders who ignore power delivery often end up chasing ghosts in their BIOS, never realizing that the motherboard itself is the bottleneck.

The problem is that motherboard power phases are invisible. They are buried under heatsinks, packed into dense clusters around the CPU socket, and described on spec sheets with cryptic numbers like 16+2+1. Unlike a graphics card or a CPU cooler, you cannot benchmark a VRM with a single click. You have to understand what the numbers mean, which components matter, and how to spot the difference between a solid design and a marketing mirage. This guide explains exactly what motherboard power phases are, how they work, and how many you actually need. We will break down the components, decode the confusing numbers manufacturers print on their boxes, and help you avoid the traps that make a cheap board look like a flagship.

What Is a VRM and What Are Power Phases?

VRM stands for Voltage Regulator Module. It is the collective name for the circuits on a motherboard that regulate power delivery to the CPU, and sometimes to the RAM or integrated graphics. The VRM acts as a translator: your power supply unit delivers 12V direct current, but your processor needs far less to operate safely. The VRM steps that voltage down and keeps it stable even when your CPU jumps from idle to full load in milliseconds.

The reason this step-down is so difficult is the sheer difference in voltage. Dropping 12V to roughly 1.2V means the regulator must waste or convert almost ninety percent of the electrical potential. Doing that with a single resistor would create an enormous amount of heat and provide almost no control. Instead, motherboards use a switch-mode buck converter that rapidly chops the incoming voltage and filters it into a smooth, lower output. This is far more efficient and allows precise adjustments on the fly.

A single power phase is the smallest working unit inside the VRM. Each phase contains a pair of MOSFETs, a choke, and a capacitor working together as a tiny switch-mode buck converter. The phase turns on and off thousands of times per second, slicing the 12V input into chunks that average out to the precise Vcore the CPU requests. When multiple phases are linked together, they take turns doing this work, which spreads the electrical and thermal load across a wider area.

The reason motherboard power phases matter is simple physics. A single phase trying to feed a 250W CPU would overheat almost instantly and produce voltage ripple so severe the system would crash. Split that same workload across twelve or sixteen phases, and each phase only carries a fraction of the current. The result is cooler MOSFETs, cleaner voltage, and a far more stable processor. Ripple, which is the small fluctuation in voltage between switching cycles, becomes smaller as more phases share the load. Modern CPUs tolerate almost no ripple, so this matters a great deal for stability.

Modern VRMs use a multiphase buck converter topology. A PWM controller orchestrates the timing so each phase fires in a staggered pattern. This staggering prevents all the phases from peaking at once, which reduces ripple and keeps the average voltage flat. The more phases you have, the finer the granularity of power delivery, and the easier it becomes to maintain tight voltage regulation under heavy transient loads. When a CPU suddenly demands more power, a well-designed multiphase VRM responds faster and with less overshoot or undershoot than a simpler design.

VRM Components Explained

Understanding the parts inside a VRM helps you read motherboard specs with confidence. Each component has a specific role, and the quality of those parts determines how well the entire power delivery network performs. Here is what each piece does and why it matters when you are comparing boards.

MOSFETs and Power Stages

MOSFETs are the switches that control the flow of electricity through each phase. Every power phase has at least two: a high-side MOSFET that connects to the 12V input, and a low-side MOSFET that grounds the circuit. They toggle on and off in opposition, creating the chopped voltage that the choke and capacitor smooth into steady DC power. The resistance of these switches, measured in milliohms, directly affects how much heat the phase generates. Lower resistance means higher efficiency and less thermal stress.

Older designs used discrete MOSFETs, where each transistor was a separate physical chip. Modern boards increasingly use DrMOS or Smart Power Stage packages that integrate the high-side, low-side, and driver logic into a single chip. These integrated stages are more efficient, run cooler, and can handle higher amperage. It is common to see 60A, 80A, or even 110A power stages on premium boards in 2026, which lets a 16-phase VRM deliver over 1,700A to the CPU socket if needed. The move to integrated stages has been one of the biggest improvements in motherboard power delivery over the past decade.

Chokes and Inductors

The choke, also called an inductor, stores energy in a magnetic field when the high-side MOSFET is on, and releases it to the CPU when the MOSFET turns off. It acts as a buffer that prevents sudden current spikes from reaching the processor. Ferrite chokes are the standard today because they have low electrical resistance and do not buzz or whine under load like older iron-core designs. You can usually identify the chokes on a motherboard by the blocky rectangular components near the CPU socket, often wrapped in a dark casing.

Manufacturers sometimes list the amperage rating of their chokes as a selling point. A choke rated for 50A can safely pass that much current without excessive heat, but the MOSFETs and capacitors in the same phase must also be rated for similar loads. A weak choke paired with strong MOSFETs still creates a bottleneck, so balanced component quality matters more than any single spec. The choke also determines how quickly the phase can respond to load changes, which affects transient performance when the CPU suddenly wakes up from a low-power state.

Capacitors

Capacitors filter out the high-frequency ripple that remains after the choke does its job. They charge when voltage is high and discharge when it dips, keeping the output flat and stable. Solid capacitors have almost entirely replaced electrolytic capacitors on modern motherboards because they last longer, handle higher temperatures, and resist the swelling or leaking that plagued older designs. You will often see brands tout Japanese capacitors or long lifespans as a selling point, and there is a real difference in reliability between budget and premium capacitors.

The number and quality of capacitors near the CPU socket affect how well the VRM recovers from sudden load changes. When you launch a heavy application, the CPU can demand hundreds of watts in an instant. Good capacitors supply that immediate surge while the phases ramp up, preventing a voltage dip that would cause instability. Without adequate capacitance, the VRM will sag under the initial load spike, which can trigger a crash or a protective shutdown before the CPU even reaches steady state.

PWM Controller

The PWM controller is the brain of the VRM. It reads the voltage the CPU is receiving, compares it to the target Vcore set by the BIOS or firmware, and decides how long each phase should stay on during its turn. The controller also determines the switching frequency, which is typically measured in kilohertz. A higher switching frequency means finer voltage control, but it also generates more heat in the MOSFETs because they are toggling more often per second.

Digital PWM controllers have become the norm on mid-range and high-end boards. They offer more precise voltage regulation than older analog controllers and can communicate with the CPU to adjust power delivery in real time. Some controllers also support load line calibration, which counters the natural voltage drop known as vDroop that occurs when the CPU pulls heavy current. Without load line calibration, a CPU might request 1.3V but only receive 1.25V under load, which can cause instability during demanding tasks. A good digital controller can minimize this drop and keep the voltage where it belongs.

Power Phase Notation Explained

If you have ever looked at a motherboard box, you have seen strings like 8+2+1, 16+2+1, or 14+2+2. These numbers describe how the VRM divides its power delivery across different parts of the processor. The first number is the most important, but each digit tells a specific story about what the board can handle. Learning to read this notation is one of the fastest ways to judge whether a motherboard matches your CPU.

The first number represents the CPU core phases. These are the power stages dedicated exclusively to the main processing cores. More cores generally mean more total power draw, so this number scales with the processor tier the board is designed for. The second number usually covers the SoC or integrated graphics power. On AMD platforms, this feeds the memory controller and Infinity Fabric. On Intel boards, it often handles the integrated GPU. The third number, if present, is typically for the VCCIO or miscellaneous auxiliary rails that support memory and PCIe signaling.

For example, a 16+2+1 layout means sixteen phases for the CPU cores, two for the SoC, and one for auxiliary functions. A 14+2+1 design is slightly lighter on core power but still perfectly capable of running high-end chips. The difference between a 16+2+1 and an 18+2+2 board is mainly relevant for extreme overclocking or flagship processors that pull over 250W continuously. For most users, the difference between fourteen and sixteen core phases is invisible in daily use, but the difference between six and twelve can be dramatic under heavy all-core loads.

There is a trap here, though. Some manufacturers print phase counts that include doubled or virtual phases. A phase doubler chip takes one PWM signal and splits it into two, but the actual power delivery is still handled by a single phase in terms of total current capacity. Two phases sharing one PWM channel do not double the power ceiling. They mainly help with thermal distribution and ripple reduction. Savvy builders learn to look past the box art and read actual teardown reviews to confirm whether a 16-phase board has true phases or doubled ones. A true 8-phase design can often outperform a doubled 16-phase design in raw current capacity if the original phases are higher quality.

How Many Power Phases Do You Need?

The honest answer depends on your CPU, your workload, and whether you plan to overclock. A basic office PC with a 65W processor does not need the same power delivery as a workstation running a 16-core chip at 250W. Overspending on a 20-phase board for a light build is a waste of money, but underspending on a 6-phase board for a flagship CPU is asking for thermal throttling and shortened component life. The key is matching the motherboard’s power delivery to the peak current your CPU can draw, not just its average TDP.

The table below gives practical guidance for matching power phase counts to common CPU tiers. These recommendations assume stock operation at typical ambient temperatures. If you overclock or live in a hot climate, aim one tier higher for safety. Remember that TDP ratings are often conservative, and modern processors can spike well above their listed power for short bursts.

CPU Tier	Typical TDP	Recommended Core Phases	Notes
Entry-level (4-6 cores)	35W – 65W	6+2+1 to 8+2+1	Fine for stock speeds and light tasks
Mid-range (6-8 cores)	65W – 105W	10+2+1 to 12+2+1	Comfortable for gaming and content creation
High-end (12-16 cores)	125W – 170W	14+2+1 to 16+2+1	Ideal for heavy multi-threaded workloads
Flagship OC (16+ cores)	200W – 250W+	16+2+1 to 18+2+2	Needs quality 80A+ stages and strong cooling

These numbers are rules of thumb, not hard limits. A well-built 8-phase board with 80A DrMOS stages and a beefy heatsink can outperform a 14-phase board with cheap 40A discrete MOSFETs and poor airflow. Total amperage capacity matters as much as phase count. You can estimate the theoretical ceiling by multiplying the number of core phases by the amperage rating per stage. If the result is well above your CPU’s peak current draw, the board is likely adequate. If you want a board that balances features and power delivery without overspending, our guide on how much to spend on a motherboard breaks down the sweet spots for each budget tier.

For high-end AMD builds, the best motherboards for Ryzen 9 5900X show what a solid VRM layout looks like in practice. Many of those boards use 8+2 virtual designs with 60A stages, which is enough for a 105W processor at stock and mild overclocking. If you are stepping up to an 8-core Ryzen 7, our picks for the best motherboards for Ryzen 7 5800X include boards with 10-phase or better designs that handle sustained loads without breaking a sweat.

One thing forum users consistently emphasize is that the CPU power connector also plays a role. Most boards use an 8-pin EPS connector, but high-end models add a second 8-pin or even a 4-pin to handle extreme current draw. The extra connector is not always necessary for stock operation, but it reduces resistance and can help with stability when pushing chips past their stock limits. The 24-pin ATX connector feeds the board as a whole, but the 8-pin EPS is the dedicated lifeline for CPU power, and skimping there is never wise.

It is also worth remembering that modern CPUs do not stay at their base TDP for long. Intel’s PL2 power limits and AMD’s PBO algorithms can push a 125W processor to over 200W for sustained periods if thermals allow. A motherboard with a weak VRM may technically boot with a flagship CPU, but it will throttle the moment the processor tries to stretch its legs. Buying a board with enough headroom for these power spikes is the difference between a smooth experience and a constant battle with thermal limits.

Phase Quality vs Phase Count

More phases are not automatically better. A motherboard with twelve cheap phases can deliver worse voltage regulation than a board with six premium ones. The quality of the MOSFETs, the amperage rating per stage, the choke design, and the PCB layout all influence the real-world performance of the VRM. Manufacturers know that shoppers often compare raw numbers, so some boards are designed to look impressive on paper rather than perform well under stress. The PCB itself matters too: thicker copper layers and better trace routing reduce resistance and improve heat dissipation across the power delivery area.

The amperage rating per stage is the most honest metric you can find on a spec sheet. A 16-phase board with 40A stages can theoretically deliver 640A total. An 8-phase board with 90A stages can deliver 720A from half the phase count. The 8-phase board would run each stage hotter, but if the heatsink and airflow are adequate, it can feed a hungrier CPU. In real tests, the 8-phase board might even show better voltage stability because fewer phases mean simpler PWM timing and less chance of signal skew between channels.

Another factor is the VRM layout itself. On some boards, the phases are clustered on one side of the CPU socket. On others, they are split between the top and left sides to spread heat more evenly. A split layout with phases on both sides of the socket often runs cooler because the heat is not concentrated in one spot. This is especially important on compact microATX boards where space around the socket is limited. Good layout design is invisible to most buyers but makes a measurable difference in thermal performance.

Deceptive Marketing and Fake Phases

Marketing departments love big numbers. Some manufacturers use phase doublers to inflate their phase counts without adding true power delivery capacity. A phase doubler takes one PWM signal and drives two sets of MOSFETs with it. This helps spread heat, but the total current ceiling is still limited by the original phase. Calling a doubled 4-phase design an 8-phase board is technically misleading, yet it happens more often than you might think. The practice is not illegal, but it is definitely confusing for buyers who assume each number on the box represents a complete independent power stage.

Another trick is counting chokes instead of complete power stages. A choke is just one component of a phase. If a board has twelve chokes but only six MOSFET arrays, it does not have a true 12-phase VRM. Enthusiast communities have a well-known saying: do not count chokes, count actual power stages. The only reliable way to verify the true phase count is to look at a teardown from a trusted reviewer who has stripped the heatsink and traced the PCB layout. These reviewers use the markings on the MOSFETs and the PWM controller to determine exactly how many true phases are present.

Some brands also use terms like twin power phase or twin 8-phase to describe layouts that are essentially doubled designs. Without reading a detailed review, it is hard to tell whether a board has true twin phases or a marketing label slapped onto a simpler VRM. The community consensus is that transparent amperage ratings and independent thermal testing are worth far more than any number printed on the retail box. When in doubt, look for boards that list the specific amperage per stage and the PWM controller model, rather than just a raw phase count.

VRM Cooling and Thermal Management

Power phases generate heat. Every amp that passes through a MOSFET produces a small amount of thermal energy, and with modern CPUs drawing over 200A under load, those small amounts add up quickly. If the VRM overheats, the motherboard can trigger thermal throttling that drops CPU performance to protect the board from damage. Many users only discover this after buying a cheap board and wondering why their benchmark scores tank during long sessions. The CPU itself might be fine, but the VRMs protecting it are screaming for mercy.

VRM heatsinks are the first line of defense. A good heatsink covers every MOSFET in the power delivery chain, not just the ones near the CPU socket. Premium boards use thick aluminum blocks with finned surfaces to increase surface area. Some add heatpipes to carry heat away from the hottest phases to cooler parts of the board. Thermal pads sit between the MOSFETs and the heatsink to fill microscopic gaps and improve conductivity. The quality of these pads matters: cheap pads dry out and lose effectiveness over time, while high-quality pads maintain their thermal transfer properties for years.

Case airflow matters more than most people realize. A high-end VRM with a weak heatsink can still overheat if it is starved of fresh air. Builders should make sure the top half of the motherboard, where the VRM sits, receives direct airflow from intake fans. Tower coolers that blow air downward can also help, though they may conflict with very tall heatsinks. AIO liquid coolers, on the other hand, remove the CPU fan from the VRM area, which can sometimes raise MOSFET temperatures unless case airflow is strong. If you are using an AIO, adding a top exhaust fan or a rear exhaust fan near the VRM is a smart move.

Monitoring software is your friend. Tools like HWiNFO can read VRM temperature sensors on many boards. If you see VRM temps climbing past 90 degrees Celsius under sustained load, you are likely hitting a thermal ceiling. The fix is usually better case airflow, a board with a stronger heatsink, or reducing the CPU load. For serious overclocking, some builders add small fans directly over the VRM heatsink, though this adds noise. On the most extreme builds, water cooling the VRM is possible but rare and expensive. For almost everyone, a solid heatsink and good case airflow is the right answer.

Modern Motherboard Power Solutions for 2026

Motherboard power delivery has evolved dramatically over the past few years. Intel’s Z890 and B860 platforms, alongside AMD’s X870E and B850 chipsets, are designed for processors that demand more current than ever before. The AM5 socket and Intel’s LGA 1851 both require robust VRMs to support chips like the Ryzen 9 9950X and Core Ultra 9 285K, which can surge well past their rated TDP during all-core workloads. These platforms are not just minor refreshes; they represent a significant jump in power density that demands modern power delivery designs.

The biggest technical shift has been the move toward integrated power stages. DrMOS and Smart Power Stage packages from vendors like Infineon, Renesas, and Monolithic Power Systems combine the driver, high-side MOSFET, and low-side MOSFET into one compact chip. These stages can handle 80A to 110A each while running cooler than discrete designs. They also allow motherboard designers to pack more phases into the same physical area around the CPU socket. A board that would have struggled to fit eight discrete phases can now accommodate sixteen integrated stages without crowding the DIMM slots or the top PCIe slot.

Digital PWM controllers are now standard even on mid-range boards. They support advanced features like per-phase current sensing, adaptive voltage scaling, and telemetry reporting to the CPU. This lets the processor and motherboard work together to deliver exactly the right voltage at exactly the right time, improving both efficiency and stability. In 2026, boards with these modern controllers are the safest choice for anyone buying a new high-TDP processor. The days of analog PWMs and basic load line calibration are fading, replaced by intelligent power delivery that responds to the CPU in real time.

Another trend is the use of thicker PCBs with more copper layers for power and ground planes. A 6-layer or 8-layer PCB can carry more current with less heat and better signal integrity than a 4-layer board. This is especially important for memory overclocking and high-speed PCIe signaling, both of which rely on clean power delivery. When you see a motherboard advertised with a 6-layer PCB or more, it is often a sign that the manufacturer took power delivery seriously rather than cutting corners to hit a price point.

Frequently Asked Questions

Conclusion

Motherboard power phases are one of the most underappreciated parts of a PC build. The VRM and its power delivery stages determine whether your CPU runs at its advertised speeds or throttles under pressure. Understanding the basics, from MOSFET ratings to phase notation, lets you shop with confidence and avoid boards that look impressive on paper but disappoint under load.

In 2026, the gap between entry-level and high-end power delivery has only grown wider. A budget board with 6+2+1 phases can handle a light processor for daily tasks, but a high-TDP chip deserves a VRM with true phases, strong amperage per stage, and proper cooling. Do not let marketing numbers fool you. Check teardowns, trust transparent specs, and match your motherboard’s power design to the CPU you plan to run.

Even mid-range builds benefit from solid VRMs. If you are looking for a reliable board that balances cost and power delivery, our guide to the best motherboards for Ryzen 5 5600X highlights models that offer excellent VRM quality without overspending. Whether you are building a budget gaming rig or a flagship workstation, the right power phases will keep your system running fast and stable for years to come.
