Motherboard Expansion Slots: Types & Uses (June 2026)

If you are building or upgrading a PC in 2026, motherboard expansion slots are one of the first details you should understand. They determine what hardware you can add tomorrow without replacing the entire board. Whether you need a faster graphics card, high-speed storage, or better wireless connectivity, the slots on your motherboard define your upgrade path.

These slots are the physical and electrical bridges between your motherboard and add-in cards. They supply power, data lanes, and mechanical mounting points. Modern systems use a point-to-point architecture, which means each slot gets its own dedicated pathway rather than sharing a single bus with every other device. This design is the reason why modern PCs can run multiple high-bandwidth cards at once without slowing each other down.

In this guide, we will cover the full landscape of expansion slots as it stands in 2026. You will learn about PCI Express as the only modern standard, the different lane sizes, the rise of M.2 storage, and how motherboard form factors affect slot count. If you want a broader look at how the motherboard ties everything together, our breakdown of motherboard components is a great place to start.

What Are Motherboard Expansion Slots?

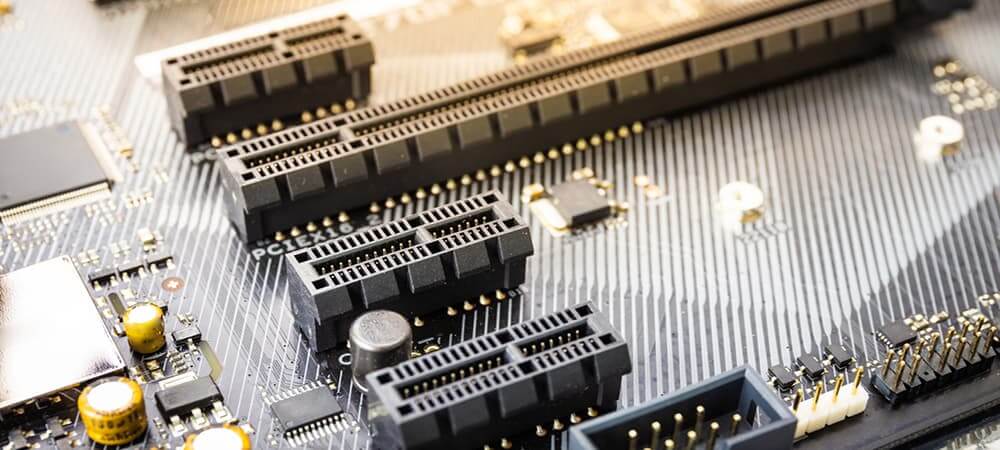

Motherboard expansion slots are sockets built into the printed circuit board that accept add-in cards. These cards extend the capabilities of your computer beyond what the integrated chipset alone can provide. Each slot delivers a set of electrical contacts, or pins, that carry data, power, and control signals between the card and the rest of the system.

Modern systems rely almost exclusively on the PCI Express standard. This interface uses high-speed serial links called lanes. Each lane is a pair of wires that sends data in both directions simultaneously. Because each card gets its own dedicated lanes, the bandwidth is not shared across devices. This is a major shift from the old parallel PCI bus where every card competed for the same pool of bandwidth.

When you insert a card into a slot, the motherboard detects the device through a brief handshake process. The BIOS or UEFI firmware reads the card’s configuration and allocates the appropriate number of lanes. The operating system then loads the correct drivers and makes the hardware available. This behavior is possible because the PCIe standard defines a uniform protocol that manufacturers follow.

Not every slot is the same. Some are physically long but only wired for a fraction of their potential lanes. Others are short and purpose-built for specific card types. Learning to read these distinctions is the first step toward getting the most from your build.

Modern Expansion Slot Types

PCI Express – The Only Modern Standard

PCI Express, or PCIe, is the single expansion slot standard found on every new motherboard sold today. It replaced the older PCI and AGP interfaces by offering faster speeds, superior scalability, and dedicated point-to-point links. Since its launch in 2003, the standard has evolved through several generations, each doubling the available bandwidth per lane.

A PCIe slot can carry video, audio, network, and storage data depending on the card installed. It is the interface you use for graphics cards, Wi-Fi adapters, sound cards, and USB expansion cards. Its flexibility is the main reason it became the universal standard for internal expansion. No other slot type in production today offers the same breadth of support.

Unlike legacy buses that shared bandwidth across every connected device, PCIe gives each card its own dedicated lane connection to the chipset or CPU. This prevents one device from slowing down another. For builders in 2026, this means you can run a high-end GPU and a fast NVMe card at the same time without either one creating a bottleneck for the other.

PCIe Lane Sizes and Physical Slots

PCIe slots come in several physical sizes that correspond to different lane counts. The most common sizes are x1, x4, x8, and x16. The number tells you how many data lanes the slot uses. More lanes mean more bandwidth, which is why graphics cards typically occupy x16 slots.

A PCIe x1 slot is the smallest, measuring roughly 25 mm in length. It provides enough bandwidth for Wi-Fi cards, sound cards, and basic USB expansion controllers. These slots are ideal for minor upgrades that do not need the massive throughput of a full x16 slot. Builders often use them to add wireless connectivity without touching the main GPU slot.

PCIe x4 slots are often found in the middle of a motherboard. They work well for NVMe expansion cards, SATA controllers, and high-speed network adapters. Some M.2 connectors also route through x4 connections, giving them the same bandwidth as a physical x4 slot. This makes the x4 lane count a sweet spot for storage and networking add-ons.

PCIe x8 and x16 slots are the longest. They handle the heaviest data loads. A full x16 slot is the standard home for modern graphics cards, though some cards only need x8 electrically. It is important to remember that a slot can be physically x16 yet wired for only x8 lanes. This distinction is common on budget boards and is always listed in the motherboard specifications.

M.2 Slots

M.2 is a compact expansion interface that has become standard on motherboards since around 2015. It is not a traditional card slot, but it connects directly to the PCIe bus and provides the same high-speed data pathway. Most M.2 connectors on modern boards support NVMe SSDs, which deliver read and write speeds far beyond what SATA drives can offer.

An M.2 slot typically uses a PCIe x4 link. Some motherboards also offer SATA-based M.2 options, but NVMe over PCIe is the dominant standard in 2026. The slot itself is a small mounting point on the motherboard, usually positioned near the CPU or chipset. It accepts gum-stick-sized SSDs that screw directly into the board.

Because M.2 shares the PCIe bus, it can consume lanes that might otherwise go to a physical x4 slot. This is why some motherboards disable certain SATA ports or PCIe slots when an M.2 drive is installed. Checking the motherboard manual is the best way to understand how lane sharing works on your specific board.

Legacy Slots – Historical Context Only

Before PCIe became universal, several other slot types populated motherboards. These are now obsolete and you will not find them on any new board. Understanding them is useful mainly for troubleshooting old hardware or appreciating how the standard evolved over the decades.

ISA slots date back to the 1980s. They supported sound cards, video cards, and network adapters in early personal computers. VESA Local Bus slots arrived in the early 1990s as a faster alternative for video cards. Both disappeared by the late 1990s as PCI took over.

AGP, or Accelerated Graphics Port, launched in 1997 and was designed specifically for video cards. It offered better bandwidth than PCI for its time, but it was completely phased out by around 2008. Today, no modern motherboard includes AGP. The article that claimed modern PCs retained AGP alongside PCIe was simply wrong. AGP has been dead for nearly two decades.

The PCI slot itself was the mainstream standard from the mid-1990s through the early 2010s. It used a shared parallel bus rather than point-to-point links. You might still see it on very old office machines, but it has no place in current builds. AMR and CNR were even shorter-lived niche slots for audio and modem cards that rarely saw adoption outside of budget OEM systems.

PCIe Generations and Bandwidth Comparison

The PCI-SIG organization defines PCIe specifications, and each new generation roughly doubles the bandwidth per lane. Knowing the generation of your motherboard helps you understand what cards will perform best. In 2026, PCIe 4.0 and 5.0 are common on consumer platforms, with PCIe 6.0 hardware beginning to appear on high-end boards.

PCIe 1.0 launched in 2003 with a signaling rate of 2.5 GT/s and about 250 MB/s per lane. A full x16 configuration provided roughly 4 GB/s of total bandwidth. It was a massive improvement over shared PCI at the time, and it laid the groundwork for the unified expansion slot we use today.

PCIe 2.0 arrived in 2007 and doubled the rate to 5.0 GT/s, yielding about 500 MB/s per lane. This generation made multi-GPU setups more practical and gave early PCIe SSDs a boost. It was the standard for many mainstream systems throughout the early 2010s.

PCIe 3.0 debuted in 2010 with 8.0 GT/s and roughly 985 MB/s per lane. An x16 slot could move nearly 16 GB/s. This generation became the baseline for years and is still found on many budget-friendly systems today. Most GPUs and NVMe drives from the late 2010s were designed around this standard.

PCIe 4.0 came in 2017 with 16.0 GT/s and about 2 GB/s per lane. A x16 slot delivers roughly 32 GB/s. Many current-generation GPUs and NVMe SSDs take advantage of this bandwidth, and boards like our recommended PCIe 4.0 motherboards support it natively. This generation marked the point where storage began to rival graphics in raw bandwidth demand.

PCIe 5.0 followed in 2019 with 32.0 GT/s and about 4 GB/s per lane. x16 totals reach around 64 GB/s. High-end storage controllers and next-generation GPUs are beginning to saturate this interface. Intel and AMD platforms have adopted it for their flagship consumer chipsets.

PCIe 6.0 was finalized in 2022 and introduces PAM4 signaling at 64.0 GT/s. It delivers roughly 8 GB/s per lane, or about 128 GB/s in a full x16 configuration. While consumer hardware is still catching up, the standard is already defined and enterprise gear is adopting it. Expect to see it filter into enthusiast builds within the next few years.

One of the best features of PCIe is backward compatibility. A PCIe 4.0 card will work in a PCIe 3.0 slot, and a PCIe 3.0 card will work in a PCIe 4.0 slot. The connection simply runs at the speed of the slower device. This protects your investment when mixing old cards with new motherboards or vice versa.

How Many Expansion Slots Does a Motherboard Have?

The number of expansion slots on a motherboard is determined primarily by its form factor. Larger boards have more room for PCIe slots, while compact designs sacrifice expandability for size. If you are planning a build with multiple add-in cards, form factor should be one of your first considerations.

ATX motherboards, the most common size for full-tower and mid-tower builds, typically include up to seven expansion slots. These are arranged along the bottom edge of the board. Most ATX boards in 2026 offer at least one PCIe x16 slot for a GPU, plus several x1 or x4 slots for additional cards. This is the go-to standard for gamers and power users who need room to grow.

Micro-ATX boards shrink the footprint and usually provide four expansion slots. They still accommodate a full-size graphics card in most cases, but you have fewer slots left for extras like capture cards or Wi-Fi adapters. This size is popular for budget and mainstream builds where expandability is secondary to cost and case compatibility.

Mini-ITX boards are the smallest standard form factor and typically offer only one expansion slot. That slot is almost always a PCIe x16 slot for the graphics card. Because the GPU occupies the single slot, small-form-factor builders often rely on integrated peripherals or M.2 storage to avoid needing extra cards. If you want to explore compact options, our motherboard options guide covers several form factors.

It is also important to understand the difference between CPU-connected lanes and chipset-connected lanes. A processor only has so many PCIe lanes to share between the primary GPU slot, M.2 storage, and sometimes other high-speed devices. The chipset provides additional lanes, but they share a single link back to the CPU. This is why adding too many high-bandwidth cards can bottleneck even on a board with many physical slots.

If you need more slots than your board provides, a riser card can add physical connectors. However, riser cards do not create new lanes. They simply reroute existing ones. For most users, choosing the right motherboard from the start is a better strategy than trying to retrofit an undersized board later.

Common Uses for Expansion Slots

Graphics cards are the most visible occupants of PCIe slots. A modern GPU demands a PCIe x16 slot for maximum bandwidth. Some high-end builds even use multiple GPUs, though multi-GPU support has declined in recent years as developers focus on single-card performance. The graphics card remains the primary reason most users look at expansion slots first.

Beyond graphics, PCIe slots host a wide variety of hardware. Wi-Fi and Bluetooth cards are popular upgrades for motherboards that lack built-in wireless. A dedicated sound card can offer better audio processing than onboard solutions, especially for content creators and audiophiles who need clean inputs and outputs.

USB expansion cards add extra ports for users who run out of rear-panel connections. Video capture cards are essential for streamers who want to record or broadcast from external consoles. RAID controllers and SATA expansion cards provide more storage connectivity for server and NAS builds that need more drives than the chipset natively supports.

AI accelerators and specialized compute cards are emerging as interesting PCIe occupants. These cards offload machine-learning tasks from the main GPU. As software begins to leverage dedicated AI hardware, having a free PCIe slot with adequate bandwidth becomes more valuable. Even a x4 slot can be enough for some entry-level inference cards.

Even M.2 NVMe SSDs effectively use PCIe lanes, even though they do not sit in a traditional slot. The same underlying bus powers them. When you install a fast NVMe drive, you are using expansion bandwidth even if no card is plugged into a physical bracket. This is why lane allocation matters even for builds that look like they have empty slots.

How to Identify Your Expansion Slots

If you are unsure what expansion slots your motherboard has, the easiest method is to open your case and look. PCIe slots are the long connectors near the bottom of the board, often colored white, black, or reinforced with metal. They are labeled with their size on the PCB silkscreen, usually as x1, x4, x16, or similar.

You can also use software to identify slots without opening your computer. Tools like CPU-Z and Speccy report motherboard details and connected devices. Windows Device Manager will list the PCIe devices currently active, though it may not show empty slot types. Linux users can run lspci from the terminal to see the same information.

The motherboard manual is the most reliable source. It contains a diagram showing every slot, its lane configuration, and any sharing behavior with M.2 or SATA ports. Manufacturer websites also host digital copies of these manuals if you have lost the physical booklet. This is the single best document for understanding exactly what your board can do.

For builders shopping for a new board, product pages on retailer sites list the expansion slot layout. Just be sure to check whether the x16 slot is truly wired for sixteen lanes or if it shares bandwidth with other slots. This detail is often buried in the specifications tab, but it makes a real difference for high-end GPU performance.

PCIe Compatibility and Lane Allocation

One of the most common questions is whether a smaller card fits into a larger slot. The answer is yes. A PCIe x1 card will physically fit and function in a PCIe x4, x8, or x16 slot. The extra physical space is simply unused, and the card communicates over its single lane. This is a major convenience when you only have large slots free.

The reverse is also true in some cases. A x16 graphics card can be inserted into a x8 slot, though it may lose bandwidth. Some cards are designed to run at x8 without major performance loss. However, putting a x16 card into a x1 slot is physically impossible because the card is too long for the connector. The notch placement prevents incorrect insertion.

Another frequent point of confusion is the difference between physical slot size and electrical wiring. A motherboard may have a full-length x16 slot that is only wired for x8 lanes. This is common on budget boards where the manufacturer saves cost by not connecting all the pins. The card will still work, but it will not reach its full bandwidth potential.

GPUs are also becoming thicker. Many modern graphics cards use two or three physical slot brackets, which can block adjacent slots even if those slots are electrically free. Before buying a large GPU, check how many slot positions it occupies and whether it will cover the neighboring PCIe connectors. This is a common pain point for builders who plan to fill every slot.

Compatibility across generations is straightforward thanks to the PCIe design. You can insert a PCIe 5.0 card into a PCIe 3.0 slot, and it will run at the older generation’s speed. The same applies when you put a PCIe 3.0 card into a PCIe 4.0 slot. This cross-generation support is one reason the standard has remained so durable over two decades.

Frequently Asked Questions

Final Thoughts

Motherboard expansion slots are the gateways that let your PC grow and adapt. In 2026, PCI Express is the only standard that matters for new builds, and understanding its lane sizes and generations helps you pick the right motherboard. The days of worrying about AGP, PCI, or ISA are long behind us, and modern builders benefit from a single, unified interface that handles nearly every upgrade imaginable.

When you plan your next build, match the form factor to your expansion needs. ATX boards offer the most room, Micro-ATX balances size and slots, and Mini-ITX forces you to choose carefully. Always check the motherboard manual to see how lanes are shared between physical slots and M.2 storage. That single step prevents most compatibility surprises.

For more specific recommendations, our motherboard buying guide and other platform-specific roundups can help you find a board with the perfect expansion layout. Getting the slot configuration right now saves you from costly swaps later. If you want to explore PCIe 4.0 options further, our Ryzen 5 5600X motherboards article covers boards that balance modern lanes with practical pricing.
